A short Summary of the

1. A shortSummaryof the Data Analysis Meeting, January 2001 Golm including a list of decisions and action items Copies of electronic presentations available on DC home page & GEO documentation server

2. Benno: Detector Status • MCs and 1200m cavity operative.1st monolithic suspension about to be installed.Full detector to be installed in 2001.See Bennos presentation • Programming to be done: • Minute maker debugging • Frame viewer • Labview- DAQS connection (how to display 800 channels of data) • data transfer Hannover – Golm/K.Zuse • reduced data set + compression • Data taking periods: • 2 weeks July 2001 no SR • 1 week October 2001 with SR • inf. >December 2001

3. Martin Hewitson, Karsten Kötter: DAQS • Problems: • # of channels limited • reflective memory (Ian:takes too long to adapt to GEO) • exchange processor (Pentium or faster BAJA-compatible ) • use more than one processor card • solve problem before beginning of April when DC starts • GPS time stamps • Reliable generation of frames • No frame viewer • Data storage limited to a few hours • Too much workload on Ian Taylor

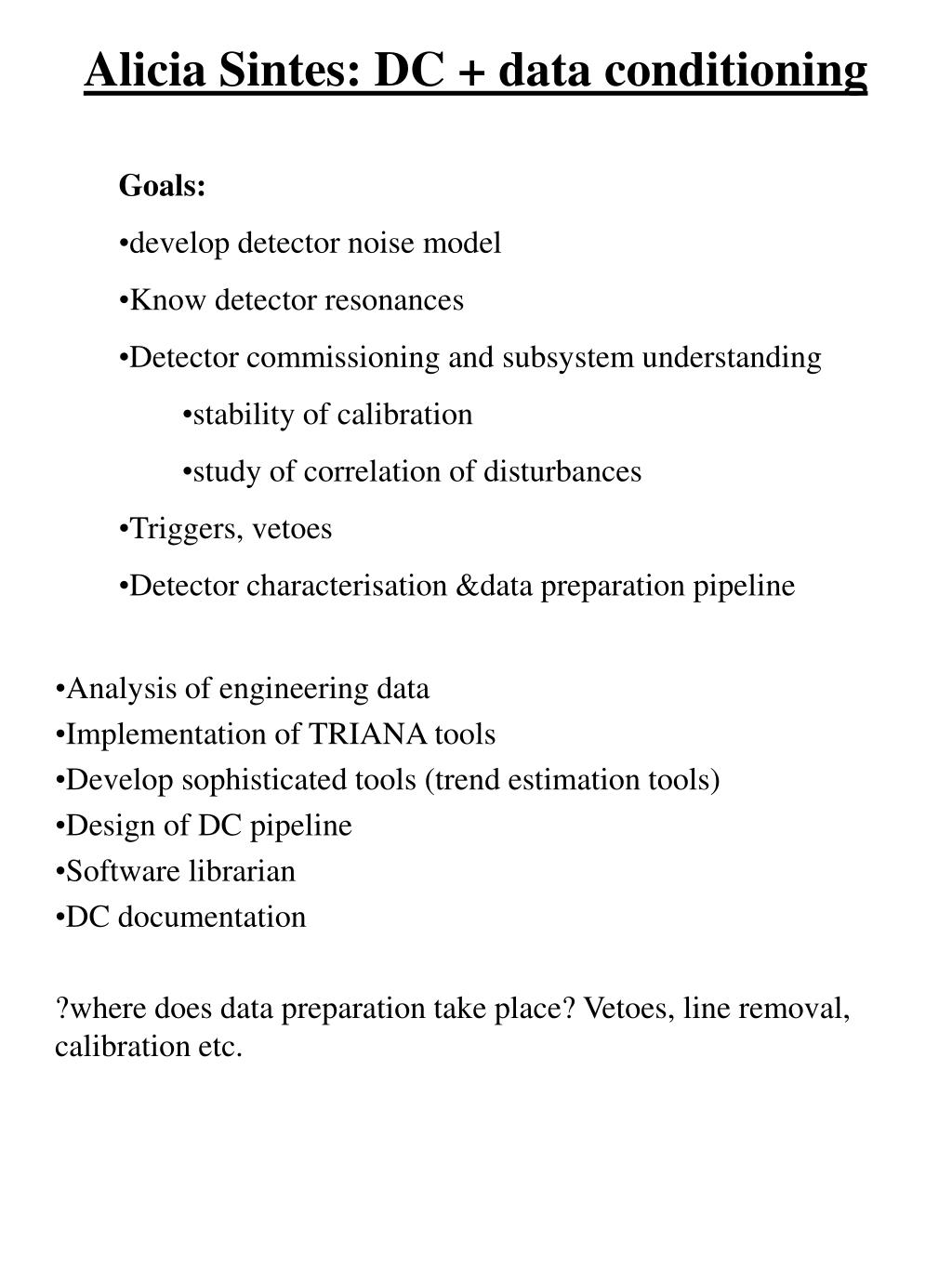

4. Alicia Sintes: DC + data conditioning • Goals: • develop detector noise model • Know detector resonances • Detector commissioning and subsystem understanding • stability of calibration • study of correlation of disturbances • Triggers, vetoes • Detector characterisation &data preparation pipeline • Analysis of engineering data • Implementation of TRIANA tools • Develop sophisticated tools (trend estimation tools) • Design of DC pipeline • Software librarian • DC documentation • ?where does data preparation take place? Vetoes, line removal, calibration etc.

5. Benno Willke: data taking plans There are already data available DC people, please come to the site to learn about the detector! Data taking plan: • DAQS will run all time once it is set up and detector is operative • Last 4 days always available on RAID system • Access policy will depend on demand • Status documented in „html“ database • Input from DC group needed to develop a final list of stored channels • List of detector channels (storage depth TBD) and environmental channels Action Items: • extraction of Labview channels out of frame files • setup data chain to access data • learn how to deal with Gbytes of data • attend DC workshop 26. Feb. – 2. Mar. in Ruthe

6. Uta Weiland: Detector Resonances Catalogue (available @ GEO documentation server) of resonances gives information on • Component or signal causing or showing oscillation • Frequency • Quality factor Include information about magnitude and stability of resonance frequency.

7. Karsten Kötter: data base • Database keeps track of DAQS status (which signals, resolution, sampling rate, gain, comments) • Detector status • Information is stored in frame files • Choosing frame file can be done via database Input into database: • detector status input by experimentalist via web interface • DAQS status automatically maintained by configman. Updated when changes take place Output of database: • Web interface for looking up data

8. Soma Mukherjee: Overview of tools fornoise characterization I • Simple and robust tools needed: • Trend estimation • Visual observation of large transients • Diagnostics: PSD • Line discriminator • Transients not obvious to the eye: Spectrogram (S(f),t) • Density estimation: Histograms, Kernel est., Hypothesis testing (chi^2) • Channel correlation: Cross correlation, Coherence • Data in a single band: Bandpass filter, heterodyning • Line removal tools: Coherent line removal (Matlab & C, offline), kalman filter (Matlab), adaptive line enhancement (Matlab,LAL), cross channel regression [frequency or time domain](C, Matlab), median based line tracker(Matlab, offline), multi taper (GRASP), resampling based harmonic removal (C++).

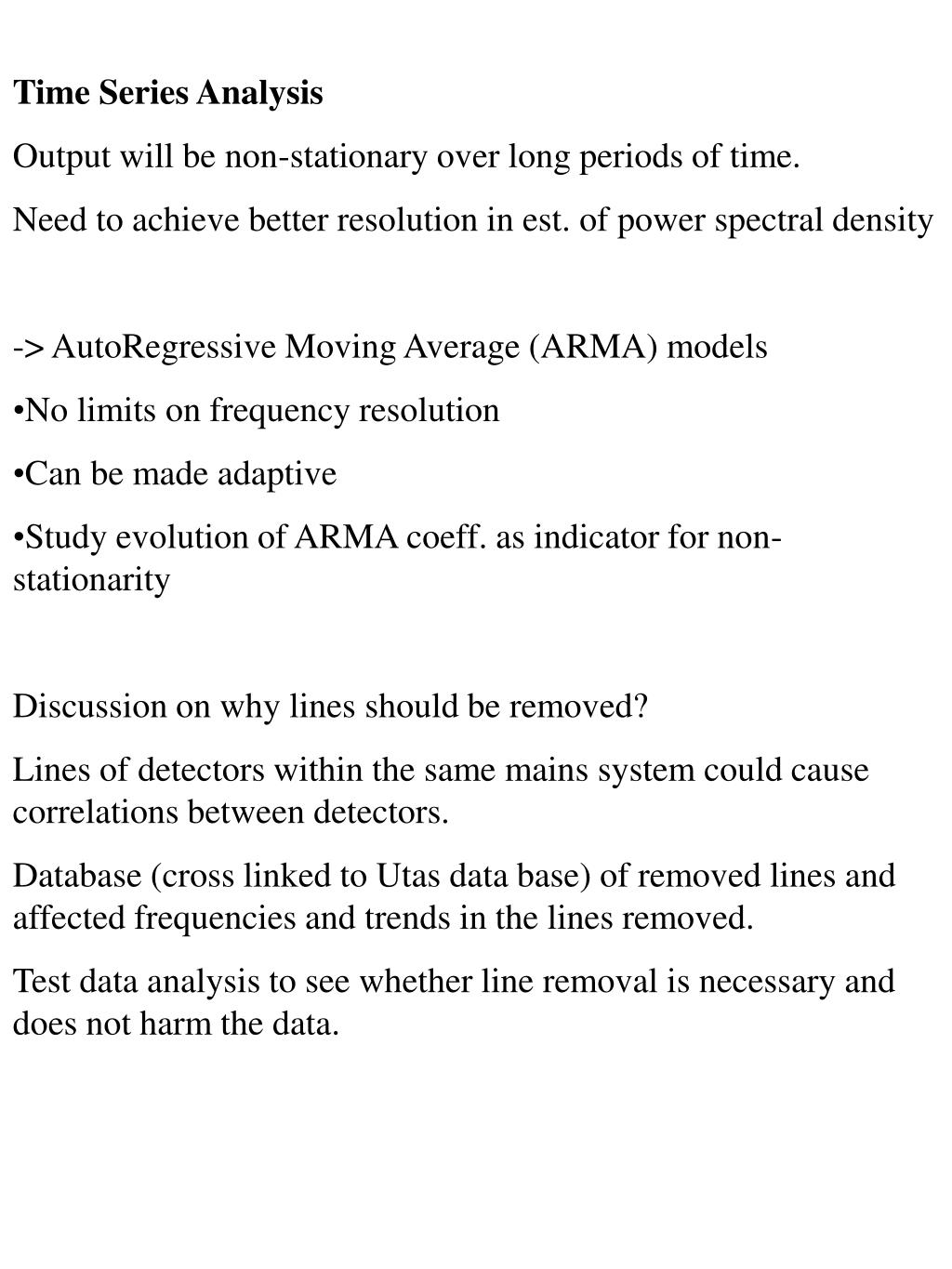

9. Time Series Analysis • Output will be non-stationary over long periods of time. • Need to achieve better resolution in est. of power spectral density • -> AutoRegressive Moving Average (ARMA) models • No limits on frequency resolution • Can be made adaptive • Study evolution of ARMA coeff. as indicator for non-stationarity • Discussion on why lines should be removed? • Lines of detectors within the same mains system could cause correlations between detectors. • Database (cross linked to Utas data base) of removed lines and affected frequencies and trends in the lines removed. • Test data analysis to see whether line removal is necessary and does not harm the data.

10. R. Balasubramanian: Overview of Tools for noise Characterization II • Time-Frequency methods • Signal track search (Detector for quasiperiodic bursts) (LAL code) limited to a few sec by computational needs N^2 log(N) • Power monitoring • Inter channel correlations • Wavelet transforms

11. Soumya Mohanty: DC pipeline • Need automated tools pointing out interesting segments(i.e. changes in PSD, Transients) to handle large amounts of data. Not for commissioning stage. • 2 types: • DC pipeline • data preparation/conditioning pipeline • Pipeline design has to investigate cross coupling effects between pipeline subsystems • Design status: tools identified, computational costs and statistical characterisation can be studied. • Pipeline design will affect planning of other data analysis components • Concrete design exists: Lined out candidate pipeline (available on web page) • Several candidates have to be compared • Requirements: • Fast enough to work online • Language: C++(LDAS, DMT, VEGA), Java (TRIANA) • Database: depends on data mining tasks requirements • Close co-operation with experimentalists required • Almost all available in matlab (TBC) • Use sequential files instead of relational database • To test implement as a large matlab program then transfer to C++ or TRIANA • Develop metrics of performance • Test against sim. and real data • Requires additional manpower to get ready in time (i.e. for the data taking test runs in Ruthe)

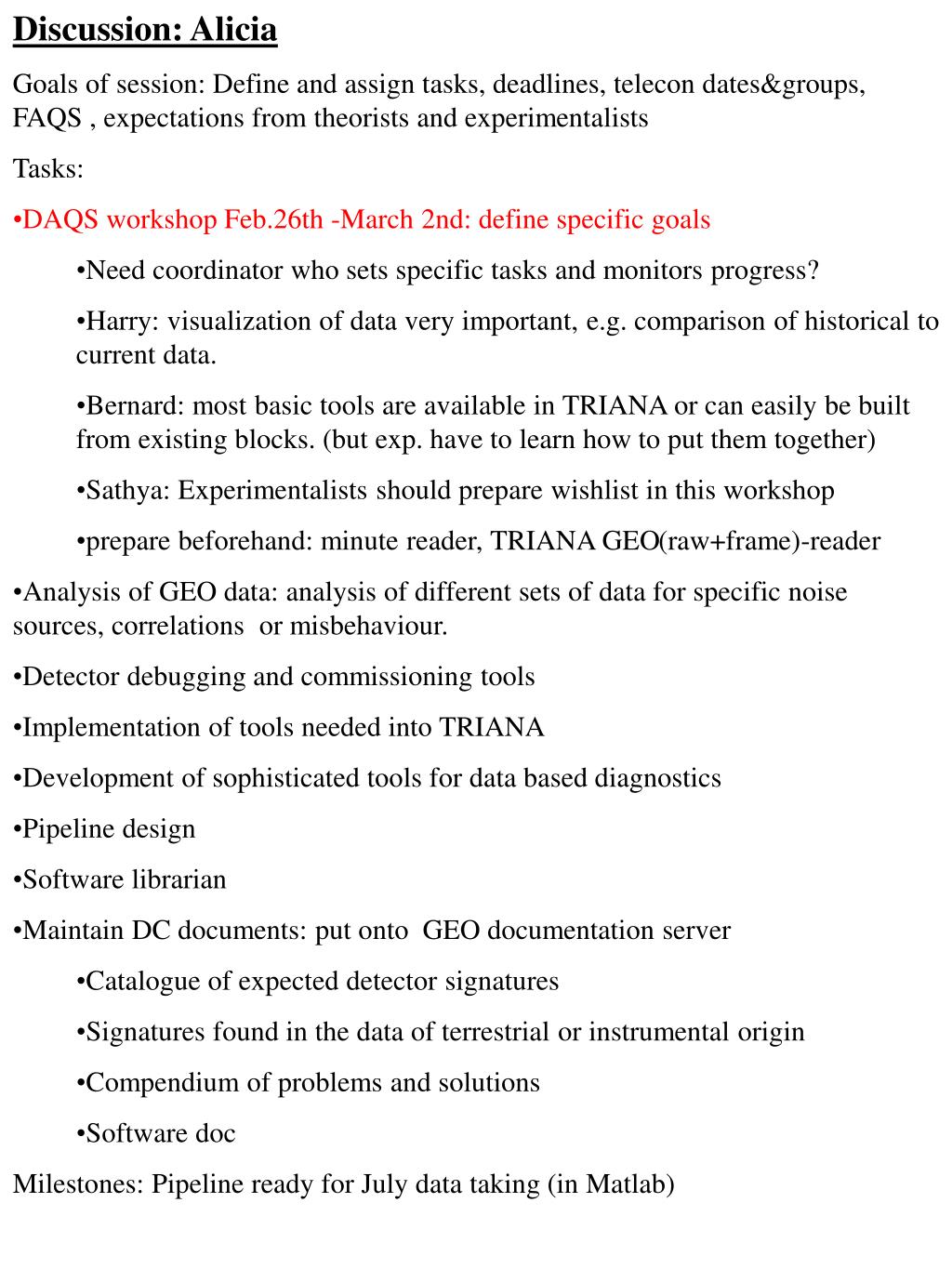

12. Discussion: Alicia • Goals of session: Define and assign tasks, deadlines, telecon dates&groups, FAQS , expectations from theorists and experimentalists • Tasks: • DAQS workshop Feb.26th -March 2nd: define specific goals • Need coordinator who sets specific tasks and monitors progress? • Harry: visualization of data very important, e.g. comparison of historical to current data. • Bernard: most basic tools are available in TRIANA or can easily be built from existing blocks. (but exp. have to learn how to put them together) • Sathya: Experimentalists should prepare wishlist in this workshop • prepare beforehand: minute reader, TRIANA GEO(raw+frame)-reader • Analysis of GEO data: analysis of different sets of data for specific noise sources, correlations or misbehaviour. • Detector debugging and commissioning tools • Implementation of tools needed into TRIANA • Development of sophisticated tools for data based diagnostics • Pipeline design • Software librarian • Maintain DC documents: put onto GEO documentation server • Catalogue of expected detector signatures • Signatures found in the data of terrestrial or instrumental origin • Compendium of problems and solutions • Software doc • Milestones: Pipeline ready for July data taking (in Matlab)

13. Bernard Schutz: CW search summary Coherent search : Efficient code existing that can cover about ½ day for about 10^5 points over the sky. Highly parallel as frequ. Segments are distributed to diff. Processors,i.e. designed to work on clusters of PCs. Alicia: Hough transform (incoherent) first code running in individual pieces. Still too slow. Designed other more promising algorithm. Code in C not LAL. Hough transform produces candidates over long periods of time. Use coherent search for good candidates. Best use two different non-optimal incoherent algorithms and only use common candidates for coherent search. On the whole: programs well on the way. Important to keep # of gaps in data stream low. Need more info on the influence of gaps onto data quality. Periodic failures are worst. Alberto is building up catalogue of all possible sources.

14. B.S. Sathyaprakash: Status of binary inspiral and merger search software Merger phase only important for BH binaries Prospect of detecting Binary BHs: S/N about 5 @ optimum masses (~70 M) of BHs 15 M ,15 M @ 100Mpc detectable with S/N~3 Post Newtonian approximation does not converge well enough. Go to P-approximants. P5 (P-approximant to 2.5 PN order) will be used for the filters. Including merger phase does significantly (factor order 1.5-2) increase S/N in upper mass range > 20 M Inclusion of quasi-normal ringing after merging does not help much. Requires accurate knowledge of merger phase waveforms. # of wave templates to be used decreases with mass as merger frequency goes down. -> BH bins may be observable (1-2/y) by initial network • Codes in LAL format, which is 4 times slower than C-code • T- and P- approximants ready for point-mass circular orbits • Eccentric orbits & BD waveforms= almost ready • Spinning binaries need more research. No software yet

15. Soumya Mohanty: Issues in GW bursts detection • Transient tests • Several tests available • Thorough comparison required • Criteria for comparison • Receiver operating characteristics • Robustness against noise model • Robustness against signal model • Computational requirements • Establishing confidence in detection • What level of confidence required? What false alarm rate? • False alarms: terrestrial burst, non stationary noise • Improving confidence: • Coincidence with other detectors • Coincidence with astronomical events (time delay not known a priori) use dedicated robotic wide-field telescopes to try to verify signal • Anti-coincidence with auxiliary channels • False alarm rate for aux. Chan‘s could be high • Upper limits • Rate at a certain S/N • Max S/N in certain class of bursts • Combining upper limits with coincidence analysis • Important to characterize background noise • Detector Characterization • Instantaneous detector status required • Characterization of rate and amplitude distribution of terrestrial bursts required for upper limit calculations

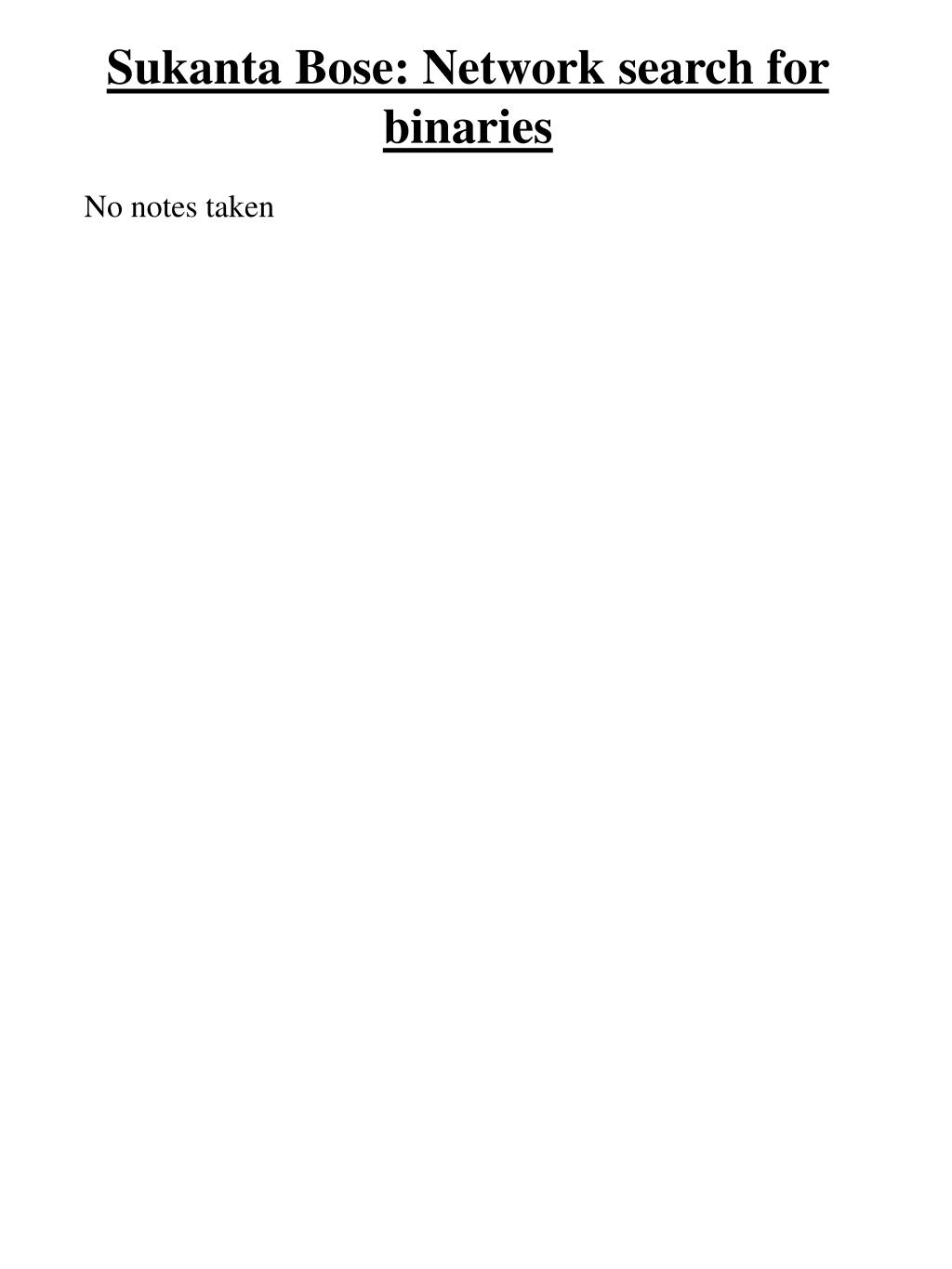

16. Sukanta Bose: Network search for binaries No notes taken

17. John Zweizig: LIGO global diagnostic system Hard/soft-ware support for detector characterization • Diagnostic test tool (DTT) • Direct measurement of TFs • Injecting calibration signals • Passive measurement of standard quantities (replaces Spectrum analyser etc) • Data monitoring tool (DMT) • Detect and tag known signals and disturbances • Find & record transients • Measure and summarize running status • Notify operators of faulty states • Support interactive testing and diagnostic

18. Alberto Vecchio: Distributed computing Harnessing otherwise unused CPU cycles for GEO Developing necessary tools (workstations, PCs[Windows,Linux]) Goal: Simple matched-filter based analysis software ready by end 2001. Hot research area in high-performance computations Keep data sets short enough for low data flow 1Steps: Simple searches on computer-grid we learn how to do reduce workload on dedicated machines (Beowulfs) start implementing simple searches fro more complex signals (Sco X-1, pulsars in binaries) Status of building blocks: data base +, splitter -, server+, client Target: harness at least 300 machines (100AEI, 200GEO/Golm campus) Compare to Entropia: commercial company looking for outstanding scientific projects to be supported for free

19. Ed Seidel:the European-grid Computational resources scattered across the world How to take advantage of ? Resources: E-grid (www.egrid.org) virtual Organisation Goal: • completely automated management system distributing computations in an optimised way • Allows to launch and monitor job from all kinds of communication devices Potential applications: • Cactus computational toolkit (www.cactuscode.org) • SARA • GEO wave analysis Projects today: • Entropia (www.entropia.com) creating worlds largest Computing Service PFlops and Pbyte resources in a few years (300Mio PCs today) • 10% reserved for commercial applications, rest for free for „right kind“ of projects • GriPhyn • EuroGrid • DataGrid (http://grid.web.cern.ch/grid/new_home.htm) • Egrid proposal

20. Alberto Vecchio: Stochastic background Requires cross-correlation between two detectors Observational limits: GEO + one other detector does currently not improve limits known from nucleosynthesis Although sensitivities do not look very promising to get new upper limits make sure data are investigated with respect to stochastic background Set up GEO stochastic background group. LSC stochastic sources upper limits group to be joined by GEO people (incl .DC experimentalists) So far Alberto, Bernard, Sukanta in the group

21. Bernard Schutz: Triana Tutorial • TRIANA developers learned a lot about JAVA which avoids some constraints that formerly caused problems • Speed of compiled JAVA code about factor of 2 below C++ code • Wealth of functionality already implemented. Provides tools to ease programming of new units. Usage on site for DC and optimisation will show how well it performes to the needs of experimenters and which additions are needed • Speed up grapher, implement scrolling of time displays, holding graphs for comparison, implement some more controllable features for visualizing, comparing etc. Needs will be defined @ DAQS workshop @end Feb. • Implementation of C code foreseen @ high priority • Look into TRIANA running under LINUX • Set up webpage for bug-reports (automated?) and wishlists • Someone in every group needed who can program units • Programming of FRAME READ (Ruthe and local)highest priority Latest TRIANA version can be obtained from Ian Taylor

22. Questions, Answers and Action Items I • Calibration: Photon drive generated comb of peaks, frequencies TBD : software side? [Harry, Martin,?] July 2001 • Coatings of SR mirrors: cover all operational modes incl. much lower thermal noise. Control issues? Order asap. [waw, kas] • Add radio antenna in Ruthe receiving Crabs or other pulsars radio signals to check whole data chain (DAQS, data analysis)? [Graham] info @end Jan. • Operational mode (narrow/broad, centre frequency)?: • Crab • 1987A(930Hz?) • Sco X-1(S/N=3-4 in 2y, 550HzGW), operational mode will depend on thermal noise achieved. Need more knowledge on ScoX-1. We know what we do with Crab, but not what with other two. No conclusion, no path towards, until noise behaviour of GEO measured

23. Questions, Answers and Action Items II Problems with DAQS:[Ian, Martin, Karsten] Feb. 2001 • # of channels limited • reflective memory (Ian:takes too long to adapt to GEO) • exchange processor (Pentium or faster BAJA-compatible ) • use more than one processor card • solve problem before beginning of April when DC starts • GPS time stamps • Frame writer unstable • No frame viewer • Raw-data storage unstable [Rob]

24. Questions, Answers and Action Items III • DAQ workshop Feb. 26th – March 2nd (tasklist prepared by DC group) • Sun Enterprise250 software installation & config (Roger Philp) • Tape drive installation & test (Roger Philp?) • Security settings & firewalls (bfw, adf, Oliver Wehrens, Roger Philp, P. Fayers ) <7.2001 • Software: • Minute maker debugging • Frame reader • Labview-data (how to display 800 channels?) TRIANA unit, hierarchical access [Ian,Harry] • Data transfer Hannover – Golm/K.Zuse (>mid 2001) [Bernard], Cardiff (mid Feb) [Sathya] • Reduced data set, incl. h(t) + compression [DCgroup] (<7.2001) • set up data chain to access data (<7.2001) [executive comm.] • learn how to deal with GBytes of data • Pipeline ready for July data taking (in Matlab) [DCgroup] • Organization of data analysis programs -> supervisor program: TRIANA/UNIX [Balasubramanian] (report in 1month) • Data base required that all codes can refer to (requirements,action items, responsibilities) [David Churches] (report in 1month) • Try to use available DMT (subsystems) -> DC group • Try to use same (tested) codes for DC and data analysis

25. Questions, Answers and Action Items IV Software continued (DC): • Implementation of TRIANA tools (triana-geo-bug@egroups.com, triana-geo-wish@egroups.com ) • Develop, implement sophisticated tools (trend estimation tools) • Software librarian • DC documentation [DC group] (as it evolves) • Catalogue of resonances (available @ GEO documentation server) [Uta Weiland] • Database keeps track of DAQS status (automated via configman) and detector status (Web interface) [Karsten,Martin] • Distributed computing: Decisions required, some proposal deadlines close in time [Alberto et al., executive comittee (<1week Entropia),(long term eGrid)] There are already data available Data taking periods: 2 weeks July 2001 no SR 1 week October 2001 with SR inf. >December 2001
