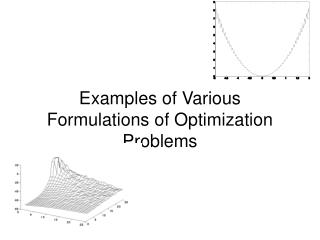

Examples of Various Formulations of Optimization Problems PowerPoint Presentation
Download Presentation
Examples of Various Formulations of Optimization Problems

Loading in 2 Seconds...

play fullscreen
1 / 23

Examples of Various Formulations of Optimization Problems - PowerPoint PPT Presentation


  • 127 Views
  • Uploaded on

Examples of Various Formulations of Optimization Problems. Example 1 (bad formulation).

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Examples of Various Formulations of Optimization Problems' - gavan


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
example 1 bad formulation
Example 1 (bad formulation)

A chemical factory produces a chemical from two materials, x and y. x can be purchased for $5 per ton and y can be purchased for $1 per ton. The manufacturer wants to determine the amount of each raw material required to reduce the cost per ton of product to a minimum. Formulate the problem as an optimization problem…

example 2
Example 2

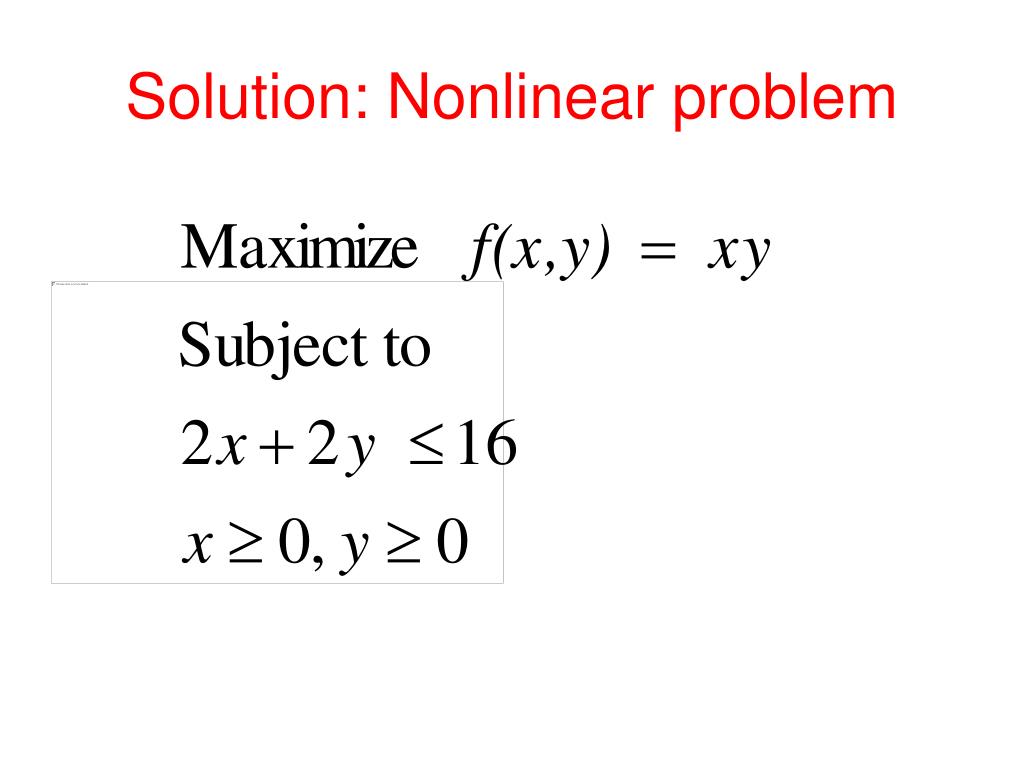

Given the perimeter of a rectangle must be at most 16cm, construct the rectangle with maximum area. Formulate this as an optimization problem.

example 3
Example 3

Suppose we want to maximize the area of an object, but we have a choice between a square and a circle, where the length of the square is equal to the radius of the circle, and the radius can be at most 4 cm. Formulate this as an optimization problem.

Object 1

Object 2

parameter identification
Parameter Identification

Identify the damping, c, and the spring constant, k, of a linear spring by minimizing the difference of a numerical prediction and measured data. Assume that the spring-mass system is set into motion by an initial displacement from equilibrium and measurements of displacement are taken at equally spaced time increments.

parameter identification continued
Parameter Identification continued

The motion of an unforced harmonic oscillator satisfies the initial value problem,

Formulate this as an optimization problem

example black box formulation
Example: ‘Black-Box’ Formulation

Suppose there is a contaminated region of groundwater (a plume) that we wish to keep from moving. We can do this by installing wells in the region and changing the direction of groundwater flow. We would like to do this as cheaply as possible…

hydraulic capture models goal to alter the direction of groundwater flow to control plume migration
Hydraulic Capture ModelsGoal: To alter the direction of groundwater flow to control plume migration

Possible Decision Variables:

  • Number of wells
  • Well rates
  • Well locations
implementation simulators
Implementation: Simulators
  • MODFLOW for flow equation
  • USGS code
  • Cell centered finite differences
  • FORTRAN 77, serial
  • MT3DMS for transport equation
  • EPA code
  • Links to flow data from MODFLOW
  • Cell centered finite differences
  • FORTRAN 90, serial
capture constraint to keep the plume from spreading
Capture constraint to keep the plume from spreading

“We leave it to the modeler to choose the

physical and mathematical representation of

the constraint.”

7 + 6 = ?

a closer look at fbhc
A closer look at FBHC

We can consider head differences in adjacent nodes (aligned in the x,y,or z direction) as constraints on the approximate velocity since Dacry’s Law is

For example: A finite difference head gradient in the

X direction is

a closer look at fbhc20
A closer look at FBHC

d?

k?

Locations?

slide21
FBHC
  • Advantages:
  • Easy to implement
  • Constraint requires flow info only
  • Disadvantages
  • Not constraining the concentration
  • d? k? locations?
alternate fbhc approach
Alternate FBHC approach
  • Is there another way we can use only flow information to capture the plume?
  • A method for choosing d,k,locations?
  • Directional derivatives?
  • Fix well locations easier?
optimization
Optimization

Implementation Issues

  • Evaluation of J(u) requires a simulation
  • Parallelism is preferred
  • Gradient information is unavailable
  • Removing a well means J(u) discontinuous

 Sampling methods look appealing:

Optimization is governed by function values
