  1. Windows 7 Deployment • Conrad ZimmermannSystem Engineer Expert • API Christiane Soumahoro Senior Consultant Microsoft

  2. Agenda • Introducing Windows 7 Deployment • Microsoft DeploymentToolkit • Windows 7 Deployment Enhancements • Imaging in Windows 7 • Deliverywith Windows Deployment Services • Migration withUser State Migration • Solutions • Ressources • Q & A

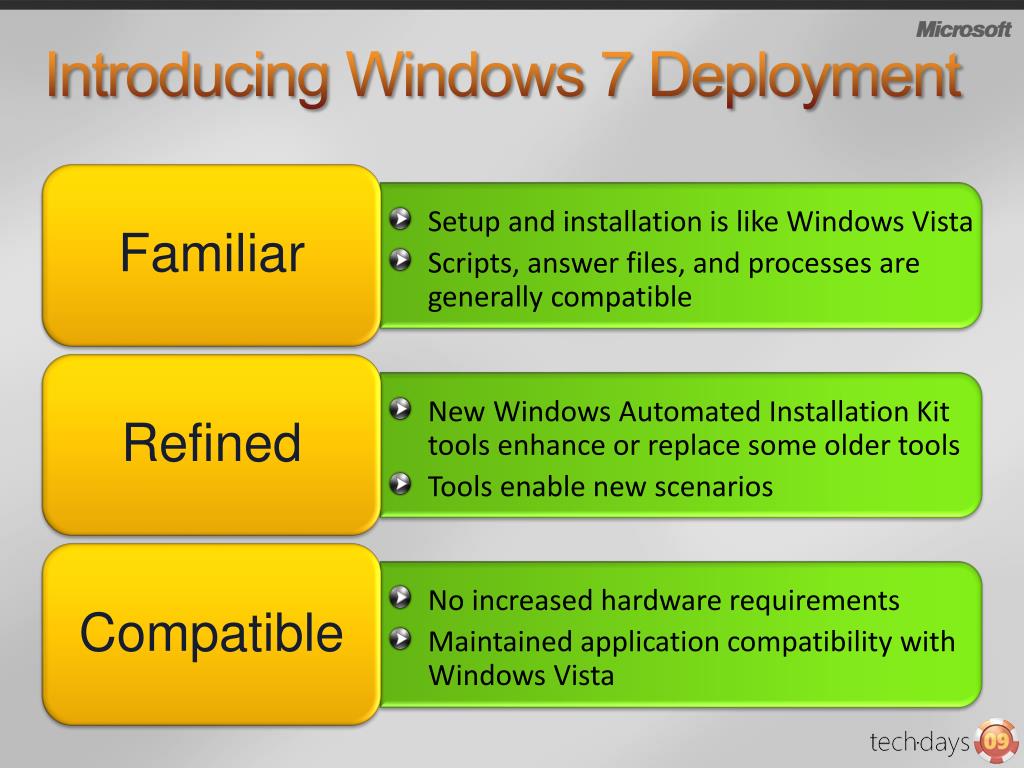

  3. Introducing Windows 7 Deployment • Setup and installation is like Windows Vista • Scripts, answer files, and processes are generally compatible • New Windows Automated Installation Kit tools enhance or replace some older tools • Tools enable new scenarios • No increased hardware requirements • Maintained application compatibility with Windows Vista

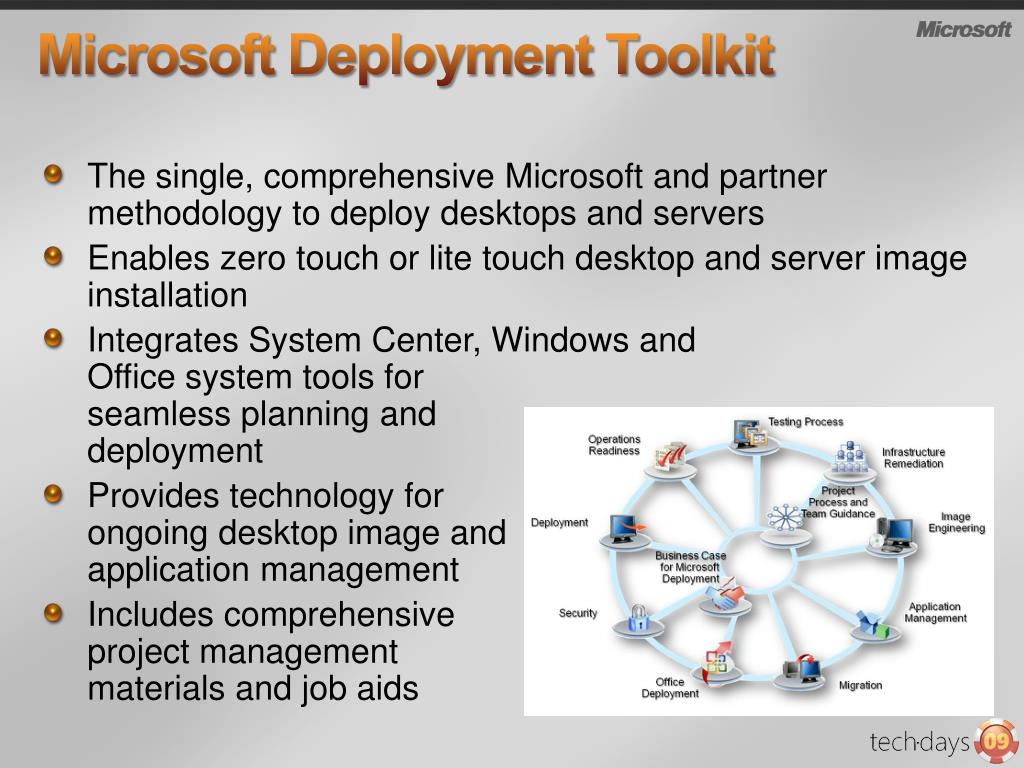

  4. Microsoft Deployment Toolkit • The single, comprehensive Microsoft and partner methodology to deploy desktops and servers • Enables zero touch or lite touch desktop and server image installation • Integrates System Center, Windows and Office system tools for seamless planning and deployment • Provides technology for ongoing desktop image and application management • Includes comprehensive project management materials and job aids

  5. Microsoft Deployment Toolkit Build & Capture Lite Touch Installation demos Conrad ZimmermannSystem Engineer Expert API

  6. Windows 7 Deployment Enhancements Microsoft Deployment Toolkit Application Compatibility Toolkit Microsoft Assessment and Planning Deployment Image Servicing and Management Add/Remove Drivers and Packages WIM and VHD Image Management Windows Deployment Services Multicast Multiple Stream Transfer Dynamic Driver Provisioning User State Migration Tool Hardlink Migration Offline File Gather Improved user file detection

  7. Imaging in Windows 7

  8. Deployment Image Servicing And Management (DISM) • Enable and disable, enumerate, add, remove packages and updates • Add, remove, enumerate drivers • WIM and VHD support • OEMs can select OS editions offline

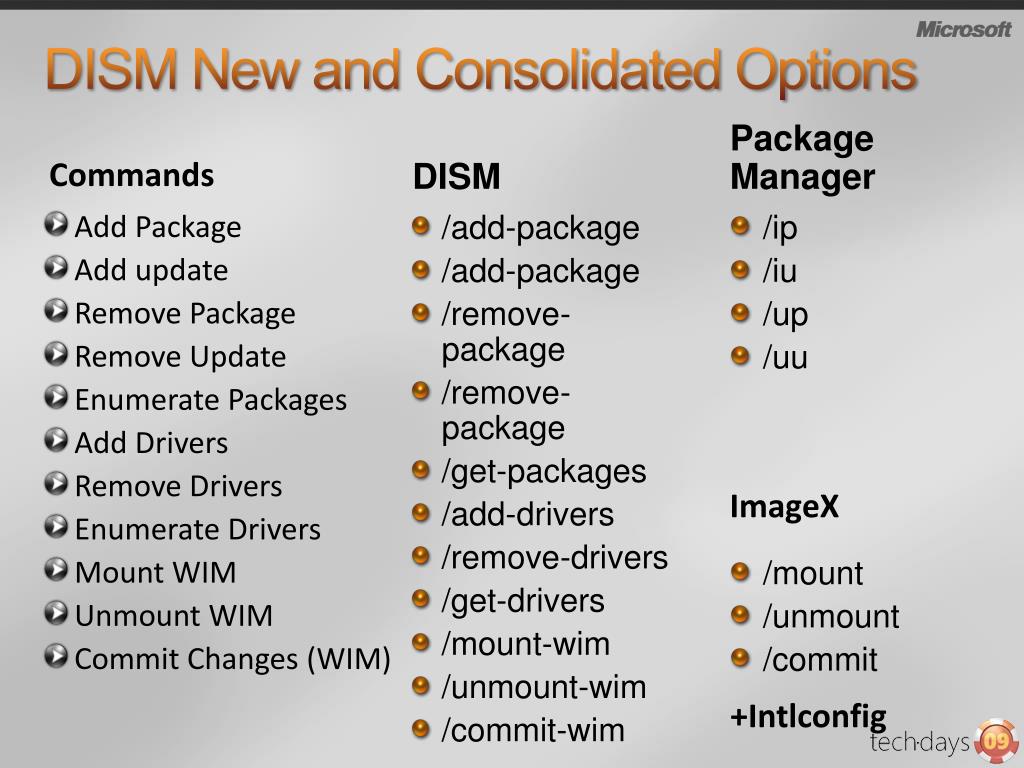

  9. DISM New and Consolidated Options Commands DISM Package Manager /ip /iu /up /uu /mount /unmount /commit • Add Package • Add update • Remove Package • Remove Update • Enumerate Packages • Add Drivers • Remove Drivers • Enumerate Drivers • Mount WIM • Unmount WIM • Commit Changes (WIM) • /add-package • /add-package • /remove-package • /remove-package • /get-packages • /add-drivers • /remove-drivers • /get-drivers • /mount-wim • /unmount-wim • /commit-wim ImageX +Intlconfig

  10. Image Servicing with DISM demo Conrad ZimmermannSystem Engineer Expert API

  11. Image Delivery

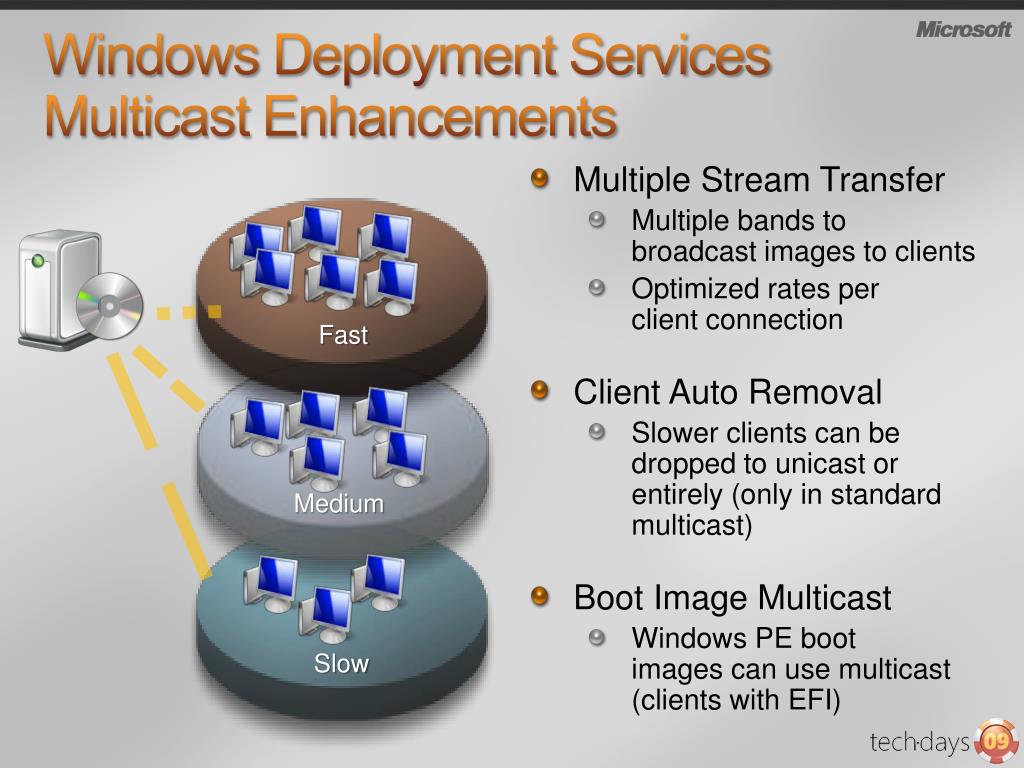

  12. Windows Deployment Services Multicast Enhancements • Multiple Stream Transfer • Multiple bands to broadcast images to clients • Optimized rates per client connection • Client Auto Removal • Slower clients can be dropped to unicast or entirely (only in standard multicast) • Boot Image Multicast • Windows PE boot images can use multicast (clients with EFI) Fast Medium Slow

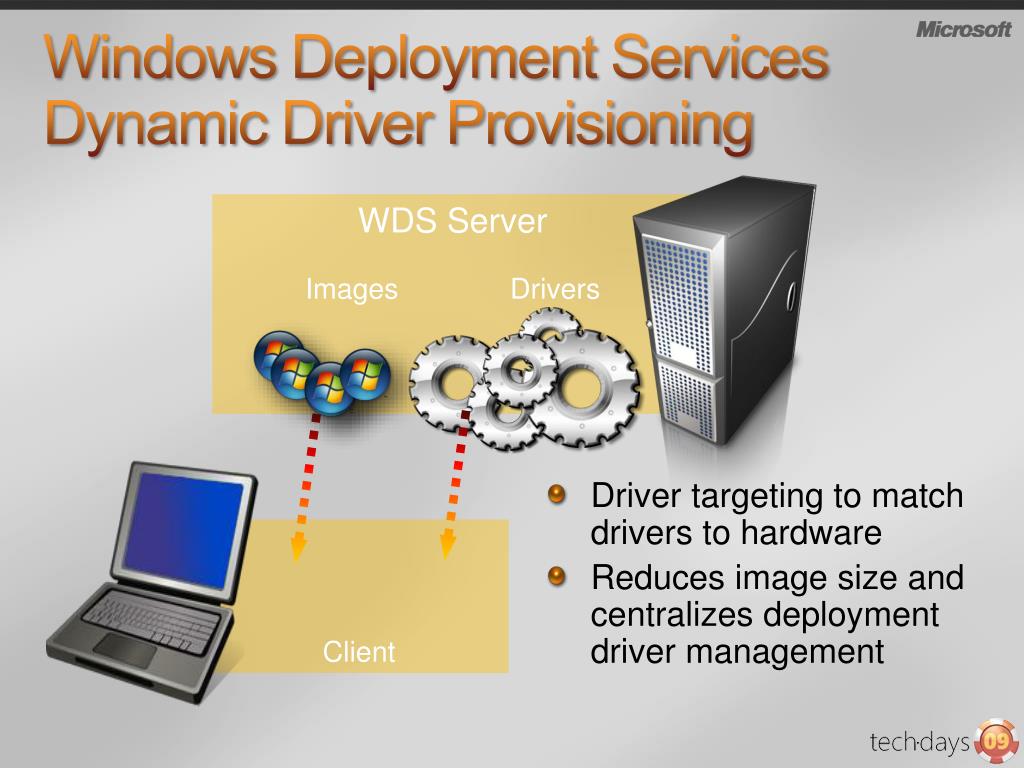

  13. Windows Deployment Services Dynamic Driver Provisioning • Driver targeting to match drivers to hardware • Reduces image size and centralizes deployment driver management WDS Server ImagesDrivers Client

  14. Migration

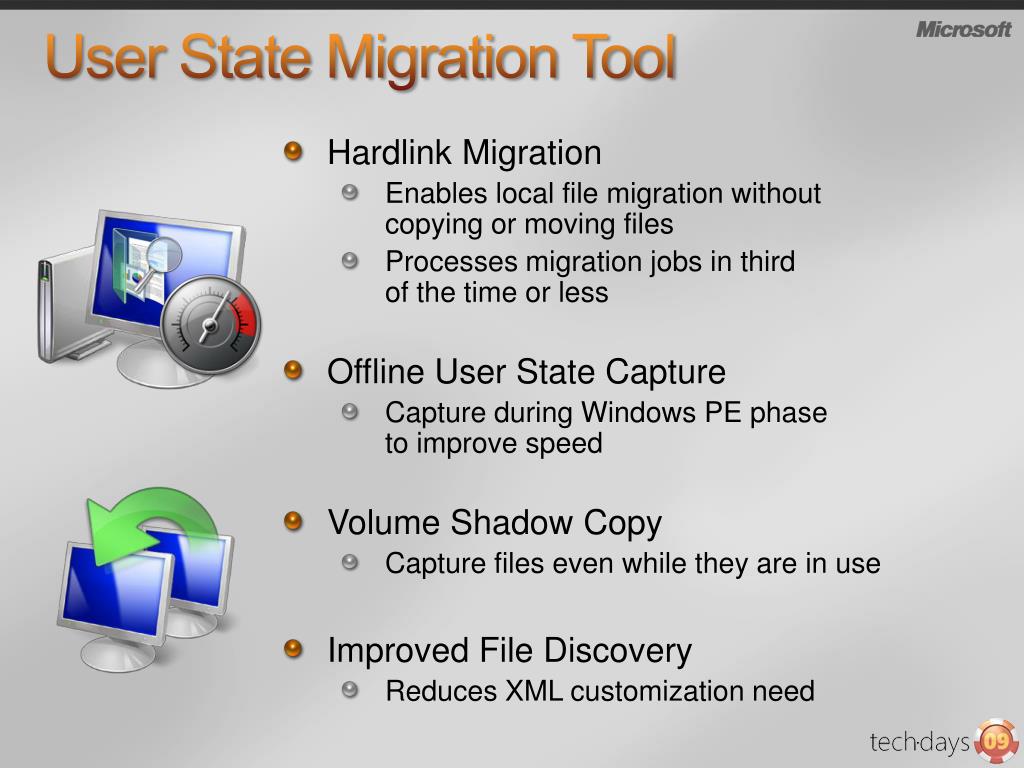

  15. User State Migration Tool • Hardlink Migration • Enables local file migration without copying or moving files • Processes migration jobs in third of the time or less • Offline User State Capture • Capture during Windows PE phase to improve speed • Volume Shadow Copy • Capture files even while they are in use • Improved File Discovery • Reduces XML customization need

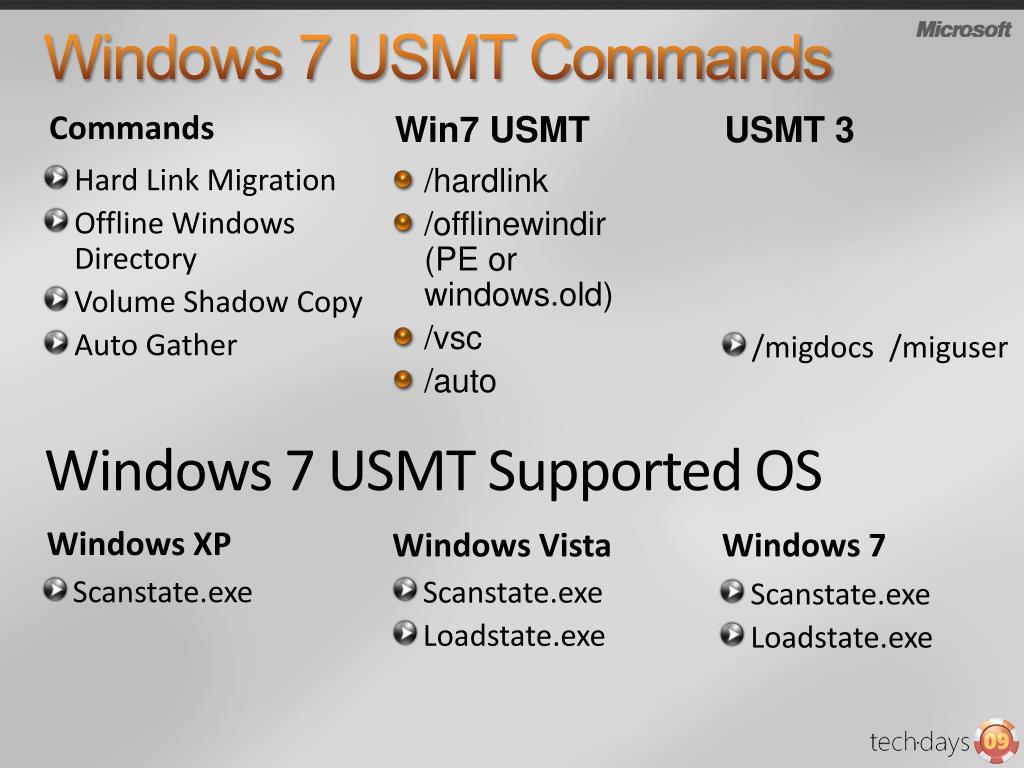

  16. Windows 7 USMT Commands Commands Win7 USMT USMT 3 • Hard Link Migration • Offline Windows Directory • Volume Shadow Copy • Auto Gather • /migdocs /miguser • /hardlink • /offlinewindir(PE or windows.old) • /vsc • /auto Windows 7 USMT Supported OS Windows XP Windows Vista Windows 7 • Scanstate.exe • Scanstate.exe • Loadstate.exe • Scanstate.exe • Loadstate.exe

  17. MDT Lite Touch Installation … demo Conrad ZimmermannSystem Engineer Expert API

  18. Solutions

  19. Microsoft Assessment and Planning Toolkit • Agentless inventory of clients, servers, applications, devices and roles • Technology migration and readiness assessment and proposal generation • Multi-Technology coverage

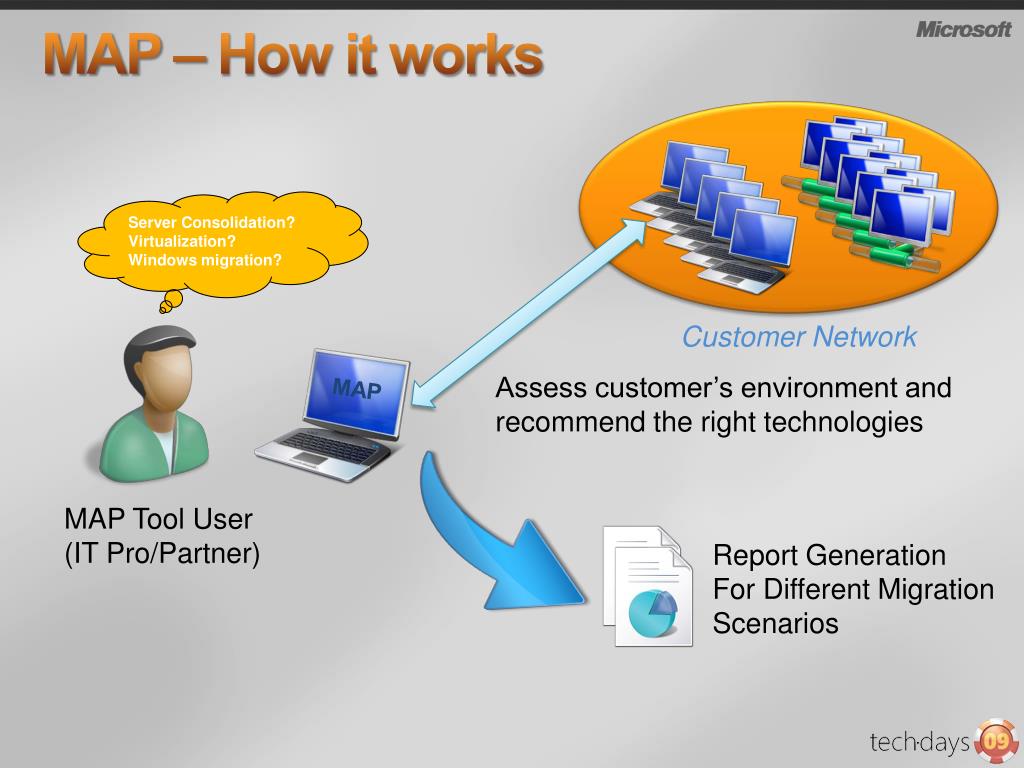

  20. MAP – How it works Server Consolidation? Virtualization? Windows migration? Customer Network Assess customer’s environment and recommend the right technologies MAP MAP Tool User (IT Pro/Partner) Report Generation For Different Migration Scenarios

  21. Microsoft Assessment and Planning Toolkit demo Christiane Soumahoro Senior consultant Microsoft

  22. Managing the Compatibility Lifecycle

  23. Application Compatibility Manager Application Compatibility Toolkit Compatibility Evaluators ACT Community ACT Database Developer and Tester Tools

  24. MDT Lite Touch Installation ending demo Conrad ZimmermannSystem Engineer Expert API

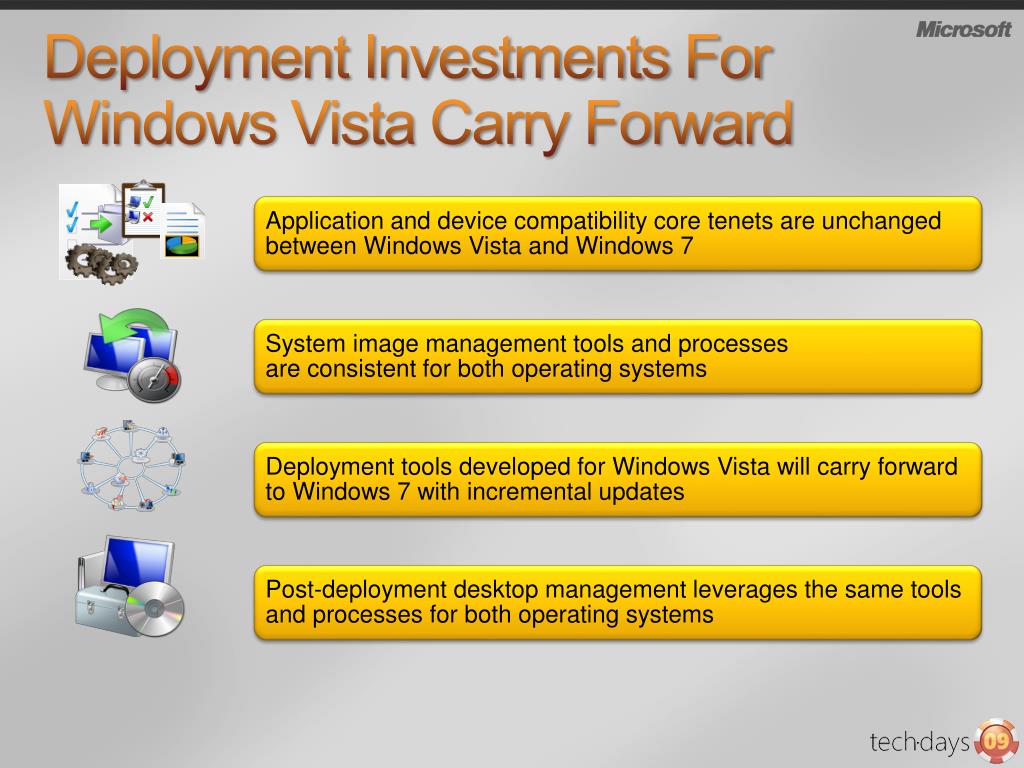

  25. Deployment Investments For Windows Vista Carry Forward

  26. Q & A

  27. Resources • TechNet Springboard series: www.microsoft.com/springboard • Windows 7 Application Quality Cookbook: http://code.msdn.microsoft.com/Windows7AppQuality • Internet Explorer Compatibility Center: http://msdn.microsoft.com/en-us/ie/cc405106.aspx • Early access to solutions, Toolkit (Beta): http://connect.microsoft.com

  28. Save the date for tech·days nextyear! 14 – 15 avril 2010, CICG

  29. Premium Sponsoring Partners Classic Sponsoring Partners
