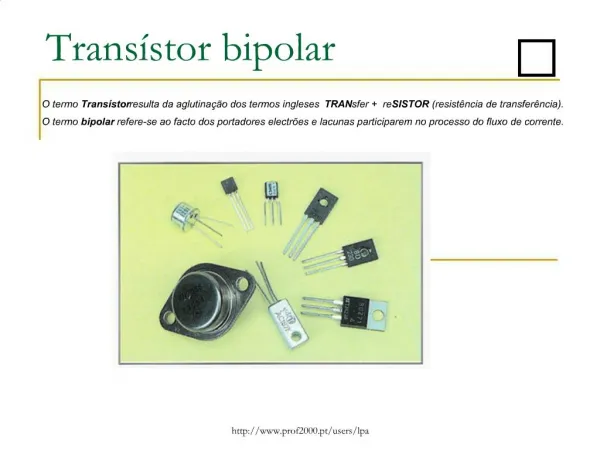

Trans stor bipolar

2. Constituio. Um transstor bipolar (com polaridade NPN ou PNP) constitudo por duas junes PN (juno base-emissor e juno base-colector) de material semicondutor (silcio ou germnio) e por trs terminais designados por Emissor (E), Base (B) e Colector (C).. N Material semicondutor com ex
