Sterionet projection of 3-D structural data

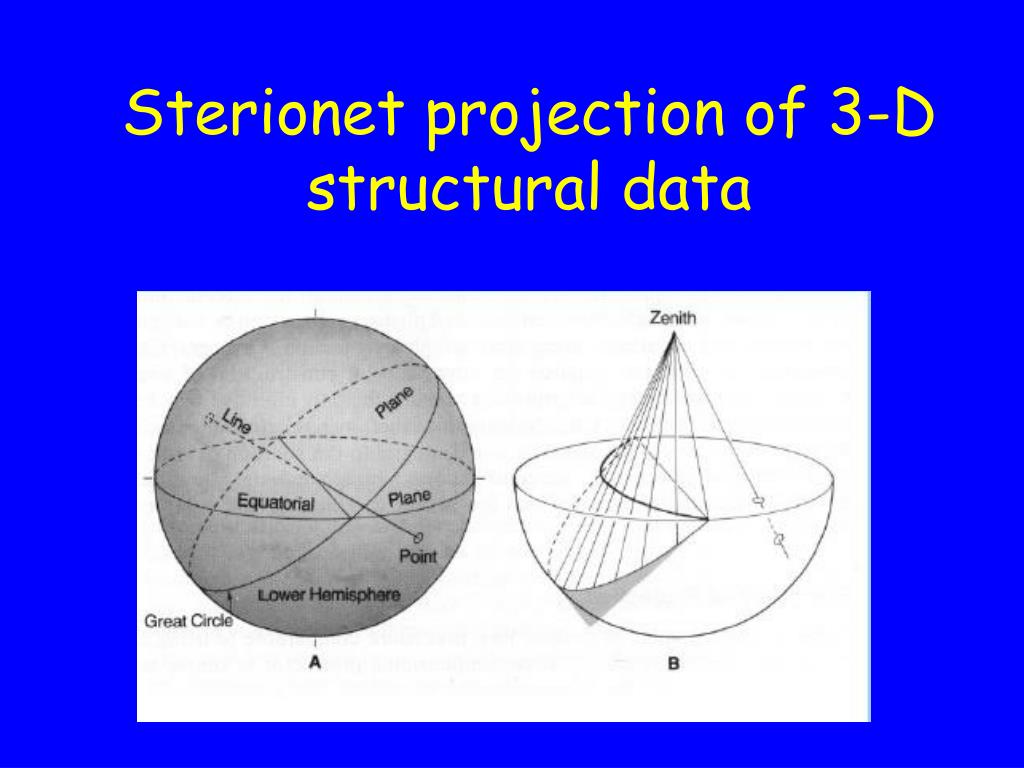

Sterionet projection of 3-D structural data. • Stereonet basics • plotting lines and planes • Some example problem and solutions. Lower hemisphere of a sphere projected onto a flat surface. • a type of ‘3-dimensional protractor’ • allows analysis of structural data in 3-dimensions

garth-burris
Download Presentation

Sterionet projection of 3-D structural data

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Sterionet projection of 3-D structural data

  2. • Stereonet basics • plotting lines and planes • Some example problem and solutions

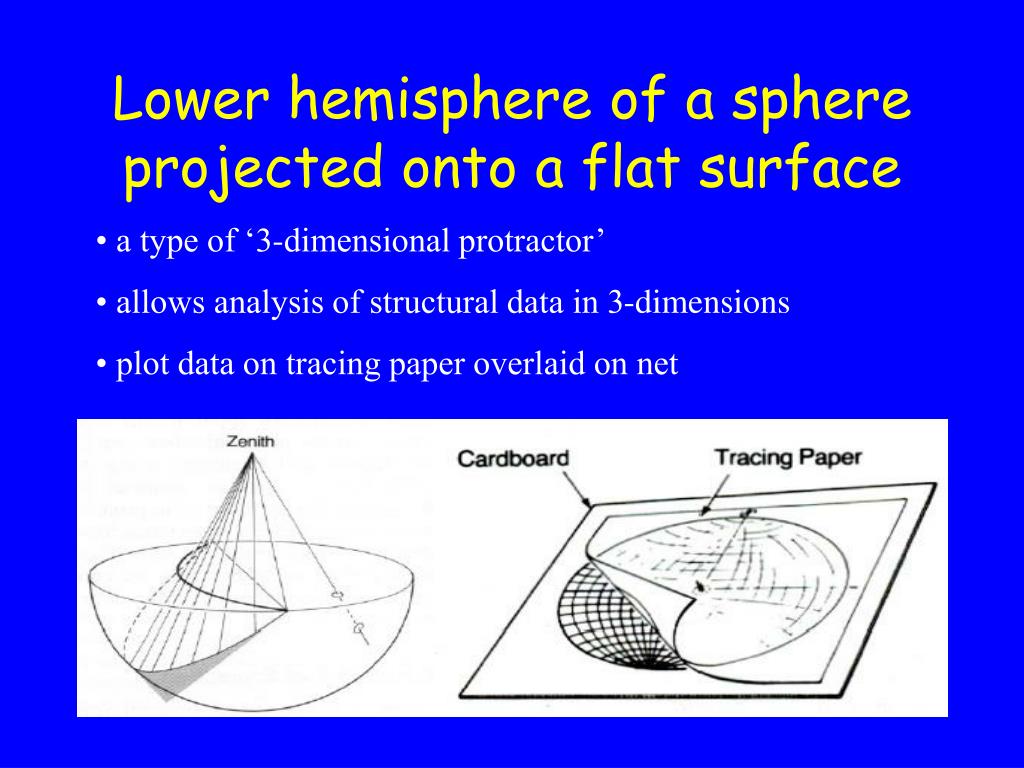

  3. Lower hemisphere of a sphere projected onto a flat surface • a type of ‘3-dimensional protractor’ • allows analysis of structural data in 3-dimensions • plot data on tracing paper overlaid on net

  4. Elements of a Stereonet Great Circles - large circular arcs running north-south • equivalent to lines of longitude on globe Small Circles - circular arcs running from east to west • equivalent to lines of latitude on globe

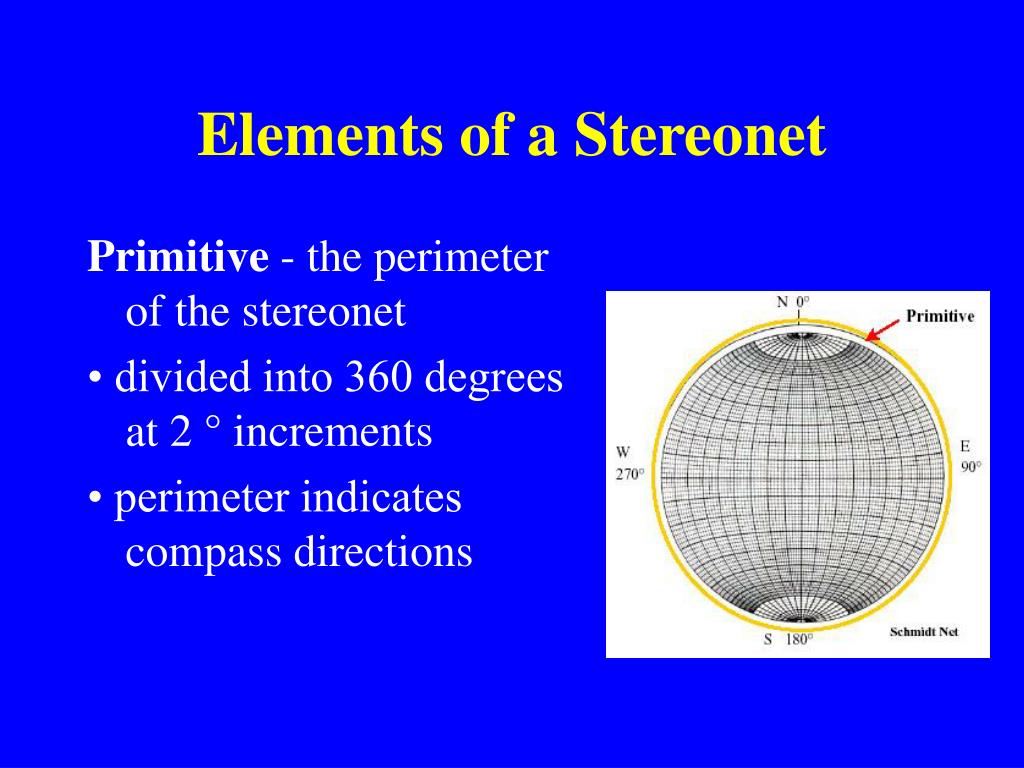

  5. Elements of a Stereonet Primitive - the perimeter of the stereonet • divided into 360 degrees at 2 ° increments • perimeter indicates compass directions

  6. Two types of stereonets used geology: 1. Schmidt net 2. Wulff net

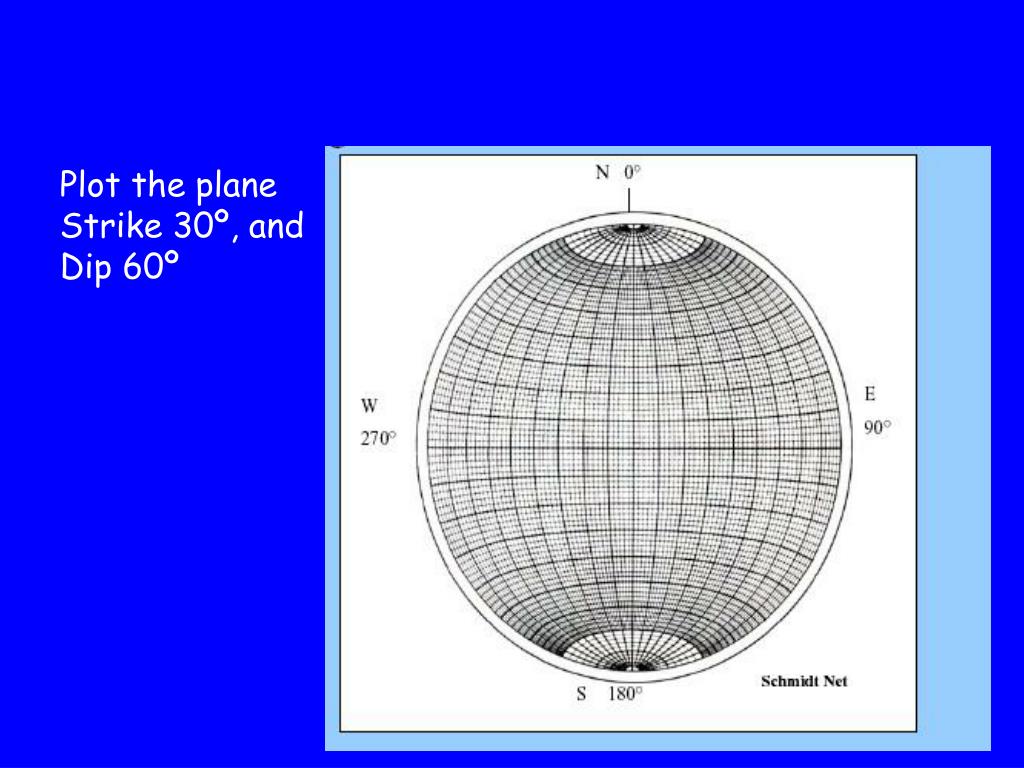

  7. Plot the plane Strike 30º, and Dip 60º
