why do spirometry

Why do Spirometry?

Farah Madhani-Lovely, MD

Pulmonologist/Intensivist

Oct 24th 2007

objectives
Objectives
  • Aware of current guidelines in use of spirometry
  • Understand the use of spirometry in diagnosis of pulmonary disease
  • Understand the use of spirometry in management of pulmonary disease
  • Occupational use of spirometry
  • Contraindications of spirometry
  • Introduction to spirometry
current guidelines

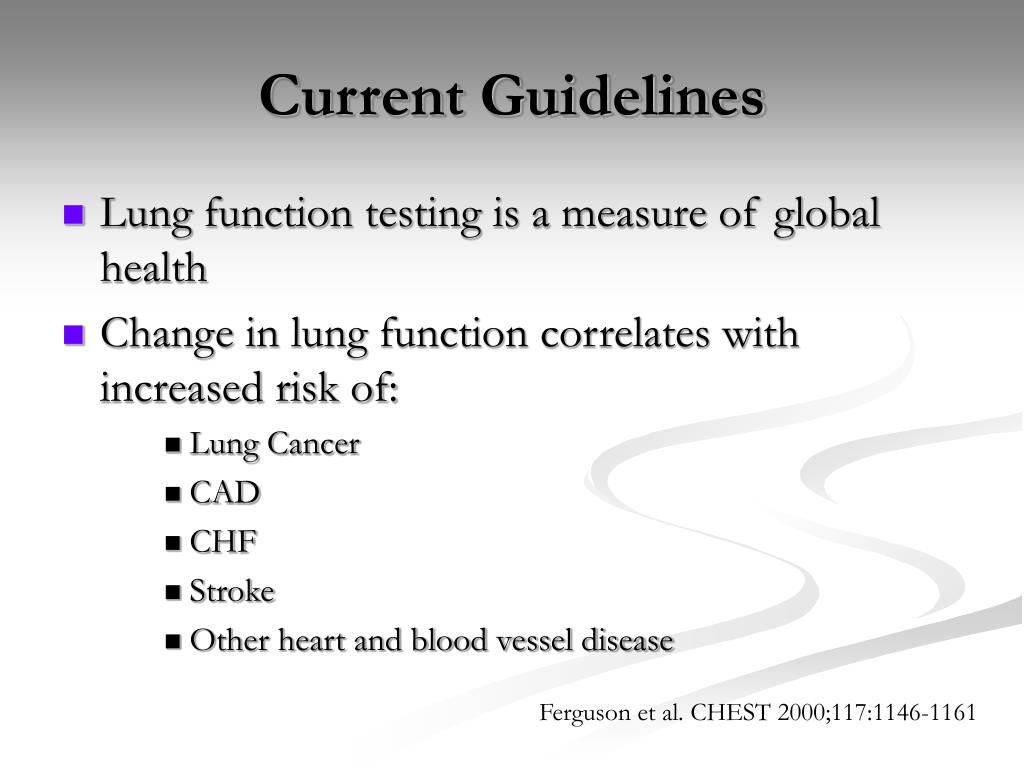

Current Guidelines
  • Lung function testing is a measure of global health
  • Change in lung function correlates with increased risk of:
      • Lung Cancer
      • CAD
      • CHF
      • Stroke
      • Other heart and blood vessel disease

Ferguson et al. CHEST 2000;117:1146-1161

indications
Indications
  • To evaluate symptoms and signs of lung disease
  • To assess the progression of lung disease
  • To monitor the effectiveness of therapy
  • To evaluate preoperative patients
  • Screen people at risk of pulmonary disease
  • To monitor for potentially toxic effects of certain drugs/chemicals
current guidelines5

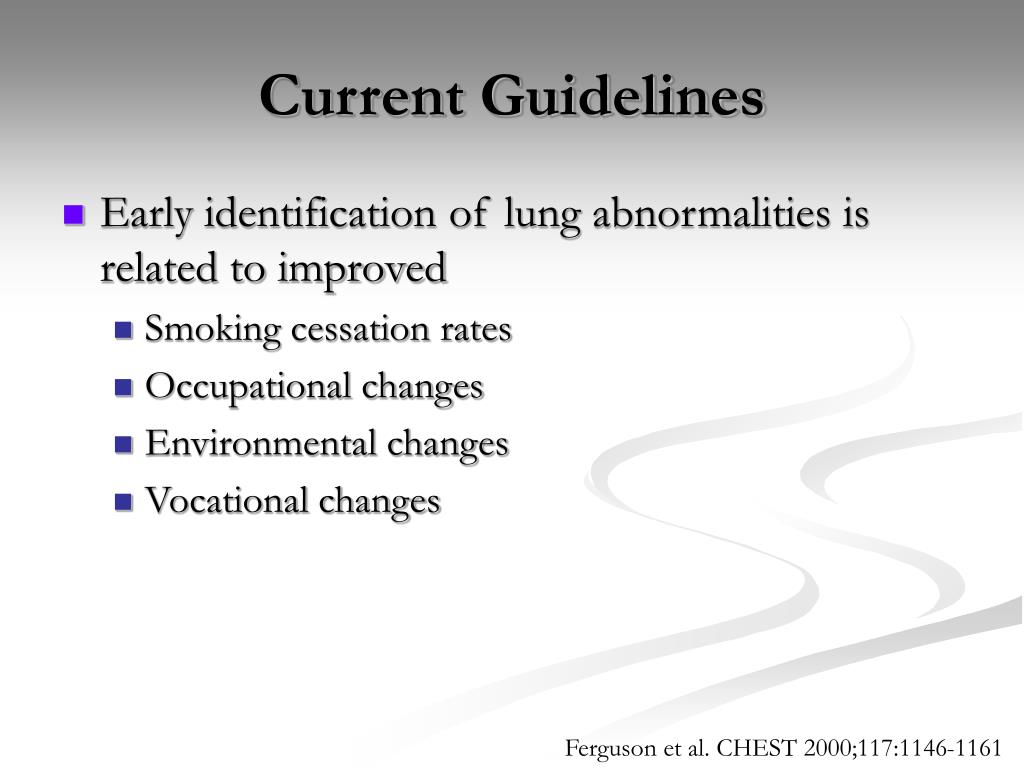

Current Guidelines
  • Early identification of lung abnormalities is related to improved
    • Smoking cessation rates
    • Occupational changes
    • Environmental changes
    • Vocational changes

Ferguson et al. CHEST 2000;117:1146-1161

diagnosing and management of pulmonary diseases
Diagnosing and management of pulmonary diseases
  • COPD
  • Asthma
  • Restrictive lung disease
slide7
COPD
  • 4th leading cause of death
  • COPD is the cause of:
    • 100000 deaths/yr
    • 550,000 hospitalizations/yr
    • 16 million hospital visits/yr
spirometry and copd
Spirometry and COPD
  • Diagnosis of COPD
  • Many smokers have quit once knowing their spirometry data
    • Clotet et al. Archives of bronchology. 2007
  • Evaluates prognosis in COPD patients

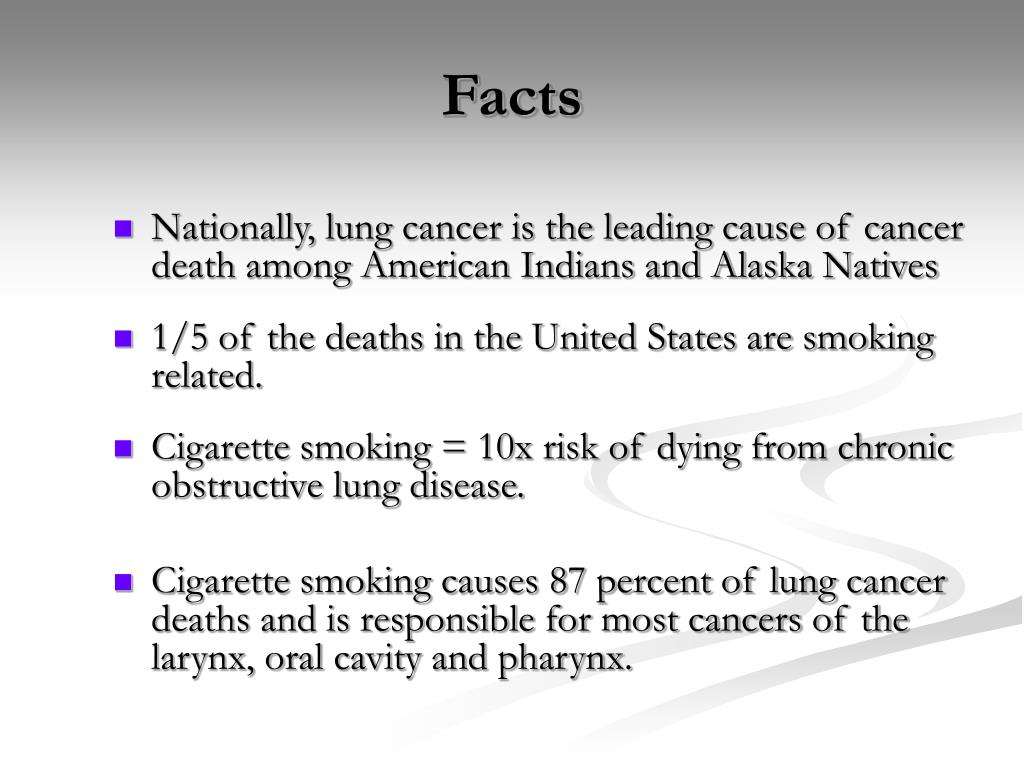

facts
Facts
  • Nationally, lung cancer is the leading cause of cancer death among American Indians and Alaska Natives
  • 1/5 of the deaths in the United States are smoking related.
  • Cigarette smoking = 10x risk of dying from chronic obstructive lung disease.
  • Cigarette smoking causes 87 percent of lung cancer deaths and is responsible for most cancers of the larynx, oral cavity and pharynx.
asthma
Asthma
  • Diagnosis of asthma
    • Guidelines by NHBLI
    • Measurement of severity of asthma
  • Response to medications
restrictive pulmonary disease

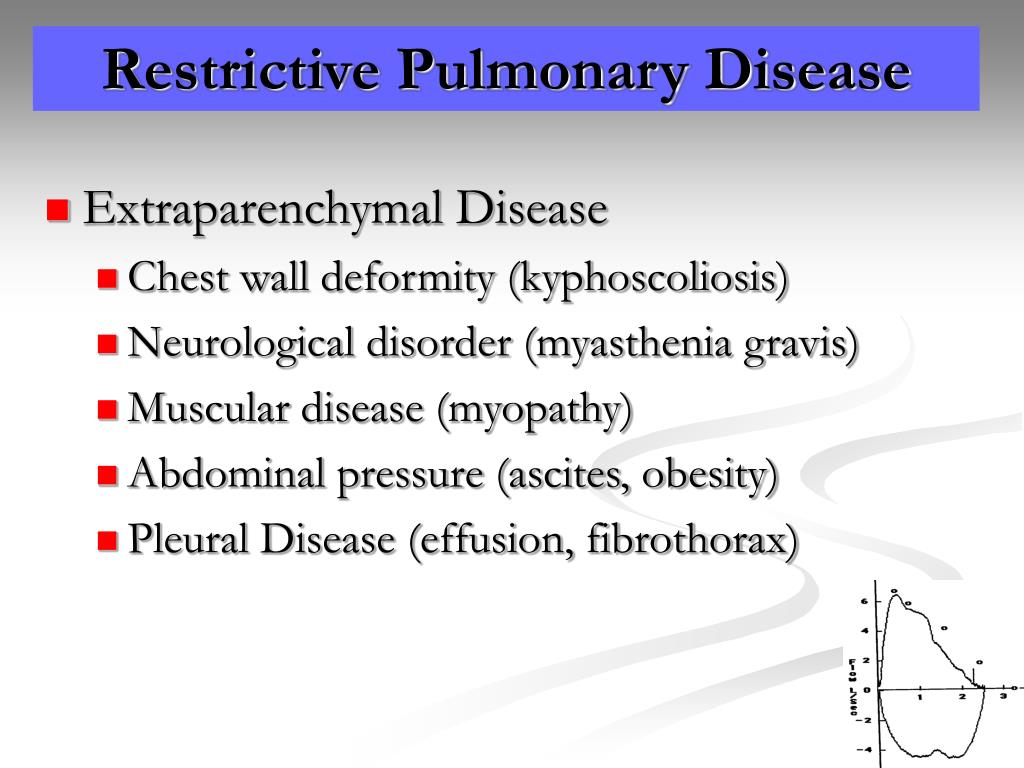

Restrictive Pulmonary Disease
  • Extraparenchymal Disease
    • Chest wall deformity (kyphoscoliosis)
    • Neurological disorder (myasthenia gravis)
    • Muscular disease (myopathy)
    • Abdominal pressure (ascites, obesity)
    • Pleural Disease (effusion, fibrothorax)
restrictive pulmonary disease16

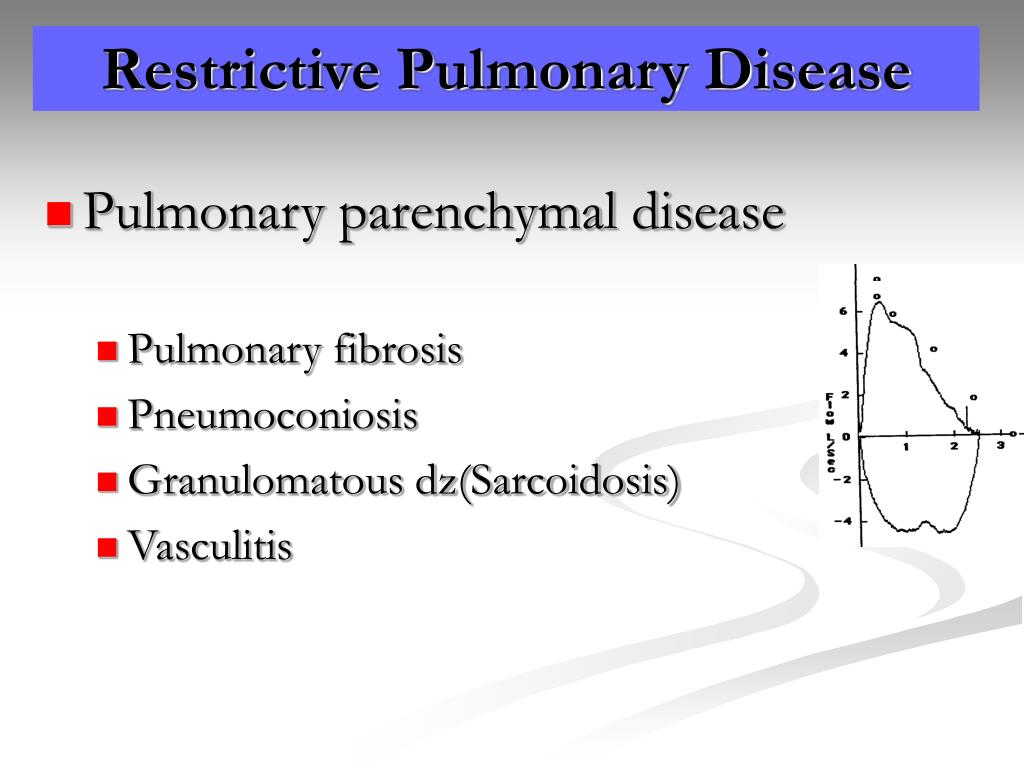

Restrictive Pulmonary Disease
  • Pulmonary parenchymal disease
    • Pulmonary fibrosis
    • Pneumoconiosis
    • Granulomatous dz(Sarcoidosis)
    • Vasculitis
occupational screening
Occupational screening
  • Lung disease associated with occupation
    • Lung cancer
    • Occupational asthma
    • Asbestosis
    • Mesothelioma
    • Byssinosis
    • Coal workers’ pneumoconiosis
    • Silicosis
    • Hypersensitivity pneumonitis

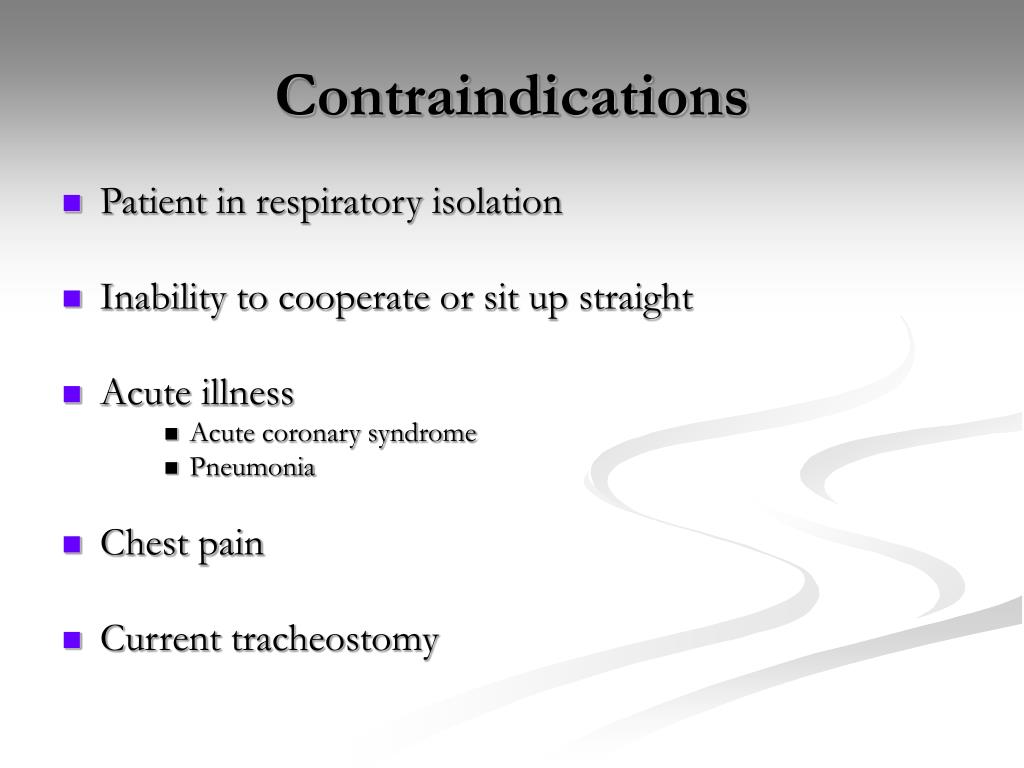

contraindications
Contraindications
  • Patient in respiratory isolation
  • Inability to cooperate or sit up straight
  • Acute illness
      • Acute coronary syndrome
      • Pneumonia
  • Chest pain
  • Current tracheostomy
clinic set up
Clinic set up
  • Accurately measure FEV1 and FVC
  • Daily caliberation
  • Quality control
    • Must be acceptable
    • Must be reproducible

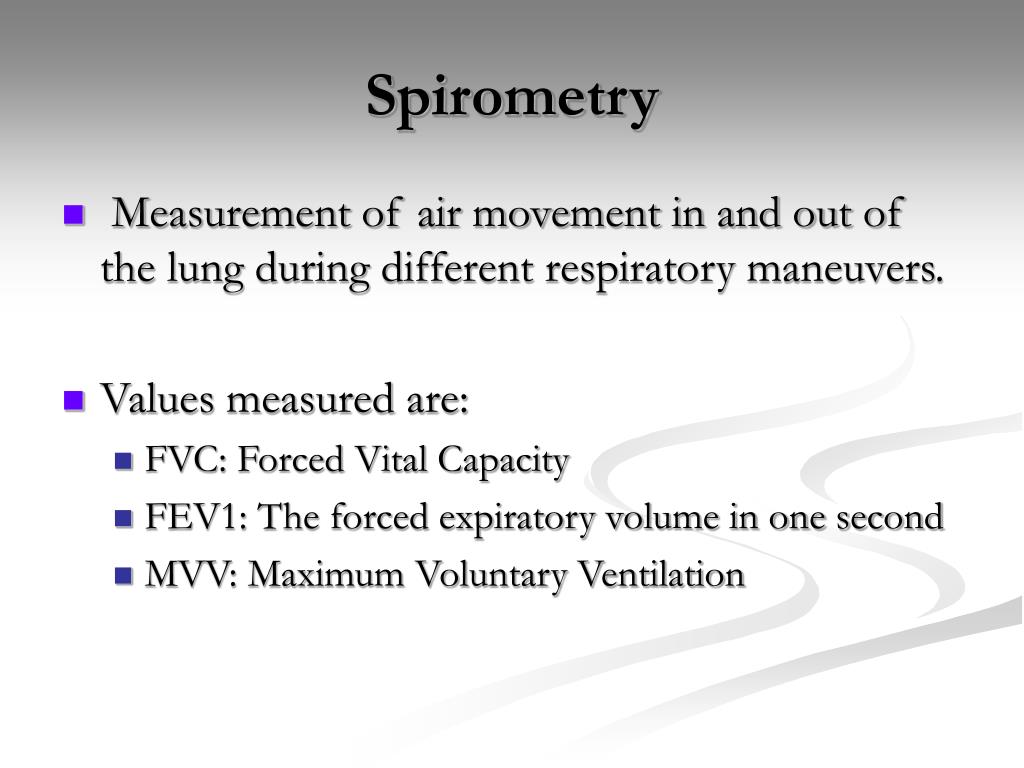

spirometry
Spirometry
  • Measurement of air movement in and out of the lung during different respiratory maneuvers.
  • Values measured are:
    • FVC: Forced Vital Capacity
    • FEV1: The forced expiratory volume in one second
    • MVV: Maximum Voluntary Ventilation
slide22

FEV1 & FVC

  • Forced expiratory volume in 1 second
    • 4.0 L
  • Forced vital capacity
    • 5.0 L
    • usually less than during a slower exhalation
  • FEV1/FVC = 80%

FEV1

FVC

obstructive airway disease
Obstructive Airway Disease
  • Obstruction
    • FEV1 < 80% predicted
    • FEV1/FVC < 70%
restrictive lung disease
Restrictive Lung Disease
  • VC, FRC, TLC < 80%
  • FEV1/FVC = Normal
  • Pseudorestriction
    • NMDz
    • Obesity
slide28

FLOW-VOLUME CURVE

in respiratory patients

  • Restrictive disease
    •  expansion of the lung
    • e.g., interstitial fibrosis
  • Obstructive disease
    •  resistance to airflow
    • e.g., COPD, asthma

 FEV1

 FVC

summary
Summary
  • Spirometry is used to diagnose and manage patients with:
    • COPD
    • ASTHMA
    • OCCUPATIONAL LUNG disease
  • Knowledge of lung function helps in smoking cessation
  • Spirometry i.e. lung function is an assessment of global health
