optical fibres for the lhc machine and experimental areas

Optical Fibres for the LHC Machine and Experimental Areas

Optical Fibre Meeting

3 October 2002

Luit Koert de Jonge/ST-EL-OF

agenda
Agenda
  • The Optical Network Policy
  • The Optical Network STAR points
  • Technology
  • Installation
  • Contract
  • What we require from YOU
  • Questions

ST-EL-OF / L K de Jonge

the optical network policy

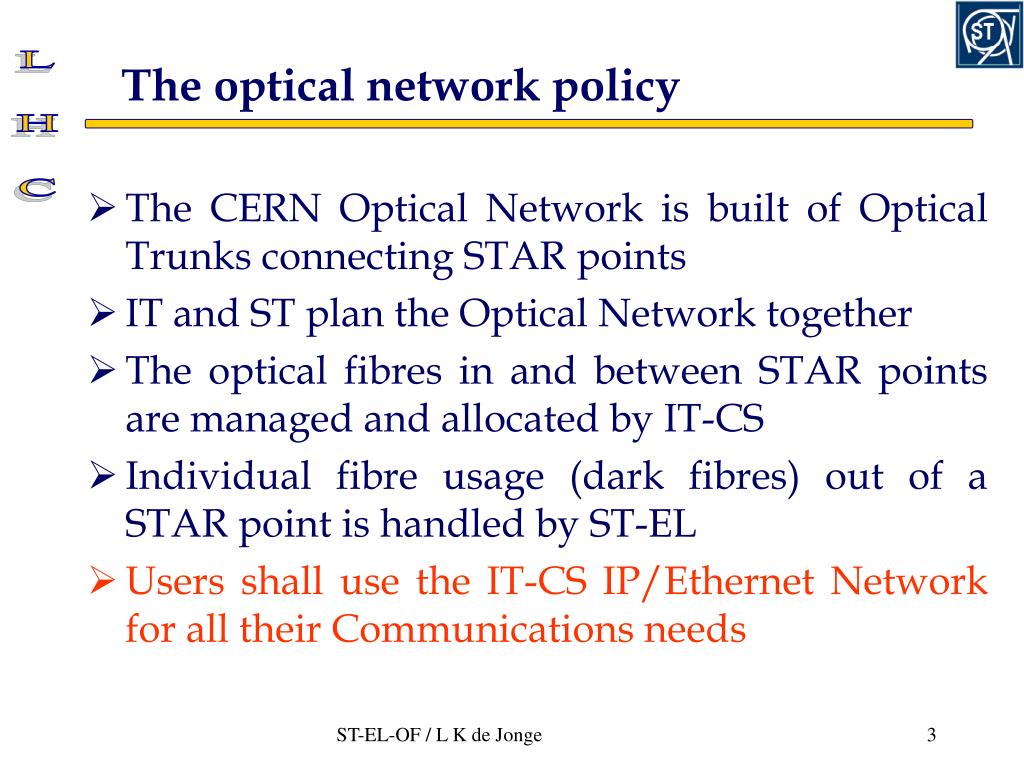

The optical network policy
  • The CERN Optical Network is built of Optical Trunks connecting STAR points
  • IT and ST plan the Optical Network together
  • The optical fibres in and between STAR points are managed and allocated by IT-CS
  • Individual fibre usage (dark fibres) out of a STAR point is handled by ST-EL
  • Users shall use the IT-CS IP/Ethernet Network for all their Communications needs

ST-EL-OF / L K de Jonge

the main surface star points

P4

PZ33

LHC

P5

UJ32

TZ32

P32

Main

BA2

P2

24m+24s

BA1

France

48m+96s

P6

36m+144s

513

PCR

24m+48s

48m+144s

BA7

BA4

CNGS

24m+48s

SM18

Meyrin

12m+12s

24m+192s

SR1

P7

48m+96s

PS

BA6

354

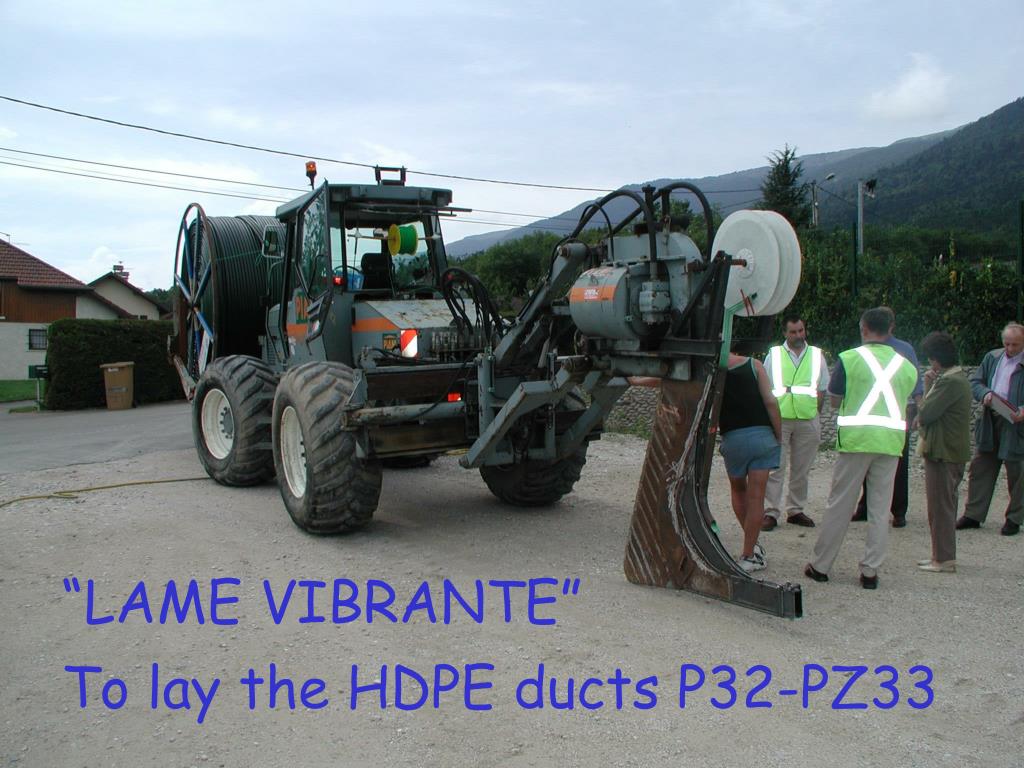

“LAME VIBRANTE”

48m+96s

TZ76

TCR

BA5

UJ76

24m+192s

Y

Y

24m+192s

58

48m+96s

LHC

To lay the HDPE ducts P32-PZ33

CERN

P8

CCC

24m+24s

Airport

Geneva

The main surface STAR points

ST-EL-OF / L K de Jonge

slide5

The “Lame Vibrante” at work

The machine advanced at a speed of about 60 cm per minute and left a clean field behind.

One must of course be absolutely sure that no obstacles, like water supplies or electrical cables are on its way.

ST-EL-OF / L K de Jonge

optical fibre cabling
Optical fibre cabling
  • SURFACE
  • SURFACE TO UNDERGROUND (SHAFTS)
  • TUNNEL
  • BEAM INSTRUMENTATION
  • EXPERIMENTAL AREAS

ST-EL-OF / L K de Jonge

surface optical links from pcr
Surface optical links from PCR
  • Sites 1, 5, 6,7, 8, 513 and CNGS OK
  • Sites 2, 32, 33 and 4 to be done
  • Old HDPE ducts to above sites in bad state
    • they are in place since 1986
    • ducts to P6 had (have) to be replaced
    • ducts to P8 had to be repaired at several spots
  • Blowing of cables difficult/impossible

ST-EL-OF / L K de Jonge

slide8

Optical cabling with tube systems

  • Install (blow) guide tubes (low cost)
  • Blow mini optical cables on demand
  • Modular and Flexible
  • Outdoor resistant
  • Easy to replace cables
  • Lower initial cost

ST-EL-OF / L K de Jonge

slide9

Blowing of guide tubes

ST-EL-OF / L K de Jonge

slide10

Blowing of mini optical fibre cables

  • This Micro-Jet can blow mini optical fibre cables with

(1- 72) fibres.

  • Size of an A4 sheet and 10 cm high.
  • Several units can be cascaded.
  • Blowing pressure is 10 Bar.

Micro-Jet from Plumettaz/CH

ST-EL-OF / L K de Jonge

slide11

Ø 40/50 mm duct

7 x Ø 10 mm guide tubes

Capacity 7 x 72=504 optical fibres

Ø 32/40 mm duct

5 x Ø 10 mm guide tubes

Capacity 5 x 72=360 optical fibres

Surface ducts with guide tubes

ST-EL-OF / L K de Jonge

slide12

Ø 40 mm duct with 10 x Ø 7 mm guide tubes

10 x 24=240 optical fibres

Guide tubes replaceable (change size)

Ø 25 mm duct with 7 x Ø 7 mm guide tubes

Capacity 7 x 24=168 optical fibres

Ø 18 mm duct with 3 x Ø 7 mm guide tubes

Capacity 3 x 24=72 optical fibres

3 ducts types with guide tubes

ST-EL-OF / L K de Jonge

slide13

Installation principles

  • Ø 40 mm duct with 10 guide tubes between SR and US/UJ
  • Ø 40 mm duct in the LHC tunnel with stops at US/UJ and partial stops at the alcoves RE
    • duct fixed together with leaky feeder cable to tunnel wall
  • Ø 25 mm duct for SL-BI and medium installations
  • Ø 18 mm duct for low capacity installations
  • Once the above infrastructure is in place, the mini optical cables can be blown
  • The tunnel fibres must be replaceable in case of radiation damage

ST-EL-OF / L K de Jonge

slide14

Radiation measurements (RADWG)

Measurements of optical cable (multimode and single-mode fibre)

ST-EL-OF / L K de Jonge

slide15

WEB Client

Fibre monitoring system “ATLAS”

to other

cables under

test

OTAU

OTDR

Optical Time Domain Reflecto meter

Optical Test Access Unit

RTU Remote Test Unit

NTE

NTE

Network terminal

Cable under test

System Management

Internet

CERN intranet

SNMP

ST-EL-OF / L K de Jonge

slide16

Mini optical fibre cables

  • Single-mode G.652.B 9/125 optical fibres
    • 4
    • 8 (6)
    • 12
    • 24
    • 48 (60)(72)
  • Multimode G.651 50/125 optical fibres
    • 6
    • 12
    • 24

ST-EL-OF / L K de Jonge

slide17

Optical terminations in STAR points

  • Single-mode G.652.B 9/125 optical fibres are terminated with E-2000/APC (8)
  • Multimode G.651 50/125 optical fibres are terminated with ST-HQ connectors
  • Other optical connectors are possible

SC or LC

ST-EL-OF / L K de Jonge

slide18

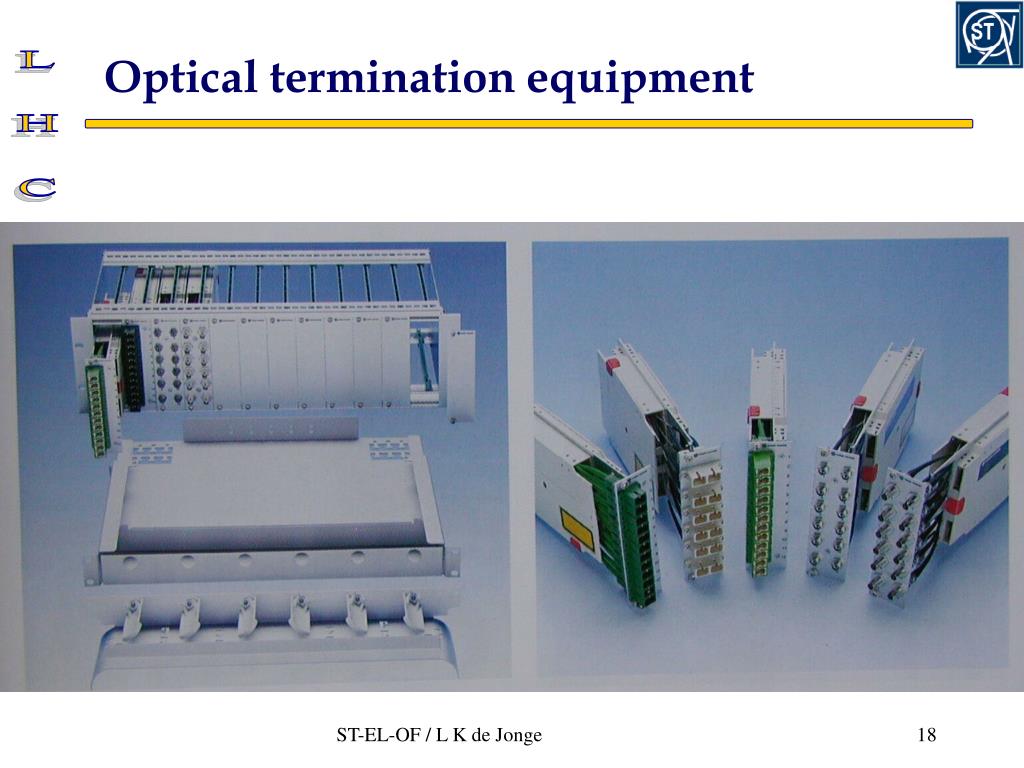

Optical termination equipment

Fibre port 3 (4)U 19” frame for max. 144 fibres

ST-EL-OF / L K de Jonge

slide19

Optical termination equipment

Fibre frame 1U 19”for max. 24 fibres

ST-EL-OF / L K de Jonge

slide20

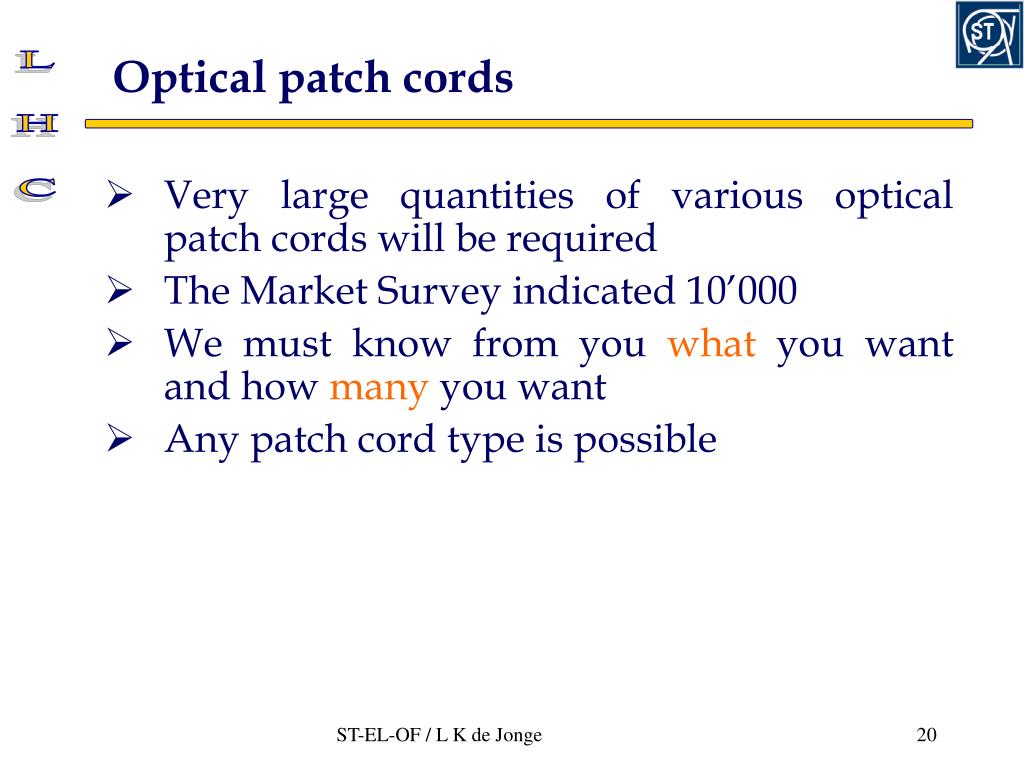

Optical patch cords

  • Very large quantities of various optical patch cords will be required
  • The Market Survey indicated 10’000
  • We must know from you what you want and how many you want
  • Any patch cord type is possible

ST-EL-OF / L K de Jonge

slide21

Optical fibre management

  • With such a dense optical network, we need to manage it
  • We are actually studying ways how to integrate our data into a common data base which should be linked to geographical information
  • We want make make use of the existing geographical information systems (GIS) and databases

ST-EL-OF / L K de Jonge

slide22

Presentation from STAR INFORMATICS

le 9 octobre 2002 à 14h30

Amphithéâtre SL – Bâtiment 864 – Site de Prévessin

AGENDA

14h30 Accueil et introduction

Michel Mayoud, Chef du Groupe EST-SU

14h45 Présentation du Système d’Informations Géographiques du CERN et de ses applications

Bernard Guyot EST-SU/TOP

15h30 Pause

15h45 Présentation des applications spécialisées dans la gestion des réseaux de distribution, ainsi que dans le domaine de la gestion des chantiers et du suivi d’une flotte de véhicule de STAR INFORMATICS

Philippe Berle de STAR France

16h45 Fin de la présentation

ST-EL-OF / L K de Jonge

slide23

To resume

  • Market Survey MS-3120/ST/LHC
    • Supply, Installation, Test and Commissioning of Optical Fibre Cabling Systems for LHC

CERN’s preference for tube systems

  • Received 12 replies
  • 6 or 7 Companies will be selected
  • Tender IT-3120/ST/LHC - FC June 2003
  • Contract with unit prices
  • Users get what they pay
  • First installations September 2003

ST-EL-OF / L K de Jonge

optical fibres for the lhc machine and experimental areas1

Optical Fibres for the LHC Machine and Experimental Areas

Now we must get

your requirements!

QUESTIONS

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

Luit Koert de Jonge/ST-EL-OF
