research directions for 21 st century computer systems asplos 2013 panel

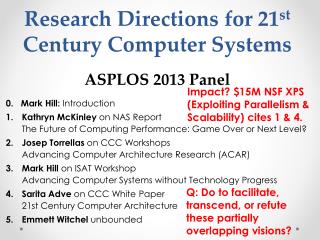

Research Directions for 21st Century Computer SystemsASPLOS 2013 Panel

Impact? $15M NSF XPS (Exploiting Parallelism & Scalability) cites 1 & 4.

0. Mark Hill: Introduction

Kathryn McKinley on NAS ReportThe Future of Computing Performance: Game Over or Next Level?

JosepTorrellason CCC WorkshopsAdvancing Computer Architecture Research (ACAR)

Mark Hill on ISAT WorkshopAdvancing Computer Systems without Technology Progress

SaritaAdveon CCC White Paper21st Century Computer Architecture

Emmett Witchelunbounded

Q: Do to facilitate, transcend, or refute these partially overlapping visions?

the future of computing performance

The Futureof ComputingPerformance:

Samuel H. Fuller, Chair

March 22, 2011

Computer Science and Telecommunications Board (CSTB)

National Research Council (NRC)

Game Over or Next Level?

Thanks to Sam Fuller & Mark Hill

committee on sustaining growth in computing performance
Committee On Sustaining Growth In Computing Performance

Experts Addressed the Problem

  • SAMUEL H. FULLER, Analog Devices Inc., Chair
  • LUIZ ANDRÉ BARROSO, Google, Inc.
  • ROBERT P. COLWELL, Independent Consultant
  • WILLIAM J. DALLY, NVIDIA Corporation and Stanford University
  • DAN DOBBERPUHL, PA Semi/Apple
  • PRADEEP DUBEY, Intel Corporation
  • MARK D. HILL, University of Wisconsin–Madison
  • MARK HOROWITZ, Stanford University
  • DAVID KIRK, NVIDIA Corporation
  • MONICA LAM, Stanford University
  • KATHRYN S. McKINLEY, University of Texas at Austin
  • CHARLES MOORE, Advanced Micro Devices
  • KATHERINE YELICK, University of California, Berkeley

Staff

  • LYNETTE I. MILLETT, Study Director
  • SHENAE BRADLEY, Senior Program Assistant
executive s ummary
Executive Summary
  • Computer hardware has transitioned to multicore
  • Dennard scaling of CMOS has broken down
  • Parallelism and locality must be exploited by software
  • Chip power will soon limit multicore scaling
virtuous cycle

doubling of transistors

Virtuous Cycle

Devices

2x more capable, efficient, cheaper, smaller, …

Software

Innovation

Hardware Complexity

Software Complexity

Sequential Interface

Sequential Interface

breaks in virtuous cycle

doubling of transistors

Breaks in Virtuous Cycle

end of Dennard Scaling

Devices

2x more capable, efficient, cheaper, smaller, …

Software

Innovation

Hardware Complexity

Software Complexity

Sequential Interface

Sequential Interface

Sequential Interface

next steps innovate w ithin and a cross l ayers
Next StepsInnovate within and across layers
  • Algorithms
  • Programming “systems”
  • Architecture
  • Technology
  • Education
community
Community

No news here? But…

Are we all acting on this knowledge or are we acting business as usual?

Are we thinking beyond next paper to where to create future value?

Denial  …  Acceptance  Act?

2 advancing computer architecture research acar
2. Advancing Computer Architecture Research (ACAR)
  • Two workshops sponsored by CCC
    • 25 + 19 attendees
  • Organizers: J. Torrellas (U Illinois) & M. Oskin (U Wash.)
  • Issued a community-wide call for white papers
  • Selection committee picked most relevant papers
  • Included industry folks
  • Also invited DARPA, DOE, NSF program managers

http://www.cra.org/ccc/docs/ACAR_Report_Popular-Parallel-Programming.pdfhttp://www.cra.org/ccc/docs/ACAR2-Report.pdf

what we found
What We Found

Data centers and extreme scale computing

Architectures for programmability

Specialized architectures and heterogeneity

Energy and power consumption are the key limiters

Performance scaling:

  • Past: no SW changes
  • Now: extensive SW+HW changes

Ultimate goal: fully automated generation of app-specific HW for programs

what we found1
What We Found

End of road for conventional ISA

Secure, reliable and predictable from the HW up

Exploiting emerging technologies

Foundation of computing is breaking apart; malicious parties are exploiting it

Architecture research enables new technologies to enter the market quickly

Modern systems are skyscrapers built on the ISA of a bungalow

discussion points
Discussion Points
  • Many directions of research are relevant:
    • Computer systems research is broadening
  • Focus on increasing funding pie, not re-distributing it
  • Need to create coalitions with other communities:
    • Big data
    • New computing materials and devices
    • Healthcare
  • Need to move away from incrementalism
advancing computer systems without technology progress
Advancing Computer Systems without Technology Progress

Our Focus

New Technology

System Capability (log)

CMOS

Fallow Period

80s

90s

00s

10s

20s

30s

40s

50s

Seek ~1000x = two decades of Moore Law via four thrusts

The views expressed are those of the author and do not reflect the official policy or position of the Department of Defense or the U.S. Government.

Approved for Public Release, Distribution Unlimited

a spectrum of hardware s pecialization
A. Spectrum of Hardware Specialization

Approved for Public Release, Distribution Unlimited

c reduce software bloat e g matrix multiply
C. Reduce Software Bloat(e.g., matrix multiply)

Can we achieve PHP productivity at BLAS efficiency?

Approved for Public Release, Distribution Unlimited

d locality aware parallelism
D. Locality-aware Parallelism
  • Now: Seek (vast) parallelism
    • e.g., simple, energy efficient cores
  • But remote communication >100x cost of compute

= 1200 pJ (24x)

Approved for Public Release, Distribution Unlimited

c approximate computing example
C. Approximate Computing Example

SECOND ORDER DIFFERENTIAL EQUATION ON ANALOG ACCELERATOR WITH DIGITAL ACCELERATOR.

Approved for Public Release, Distribution Unlimited

workshop takeaway
Workshop Takeaway
  • Can Harvest in the “Fallow” Period!

A. HW/SW Specialization/Co-design

B. Reduce SW Bloat

C. Approximate Computing

---------------------------------------------------

~1000x = 2 decades of Moore’s Law!

  • D. Systems must exploit LOCALITY-AWARE parallelism
  • HILL’s TWO CENTS: Move beyond General-Purpose
    • Systems that do new things, e.g., Kinect
    • Optimizations that help some, e.g., big memory workloads

Approved for Public Release, Distribution Unlimited

21 st century computer architecture a community white paper april may 2012
21st Century Computer Architecture A Community White Paper, April-May 2012

+ Jim Larus & Jeannette Wing gave feedback

+ CCC, Erwin Gianchandani, Ed Lazowska guided process

technology s challenges
Technology’s Challenges

How should architects step up as technology falters?

some thoughts
Some Thoughts

Architecture

???

???

ASPLOS 2014

ASPLOS

PL

OS

Need to step up for agency positions

NSF CCF Division Director Search

the 90 s

The 90s

SUCKED

jerry garcia
Jerry Garcia

Dead

1995

the verve
The Verve

The Verve PIPE

microarchitecture provides performance
microarchitectureprovides performance

Architecture

Microarchitecture

or

Clock rate

1. Buy machine

2. Wait 18 months

3. Buy next one

architecture changes provide value
architecture changesprovide value

1. Consider app

2. Buy machine

3. Goto 1

VT-x (11/05)

Extended Page Tables (11/08)

VT-d (11/08)

VPID (11/08) (tagged TLB!)

hardware software cooperation necessary
Hardware + Software Cooperation necessary
  • Security
  • Mobile
  • Data centers
  • Concurrency
  • GPU/Accelerator

The ‘10s

belong to

ASPLOS

research directions for 21 st century computer systems asplos 2013 panel1

Research Directions for 21st Century Computer SystemsASPLOS 2013 Panel

0. Mark Hill: Introduction

Kathryn McKinley on NAS ReportThe Future of Computing Performance: Game Over or Next Level?

JosepTorrellason CCC WorkshopsAdvancing Computer Architecture Research (ACAR)

Mark Hill on ISAT WorkshopAdvancing Computer Systems without Technology Progress

SaritaAdveon CCC White Paper21st Century Computer Architecture

Emmett Witchelunbounded

kathryn s m ckinley
Kathryn S. McKinley

Kathryn S. McKinley is a Principal Researcher at Microsoft and an Endowed Professor of Computer Science at The University of Texas at Austin. She and her collaborators have produced widely used tools: the DaCapo Java Benchmarks, TRIPS Compiler, Hoard memory manager, MMTk garbage collector toolkit, and Immix garbage collector. Her awards include: NSF Career, ASPLOS 2009 Best Paper, 2012 IEEE Top Picks, CACM Research Highlights (2006, 2012), Most Influential OOPSLA Paper from 2002 (awarded 2012), the 2011 ACM SIGPLAN Distinguished Service Award, and the 2012 ACM SIGPLAN Programming Languages Software Award. She has graduated 17 PhD students. She is an IEEE Fellow and ACM Fellow.

josep torrellas
JosepTorrellas

JosepTorrellas is a Professor of Computer Science at the University of Illinois Urbana-Champaign. He is the Director of the Center for Programmable Extreme Scale Computing, and the Director of the Illinois-Intel Parallelism Center (I2PC). He has also been a Willett Faculty Scholar and lead the OpenSPARC Center of Excellence. He is the past Chair of the IEEE Technical Committee on Computer Architecture, and currently serves as a Council Member of CRA's Computing Community Consortium. He is a Fellow of IEEE and ACM. He has made many technical contributions in the areas of shared-memory parallel computer architecture, low-power design, hardware reliability, and software dependability. He has graduated 30 Ph.D. students, who are now leaders in academia and industry. He is currently working on the Bulk Multicore Architecture, and on the DARPA-funded Runnemede Extreme Scale Architecture, both in collaboration with Intel.

mark hill
Mark Hill

Mark D. Hill (www.cs.wisc.edu/~markhill) is professor in both the computer sciences department and the electrical and computer engineering department at the University of Wisconsin--Madison, where he also co-leads the Wisconsin Multifacet (www.cs.wisc.edu/multifacet/) project with David Wood. His research interests include parallel computer system design, memory system design, computer simulation, deterministic replay and transactional memory. He earned a PhD from University of California, Berkeley. He is an ACM Fellow and a Fellow of the IEEE.

sarita adve
SaritaAdve

SaritaAdve is Professor of Computer Science at the University of Illinois at Urbana-Champaign. Her research interests are in computer architecture and systems, parallel computing, and power and reliability-aware systems. Her honors include the Anita Borg Institute Women of Vision award in innovation, the ACM SIGARCH Maurice Wilkes award, the University Scholar recognition by the University of Illinois, and an Alfred P. Sloan Research Fellowship. She is a fellow of the ACM and the IEEE. She serves on the boards of the Computing Research Association and ACM SIGARCH. She received the Ph.D. in Computer Science from the University of Wisconsin-Madison in 1993.

emmitt witchel
Emmitt Witchel

Emmett Witchel is an associate professor in computer science at The University of Texas at Austin.  He and his group are interested in operating systems, security, and architecture.  Most of his current research is about secure systems, GPU systems, and concurrent systems. He received his doctorate from MIT in 2004.
