Presentation Transcript

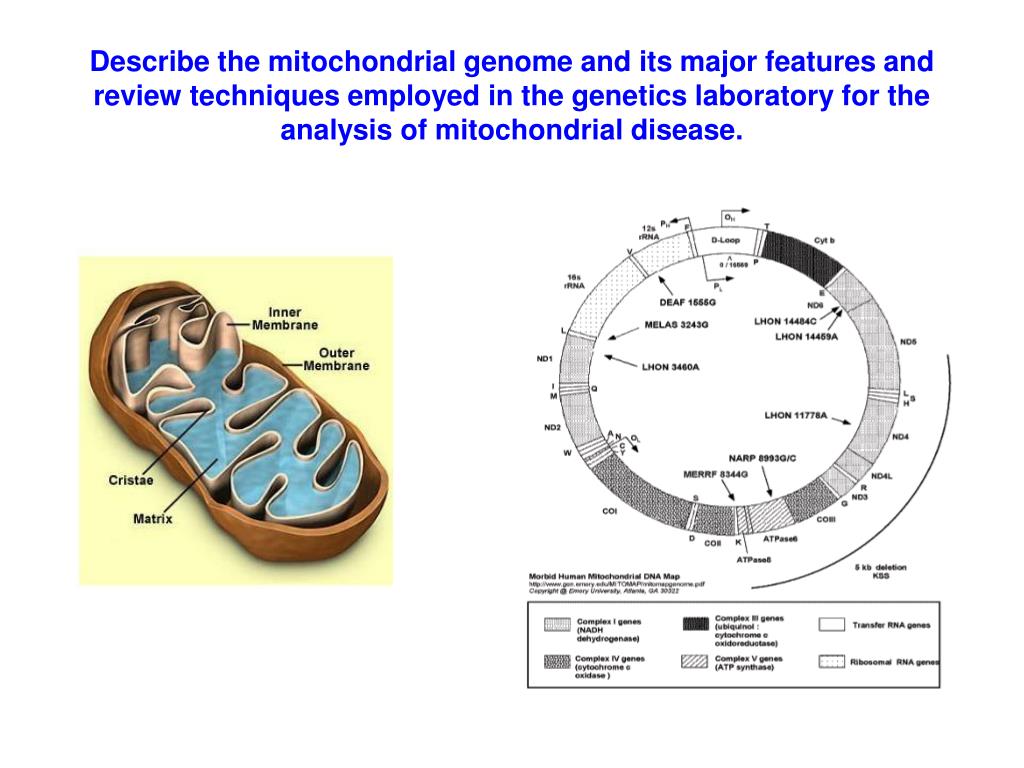

Describe the mitochondrial genome and its major features and review techniques employed in the genetics laboratory for the analysis of mitochondrial disease.

what are mitochondria

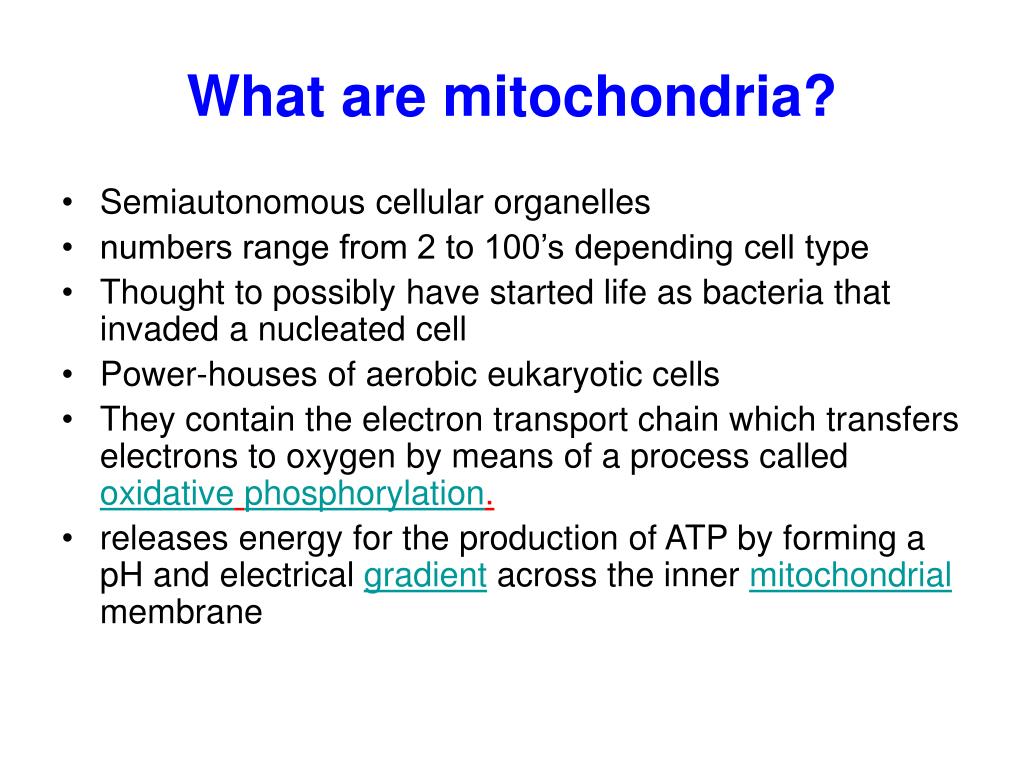

What are mitochondria?
  • Semiautonomous cellular organelles
  • numbers range from 2 to 100’s depending cell type
  • Thought to possibly have started life as bacteria that invaded a nucleated cell
  • Power-houses of aerobic eukaryotic cells
  • They contain the electron transport chain which transfers electrons to oxygen by means of a process called oxidativephosphorylation.
  • releases energy for the production of ATP by forming a pH and electrical gradient across the inner mitochondrial membrane
mitochondrial genome major features 1

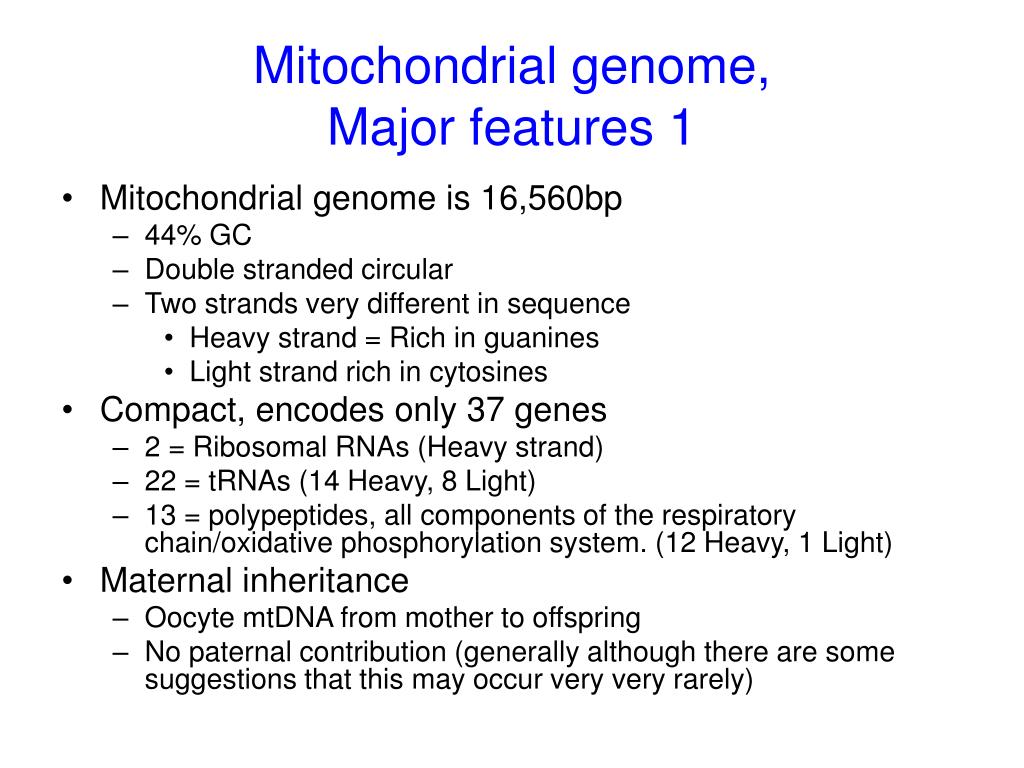

Mitochondrial genome, Major features 1
  • Mitochondrial genome is 16,560bp
    • 44% GC
    • Double stranded circular
    • Two strands very different in sequence
      • Heavy strand = Rich in guanines
      • Light strand rich in cytosines
  • Compact, encodes only 37 genes
    • 2 = Ribosomal RNAs (Heavy strand)
    • 22 = tRNAs (14 Heavy, 8 Light)
    • 13 = polypeptides, all components of the respiratory chain/oxidative phosphorylation system. (12 Heavy, 1 Light)
  • Maternal inheritance
    • Oocyte mtDNA from mother to offspring
    • No paternal contribution (generally although there are some suggestions that this may occur very very rarely)
transcription and replication
Transcription and replication
  • Transcription of H and L strands is from promoters in the triple stranded, non-coding D-loop region of the genome
    • Transcription from Heavy strand is CLOCKWISE
    • Transcription from Light strand is ANTICLOCKWISE
  • No introns, genes separated by 1 or 2 non-coding bases
    • Multigenic transcripts generated then cleaved
  • H-strand origin of replication is in D-loop
    • Replication of H-strand involves using the L-strand as a template and displacing the old H strand.
    • L-strand replication starts after 2/3 of daughter H-strand has been replicated
    • L-strand replication proceeds in the opposite direction using the H strand as a template
mitochondrial genetic code

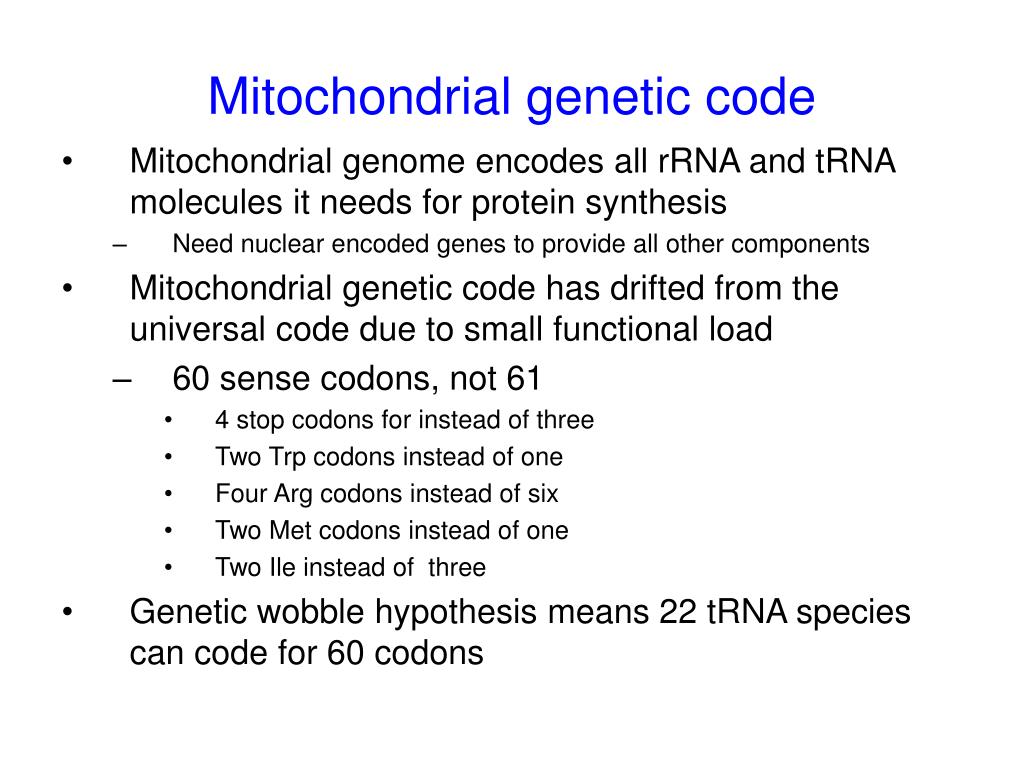

Mitochondrial genetic code
  • Mitochondrial genome encodes all rRNA and tRNA molecules it needs for protein synthesis
    • Need nuclear encoded genes to provide all other components
  • Mitochondrial genetic code has drifted from the universal code due to small functional load
    • 60 sense codons, not 61
      • 4 stop codons for instead of three
      • Two Trp codons instead of one
      • Four Arg codons instead of six
      • Two Met codons instead of one
      • Two Ile instead of three
  • Genetic wobble hypothesis means 22 tRNA species can code for 60 codons
mitochondrial disease

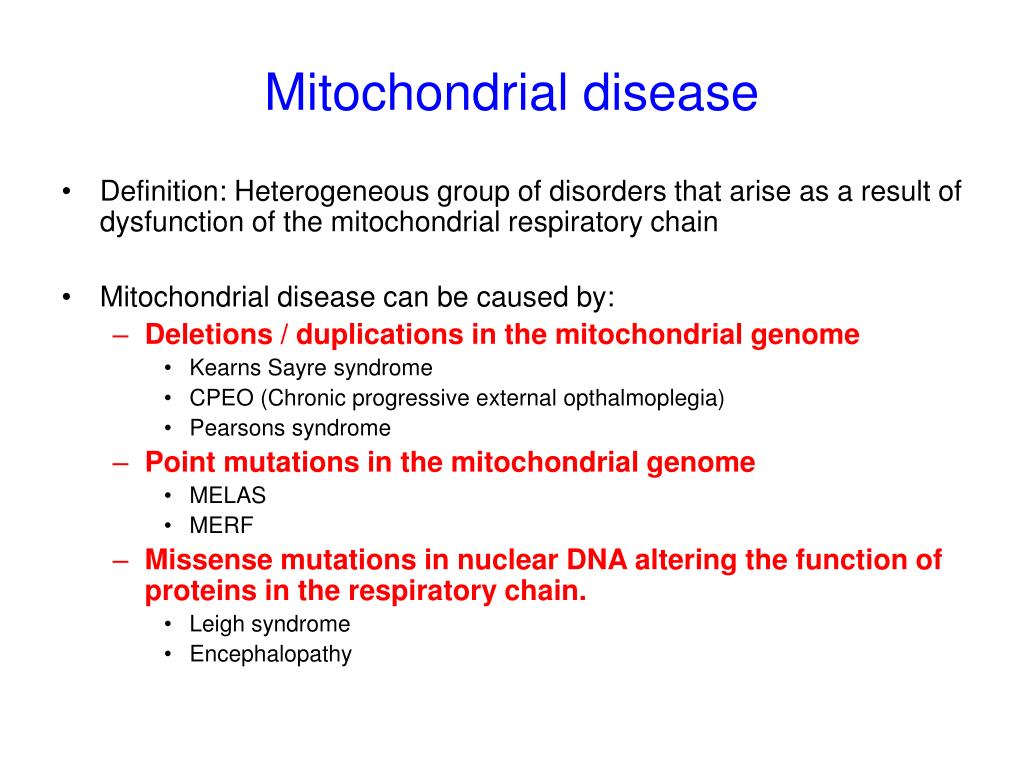

Mitochondrial disease
  • Definition: Heterogeneous group of disorders that arise as a result of dysfunction of the mitochondrial respiratory chain
  • Mitochondrial disease can be caused by:
    • Deletions / duplications in the mitochondrial genome
      • Kearns Sayre syndrome
      • CPEO (Chronic progressive external opthalmoplegia)
      • Pearsons syndrome
    • Point mutations in the mitochondrial genome
      • MELAS
      • MERF
    • Missense mutations in nuclear DNA altering the function of proteins in the respiratory chain.
      • Leigh syndrome
      • Encephalopathy
major features 2

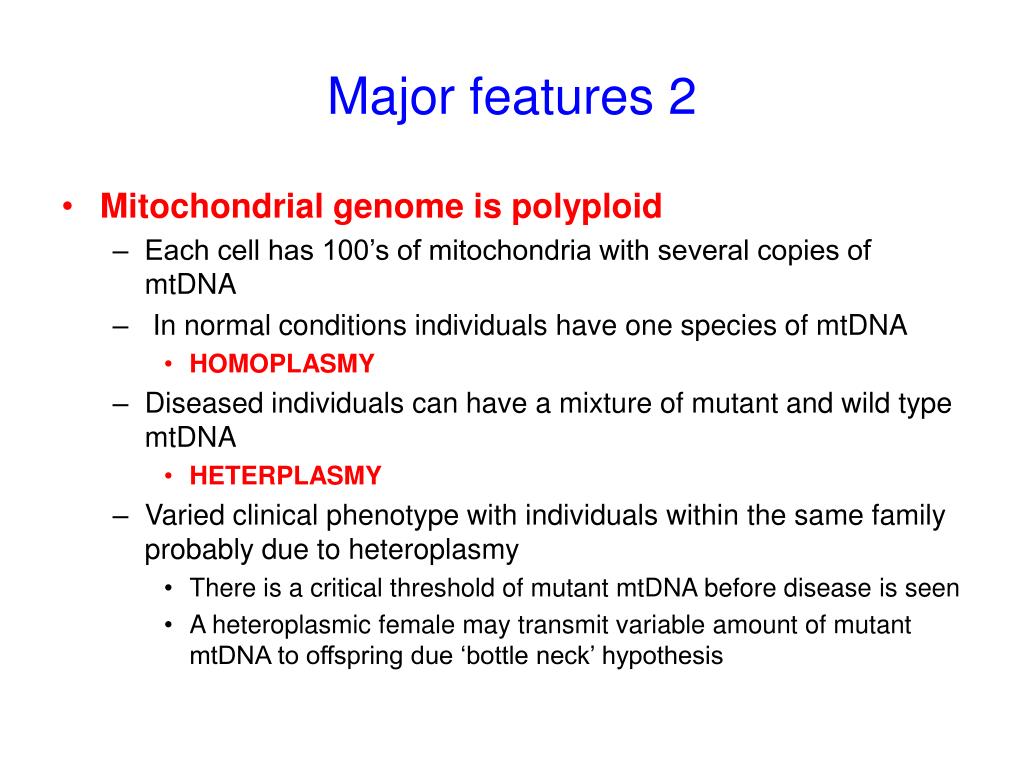

Major features 2
  • Mitochondrial genome is polyploid
    • Each cell has 100’s of mitochondria with several copies of mtDNA
    • In normal conditions individuals have one species of mtDNA
    • Diseased individuals can have a mixture of mutant and wild type mtDNA
    • Varied clinical phenotype with individuals within the same family probably due to heteroplasmy
      • There is a critical threshold of mutant mtDNA before disease is seen
      • A heteroplasmic female may transmit variable amount of mutant mtDNA to offspring due ‘bottle neck’ hypothesis

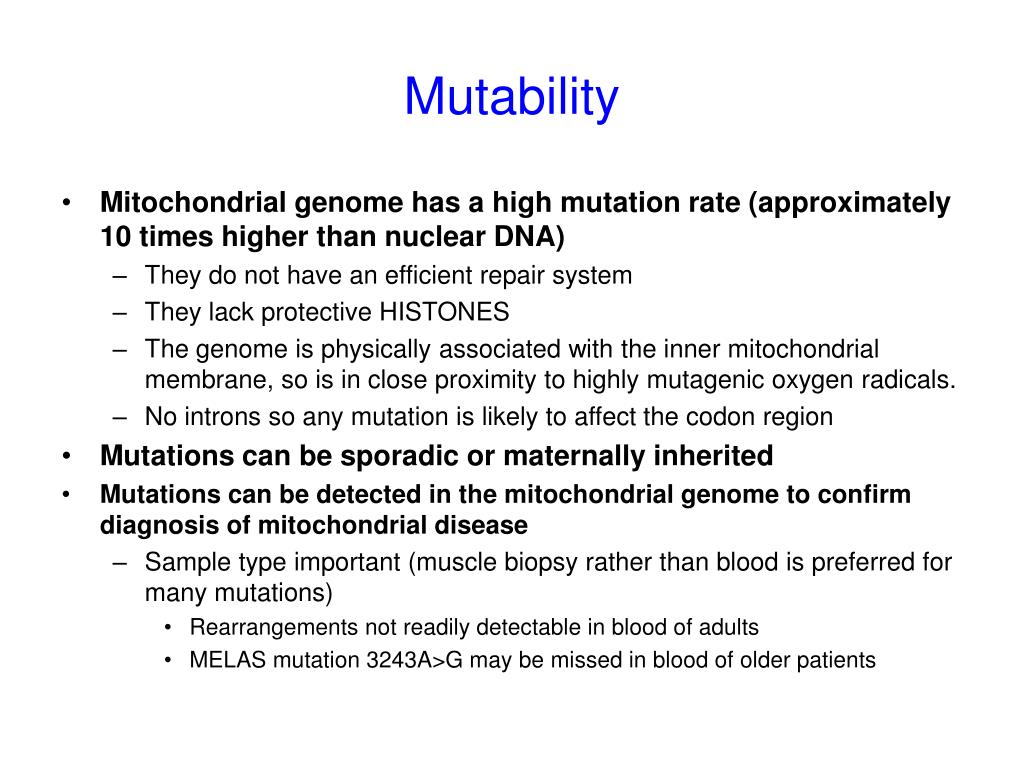

  • Mitochondrial genome has a high mutation rate (approximately 10 times higher than nuclear DNA)
    • They do not have an efficient repair system
    • They lack protective HISTONES
    • The genome is physically associated with the inner mitochondrial membrane, so is in close proximity to highly mutagenic oxygen radicals.
    • No introns so any mutation is likely to affect the codon region
  • Mutations can be sporadic or maternally inherited
  • Mutations can be detected in the mitochondrial genome to confirm diagnosis of mitochondrial disease
    • Sample type important (muscle biopsy rather than blood is preferred for many mutations)
      • Rearrangements not readily detectable in blood of adults
      • MELAS mutation 3243A>G may be missed in blood of older patients
testing for point mutations in mtdna

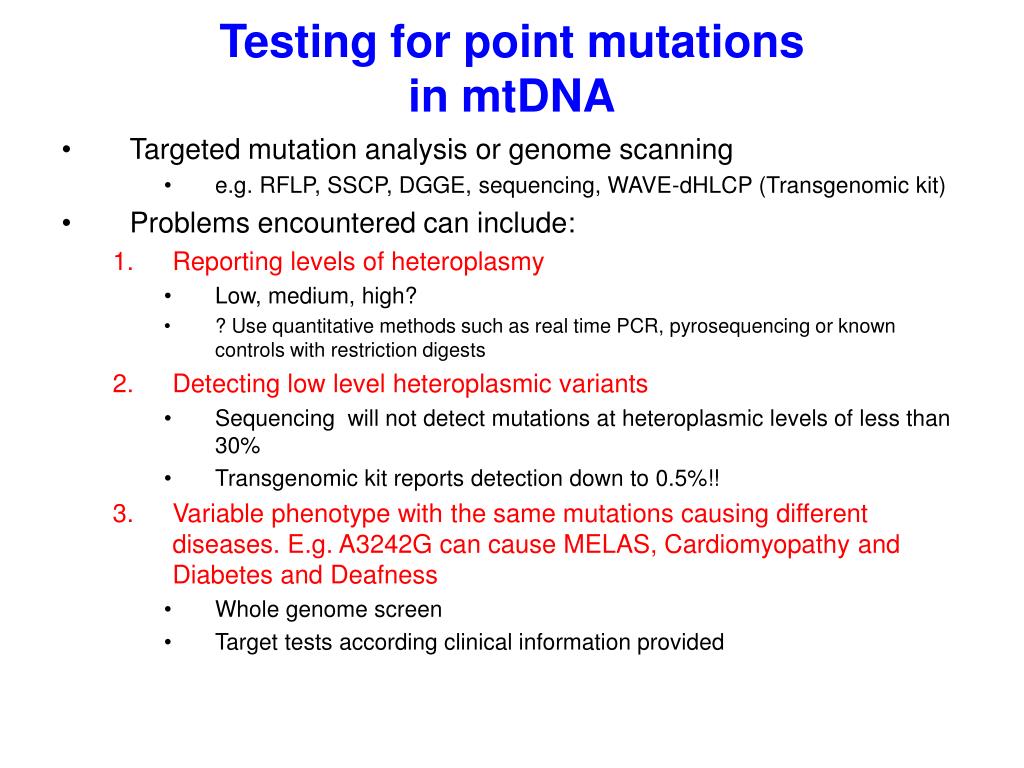

Testing for point mutationsin mtDNA
  • Targeted mutation analysis or genome scanning
      • e.g. RFLP, SSCP, DGGE, sequencing, WAVE-dHLCP (Transgenomic kit)
  • Problems encountered can include:
    • Reporting levels of heteroplasmy
      • Low, medium, high?
      • ? Use quantitative methods such as real time PCR, pyrosequencing or known controls with restriction digests
    • Detecting low level heteroplasmic variants
      • Sequencing will not detect mutations at heteroplasmic levels of less than 30%
      • Transgenomic kit reports detection down to 0.5%!!
    • Variable phenotype with the same mutations causing different diseases. E.g. A3242G can cause MELAS, Cardiomyopathy and Diabetes and Deafness
      • Whole genome screen
      • Target tests according clinical information provided

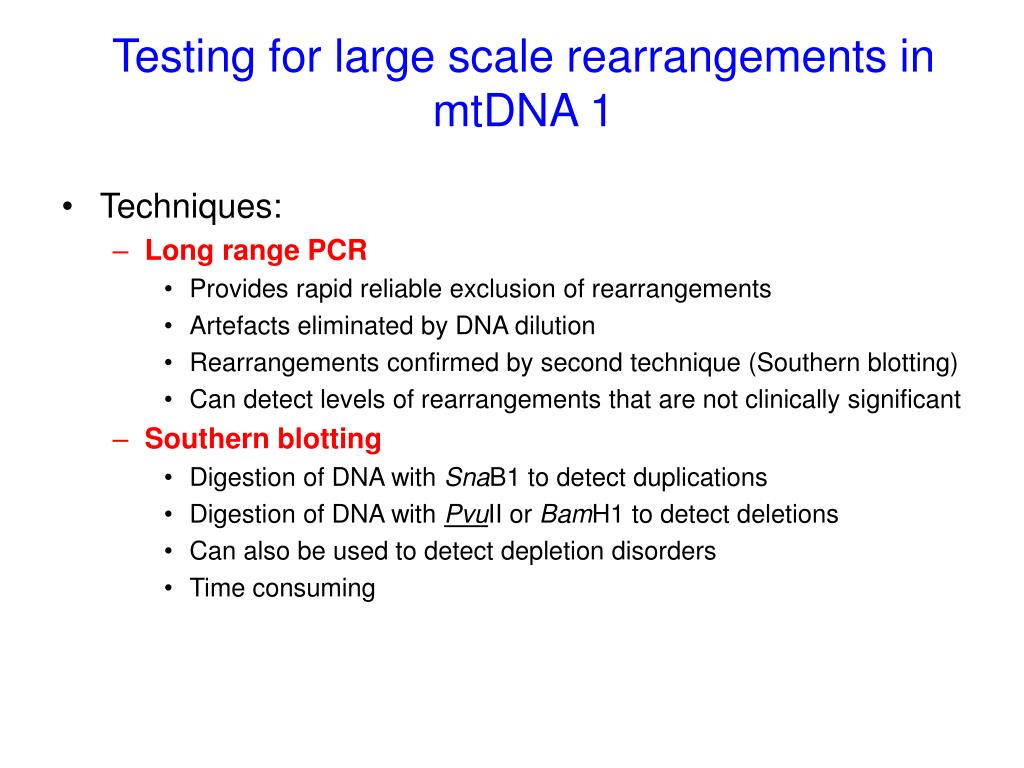

testing for large scale rearrangements in mtdna 1
Testing for large scale rearrangements in mtDNA 1
  • Techniques:
    • Long range PCR
      • Provides rapid reliable exclusion of rearrangements
      • Artefacts eliminated by DNA dilution
      • Rearrangements confirmed by second technique (Southern blotting)
      • Can detect levels of rearrangements that are not clinically significant
    • Southern blotting
      • Digestion of DNA with SnaB1 to detect duplications
      • Digestion of DNA with PvuII or BamH1 to detect deletions
      • Can also be used to detect depletion disorders
      • Time consuming
testing for large scale rearrangements in mtdna 2
Real time PCR

Specialised equipment


MRC Holland kit exists, however,

No control probes

Changes of less than 50% decrease or increase in probe signal expected

Deletions / duplications probably only detected when more that one probe is located within the area

Testing for large scale rearrangements in mtDNA 2

Testing for point mutations in the nuclear genome

  • Targeted mutation analysis or genome scanning
    • SURF1, COX10, SCO2, COX15, POLG , ANT1, Twinkle etc

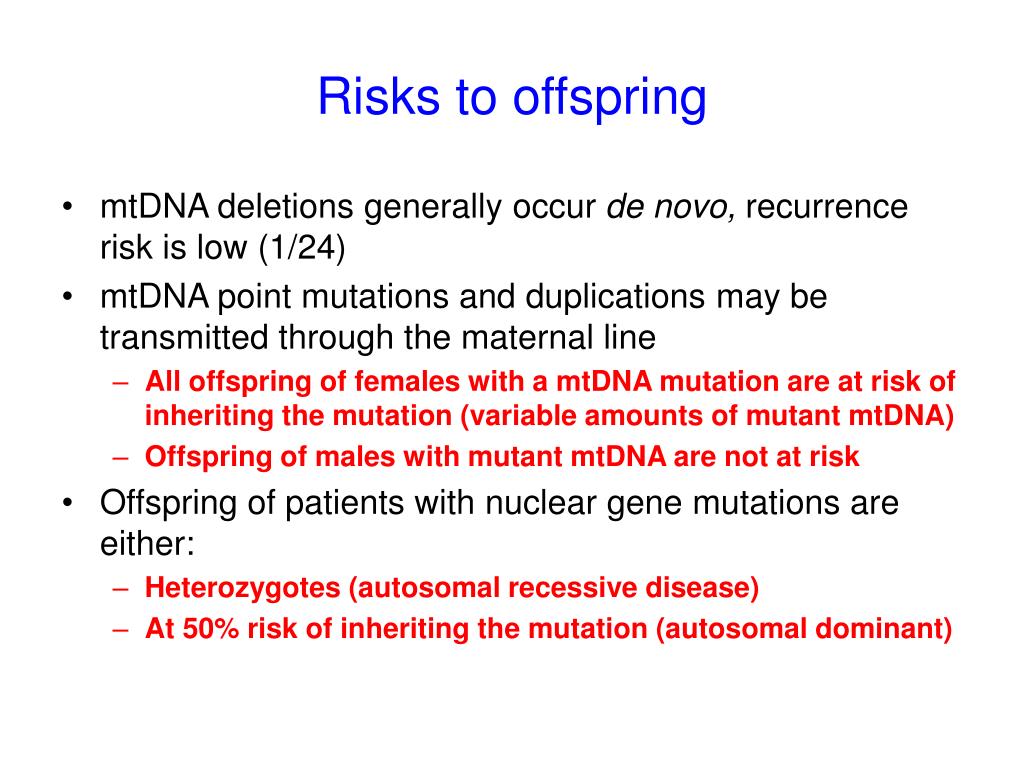

risks to offspring
Risks to offspring
  • mtDNA deletions generally occur de novo, recurrence risk is low (1/24)
  • mtDNA point mutations and duplications may be transmitted through the maternal line
    • All offspring of females with a mtDNA mutation are at risk ofinheriting the mutation (variable amounts of mutant mtDNA)
    • Offspring of males with mutant mtDNA are not at risk
  • Offspring of patients with nuclear gene mutations are either:
    • Heterozygotes (autosomal recessive disease)
    • At 50% risk of inheriting the mutation (autosomal dominant)
prenatal diagnosis 1
Prenatal diagnosis 1
  • mtDNA mutations difficult because of mtDNA heteroplasmy
    • % mtDNA in CVS may not reflect level in other fetal tissue
    • Mt DNA levels may change during development and life
    • Therefore for most mtDNA mutations prenatal diagnosis is not recommended
  • Mutations T8993G/C that cause NARP and MILS does not appear to change significantly over time
    • Successful prenatal diagnosis has been carried for these two mutations
  • Relationship between mutant load in mother and disease in offspring for MERF 8344 A>G
    • Mutant levels below 40% in mother rarely give rise to severe disease in offspring
    • CVS offered to mothers with mutant load of more than 40%

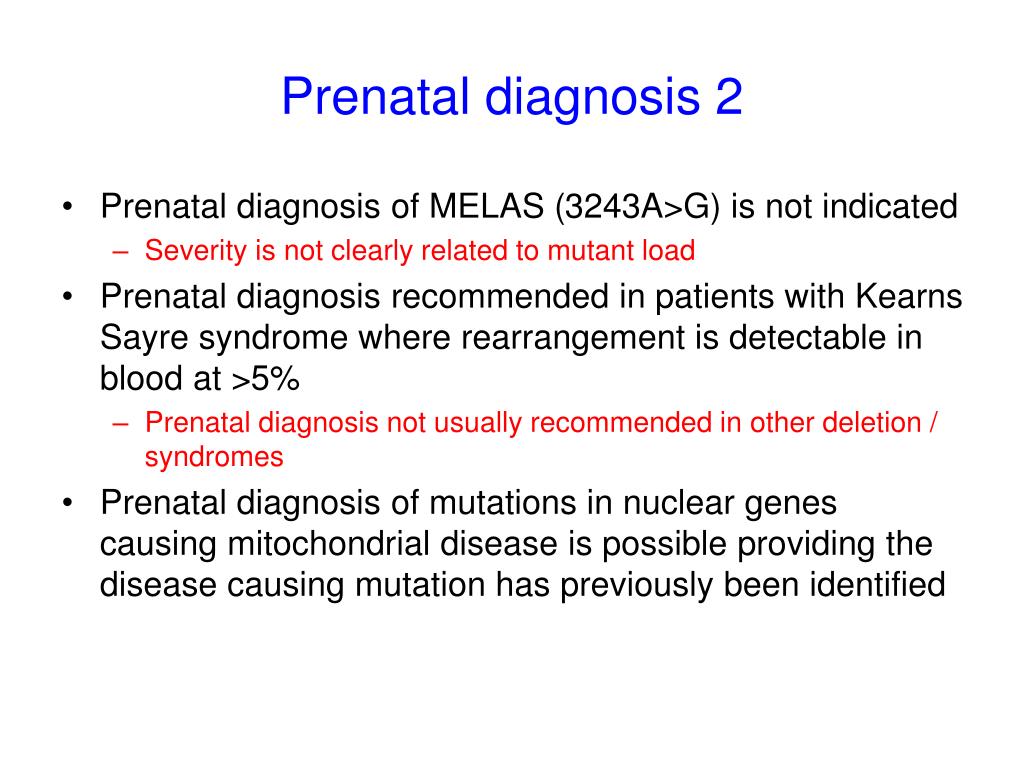

prenatal diagnosis 2
Prenatal diagnosis 2
  • Prenatal diagnosis of MELAS (3243A>G) is not indicated
    • Severity is not clearly related to mutant load
  • Prenatal diagnosis recommended in patients with Kearns Sayre syndrome where rearrangement is detectable in blood at >5%
    • Prenatal diagnosis not usually recommended in other deletion / syndromes
  • Prenatal diagnosis of mutations in nuclear genes causing mitochondrial disease is possible providing the disease causing mutation has previously been identified
