1 / 12

Phototropism

Phototropism . Directional Information Blue Light Stem Bending Toward Light Lateral Redistribution of Auxin Auxin High on Shaded Side Increased Growth Stomatal Opening Blue Light Activation of ATPase H+ ion extrusion K+/Cl- Uptake H2O uptake

gannon
Download Presentation

Phototropism

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

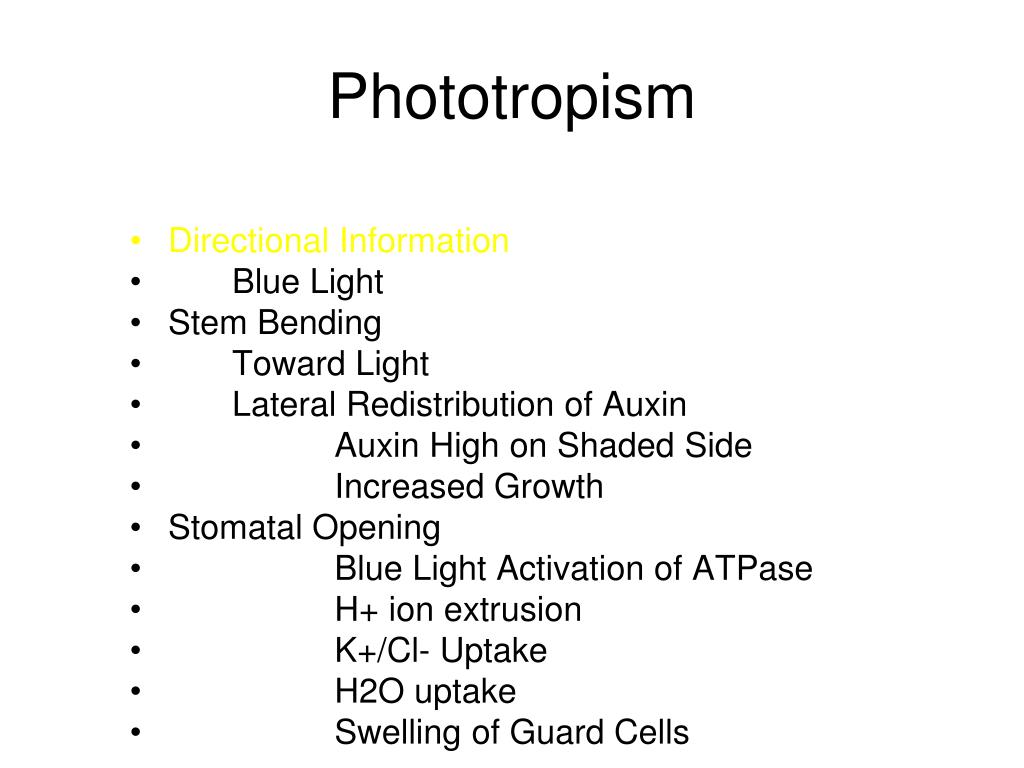

  1. Phototropism • Directional Information • Blue Light • Stem Bending • Toward Light • Lateral Redistribution of Auxin • Auxin High on Shaded Side • Increased Growth • Stomatal Opening • Blue Light Activation of ATPase • H+ ion extrusion • K+/Cl- Uptake • H2O uptake • Swelling of Guard Cells

  2. Phototropism

  3. Plants in Motion

  4. Phototropism • Leaf Movements • Heliotropism - Legumes • Pulvinus • Similar to Stomatal Opening • Multicellular • H+ / K+, Cl- exchange ---> H2O uptake ---> Swelling • Dorsal <---> Ventral • Dorsal swell ---> Leaf moves down • Ventral swell ---> Leaf moves up

  5. Leaf Movements • Pulvinus

  6. Leaf Movements

  7. Leaf Movements

  8. Plants in Motion

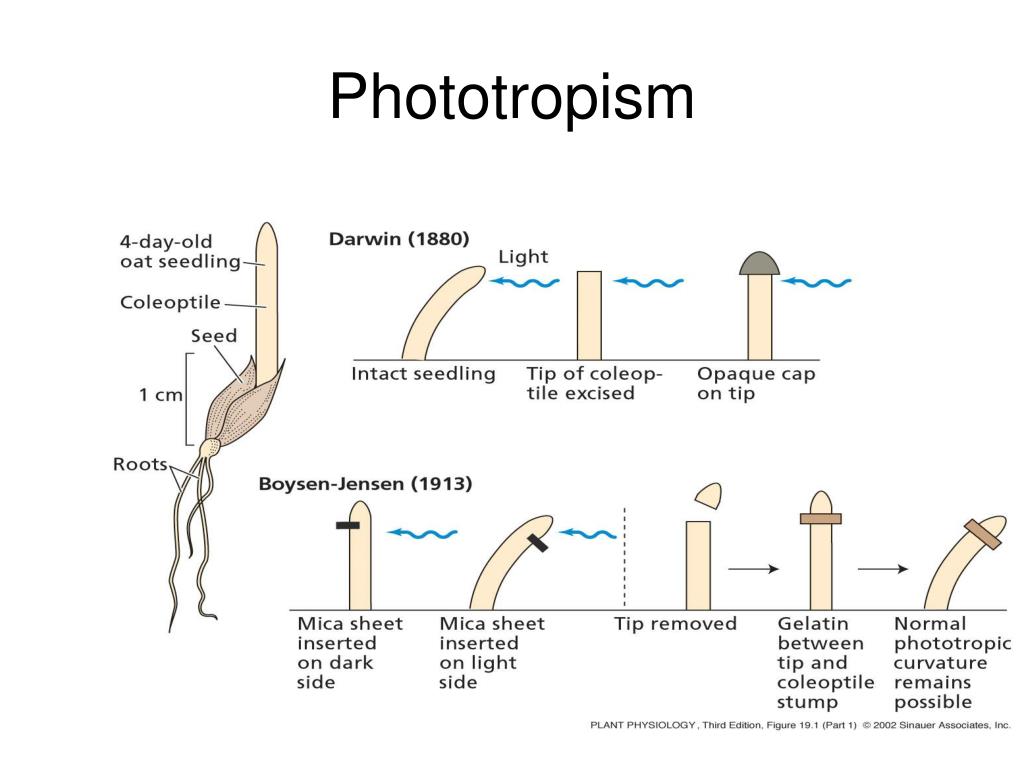

  9. Phototropism

  10. Blue Light Action Spectrum

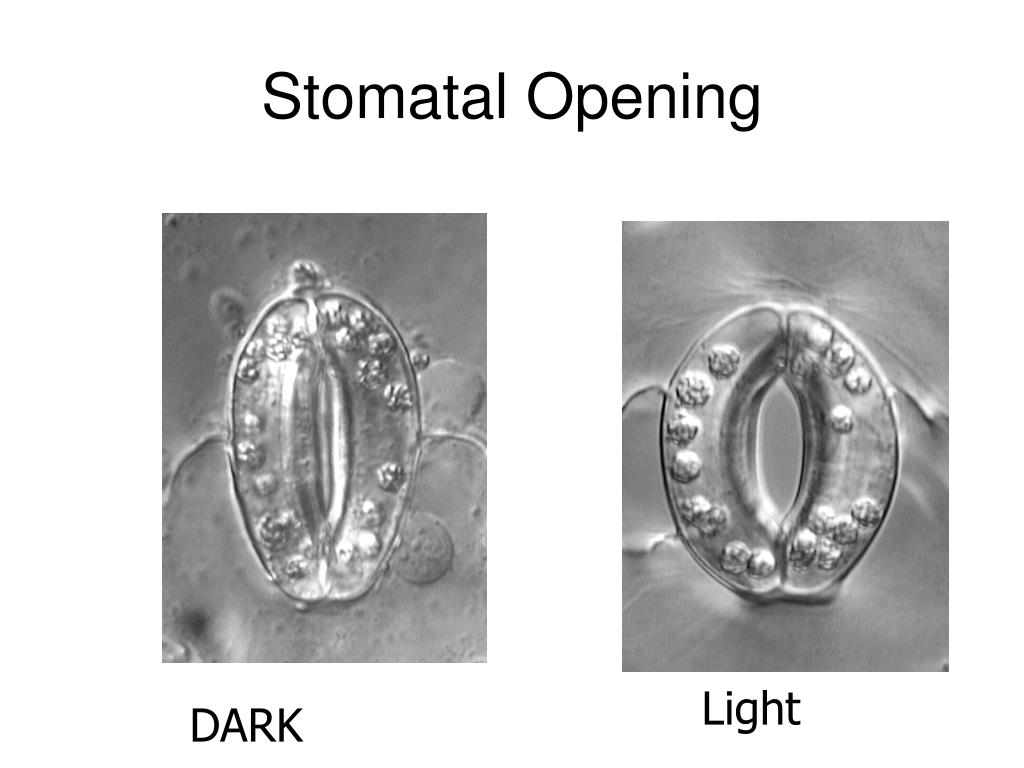

  11. Stomatal Opening Light DARK

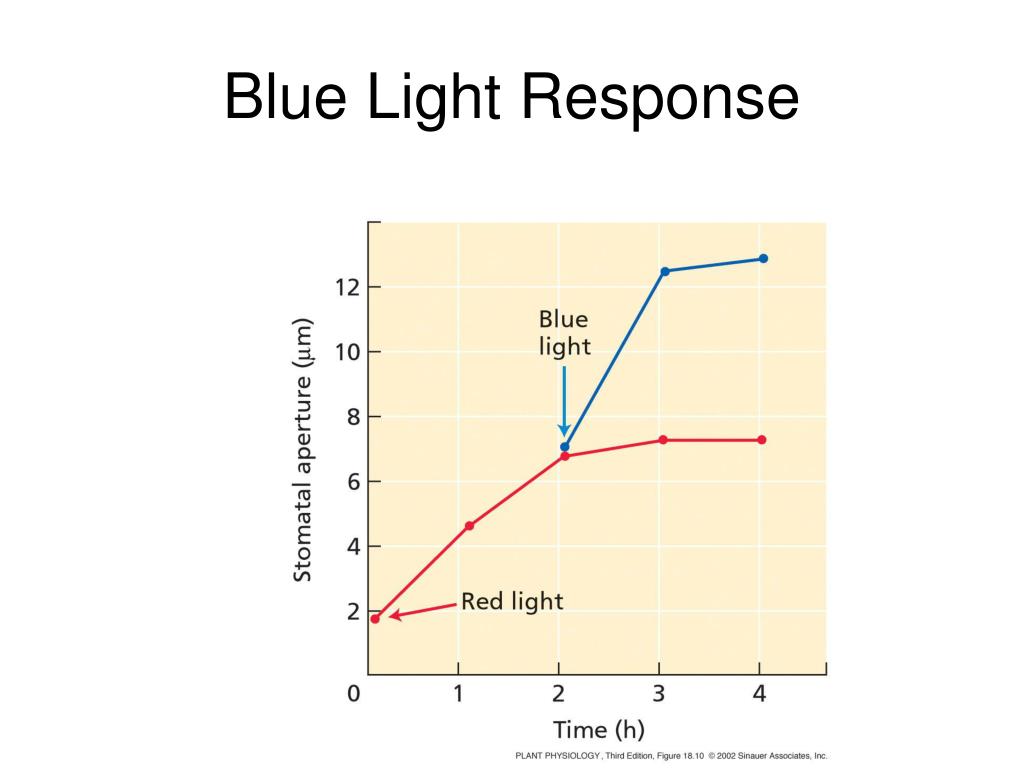

  12. Blue Light Response
