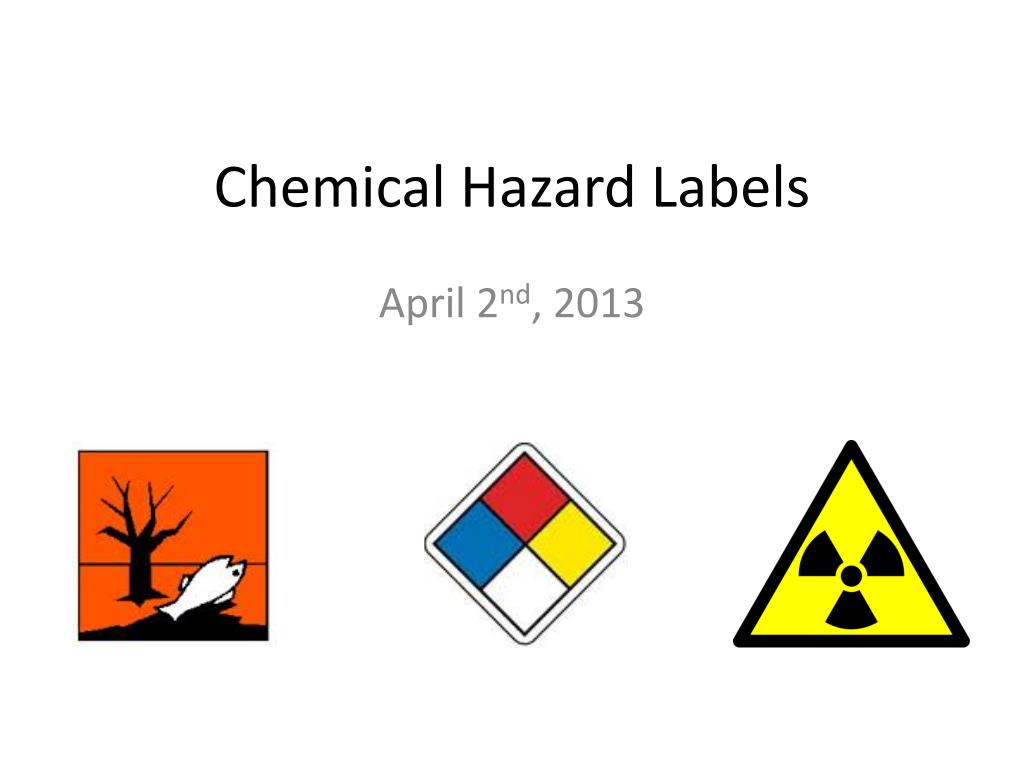

  1. Chemical Hazard Labels April 2nd, 2013

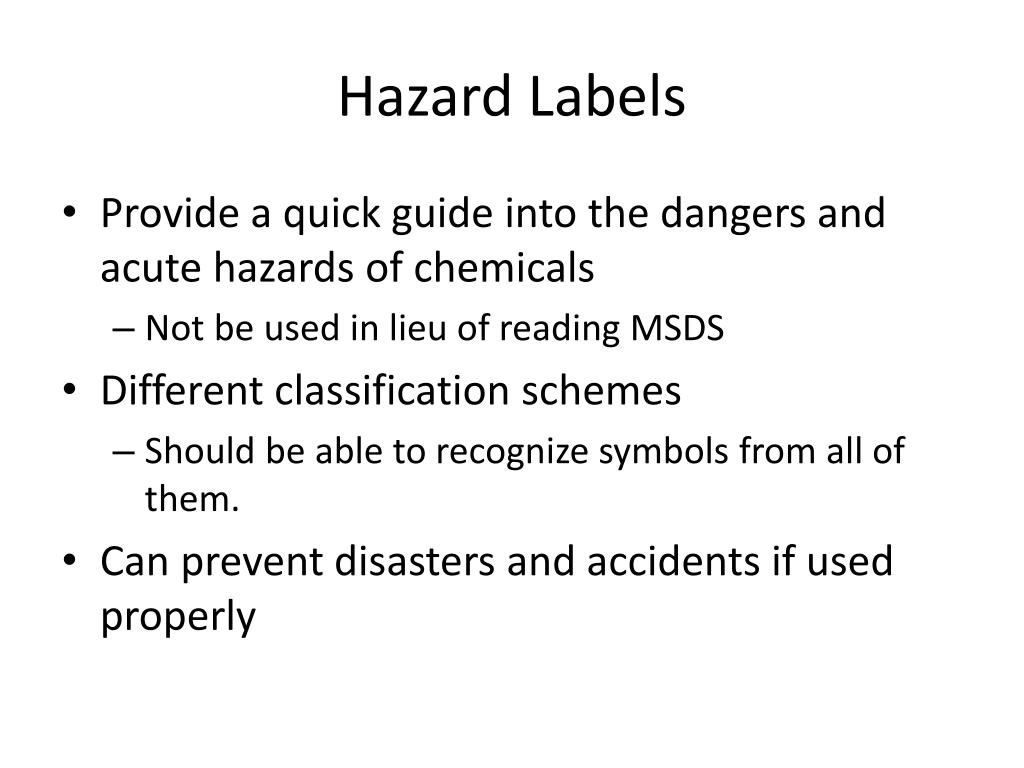

  2. Hazard Labels • Provide a quick guide into the dangers and acute hazards of chemicals • Not be used in lieu of reading MSDS • Different classification schemes • Should be able to recognize symbols from all of them. • Can prevent disasters and accidents if used properly

  3. How many of these do you know? Your hair may spontaneously combust? Killer starfish in the area? A guard just saw something wrong?

  4. Old COSHH Symbols

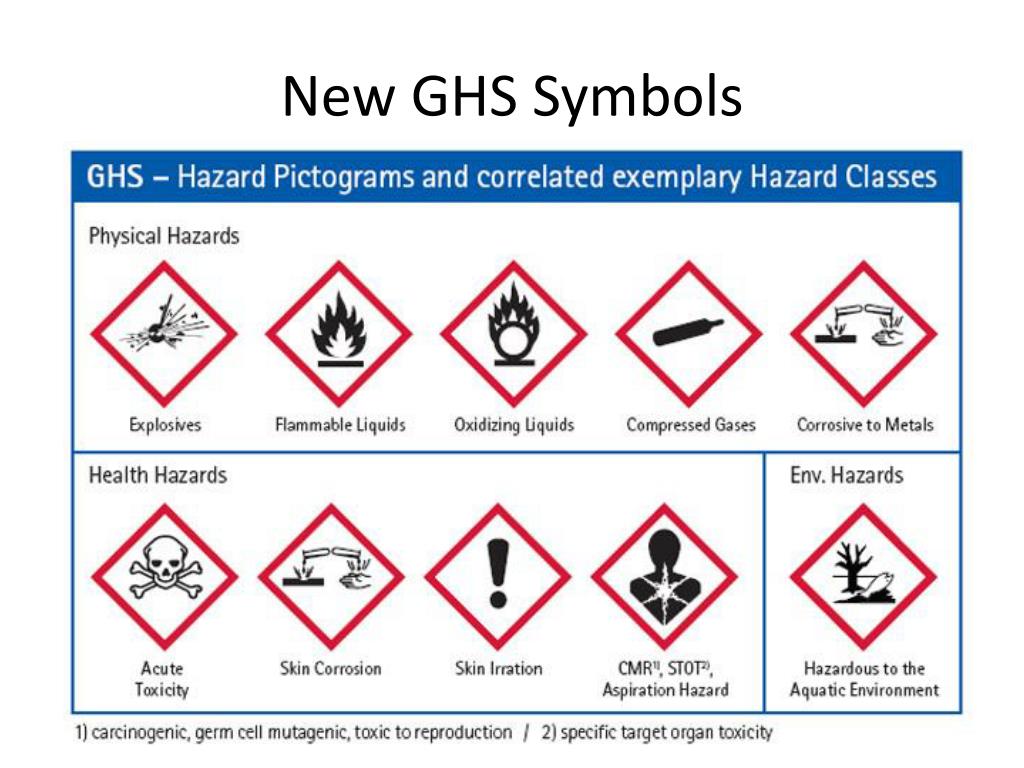

  5. New GHS Symbols

  6. NFPA Warning Diamond Flammability Reactivity Health Specific Hazards Diborane

  7. Blue Health Section 0: Poses no known health hazard (water) 1: Exposure causes irritation or could result in residual injury (acetone) 2: Intense of continued exposure could cause incapacitation or possible residual injury (Et2O) 3: Short exposure could cause serious temporary or moderate residual injury (chlorine) 4: Very short exposure could cause death or major residual injury (CO, HCN)

  8. Red Fire Section 0: Materials will not burn under typical conditions (CO2) 1: Materials that require considerable preheating before ignition and combustion (mineral oil) Flash Point (FP) > 93.4oC 2: Must be moderately heated or exposed to high ambient temps (diesel fuel) FP > 38oC 3. Liquids and solids that can be ignited under almost all ambient conditions (gasoline) FP > 23oC 4: Will rapidly or completely vaporize at normal atomospheric pressure and temperature or will burn readily (acetylene) FP < 23oC

  9. Yellow Reactivity Section 0: Normally stable, even under fire exposure and does not react with water (He) 1: Normally stable but unstable at elevated temperatures and pressures (propene) 2: Undergoes violent chemical changes at high temp. or pressure, reacts violently with water (sodium) 3: Capable of detonation or explosive decomposition but require initiating source, reacts explosively with water, or when severely shocked (ammonium nitrate) 4: Readily capable of detonation or explosive decomposition at normal temp. and pressures (nitroglycerin)

  10. White Specific Hazard Section OX: Oxidizer (hydrogen peroxide) SA: Simple asphyxiant gas (argon) W: Reacts with water in an unusual or dangerous manner (cesium) ACID: Acidic (HCl) ALK: Alkaline (KOH) COR: Corrosive (dimethyl sulfate) RAD: Radioactive (uranium) BIO: Biological Hazard (smallpox) POI: Poisonous (Strychnine)

  11. Summary of NFPA Warning Diamond

  12. Other Useful Symbols to Know Radioactive Biohazard Chemical Weapons
