results problem 13 case 1 sdf3 exact computation sadf

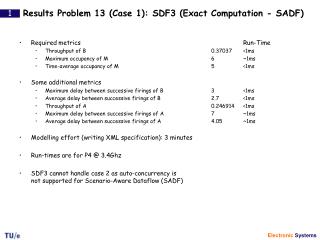

Results Problem 13 (Case 1): SDF3 (Exact Computation - SADF)
  • Required metrics Run-Time
    • Throughput of B 0.37037 <1ms
    • Maximum occupancy of M 6 ~1ms
    • Time-average occupancy of M 5 <1ms
  • Some additional metrics
    • Maximum delay between successive firings of B 3 <1ms
    • Average delay between successive firings of B 2.7 <1ms
    • Throughput of A 0.246914 <1ms
    • Maximum delay between successive firings of A 7 ~1ms
    • Average delay between successive firings of A 4.05 ~1ms
  • Modelling effort (writing XML specification): 3 minutes
  • Run-times are for P4 @ 3.4Ghz
  • SDF3 cannot handle case 2 as auto-concurrency isnot supported for Scenario-Aware Dataflow (SADF)
