  1. Johnson & JohnsonUse of Public Key Technology Brian G. Walsh Senior Analyst, WWIS

  2. Johnson & Johnson • The world’s largest and most comprehensive manufacturer of health care products • Founded in 1886 • Headquartered in New Brunswick, NJ • Sales of $41.9 billion in 2003 • 198 operating companies in 54 countries • Over 110,000 employees worldwide • Customers in over 175 countries

  3. Four Business Groups • Pharmaceuticals • Prescription drugs including EPREX, REMICADE • Medical Devices and Diagnostics • Blood analyzers, stents, wound closure, prosthetics, minimally invasive surgical equipment • Consumer Products • E.g., Neutrogena; SPLENDA • Consumer Pharmaceuticals and Nutritionals • E.g., TYLENOL

  4. Statistics • 400+ UNIX servers; 1900+ WinNT/2000 servers • 96,000+ desktops/laptops (Win2K) • 60,000+ remote users • Employ two-factor authentication (almost all using PKI; a few still using SecurID but being migrated) • 50M+ e-mails/month; 50+ TB of storage • 530+ internet and intranet servers, 3.3M+ website hits/day

  5. Enterprise Directory • Uses Active Directory forest • Separate from Win2K OS AD but some contents replicated • Populated by authoritative sources only • Uses World Wide Identifiers (WWIDs) as index • Supports entire security framework • Source of all information put into certificates • 300K+ entries (employees, partners, retirees, former) • LDAP accessible

  6. J&J PKI • Directory centric – certificate subscriber must be in Enterprise Directory • Certificate contents dictated by ED info (none based on “user-supplied input”) • Certificates issued with supervisor ID proofing • Simple hierarchy – root CA and subordinate online CA

  7. J&J PKI (con’t) • Standard form factor: hardware tokens (USB) • Production deployment began early 2003 • Total of over 150,000 certificates (signature and encryption) issued to date • Most important initial applications: • Remote authentication • Secure e-mail • Some enterprise applications

  8. Experience (1) • Training help desks (you can’t do too much of this…) • Ensuring sufficient help desk resources to respond to peaks (>100% of average level; fortunately reasonably short half-life) • Shifting user paradigms (always hard to change human behavior…) • Patience • Clear, unequivocal instructions/steps

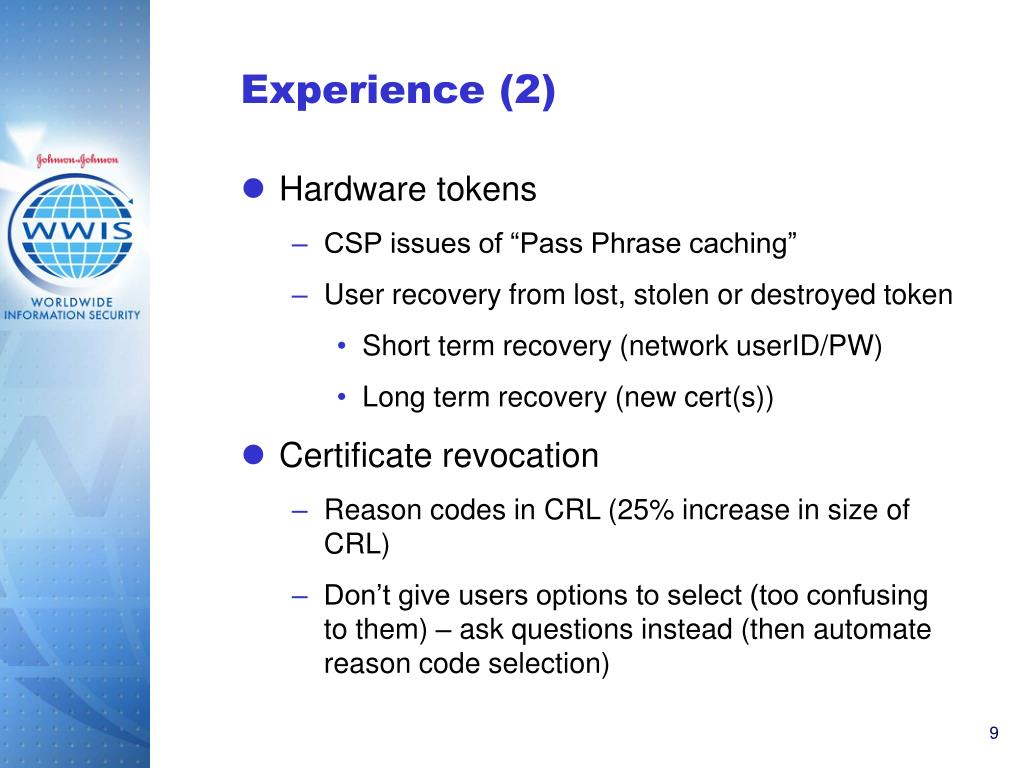

  9. Experience (2) • Hardware tokens • CSP issues of “Pass Phrase caching” • User recovery from lost, stolen or destroyed token • Short term recovery (network userID/PW) • Long term recovery (new cert(s)) • Certificate revocation • Reason codes in CRL (25% increase in size of CRL) • Don’t give users options to select (too confusing to them) – ask questions instead (then automate reason code selection)

  10. Experience (3) • We put in three identifiers in each cert (e-mail address, WWID, UPN) • Right thing to do for apps • Means employee transfer out/transfer in processes require getting new certs (since e-mail address changes) • HR controls those processes, not IM • Moral: smart IM technical/policy decisions may require implementation outside IM

  11. Experience (4) • Once user gets new certs: • Register them with apps (e.g., Outlook S/MIME profile changes) • Link them to other user accounts (e.g., Nortel VPN client) • Thus – there are some additional steps to “migrate” to new certs • Not yet seamless

  12. Experience (5) • Decryption private key recovery • User can do for his/her own (after authenticating) • Local Key Recovery Authority Officer can request for others • Global KRAO must approve • But – important to distinguish key recovery from revocation or getting new certs • Unclear terminology (to users) resulted in lots of unnecessary requests, none of which required approval

  13. Experience (6) • CRL growth is always faster than you predict • Ours is now 1.3 MB (expected it to be less than half that size) • Caching CRLs in Windows is “easy” but not obvious • IE manages CRL cache as part of “temporary internet files” folder • Standard setting for us was: flush that folder when IE is closed • Results in lots of CRL downloads

  14. Experience (7) • With employees in over 50 countries, J&J has one main business language (English) and over 12 important languages • PKI certificate subscribers have to sign agreement to get tokens • Must be in native languages • Translation services became an issue – especially with last minute changes to agreement • Lesson learned: English is not legally binding universally

  15. Experience (8) • Rolling out tokens and certificates to over 1000 individuals at a time over a 4-6 month period • Users are not technically savvy, regular registration is confusing and complicated • Need more then one way to get certificates to the user population, not everyone will understand a series of technical steps • All problems attributed to PKI (Identity Token)!!!

  16. Questions?? Brian G. Walsh Senior Analyst, WW Information Security

  17. Group Registration Process • Rolling out to the masses • Strict Standard Operating Procedure • Number of Roles requiring training • Designed to maintain the integrity of the JJEDS, while enabling a speedy, easy roll-out • Training of Help Desk and Deployments teams were crucial to the successful deployments • It is still new technology, no matter how you package it
