  1. Towards a Federation as a Service From IdP in the Cloudproject to FaaS Andrea Biancini

  2. Agenda Andrea Biancini

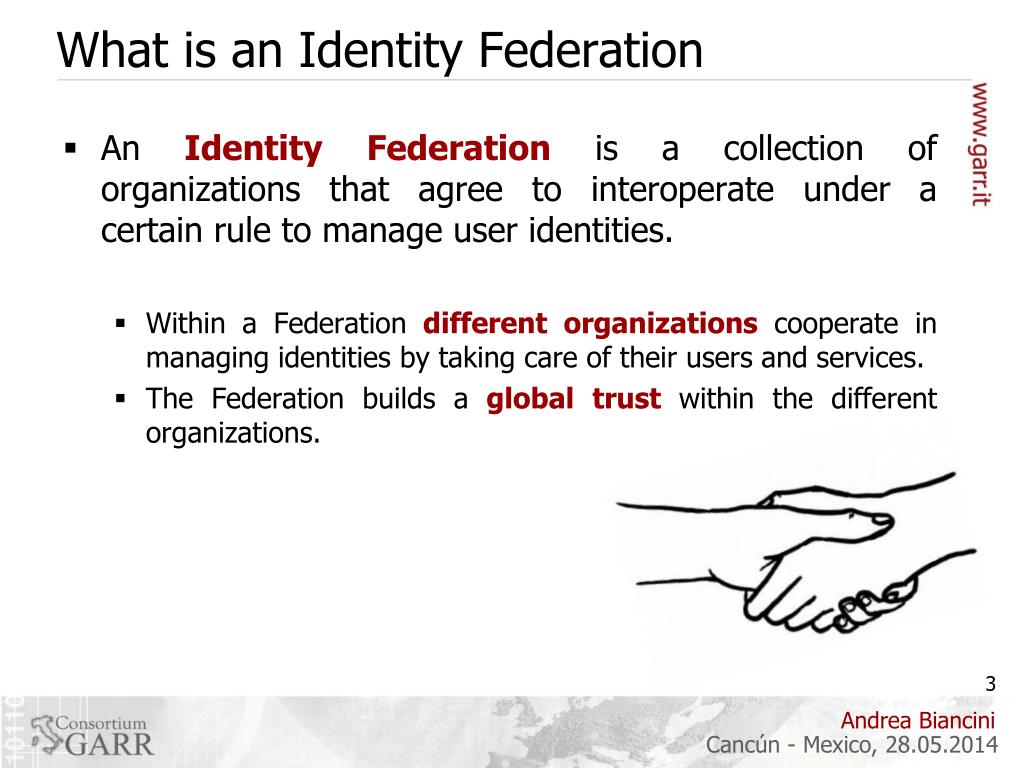

  3. What is an Identity Federation • An Identity Federationis a collection of organizations that agree to interoperate under a certain rule to manage user identities. • Within a Federation different organizations cooperate in managing identities by taking care of their users and services. • The Federation builds a global trust within the different organizations. Andrea Biancini

  4. What needs to be done to operate a Fed. • Participants have to: • Define procedures to create and manage an IdP; • Define procedures to create and manage an SP. • Federation managers have to: • Registering an entity (IdP or SP) in the Federation • Validating metadata information toward Federation policies; • Performing all security controls and signing metadata; • Guiding the participants in the implementation of an Identity Management policy. • Signing and distributing the Metadata. • Providing accessory services (like information pages or Discovery Service). Andrea Biancini

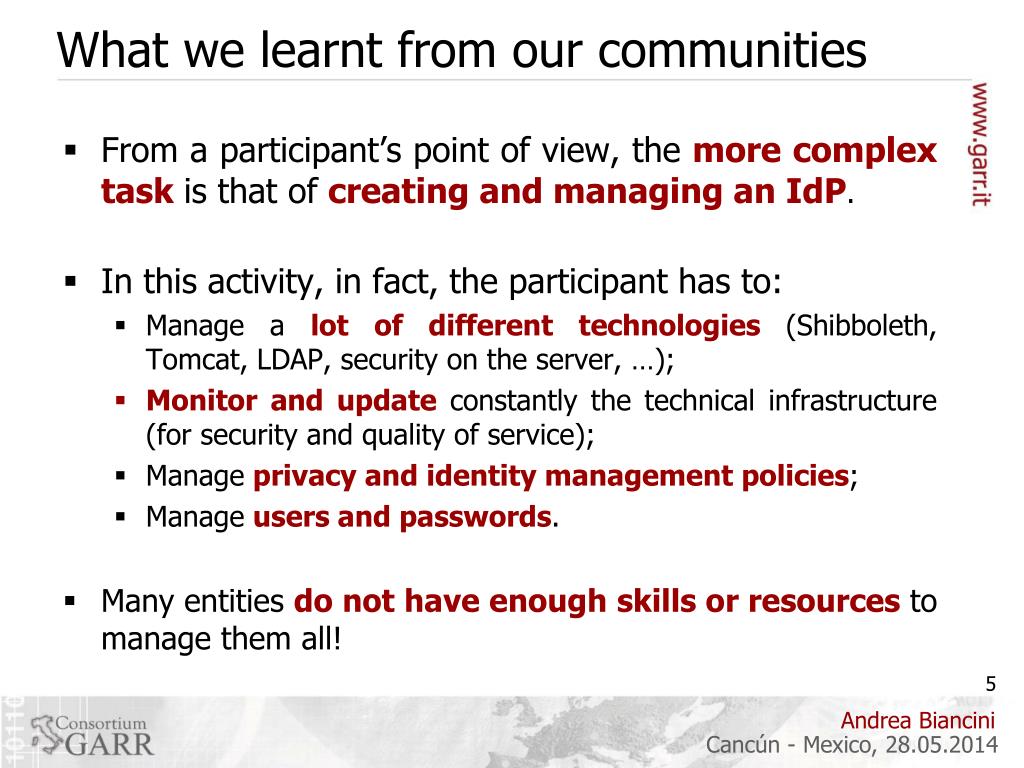

  5. What we learnt from our communities • From a participant’s point of view, the more complex task is that of creating and managing an IdP. • In this activity, in fact, the participant has to: • Manage a lot of different technologies (Shibboleth, Tomcat, LDAP, security on the server, …); • Monitor and update constantly the technical infrastructure (for security and quality of service); • Manage privacy and identity management policies; • Manage users and passwords. • Many entities do not have enough skills or resources to manage them all! Andrea Biancini

  6. The answer to this problem! • To tackle this problem, GARR started the “IdP in the cloud” service • Goal: offering IdPs as a service on a cloud infrastructure! • This service permitted totake away greater part of the job from Federation participants. • All technological aspects are managed by GARR on behalf of the participating entity (including monitoring and updates); • Compliance to regulation and Federation policy is delegated to GARR; • The participating entity “only” has to manage users and passwords. Andrea Biancini

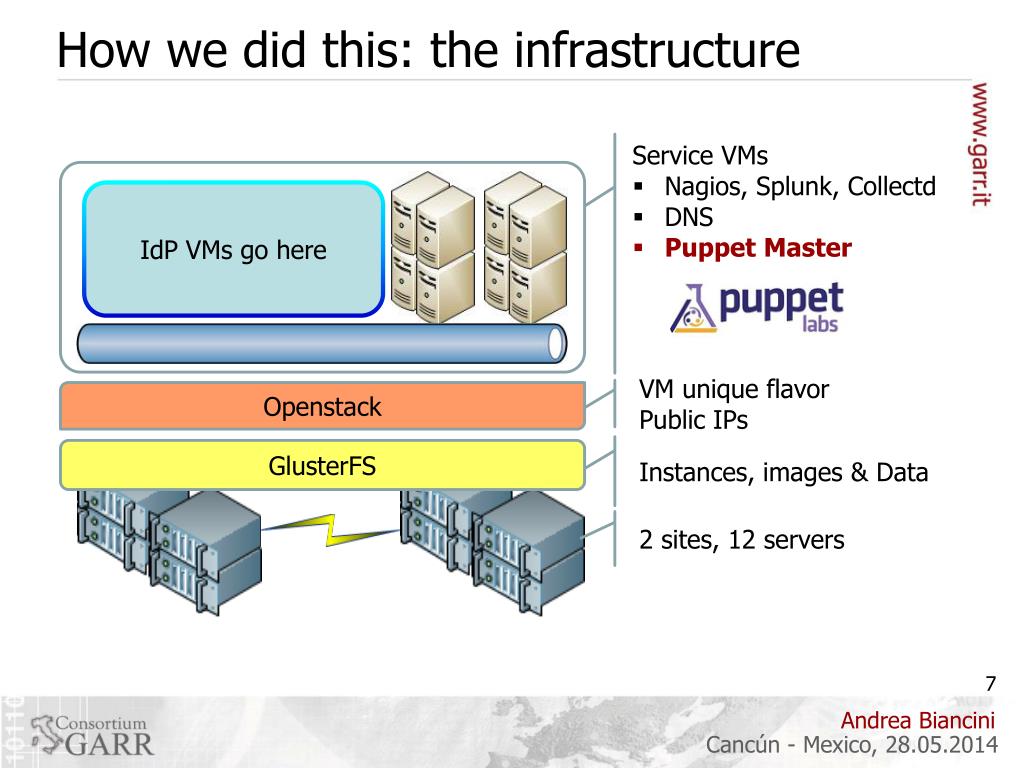

  7. How wedidthis: the infrastructure • Service VMs • Nagios, Splunk, Collectd • DNS • Puppet Master IdPVMs go here VM unique flavor Public IPs Openstack Instances, images & Data GlusterFS 2 sites, 12 servers Andrea Biancini

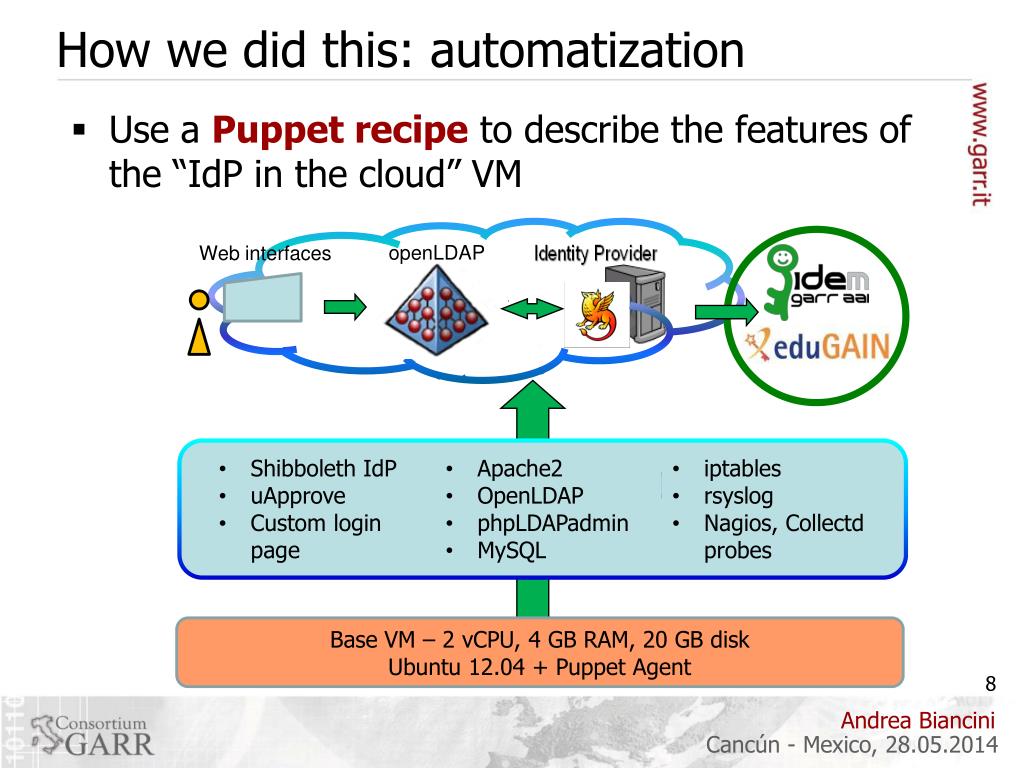

  8. How wedidthis: automatization • Use a Puppet recipe to describe the features of the “IdP in the cloud” VM => IDP in the Cloud openLDAP Web interfaces Base VM – 2 vCPU, 4 GB RAM, 20 GB disk Ubuntu 12.04 + Puppet Agent Andrea Biancini

  9. Key benefits of IdP in the cloud Andrea Biancini

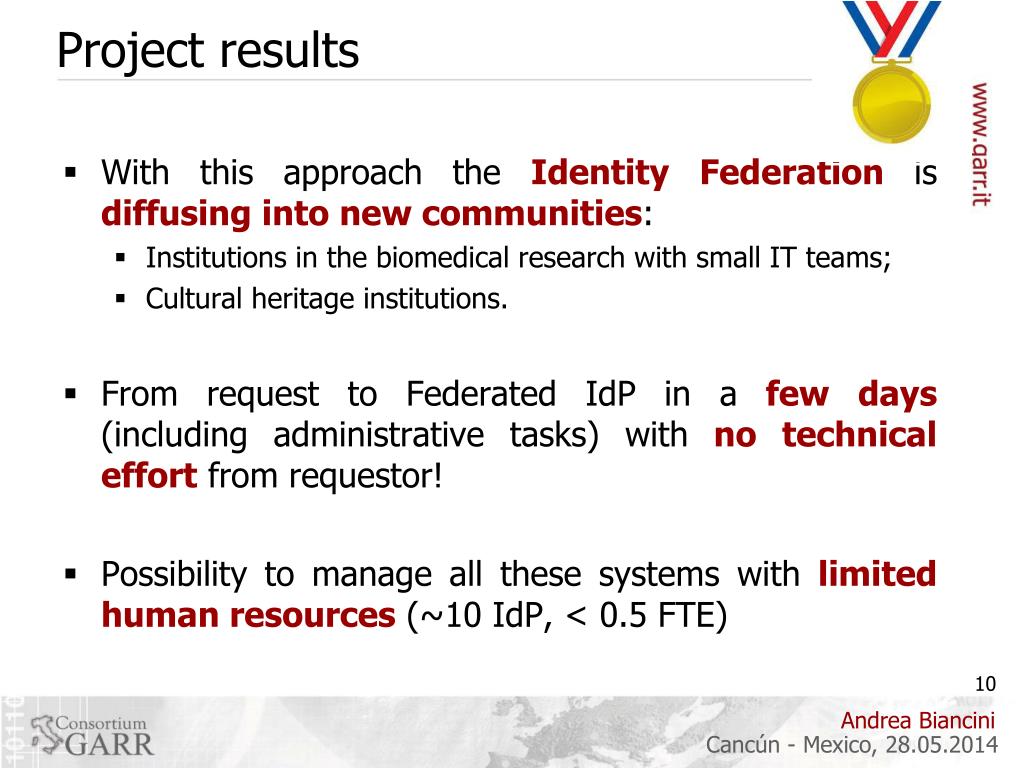

  10. Project results • With this approach the Identity Federation is diffusing into new communities: • Institutions in the biomedical research with small IT teams; • Cultural heritage institutions. • From request to Federated IdP in a few days (including administrative tasks) with no technical effort from requestor! • Possibility to manage all these systems with limited human resources (~10 IdP, < 0.5 FTE) Andrea Biancini

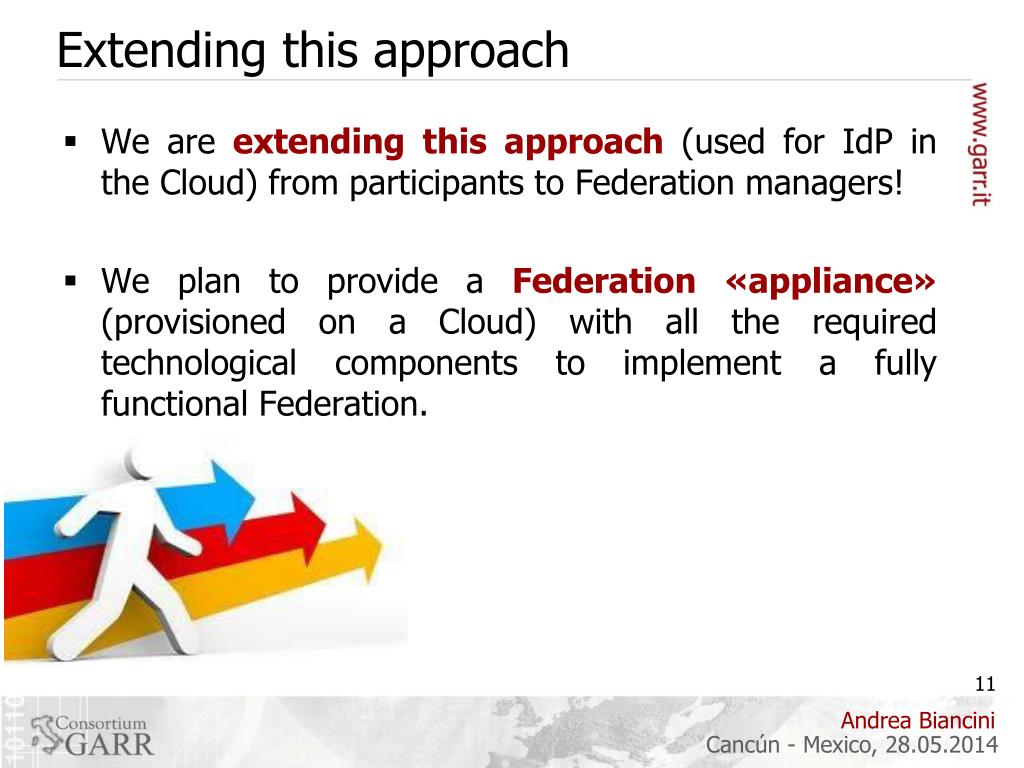

  11. Extendingthisapproach • We are extending this approach (used for IdP in the Cloud) from participants to Federation managers! • We plan to provide a Federation «appliance»(provisioned on a Cloud) with all the required technological components to implement a fully functional Federation. Andrea Biancini

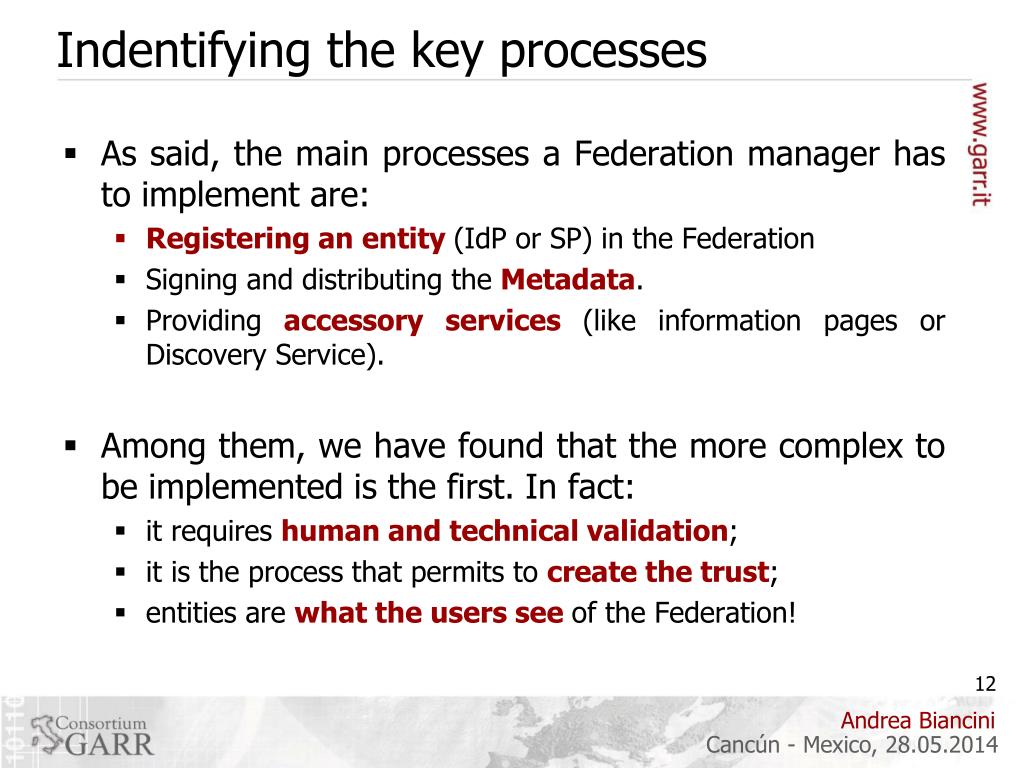

  12. Indentifying the keyprocesses • As said, the main processes a Federation manager has to implement are: • Registering an entity (IdP or SP) in the Federation • Signing and distributing the Metadata. • Providing accessory services (like information pages or Discovery Service). • Among them, we have found that the more complex to be implemented is the first. In fact: • it requires human and technical validation; • it is the process that permits to create the trust; • entities are what the users see of the Federation! Andrea Biancini

  13. Registering an entity in the Federation Andrea Biancini

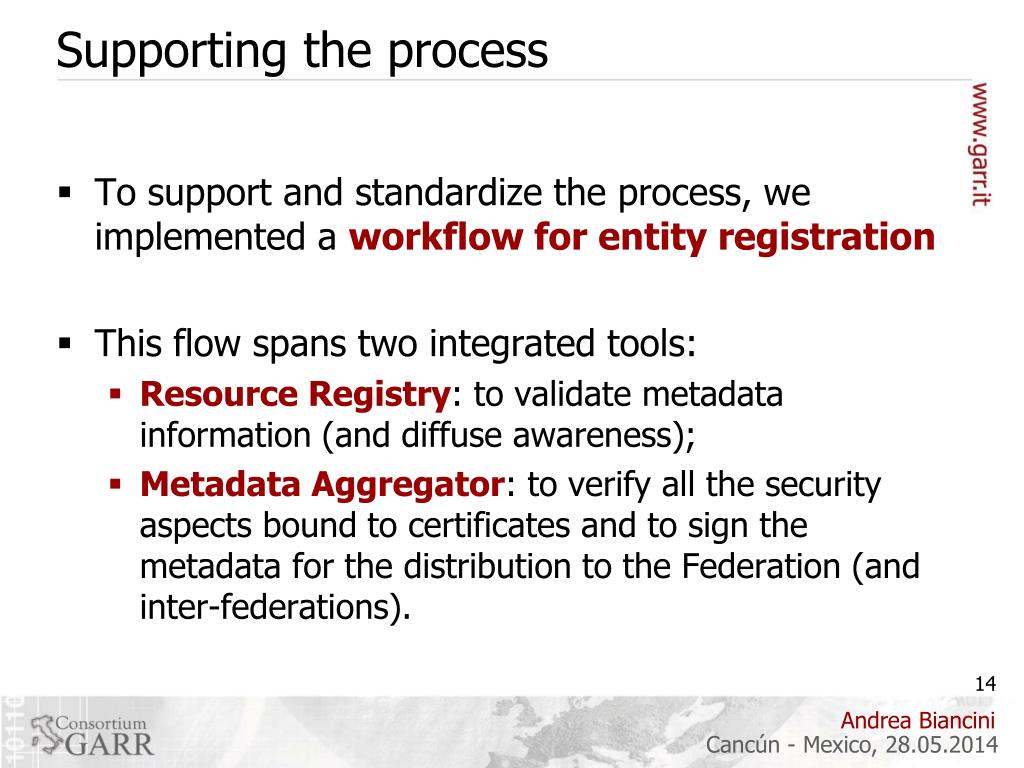

  14. Supporting the process • To support and standardize the process, we implemented a workflow for entity registration • This flow spans two integrated tools: • Resource Registry: to validate metadata information (and diffuse awareness); • Metadata Aggregator: to verify all the security aspects bound to certificates and to sign the metadata for the distribution to the Federation (and inter-federations). Andrea Biancini

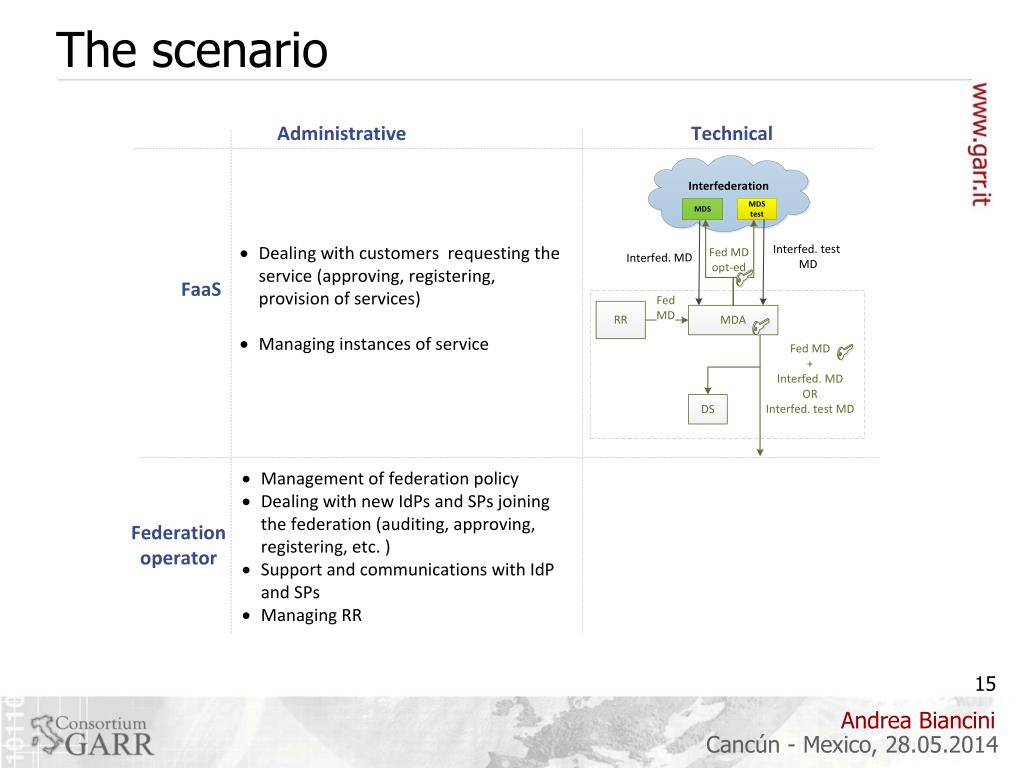

  15. The scenario Andrea Biancini

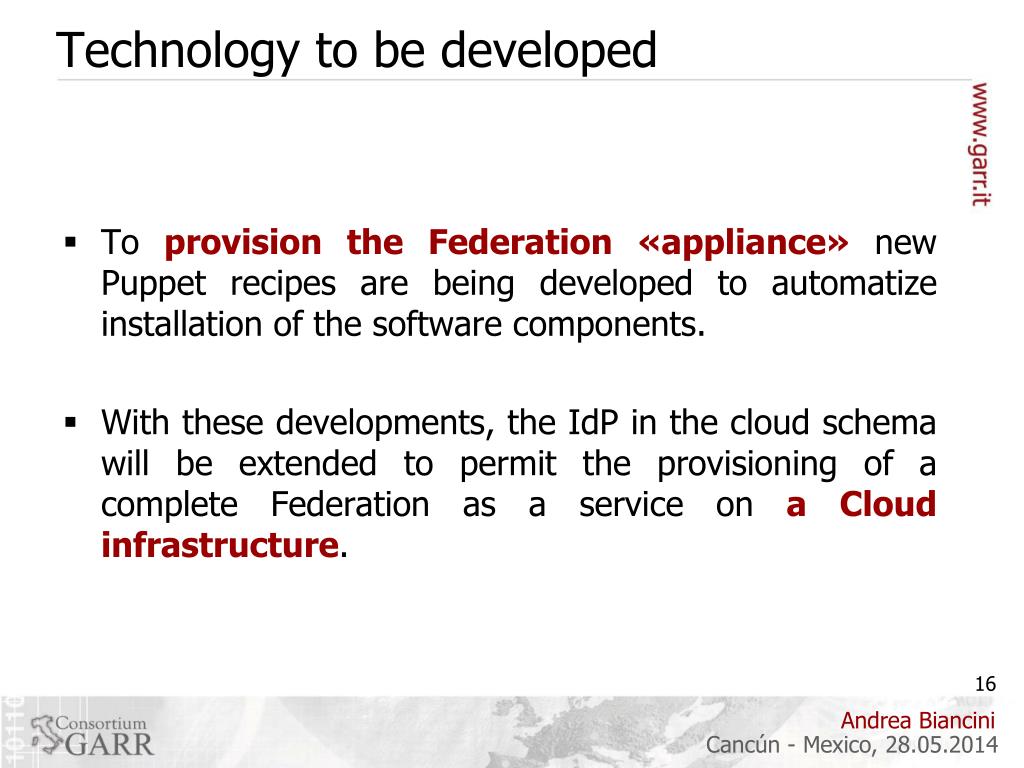

  16. Technology to be developed • To provision the Federation «appliance»new Puppet recipes are being developed to automatize installation of the software components. • With these developments, the IdP in the cloud schema will be extended to permit the provisioning of a complete Federation as a service on a Cloud infrastructure. Andrea Biancini

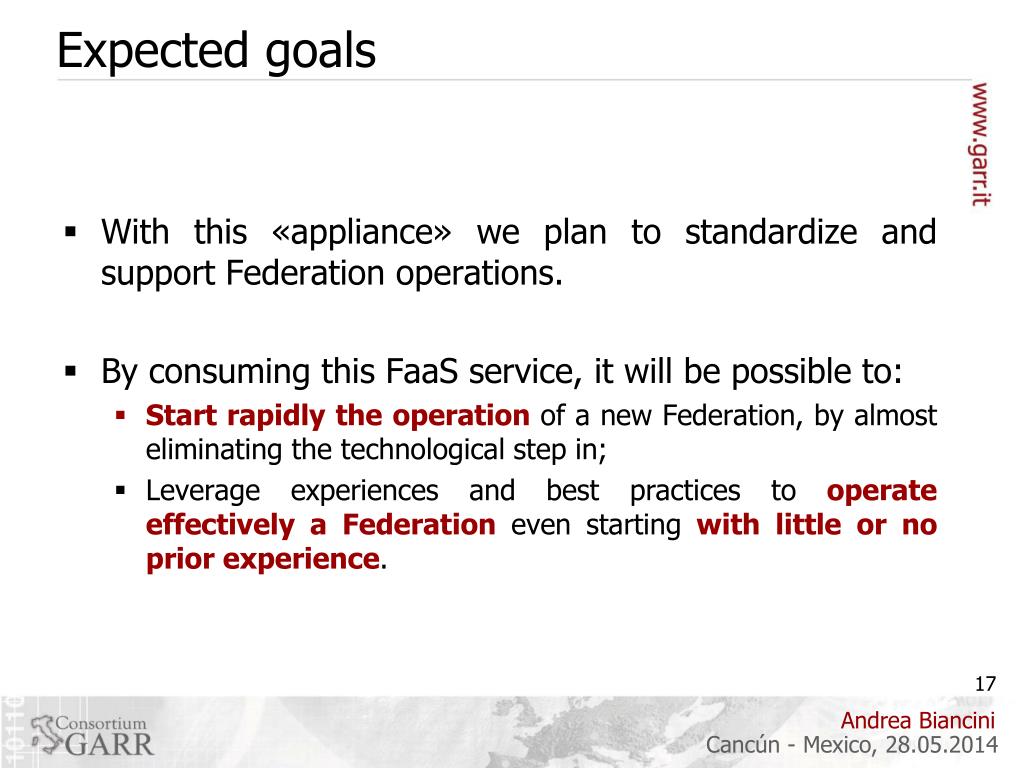

  17. Expectedgoals • With this «appliance» we plan to standardize and support Federation operations. • By consuming this FaaS service, it will be possible to: • Start rapidly the operation of a new Federation, by almost eliminating the technological step in; • Leverage experiences and best practices to operate effectively a Federationeven starting with little or no prior experience. Andrea Biancini

  18. ELCIRA: adopting Federations • ELCIRA will support the adoption of Identity Fedarations in Latin America. • But, as we have seen, deploy Federations is hard! • Technology needs to be installed and managed • Processes, steps, attribution of responsibility have to be implemented • ELCIRA will borrow GARR experience in automatizing components installation in a cloud and in operating a Federation. Andrea Biancini

  19. ELCIRA: supporting IdP installation • We will leverage GARR experience and solutions, developed during IdP in the Cloud project, to grow IdP diffusion within new or existing Federations. • This will permit NRENs to: • Guarantee compliance to qualitative standards for new IdPs in the Federation; • Give the opportunity to enter rapidly in production with a Federation entity! Andrea Biancini

  20. ELCIRA: how to sustain new Federations? • GARR also provides support in sustaining the birth of new Federations by: • Sharing best practicesfor the key processes; • Sharing lesson learnt, dos and don’ts; • Providing technical solutions, as the “federation appliance” described earlier. Andrea Biancini

  21. Thanks! Q&A Andrea Biancini

  22. IdP in the Cloud Showcase Andrea Biancini

  23. What IdP in the Cloud is First cloud service from GARR The service goal: make the deployment and the management of the identity providers easy, by minimizing the activities and the complexity for home organizations. • IdP as a Service (PaaS) • IdMas a Service (SaaS) • =>IdP in the Cloud • Benefits • Dedicatedvirtualappliance • Updates and customization • Federation policy compliancy • Cloudadvantages Andrea Biancini

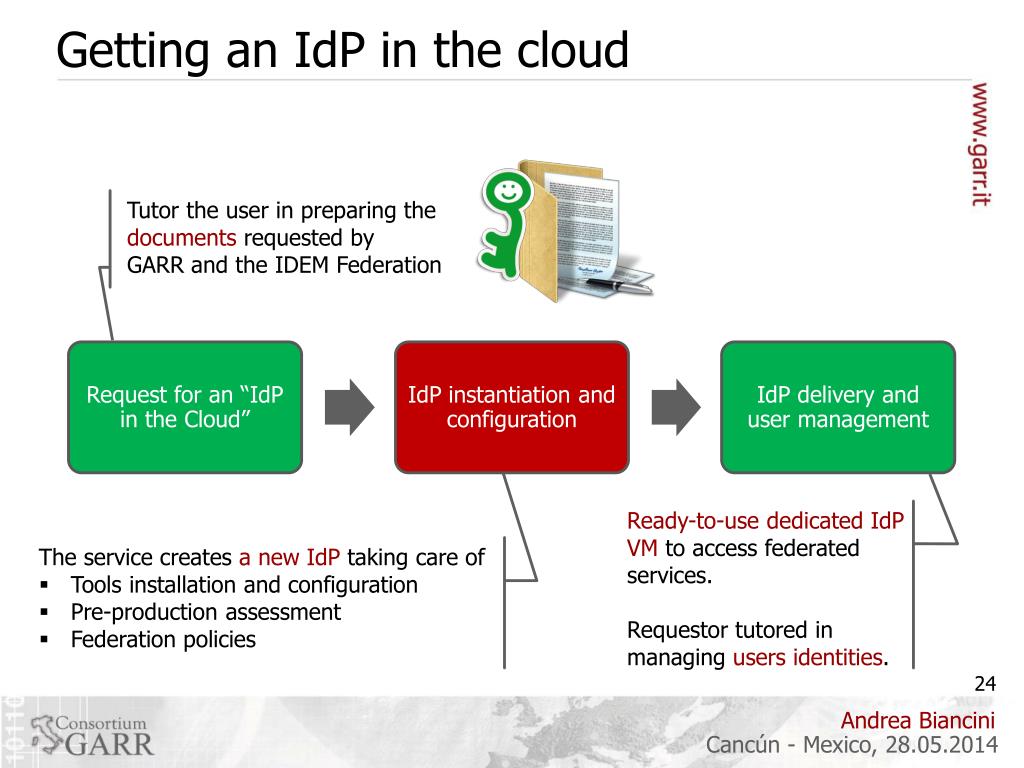

  24. Getting an IdP in the cloud Tutor the user in preparing the documents requested by GARR and the IDEM Federation Ready-to-use dedicated IdP VM to access federated services. Requestortutored in managing users identities. • The service creates a new IdPtaking care of • Tools installation and configuration • Pre-production assessment • Federation policies Andrea Biancini

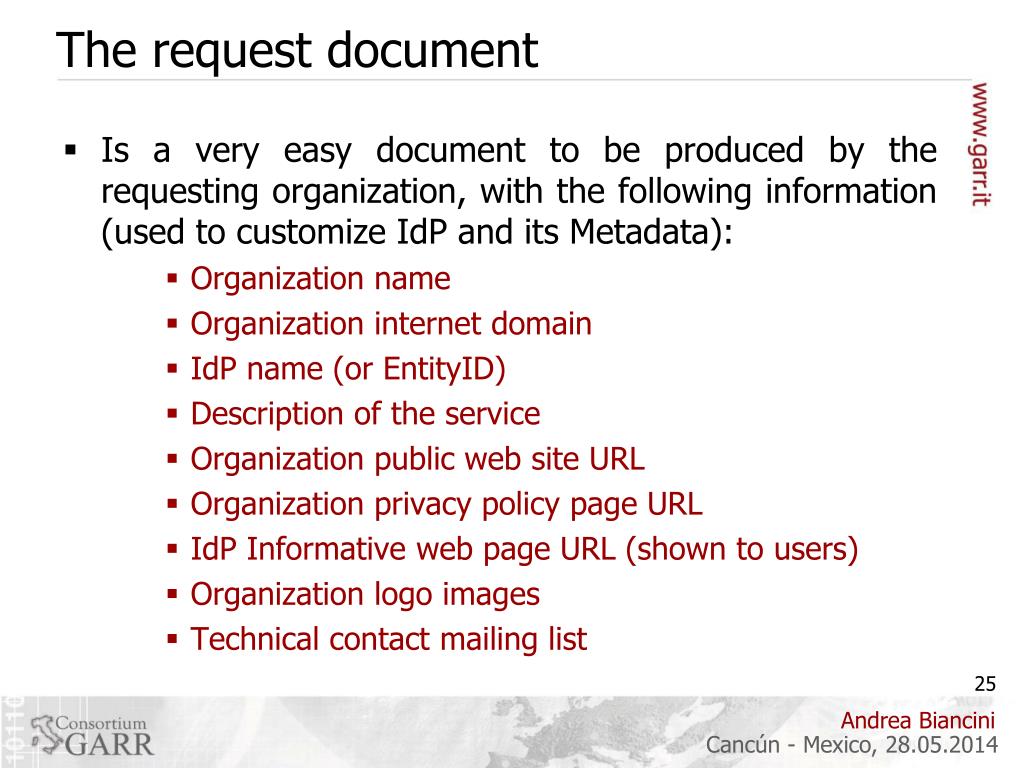

  25. The requestdocument • Is a very easy document to be produced by the requesting organization, with the following information (used to customize IdP and its Metadata): • Organization name • Organization internet domain • IdPname (or EntityID) • Description of the service • Organization public web site URL • Organization privacy policy page URL • IdP Informative web page URL (shown to users) • Organization logo images • Technical contact mailing list Andrea Biancini

  26. Provisioning the VM • Live demo! • A new configuration for the IdP will be installed on the Puppet agent (with the support of two scripts created ad-hoc). • Puppet will take care of all the rest! Andrea Biancini

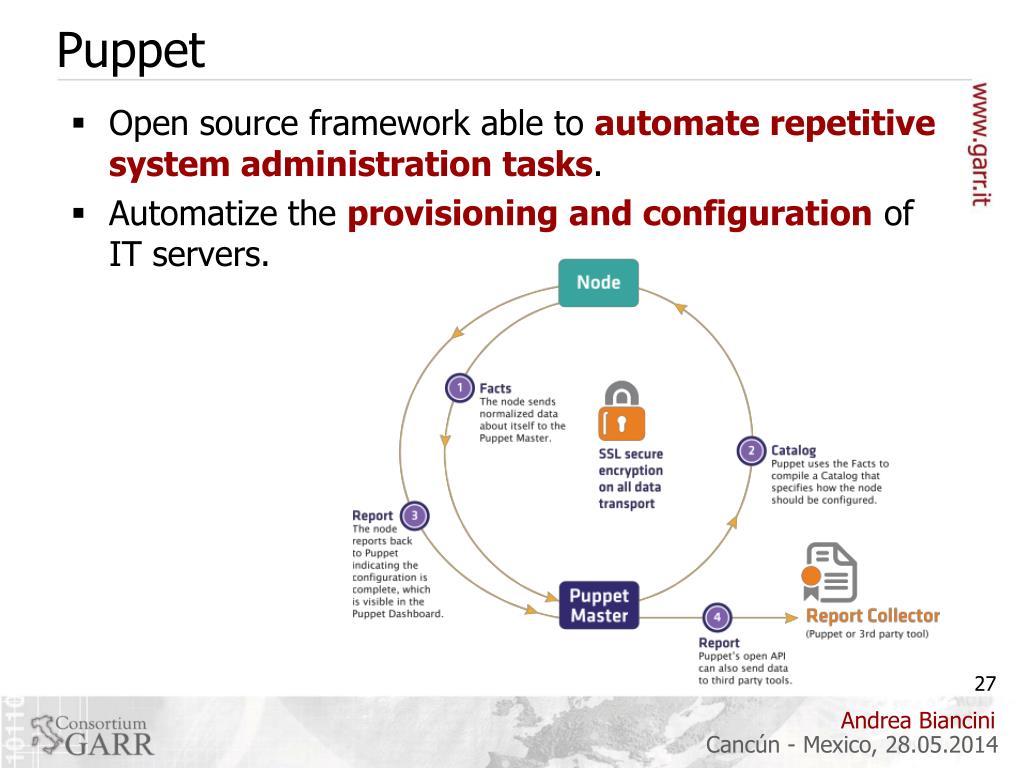

  27. Puppet • Open source framework able to automate repetitive system administration tasks. • Automatize the provisioning and configurationof IT servers. Andrea Biancini

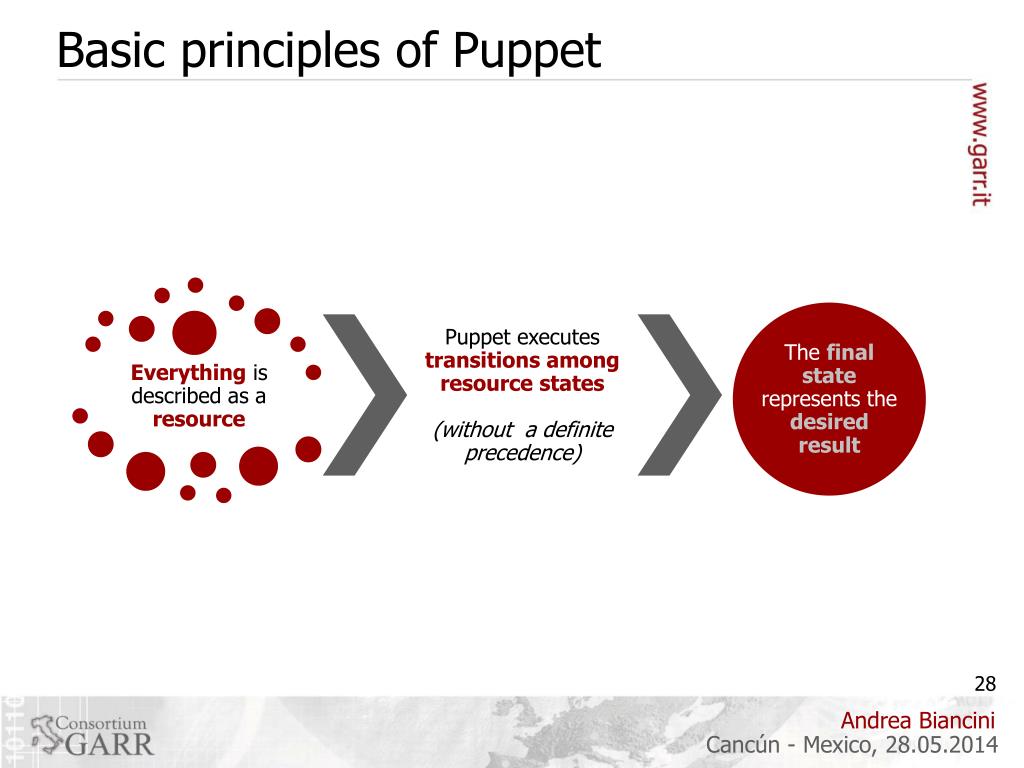

  28. Basic principles of Puppet Andrea Biancini

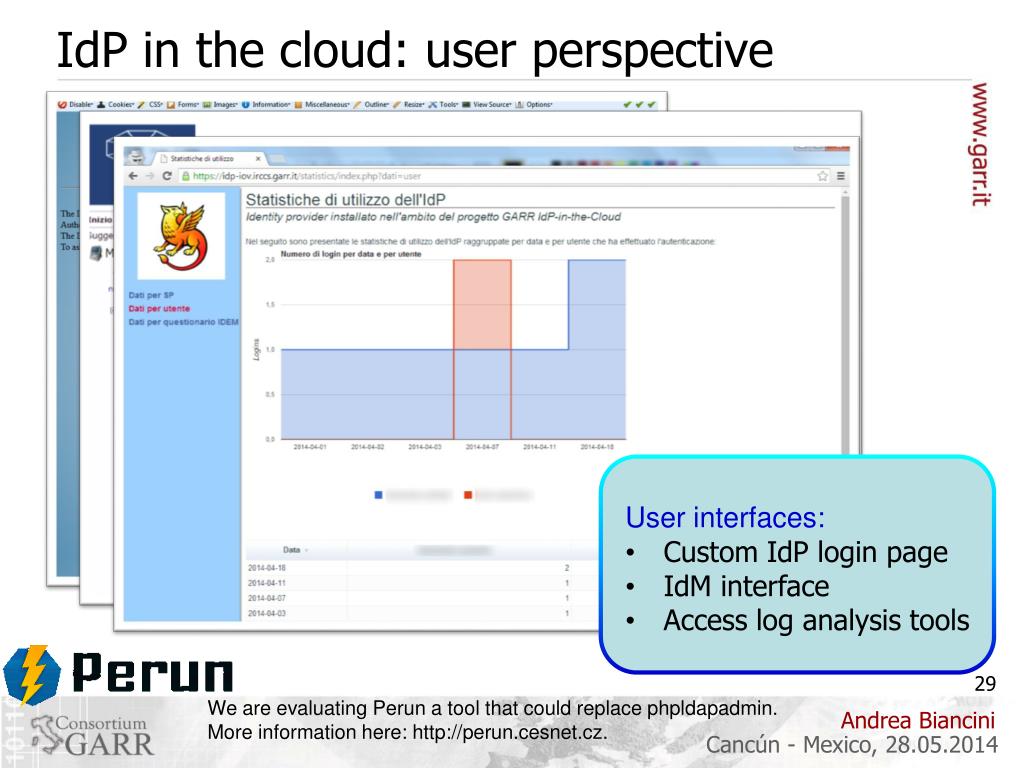

  29. IdP in the cloud: userperspective • User interfaces: • Custom IdP login page • IdM interface • Access log analysis tools We are evaluatingPerun a toolthatcouldreplacephpldapadmin. More information here: http://perun.cesnet.cz. Andrea Biancini

  30. That’s all folks! Q&A Andrea Biancini
