basic definitions

BasicDefinitions

CAPT James R. Fraser

Naval Safety Center

the naval aviation safety program
The Naval AviationSafety Program
  • To preserve human and material resources and eliminate hazards
  • OPNAVINST 3750.6R
definitions
Definitions
  • HAZARD
    • Cause of damage or injury
    • Synonymous with mishap cause factors
    • UNDER HUMAN CONTROL
    • All hazards can be eliminated
  • INTENT FOR FLIGHT
    • Prerequisite for classification as mishap
    • Aircraft brakes released, or first motion of cat
    • Until taxi clear of runway or weight on wheels
what is a naval aircraft mishap
What is a Naval Aircraft Mishap?
  • Unplanned events involving Naval air:
    • $10,000 or more of damage
    • Injury causing at least one lost workday
  • Exceptions:
    • Intentional
    • Criminal damage
    • FOD
    • Occupational illness
    • Injury during planned egress
when is a mishap over
When is a Mishap Over?
  • If fires are out and the area is safe
  • If pyrotechnics are secured
  • If survivors are safely rescued
  • If severely injured survivors are under medical care
  • If fatalities have been recovered
damage and injury
Damage and Injury
  • Mishap damage or injury
  • “Other” damage or injury
    • Damage less than that of a mishap
    • In the course of a mishap, not causal
  • Physical Injuries
    • Bodily harm while involved with Naval Air, resulting in:
      • Fatality
      • Permanent total disability
      • Permanent partial disability
      • One or more lost workdays
injury classification
Injury Classification
  • Fatal Injury
  • Permanent Total Disability
  • Permanent Partial Disability
injury classification8
Injury Classification
  • Permanent Total Disability
    • Results in total incapacitation OR
    • Loss of both hands, both eyes
  • Permanent Partial Disability
    • Results in permanent impairment OR
    • Loss of any part of the body, great toe, thumb, with exceptions:
      • Teeth
      • Four smaller toes
      • Distal phalanx of any finger, 2 of little finger
      • Repairable hernia
      • Subcutaneous tissue
injury classification9
Injury Classification
  • Lost Workday Injury: an injury resulting in one or more lost workdays
    • Major:
      • >5 lost workdays, requires hospitalization OR
      • Unconsciousness >5 minutes due to head trauma
      • Fx of any bone
      • Traumatic dislocation of major joints
      • Moderate to severe lacs resulting in hemorrhage
      • Injury to any internal organ
      • Any 3rd degree burn, or 1st/2nd over 5%
    • Minor:
      • Injury less than major, results in >1 lost workday
injury classification10
Injury Classification
  • First Aid Injury
  • No Injury
  • Lost at Sea/Missing
  • Missing/Unknown
class a mishap
Class A Mishap
  • Aircraft destroyed or missing
  • Fatality or
  • Permanent Total Disability
  • Total cost $1,000,000
class b mishap
Class B Mishap
  • An injury resulting in permanent partial disability
  • Hospitalization of 5 or more personnel
  • Total cost $200,000 to $1,000,000
class c mishap
Class C Mishap
  • An injury resulting in one or more lost workdays
  • Total cost $10,000 to $200,000
mishap categories
Mishap Categories
  • Flight Mishap
    • $10,000 or more damage
    • Intent for Flight
  • Flight Related Mishap
    • Less than $10,000 aircraft damage
    • Intent for Flight
    • $10,000 total damage or injury
  • Aircraft Ground Mishap
    • No intent for flight
    • $10,000 total damage or injury
slide15

Aircraft Mishap Board

  • Each Naval FM, FRM, and AGM shall be investigated in accordance with 3750.6 by an Aviation Mishap Board (AMB)
  • Mishap investigation and reporting shall take precedence over all other duties of members
slide16

Aircraft Mishap Board

  • Membership: Minimum of 4:
    • Flight surgeon
    • Aviation Safety Officer
    • Officer qualified in aircraft maintenance
    • Officer qualified in aircraft operations
slide17

Aircraft Mishap Board

  • Personnel directly involved in the mishap shall not serve on the AMB
  • For mishaps involving aircraft with crew, at least one member of AMB shall be NATOPS-qualified pilot
  • Individual with personal interests that might conflict with impartial AMB duties shall not be assigned to AMB
slide18

Aircraft Mishap Board

  • Under no circumstances may an expected endorser of an MIR serve as an AMB member
  • AMB members may not serve on other investigations (JAG)
slide19

Aircraft Mishap Board

  • Officers from other services are authorized to serve on AMB, but may not be the Senior Member
  • Individuals whose expertise is not needed may be excused at the prerogative of the Senior Member
slide20

Aircraft Mishap Board

The Senior Member

  • Naval Aviator or Naval Flight Officer
  • Senior to the PIC and Mission Commander involved in the mishap
  • On all Class As, appointed by aircraft controlling custodian
  • On all Class As, Grade O-5 or higher and a graduate of ASO/ASC
slide21

Aircraft Mishap Board

  • Each squadron maintains a standing AMB to immediately assume investigation responsibilities
  • It may be replaced entirely, in part, or not at all
  • Members shall maintain knowledge of 3750.6, Guide to Mishap Investigation, squadron safety program, and squadron premishap plan
slide22

Privilege

  • One of the AMB’s most important tools
  • Responsibility of each AMB member to understand:
  • Information from AMB’s work is privileged
  • May be used only to improve Naval Aviation safety
slide23

Consultants to the AMB

  • Often requires the services of specialized personnel
    • Technical reps
    • Medical experts
  • Only necessary information will be given to consultants
  • Privileged information will be limited to AMB members
hazard reporting
Hazard Reporting
  • Purposes of HAZREPS
    • Report hazard and action taken
    • Report hazard and recommend corrective action
    • Report hazard so corrective action can be determined
slide25

Hazard Report or MIR?

HAZREP:

  • Potential hazard only
  • Actual damage or injury < mishap level
  • If discovered during mishap investigation
    • Not a causal factor of mishap, and
    • NOT causal of other damage or injury

MIR:

  • Actual damage or injury at mishap level
  • If discovered during mishap investigation
    • Not a causal factor of mishap, but
    • Causal of other damage or injury
slide26

Hazard Reports with

Special Formats

  • Bird (and bat) strikes
  • Near midair collisions
  • Embarked landing hazards
  • Physiological episodes
slide27

Physiological Episode

Hazard Reporting

  • Proven or suspected hypoxia
  • CO poisoning/toxic exposure
  • Decompression sickness/trapped gas reaction
  • Hyperventilation
  • Spatial disorientation
  • Loss of consciousness
  • Rapid decompression to FL 250
  • Other physiological problems
  • HAZREP SHOULD INCLUDE FS!!!
slide28

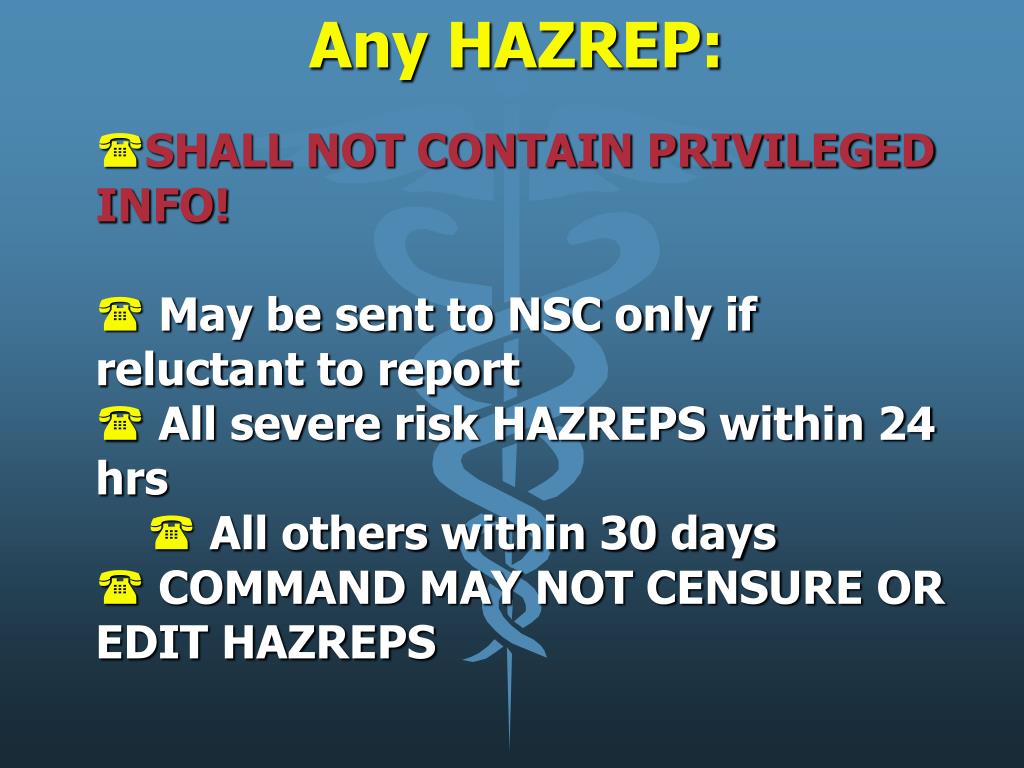

Any HAZREP:

  • SHALL NOT CONTAIN PRIVILEGED INFO!
  • May be sent to NSC only if reluctant to report
  • All severe risk HAZREPS within 24 hrs
    • All others within 30 days
  • COMMAND MAY NOT CENSURE OR EDIT HAZREPS
