Presentation Transcript
introduction to molecular genetics

Introduction to Molecular Genetics

Rowan University

Spring Semester

Mrs. Patricia Sidelsky

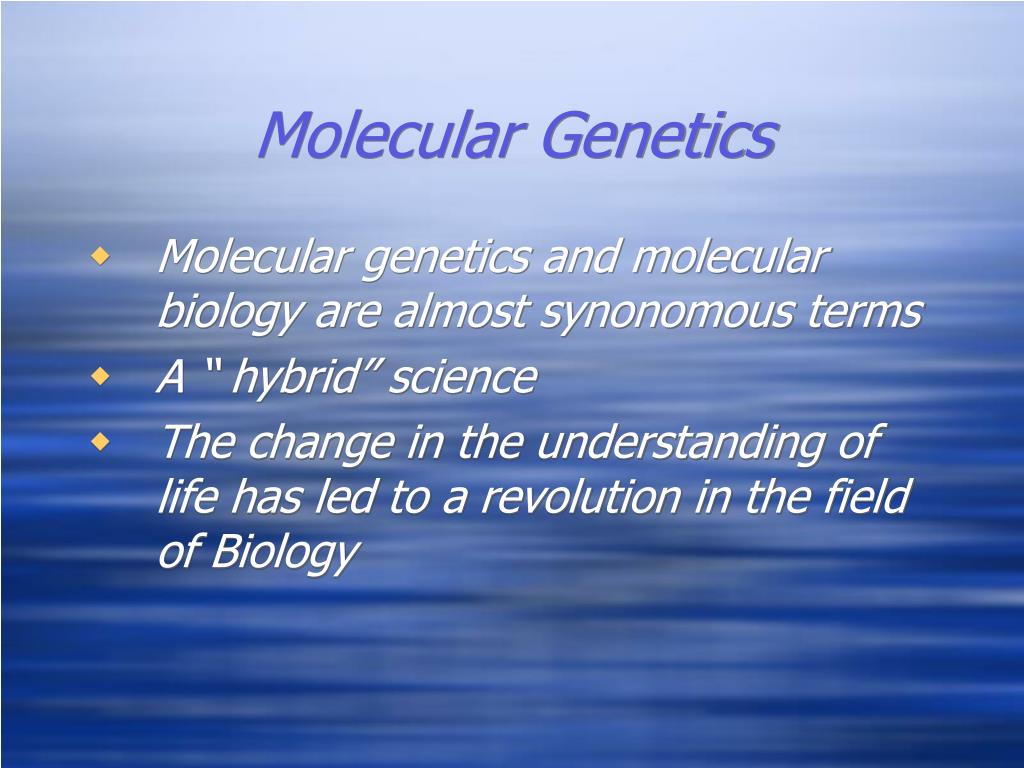

molecular genetics
Molecular Genetics
  • Molecular genetics and molecular biology are almost synonomous terms
  • A “ hybrid” science
  • The change in the understanding of life has led to a revolution in the field of Biology
molecular genetics10
Molecular Genetics
  • The result of an amalgam of a variety of physical and biological sciences
  • Genetics, microbiology, biochemistry, physical chemistry, and physics
  • Driven by the need to understand the underlying principles of life and the reactions of life
max delbruck ilustrates the blend in scientific disciplines
Max DelbruckIlustrates the blend in scientific disciplines
  • German immigrant
  • Originally trained in physical chemistry and theoretical physics
  • Converted to molecular genetics
  • Collaborated with Salvador Luria on the characterization and genetics of bacteriophages
molecular genetics origins
Molecular Genetics - Origins
  • Thomas Hunt Morgan- Columbia University
  • The physical nature of the gene
  • A discovery in 1910 changed the course of genetics
  • Developed experimental model for the study of modern genetics- the fruit fly – Drosophila melanogaster
  • The white eyed male mutant appeared in a culture of flies in the fly room and this was the beginning of a search for mutants
Easy to cultivate
  • Prolific progeny
  • Small and inexpensive
  • Large polytene chromosomes
  • Diploid number 8
  • Many mutations

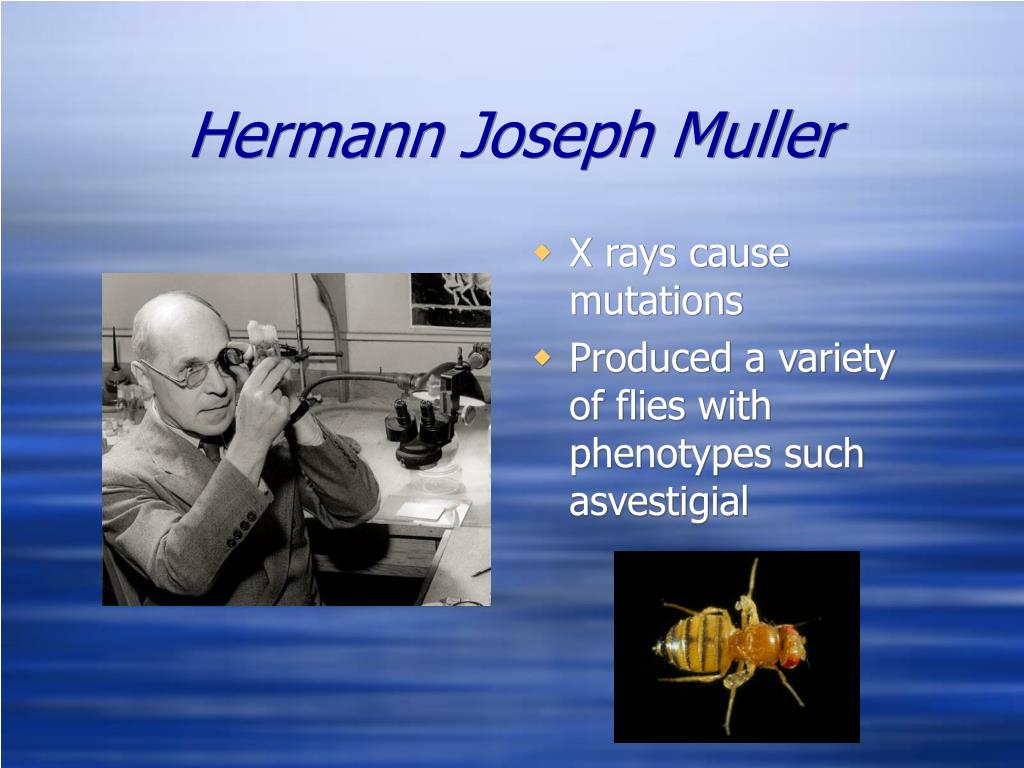

hermann joseph muller
Hermann Joseph Muller
  • X rays cause mutations
  • Produced a variety of flies with phenotypes such asvestigial

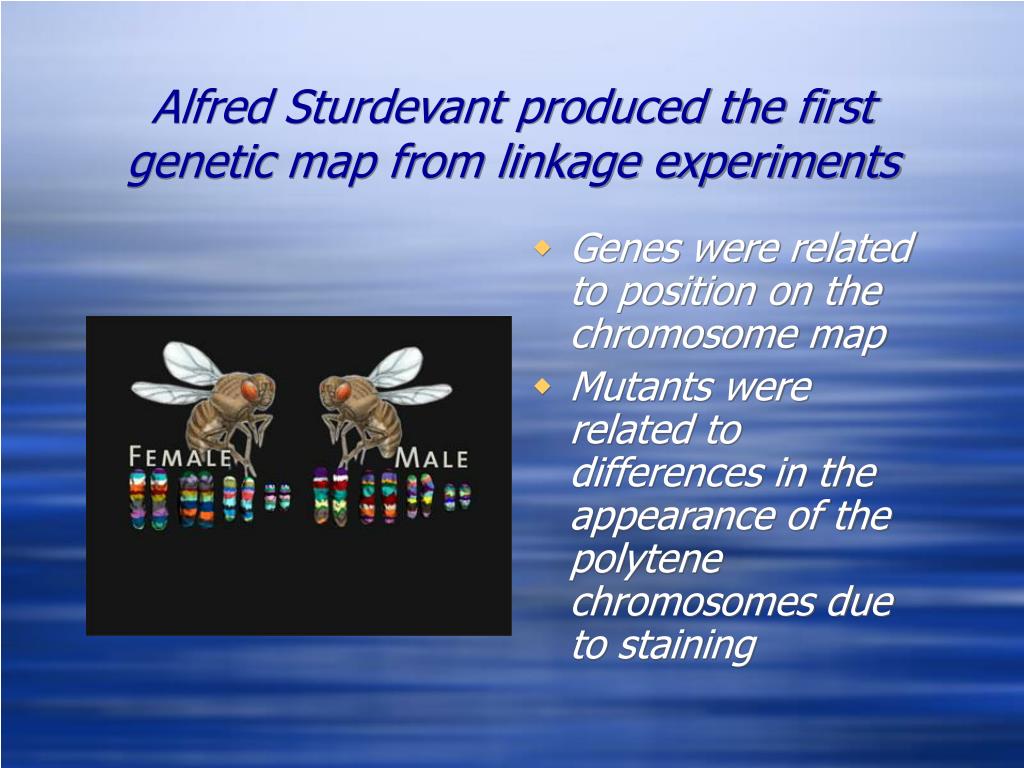

alfred sturdevant produced the first genetic map from linkage experiments
Alfred Sturdevant produced the first genetic map from linkage experiments
  • Genes were related to position on the chromosome map
  • Mutants were related to differences in the appearance of the polytene chromosomes due to staining
dna as genetic material transformation
DNA as Genetic MaterialTransformation
  • Griffith in 1928 observed the change of non-virulent organisms into virulent ones as a result of “transformation”

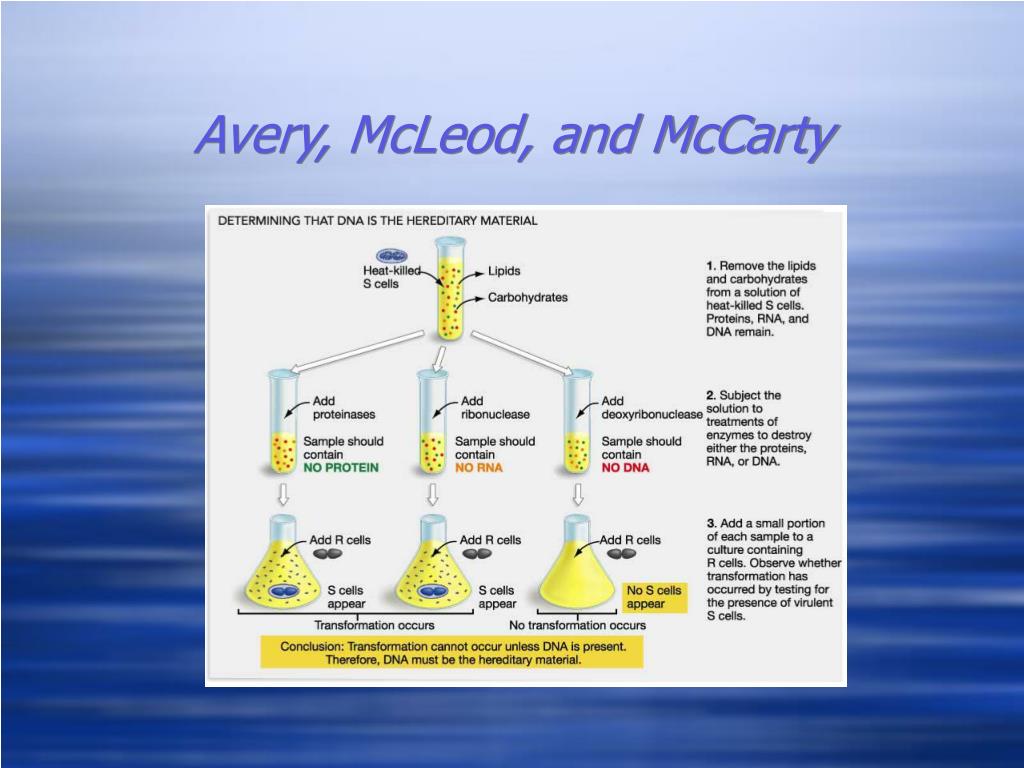

    • MacLeod and McCarty in 1944 showed that the transforming principle was DNA
proof of the transforming principle
Proof of the Transforming Principle
  • Chemical analysis of sample containing the transforming principle showed that the major component was a deoxyribose -containing nucleic acid
  • Physical measurements show that the sample contained a highly viscous substance having the properties of DNA
  • Incubatyion with trypsin or chymotrypsin, enzymes that catalzye protein hydrolysis or with ribonuclease( RNase), an enzyme that catalyzes RNA hydrolysis did not affect the transforming principle

Incubation with DNase, an enzyme that catalyzes DNA hydrolysis inactivates the transforming principle

dna as genetic material of viruses
DNA as Genetic Material( of viruses)
  • Hershey and Chase, 1952
    • used bacteriophage T2 infection as model
    • DNA labeled with 32P;protein coat labeled with 35S
    • Only DNA entered cell but both new DNA and protein coats synthesized and incorporated into new viruses indicating that DNA had the genetic information for synthesis of both of these viral components
chargaff s rule
Chargaff’s Rule
  • Analyzed DNA from a variety of sources and improved both the separation and quantitation of the DNA bases
  • [C] = [G] and [A] = [T]
  • Today this is applied to the G=C or G.C pairs. Scientists describe the G+C content in organisms

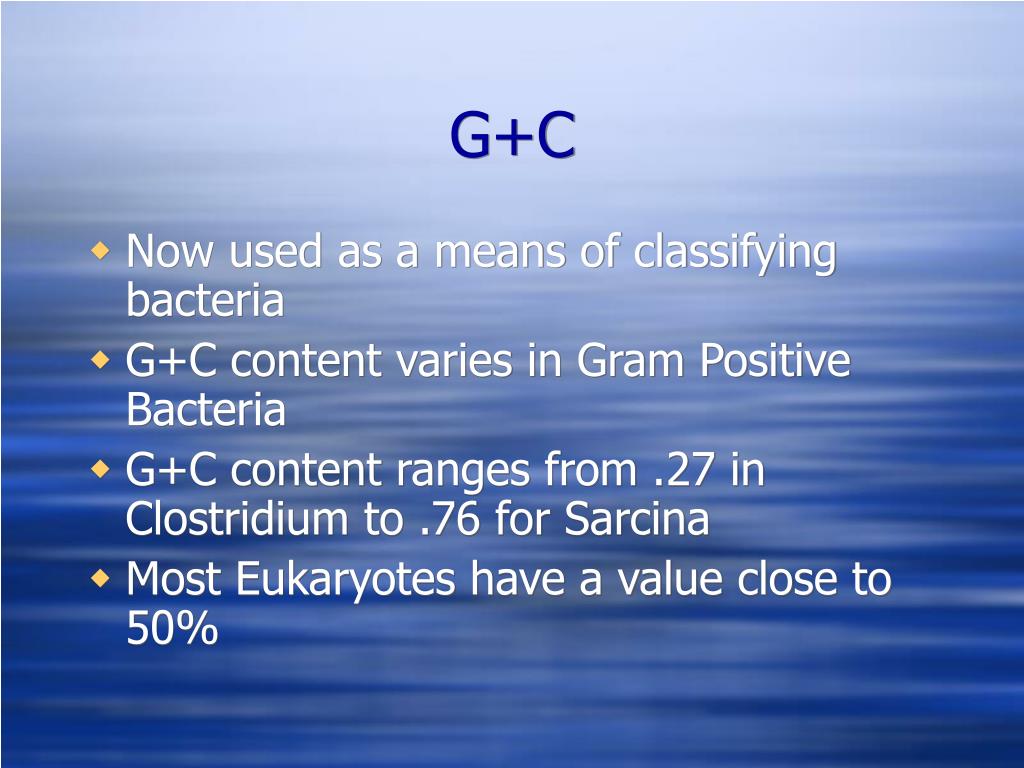

  • Now used as a means of classifying bacteria
  • G+C content varies in Gram Positive Bacteria
  • G+C content ranges from .27 in Clostridium to .76 for Sarcina
  • Most Eukaryotes have a value close to 50%
g c content
G+C content
  • G+C content = [G] +[C] / all bases in DNA
the race for the double helix
The Race for the Double Helix
  • Rosalind Franklin and Maurice Wilkins at Kings College
  • Studied the A and B forms of DNA
  • Rosalind’s famous x-ray crystallography picture of the B form held the secret, but she didn’t realize its significance
rosalind franklin
Rosalind Franklin
  • Technically and scientifically a gifted scientist
  • Focused on the A form of DNA and missed the double helix
the race for the double helix35
The Race for the Double Helix
  • Watson and Crick formed an unlikely partnership
  • A 22 year old PhD and a thirty + PhD “want to be” embarked on a model making venture at Cambridge
  • Used the research of other scientists to determine the nature of the double helix
nucleic acid composition dna and rna
Nucleic Acid CompositionDNA and RNA
  • DNA – Basic Molecules
  • Purines – adenine and guanine
  • Pyrmidines – cytosine and thymine
  • Sugar – Deoxyribose
  • Phosphate phosphate group -  DNA background

  • Sugar
  • Phosphate
  • Base
  • Adenine and guanine are purines
  • Thymine and Cytosine are pyrimidines

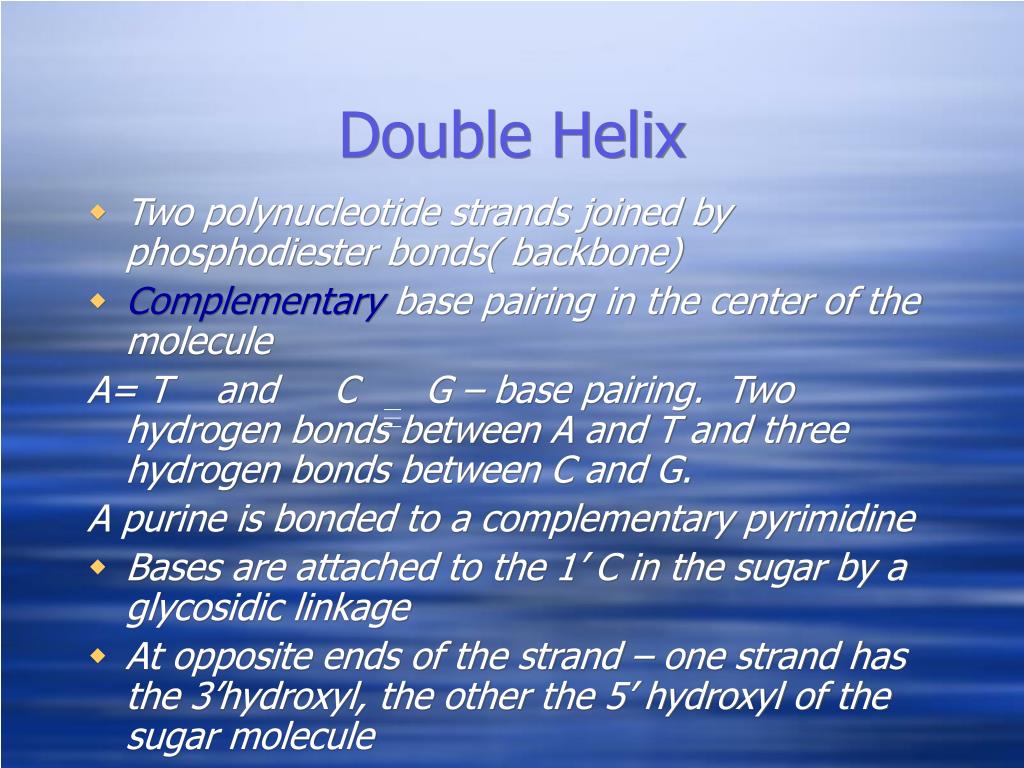

double helix
Double Helix
  • Two polynucleotide strands joined by phosphodiester bonds( backbone)
  • Complementarybase pairing in the center of the molecule

A= T and C G – base pairing. Two hydrogen bonds between A and T and three hydrogen bonds between C and G.

A purine is bonded to a complementary pyrimidine

  • Bases are attached to the 1’ C in the sugar by a glycosidic linkage
  • At opposite ends of the strand – one strand has the 3’hydroxyl, the other the 5’ hydroxyl of the sugar molecule

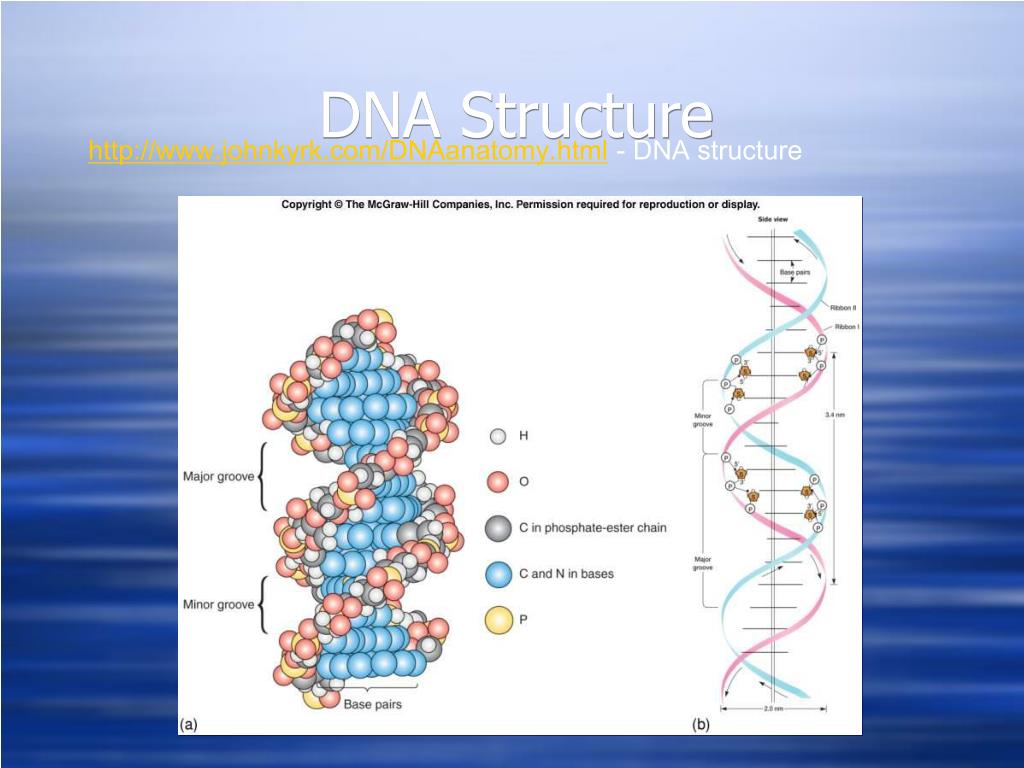

dna structure
DNA Structure - DNA structure

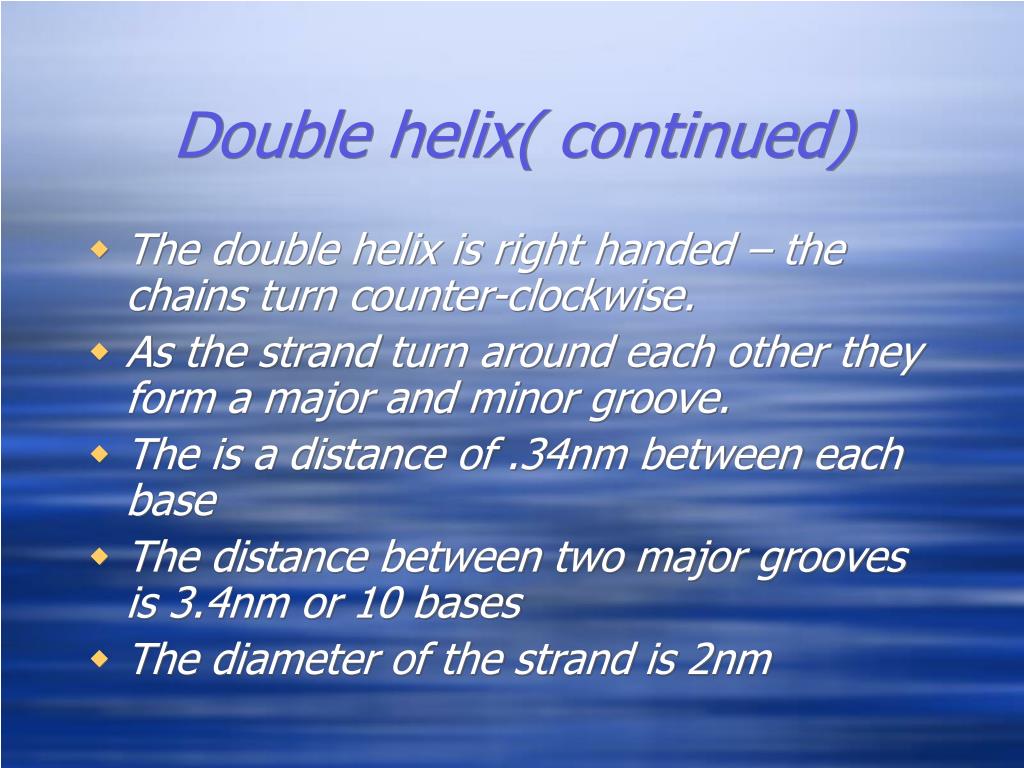

double helix continued
Double helix( continued)
  • The double helix is right handed – the chains turn counter-clockwise.
  • As the strand turn around each other they form a major and minor groove.
  • The is a distance of .34nm between each base
  • The distance between two major grooves is 3.4nm or 10 bases
  • The diameter of the strand is 2nm

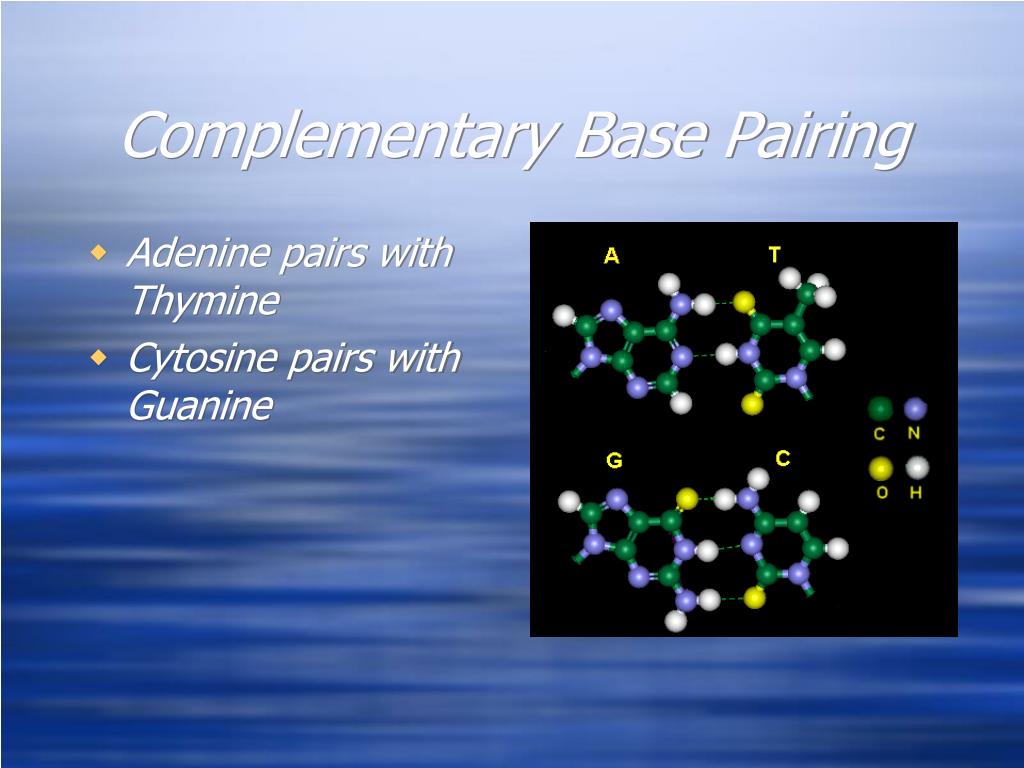

complementary base pairing
Complementary Base Pairing
  • Adenine pairs with Thymine
  • Cytosine pairs with Guanine
the end view of dna
The end view of DNA
  • This view shows the double helix and the outer backbone with the bases in the center.
  • An AT base pair is highlighted in white
double helix and anti parallel
Double helix and anti-parallel
  • DNA is a directional molecule
  • The complementary strands run in opposite directions
  • One strand runs 3’-5’
  • The other strand runs 5’ to 3’

( the end of the 5’ has the phosphates attached, while the 3’ end has a hydroxyl exposed)

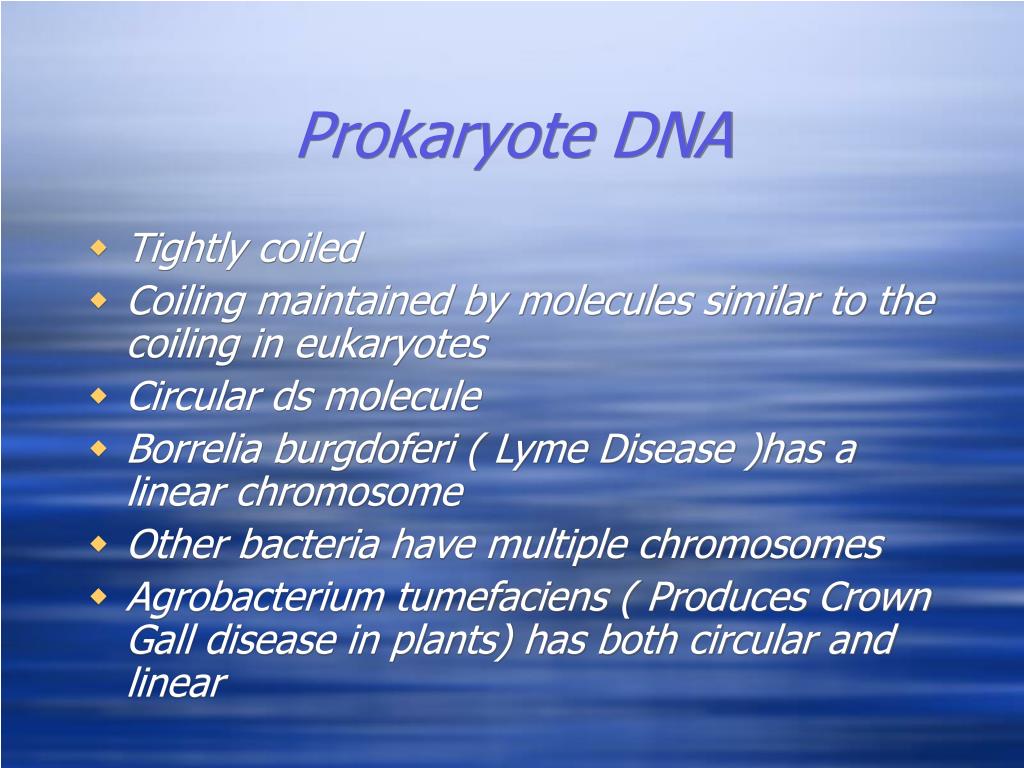

prokaryote dna
Prokaryote DNA
  • Tightly coiled
  • Coiling maintained by molecules similar to the coiling in eukaryotes
  • Circular ds molecule
  • Borrelia burgdoferi ( Lyme Disease )has a linear chromosome
  • Other bacteria have multiple chromosomes
  • Agrobacterium tumefaciens ( Produces Crown Gall disease in plants) has both circular and linear
  • Mitochondrial DNA( mt DNA)
  • 16,500 base pairs
  • 37 genes
  • 24 encode RNA
  • Defects lead to diseases that are related to energy

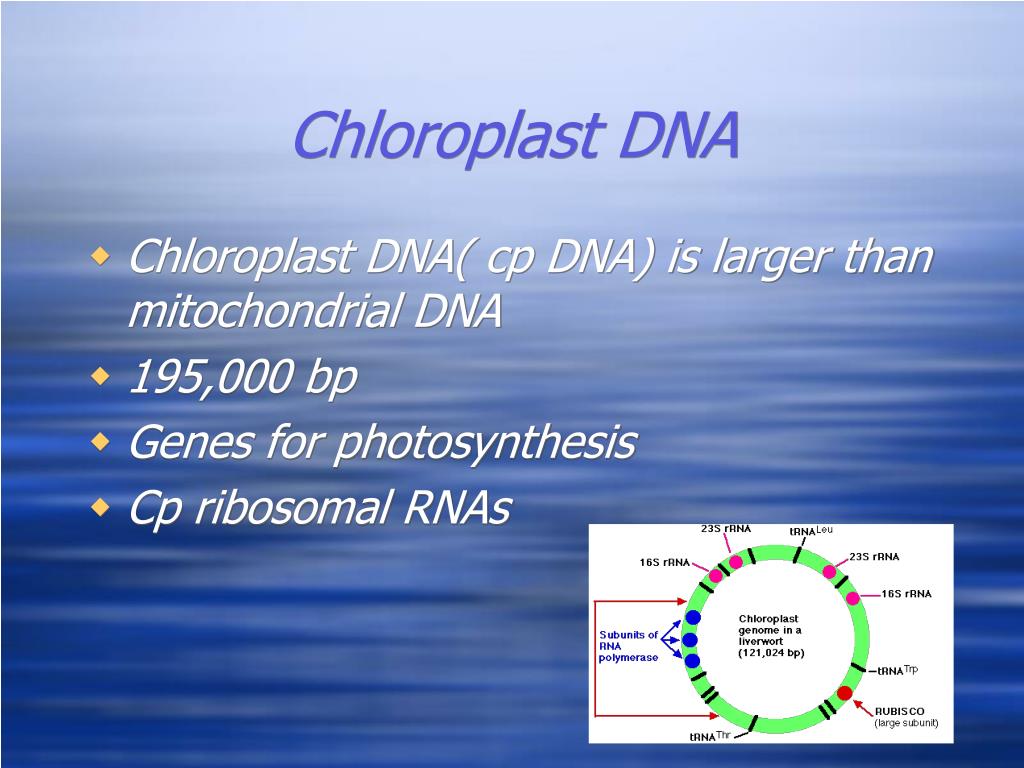

chloroplast dna
Chloroplast DNA
  • Chloroplast DNA( cp DNA) is larger than mitochondrial DNA
  • 195,000 bp
  • Genes for photosynthesis
  • Cp ribosomal RNAs

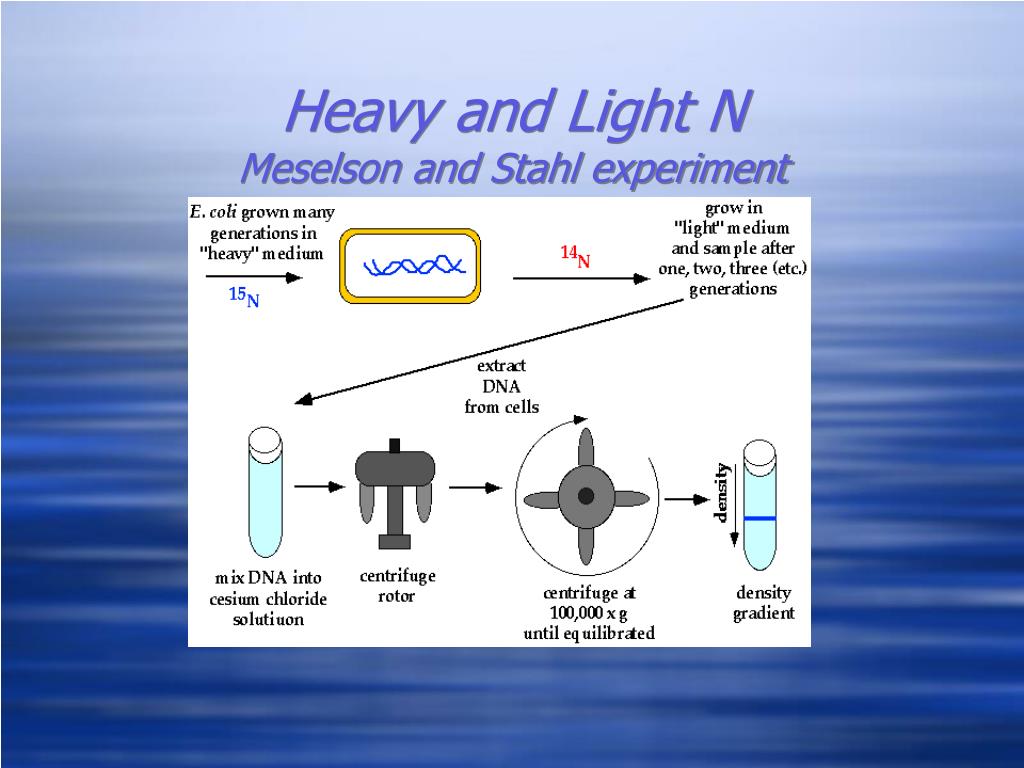

In the first generation of E. coli, all the DNA was heavy
  • After one generation, the DNA was half heavy and half light
dna replication
DNA Replication
  • DNA opens at an Ori ( origin of replication)
  • Combination of many enzymes coordinate the replicative process
  • Template strand used to make the copy
  • DNA polymerases read the template and match the complementary base
degradation of dna
Degradation of DNA
  • Endonucleases cleave DNA and RNA, by cutting between individual bonds
  • Some endonucleases cleave one strand some cleave both strands at a specific point or sequence( restriction nucleasess)
the flow of genetic information
The Flow of Genetic Information
  • from one generation to the next
    • DNA stores genetic information
    • Information is duplicated by replication and is passed on to next generation
the flow of genetic information within a single cell
The Flow of Genetic Information within a single cell
  • Process called gene expression
  • DNA divided into genes
    • transcription yields a ribonucleic acid (RNA) copy of specific genes
    • translation uses information in messenger RNA (mRNA) to synthesize a polypeptide
      • Also involves activities of transfer RNA (tRNA) and ribosomal RNA (rRNA)
nucleic acid structure ribonucleic acid rna
Nucleic Acid StructureRibonucleic Acid (RNA)
  • Polymer of nucleotides
  • Contains the bases adenine, guanine, cytosine and uracil
  • Sugar is ribose
  • Most RNA molecules are single stranded

Types of RNA

  • Messenger
  • Transfer
  • Ribosomal
  • micro RNAs ( regulatory RNAs)
rna viruses
RNA viruses
  • Reoviruses
  • Retroviruses
  • Enteroviruses
genomics of rna viruses
Genomics of RNA viruses


  • - + RNA
  • - RNA
  • segmented RNA
  • Ds RNA

Infectious agents that causes disease in higher plants

Small circular loops of RNA

The viroid RNA is infectious and its is not surrounded by a capsid

Viroids RNA replicates autonomously

  • PSTV
  • Potato SpindleTuber Viroid
proteins are polymers
Proteins are polymers
  • Proteins are polymers of amino acids. They are molecules with diverse structures and functions.
  • Polymers are made up of units called monomers
  • The monomers in proteins are the 20 amino acids
protein facts
Protein Facts
  • Proteins: Polymers of Amino Acids
  • Proteins are polymers of amino acids. They are molecules with diverse structures and functions.
  • Each different type of protein has a characteristic amino acid composition and order.
  • Proteins range in size from a few amino acids to thousands of them.
  • Folding is crucial to the function of a protein and is influenced largely by the sequence of amino acids.
proteins polymers of amino acids
Proteins: Polymers of Amino Acids
  • Each different type of protein has a characteristic amino acid composition and order.
  • Proteins range in size from a few amino acids to thousands of them.
  • Folding is crucial to the function of a protein and is influenced largely by the sequence of amino acids.
proteins are complex molecules
Proteins are complex molecules
  • They have levels of structure
  • Structure based upon the sequence of the amino acids
function of proteins continued
Function of Proteins - continued
  • Enzymes – Biological catalysts
  • Transport of small molecules – Albumin and haptoglobin
  • Transport of oxygen – hemoglobin and myoglobin
  • Membrane proteins – to assist in support
  • Channels in membranes – to allow the passage of molecules or ions
  • Electron carriers in electron transport in the production of ATP
functions continued i
Functions( continued)i
  • Clotting proteins
  • Immune proteins to fight infectious agents
  • Histones – DNA binding proteins
  • Toxins to repel or kill other organisms
  • Bacteriocins – molecules produced by bacteria against bacteria
functions of proteins
Functions of proteins
  • Hormones – Growth hormone
  • Receptors – to Receive information so that cell can communicate with other cells
  • Neurotransmitters – messenger molecules – to send information between neurons
  • Cytoskeleton – actin, myosin, and collagen – the structure of connective tissue and muscles
  • Antibodies – Immunoglobulins to fight disease
four levels of protein structure
Four levels of Protein Structure
  • There are four levels of protein structure: primary, secondary, tertiary, and quaternary.
  • The precise sequence of amino acids is called its primary structure.
  • The peptide backbone consists of repeating units of atoms: N—C—C—N—C—C.
  • Enormous numbers of different proteins are possible.
