  1. DF Series(DF500) 설치 및 증설 2002. 3. 5 정보기기사업부 CSE팀

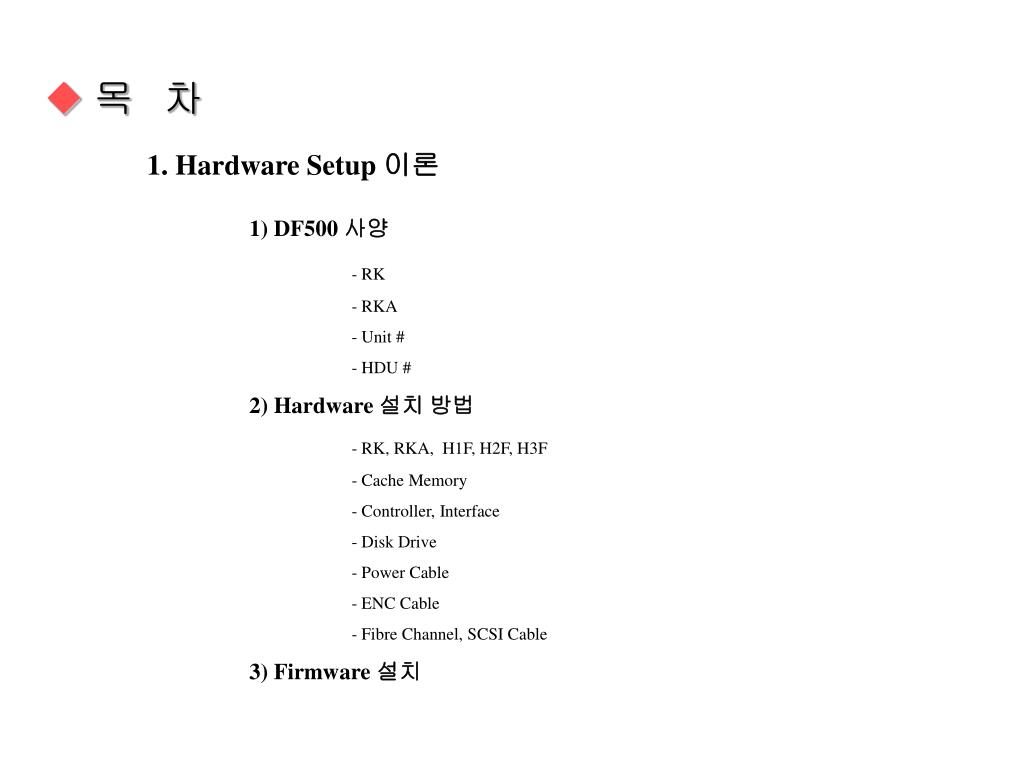

  2. 목 차 1. Hardware Setup 이론 1) DF500 사양 - RK - RKA - Unit # - HDU # 2) Hardware 설치 방법 - RK, RKA, H1F, H2F, H3F - Cache Memory - Controller, Interface - Disk Drive - Power Cable - ENC Cable - Fibre Channel, SCSI Cable 3) Firmware 설치

  3. 1. Hardware Setup 이론 정보기기 사업부 CSE팀 1) DF500 사양 - RK(1) ( 1. 1/23 )

  4. 1. Hardware Setup 이론 정보기기 사업부 CSE팀 1) DF500 사양 - RK(2) ( 1. 2/23 )

  5. 1. Hardware Setup 이론 정보기기 사업부 CSE팀 1) DF500 사양 - RKA(1) ( 1. 3/23 )

  6. 1. Hardware Setup 이론 정보기기 사업부 CSE팀 1) DF500 사양 - RKA(2) ( 1. 4/23 )

  7. 1. Hardware Setup 이론 정보기기 사업부 CSE팀 1) DF500 사양 - Unit #, HDU # ( 1. 5/23 )

  8. 1. Hardware Setup 이론 정보기기 사업부 CSE팀 1) DF500 사양 - Unit # Unit 1 Unit 0 ( 1. 6/23 )

  9. 1. Hardware Setup 이론 정보기기 사업부 CSE팀 1) DF500 사양 - HDU # HDU 1 HDU 0 ( 1. 7/23 )

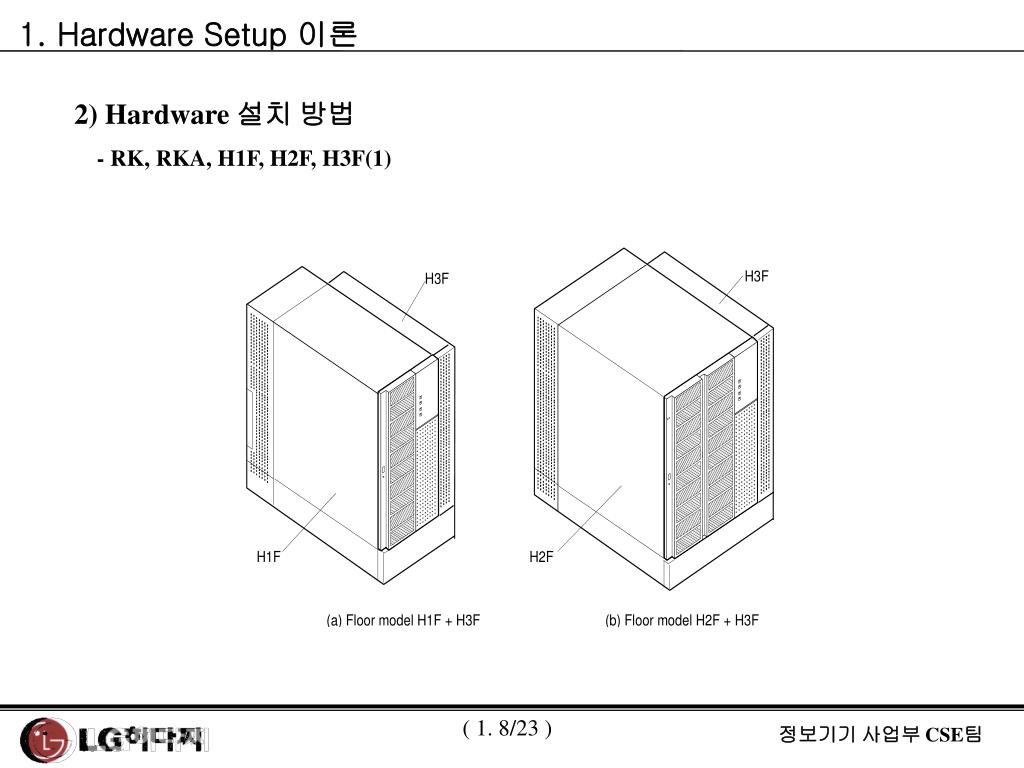

  10. 1. Hardware Setup 이론 정보기기 사업부 CSE팀 2) Hardware 설치 방법 - RK, RKA, H1F, H2F, H3F(1) ( 1. 8/23 )

  11. 1. Hardware Setup 이론 정보기기 사업부 CSE팀 2) Hardware 설치 방법 - RK, RKA, H1F, H2F, H3F(2) ( 1. 9/23 )

  12. 1. Hardware Setup 이론 정보기기 사업부 CSE팀 2) Hardware 설치 방법 - RK, RKA, H1F, H2F, H3F(3) ( 1. 10/23 )

  13. 1. Hardware Setup 이론 Top cover Washer and Rail  socket bolts Binding screw (M4 8) ´ Binding screw (M4 8) ´ Washer and  socket bolts Cover Slot for receiving the claw Binding screw (M4 8) ´ Claw 정보기기 사업부 CSE팀 2) Hardware 설치 방법 - RK, RKA, H1F, H2F, H3F(4) ( 1. 11/23 )

  14. 1. Hardware Setup 이론 Removal : Push the slot levers, grasp the memory board by both Slot lever edges and pull up. Installation : Hold the memory board by Cache slot #3 both edges and push it in. Cache slot #2 Cache memory Cache slot #1 Install by the set of two Cache slot #0 memory boards Cache Slot arrangement Controller#0 Cache slot Controller#1 Lever Cache memory Fixing screw 정보기기 사업부 CSE팀 2) Hardware 설치 방법 - Cache Memory ( 1. 12/23 )

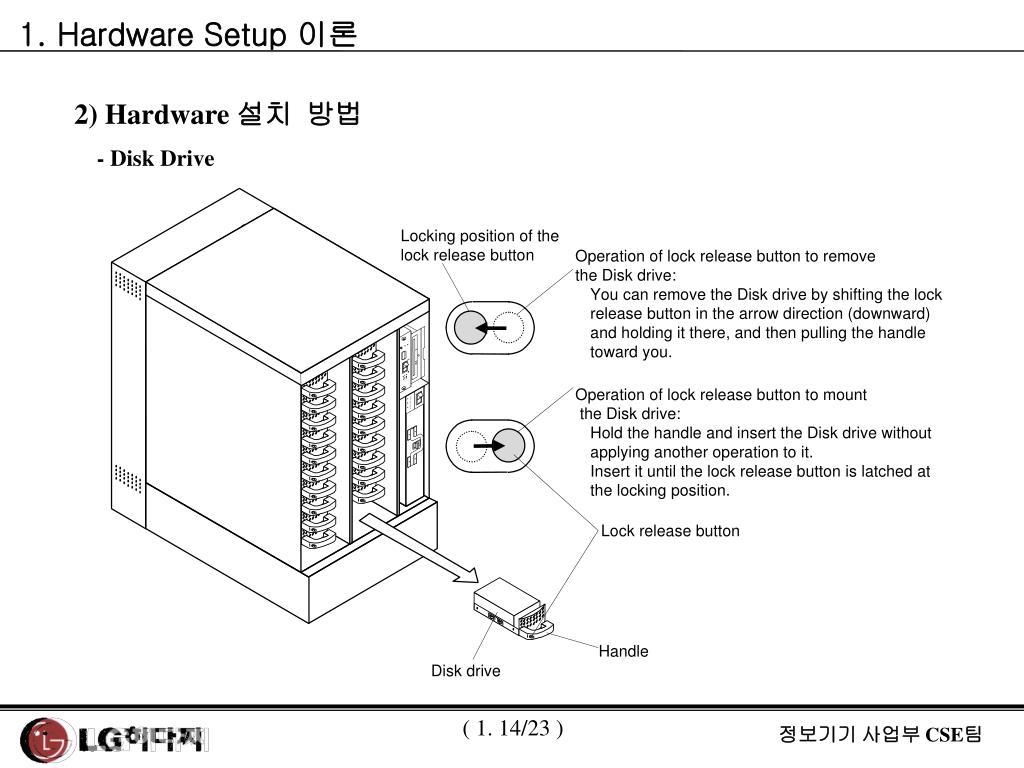

  15. 1. Hardware Setup 이론 정보기기 사업부 CSE팀 2) Hardware 설치 방법 - Disk Drive ( 1. 14/23 )

  16. 1. Hardware Setup 이론 정보기기 사업부 CSE팀 2) Hardware 설치 방법 - Power Cable ( 1. 15/23 )

  17. 1. Hardware Setup 이론 정보기기 사업부 CSE팀 2) Hardware 설치 방법 - ENC Cable ( 1. 16/23 )

  18. 1. Hardware Setup 이론 정보기기 사업부 CSE팀 2) Hardware 설치 방법 - Fibre Channel Cable ( 1. 17/23 )

  19. 1. Hardware Setup 이론 정보기기 사업부 CSE팀 2) Hardware 설치 방법 - SCSI Cable ( 1. 18/23 )

  20. 1. Hardware Setup 이론 Insert Initial Setup Disk. If the buzzer beeps, press the TRACE SW/BUZZER OFF SW. (The buzzer will stop beeping.) Power on. Do you want to install it although the subsystem parameters (configuration information such as the RAID group and LU) will be deleted. (The FDD LED blinks. It shows the request for starting the installation.) Press the TRACE SW/BUZZER OFF SW. Yes No Is the WARNING LED blinking? (It blinks when there is an existing microprogram.) Yes Pull off the Initial Setup Disk. No Power off. Pull off the Initial Setup Disk. Perform the installation for update. 정보기기 사업부 CSE팀 3) Firmware 설치 ( 1. 19/23 )

  21. 1. Hardware Setup 이론 Insert the MICRO_Disk_No.1. Install the nest FD. Press the TRACE SW.BUZZER OFF SW. Pull off the FD. (The WARNING LED goes out and the FDD LED cones on. It chows that the installation is in progress.) The FDD LED blinks. (The WARNING LED does not blink.) The FDD LED blinks. (The WARNING LED does not blink.) Indication of the FDD and the WARNING LEDs charges. The WARNING LED slow(interval of one second) blinking. Pull off the FD. The installation is completed. Pull off the FD. The recovery Procedure varies depending on the status of the LEDs(FDD, WARNING, and ALARM LEDs) at this time. 정보기기 사업부 CSE팀 3) Firmware 설치 ( 1. 20/23 )

  22. 1. Hardware Setup 이론 정보기기 사업부 CSE팀 3) Firmware 설치 - error 발생시 조치 요령(1) ( 1. 21/23 )

  23. 1. Hardware Setup 이론 정보기기 사업부 CSE팀 3) Firmware 설치 - error 발생시 조치 요령(1) ( 1. 22/23 )

  24. 1. Hardware Setup 이론 정보기기 사업부 CSE팀 3) Firmware 설치 - error 발생시 조치 요령(1) ( 1. 23/23 )
