ITEC 3220A Using and Designing Database Systems

1. ITEC 3220AUsing and Designing Database Systems Instructor: Gordon Turpin Course Website: www.cse.yorku.ca/~gordon/itec3220S07 Office: CSEB3020

2. Chapter 10 Transaction Management and Concurrent Control

3. What is a Transaction? • Any action that reads from and/or writes to a database may consist of • Simple SELECT statement to generate a list of table contents • A series of related UPDATE statements to change the values of attributes in various tables • A series of INSERT statements to add rows to one or more tables • A combination of SELECT, UPDATE, and INSERT statements

4. What is a Transaction? (continued) • A logical unit of work that must be either entirely completed or aborted • Successful transaction changes the database from one consistent state to another • One in which all data integrity constraints are satisfied • Most real-world database transactions are formed by two or more database requests • The equivalent of a single SQL statement in an application program or transaction

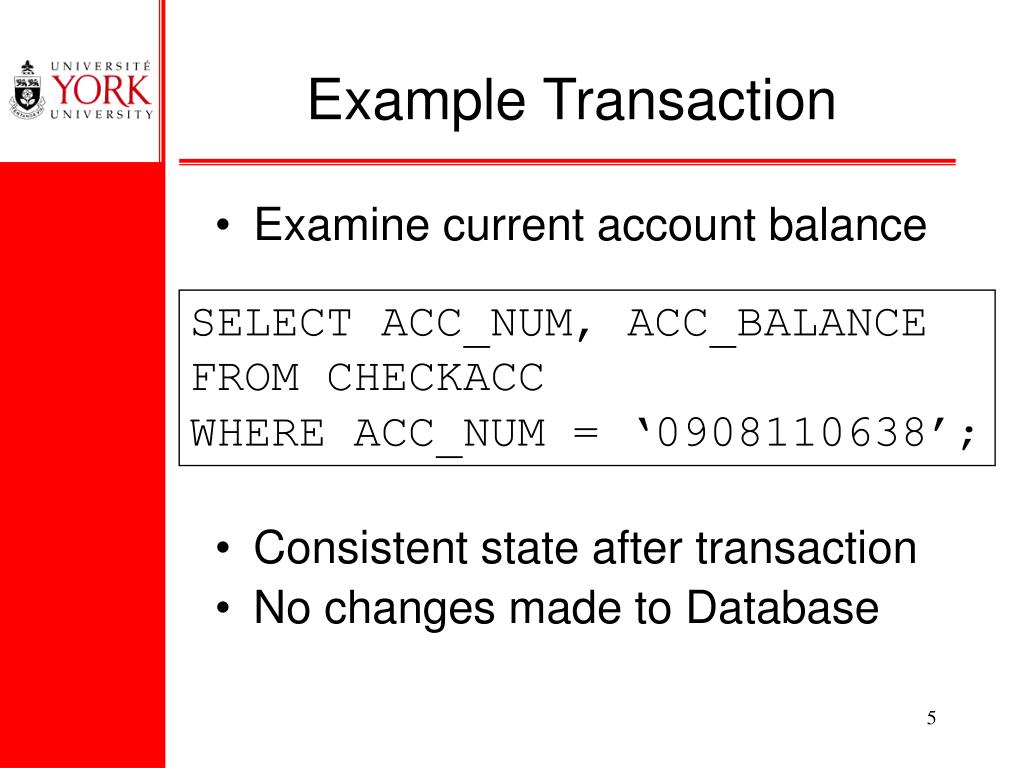

5. Example Transaction • Examine current account balance • Consistent state after transaction • No changes made to Database SELECT ACC_NUM, ACC_BALANCEFROM CHECKACCWHERE ACC_NUM = ‘0908110638’;

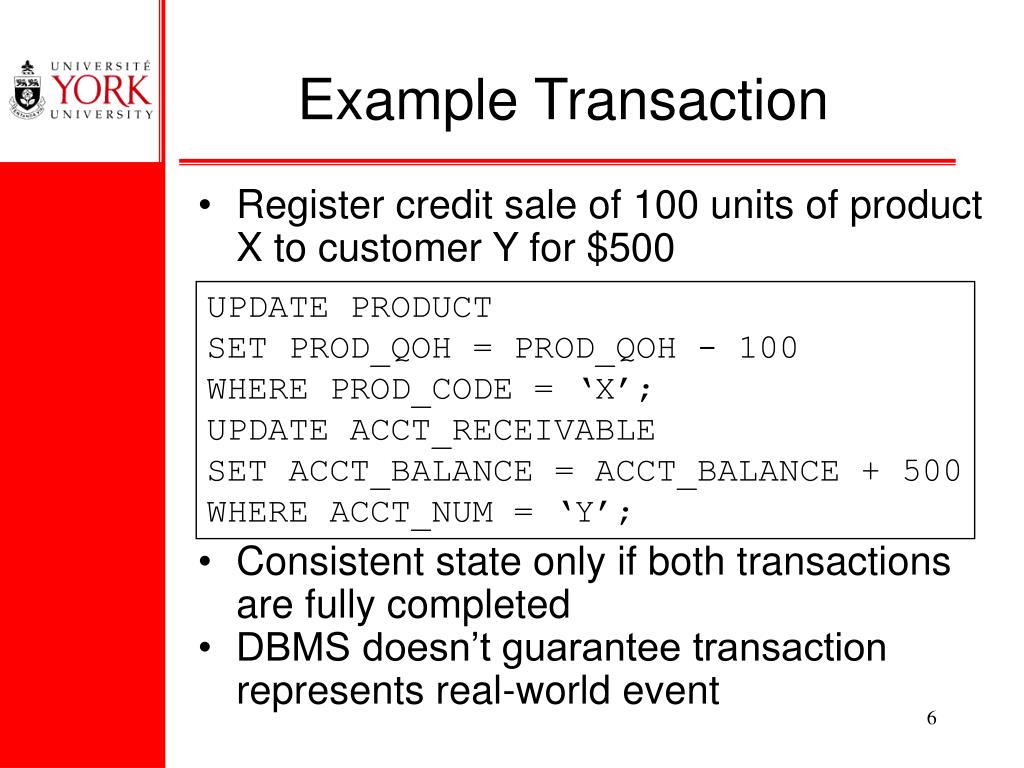

6. Example Transaction • Register credit sale of 100 units of product X to customer Y for $500 • Consistent state only if both transactions are fully completed • DBMS doesn’t guarantee transaction represents real-world event UPDATE PRODUCTSET PROD_QOH = PROD_QOH - 100WHERE PROD_CODE = ‘X’; UPDATE ACCT_RECEIVABLE SET ACCT_BALANCE = ACCT_BALANCE + 500WHERE ACCT_NUM = ‘Y’;

7. Incomplete Transactions • Reasons: • An anomaly arises during execution (automatically restart) • System crashes • An unexpected situation during transaction execution • May bring database to inconsistent state

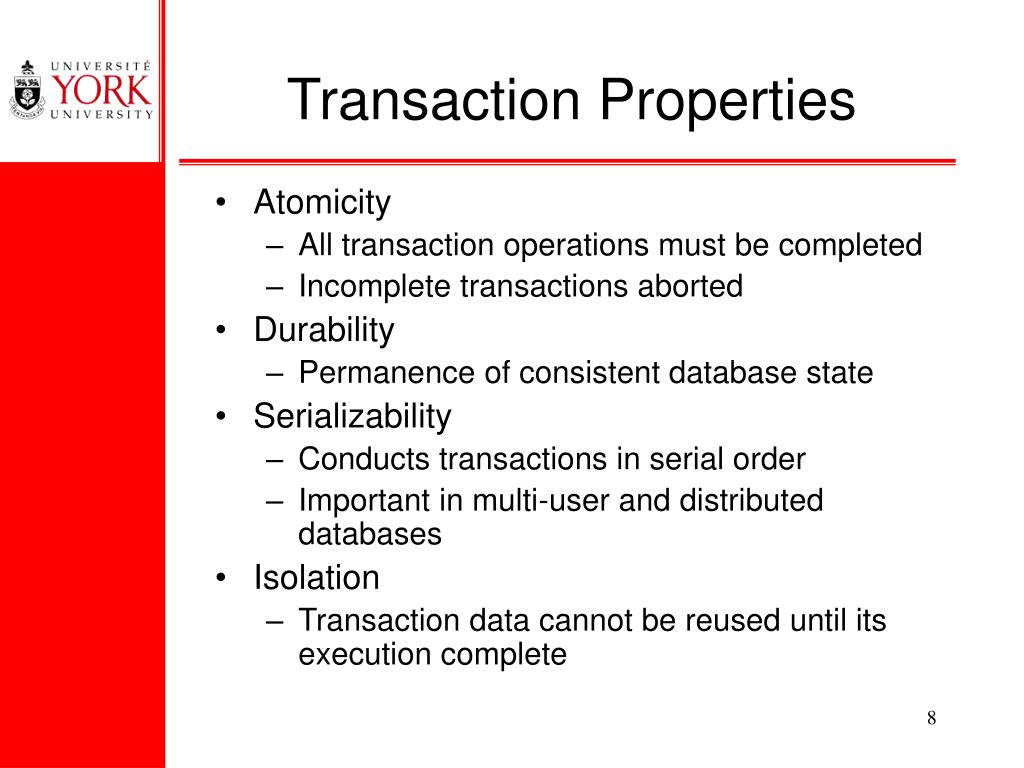

8. Transaction Properties • Atomicity • All transaction operations must be completed • Incomplete transactions aborted • Durability • Permanence of consistent database state • Serializability • Conducts transactions in serial order • Important in multi-user and distributed databases • Isolation • Transaction data cannot be reused until its execution complete

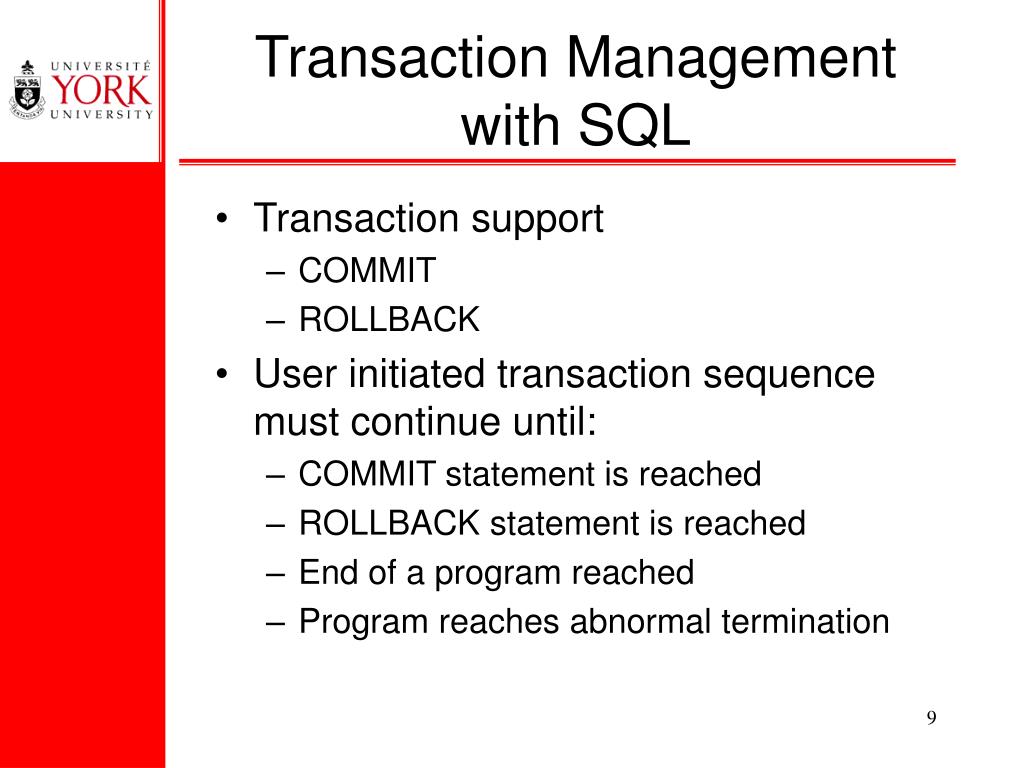

9. Transaction Management with SQL • Transaction support • COMMIT • ROLLBACK • User initiated transaction sequence must continue until: • COMMIT statement is reached • ROLLBACK statement is reached • End of a program reached • Program reaches abnormal termination

10. Transaction Log • Tracks all transactions that update database • May be used by ROLLBACK command • May be used to recover from system failure • Log stores • Record for beginning of transaction • Each SQL statement • Operation • Names of objects • Before and after values for updated fields • Pointers to previous and next entries • Commit Statement

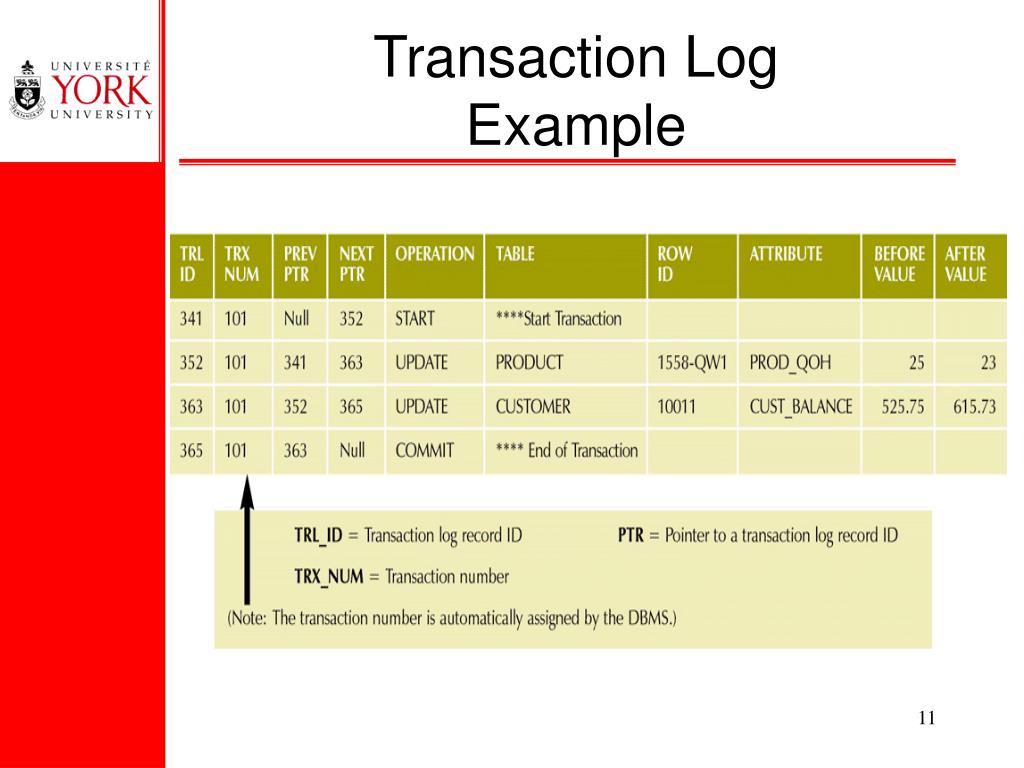

11. Transaction LogExample

12. Example • Suppose that you are a manufacturer of product ABC, which is composed of parts A, B, C. Each time a new product ABC is created, it must be added to the product inventory, using the PROD_QOH in PRODUCT table. And each time the product is created the parts inventory, using PART_QOH in PART table must be reduced by one each of parts, A, B, and C. PART PRODUCT

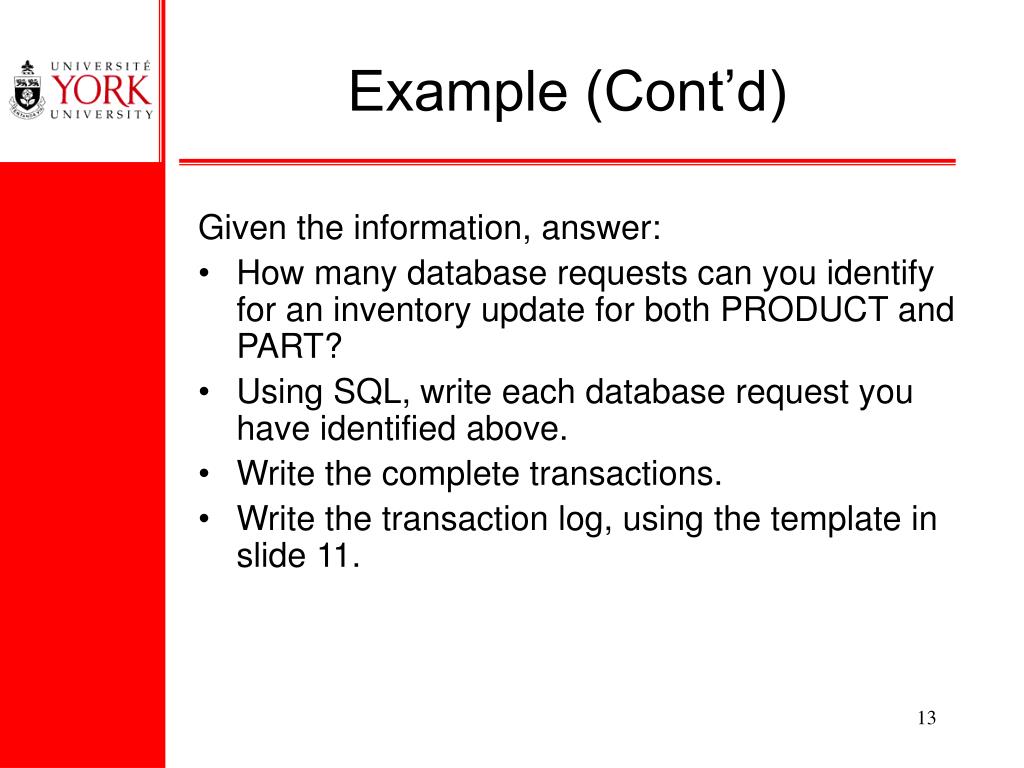

13. Example (Cont’d) Given the information, answer: • How many database requests can you identify for an inventory update for both PRODUCT and PART? • Using SQL, write each database request you have identified above. • Write the complete transactions. • Write the transaction log, using the template in slide 11.

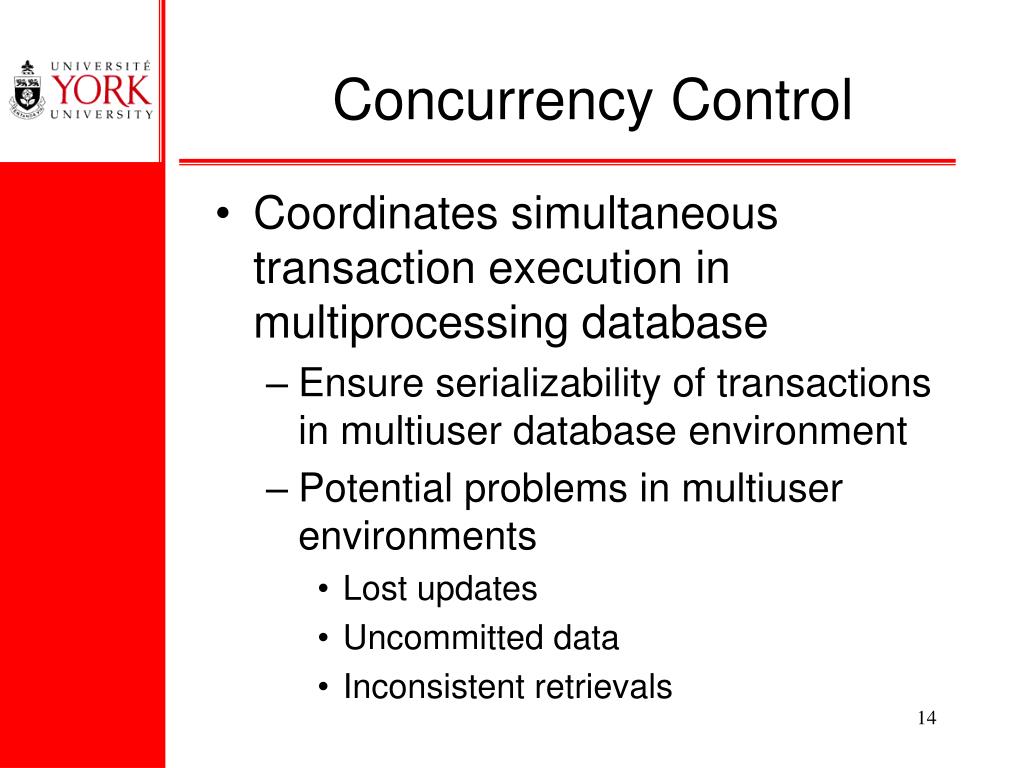

14. Concurrency Control • Coordinates simultaneous transaction execution in multiprocessing database • Ensure serializability of transactions in multiuser database environment • Potential problems in multiuser environments • Lost updates • Uncommitted data • Inconsistent retrievals

15. Normal Execution of Two Transactions

16. Lost Updates

17. More Example

18. Correct Execution of Two Transactions

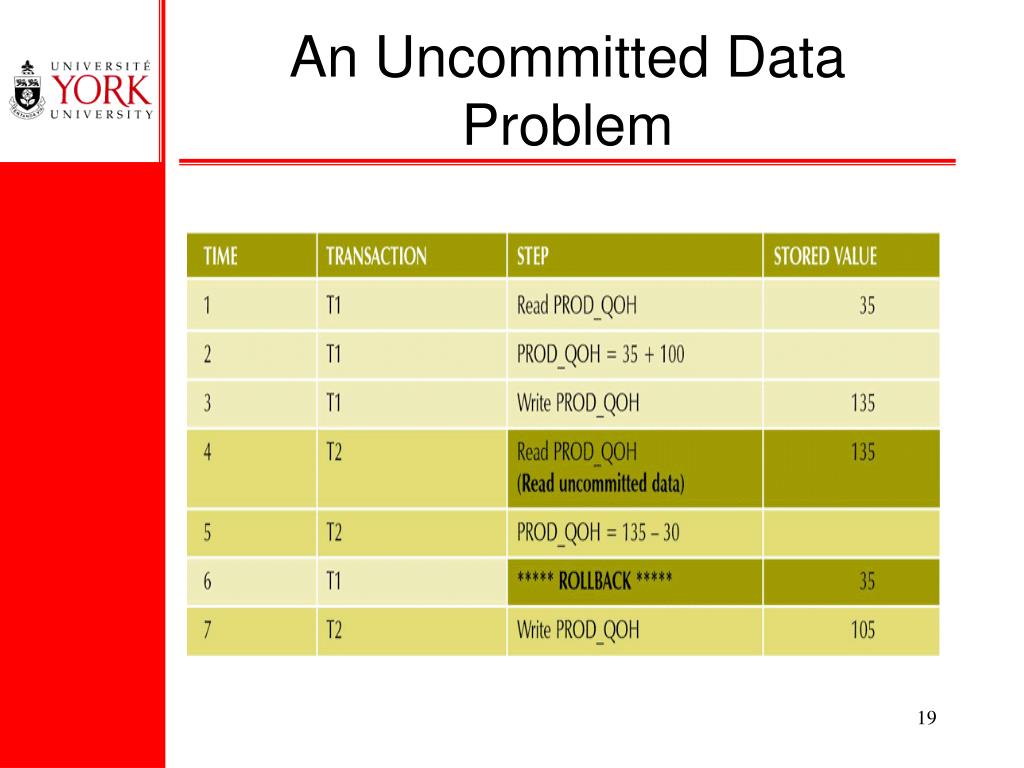

19. An Uncommitted Data Problem

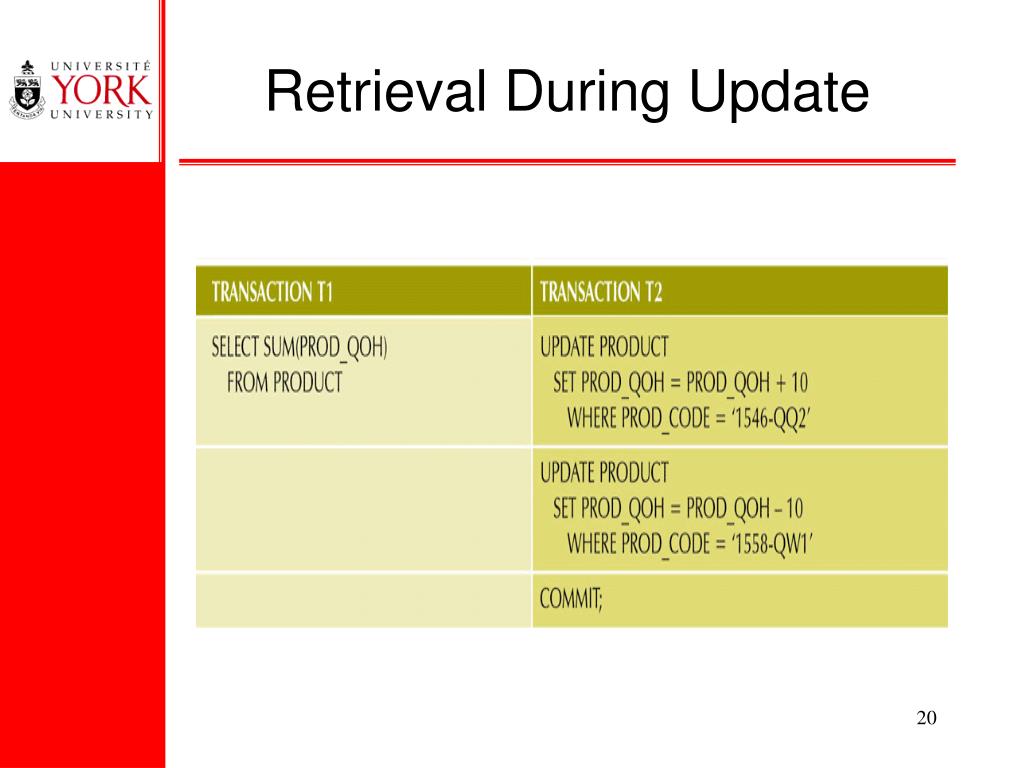

20. Retrieval During Update

21. Transaction Results: Data Entry Correction

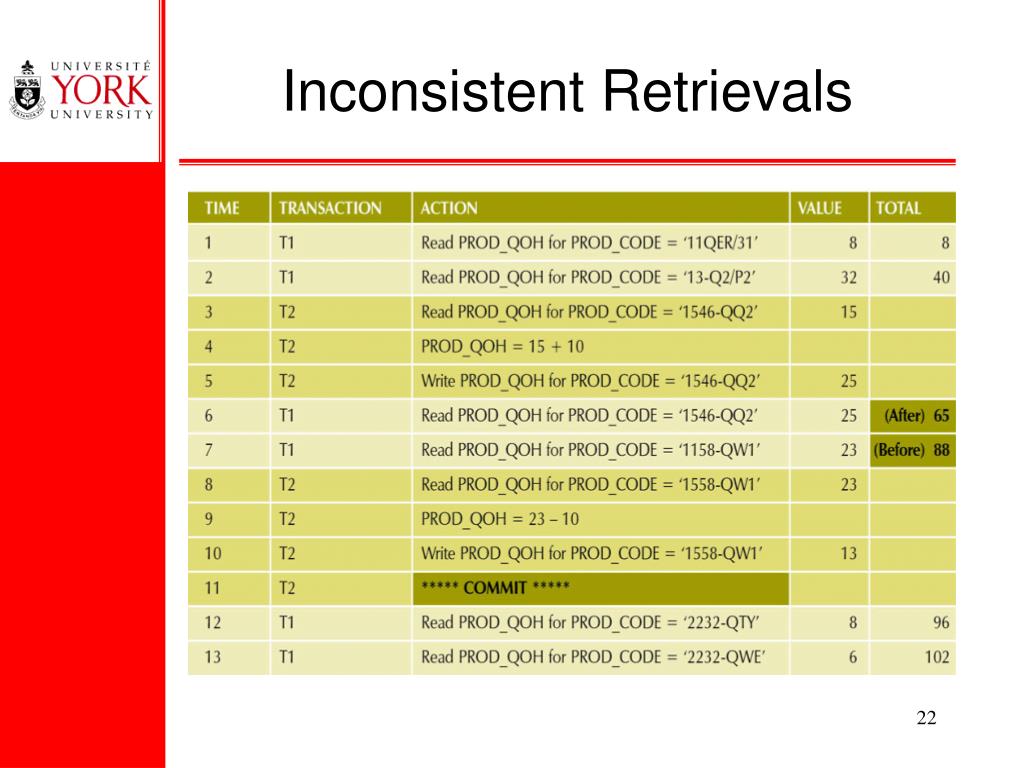

22. Inconsistent Retrievals

23. Example • A department store runs a multiuser DBMS on a local area network file server which does not enforce concurrency control. One customer has a balance due of $250 when the following three transactions related to this customer were processed at the same time: • Payment of $250 • Purchase on credit of $100 • Merchandise return of $50. Each transaction reads the customer record when the balance was $250. the updated record was returned to the database in the order shown above. • What balance will be for the customer after the last transaction was completed?

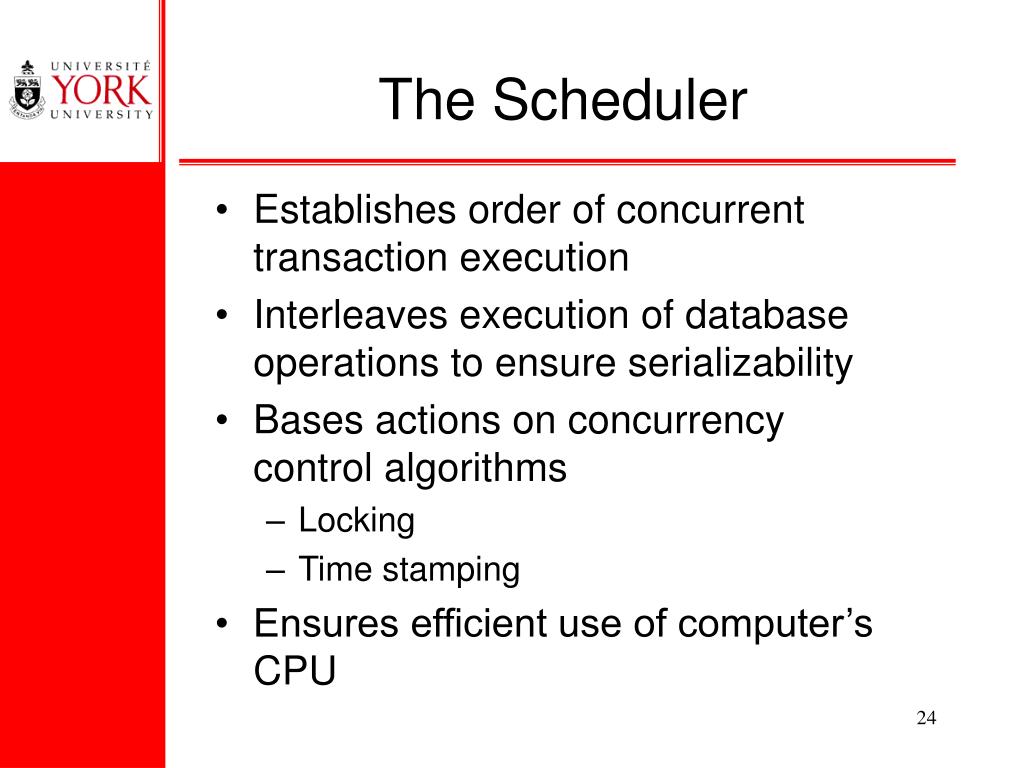

24. The Scheduler • Establishes order of concurrent transaction execution • Interleaves execution of database operations to ensure serializability • Bases actions on concurrency control algorithms • Locking • Time stamping • Ensures efficient use of computer’s CPU

25. Read/Write Conflict Scenarios:

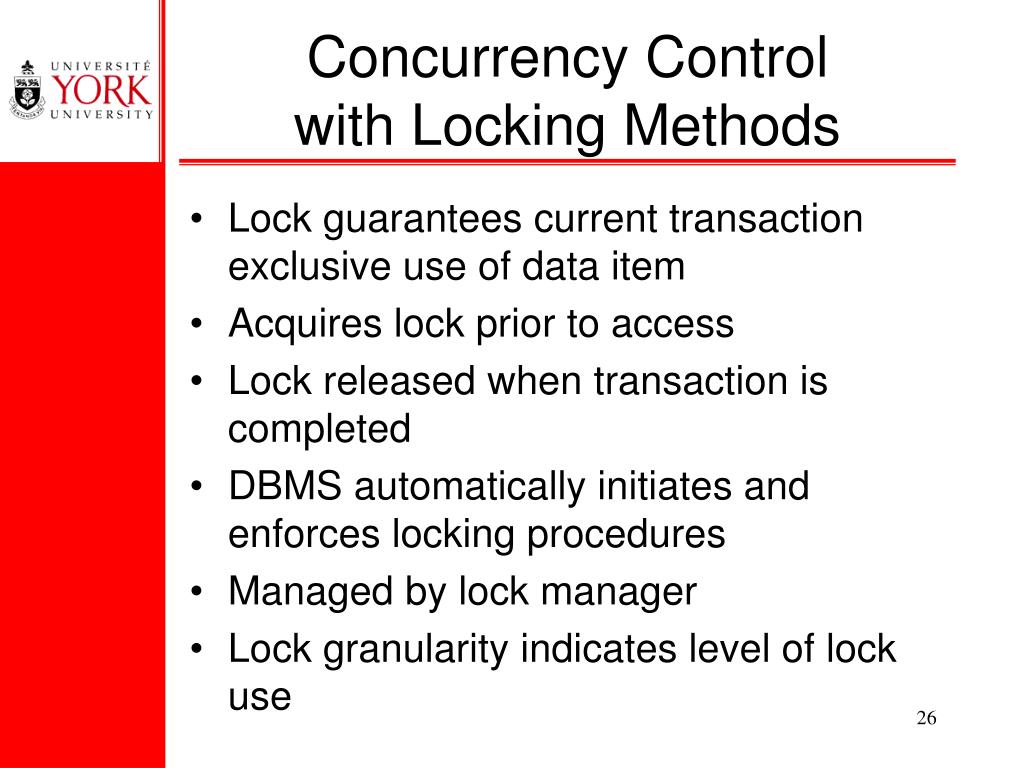

26. Concurrency Control with Locking Methods • Lock guarantees current transaction exclusive use of data item • Acquires lock prior to access • Lock released when transaction is completed • DBMS automatically initiates and enforces locking procedures • Managed by lock manager • Lock granularity indicates level of lock use

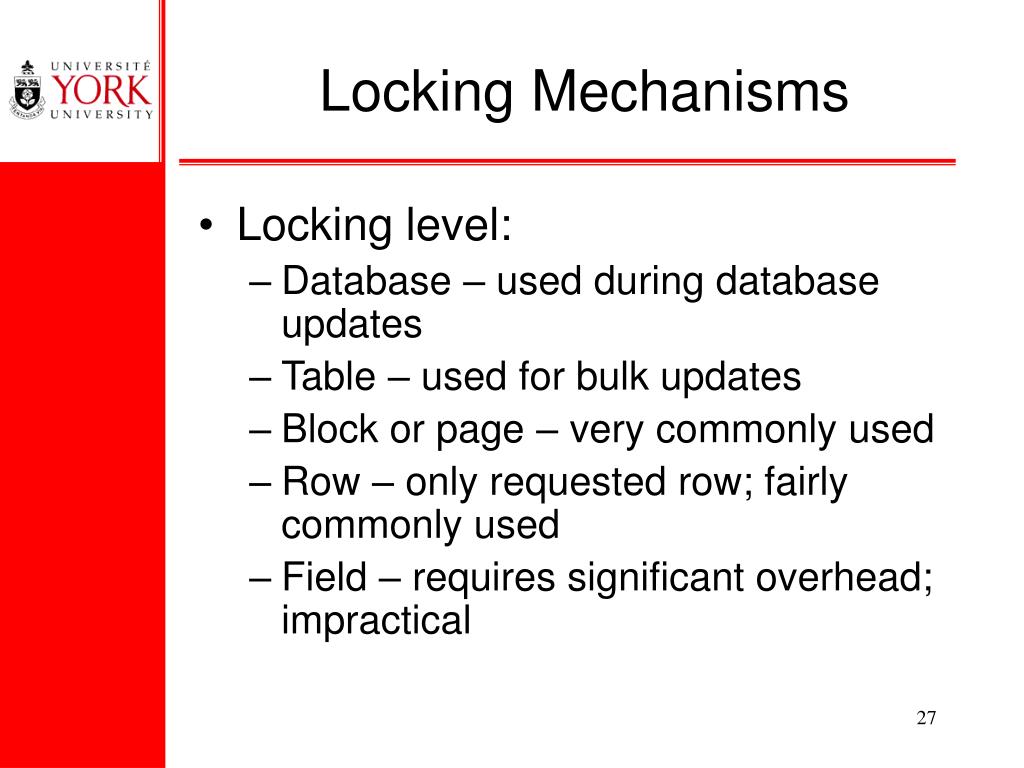

27. Locking Mechanisms • Locking level: • Database – used during database updates • Table – used for bulk updates • Block or page – very commonly used • Row – only requested row; fairly commonly used • Field – requires significant overhead; impractical

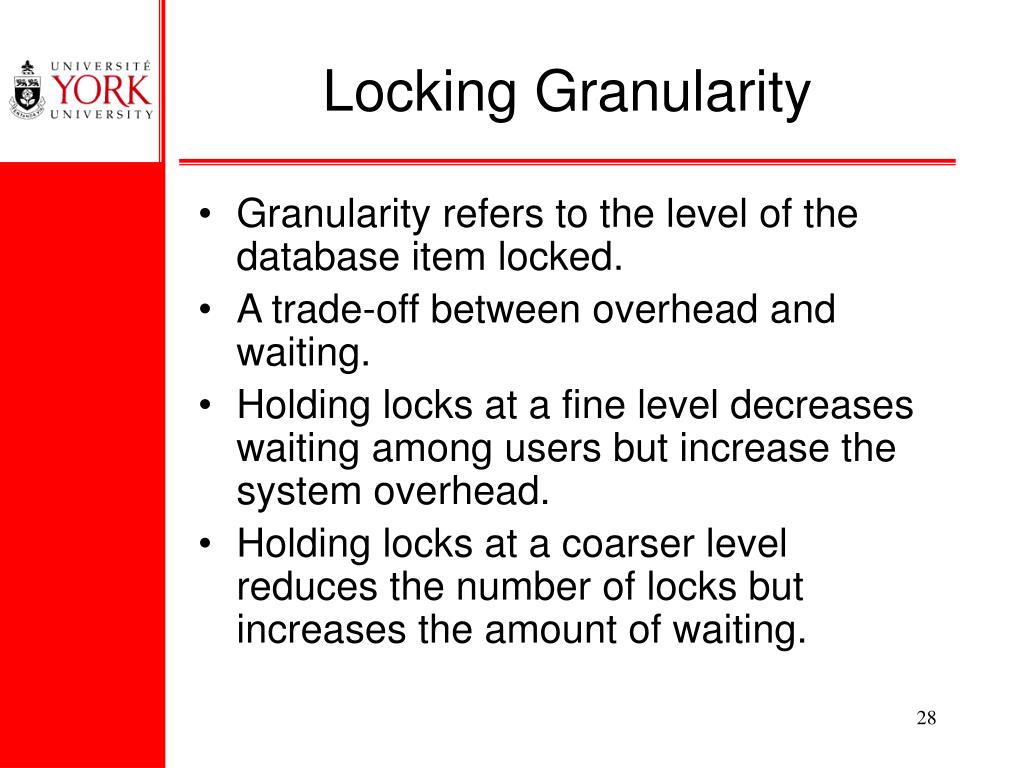

28. Locking Granularity • Granularity refers to the level of the database item locked. • A trade-off between overhead and waiting. • Holding locks at a fine level decreases waiting among users but increase the system overhead. • Holding locks at a coarser level reduces the number of locks but increases the amount of waiting.

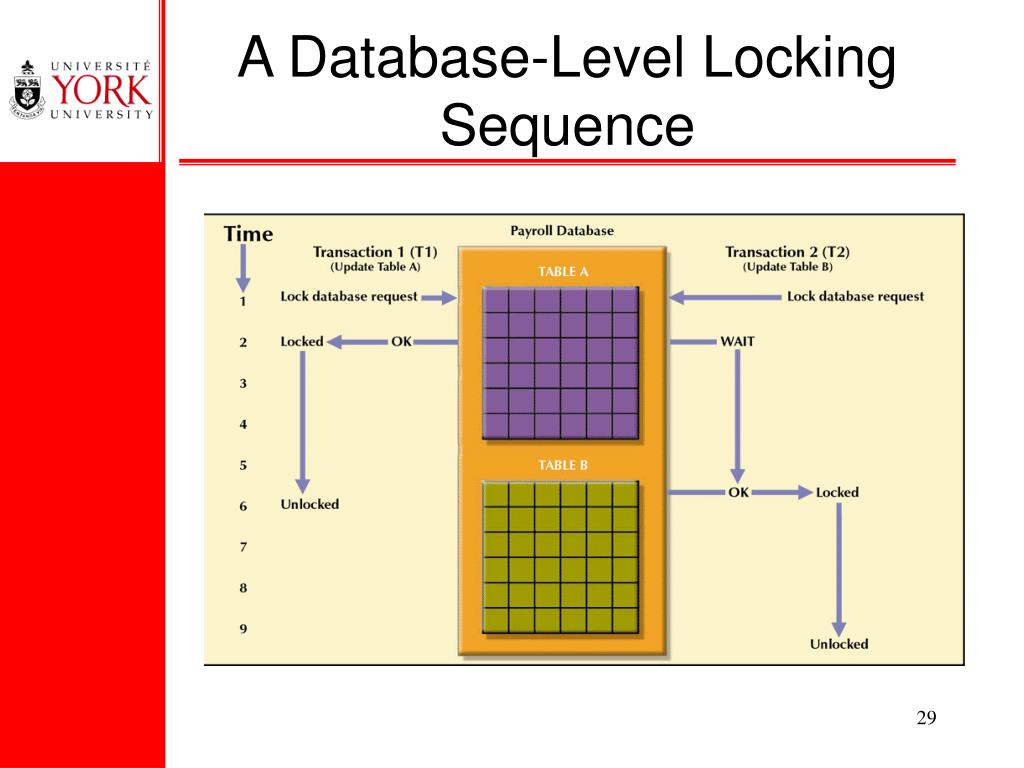

29. A Database-Level Locking Sequence

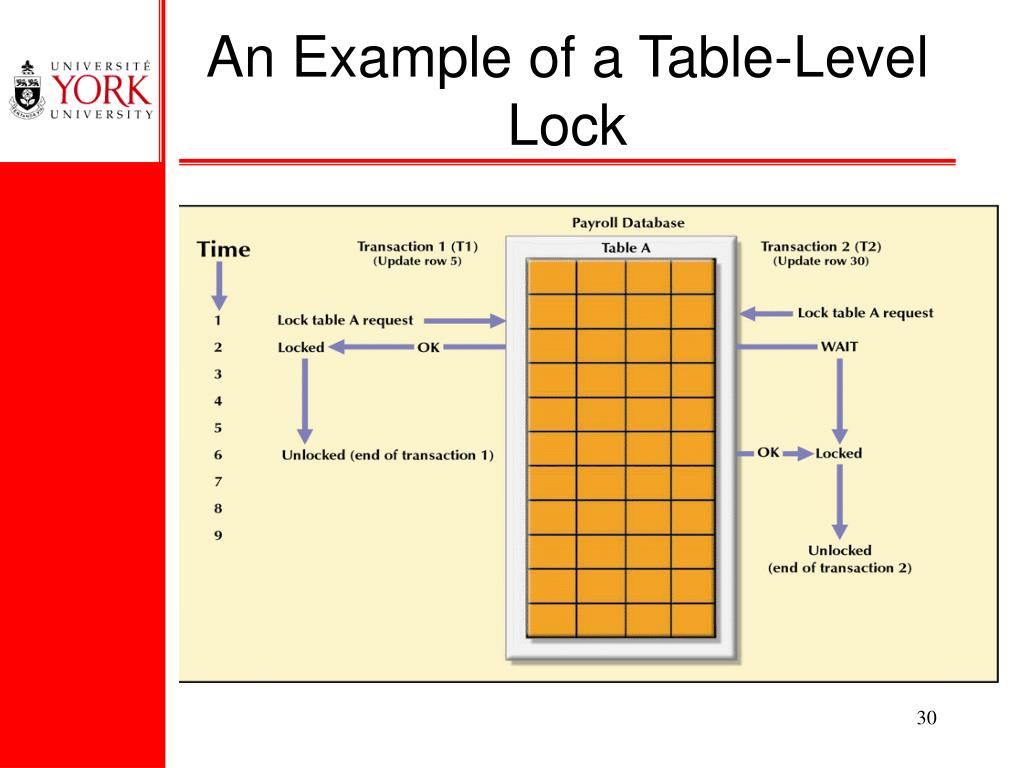

30. An Example of a Table-Level Lock

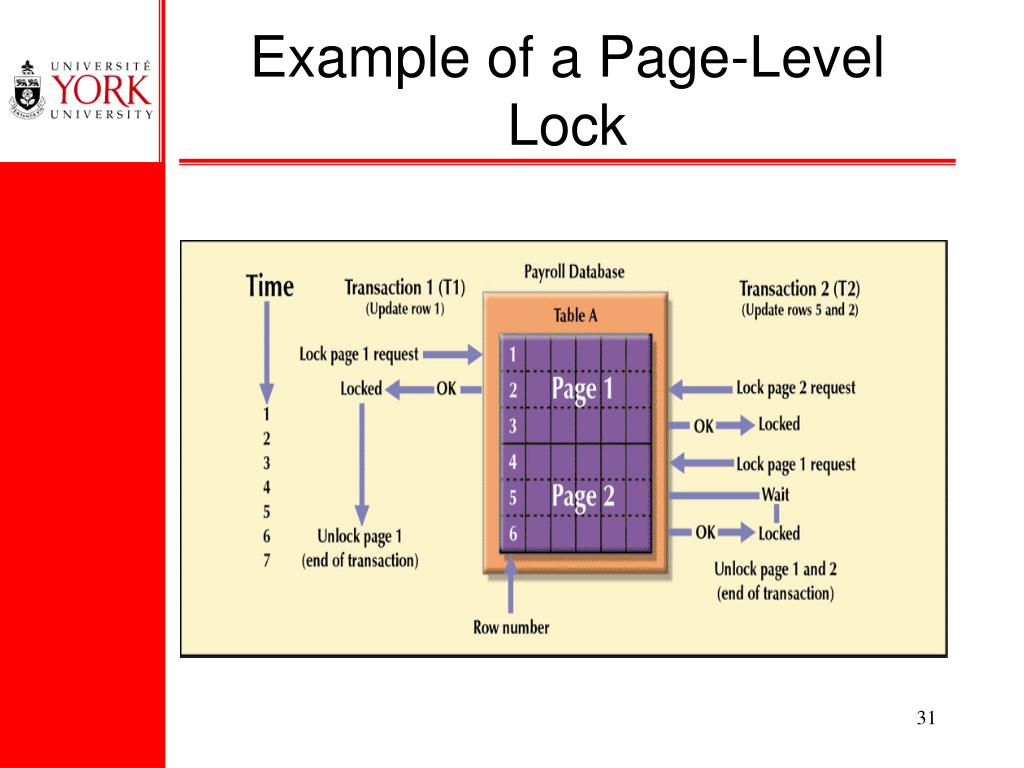

31. Example of a Page-Level Lock

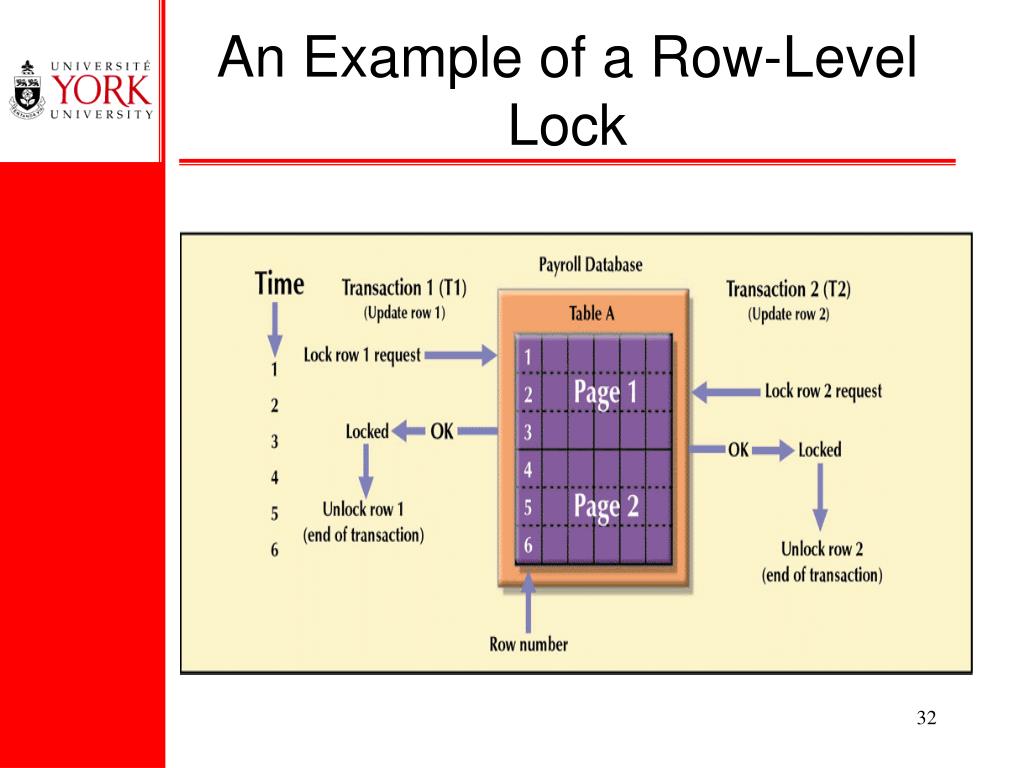

32. An Example of a Row-Level Lock

33. Binary Locks • Two states • Locked (1) • Unlocked (0) • Locked objects unavailable to other objects • Unlocked objects open to any transaction • Transaction unlocks object when complete

34. An Example of a Binary Lock

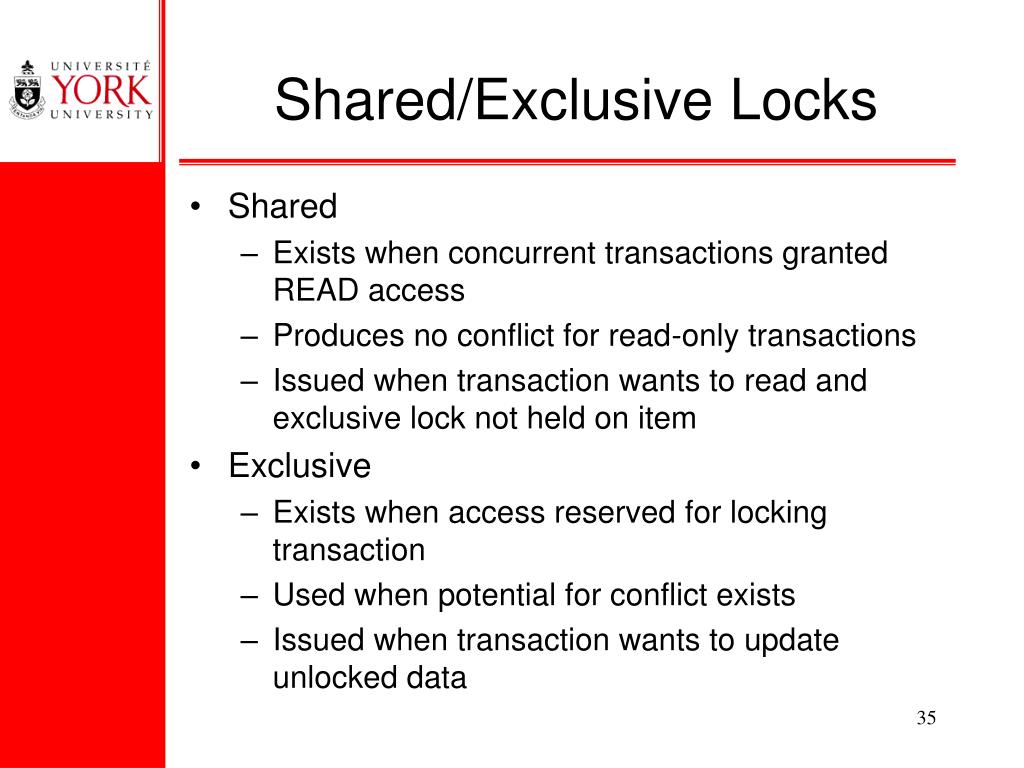

35. Shared/Exclusive Locks • Shared • Exists when concurrent transactions granted READ access • Produces no conflict for read-only transactions • Issued when transaction wants to read and exclusive lock not held on item • Exclusive • Exists when access reserved for locking transaction • Used when potential for conflict exists • Issued when transaction wants to update unlocked data

36. Shared/Exclusive Locks (Cont’d) T2 T1

37. Two-Phase Lockingto Ensure Serializability • Defines how transactions acquire and relinquish locks • Guarantees serializability, but it does not prevent deadlocks • Growing phase, in which a transaction acquires all the required locks without unlocking any data • Shrinking phase, in which a transaction releases all locks and cannot obtain any new lock

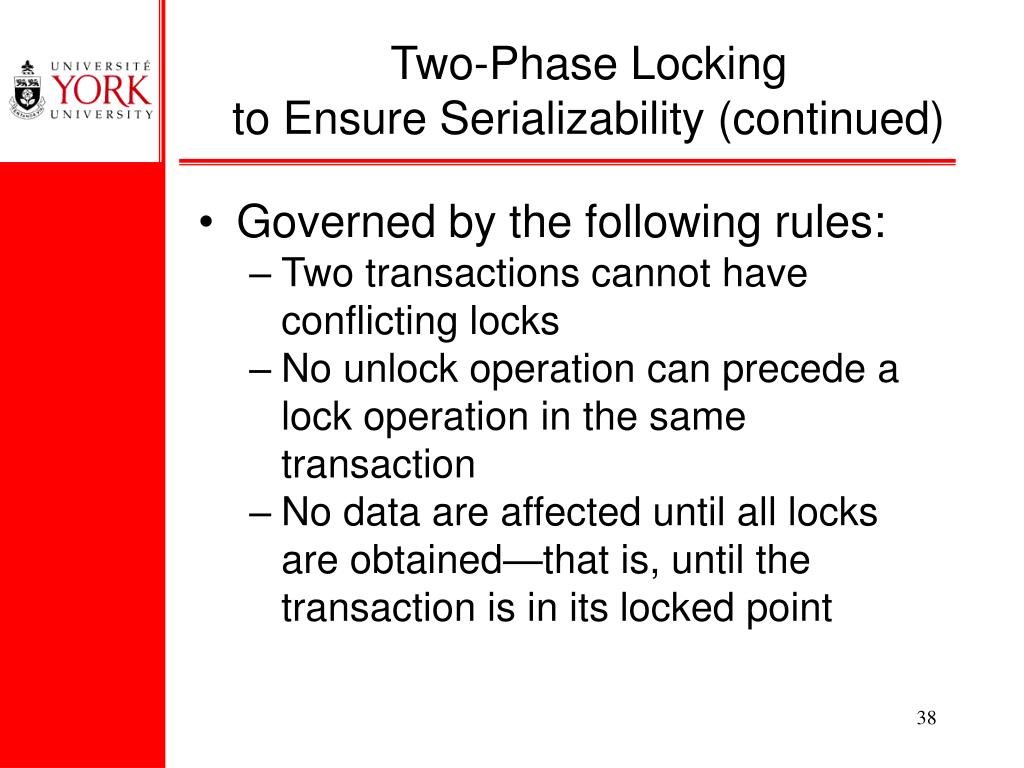

38. Two-Phase Lockingto Ensure Serializability (continued) • Governed by the following rules: • Two transactions cannot have conflicting locks • No unlock operation can precede a lock operation in the same transaction • No data are affected until all locks are obtained—that is, until the transaction is in its locked point

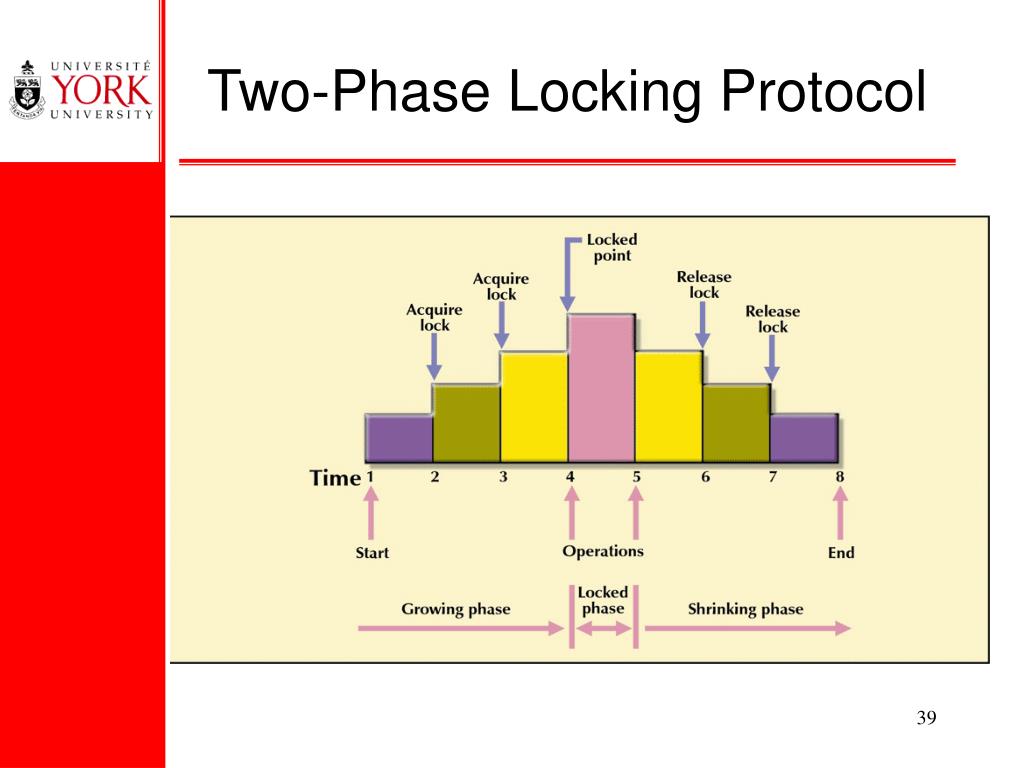

39. Two-Phase Locking Protocol

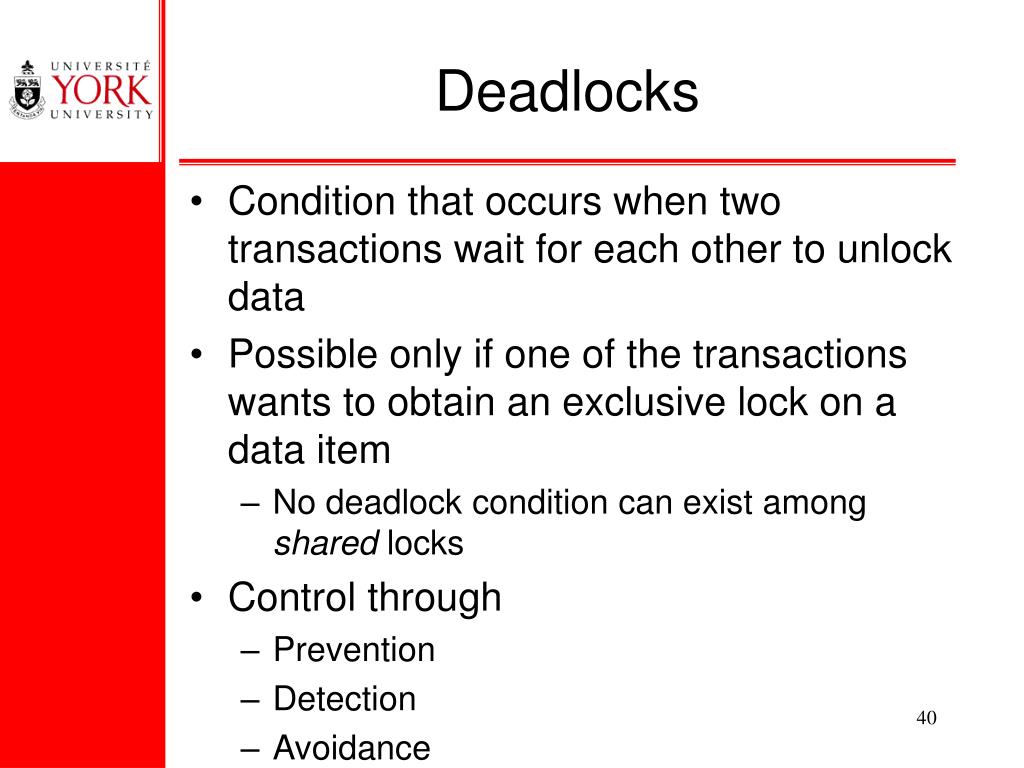

40. Deadlocks • Condition that occurs when two transactions wait for each other to unlock data • Possible only if one of the transactions wants to obtain an exclusive lock on a data item • No deadlock condition can exist among shared locks • Control through • Prevention • Detection • Avoidance

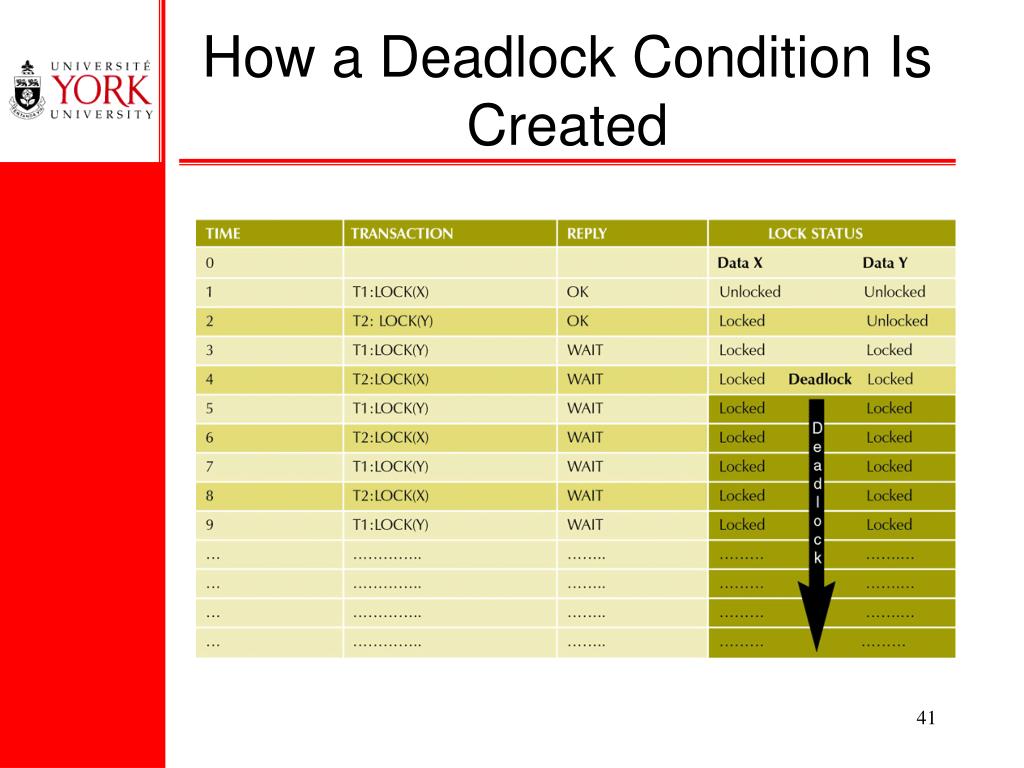

41. How a Deadlock Condition Is Created

42. Example on Concurrency Control Given schedule S1 as follows, and the locks won’t be released until commit. Is there any deadlock in S1 using Shared/Exclusive lock.

43. More Example

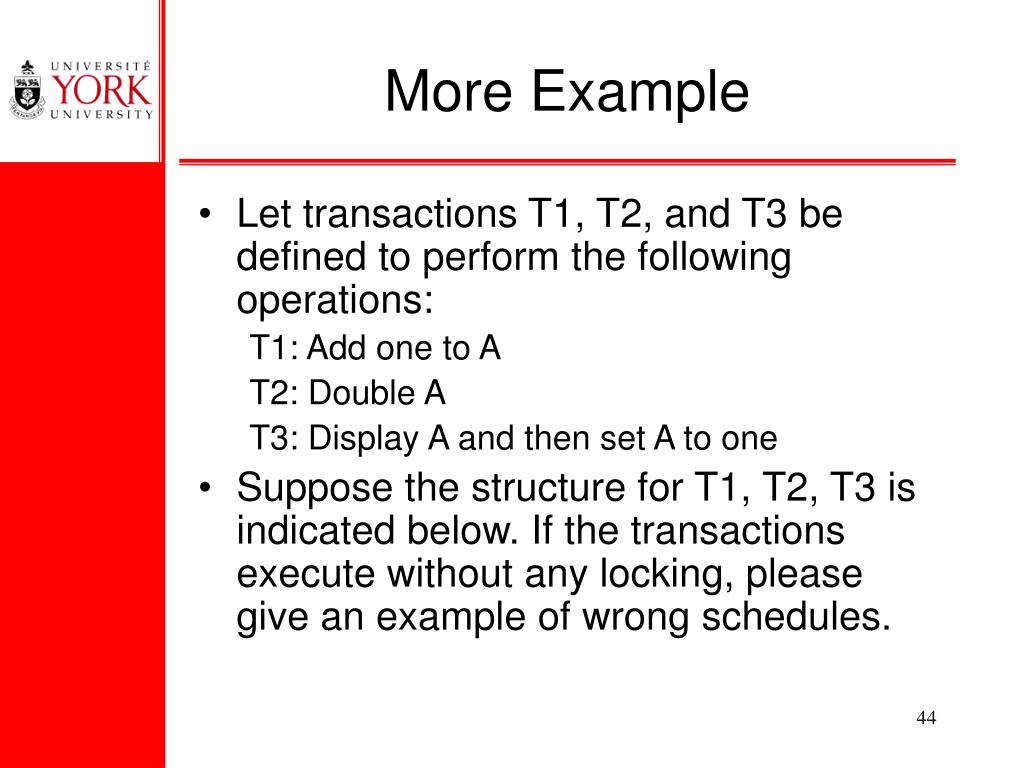

44. More Example • Let transactions T1, T2, and T3 be defined to perform the following operations: T1: Add one to A T2: Double A T3: Display A and then set A to one • Suppose the structure for T1, T2, T3 is indicated below. If the transactions execute without any locking, please give an example of wrong schedules.

45. More Examples (Cont’d) • Suppose the following schedule • T11- T31- T12- T32- T21- T22 obeyed the two-phase locking algorithm. Explain what could be produced by the schedule.

46. Concurrency Control with Time Stamping Methods • Assigns a global unique time stamp to each transaction • Produces an explicit order in which transactions are submitted to the DBMS • Uniqueness • Ensures that no equal time stamp values can exist • Monotonicity • Ensures that time stamp values always increase

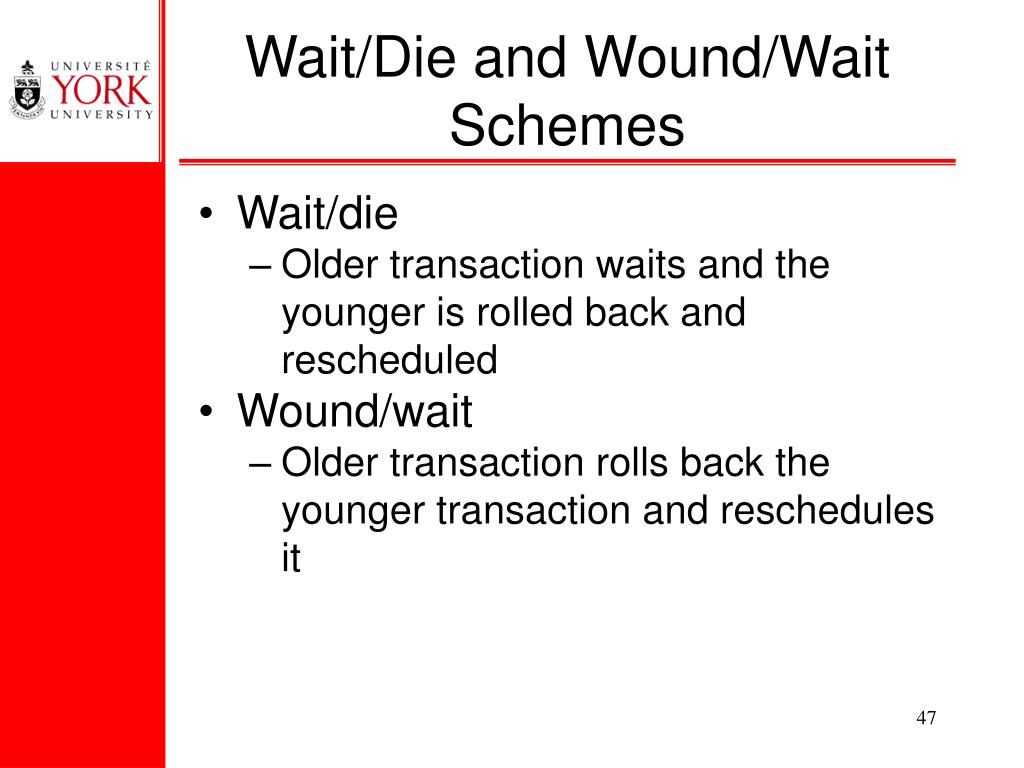

47. Wait/Die and Wound/Wait Schemes • Wait/die • Older transaction waits and the younger is rolled back and rescheduled • Wound/wait • Older transaction rolls back the younger transaction and reschedules it

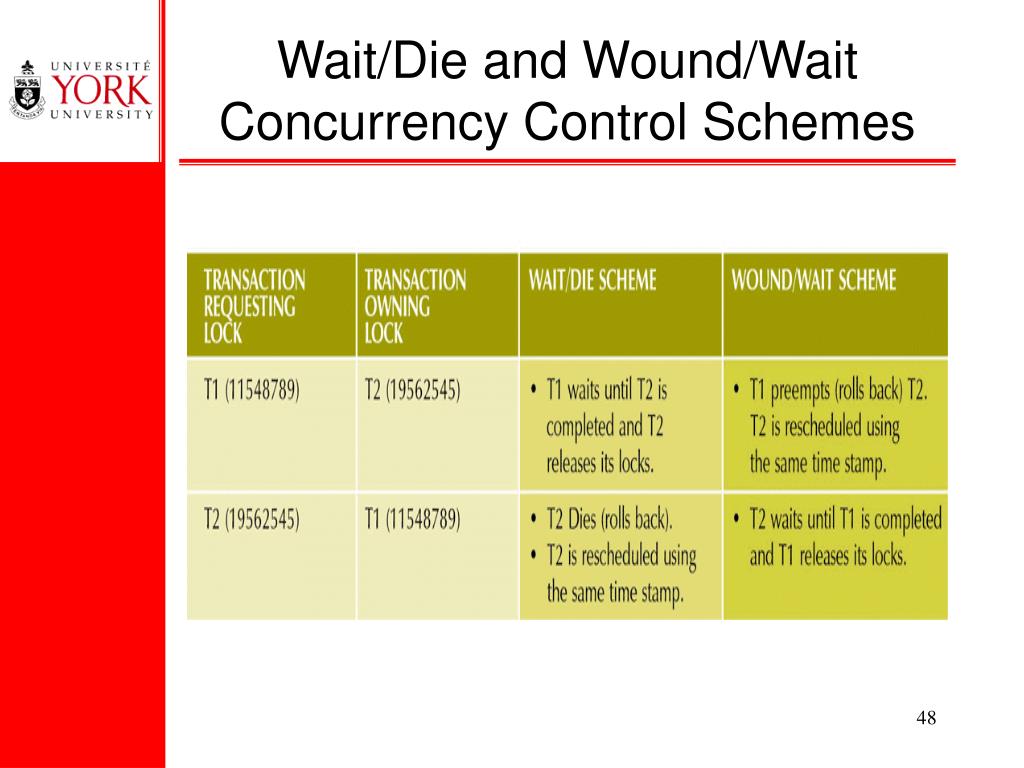

48. Wait/Die and Wound/WaitConcurrency Control Schemes

49. Example Concurrency control is implemented based on time stamping method. Consider the following schedule:

50. Concurrency Controlwith Optimistic Methods • Optimistic approach • Based on the assumption that the majority of database operations do not conflict • Does not require locking or time stamping techniques • Transaction is executed without restrictions until it is committed • Phases are read, validation, and write
