  1. Ordering MODIS products Edward Masuoka Edward.J.Masuoka@NASA.GOV September 10, 2014

  2. Overview • EarthData – EOSDIS portal for all EOS products (standard and near realtime) • LAADS • LAADS Web • OPenDAP • Ftp • Web Services • Mirador • EarthData • Reverb | ECHO • Worldview (GIBS)

  3. EOSDIS Earthdata Portal for all EOSDIS satellite data holdings https://earthdata.nasa.gov

  4. Earthdata – Search and Order Tab on Earthdata with links to all Search and Order tools available at the DAACs

  5. Mirador http://mirador.gsfc.nasa.gov/ Mirador is an earth science data search tool developed at the GES DISC for our data users. It has a drastically simplified, clean interface and employs the Google mini appliance for metadata keyword searches. Other features include quick response, spatial and parameter subsetting, data file hit estimator, Gazetteer (geographic search by feature name capability), and an interactive shopping cart

  6. Mirador Looking for MODIS products in the GES-DISC from 9/8/13 to 9/12/2014 using Keyword search

  7. Mirador– Search results Results for search summarized at the product level. Links under each product get you to the individual files, Giovani tool or the Data Calendar which summarizes all the GES DISC holdings for that product by month/year

  8. Mirador You can add files to your shopping cart or click on HDF (FTP)to download a file

  9. LAADS http://ladsweb.nascom.nasa.gov/ LAADS is the DAAC that archives and distributes Atmosphere products from MODIS and VIIRS.

  10. Access Methods Described Online http://ladsweb.nascom.nasa.gov/data/

  11. Interactive Options • Web Services (MWS) • Subset, Mosaic, Reprojection, etc… • FTP • Direct Downloads • OPeNDAP • Format Conversions

  12. Scripted • FTP • Curl, Wget, Perl scripts, etc. • OPeNDAP • URL based subsetting, Format Conversion • Web Coverage Service • OGC Compliant Protocol • Reprojection, Search, Format Conversion • Web Services (MWS) • REST or SOAP interface • Search, Reprojection, Subsetting, Format Conversion, etc…

  13. Search for Products • Product Selection (product) • Temporal Selection (time period) • Collection Selection (reprocessing) • Spatial Selection (geographic area) • Saved Parameters Selection (save or load search parameters)

  14. Searching LAADS for L2 Aerosol Under Satelite/Instrument I selected Terra MODIS which set choices for Group. Under Group, I selected Terra Atmosphere Level 2 Products. Under Products, I selected Level 2 Aerosol by clicking on it. To keep things simple, I selected just the 5 minute granules from 9/6/2014.

  15. Searching LAADS for L2 Aerosol Spatial Selection is Lat/Lon. It can be Tile ID if Level 3. I chose a predefined region, Continental US. Note only one bounding box can be defined per search. I selected Day and Both (mixed day and night mode) granules.

  16. Searching LAADS for L2 Aerosol I can filter on metadata fields including PGEVersion. Before you Search you may wish to save the Search parameter selections in a file to use later.

  17. Search Results L2 Aerosol Search results are displayed. You can open a product or a browse image by clicking the link under File Name or Browse.

  18. Ordering Aerosol Products All checked files will be downloaded. Order Files Nowplaces the order immediately. For post-processing select Add Files to Shopping Cart

  19. Post-processing In the shopping cart: Select files to Post process; click on Post process and order datathen click Order

  20. Post-processing Select post-processing options then click Order

  21. Data Quality Screening Service Data Quality Screening Service uses Q/A metadata in the product to screen SDSes by replacing lower quality observations with fill values.

  22. Data Quality Screening Service Screened Image Mask Original Image Mask is white (1) where data meet the quality threshold specified (in this example, Good or Very Good) and black (0) where data fall below threshold. Observations that correspond to black (0) elements in the mask are replaced with fill values in the screened product.

  23. Final step in ordering • Provide the email address LAADS will use to contact you about your order and you can use to track status. FTP Pull is our preferred method of delivery and if chosen, when your order completes an email message will provide you with link to the directory containing your products.

  24. Your order notification Your Export ID is: 500862006 The data you ordered will be staged (in a few minutes), and you can retrieve the data through anonymous FTP using: ftp ladsweb.nascom.nasa.gov username: anonymous password: edward.j.masuoka@nasa.gov cd /orders/500862006 binary prompt mget * The following is a list of the data files (CkSum, Size [Bytes]): MOD04_L2.A2014249.1515.051.2014250014456.dqcs_000500862006.hdf (4268921639, 1140025) MOD04_L2.A2014249.1520.051.2014250014530.dqcs_000500862006.hdf (13529451, 1684665) MOD04_L2.A2014249.1525.051.2014250014526.dqcs_000500862006.hdf (4079920764, 967058) MOD04_L2.A2014249.1655.051.2014250014409.dqcs_000500862006.hdf (1366509343, 1296342) MOD04_L2.A2014249.1700.051.2014250014733.dqcs_000500862006.hdf (1434794372, 1055083) MOD04_L2.A2014249.1705.051.2014250014453.dqcs_000500862006.hdf (3127496211, 700183) MOD04_L2.A2014249.1835.051.2014250021359.dqcs_000500862006.hdf (4014910587, 2175732) MOD04_L2.A2014249.1840.051.2014250021351.dqcs_000500862006.hdf (2795295329, 1041399) MOD04_L2.A2014249.2015.051.2014250032754.dqcs_000500862006.hdf (453027313, 2091438) README.1410212620_22665.5403.500862006.txt (3559821994, 1031) checksums_500862006 (1994261109, 1286) NOTE: The files will be deleted after 5 days, please download the files before they get deleted. For help, please contact us at modapsuso@sigmaspace.com.

  25. Adding L3 Aerosol to the search If I want to include Level 3 Daily Joint Aerosol/Water product in the search, I can selected it under Group and it will be added to the search. Note, the previously selected Level 2 Aerosol appears under Products.

  26. Viewing Global Browse One can view global browse images of products under the IMAGES tab at LAADS Web

  27. OPeNDAP • OPeNDAP directory structure same as FTP • URL based access to all features • Variable Subsetting • Format Conversion • Documentation and Examples at • http://ladsweb.nascom.nasa.gov/data/opendap.html

  28. Transforming products with OPeNDAP • Contents of /allData tree shown, latest Collection 5 Aerosol products are in 51/. Clicking on 51/ will take you to a list of all products produced in the C5.1 reprocessing. Once there click on MYD04_L2/ then the year and day of interest.

  29. OPeNDAP • Level 2 Aqua Aerosol product s (MYD04_L2) from Collection 5.1 reprocessing, acquired on 1/1/2006, • Click on a file to convert and download

  30. OPeNDAP: choosing formatand parameters (SDSes) Once you have selected file(s) you can choose the output format and a subset of the parameters

  31. Reverb search Searching for Aqua MODIS Aerosol products from the Collecton 5.1 reprocessing which fall over the United States on 9/6/2014

  32. Q/A Notification Before you get the search results you have to read the Q/A summary information and click accept

  33. Reverb Search Results Search results shown in List View for the aerosol product. Plus information about the first granule in the list.

  34. Reverb placing an order If you submit an order then you will need to enter contact information or sign in. Since this product is available online for download, I canceled this order.

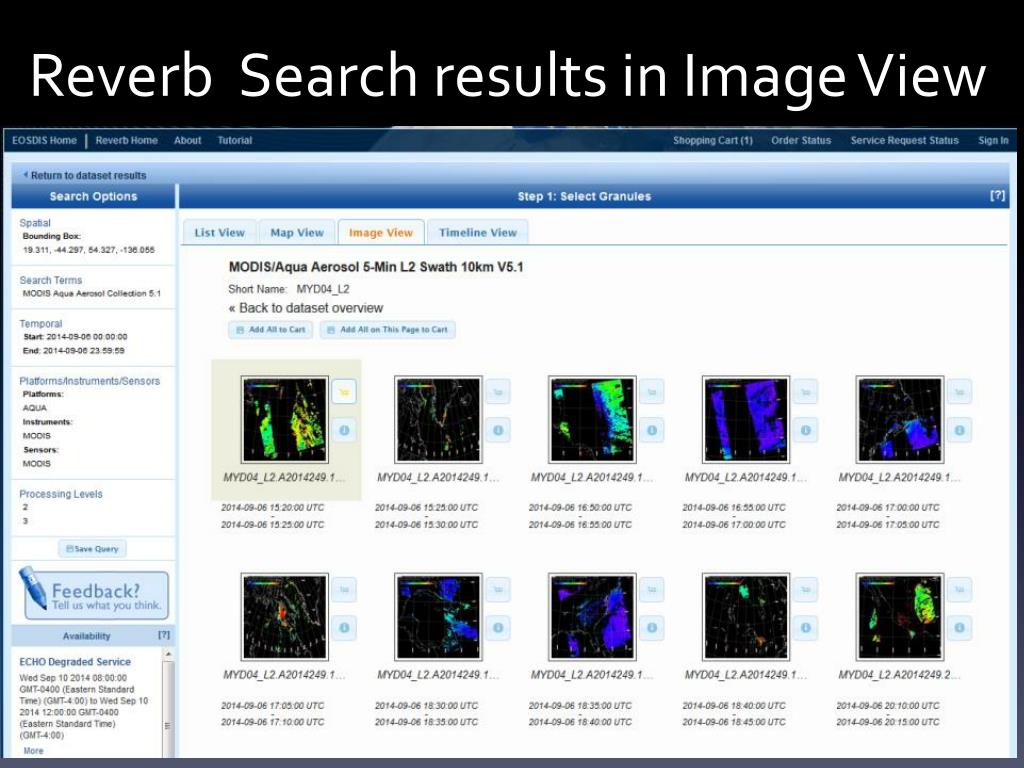

  35. Reverb Search results in Image View

  36. Earthdata - Worldview

  37. Worldview – download aerosol Terra Aerosol overlay on Land Surface Reflectance 8/1/14. Yellow circles are granule centers. Click on a circle to download Aerosol product from LAADS ftp site

  38. Backup Material on scripting

  39. OPeNDAP Examples • Retrieve file in NetCDF format • http://ladsweb.nascom.nasa.gov/opendap/allData/<AS>/<ESDT>/<YEAR>/<DOY>/<file>.hdf.nc

  40. OPeNDAP Examples • Retrieve file in ASCII format • http://ladsweb.nascom.nasa.gov/opendap/allData/<AS>/<ESDT>/<YEAR>/<DOY>/<file>.hdf.ascii

  41. OPeNDAP Examples • Retrieve file in NetCDF format • Only include Scan_Offset variable • Range [0-4079][0-2707] • http://ladsweb.nascom.nasa.gov/opendap/allData/<AS>/<ESDT>/<YEAR>/<DOY>/<file>.hdf.nc?Scan_Offset[0:1:4079][0:1:2707]

  42. MODAPS Web Services • URL and SOAP based access to all features • Variable Subsetting, Reprojection, Spatial, Temporal or Product searches,etc… • XML responses for easy parsing • Full Documentation at • http://ladsweb.nascom.nasa.gov/data/web_services.html • Quick start documentation at • http://ladsweb.nascom.nasa.gov/data/quickstart.html

  43. MODAPS Web Services Example • Search for files and get file ID • http://modwebsrv.modaps.eosdis.nasa.gov/axis2/services/MODAPSservices/searchForFiles?<parameters> • Get information for file given fileID(s) • http://modwebsrv.modaps.eosdis.nasa.gov/axis2/services/MODAPSservices/getFileProperties?fileIds=<ID1>,<ID2> • Get URLs for given file ID(s) • http://modwebsrv.modaps.eosdis.nasa.gov/axis2/services/MODAPSservices/getFileUrls?fileIds=<ID1>,<ID2>

  44. WCS Example • Similar to MODAPS Web Services • Format conversion, Reprojections, Spatial and Temporal searches • Utilizes OGC WCS protocol 1.0.0 • Documentation at • http://ladsweb.nascom.nasa.gov/data/web_services.html • Quick Start Guide at • http://ladsweb.nascom.nasa.gov/data/wcs_quickstart.html

  45. WCS Example • Get a list of Coverages for MOD21KM in Collection 5 • http://modwebsrv.modaps.eosdis.nasa.gov/wcs/5/MOD021KM/getCapabilities?service=WCS&version=1.0.0&request=GetCapabilities
