    1. Schrodinger’s Equation for Three Dimensions

    2. QM in Three Dimensions • The one dimensional case was good for illustrating basic features such as quantization of energy.

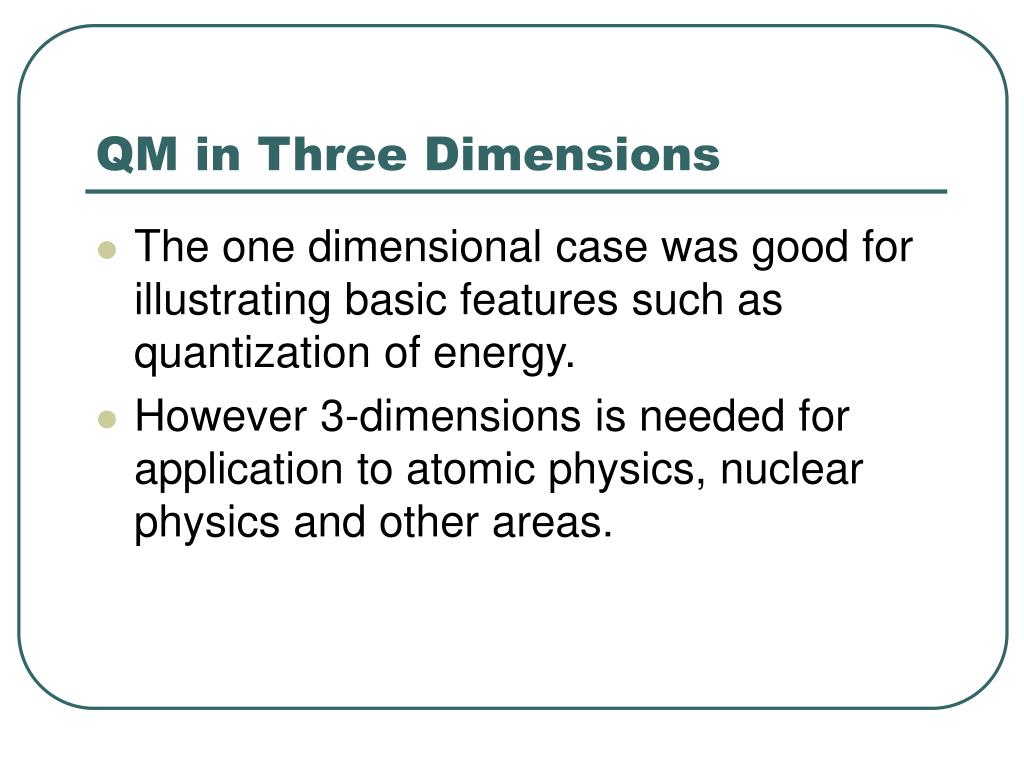

    3. QM in Three Dimensions • The one dimensional case was good for illustrating basic features such as quantization of energy. • However 3-dimensions is needed for application to atomic physics, nuclear physics and other areas.

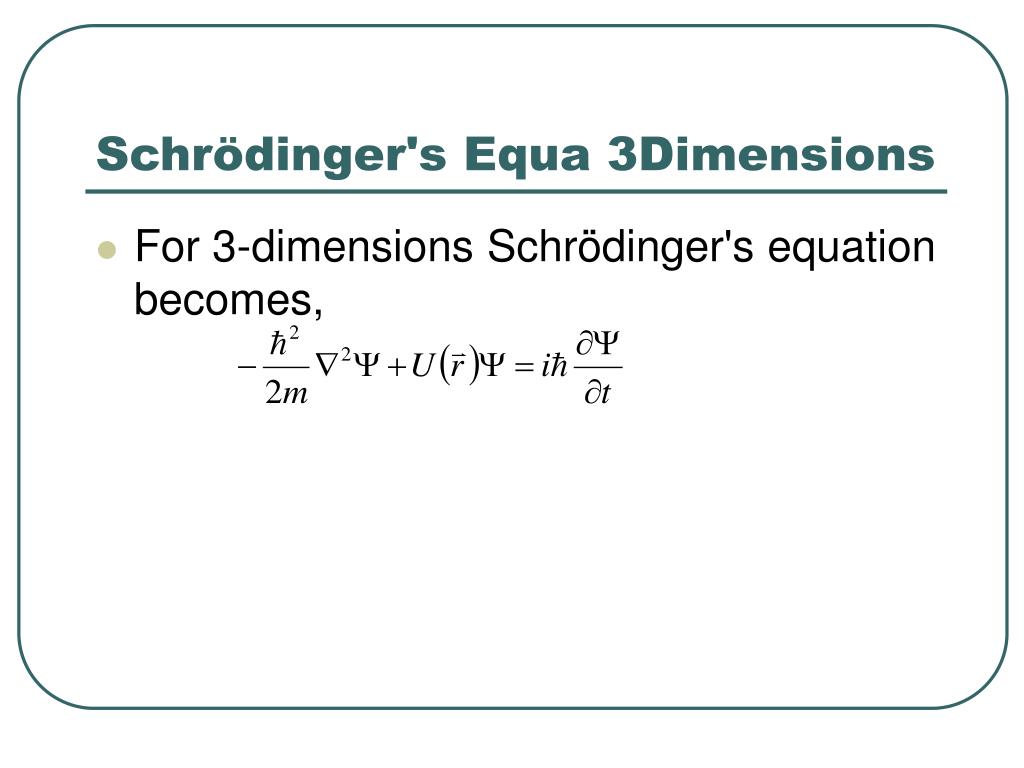

    4. Schrödinger's Equa 3Dimensions • For 3-dimensions Schrödinger's equation becomes,

    5. Schrödinger's Equa 3Dimensions • For 3-dimensions Schrödinger's equation becomes, • Where the Laplacian is

    6. Schrödinger's Equa 3Dimensions • For 3-dimensions Schrödinger's equation becomes, • Where the Laplacian is • and

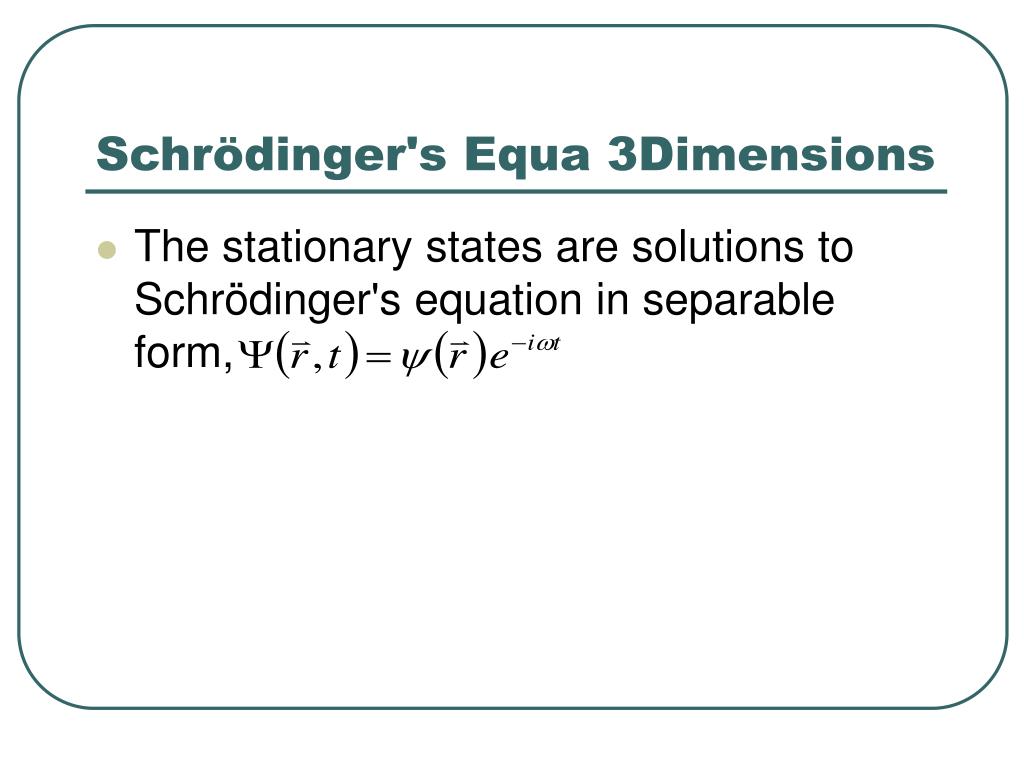

    7. Schrödinger's Equa 3Dimensions • The stationary states are solutions to Schrödinger's equation in separable form,

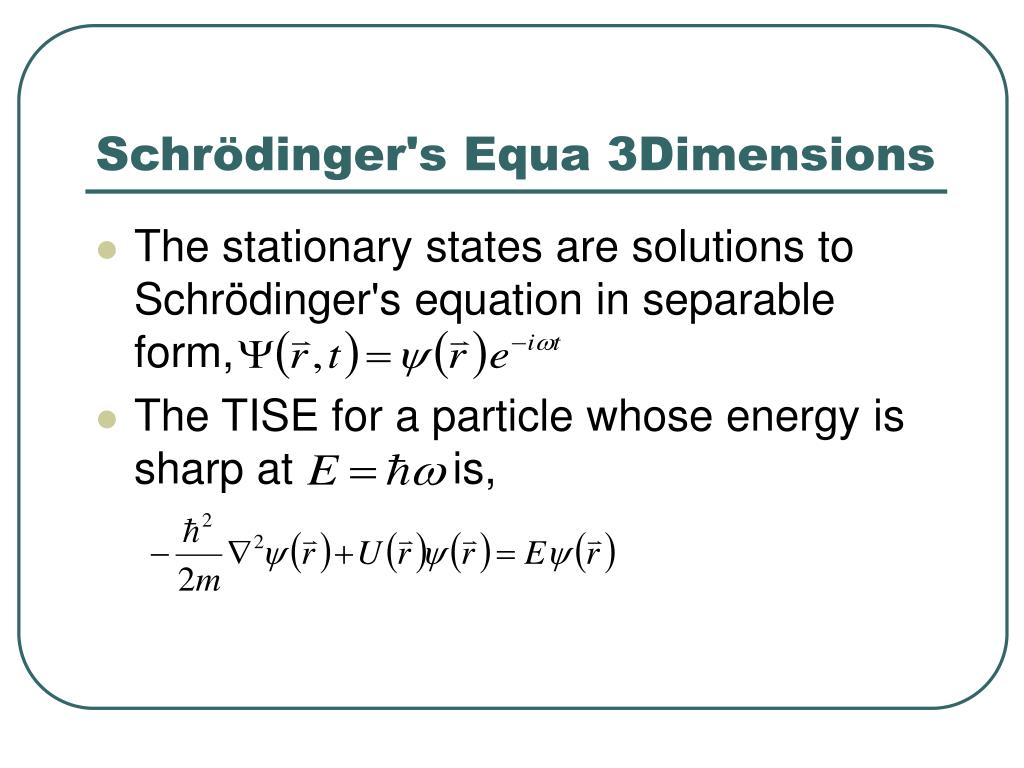

    8. Schrödinger's Equa 3Dimensions • The stationary states are solutions to Schrödinger's equation in separable form, • The TISE for a particle whose energy is sharp at is,

    9. Particle in a 3 Dimensional Box

    10. Particle in a 3 Dimensional Box • The simplest case is a particle confined to a cube of edge length L.

    11. Particle in a 3 Dimensional Box

    12. Particle in a 3 Dimensional Box • The simplest case is a particle confined to a cube of edge length L. • The potential energy function is for • That is, the particle is free within the box.

    13. Particle in a 3 Dimensional Box • The simplest case is a particle confined to a cube of edge length L. • The potential energy function is for • That is, the particle is free within the box. • otherwise.

    14. Particle in a 3 Dimensional Box • Note: If we consider one coordinate the solution will be the same as the 1-D box.

    15. Particle in a 3 Dimensional Box • Note: If we consider one coordinate the solution will be the same as the 1-D box. • The spatial waveform is separable (ie. can be written in product form):

    16. Particle in a 3 Dimensional Box • Note: If we consider one coordinate the solution will be the same as the 1-D box. • The spatial waveform is separable (ie. can be written in product form): • Substituting into the TISE and dividing by we get,

    17. Particle in a 3 Dimensional Box • The independent variables are isolated. Each of the terms reduces to a constant:

    18. Particle in a 3 Dimensional Box • Clearly

    19. Particle in a 3 Dimensional Box • Clearly • The solution to equations 1,2, 3 are of the form where

    20. Particle in a 3 Dimensional Box • Clearly • The solution to equations 1,2, 3 are of the form where • Applying boundary conditions we find,

    21. Particle in a 3 Dimensional Box • Clearly • The solution to equations 1,2, 3 are of the form where • Applying boundary conditions we find, • where

    22. Particle in a 3 Dimensional Box • Clearly • The solution to equations 1,2, 3 are of the form where • Applying boundary conditions we find, • where • Therefore,

    23. Particle in a 3 Dimensional Box • with and so forth.

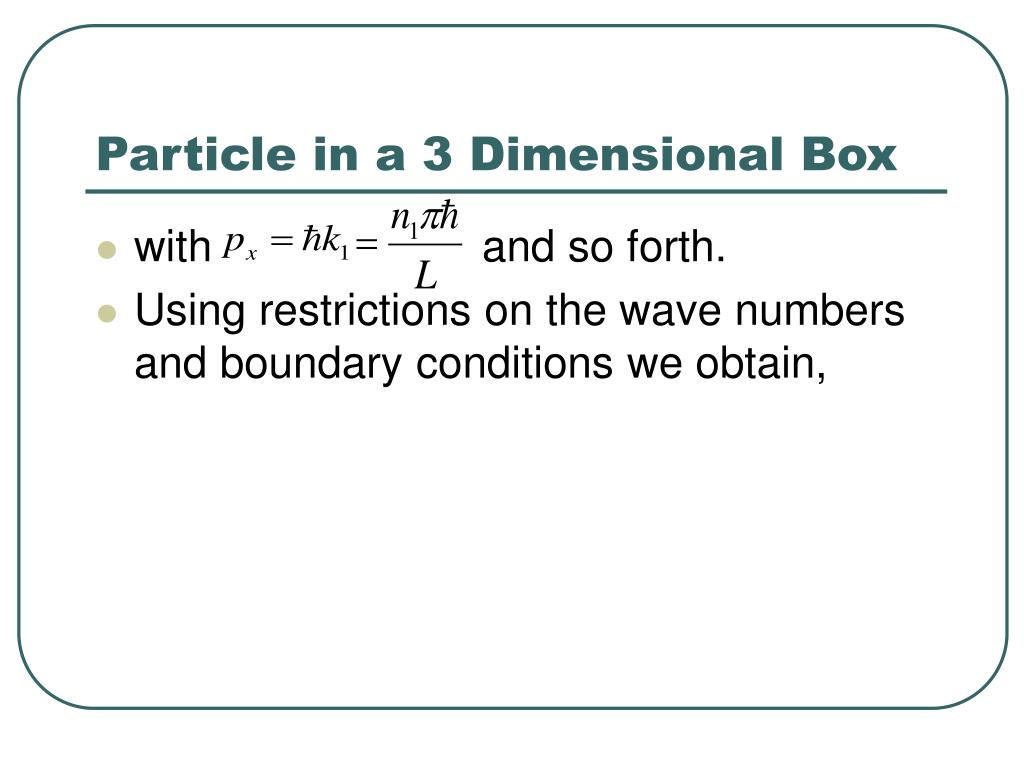

    24. Particle in a 3 Dimensional Box • with and so forth. • Using restrictions on the wave numbers and boundary conditions we obtain,

    25. Particle in a 3 Dimensional Box • with and so forth. • Using restrictions on the wave numbers and boundary conditions we obtain,

    26. Particle in a 3 Dimensional Box • with and so forth. • Using restrictions on the wave numbers and boundary conditions we obtain, • Thus confining a particle to a box acts to quantize its momentum and energy.

    27. Particle in a 3 Dimensional Box • Note that three quantum numbers are required to describe the quantum state of the system.

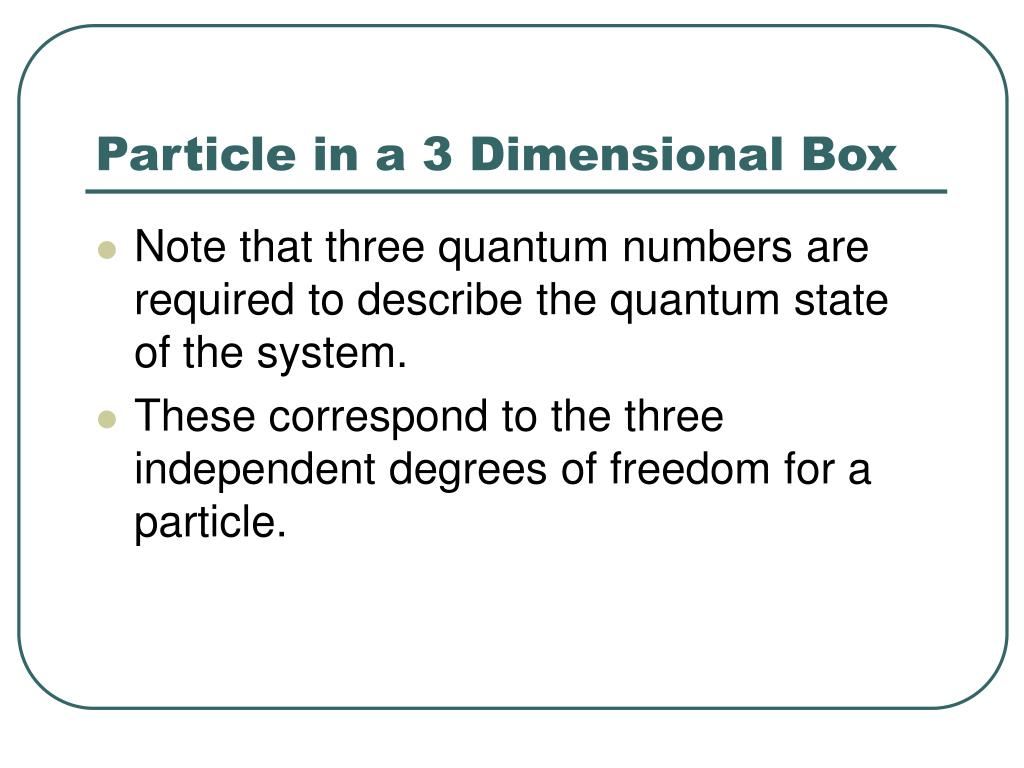

    28. Particle in a 3 Dimensional Box • Note that three quantum numbers are required to describe the quantum state of the system. • These correspond to the three independent degrees of freedom for a particle.

    29. Particle in a 3 Dimensional Box • Note that three quantum numbers are required to describe the quantum state of the system. • These correspond to the three independent degrees of freedom for a particle. • The quantum numbers specify values taken by the sharp observables.

    30. Particle in a 3 Dimensional Box • The total energy will be quoted in the form

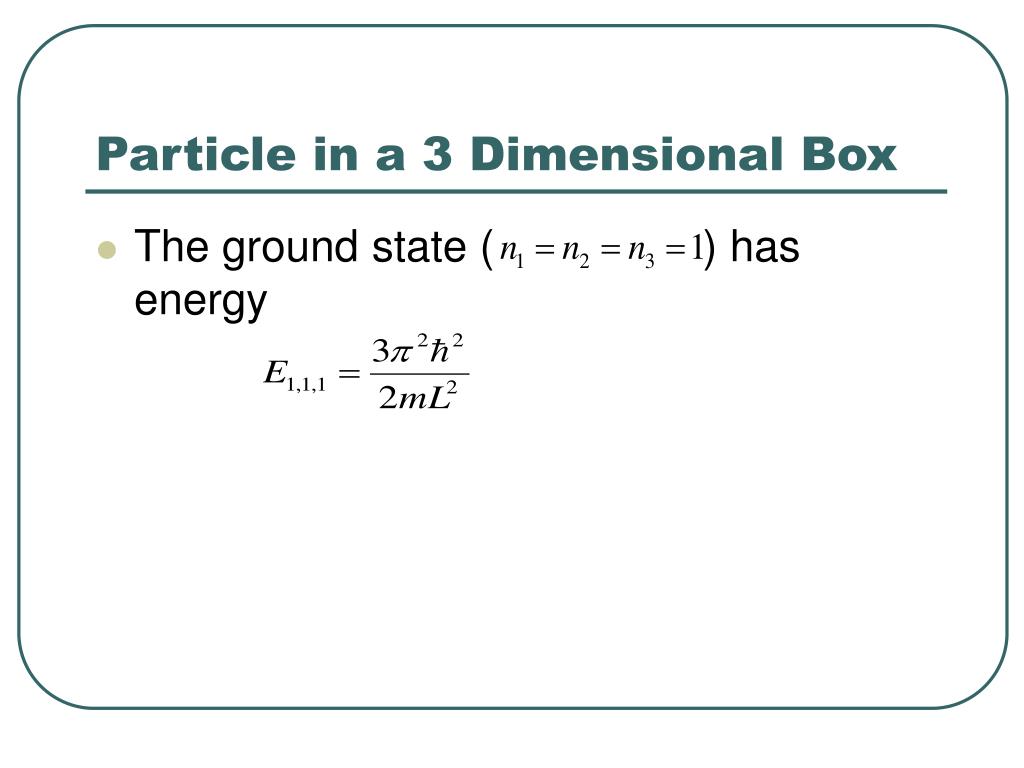

    31. Particle in a 3 Dimensional Box • The ground state ( ) has energy

    32. Particle in a 3 Dimensional Box Degeneracy

    33. Particle in a 3 Dimensional Box • Degeneracy: quantum levels (different quantum numbers) having the same energy.

    34. Particle in a 3 Dimensional Box • Degeneracy: quantum levels (different quantum numbers) having the same energy. • Degeneracy is a natural phenomena which occurs because of the same in the system described (cubic box).

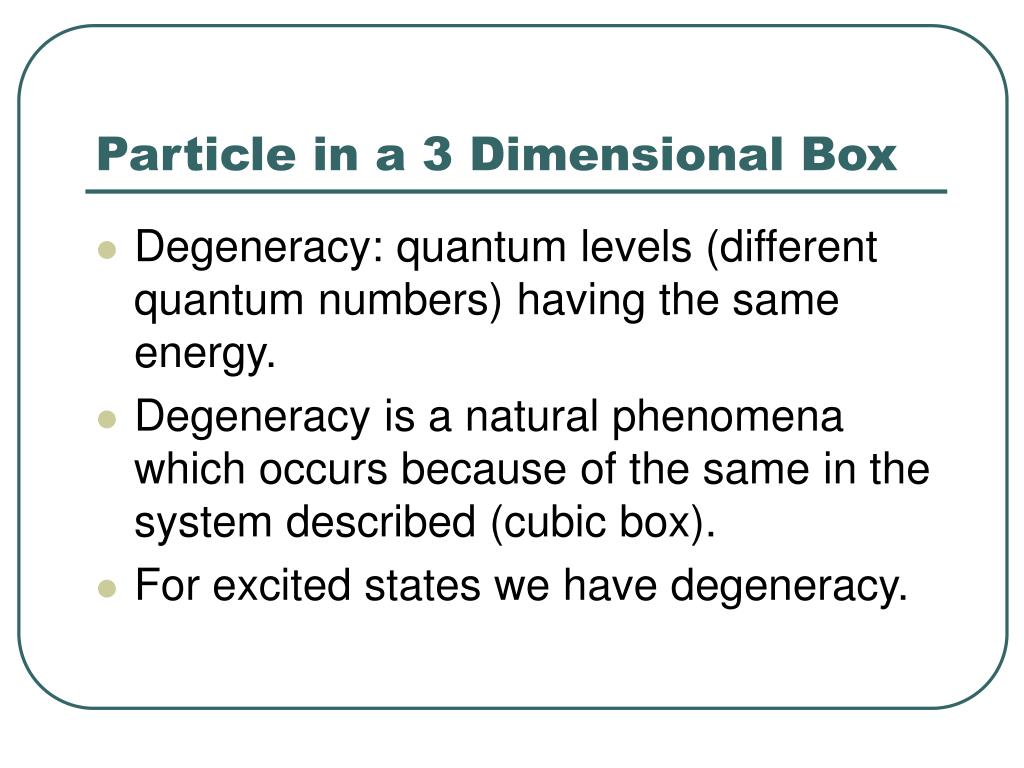

    35. Particle in a 3 Dimensional Box • Degeneracy: quantum levels (different quantum numbers) having the same energy. • Degeneracy is a natural phenomena which occurs because of the same in the system described (cubic box). • For excited states we have degeneracy.

    36. Particle in a 3 Dimensional Box • There are three 1st excited states having the same energy. They correspond to combinations of the quantum numbers whose squares sum to 6.

    37. Particle in a 3 Dimensional Box • There are three 1st excited states having the same energy. They correspond to combinations of the quantum numbers whose squares sum to 6. • That is

    38. 4E0 11/3E0 3E0 2E0 E0 Particle in a 3 Dimensional Box • The 1st five energy levels for a cubic box.

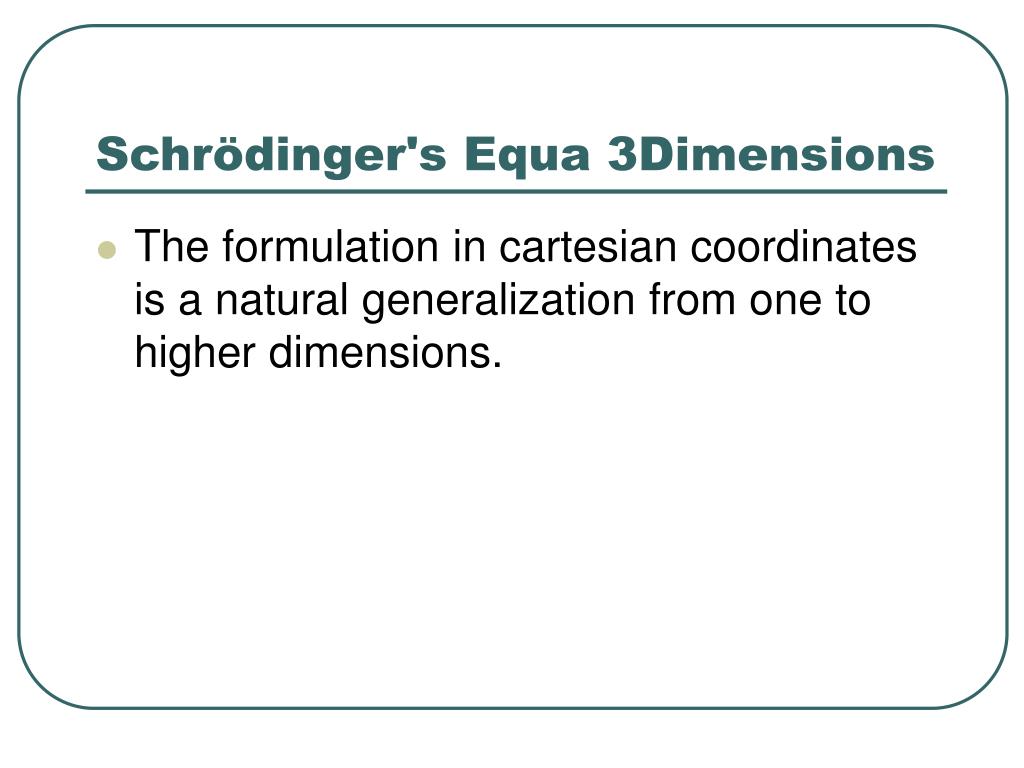

    39. Schrödinger's Equa 3Dimensions • The formulation in cartesian coordinates is a natural generalization from one to higher dimensions.

    40. Schrödinger's Equa 3Dimensions • The formulation in cartesian coordinates is a natural generalization from one to higher dimensions. • However it not often best suited to a given problem. Thus it may be necessary to convert to another coordinate system.

    41. Schrödinger's Equa 3Dimensions • Consider an electron orbiting a central nucleus.

    42. Schrödinger's Equa 3Dimensions • Consider an electron orbiting a central nucleus. An obvious coordinate choice is a spherical system centred at the nucleus.

    43. Schrödinger's Equa 3Dimensions • Consider an electron orbiting a central nucleus. An obvious coordinate choice is a spherical system centred at the nucleus. This is an example of a central force.

    44. Schrödinger's Equa 3Dimensions • The Laplacian in spherical coordinates is:

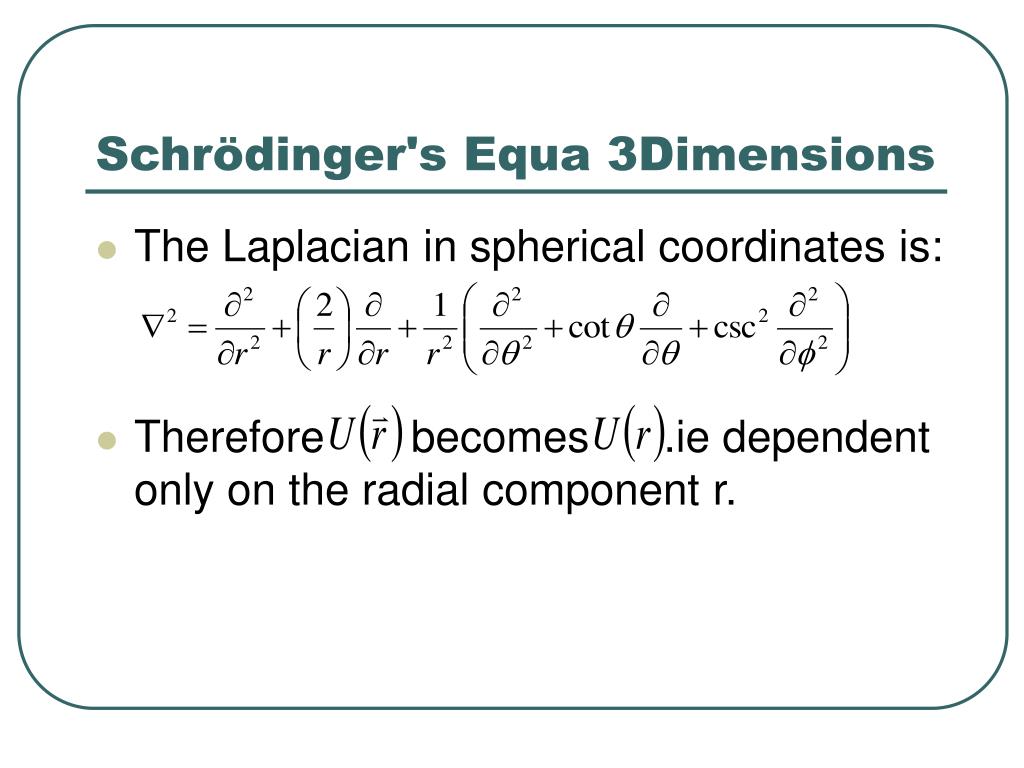

    45. Schrödinger's Equa 3Dimensions • The Laplacian in spherical coordinates is: • Therefore becomes .ie dependent only on the radial component r.

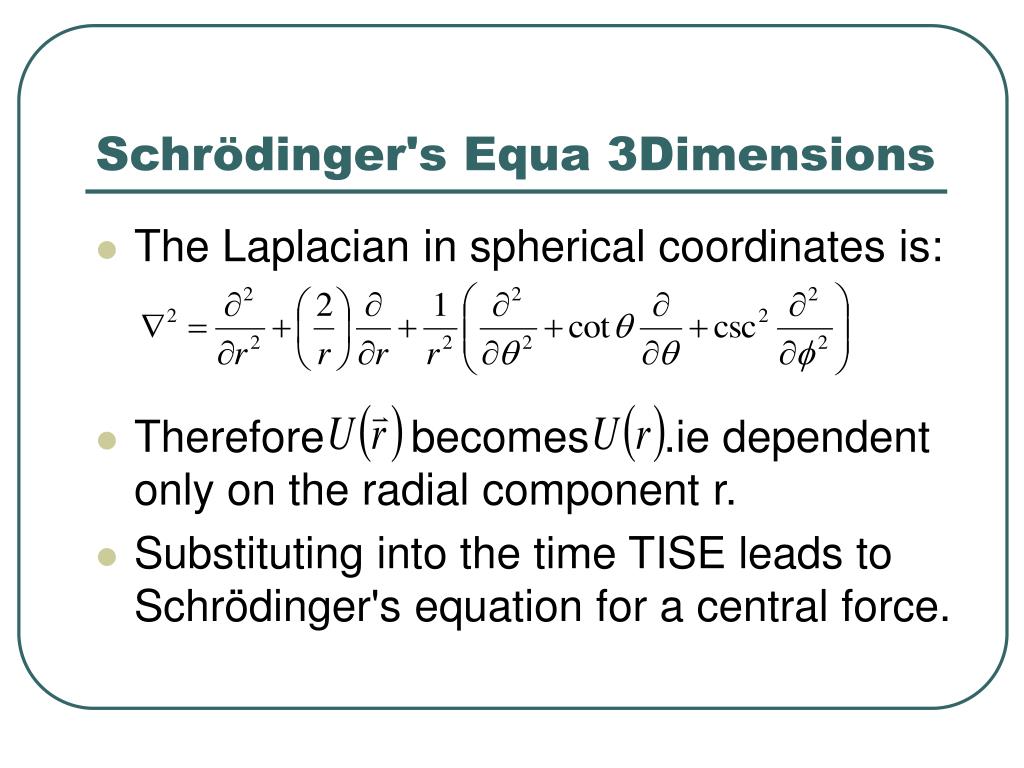

    46. Schrödinger's Equa 3Dimensions • The Laplacian in spherical coordinates is: • Therefore becomes .ie dependent only on the radial component r. • Substituting into the time TISE leads to Schrödinger's equation for a central force.

    47. Schrödinger's Equa 3Dimensions • Solutions to equation can be found by separating the variables in the Schrödinger's equation.

    48. Schrödinger's Equa 3Dimensions • Solutions to equation can be found by separating the variables in the Schrödinger's equation. • The stationary states for the waveform are:

    49. Schrödinger's Equa 3Dimensions • After some rearranging we find that,

    50. Schrödinger's Equa 3Dimensions • The terms are grouped so that those involving a single variable appear together surrounded by curly brackets.
