Presentation Transcript
lossless compression i

Lossless Compression - I

Hao Jiang

Computer Science Department

Sept. 13, 2007

introduction
Introduction
  • Compress methods are key enabling techniques for multimedia applications.
  • Raw media takes much storage and bandwidth
    • A raw video with 30 frame/sec, resolution of 640x480, 24bit color

One second of video 30 * 640 * 480 * 3 = 27.6480 Mbytes

One hour video is about 100Gbytes

some terms
Some Terms

Information

source

Encoder

(compression)

Storage or

networks

Decoder

(decompression)

Data Input

(a sequence of symbols

from an alphabet)

Code ( a sequence of codewords)

Recovered data

sequence

Lossless compression: The recovered data is exactly the

same as the input.

Lossy compression: The recovered data approximates the

input data.

Compression ratio = (bits used to represent the input data) /

(bits of the code)

entropy
Entropy
  • The number of bits needed to encode a media source is lower-bounded by its “Entropy”.
  • Self information of an event A is defined as

-logbP(A)

where P(A) is the probability of event A.

If b equals 2, the unit is “bits”.

If b equals e, the unit is “nats”

If b is 10, the unit is “hartleys”

example
Example
  • A source outputs two symbols (the alphabet has 2 symbols) 0 or 1. P(0) = 0.25, P(1) = 0.75.

Information we get when receiving a 0 is

log_2 (1/0.25) = 2 bit ;

when receiving a 1 is

log_2 (1/0.75) = 0.4150 bit .

properties of self information
Properties of Self Information
  • The letter with smaller probability has high self information.
  • The information we get when receiving two independent letters are summation of each of the self information.

-log2P(sa,sb)

= -log2P(sa)P(sb)

= [-log2P(sa)] + [- log2P(sa)]

entropy1

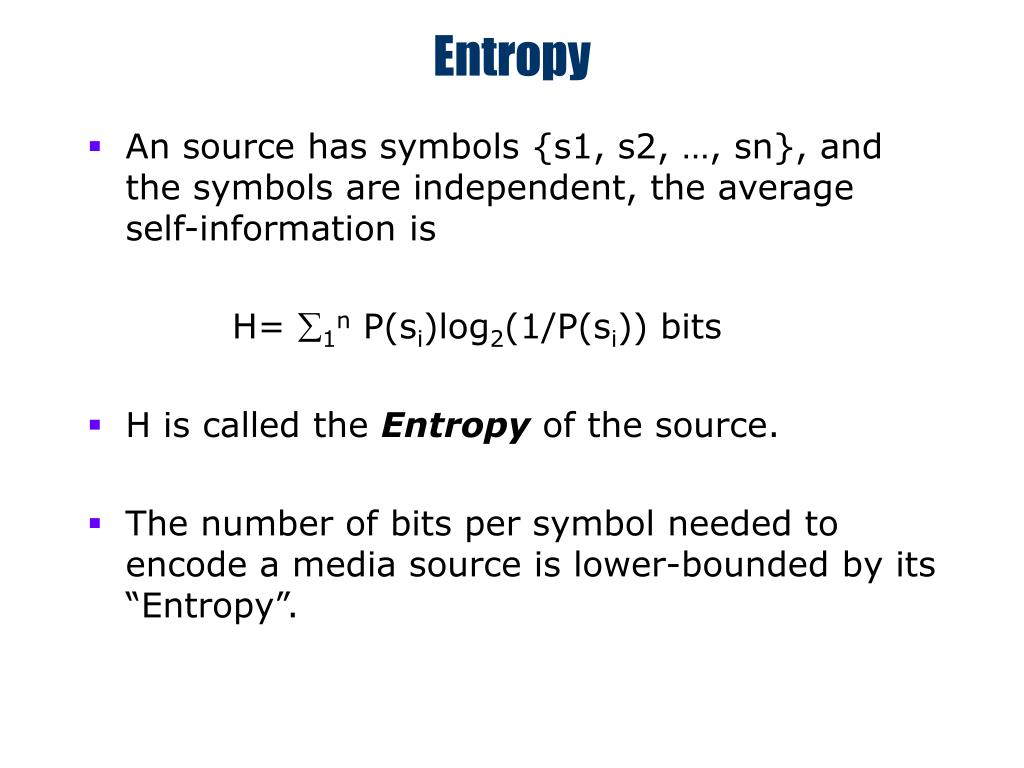

Entropy
  • An source has symbols {s1, s2, …, sn}, and the symbols are independent, the average self-information is

H= å1n P(si)log2(1/P(si)) bits

  • H is called the Entropy of the source.
  • The number of bits per symbol needed to encode a media source is lower-bounded by its “Entropy”.
entropy cont
Entropy (cont)
  • Example:

A source outputs two symbols (the alphabet has 2 letters) 0 or 1. P(0) = 0.25, P(1) = 0.75.

H = 0.25 * log_2 (1/0.25) +

0.75 * log_2(1/0.75)

= 0.8113 bits

We need at least 0.8113 bits per symbol in encoding.

the entropy of an image
The Entropy of an Image
  • An grayscale image with 256 possible levels. A={0, 1, 2, …, 255}. Assuming the pixels are independent and the grayscales are have equal probabilities,

H = 256 * 1/256 *log2(1/256) = 8bits

  • What about an image with only 2 levels 0 and 255? Assuming, P(0) = 0.5 and P(255) = 0.5.

H = 1 bit

estimate the entropy
Estimate the Entropy

a a a b b b b c c c c d d

Assuming the symbols are independent:

P(a) = 3/13

P(b) = 4/13

P(c) = 4/13

P(d) = 2/13

H = [-P(a)log_2P(a)] + [-P(b)log_2P(b)] +

[-P(c)log_2P(c)] + [-P(d)log_2P(d)]

= 1.95bits

coding schemes
Coding Schemes

A = {s1, s2, s3, s4}

P(s1) = 0.125

P(s2) = 0.125

P(s3) = 0.25

P(s4) = 0.5

Its entropy H = 1.75

10

01

110

s1

s2

s3

s4

s1

s2

s3

s4

s1

s2

s3

s4

11

11

111

0

1

10

0

0

0

Not uniquely decodeable

Good codewords and

achieves lower bound

huffman coding
Huffman Coding

1

(1)

s4

0.5

1

(01)

s3

0.25

0.5

1

(001)

s2

0

0.125

0.25

0

(000)

s1

0.125

0

another example
Another Example

1

(0)

0.4 a1

1

(10)

0.2 a2

0.4

0.6

1

0

0.2

(111)

0.2 a3

0

0.4

1

(1101)

0.1 a4

0.2

0

(1100)

0.1 a5

0
