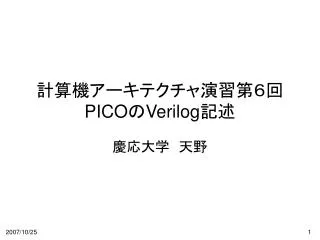

計算機アーキテクチャ演習第6回PICOのVerilog記述計算機アーキテクチャ演習第6回PICOのVerilog記述

慶応大学 天野

slide2

MUX

MUX

MUX

MUX

MUX

PICOの構成(前期の図を若干変更)

regc

aluout

outc

op

pc

ir

com

op2

ALU

op

110

001

alubin

aluain

Expander

‘2’

regb

op2

rega

dest

adrA

src

adrB

idata

regfile

ddatain

ddataout

we_

Instruction

Memory

Data

Memory

iadr

dadr

slide3
レジスタファイル

module regfile (clk, adrA, adrB, inc, outa, outb, rwe);

`include "pico.h"

input clk;

input [RegNum-1:0] adrA, adrB;

input [DataBus-1:0] inc;

output [DataBus-1:0] outa, outb;

input rwe;

reg [DataBus-1:0] rfile [0:7];

assign outa = rfile[adrA];

assign outb = rfile[adrB];

always @(posedge clk)

if (rwe) rfile[adrA] <= inc;

endmodule

初期化は特に必要ない。

rwe=Hの時、同期的に書き込み

読み書きは同時に可能

slide4
状態遷移

結果を書き込む命令

それ以外:分岐、STなど

IF

RF

EX

WB

演算実行

飛び先セット

メモリからの読み

書き込み

irに命令を

フェッチ

レジスタ

読み出し

PC←PC+2

結果の格納

slide5
状態遷移、レジスタの記述

always@(posedge clk)

if(reset_== Enable_) begin

pc <= 16'h0000;

ir <= 16'h0000;

stat <= IF; end

else

case (stat)

IF: begin

ir <= idata;

stat <= RF; end

RF: begin

pc <= aluout;

rega <= outa;

regb <= outb;

stat <= EX; end

EX: begin

if(pcset) pc <= aluout;

if(wbinst) begin

regc <= outc;

stat <= WB; end

else stat <= IF; end

WB: stat <= IF;

endcase

リセット時

レジスタの値設定を、statの変化と

共に記述している

wbinst: 結果を書き込む命令

pcset: 分岐成立

one hot counter
One-Hot Counter

parameter IF = 4'b0001;

parameter RF = 4'b0010;

parameter EX = 4'b0100;

parameter WB = 4'b1000;

parameter RF_BIT = 2'b01;

parameter EX_BIT = 2'b10;

parameter WB_BIT = 2'b11;

stat[EX_BIT]は、状態がEXの時だけ1になる。他もこれと同じ→One Hot Counterの特性の利用

slide7
入出力、レジスタ

module bpico16 (clk, reset_, iaddr, idata, daddr, ddatain, ddataout, dwe);

`include "pico.h"

input clk, reset_;

output [AddrBus-1:0] iaddr;

input [DataBus-1:0] idata;

output [AddrBus-1:0] daddr;

input [DataBus-1:0] ddatain;

output [DataBus-1:0] ddataout;

output dwe;

// Registers

reg [AddrBus-1:0] pc;

reg [DataBus-1:0] ir;

reg [DataBus-1:0] rega, regb, regc;

reg [StateNum-1:0] stat;

slide8
信号線、命令フィールド定義

wire pcset;

wire rwe;

wire [DataBus-1:0] aluout, result, outa, outb, outc ;

wire [DataBus-1:0] aluina, aluinb;

wire [ComNum-1:0] com;

//Field

wire [Opcode-1:0] op, op2;

wire [RegNum-1:0] dest,src;

// Instructions

wire wbinst;

wire brinst;

wire imm16;

assign op = ir[15:11];

assign dest = ir[10:8];

assign src = ir[7:5];

assign op2 = ir[4:0];

slide9
命令デコード

assign wbinst = ((op == ROP) & ( (op2[4:3] == 2'b00) | op2 == LD) ) |

(op == LDLI ) | (op == LDHI) |

(op[4:3] == 2'b00)&(op != ROP) ;

assign brinst = (op == BNEZ) | (op == BEQZ);

assign pcset = ( (rega == 16'h0000)&(op == BEQZ)|

(rega != 16'h0000)& (op == BNEZ) );

slide10

MUX

メモリ周辺

assign iaddr = pc;

assign ddataout = regb;

assign dwe = (stat[EX_BIT] & (op== ROP) & (op2== ST)) ;

assign daddr = ((op==ROP) & (op2 == ST))? rega : regb ;

idata

ddatain

regb

ddataout

we_

rega

Instruction

Memory

Data

Memory

iadr

dadr

regb

slide11

MUX

MUX

MUX

MUX

ALU周辺

assign aluina = (stat[RF_BIT] | brinst) ? pc : rega;

assign imm16 = ((op[4:3] == 2'b00 & op != ROP) |

brinst | op == LDLI | op == LDHI) ;

assign aluinb = stat[RF_BIT] ? 16'h0002 :

imm16 ? { {8{ir[7]}}, ir[7:0] } :

op == LDHI ? {ir[7:0],8'h00} :

regb;

assign com = stat[RF_BIT] | brinst ? ADDOP :

(op == LDLI | op == LDHI) ? THB :

imm16 ? op[2:0] :

op2[2:0];

assign outc = ( op == ROP & op2 == LD) ? ddatain:

aluout ;

assign aluout = alu(aluina, aluinb, com);

regc

aluout

outc

com

ALU

alubin

aluain

‘2’

Expander

pc

regb

rega

slide12
レジスタファイル周辺

assign rwe = stat[WB_BIT] & wbinst;

regfile reg0(.clk(clk), .adrA(dest), .adrB(src),

.inc(regc), .outa(outa), .outb(outb), .rwe(rwe));

regb

rega

adrA

adrB

regc

slide13
演習

1.LDHI rd,#X rd <-X,0x00 11101 ddd xxxxxxxx Load High Immediate

LDHI命令を付け加えよ。

2.JMP X PC<-PC+0x100 01111 00100000000 Jump

JMP命令を付け加えよ。
