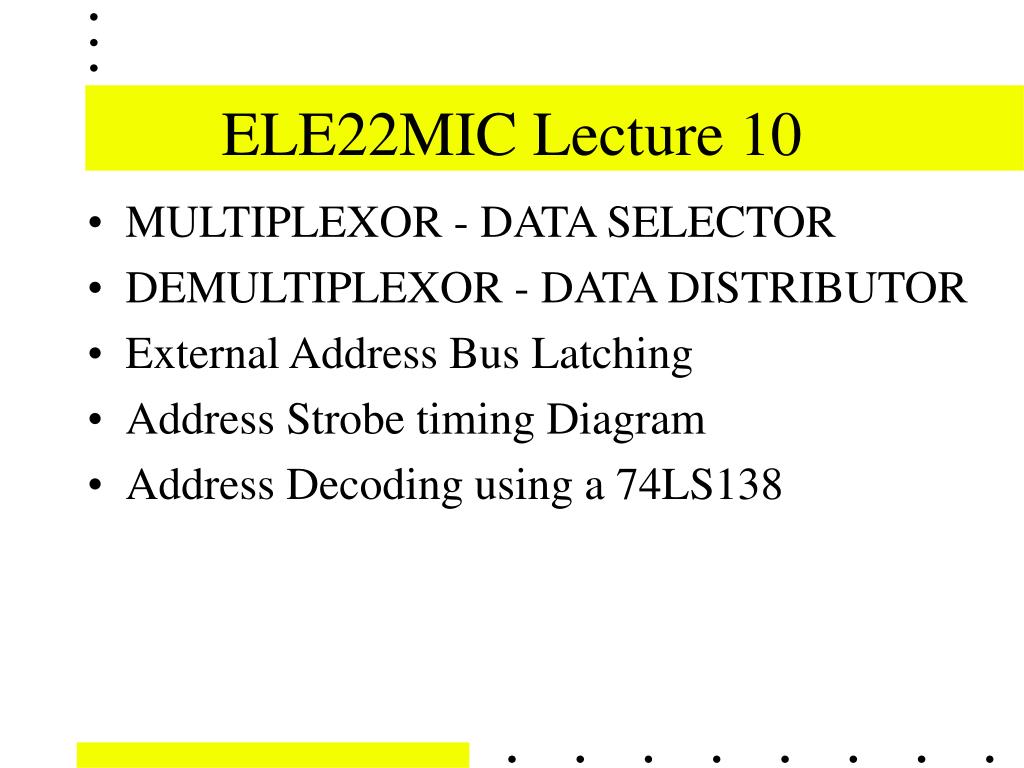

  1. ELE22MIC Lecture 10 • MULTIPLEXOR - DATA SELECTOR • DEMULTIPLEXOR - DATA DISTRIBUTOR • External Address Bus Latching • Address Strobe timing Diagram • Address Decoding using a 74LS138

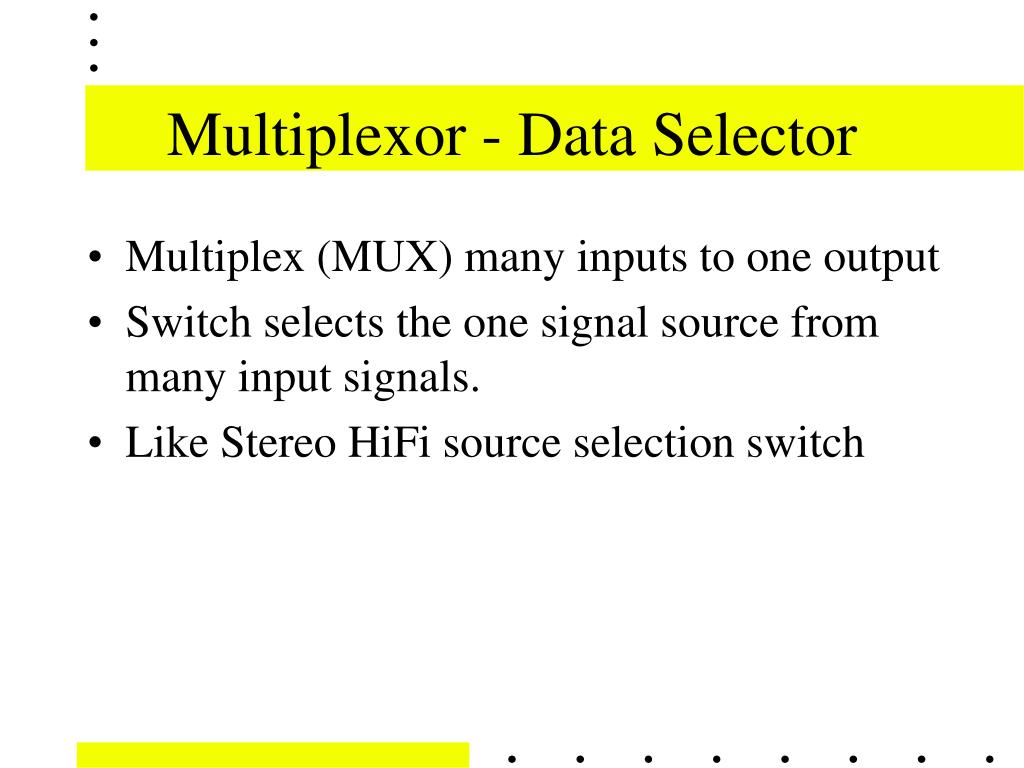

  2. Multiplexor - Data Selector • Multiplex (MUX) many inputs to one output • Switch selects the one signal source from many input signals. • Like Stereo HiFi source selection switch

  3. Two Input Multiplexor Output = (Input0 & Select#) | (Input1 & Select)

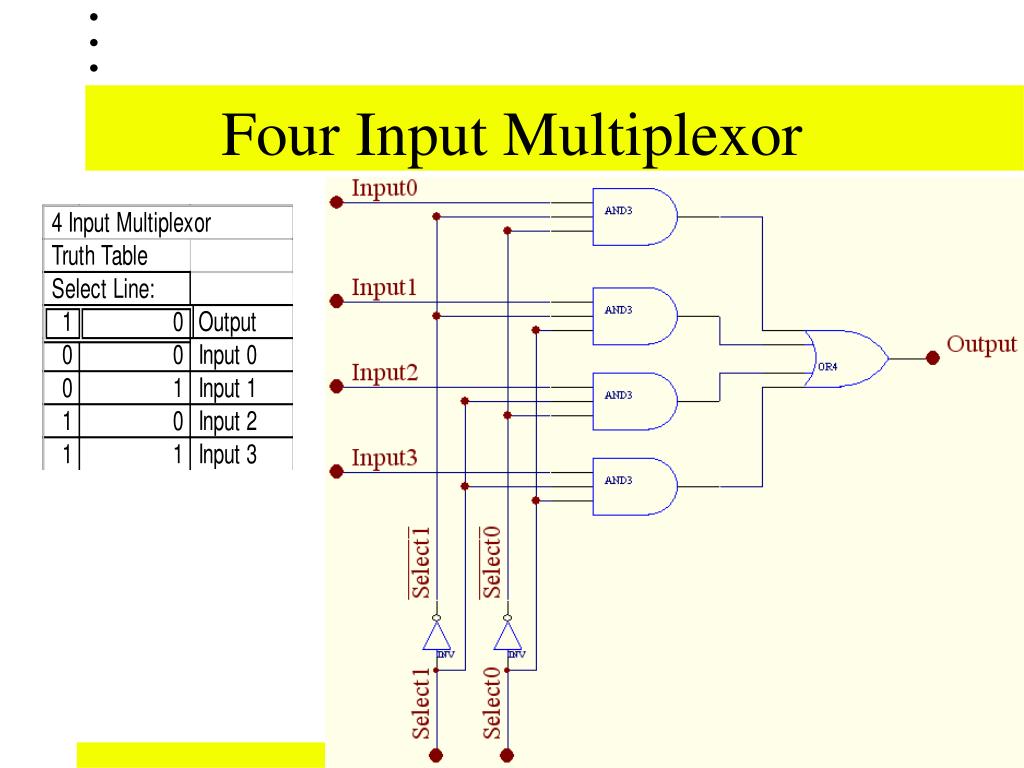

  4. Four Input Multiplexor

  5. Eight Input Multiplexor

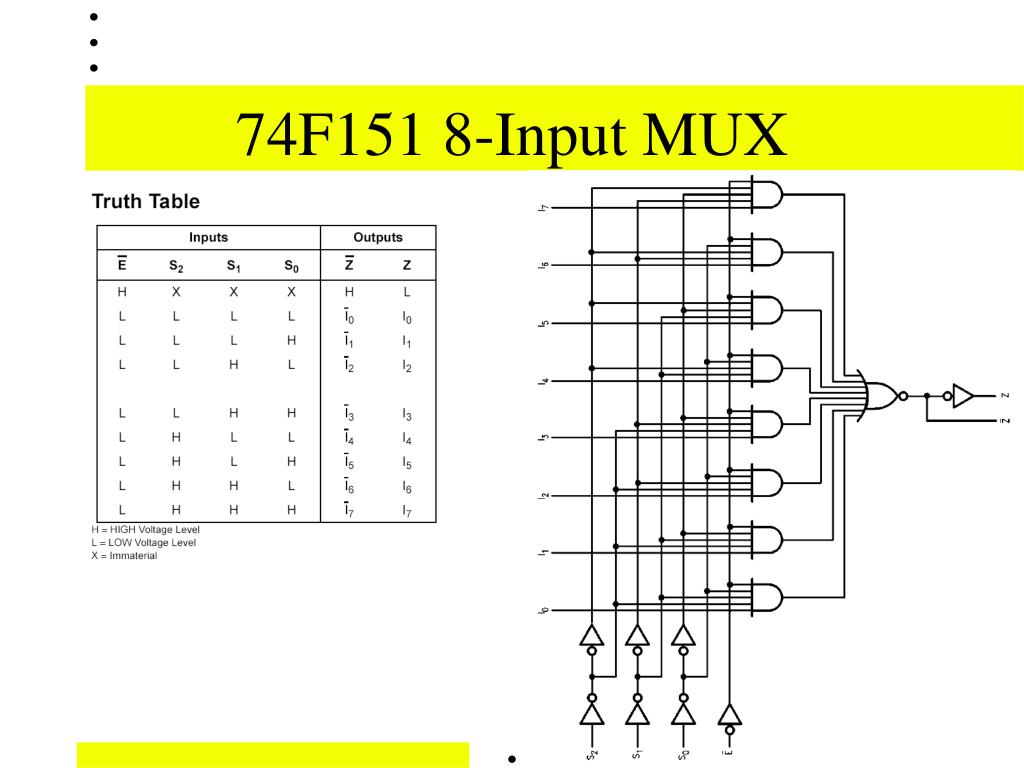

  6. 74F151 8-Input MUX

  7. 74F151 8-Input MUX Pin Names and Loading / Fanout

  8. Mux vs DeMux

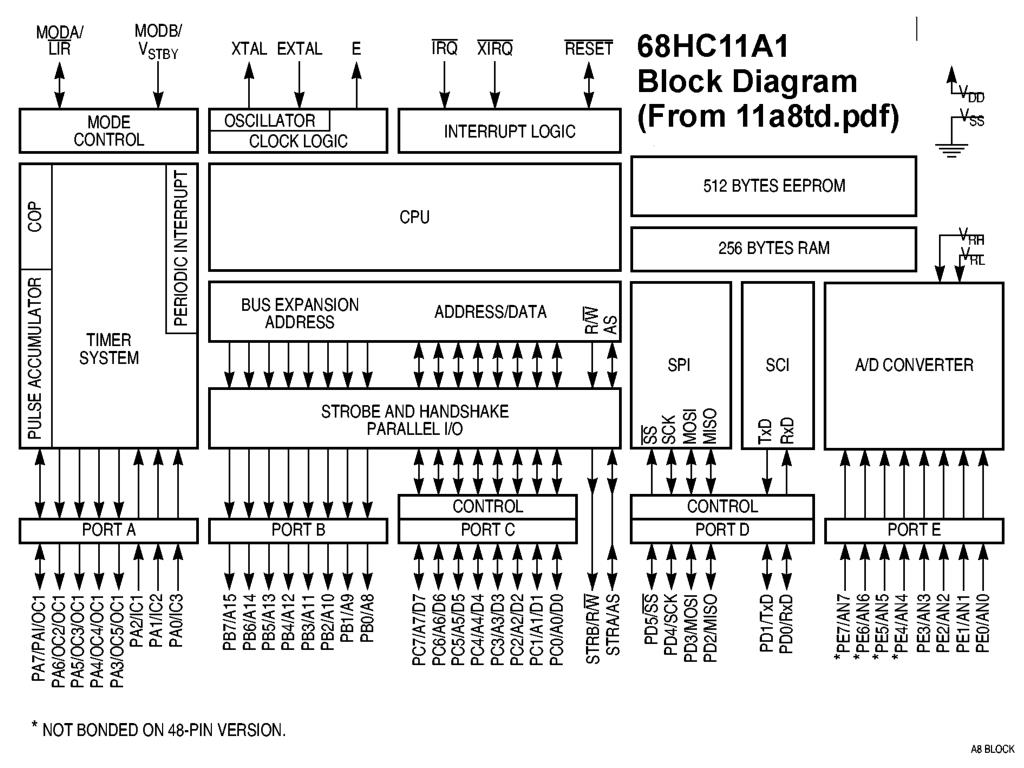

  9. Parallel I/O

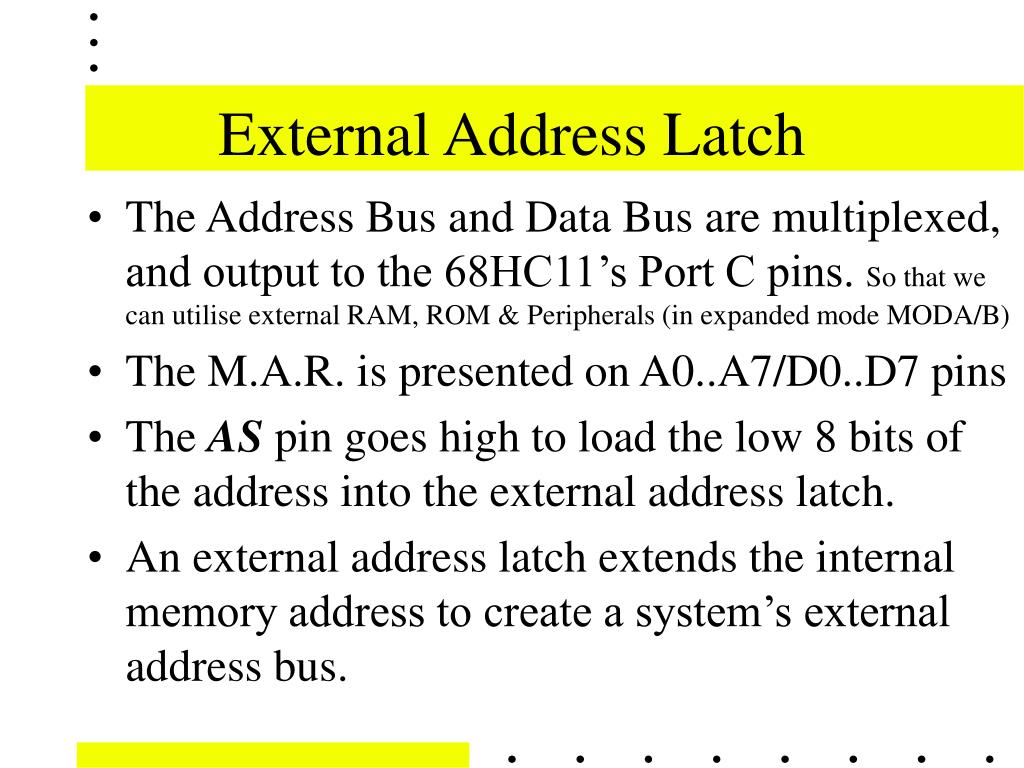

  10. External Address Latch • The Address Bus and Data Bus are multiplexed, and output to the 68HC11’s Port C pins. So that we can utilise external RAM, ROM & Peripherals (in expanded mode MODA/B) • The M.A.R. is presented on A0..A7/D0..D7 pins • The AS pin goes high to load the low 8 bits of the address into the external address latch. • An external address latch extends the internal memory address to create a system’s external address bus.

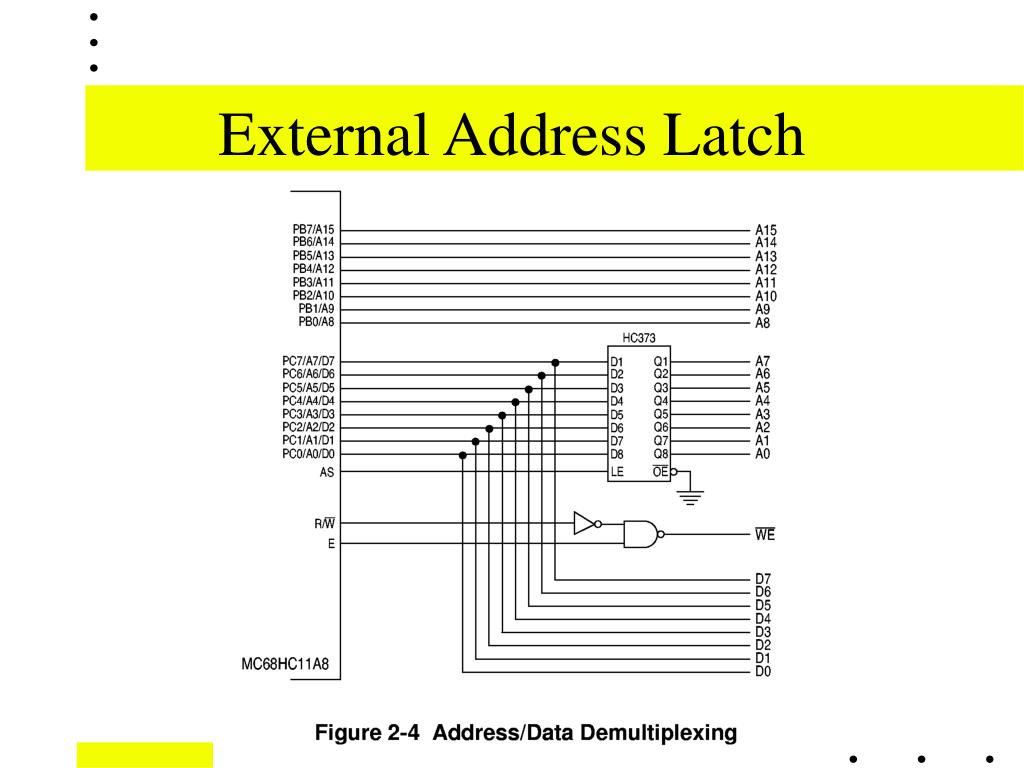

  11. External Address Latch

  12. Address Strobe Timing Diagram

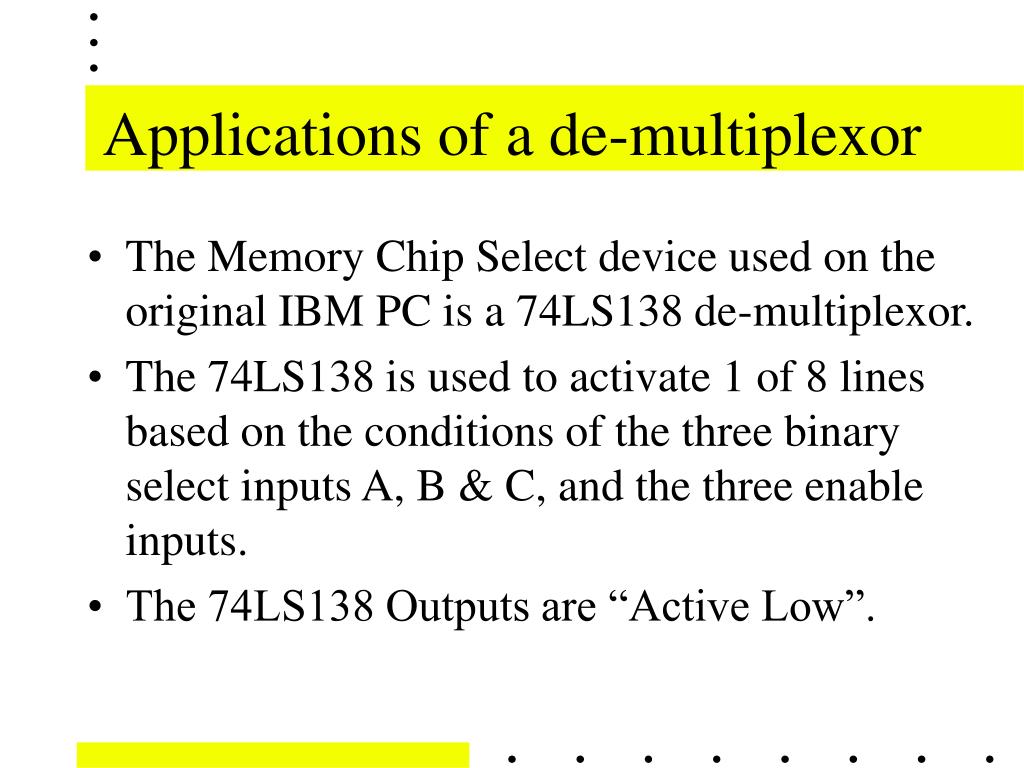

  13. Applications of a de-multiplexor • The Memory Chip Select device used on the original IBM PC is a 74LS138 de-multiplexor. • The 74LS138 is used to activate 1 of 8 lines based on the conditions of the three binary select inputs A, B & C, and the three enable inputs. • The 74LS138 Outputs are “Active Low”.

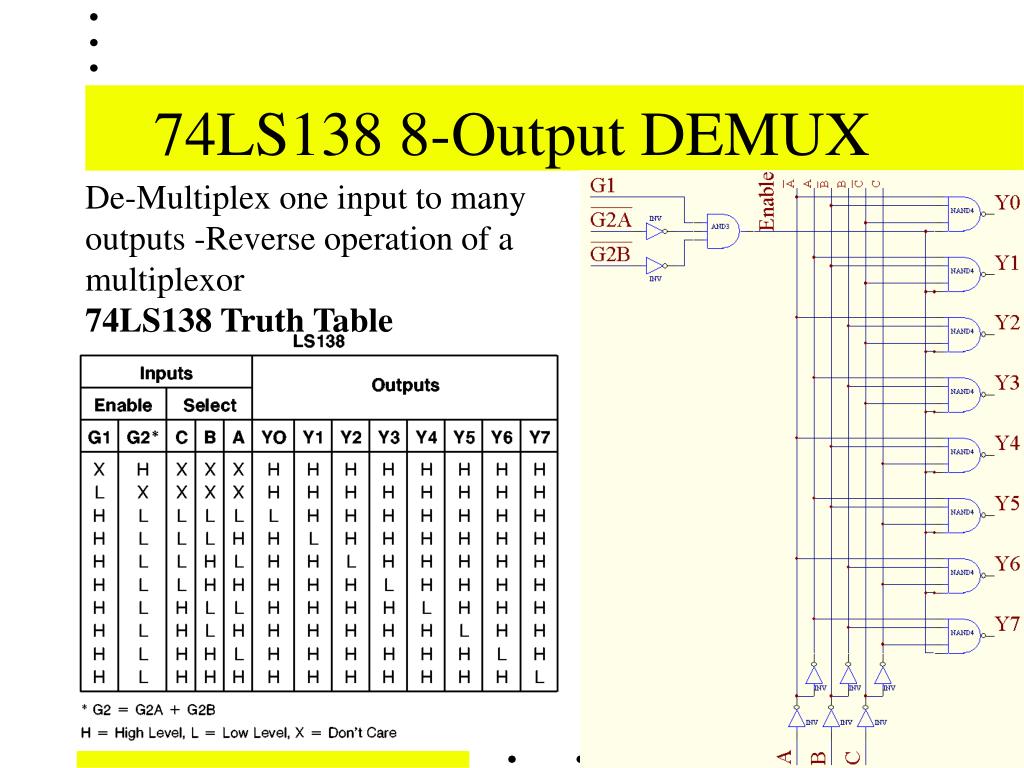

  14. 74LS138 8-Output DEMUX De-Multiplex one input to many outputs -Reverse operation of a multiplexor 74LS138 Truth Table

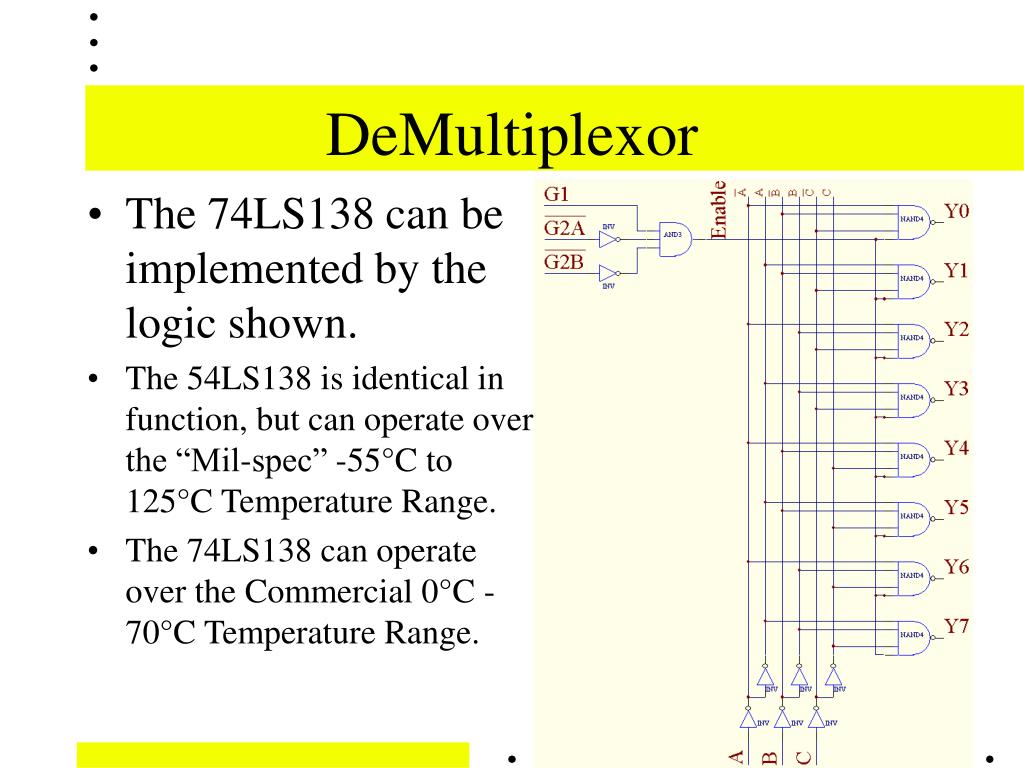

  15. DeMultiplexor • The 74LS138 can be implemented by the logic shown. • The 54LS138 is identical in function, but can operate over the “Mil-spec” -55°C to 125°C Temperature Range. • The 74LS138 can operate over the Commercial 0°C - 70°C Temperature Range.

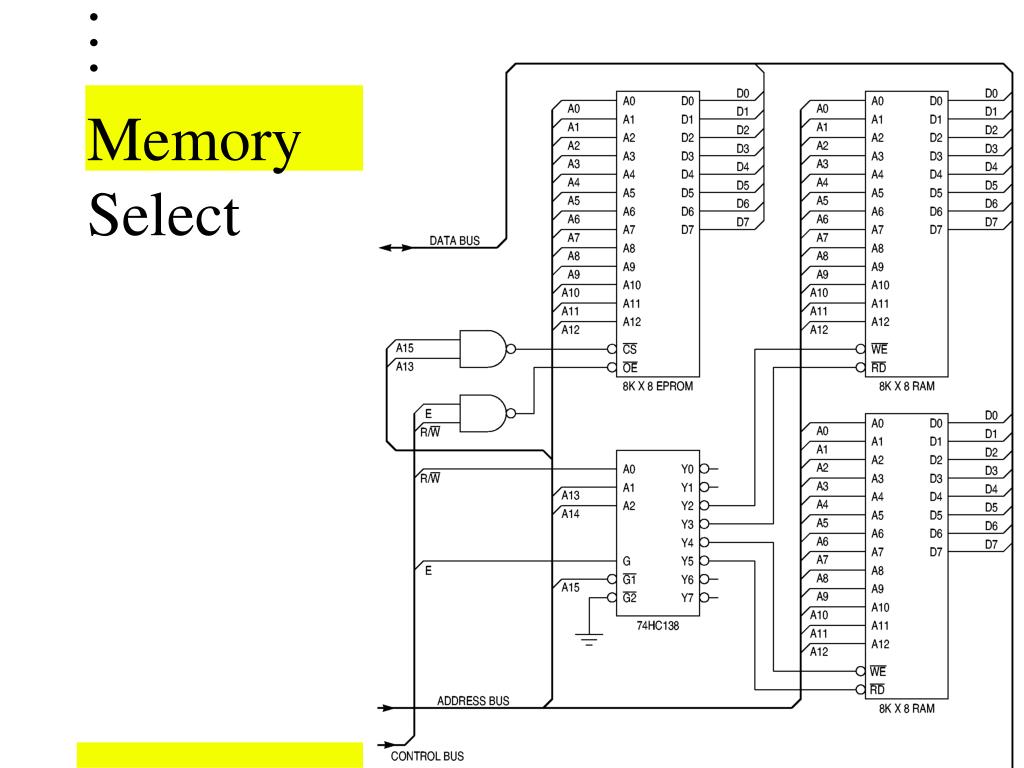

  16. Memory Select

  17. Address Decoding & Chip Select • A15 -> G1#, E -> G, A14 -> A2, A13 -> A1 • R/W# -> A0 • Chip is enabled when A15 = 0 & E is High • Y2 = (A14#) & (A13) & Write (R/W#=0) & E • Y3 = (A14#) & (A13) & Read (R/W#=1) & E • Y4 = (A14) & (A13#) & Write (R/W#=0) & E • Y5 = (A14) & (A13#) & Read (R/W#=1) & E

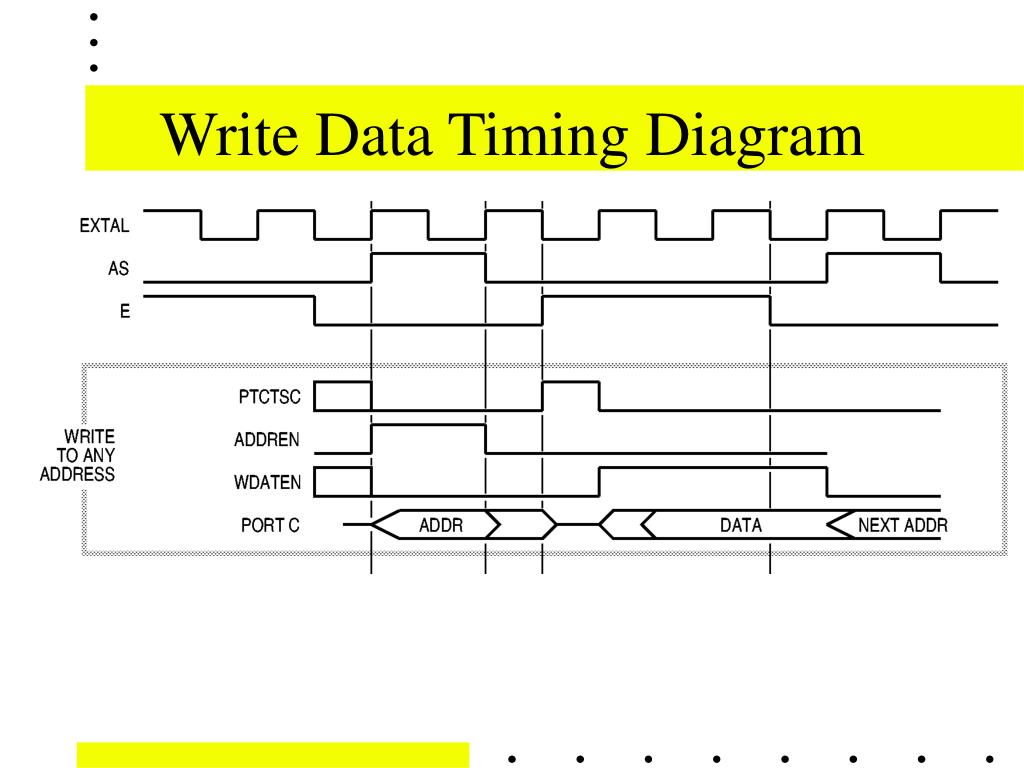

  18. Write Data Timing Diagram

  19. 68HC11 Flash Technology (1)

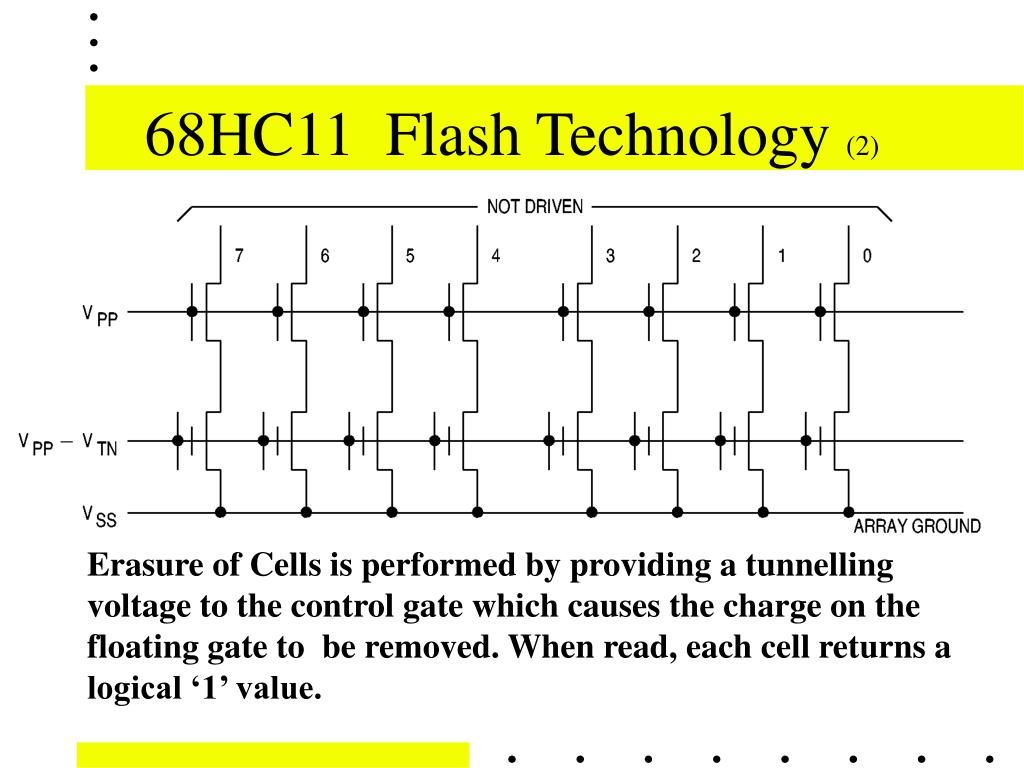

  20. 68HC11 Flash Technology (2) Erasure of Cells is performed by providing a tunnelling voltage to the control gate which causes the charge on the floating gate to be removed. When read, each cell returns a logical ‘1’ value.

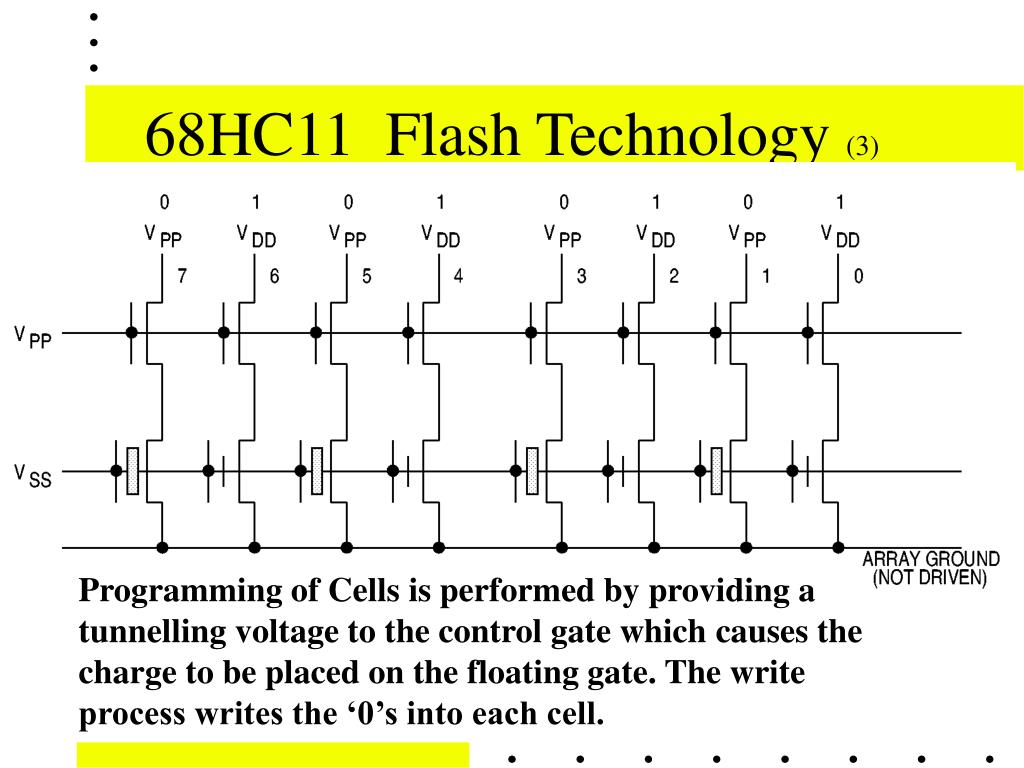

  21. 68HC11 Flash Technology (3) Programming of Cells is performed by providing a tunnelling voltage to the control gate which causes the charge to be placed on the floating gate. The write process writes the ‘0’s into each cell.

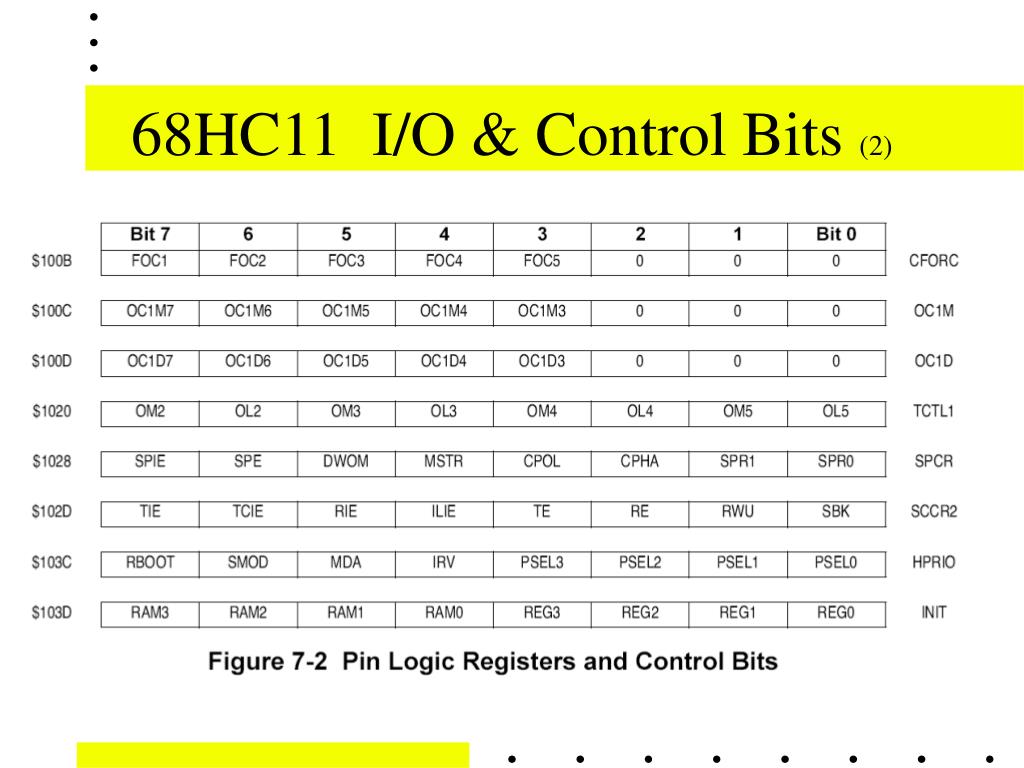

  22. 68HC11 I/O & Control Bits (2)

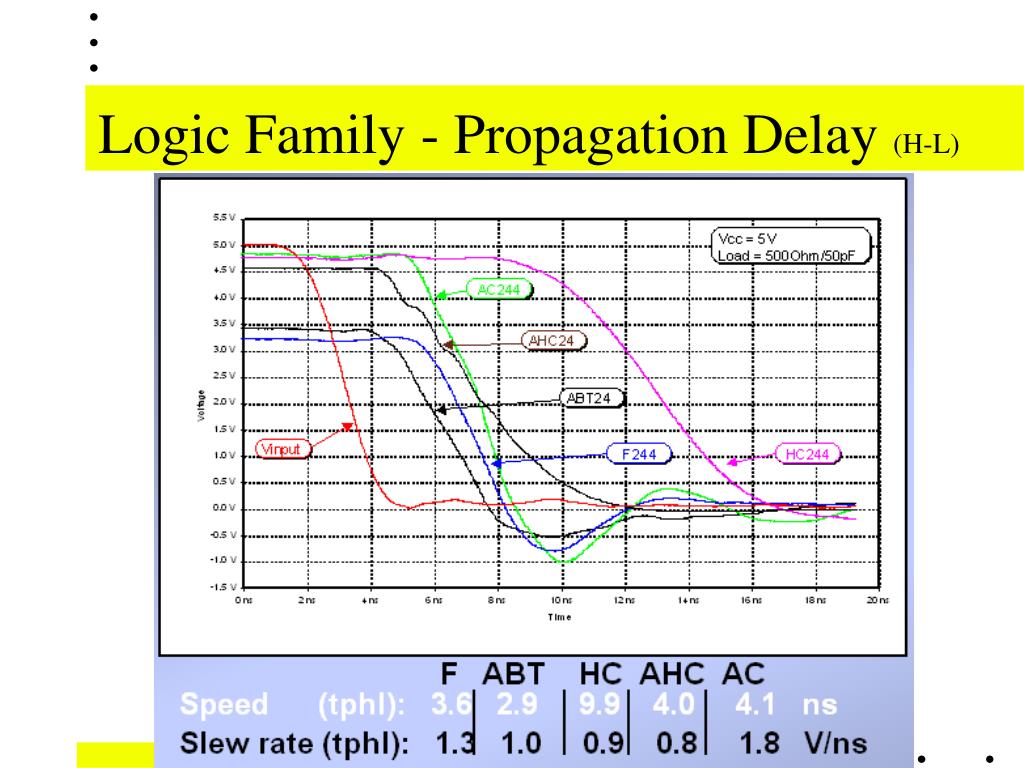

  23. Logic Family - Propagation Delay (H-L)

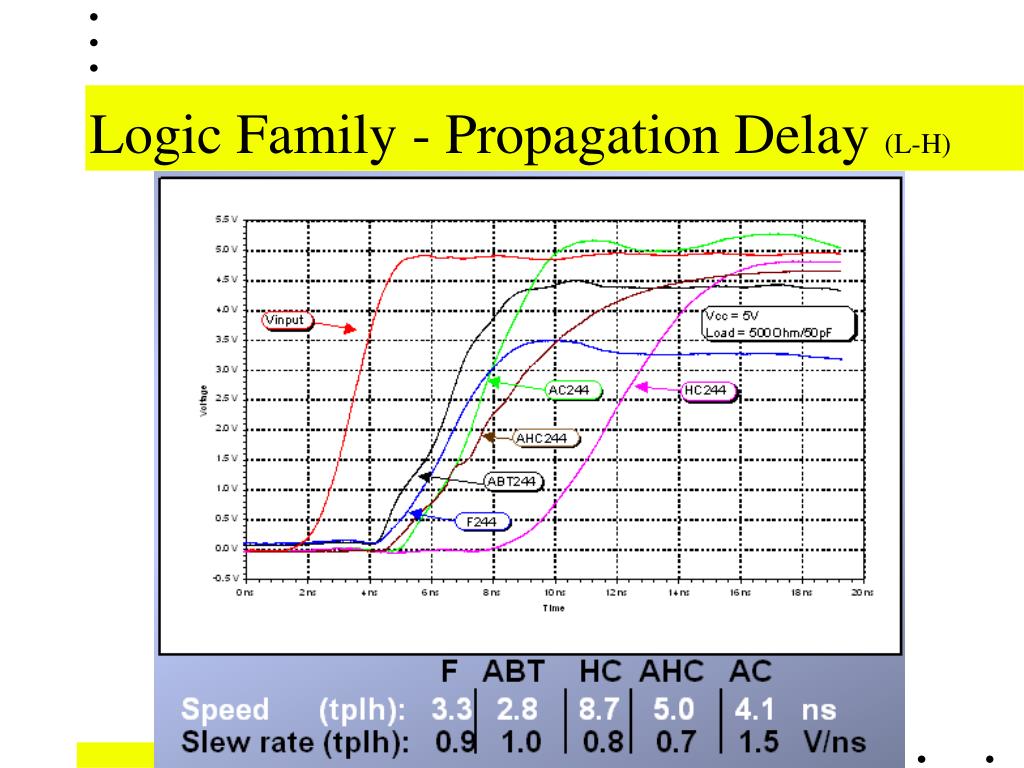

  24. Logic Family - Propagation Delay (L-H)

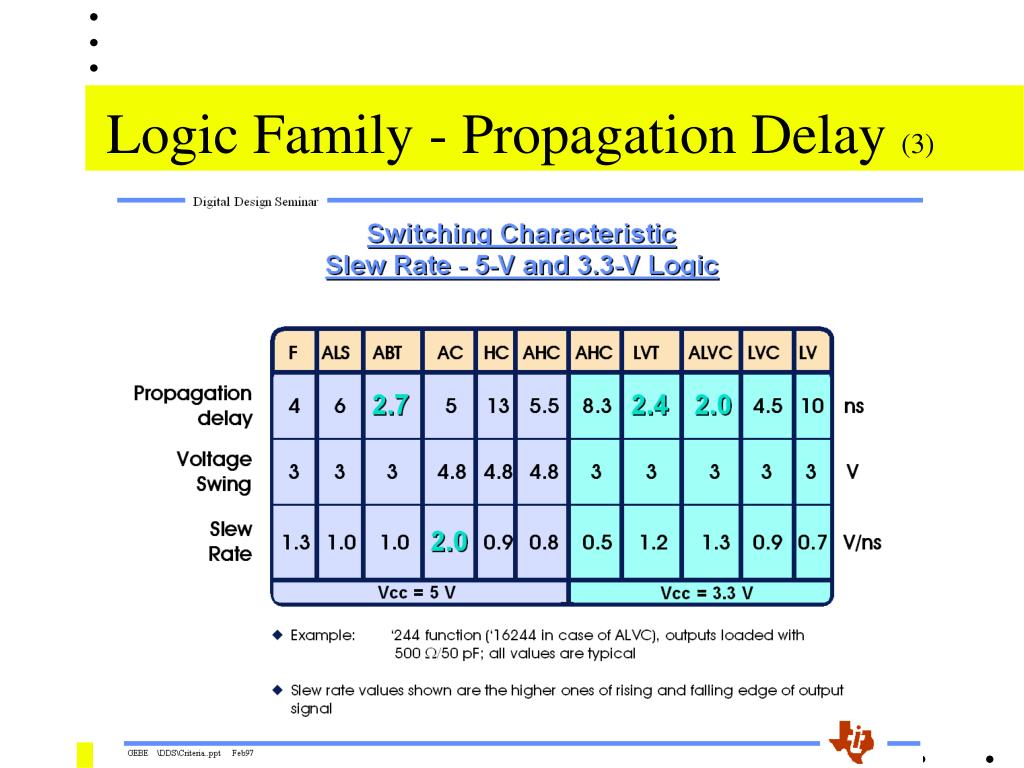

  25. Logic Family - Propagation Delay (3)

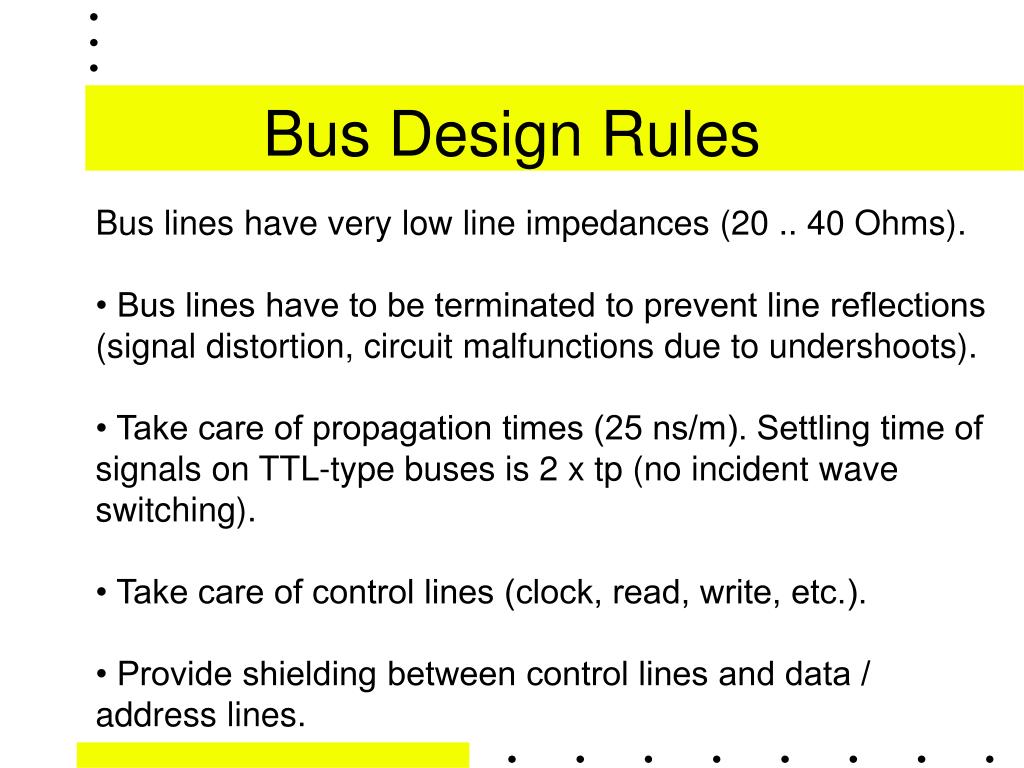

  26. Bus Design Rules Bus lines have very low line impedances (20 .. 40 Ohms). • Bus lines have to be terminated to prevent line reflections (signal distortion, circuit malfunctions due to undershoots). • Take care of propagation times (25 ns/m). Settling time of signals on TTL-type buses is 2 x tp (no incident wave switching). • Take care of control lines (clock, read, write, etc.). • Provide shielding between control lines and data / address lines.

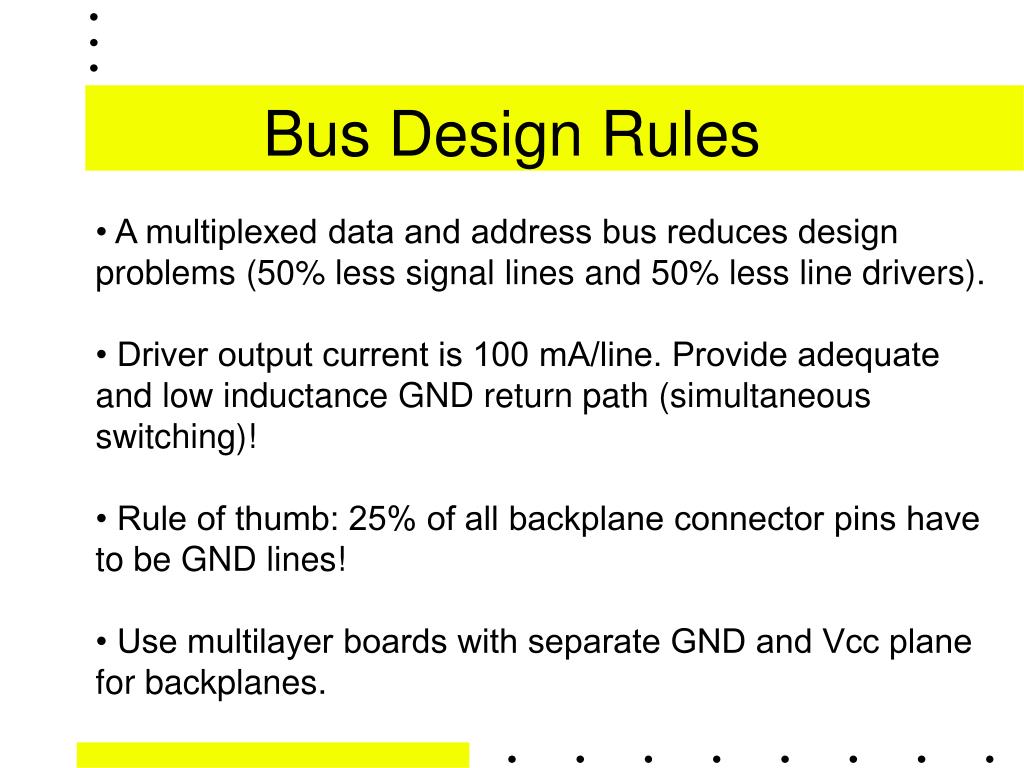

  27. Bus Design Rules • A multiplexed data and address bus reduces design problems (50% less signal lines and 50% less line drivers). • Driver output current is 100 mA/line. Provide adequate and low inductance GND return path (simultaneous switching)! • Rule of thumb: 25% of all backplane connector pins have to be GND lines! • Use multilayer boards with separate GND and Vcc plane for backplanes.

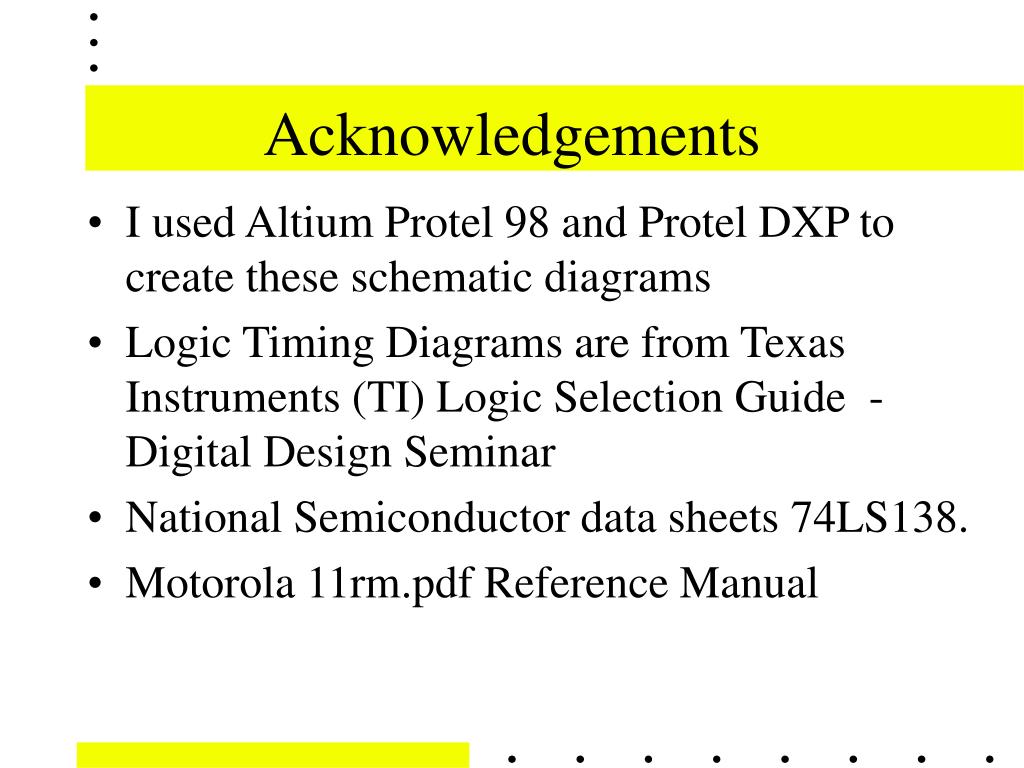

  28. Acknowledgements • I used Altium Protel 98 and Protel DXP to create these schematic diagrams • Logic Timing Diagrams are from Texas Instruments (TI) Logic Selection Guide - Digital Design Seminar • National Semiconductor data sheets 74LS138. • Motorola 11rm.pdf Reference Manual
