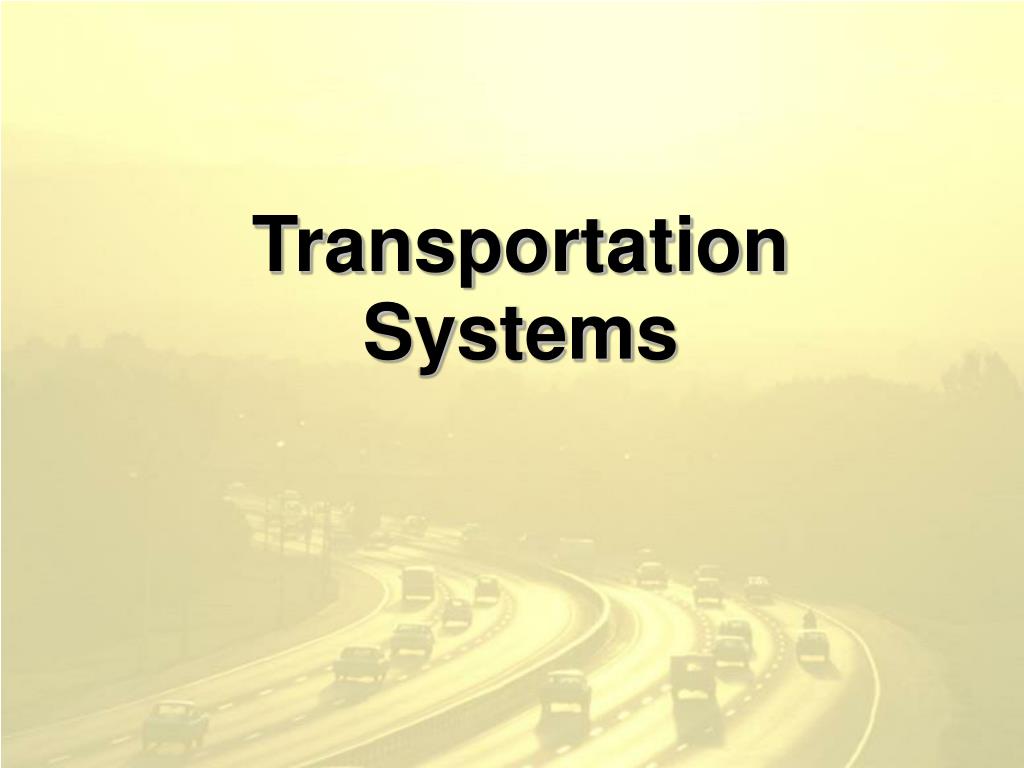

Transportation Systems

Loading in 2 Seconds...

play fullscreen
1 / 22

Transportation Systems - PowerPoint PPT Presentation


  • 212 Views
  • Uploaded on

Transportation Systems. What is Transportation?. The process by which passengers or goods are moved or delivered from on place to another. Transportation Systems. Four basic types: Land Air Water Space. Land. Systems that move goods and people from one place to another on earth. Air.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Transportation Systems' - ford


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
what is transportation

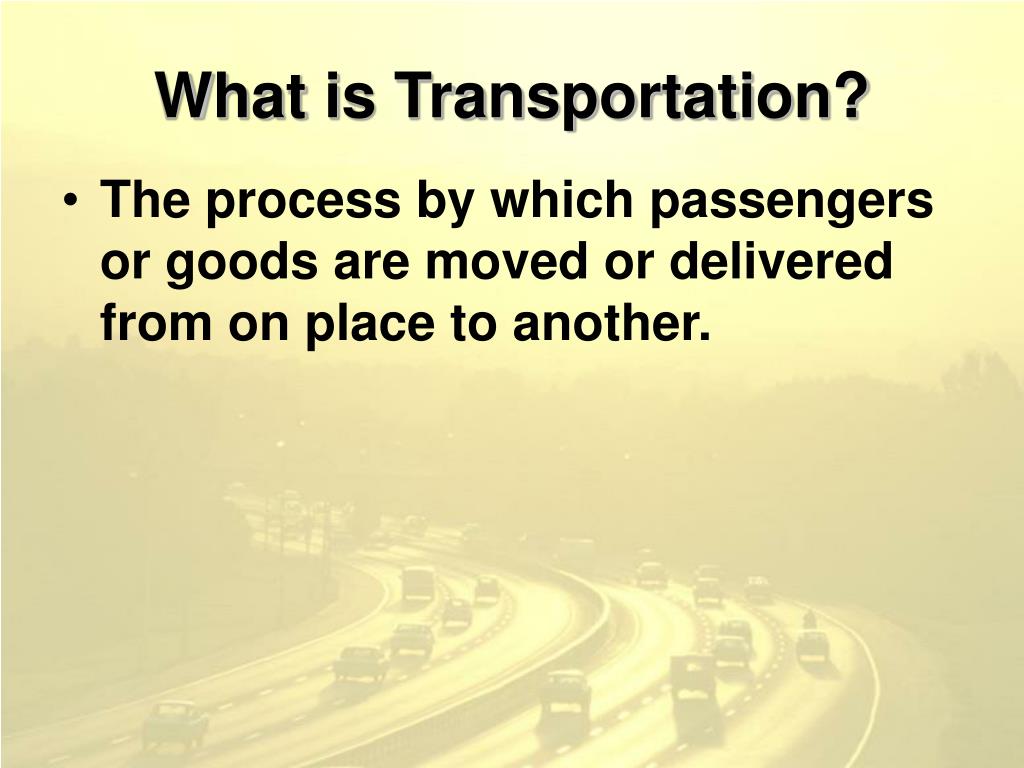

What is Transportation?
  • The process by which passengers or goods are moved or delivered from on place to another.
transportation systems4

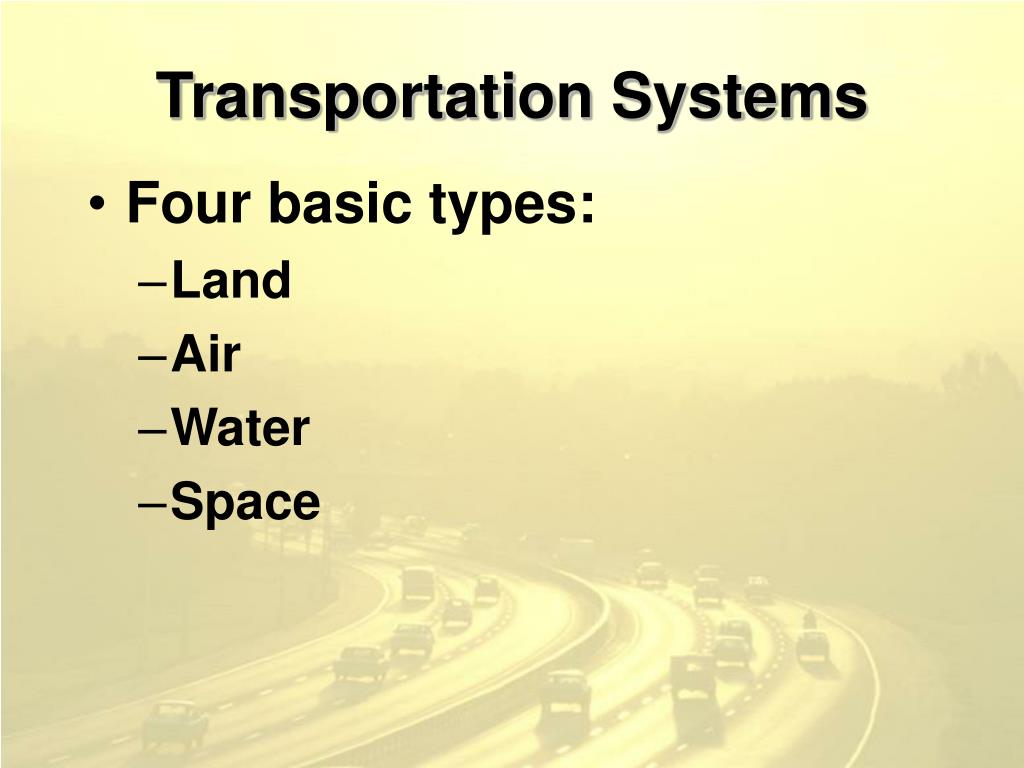

Transportation Systems
  • Four basic types:
    • Land
    • Air
    • Water
    • Space
slide5

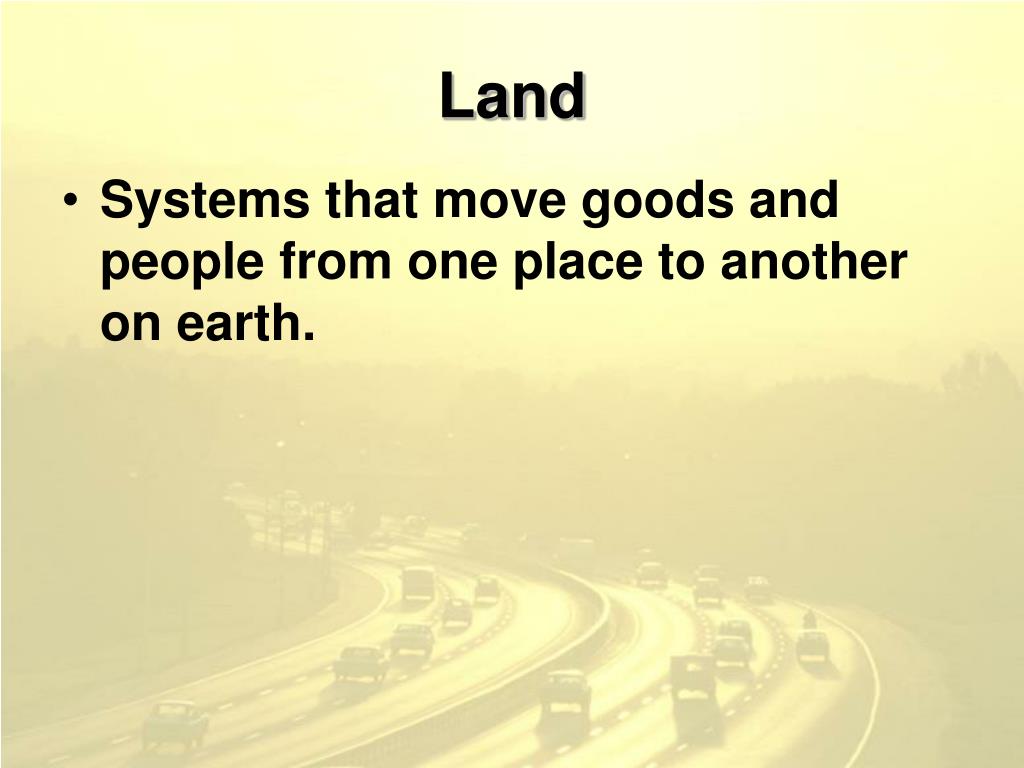

Land
  • Systems that move goods and people from one place to another on earth.
slide6
Air
  • The use of airplanes, helicopters, and dirigibles to lift passengers and/or cargo into the air in order to move from place to place.
water
Water
  • The use of water to support the vessel in the transport of people or goods.
space
Space
  • Systems that move people and goods outside the earth’s atmosphere.
6 transportation subsystems

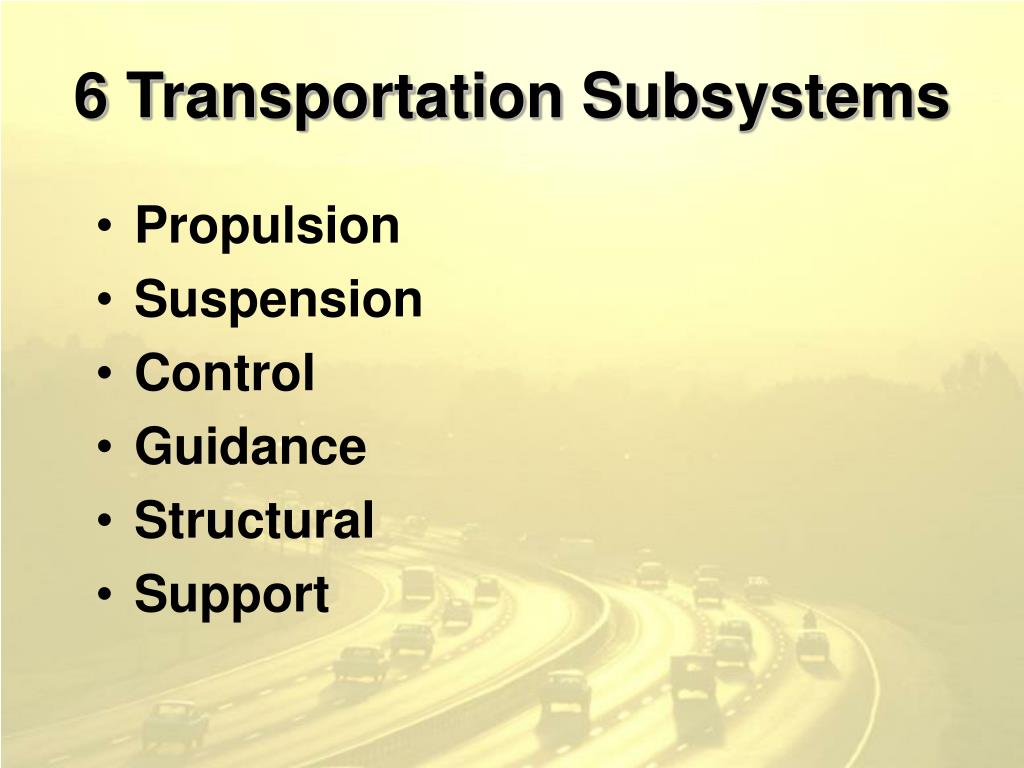

6 Transportation Subsystems
  • Propulsion
  • Suspension
  • Control
  • Guidance
  • Structural
  • Support
6 transportation subsystems10
Subsystem

Propulsion

Suspension

Control

Guidance

Structural

Support

Examples

Engine & Transmission

Springs, Wings, etc.

Steering, Brakes, etc.

Maps, GPS, Signs, etc.

Chassis, Body, Fuselage

Garage, Gas Station, etc.

6 Transportation Subsystems
6 transportation subsystems11

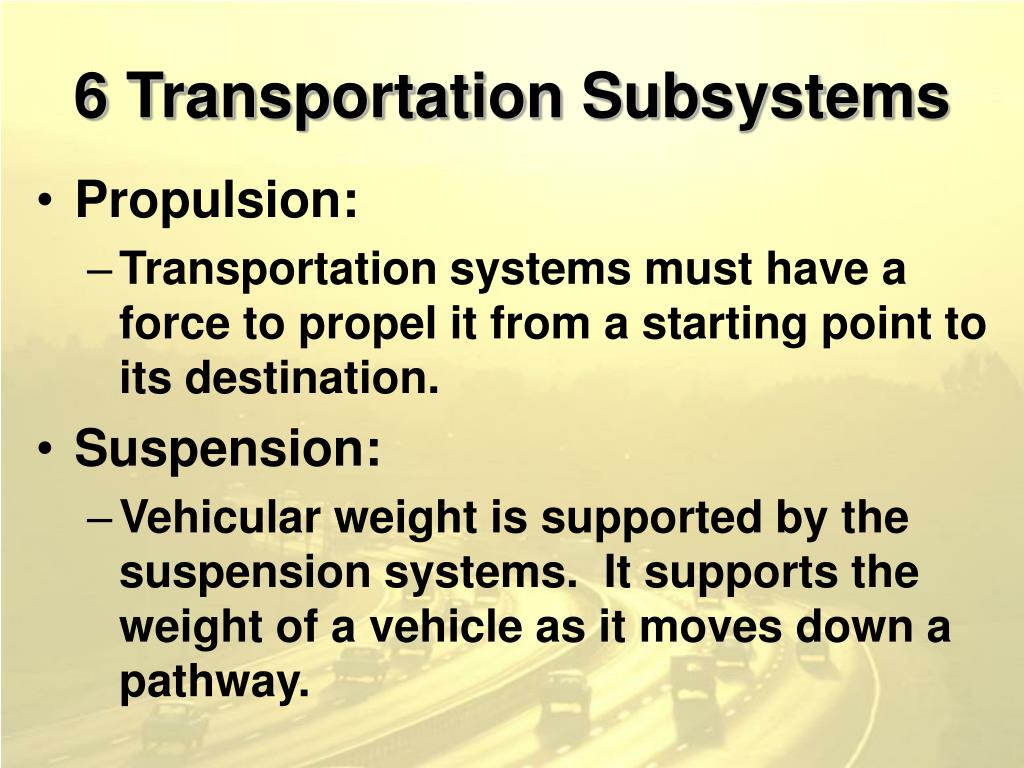

6 Transportation Subsystems
  • Propulsion:
    • Transportation systems must have a force to propel it from a starting point to its destination.
  • Suspension:
    • Vehicular weight is supported by the suspension systems. It supports the weight of a vehicle as it moves down a pathway.
6 transportation subsystems12

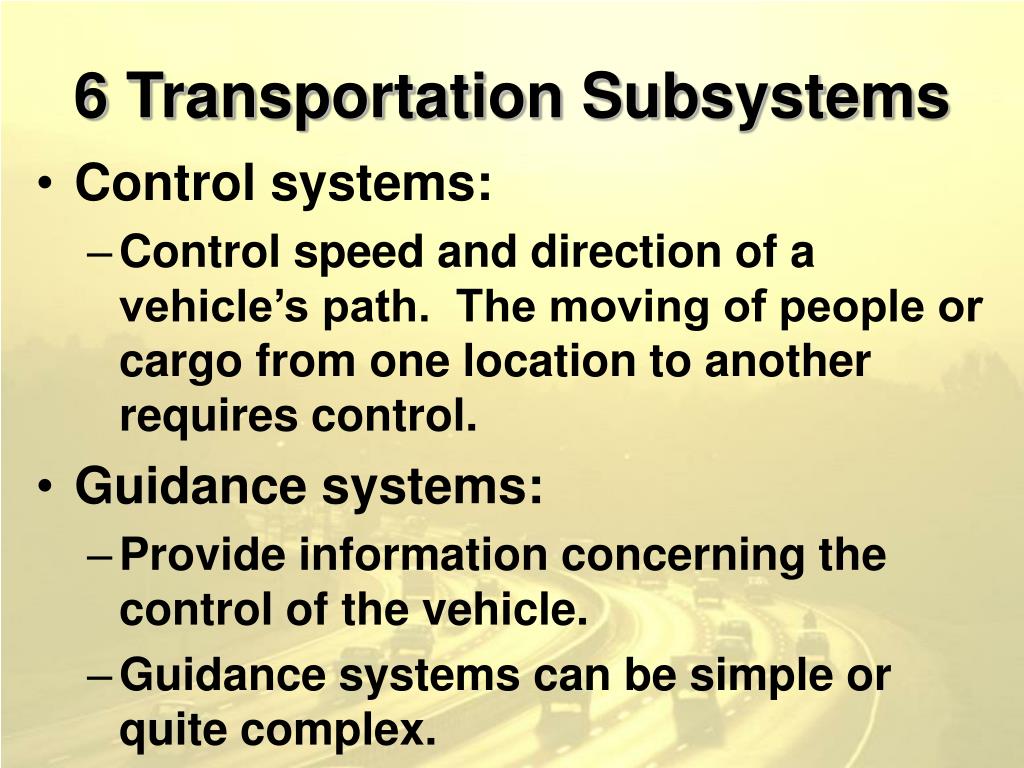

6 Transportation Subsystems
  • Control systems:
    • Control speed and direction of a vehicle’s path. The moving of people or cargo from one location to another requires control.
  • Guidance systems:
    • Provide information concerning the control of the vehicle.
    • Guidance systems can be simple or quite complex.
6 transportation subsystems13
6 Transportation Subsystems
  • Structural systems:
    • Structural systems accommodate a vehicle’s cargo and form the basic framework of the vehicle.
  • Support systems:
    • Used to maintain vehicles and other transportation technologies.
