slide1

Dave Reed

  • AI as search
    • problem states, state spaces
    • uninformed search strategies
      • depth first search
      • depth first search with cycle checking
      • breadth first search
      • iterative deepening
ai as search
AI as search
  • GOFAI philosophy:

Problem Solving = Knowledge Representation + Search (a.k.a. deduction)

  • to build a system to solve a problem:
    • define the problem precisely

i.e., describe initial situation, goals, …

    • analyze the problem
    • isolate and represent task knowledge
    • choose an appropriate problem solving technique

we'll look at a simple representation (states) first & focus on search

more advanced representation techniques will be explored later

example airline connections
Example: airline connections
  • suppose you are planning a trip from Omaha to Los Angeles

initial situation: located in Omaha

goal: located in Los Angeles

possible flights: Omaha  Chicago Denver  Los Angeles

Omaha  Denver Denver  Omaha

Chicago  Denver Los Angeles  Chicago

Chicago  Los Angeles Los Angeles  Denver

Chicago  Omaha

  • this is essentially the same problem as the earlier city connections
    • we could define special purpose predicates, recursive rules to plan route

flight(omaha, chicago). flight(denver, los_angeles).

. . .

route(City1, City2, [City1,City2]) :-

flight(City1, City2).

route(City1, City2, [City1|Rest]) :-

flight(City1, City3), route(City3, City2, Rest).

state spaces
State spaces
  • or, could define a more general solution framework

state : a situation or position

state space : the set of legal/attainable states for a given problem

      • a state space can be represented as a directed graph (nodes = states)
  • in general: to solve a problem
    • define a state space, then search for a path from start state to a goal state
example airline state space
Example: airline state space
  • define a state with:

loc(City)

  • define state transitions with:

move(loc(City1), loc(City2))

  • to find a route from Omaha to Los Angeles:
    • search for a sequence of transitions from start state to goal state:

loc(omaha)  loc(los_angeles)

%%% travel.pro Dave Reed 2/15/02

%%%

%%% This file contains the state space definition

%%% for air travel.

%%%

%%% loc(City): defines the state where the person

%%% is in the specified City.

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

move(loc(omaha), loc(chicago)).

move(loc(omaha), loc(denver)).

move(loc(chicago), loc(denver)).

move(loc(chicago), loc(los_angeles)).

move(loc(chicago), loc(omaha)).

move(loc(denver), loc(los_angeles)).

move(loc(denver), loc(omaha)).

move(loc(los_angeles), loc(chicago)).

move(loc(los_angeles), loc(denver)).

example water jug problem
Example: water jug problem
  • Suppose you have two empty water jugs:
    • large jug can hold 4 gallons, small jug can hold 3 gallons
  • starting with empty jugs (and an endless supply of water),

want to end up with exactly 2 gallons in the large jug

  • state?
    • start state?
    • goal state?
  • transitions?
example water jug state space
Example: water jug state space
  • define a state with:

jugs(LargeJug, SmallJug)

  • define state transitions with:

move(jugs(J1,J2), jugs(J3,J4))

  • to solve the problem:
    • search for a sequence of transitions from start state to goal state:

jugs(0,0)  jugs(2,0)

%%% jugs.pro Dave Reed 2/15/02

%%%

%%% This file contains the state space definition

%%% for the Water Jug problem.

%%%

%%% jugs(J1, J2): J1 is the contents of the large

%%% (4 gallon) jug, and J2 is the contents of

%%% the small (3 gallon) jug.

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

move(jugs(J1,J2), jugs(4,J2)) :-

J1 < 4.

move(jugs(J1,J2), jugs(J1,3)) :-

J2 < 3.

move(jugs(J1,J2), jugs(0,J2)) :-

J1 > 0.

move(jugs(J1,J2), jugs(J1,0)) :-

J2 > 0.

move(jugs(J1,J2), jugs(4,N)) :-

J2 > 0, J1 + J2 >= 4, N is J2 - (4 - J1).

move(jugs(J1,J2), jugs(N,3)) :-

J1 > 0, J1 + J2 >= 3, N is J1 - (3 - J2).

move(jugs(J1,J2), jugs(N,0)) :-

J2 > 0, J1 + J2 < 4, N is J1 + J2.

move(jugs(J1,J2), jugs(0,N)) :-

J1 > 0, J1 + J2 < 3, N is J1 + J2.

example 8 tiles puzzle
Example: 8-tiles puzzle
  • Consider the children's puzzle with 8 sliding tiles in a 3x3 board
    • a tile adjacent to the empty space can be shifted into that space
    • goal is to arrange the tiles in increasing order around the outside
  • state?
    • start state?
    • goal state?
  • transitions?
example 8 tiles state space
Example: 8-tiles state space
  • define a state with:

tiles(Row1,Row2,Row3)

  • define state transitions with:

move(tiles(R1,R2,R3),

tiles(R4,R5,R6)).

  • to solve the problem:
    • search for a sequence of transitions from start state to goal state:

tiles([1,2,3],[8,6,space],[7,5,4]) 

tiles([1,2,3],[8,space,4],[7,6,5])

%%% puzzle.pro Dave Reed 2/15/02

%%%

%%% This file contains an UGLY, BRUTE-FORCE state %%% space definition for the 8-puzzle problem.

%%%

%%% tiles(R1, R2, R3): each row is a list of three

%%% numbers (or space) specifying the tiles in

%%% that row.

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

move(tiles([space,T1,T2],[T3,T4,T5],[T6,T7,T8]),

tiles([T1,space,T2],[T3,T4,T5],[T6,T7,T8])).

move(tiles([space,T1,T2],[T3,T4,T5],[T6,T7,T8]),

tiles([T3,T1,T2],[space,T4,T5],[T6,T7,T8])).

move(tiles([T1,space,T2],[T3,T4,T5],[T6,T7,T8]),

tiles([space,T1,T2],[T3,T4,T5],[T6,T7,T8])).

move(tiles([T1,space,T2],[T3,T4,T5],[T6,T7,T8]),

tiles([T1,T2,space],[T3,T4,T5],[T6,T7,T8])).

move(tiles([T1,space,T2],[T3,T4,T5],[T6,T7,T8]),

tiles([T1,T4,T2],[T3,space,T5],[T6,T7,T8])).

move(tiles([T1,T2,space],[T3,T4,T5],[T6,T7,T8]),

tiles([T1,space,T2],[T3,T4,T5],[T6,T7,T8])).

move(tiles([T1,T2,space],[T3,T4,T5],[T6,T7,T8]),

tiles([T1,T2,T5],[T3,T4,space],[T6,T7,T8])).

.

.

.

state space control
State space + control
  • once you formalize a problem by defining a state space:
    • you need a methodology for applying actions/transitions to search through the space (from start state to goal state)

i.e., you need a control strategy

  • control strategies can be: tentative or bold; informed or uninformed
    • a bold strategy picks an action/transition, does it, and commits
    • a tentative strategy burns no bridges
    • an informed strategy makes use of problem-specific knowledge (heuristics) to guide the search
    • an uninformed strategy is blind
uninformed strategies
Uninformed strategies
  • bold + uninformed:

STUPID!

  • tentative + uninformed:
    • depth first search (DFS)
    • breadth first search (BFS)

example: water jugs state space (drawn as a tree with duplicate nodes)

depth first search
Depth first search
  • basic idea:
    • if the current state is a goal, then SUCCEED
    • otherwise, move to a next state and DFS from there
    • if no next state (i.e., deadend), then BACKTRACK

%%% dfs.pro Dave Reed 2/15/02

%%%

%%% Depth first search

%%% dfs(Current, Goal): succeeds if there is

%%% a sequence of states that lead from

%%% Current to Goal

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

dfs(Goal, Goal).

dfs(State, Goal) :-

move(State, NextState),

dfs(NextState, Goal).

  • note: Prolog computation is basically depth first search
    • if goal list is empty, SUCCEED
    • otherwise, find fact/rule that matches the first goal & replace the goal with the rule premises (if any)
    • if no matching fact/rule, then BACKTRACK
depth first search13

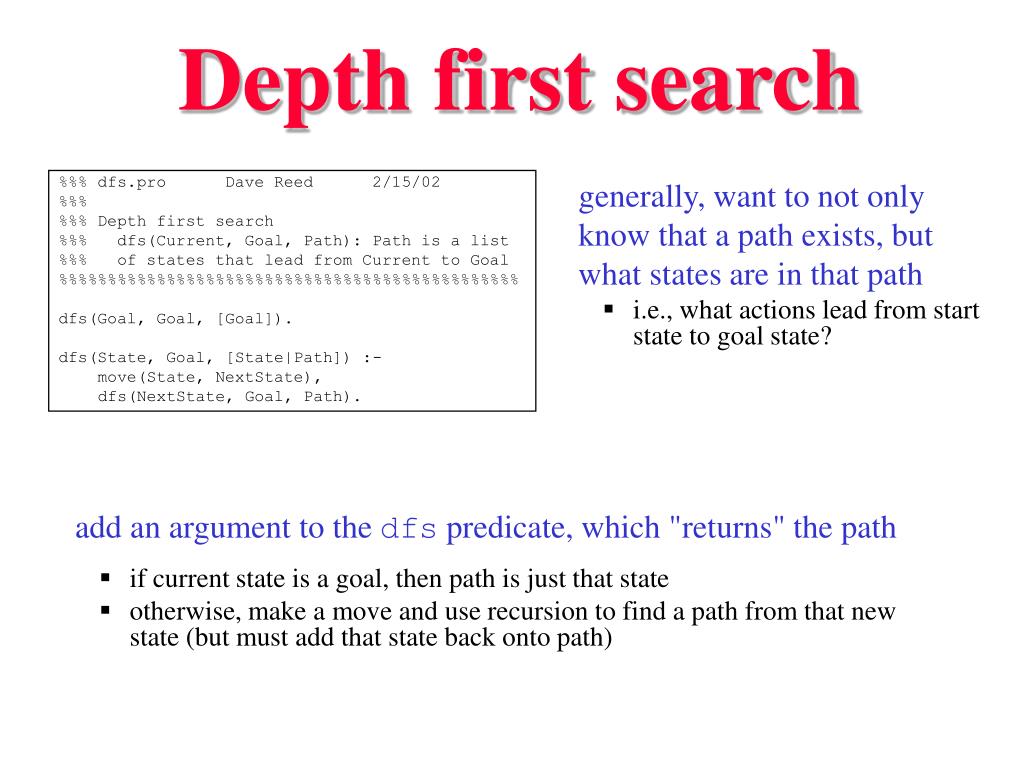

Depth first search
  • generally, want to not only know that a path exists, but what states are in that path
    • i.e., what actions lead from start state to goal state?

%%% dfs.pro Dave Reed 2/15/02

%%%

%%% Depth first search

%%% dfs(Current, Goal, Path): Path is a list

%%% of states that lead from Current to Goal

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

dfs(Goal, Goal, [Goal]).

dfs(State, Goal, [State|Path]) :-

move(State, NextState),

dfs(NextState, Goal, Path).

  • add an argument to the dfs predicate, which "returns" the path
    • if current state is a goal, then path is just that state
    • otherwise, make a move and use recursion to find a path from that new state (but must add that state back onto path)
dfs examples
DFS examples

?- dfs(loc(omaha), loc(los_angeles), Path).

Path = [loc(omaha), loc(chicago), loc(denver), loc(los_angeles)] ;

Path = [loc(omaha), loc(chicago), loc(denver), loc(los_angeles), loc(chicago), loc(denver), loc(los_angeles)] ;

Path = [loc(omaha), loc(chicago), loc(denver), loc(los_angeles), loc(chicago), loc(denver), loc(los_angeles), loc(chicago), loc(...)|...]

Yes

all are legitimate paths, but not "optimal"

?- dfs(jugs(0,0), jugs(2,0), Path).

ERROR: Out of local stack

WHY?

?- dfs(tiles([1,2,3],[8,6,space],[7,5,4]), tiles([1,2,3],[8,space,4],[7,6,5]), Path).

ERROR: Out of local stack

WHY?

dfs and cycles
DFS and cycles
  • since DFS moves blindly down one path,
  • looping (cycles) is a SERIOUS problem
depth first search with cycle checking
Depth first search with cycle checking
  • it often pays to test for cycles (as in city connections example):
    • must keep track of the path so far
    • make sure current goal is not revisited

%%% dfsnocyc.pro Dave Reed 2/15/02

%%%

%%% Depth first search with cycle checking

%%% dfs_no_cycles(Current, Goal, Path): Path is a list

%%% of states that lead from Current to Goal

%%%

%%% dfs_nocyc_help(PathSoFar, Goal, Path): Path is a list

%%% of states that lead from the PathSoFar (with current

%%% state at the head) to Goal without duplicate states.

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

dfs_no_cycles(State, Goal, Path) :-

dfs_nocyc_help([State], Goal, RevPath),

reverse(RevPath, Path).

dfs_nocyc_help([Goal|PathSoFar], Goal, [Goal|PathSoFar]).

dfs_nocyc_help([State|PathSoFar], Goal, Path) :-

move(State, NextState),

not(member(NextState, [State|PathSoFar])),

dfs_nocyc_help([NextState,State|PathSoFar], Goal, Path).

examples w cycle checking

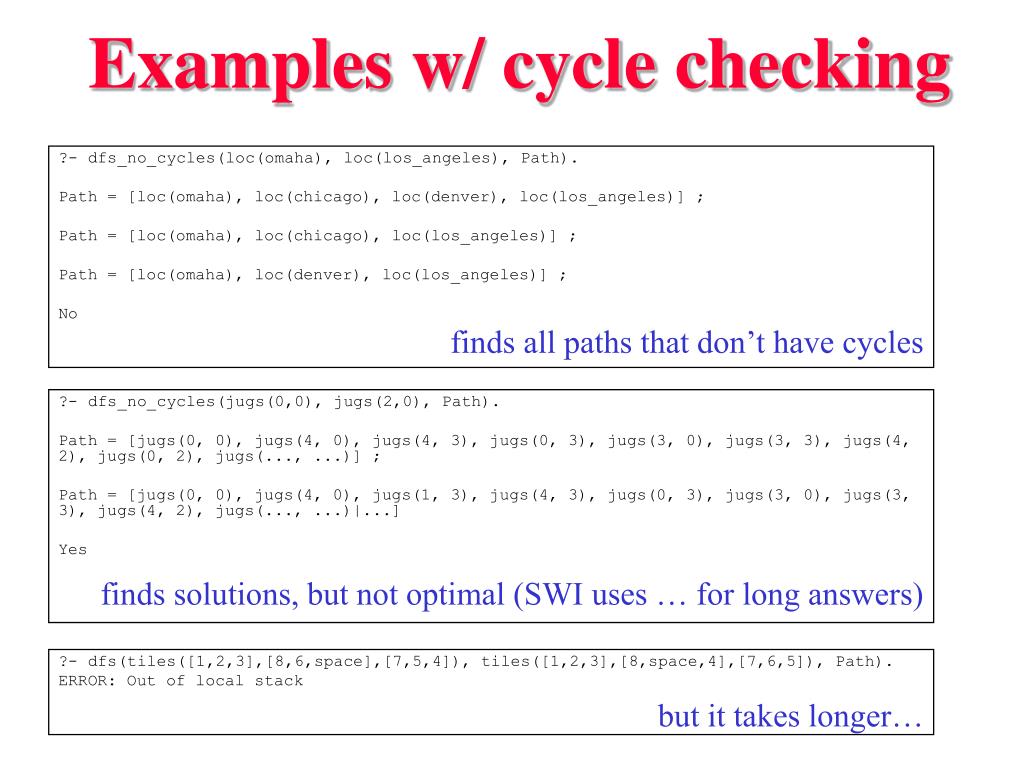

Examples w/ cycle checking

?- dfs_no_cycles(loc(omaha), loc(los_angeles), Path).

Path = [loc(omaha), loc(chicago), loc(denver), loc(los_angeles)] ;

Path = [loc(omaha), loc(chicago), loc(los_angeles)] ;

Path = [loc(omaha), loc(denver), loc(los_angeles)] ;

No

finds all paths that don’t have cycles

?- dfs_no_cycles(jugs(0,0), jugs(2,0), Path).

Path = [jugs(0, 0), jugs(4, 0), jugs(4, 3), jugs(0, 3), jugs(3, 0), jugs(3, 3), jugs(4, 2), jugs(0, 2), jugs(..., ...)] ;

Path = [jugs(0, 0), jugs(4, 0), jugs(1, 3), jugs(4, 3), jugs(0, 3), jugs(3, 0), jugs(3, 3), jugs(4, 2), jugs(..., ...)|...]

Yes

finds solutions, but not optimal (SWI uses … for long answers)

?- dfs(tiles([1,2,3],[8,6,space],[7,5,4]), tiles([1,2,3],[8,space,4],[7,6,5]), Path).

ERROR: Out of local stack

but it takes longer…

breadth vs depth
Breadth vs. depth
  • even with cycle checking, DFS may not find the shortest solution
  • breadth first search (BFS)
    • extend the search one level at a time
      • i.e., from the start state, try every possible move (& remember them all)
      • if don't reach goal, then try every possible move from those states
      • . . .
    • requires keeping a list of partially expanded search paths
    • ensure breadth by treating the list as a queue
      • when want to expand shortest path: take off front, extend & add to back

[ omaha ]

[ chicagoomaha, denveromaha ]

[ denveromaha, denverchicagoomaha, los_angeleschicagoomaha, omahachicagoomaha ]

[ denverchicagoomaha, los_angeleschicagoomaha, omahachicagoomaha, los_angelesdenveromaha, omahadenveromaha ]

[ los_angeleschicagoomaha, omahachicagoomaha, los_angelesdenveromaha, omahadenveromaha, los_angelesdenverchicagoomaha, omahadenverchicagoomaha ]

breadth first search
Breadth first search

%%% bfs.pro Dave Reed 2/15/02

%%%

%%% Breadth first search

%%% bfs(Current, Goal, Path): Path is a list

%%% of states that lead from Current to Goal

%%%

%%% bfs_help(ListOfPaths, Goal, Path): Path is a list

%%% of states that lead from one of the paths in ListOfPaths

%%% (a list of lists) to Goal.

%%%

%%% extend(Path, ListOfPaths): ListOfPaths is the list of all

%%% possible paths obtainable by extending Path (at the head).

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

bfs(State, Goal, Path) :-

bfs_help([[State]], Goal, RevPath),

reverse(RevPath, Path).

bfs_help([[Goal|Path]|_], Goal, [Goal|Path]).

bfs_help([Path|RestPaths], Goal, SolnPath) :-

extend(Path, NewPaths),

append(RestPaths, NewPaths, TotalPaths),

bfs_help(TotalPaths, Goal, SolnPath).

extend([State|Path], NewPaths) :-

bagof([NextState,State|Path], move(State,NextState), NewPaths), !.

extend(_, []).

  • bagof(X,p(X),List):
    • List is a list of all X's for which p(X) holds
    • equivalent to hitting ';' repeatedly to exhaust all answers, then putting them in a list
  • !
    • exclamation point is the cut operator
    • it cuts choice points, committing the interpreter to that match
bfs examples
BFS examples

?- bfs(loc(omaha), loc(los_angeles), Path).

Path = [loc(omaha), loc(chicago), loc(los_angeles)] ;

Path = [loc(omaha), loc(denver), loc(los_angeles)] ;

Path = [loc(omaha), loc(chicago), loc(denver), loc(los_angeles)] ;

Path = [loc(omaha), loc(chicago), loc(los_angeles), loc(chicago), loc(los_angeles)]

Yes

finds shorter paths first, but no loop checking

?- bfs(jugs(0,0), jugs(2,0), Path).

Path = [jugs(0, 0), jugs(0, 3), jugs(3, 0), jugs(3, 3), jugs(4, 2), jugs(0, 2), jugs(2, 0)] ;

Path = [jugs(0, 0), jugs(4, 0), jugs(1, 3), jugs(1, 0), jugs(0, 1), jugs(4, 1), jugs(2, 3), jugs(2, 0)] ;

Path = [jugs(0, 0), jugs(0, 3), jugs(3, 0), jugs(3, 3), jugs(4, 2), jugs(4, 2), jugs(0, 2), jugs(2, 0)]

Yes

finds shorter paths first, but slow (& looping is possible)

?- bfs(tiles([1,2,3],[8,6,space],[7,5,4]), tiles([1,2,3],[8,space,4],[7,6,5]), Path).

Path = [tiles([1, 2, 3], [8, 6, space], [7, 5, 4]), tiles([1, 2, 3], [8, 6, 4], [7, 5, space]), tiles([1, 2, 3], [8, 6, 4], [7, space, 5]), tiles([1, 2, 3], [8, space, 4], [7, 6, 5])]

Yes

it works!

breadth first search w cycle checking
Breadth first search w/ cycle checking

%%% bfs.pro Dave Reed 2/15/02

%%% Breadth first search with cycle checking

%%% bfs(Current, Goal, Path): Path is a list of states

%%% that lead from Current to Goal with no duplicate states.

%%%

%%% bfs_help(ListOfPaths, Goal, Path): Path is a list

%%% of states that lead from one of the paths in ListOfPaths

%%% (a list of lists) to Goal with no duplicate states.

%%%

%%% extend(Path, ListOfPaths): ListOfPaths is the list of all

%%% possible paths obtainable by extending Path (at the head)

%%% with no duplicate states.

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

bfs(State, Goal, Path) :-

bfs_help([[State]], Goal, RevPath), reverse(RevPath, Path).

bfs_help([[Goal|Path]|_], Goal, [Goal|Path]).

bfs_help([Path|RestPaths], Goal, SolnPath) :-

extend(Path, NewPaths),

append(RestPaths, NewPaths, TotalPaths),

bfs_help(TotalPaths, Goal, SolnPath).

extend([State|Path], NewPaths) :-

bagof([NextState,State|Path],

(move(State, NextState), not(member(NextState, [State|Path]))),

NewPaths), !.

extend(_, []).

since you are already having to store entire paths for BFS, cycle checking is easy

when extending, exclude states already on the path

examples w cycle checking22

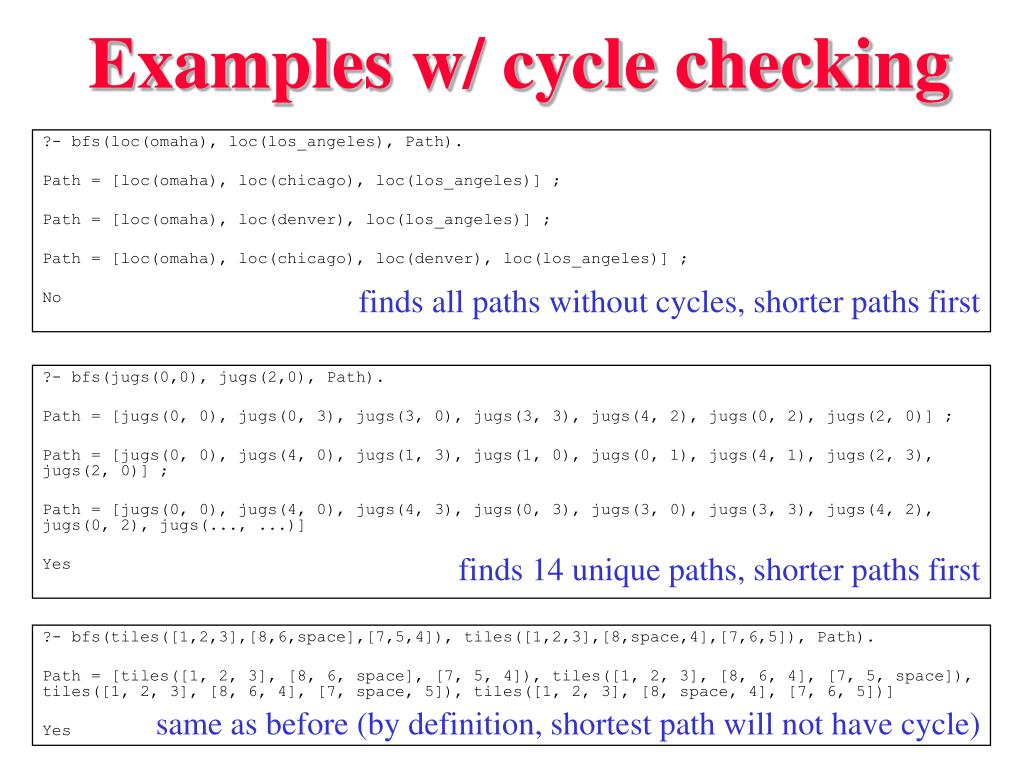

Examples w/ cycle checking

?- bfs(loc(omaha), loc(los_angeles), Path).

Path = [loc(omaha), loc(chicago), loc(los_angeles)] ;

Path = [loc(omaha), loc(denver), loc(los_angeles)] ;

Path = [loc(omaha), loc(chicago), loc(denver), loc(los_angeles)] ;

No

finds all paths without cycles, shorter paths first

?- bfs(jugs(0,0), jugs(2,0), Path).

Path = [jugs(0, 0), jugs(0, 3), jugs(3, 0), jugs(3, 3), jugs(4, 2), jugs(0, 2), jugs(2, 0)] ;

Path = [jugs(0, 0), jugs(4, 0), jugs(1, 3), jugs(1, 0), jugs(0, 1), jugs(4, 1), jugs(2, 3), jugs(2, 0)] ;

Path = [jugs(0, 0), jugs(4, 0), jugs(4, 3), jugs(0, 3), jugs(3, 0), jugs(3, 3), jugs(4, 2), jugs(0, 2), jugs(..., ...)]

Yes

finds 14 unique paths, shorter paths first

?- bfs(tiles([1,2,3],[8,6,space],[7,5,4]), tiles([1,2,3],[8,space,4],[7,6,5]), Path).

Path = [tiles([1, 2, 3], [8, 6, space], [7, 5, 4]), tiles([1, 2, 3], [8, 6, 4], [7, 5, space]), tiles([1, 2, 3], [8, 6, 4], [7, space, 5]), tiles([1, 2, 3], [8, space, 4], [7, 6, 5])]

Yes

same as before (by definition, shortest path will not have cycle)

dfs vs bfs
DFS vs. BFS
  • Advantages of DFS
    • requires less memory than BFS since only need to remember the current path
    • if lucky, can find a solution without examining much of the state space
    • with cycle-checking, looping can be avoided
  • Advantages of BFS
    • guaranteed to find a solution if one exists – in addition, finds optimal (shortest) solution first
    • will not get lost in a blind alley (i.e., does not require backtracking or cycle checking)
    • can add cycle checking with very little cost

note: just because BFS finds the optimal solution, it does not necessarily mean that it is the optimal control strategy!

iterative deepening
Iterative deepening
  • interesting hybrid: DFS with iterative deepening
    • alter DFS to have a depth bound
      • (i.e., search will fail if it extends beyond a specific depth bound)
    • repeatedly call DFS with increasing depth bounds until a solution is found
      • DFS with bound = 1
      • DFS with bound = 2
      • DFS with bound = 3
      • . . .
  • advantages:
    • yields the same solutions, in the same order, as BFS
    • doesn't have the extensive memory requirements of BFS
  • disadvantage:
    • lots of redundant search – each time the bound is increased, the entire search from the previous bound is redone!
depth first search with iterative deepening
Depth first search with iterative deepening

%%% dfsdeep.pro Dave Reed 2/15/02

%%% Depth first search with iterative deepening

%%% dfs_deep(Current, Goal, Path): Path is a list of states

%%% that lead from Current to Goal.

%%%

%%% dfs_deep_help(State, Goal, Path, DepthBound): Path is a

%%% list of states (length = DepthBound) that lead from

%%% State to Goal. THIS PREDICATE PERFORMS THE ITERATIVE

%%% DEEPENING BY INCREASING THE DEPTH BOUND BY 1 EACH TIME.

%%%

%%% dfs_bounded(State, Goal, Path, DepthBound): Path is a

%%% list of states (length = DepthBound) that lead from

%%% State to Goal. THIS PREDICATE PERFORMS THE BOUNDED DFS,

%%% REQUIRING A SOLUTION THAT IS EXACTLY DepthBound LONG.

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

dfs_deep(State, Goal, Path) :-

dfs_deep_help(State, Goal, Path, 1).

dfs_deep_help(State, Goal, Path, DepthBound) :-

dfs_bounded(State, Goal, Path, DepthBound).

dfs_deep_help(State, Goal, Path, DepthBound) :-

NewDepth is DepthBound + 1,

dfs_deep_help(State, Goal, Path, NewDepth).

dfs_bounded(Goal, Goal, [Goal], 1).

dfs_bounded(State, Goal, [State|Path], DepthBound) :-

DepthBound > 0,

move(State, NextState),

NewDepth is DepthBound - 1,

dfs_bounded(NextState, Goal, Path, NewDepth).

can even set up the bounds checking so that answers are not revisited on each pass – only report answer first time it is found

dfs w iterative deepening cycle checking
DFS w/ iterative deepening & cycle checking

%%% dfsdeep.pro Dave Reed 2/15/02

%%% Depth first search with iterative deepening & cycle checking

%%% dfs_deep(Current, Goal, Path): Path is a list of states

%%% that lead from Current to Goal, with no duplicate states.

%%%

%%% dfs_deep_help(State, Goal, Path, DepthBound): Path is a

%%% list of states (length = DepthBound) that lead from

%%% State to Goal, with no duplicate states. THIS PREDICATE

%%% PERFORMS THE ITERATIVE DEEPENING BY INCREASING THE DEPTH

%%% BOUND BY 1 EACH TIME.

%%%

%%% dfs_bounded(State, Goal, Path, DepthBound): Path is a

%%% list of states (length = DepthBound) that lead from

%%% State to Goal with no duplicate states. THIS PREDICATE

%%% PERFORMS THE BOUNDED DFS, REQUIRING A SOLUTION THAT IS

%%% EXACTLY DepthBound LONG.

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

dfs_no_cycles_deep(State, Goal, Path) :-

dfs_deep_help([State], Goal, RevPath, 1), reverse(RevPath, Path).

dfs_deep_help(PathSoFar, Goal, Path, DepthBound) :-

dfs_bounded(PathSoFar, Goal, Path, DepthBound).

dfs_deep_help(PathSoFar, Goal, Path, DepthBound) :-

NewDepth is DepthBound + 1,

dfs_deep_help(PathSoFar, Goal, Path, NewDepth).

dfs_bounded([Goal|PathSoFar], Goal, [Goal|PathSoFar], 1).

dfs_bounded([State|PathSoFar], Goal, Path, DepthBound) :-

DepthBound > 0,

move(State, NextState), not(member(NextState, [State|PathSoFar])) ,

NewDepth is DepthBound - 1,

dfs_bounded([NextState,State|PathSoFar], Goal, Path, NewDepth).

as with DFS, can add cycle checking by storing the current path and checking for duplicate states

examples w cycle checking27
Examples w/ cycle checking

?- dfs_no_cycles_deep(loc(omaha), loc(los_angeles), Path).

Path = [loc(omaha), loc(chicago), loc(los_angeles)] ;

Path = [loc(omaha), loc(denver), loc(los_angeles)] ;

Path = [loc(omaha), loc(chicago), loc(denver), loc(los_angeles)] ;

finds same answers as BFS, but hangs after last answer -- WHY?

?- dfs_no_cycles_deep(jugs(0,0), jugs(2,0), Path).

Path = [jugs(0, 0), jugs(0, 3), jugs(3, 0), jugs(3, 3), jugs(4, 2), jugs(0, 2), jugs(2, 0)] ;

Path = [jugs(0, 0), jugs(4, 0), jugs(1, 3), jugs(1, 0), jugs(0, 1), jugs(4, 1), jugs(2, 3), jugs(2, 0)] ;

Path = [jugs(0, 0), jugs(4, 0), jugs(4, 3), jugs(0, 3), jugs(3, 0), jugs(3, 3), jugs(4, 2), jugs(0, 2), jugs(..., ...)]

Yes

finds same answers as BFS, but similarly hangs

?- bfs(tiles([1,2,3],[8,6,space],[7,5,4]), tiles([1,2,3],[8,space,4],[7,6,5]), Path).

Path = [tiles([1, 2, 3], [8, 6, space], [7, 5, 4]), tiles([1, 2, 3], [8, 6, 4], [7, 5, space]), tiles([1, 2, 3], [8, 6, 4], [7, space, 5]), tiles([1, 2, 3], [8, space, 4], [7, 6, 5])]

Yes

finds same answers as BFS, noticeably faster

cost of iterative deepening
Cost of iterative deepening
  • just how costly is iterative deepening?

1st pass searches entire tree up to depth 1

2nd pass searches entire tree up to depth 2 (including depth 1)

3rd pass searches entire tree up to depth 3 (including depths 1 & 2)

  • in reality, this duplication is not very costly at all!
    • Theorem: Given a "full" tree with constant branching factor B, the number of nodes at any given level is greater than the number of nodes in all levels above.
      • e.g., Binary tree (B = 2): 1  2  4  8  16  32  64  128  …
    • repeating the search of all levels above for each pass merely doubles the amount of work for each pass.
    • in general, this repetition only increases the cost by a constant factor < (B+1)/(B-1)
