cpfr technology

CPFR® Technology

Henry C. Co

Technology and Operations Management,

California Polytechnic and State University

cornerstones of cpfr

Cornerstones of CPFR®

Internal Processes

Joint processes

Technology

Småros J., and Kary Främling, “Peer-to-Peer Information Systems - An Enabler of Collaborative Planning, Forecasting and Replenishment,” available online from http://www.cs.hut.fi/~framling/Publications/LRN2001.pdf

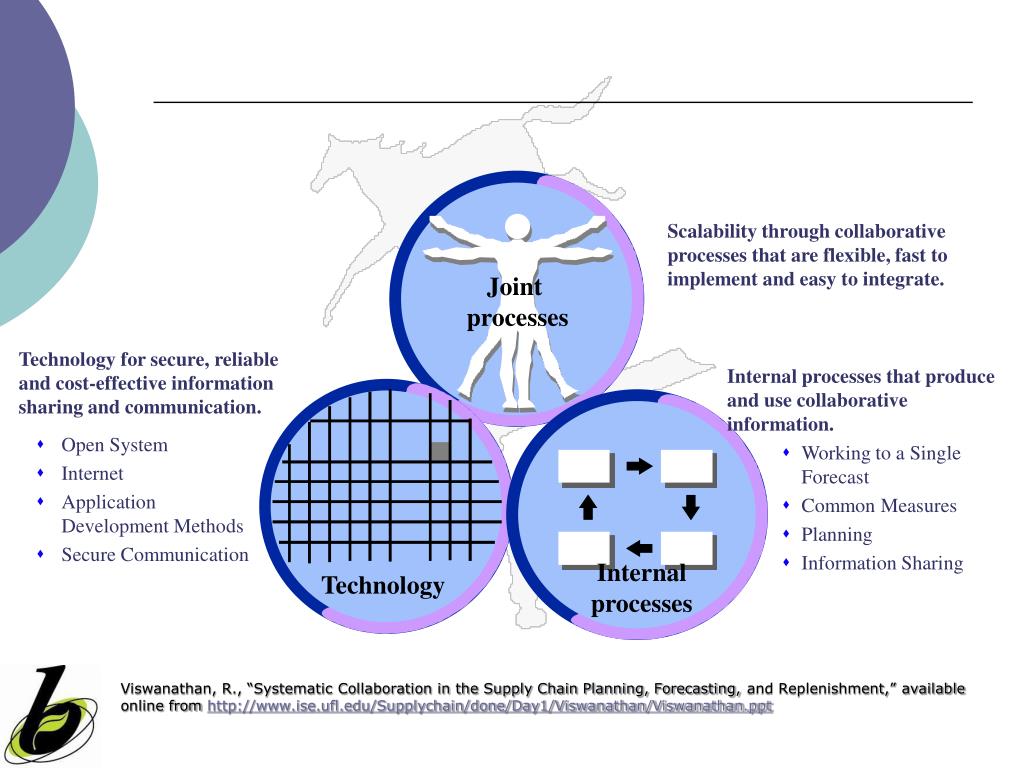

slide3

Technology

Scalability through collaborative processes that are flexible, fast to implement and easy to integrate.

Joint

processes

Technology for secure, reliable and cost-effective information sharing and communication.

Internal processes that produce and use collaborative information.

  • Open System
  • Internet
  • Application Development Methods
  • Secure Communication
  • Working to a Single Forecast
  • Common Measures
  • Planning
  • Information Sharing

Internal

processes

Viswanathan, R., “Systematic Collaboration in the Supply Chain Planning, Forecasting, and Replenishment,” available online from http://www.ise.ufl.edu/Supplychain/done/Day1/Viswanathan/Viswanathan.ppt

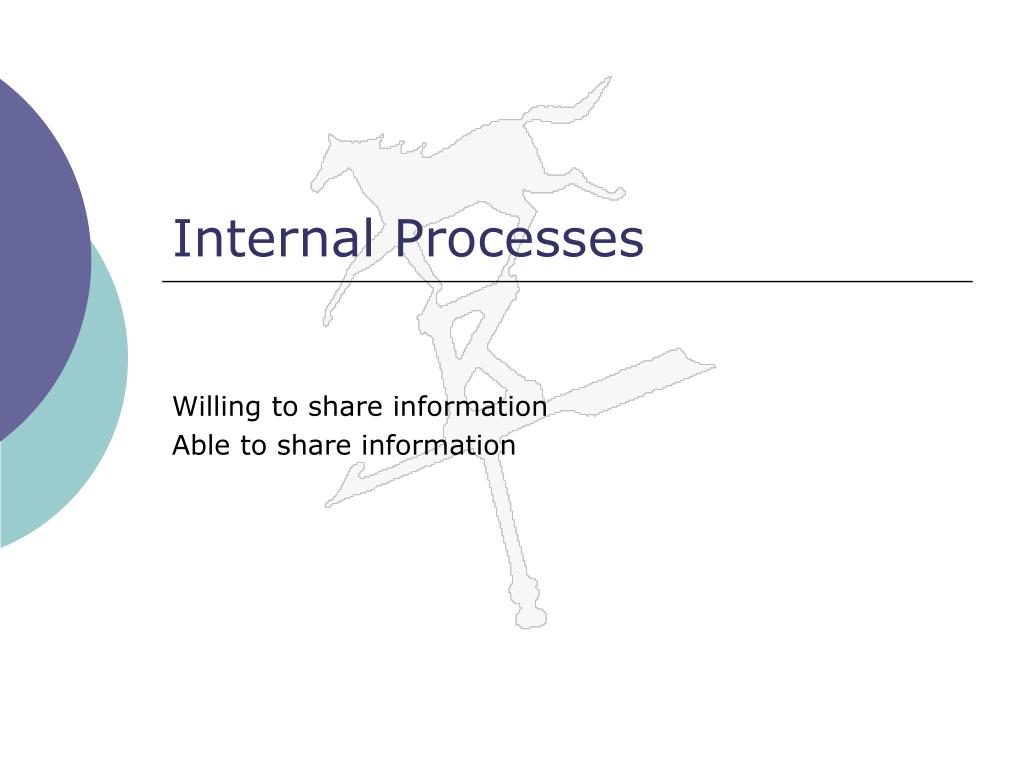

internal processes

Internal Processes

Willing to share information

Able to share information

slide5

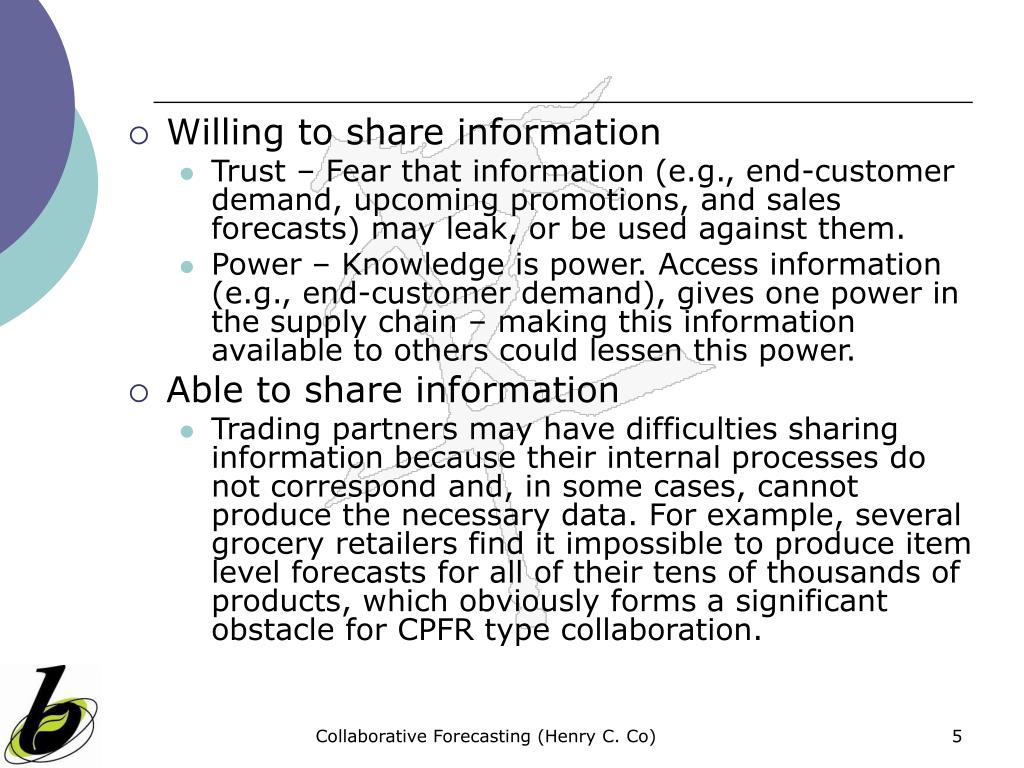

Willing to share information
    • Trust – Fear that information (e.g., end-customer demand, upcoming promotions, and sales forecasts) may leak, or be used against them.
    • Power – Knowledge is power. Access information (e.g., end-customer demand), gives one power in the supply chain – making this information available to others could lessen this power.
  • Able to share information
    • Trading partners may have difficulties sharing information because their internal processes do not correspond and, in some cases, cannot produce the necessary data. For example, several grocery retailers find it impossible to produce item level forecasts for all of their tens of thousands of products, which obviously forms a significant obstacle for CPFR type collaboration.

Collaborative Forecasting (Henry C. Co)

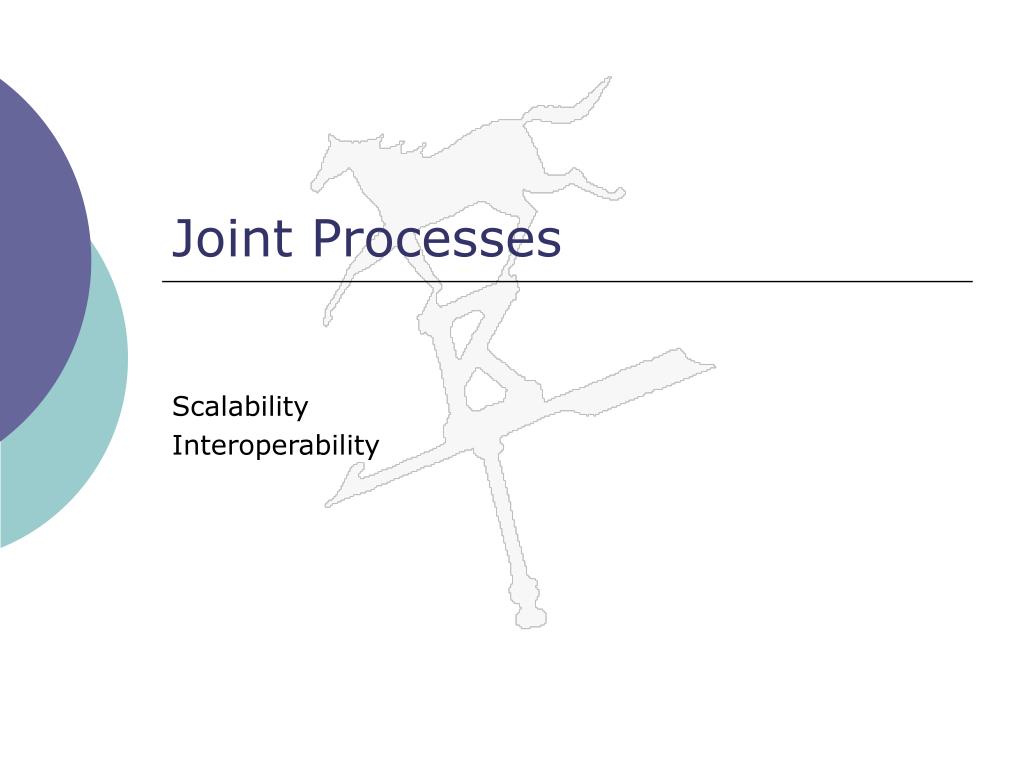

joint processes

Joint Processes

Scalability

Interoperability

slide7
Scalability
    • Support for many trading partners, involving large numbers of products
  • Interoperability
    • Common standards

Collaborative Forecasting (Henry C. Co)

slide8

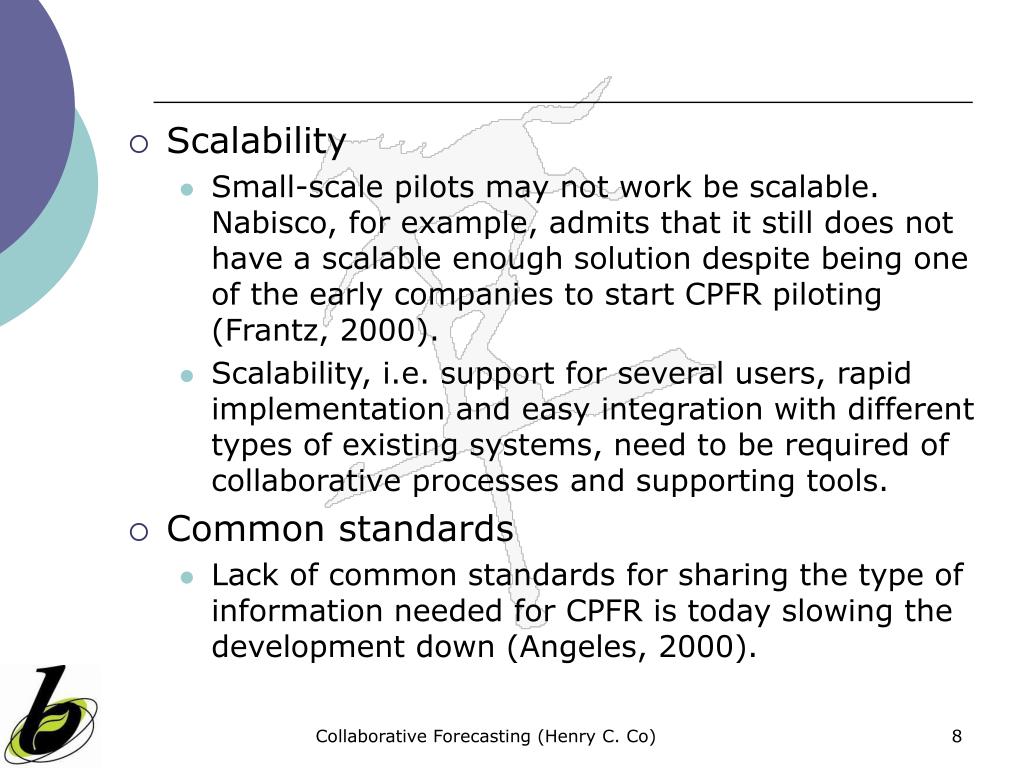

Scalability
    • Small-scale pilots may not work be scalable. Nabisco, for example, admits that it still does not have a scalable enough solution despite being one of the early companies to start CPFR piloting (Frantz, 2000).
    • Scalability, i.e. support for several users, rapid implementation and easy integration with different types of existing systems, need to be required of collaborative processes and supporting tools.
  • Common standards
    • Lack of common standards for sharing the type of information needed for CPFR is today slowing the development down (Angeles, 2000).

Collaborative Forecasting (Henry C. Co)

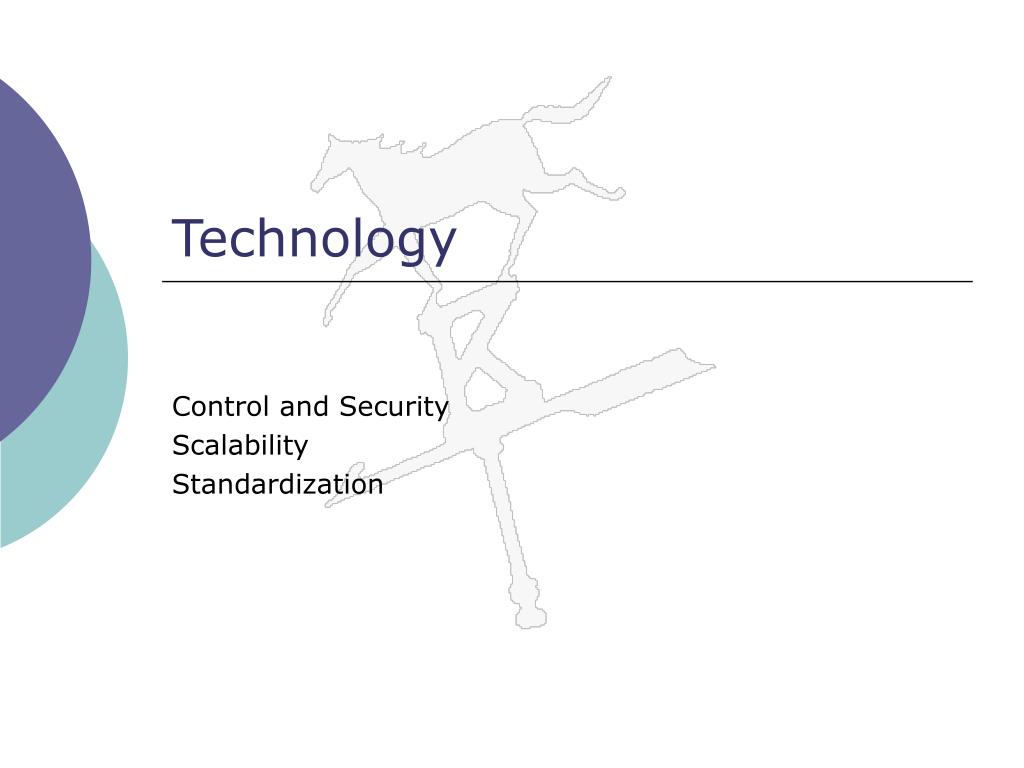

technology

Technology

Control and Security

Scalability

Standardization

technological infrastructure requirements

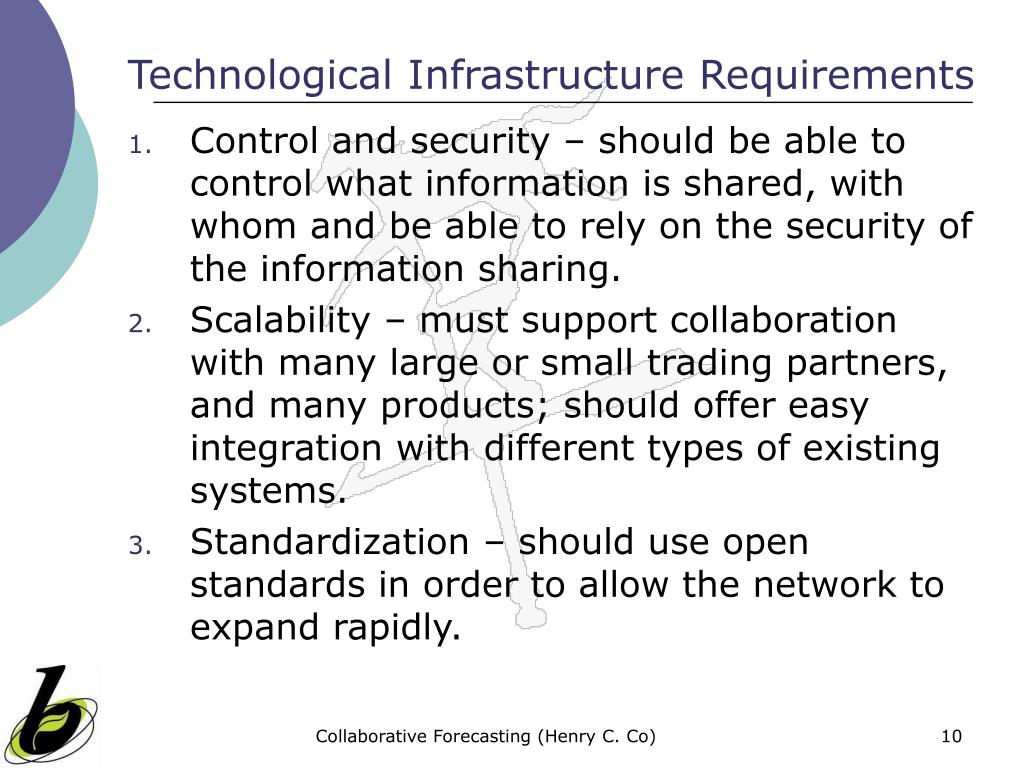

Technological Infrastructure Requirements
  • Control and security – should be able to control what information is shared, with whom and be able to rely on the security of the information sharing.
  • Scalability – must support collaboration with many large or small trading partners, and many products; should offer easy integration with different types of existing systems.
  • Standardization – should use open standards in order to allow the network to expand rapidly.

Collaborative Forecasting (Henry C. Co)

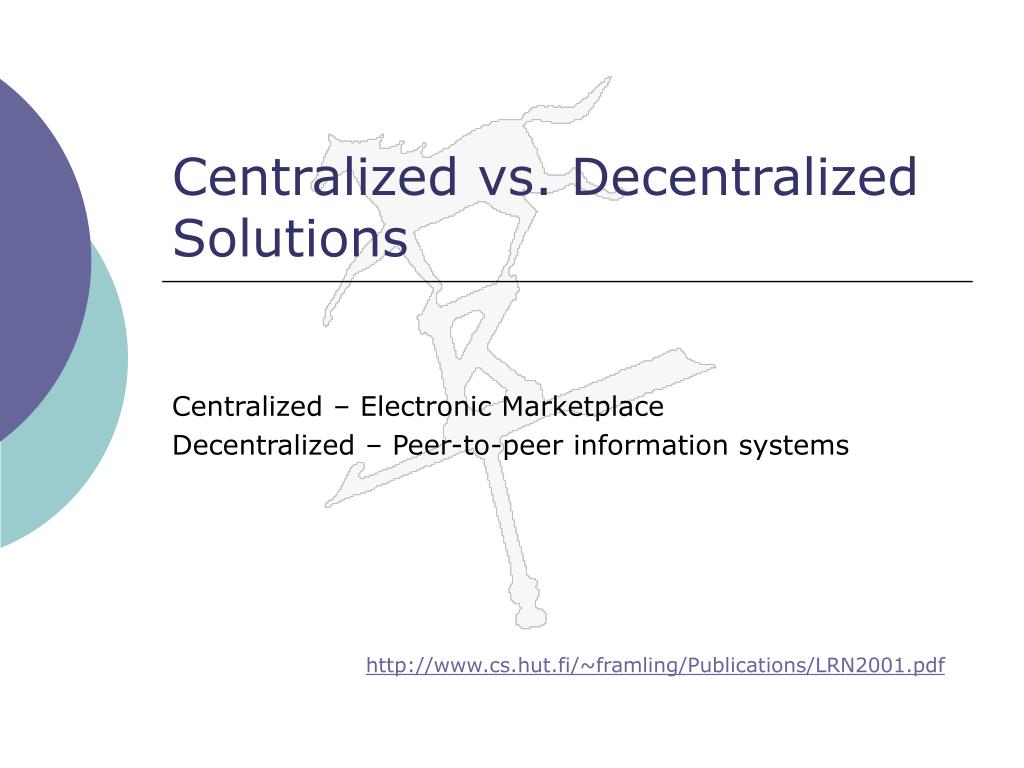

centralized vs decentralized solutions

Centralized vs. Decentralized Solutions

Centralized – Electronic Marketplace

Decentralized – Peer-to-peer information systems

http://www.cs.hut.fi/~framling/Publications/LRN2001.pdf

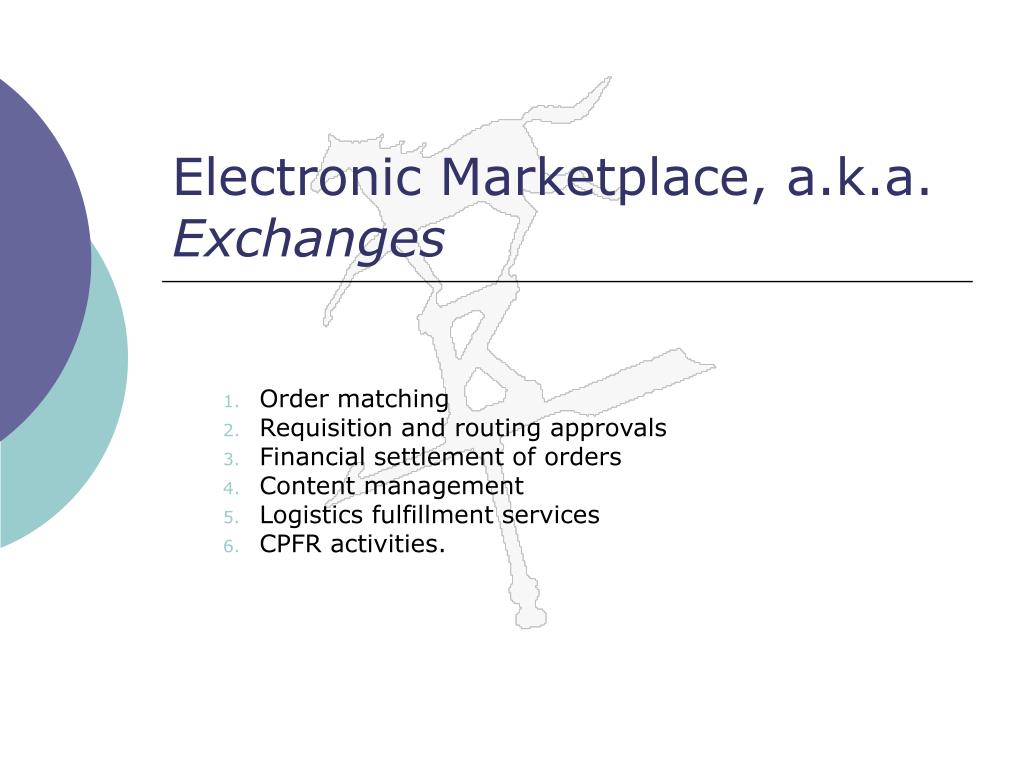

electronic marketplace a k a exchanges

Electronic Marketplace, a.k.a. Exchanges

Order matching

Requisition and routing approvals

Financial settlement of orders

Content management

Logistics fulfillment services

CPFR activities.

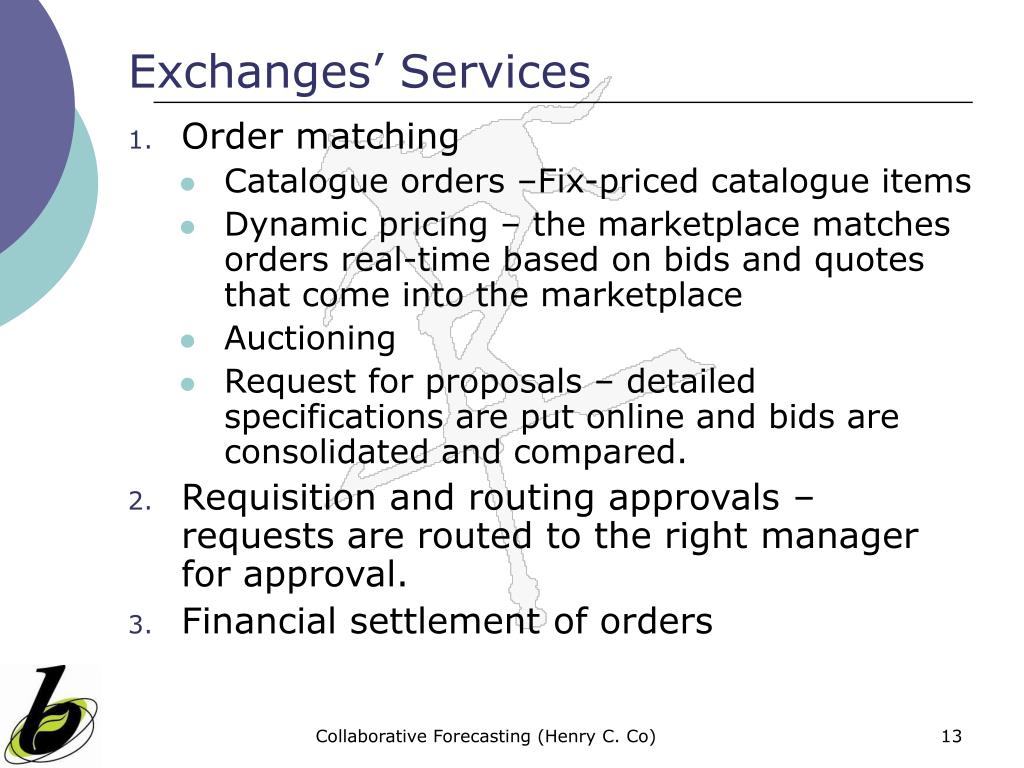

exchanges services
Exchanges’ Services
  • Order matching
    • Catalogue orders –Fix-priced catalogue items
    • Dynamic pricing – the marketplace matches orders real-time based on bids and quotes that come into the marketplace
    • Auctioning
    • Request for proposals – detailed specifications are put online and bids are consolidated and compared.
  • Requisition and routing approvals – requests are routed to the right manager for approval.
  • Financial settlement of orders

Collaborative Forecasting (Henry C. Co)

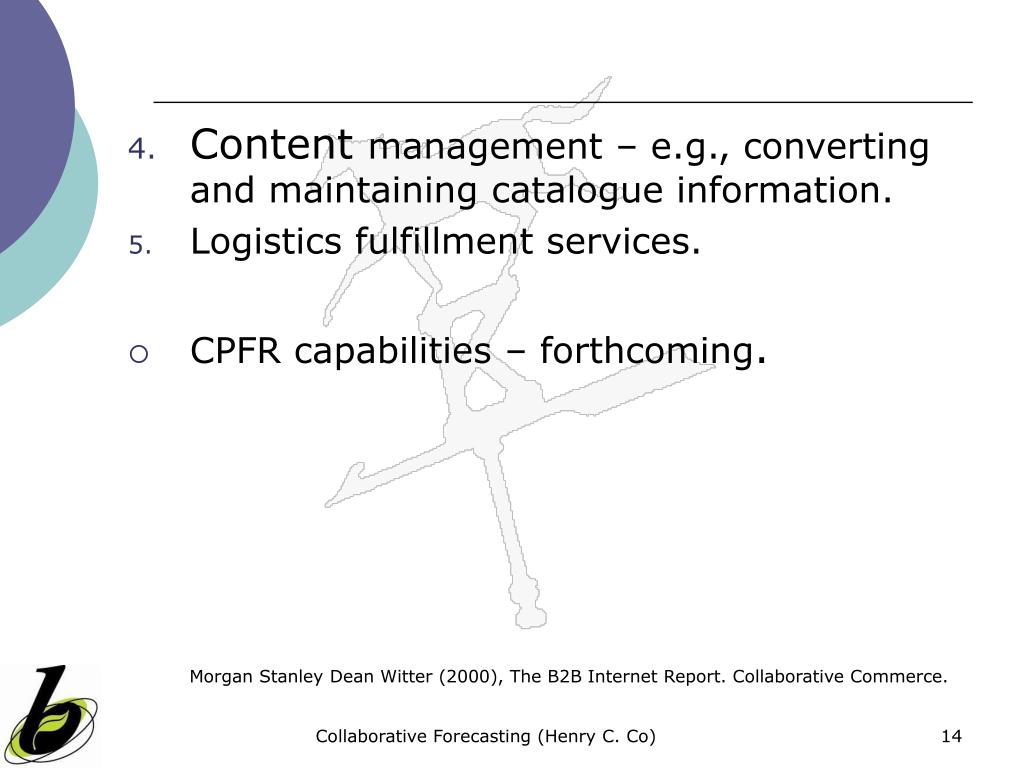

slide14
Content management – e.g., converting and maintaining catalogue information.
  • Logistics fulfillment services.
  • CPFR capabilities – forthcoming.

Morgan Stanley Dean Witter (2000), The B2B Internet Report. Collaborative Commerce.

Collaborative Forecasting (Henry C. Co)

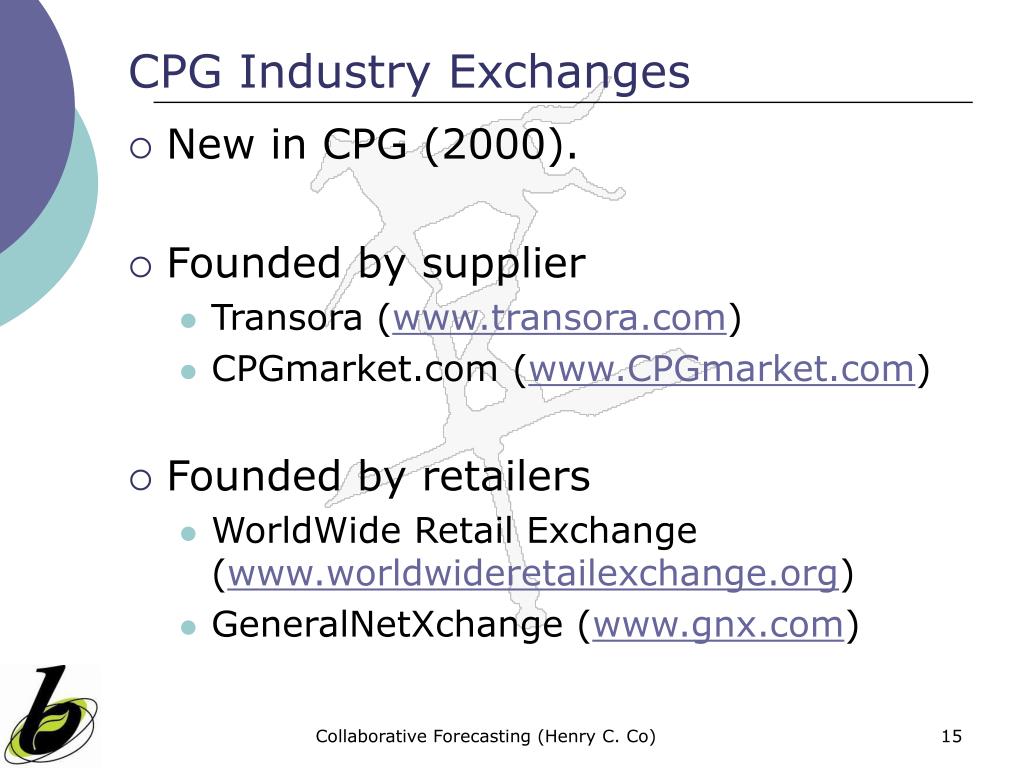

cpg industry exchanges
CPG Industry Exchanges
  • New in CPG (2000).
  • Founded by supplier
    • Transora (www.transora.com)
    • CPGmarket.com (www.CPGmarket.com)
  • Founded by retailers
    • WorldWide Retail Exchange (www.worldwideretailexchange.org)
    • GeneralNetXchange (www.gnx.com)

Collaborative Forecasting (Henry C. Co)

advantages
Advantages
  • Efficient matching of demand and supply – Easier to involve many (even anonymous) players in the trading process.
    • Expands customers base; lowers barriers for sellers to participate in bidding.
    • Expands supplier base; allows buyers to get better price.
  • Only investment is the communication link to the exchanges – Low entry barrier (allows small players to participate in CPFR).
  • ONE link (to the exchange), rather than several links to several trading partners.
  • Standardization – Exchanges impose communication standards (open or proprietary).
  • Value-added services – translation services when trading partners use different message formats.

Collaborative Forecasting (Henry C. Co)

disadvantages
Disadvantages
  • Reduced control – once information is uploaded to the exchanges, must rely on the exchange to deliver it to the right recipient (and only the right recipient);
  • Power – Exchanges are likely develop features and capabilities to cater to the needs of large customers;
  • Exchanges offer standardized solutions, companies have different needs in collaboration.
  • Transaction and service fees.

Collaborative Forecasting (Henry C. Co)

disadvantages18
Disadvantages
  • Information has to be explicitly communicated to the administrator of the marketplace, thus making it more difficult to keep catalog information (product info, prices) up to date.

Collaborative Forecasting (Henry C. Co)

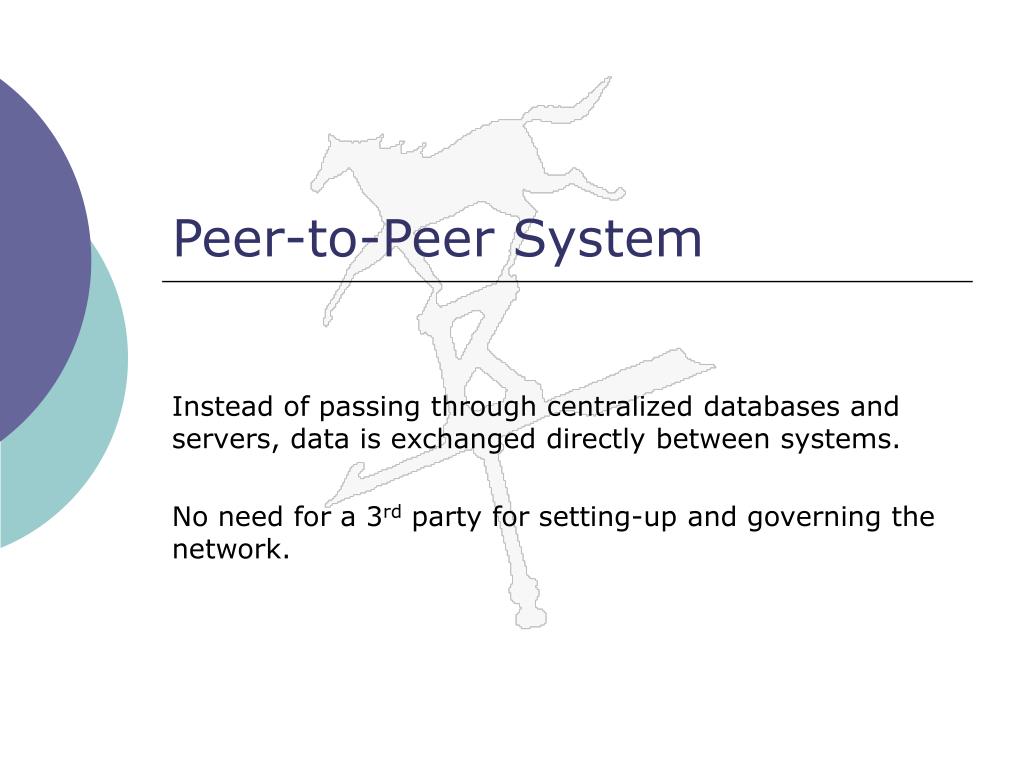

peer to peer system

Peer-to-Peer System

Instead of passing through centralized databases and servers, data is exchanged directly between systems.

No need for a 3rd party for setting-up and governing the network.

shared process and data model

RETAILER

MANUFACTURER

Item

Table

Item

Table

Internet

Inter-

face

Inter-

face

APPLICATION

APPLICATION

Shared

Data

Forecast

Table

Forecast

Table

Promotions

Table

Promotions

Table

ITEMNUMBER

1234567890001

1234567890002

1234567890003…

RTLR’SFORECAST

1200

14000

330

MFR..FORECAST

1150

9000

350

DELTA

50

5000

20

TOLERANCE

100

2000

50

OK?

ü

û

ü

Shared Process and Data Model

Viswanathan, R., “Systematic Collaboration in the Supply Chain Planning, Forecasting, and Replenishment,” available online from http://www.ise.ufl.edu/Supplychain/done/Day1/Viswanathan/Viswanathan.ppt

peer to peer scenario architecture

Backend Server Apps

Backend Server Apps

Data

Data

Peer to Peer Scenario Architecture

Workstation

Manufacturer

Retailer

Workstation

SMTP

S/MIME, SIL

CPFR Server

www.supplier.cpfr.com

CPFR Server

www.retailer.cpfr.com

Viswanathan, R., “Systematic Collaboration in the Supply Chain Planning, Forecasting, and Replenishment,” available online from http://www.ise.ufl.edu/Supplychain/done/Day1/Viswanathan/Viswanathan.ppt

example of retailer supplier setup

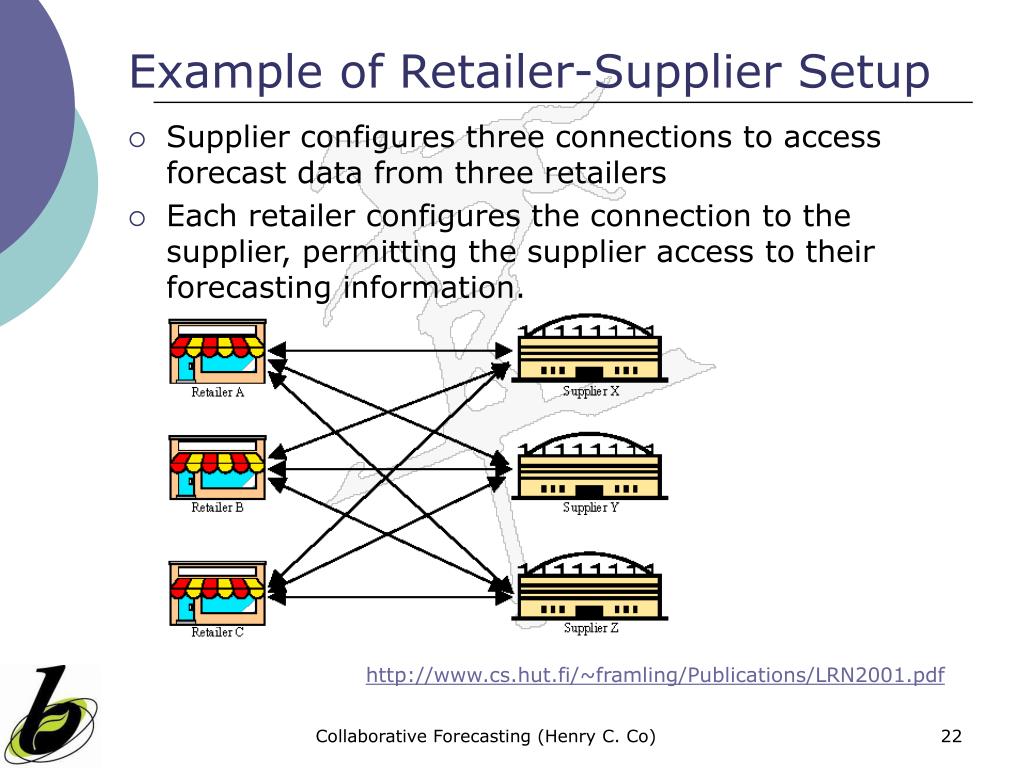

Example of Retailer-Supplier Setup
  • Supplier configures three connections to access forecast data from three retailers
  • Each retailer configures the connection to the supplier, permitting the supplier access to their forecasting information.

http://www.cs.hut.fi/~framling/Publications/LRN2001.pdf

Collaborative Forecasting (Henry C. Co)

information sharing connections

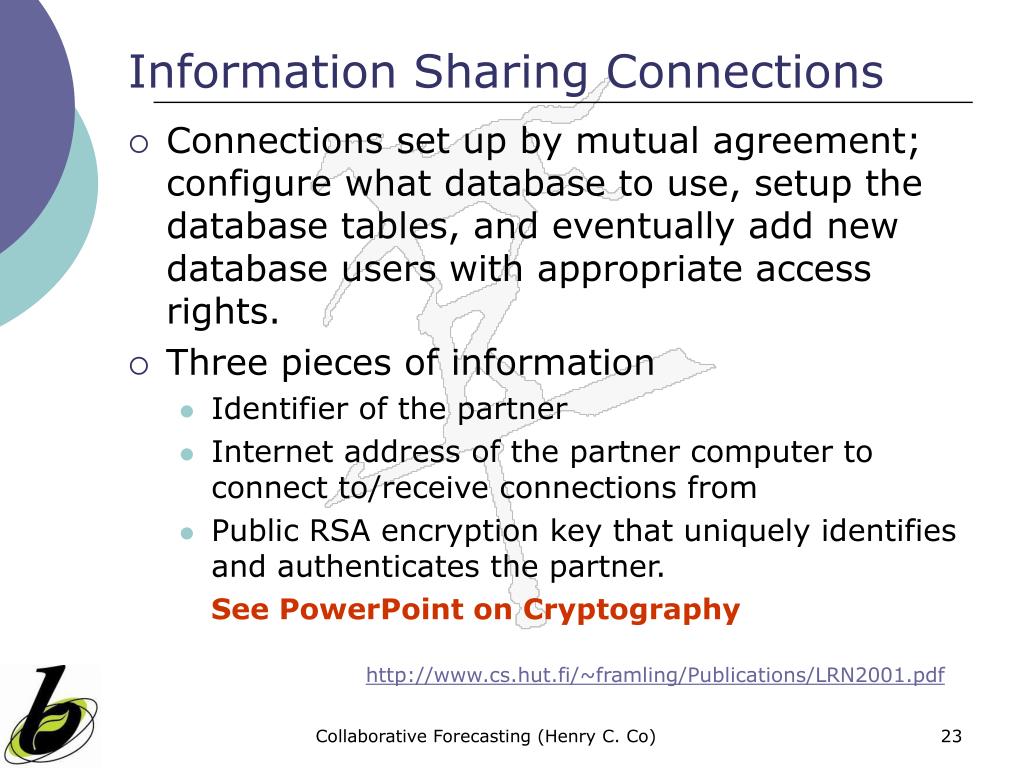

Information Sharing Connections
  • Connections set up by mutual agreement; configure what database to use, setup the database tables, and eventually add new database users with appropriate access rights.
  • Three pieces of information
    • Identifier of the partner
    • Internet address of the partner computer to connect to/receive connections from
    • Public RSA encryption key that uniquely identifies and authenticates the partner.

See PowerPoint on Cryptography

http://www.cs.hut.fi/~framling/Publications/LRN2001.pdf

Collaborative Forecasting (Henry C. Co)

advantages and disadvantages
Advantages and Disadvantages
  • Advantages
    • Control and power
      • No need for a 3rd party for setting-up and governing the network.
      • All parties have equal status regardless of their size and can independently choose how to collaborate with other network parties.
    • Scalability
      • Network setup as needed; no limit on number of parties, products or product groups.
    • Up-to-date information
    • No participation fees
  • Disadvantage: Slow standardization

Collaborative Forecasting (Henry C. Co)

cpfr interoperability

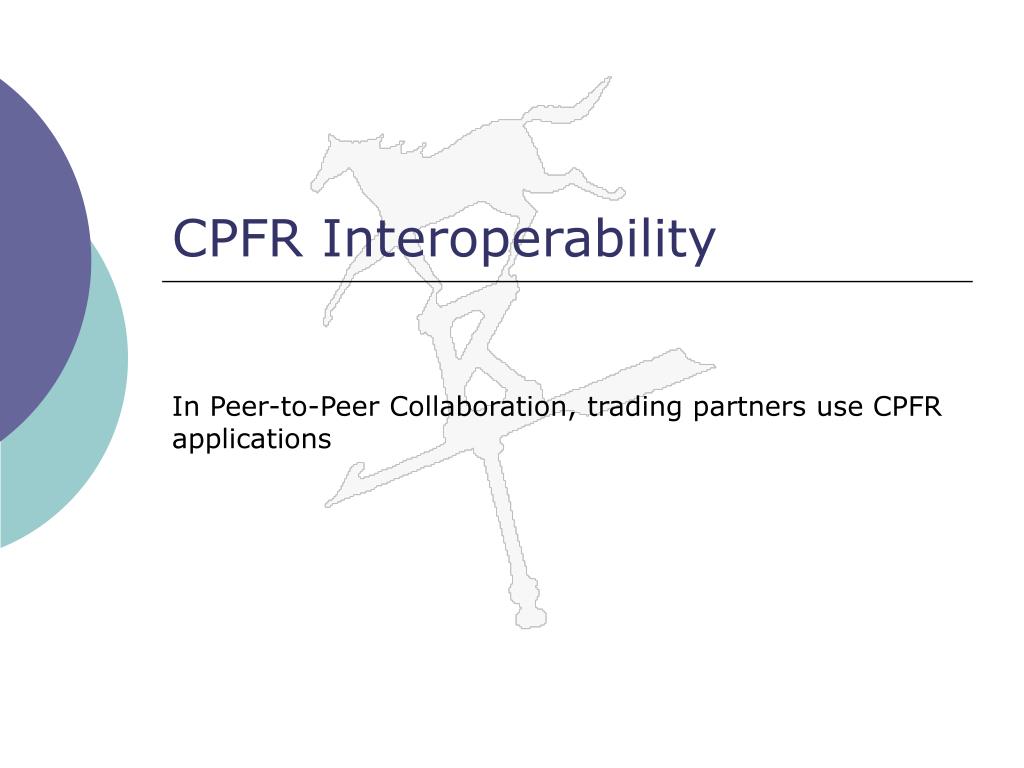

CPFR Interoperability

In Peer-to-Peer Collaboration, trading partners use CPFR applications

a client server architecture
A Client-Server Architecture

Sun Ultra

Netscape

LiveWire

Informix 7.2

EnterpriseServer 3.0

Web

Browser

HTTP

Server

Client

Viswanathan, R., “Systematic Collaboration in the Supply Chain Planning, Forecasting, and Replenishment,” available online from http://www.ise.ufl.edu/Supplychain/done/Day1/Viswanathan/Viswanathan.ppt

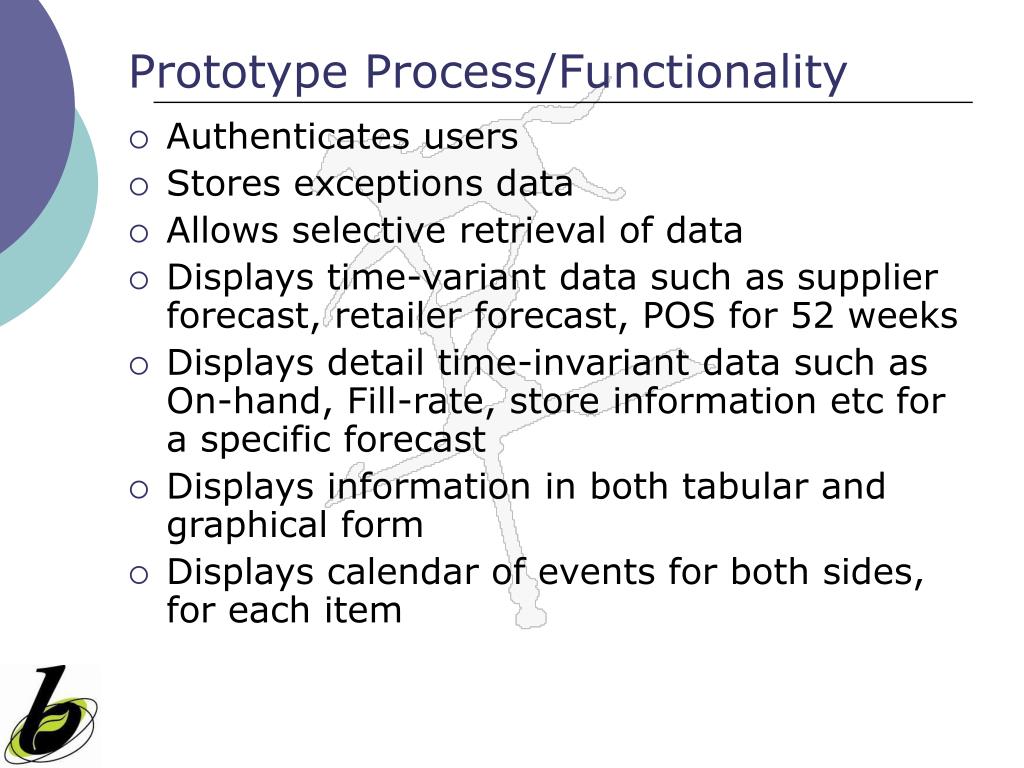

prototype process functionality
Prototype Process/Functionality
  • Authenticates users
  • Stores exceptions data
  • Allows selective retrieval of data
  • Displays time-variant data such as supplier forecast, retailer forecast, POS for 52 weeks
  • Displays detail time-invariant data such as On-hand, Fill-rate, store information etc for a specific forecast
  • Displays information in both tabular and graphical form
  • Displays calendar of events for both sides, for each item

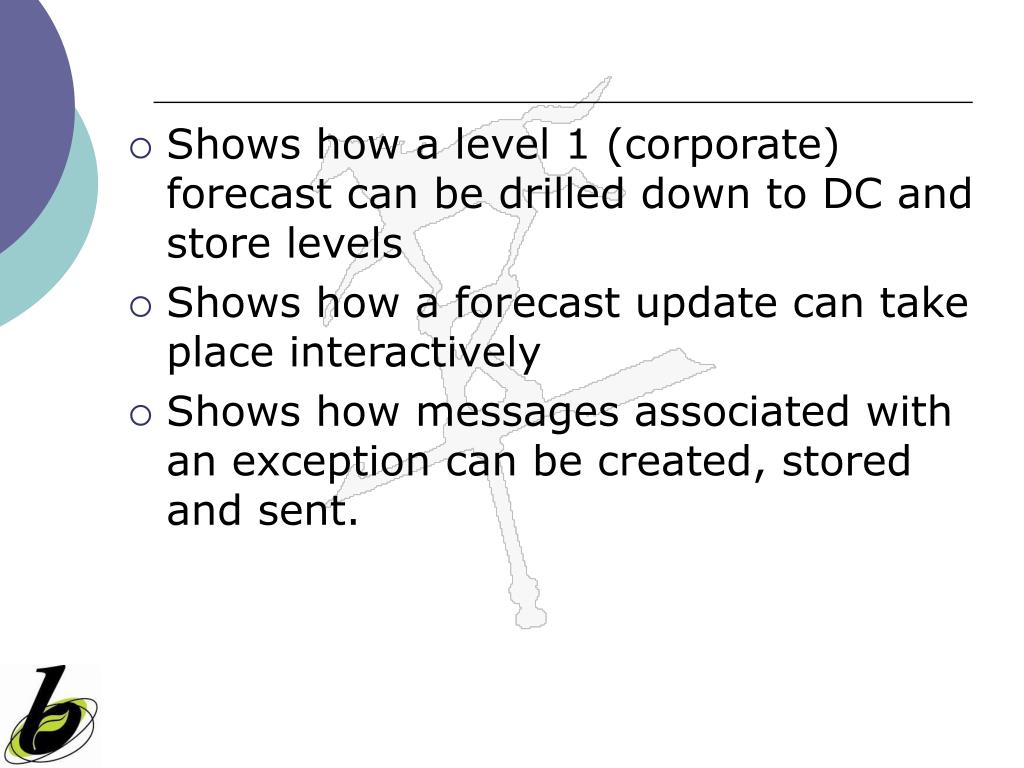

slide28
Shows how a level 1 (corporate) forecast can be drilled down to DC and store levels
  • Shows how a forecast update can take place interactively
  • Shows how messages associated with an exception can be created, stored and sent.
next steps for cpfr and the industry

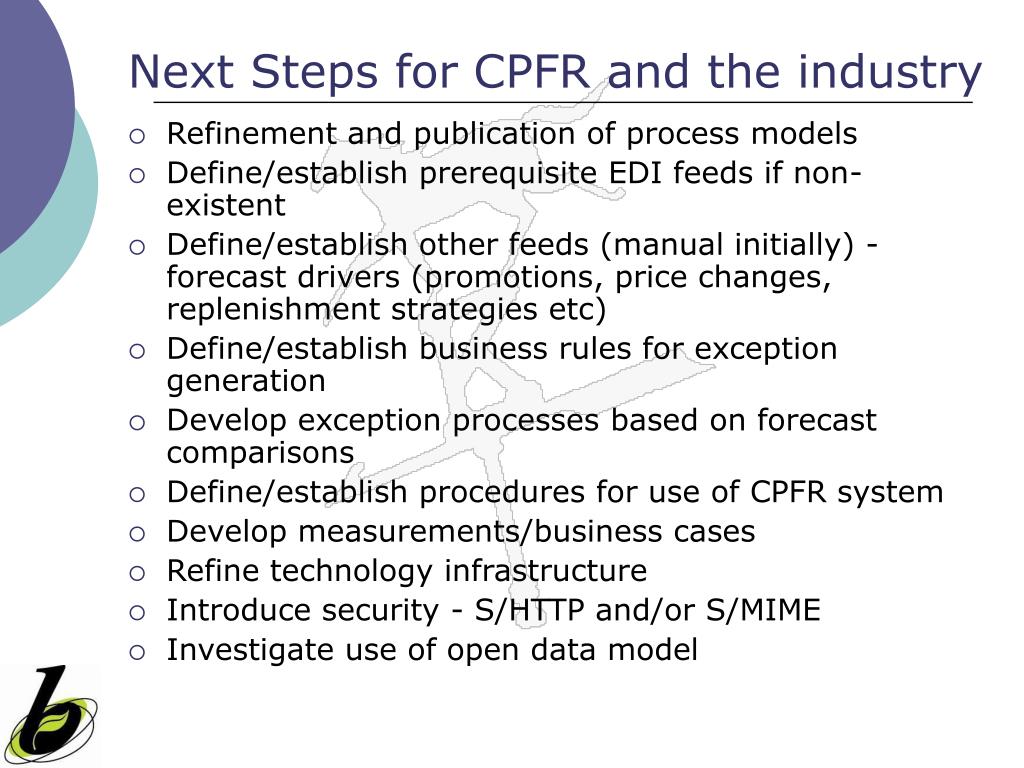

Next Steps for CPFR and the industry
  • Refinement and publication of process models
  • Define/establish prerequisite EDI feeds if non-existent
  • Define/establish other feeds (manual initially) - forecast drivers (promotions, price changes, replenishment strategies etc)
  • Define/establish business rules for exception generation
  • Develop exception processes based on forecast comparisons
  • Define/establish procedures for use of CPFR system
  • Develop measurements/business cases
  • Refine technology infrastructure
  • Introduce security - S/HTTP and/or S/MIME
  • Investigate use of open data model
challenges
Challenges
  • Organizational readiness
  • Process confirmation
  • Integration of supply chain collaboration tools with backend applications
    • data models
    • architecture (hub-hub, hub-spoke, hub-web)
  • Change management

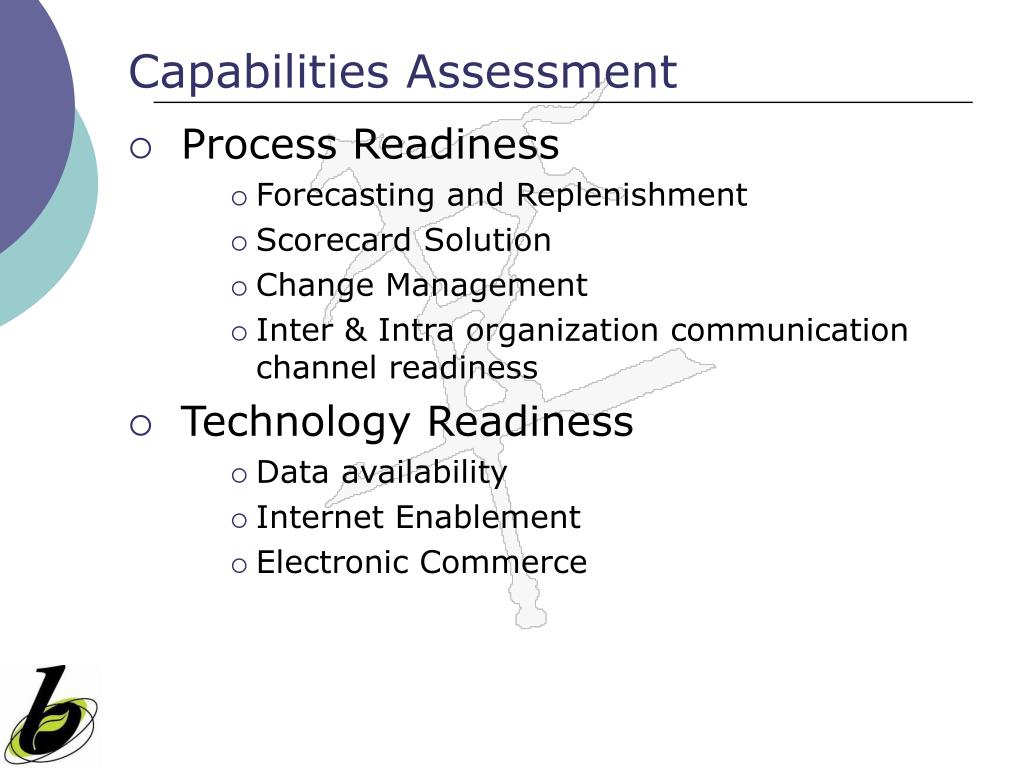

capabilities assessment
Capabilities Assessment
  • Process Readiness
      • Forecasting and Replenishment
      • Scorecard Solution
      • Change Management
      • Inter & Intra organization communication channel readiness
  • Technology Readiness
      • Data availability
      • Internet Enablement
      • Electronic Commerce
sap apo collaborative planning cp and cpfr

SAP APO Collaborative Planning (CP) and CPFR

APO is the acronym for Advanced Planner and Optimizer

slide33

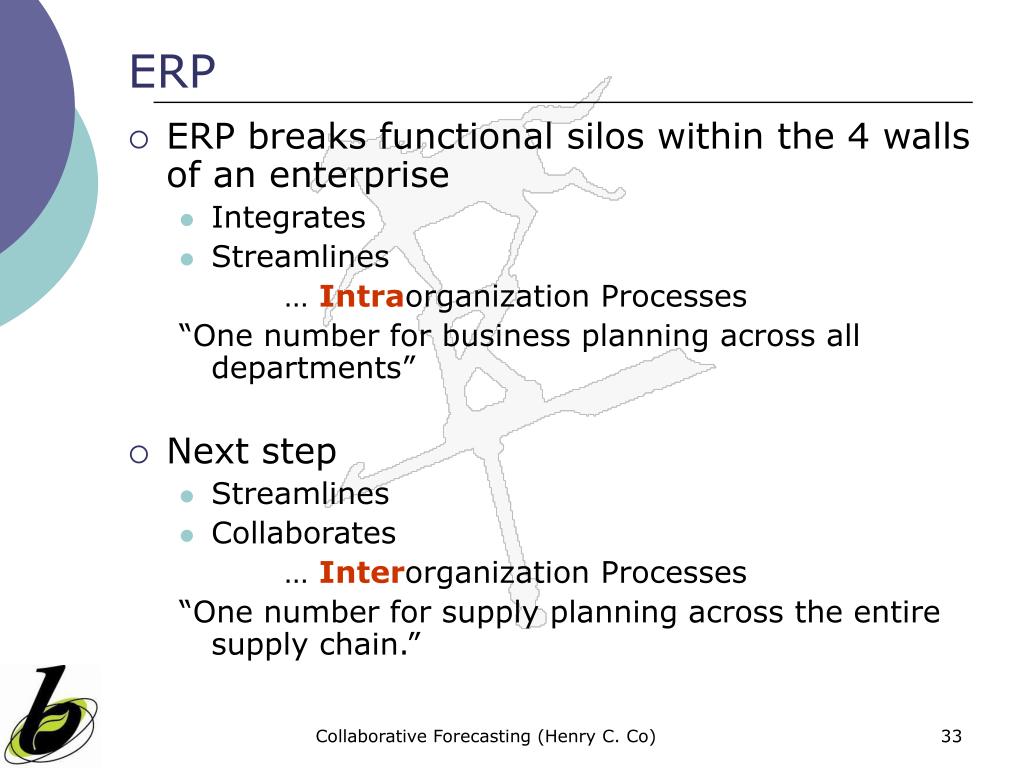

ERP
  • ERP breaks functional silos within the 4 walls of an enterprise
    • Integrates
    • Streamlines

… Intraorganization Processes

“One number for business planning across all departments”

  • Next step
    • Streamlines
    • Collaborates

… Interorganization Processes

“One number for supply planning across the entire supply chain.”

Collaborative Forecasting (Henry C. Co)

slide34

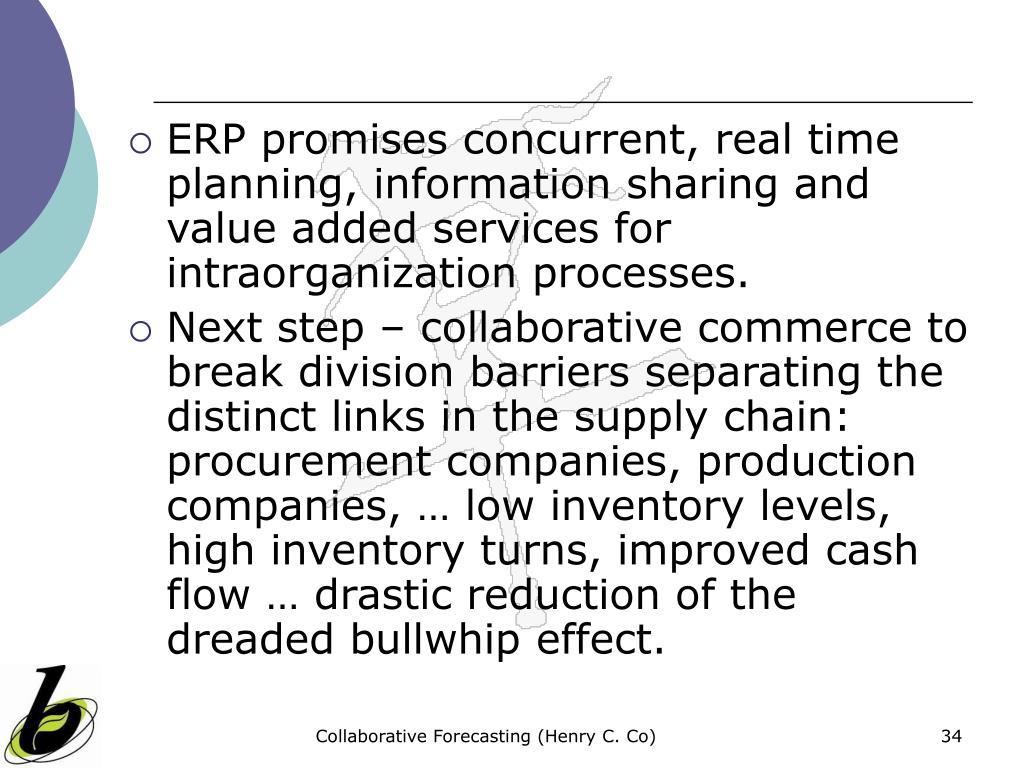

ERP promises concurrent, real time planning, information sharing and value added services for intraorganization processes.
  • Next step – collaborative commerce to break division barriers separating the distinct links in the supply chain: procurement companies, production companies, … low inventory levels, high inventory turns, improved cash flow … drastic reduction of the dreaded bullwhip effect.

Collaborative Forecasting (Henry C. Co)

before internet
Before Internet
  • Businesses exchange information by
    • Meetings
    • Phone
    • Mail (slow)
    • Fax
    • EDI (costly and rigid)
  • The Internet enable businesses to establish low cost, secure, scalable, and dynamic collaborative commerce.

Collaborative Forecasting (Henry C. Co)

sap apo collaborative planning
SAP APO Collaborative Planning
  • Exchange planning information
  • Browse and update data via a browser
  • Multiple partner access, but restricting access to authorized data and activities
  • Consensus planning process
  • Exception-based management
  • One number for supply planning across the entire supply chain.

Collaborative Forecasting (Henry C. Co)

internet based functionalities
Internet-Based Functionalities
  • Consensus-based forecasting
  • CPFR compliant collaborative forecasting
  • Vendor managed inventory
  • Supplier collaboration.

Collaborative Forecasting (Henry C. Co)

sap apo cp functionality 1

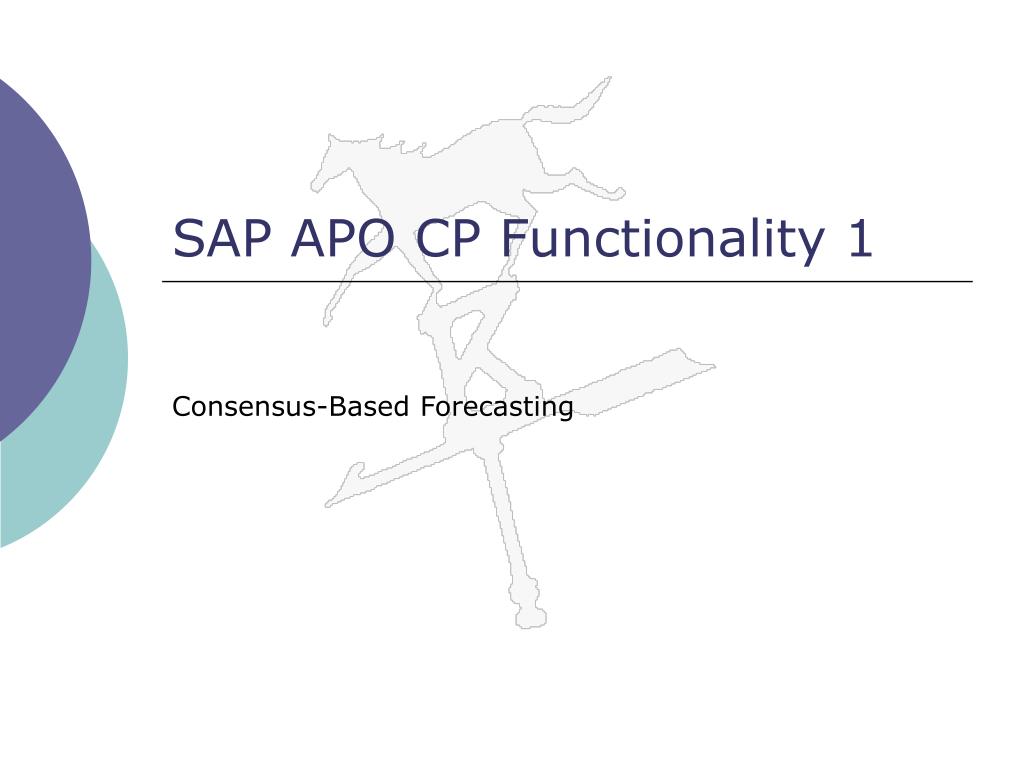

SAP APO CP Functionality 1

Consensus-Based Forecasting

slide39

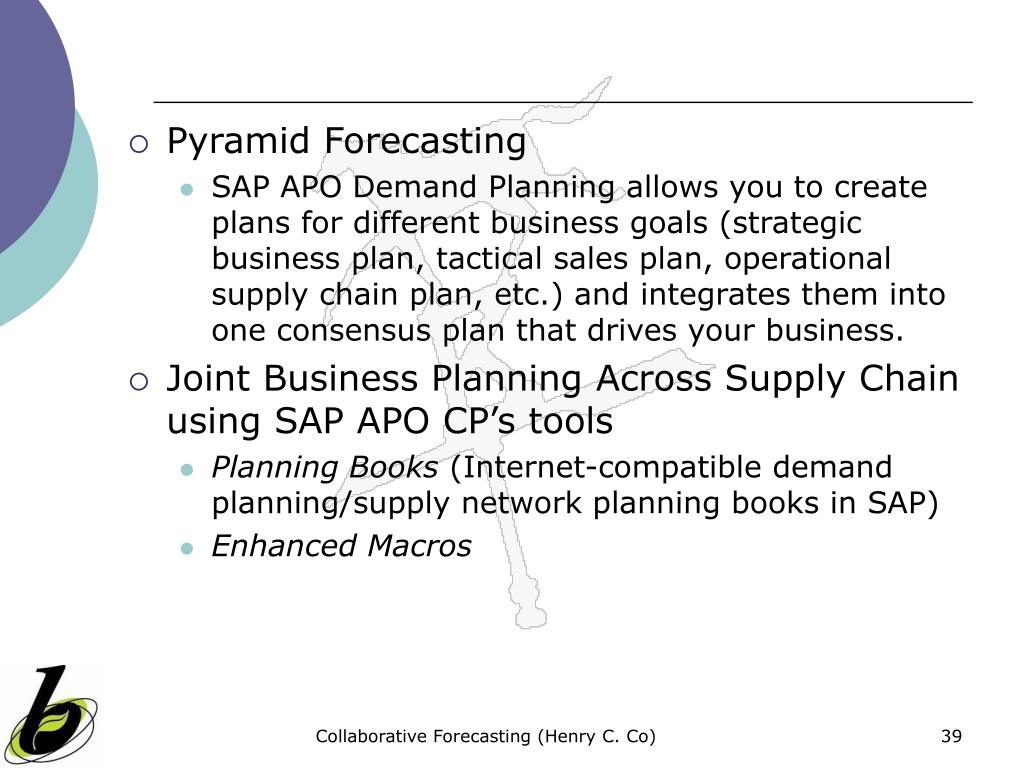

Pyramid Forecasting
    • SAP APO Demand Planning allows you to create plans for different business goals (strategic business plan, tactical sales plan, operational supply chain plan, etc.) and integrates them into one consensus plan that drives your business.
  • Joint Business Planning Across Supply Chain using SAP APO CP’s tools
    • Planning Books (Internet-compatible demand planning/supply network planning books in SAP)
    • Enhanced Macros

Collaborative Forecasting (Henry C. Co)

pyramid forecasting
Pyramid Forecasting
  • Parties Involved
    • Central planning department which creates a consolidated forecast for ALL products
    • Key account manager who creates a forecast for a specific retailer or wholesaler
    • Sales department which forecasts its own demand
  • Each party bases its forecast on specific information.
  • GOAL – to consolidate the various forecasts into a common time series to be used for planning.

Collaborative Forecasting (Henry C. Co)

pyramid forecasting process
Pyramid Forecasting Process
  • Department-specific forecasts
    • Sales
      • For a combination of product and customer
      • Goals are tactical – maximize sales
      • Focus on promotions, orders, POS data, competitive info, customer info.
    • Logistics
      • For a combination of product/item and location
      • Goals are operational – minimize costs, fulfill orders
      • Focus on shipments, material and capacity constraints.

Collaborative Forecasting (Henry C. Co)

slide42
Marketing
    • For a combination of product family/market zone
    • Goals are strategic – increase demand, reduce stock
    • Focus on promotions and events, causal relationships, and syndicated POS data.

Collaborative Forecasting (Henry C. Co)

slide43

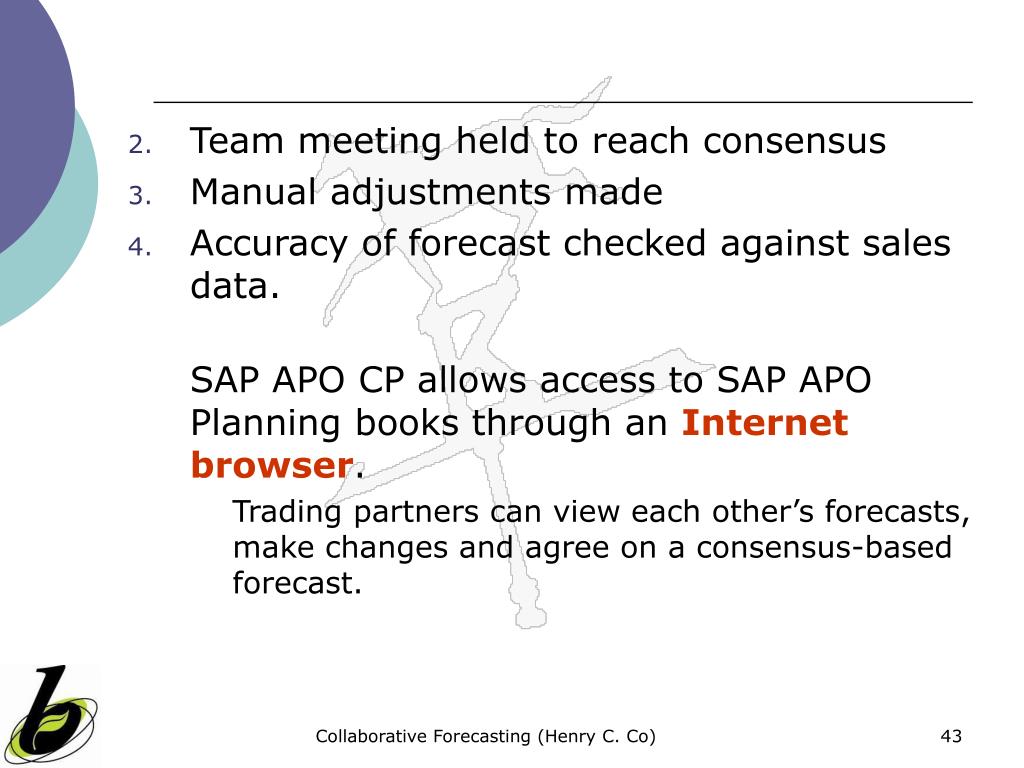

Team meeting held to reach consensus
  • Manual adjustments made
  • Accuracy of forecast checked against sales data.
  • SAP APO CP allows access to SAP APO Planning books through an Internet browser.
    • Trading partners can view each other’s forecasts, make changes and agree on a consensus-based forecast.

Collaborative Forecasting (Henry C. Co)

sap apo functionality 2

SAP APO Functionality 2

Collaborative Planning, Forecasting and Replenishment (CPFR®)

the cpfr reference model

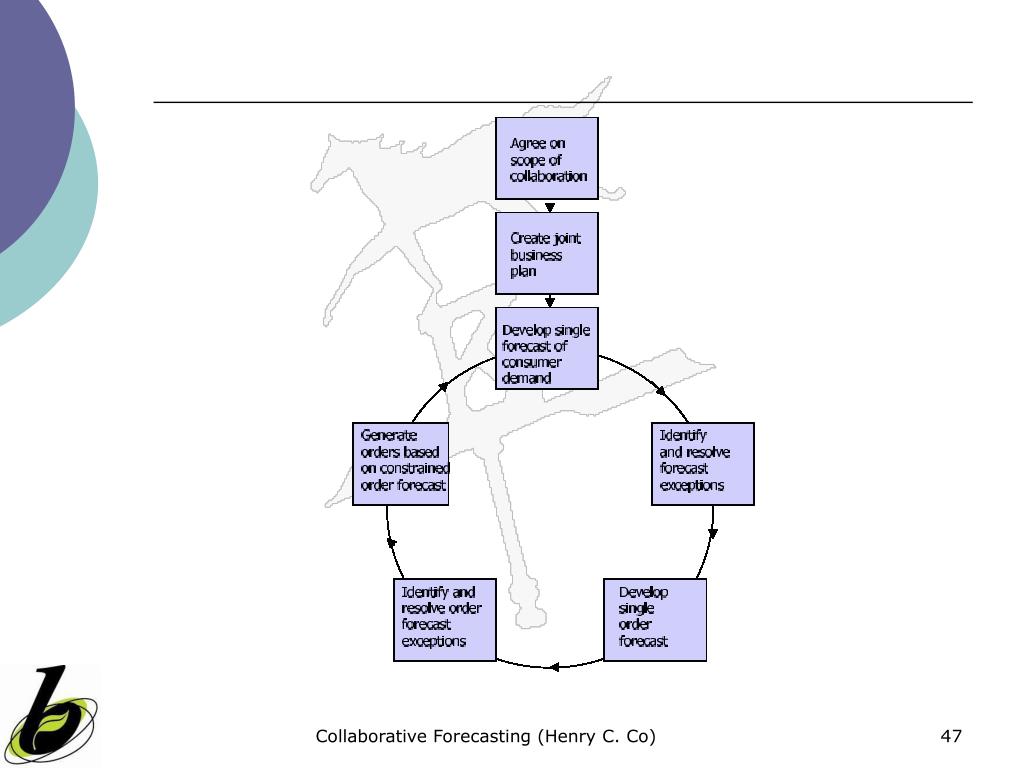

The CPFR® Reference Model
  • 8 collaboration tasks form an iterative cycle of 4 activities:
    • Strategy & Planning
    • Demand & Supply Management
    • Execution
    • Analysis.
  • Each activity consists of two collaboration tasks.

Collaborative Forecasting (Henry C. Co)

cpfr in sap apo collaborative planning
CPFR in SAP APO Collaborative Planning

Collaborative Forecasting (Henry C. Co)

sap apo cp functionality 3

SAP APO CP Functionality 3

VMI over the Internet

vendor managed inventory

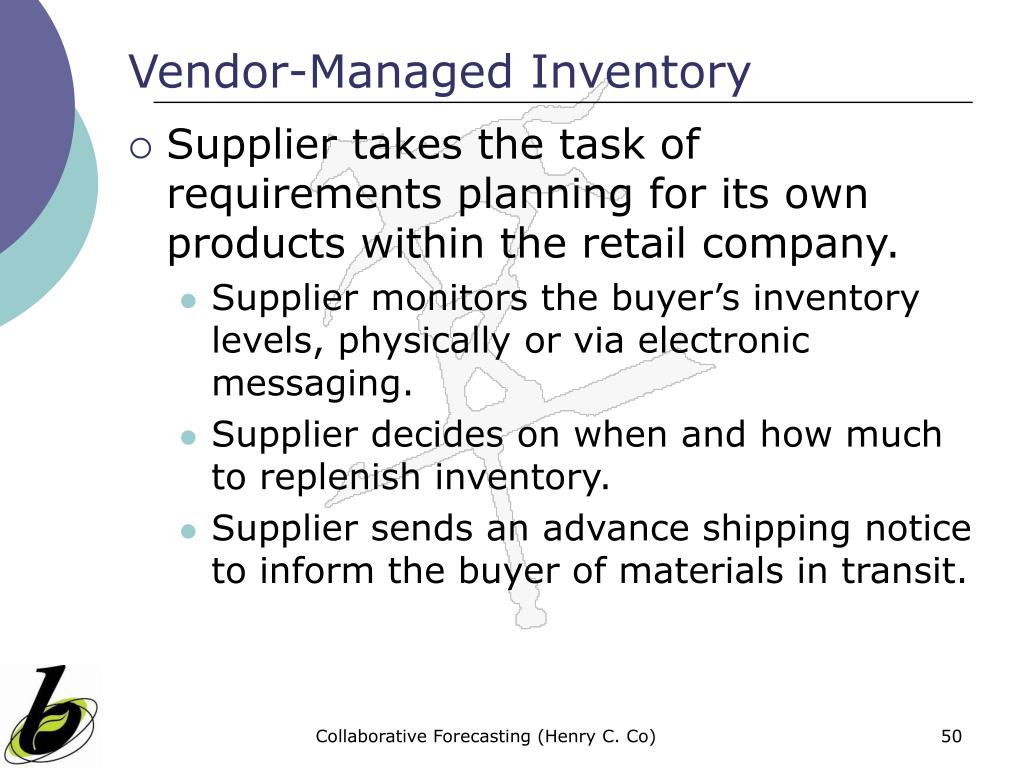

Vendor-Managed Inventory
  • Supplier takes the task of requirements planning for its own products within the retail company.
    • Supplier monitors the buyer’s inventory levels, physically or via electronic messaging.
    • Supplier decides on when and how much to replenish inventory.
    • Supplier sends an advance shipping notice to inform the buyer of materials in transit.

Collaborative Forecasting (Henry C. Co)

sap apo cp enables vmi over internet
SAP APO CP Enables VMI over Internet
  • VMI requires supplier to be able to track the amount of its products stocked at the retailer side, and access to the retailer’s sales forecasts.
  • SAP APO CP enables VMI over the Internet
    • Internet planning book allows users to access the Supply Network Planning data
    • Business Connector allows users to transmit VMI data from SAP APO Collaborative Planning to partners’ systems that can receive and process XML messages.
  • VMI over the Internet
    • Affordable – small retailers can participate in supply chain planning.
    • Allows retailer to maintain control over the data it is sending to the supplier and change it if necessary.

Collaborative Forecasting (Henry C. Co)

slide52
SAP APO Business Connector
    • The Business Connector translates EDI messages to XML messages that can be transmitted over the Internet.
    • Retailer can transmit, via the Business Connector, VMI data from SAP APO Collaborative Planning to suppliers’ systems.
    • Partners’ systems must have the capability to receive and process XML messages
  • Making VMI possible via Internet provides small retailers with an
  • economical alternative to participating in supply chain planning. It also allows the retailer to maintain control over the data it is sending to the supplier and change it if necessary.
  • To achieve their goals, participants will be able to access the Supply Network Planning data through Internet planning books.

Collaborative Forecasting (Henry C. Co)

sap apo cp functionality 4

SAP APO CP Functionality 4

Supplier Collaboration

slide54
EDI in automotive industry
    • Suppliers connected to auto manufacturers by EDI;
    • Exchange dependent requirements (MRP)
    • Requires large investments.
  • The Web
    • Low cost
    • Allows smaller companies to participate
    • The only requirement is that partners’ systems must have the capability to receive and process XML messages.

Collaborative Forecasting (Henry C. Co)

sap apo collaborative planning55
SAP APO Collaborative Planning
  • The dependent requirements in Supply Network Planning are displayed in supplier specific planning books.
    • A supplier can have access to those aspects of the planning situation that affect him/her.
    • Users can have access to production plans as well as dependent requirements.
    • Internet enabled planning books allow users to have an interactive role; for example, if the delivery of the dependent requirements cannot be made in time, an alternative date can be suggested.
  • Using the Business Connector, SAP APO Collaborative Planning can directly communicate with partners’ system using XML messages over the Internet.
    • Allows system-to-system communication enabling users to be involved only in exception situations.
    • Thus, SAP APO Collaborative Planning enables synchronized planning across business partners.

Collaborative Forecasting (Henry C. Co)
