Management

1. Management Approach Schedule Costs Concerns

2. Project Approach • Small “systems” design team • Small core with all disciplines represented • Review procurement options • How much vendor involvement early? • How to ‘break down’ job into sensible packages • Involve industry for early design and cost input • Restrict new or advanced technology to critical areas • Major trades early • Look for upgrade paths for future improvements options From: ATST Design Workshop, November 2002 ATST Conceptual Design Review

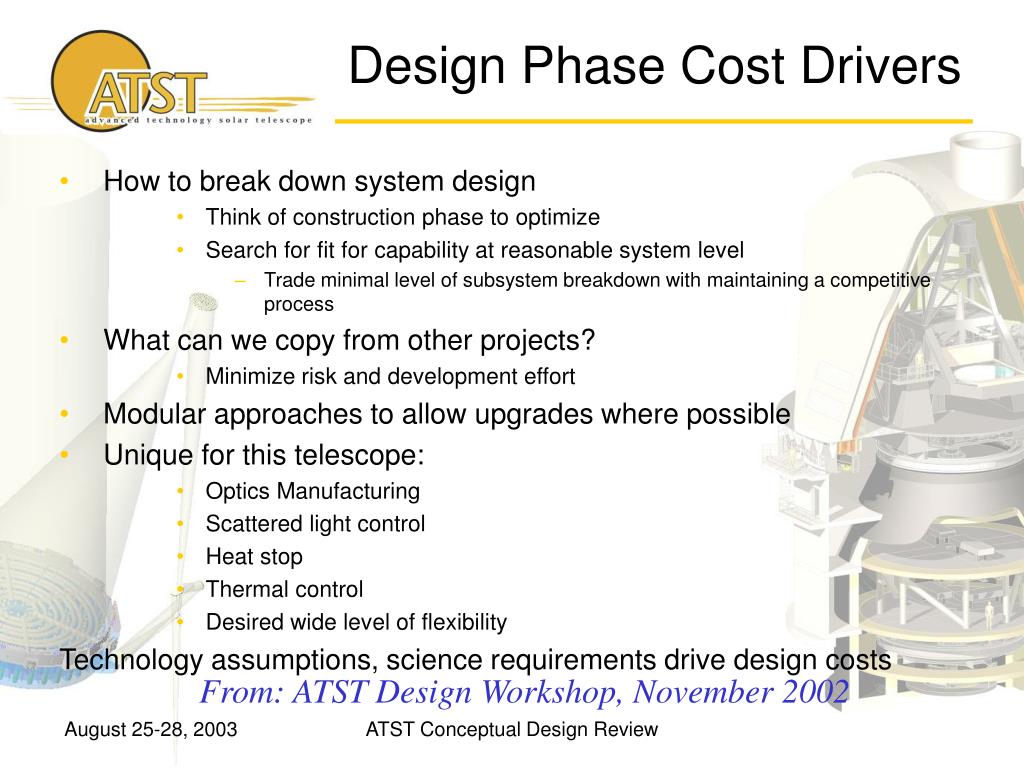

3. Design Phase Cost Drivers • How to break down system design • Think of construction phase to optimize • Search for fit for capability at reasonable system level • Trade minimal level of subsystem breakdown with maintaining a competitive process • What can we copy from other projects? • Minimize risk and development effort • Modular approaches to allow upgrades where possible • Unique for this telescope: • Optics Manufacturing • Scattered light control • Heat stop • Thermal control • Desired wide level of flexibility Technology assumptions, science requirements drive design costs From: ATST Design Workshop, November 2002 ATST Conceptual Design Review

4. Contingency PlanningA Key to Risk mitigation • Hold budget for contingency • Prioritize science requirements/goals • Design with mind toward achieving goals • Modular upgrades in case money is limited • No time to re-do major designs at end of design phase • Exception are items easily cut or defined as future additions • Establish Time contingency in project schedule • Allowing time and money for recovery from problems • Establish key dates for decisions, early Stick to them Most projects need financial and functional contingency Options for future upgrades if financial limits are exceeded From: ATST Design Workshop, November 2002 ATST Conceptual Design Review

5. Management & Systems • Requirements • Define system performance requirements • SRD (based upon draft & discussions) • Flow down requirements • Use Cases, error budgets, etc. • DRD • Define major subsystems • Ensure flexibility • Keep construction in mind • Industry capabilities • I,T&C • Frequently update construction cost estimates From: ATST Design Workshop, November 2002 ATST Conceptual Design Review

6. Management & Systems • Define interfaces • N^2 chart • ICDs • Develop WBS • Based upon subsystem definition and interfaces • Accounts mirror WBS • Schedule • Define major milestones • Top-level schedule through construction and commissioning • Identify critical and near-critical paths • Long-lead items (e.g. M1, enclosure) • Iterate From: ATST Design Workshop, November 2002 ATST Conceptual Design Review

7. Planning & Tracking Common Basis • Work breakdown structure (WBS) • Matches systems breakdown & interface organization • Construction phase kept in mind • Accounting tied to WBS • Three levels in D&D phase • Some miscellaneous items in management account • Schedule organization tied WBS • Construction cost estimates based upon WBS / Schedule • Timing and inflation based upon schedule • Setting up for Earned Value, Critical Path analysis • For construction phase • Tracking near critical items too…. ATST Conceptual Design Review

8. WBS Follows Sub-systems ATST Conceptual Design Review

9. Accounting tracks source of funds ATST Conceptual Design Review

10. D&D expenses on plan Additional NSO contribution: $1.25M to date - Site Survey $887K ATST Conceptual Design Review

11. Recent Schedule ATST Conceptual Design Review

12. Recent Schedule • Systems support of above areas • Error budgets • Analysis • Stray Light • Documentation ATST Conceptual Design Review

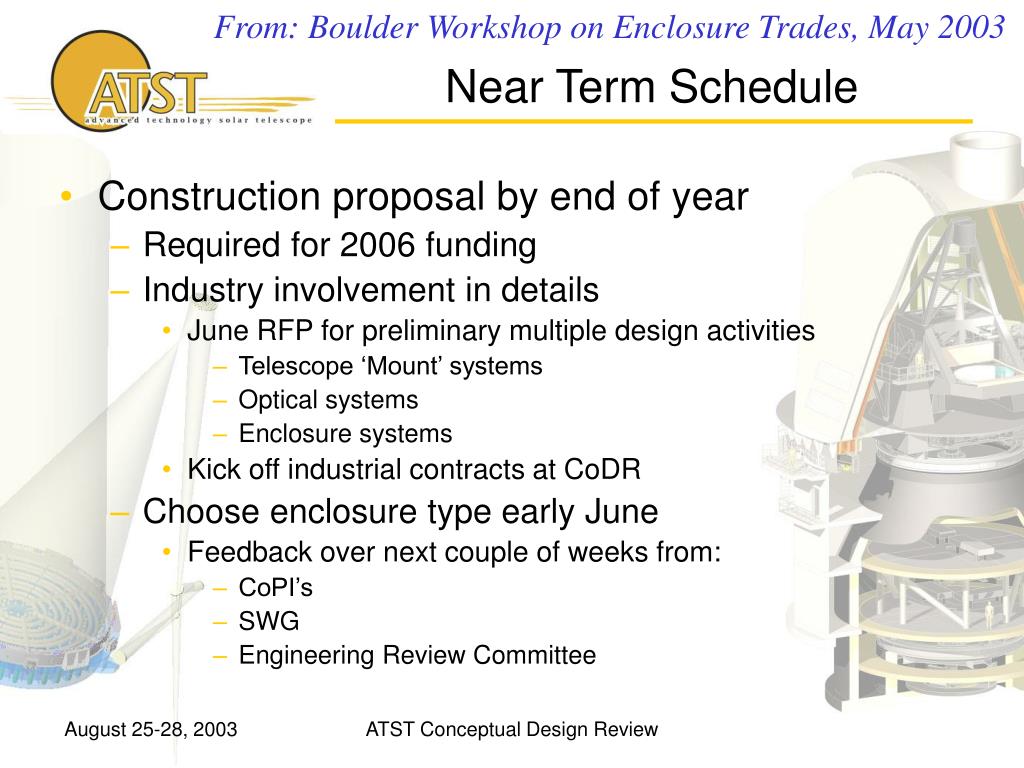

13. From: Boulder Workshop on Enclosure Trades, May 2003 Near Term Schedule • Construction proposal by end of year • Required for 2006 funding • Industry involvement in details • June RFP for preliminary multiple design activities • Telescope ‘Mount’ systems • Optical systems • Enclosure systems • Kick off industrial contracts at CoDR • Choose enclosure type early June • Feedback over next couple of weeks from: • CoPI’s • SWG • Engineering Review Committee ATST Conceptual Design Review

14. Design Evaluation Contracts * Attending CoDR • Optical Assemblies • EOS Technologies* • Goodrich Corporation * • SAGEM / Reosc * Brashear LP will give informal feedback at no cost • Mount - • EOS Technologies * • Telescope Technologies Limited * • Vertex RSI * MAN Technologies may offer feedback and participate later • Enclosure - • M3 Engineering and Technology Corp * • Vertex RSI * AMEC providing evaluation at no cost * ATST Conceptual Design Review

15. From: ATST Design Workshop, November 2002 D&D Milestones • Final designs of many systems to be completed during construction • Limited by D&D funding provided • Vendor final design & fabrication drawings • Non – critical path items ATST Conceptual Design Review

16. From: ATST Design Workshop, November 2002 Critical Path and Long Lead Effect ATST Conceptual Design Review

17. Long Lead PlanCritical Path ATST Conceptual Design Review

18. Long Lead PlanSite Selection Near Critical Path ATST Conceptual Design Review

19. Current Schedule • Provided in hard copy and presented at meeting ATST Conceptual Design Review
