slide1

Minerva Engineering

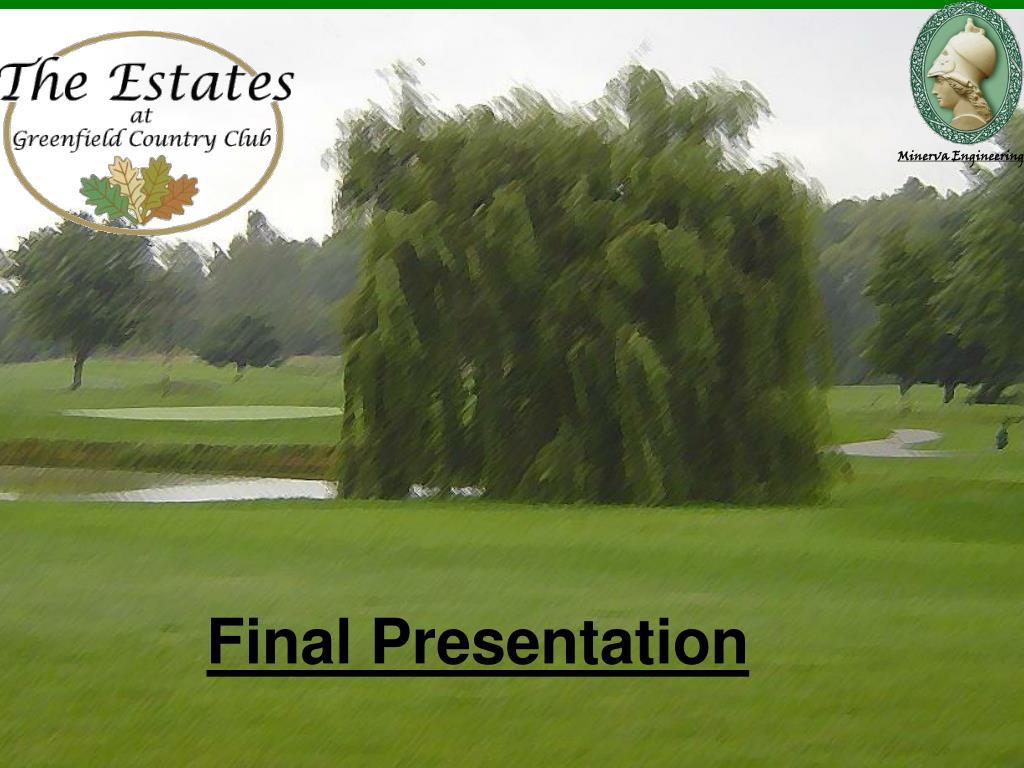

Final Presentation

introduction

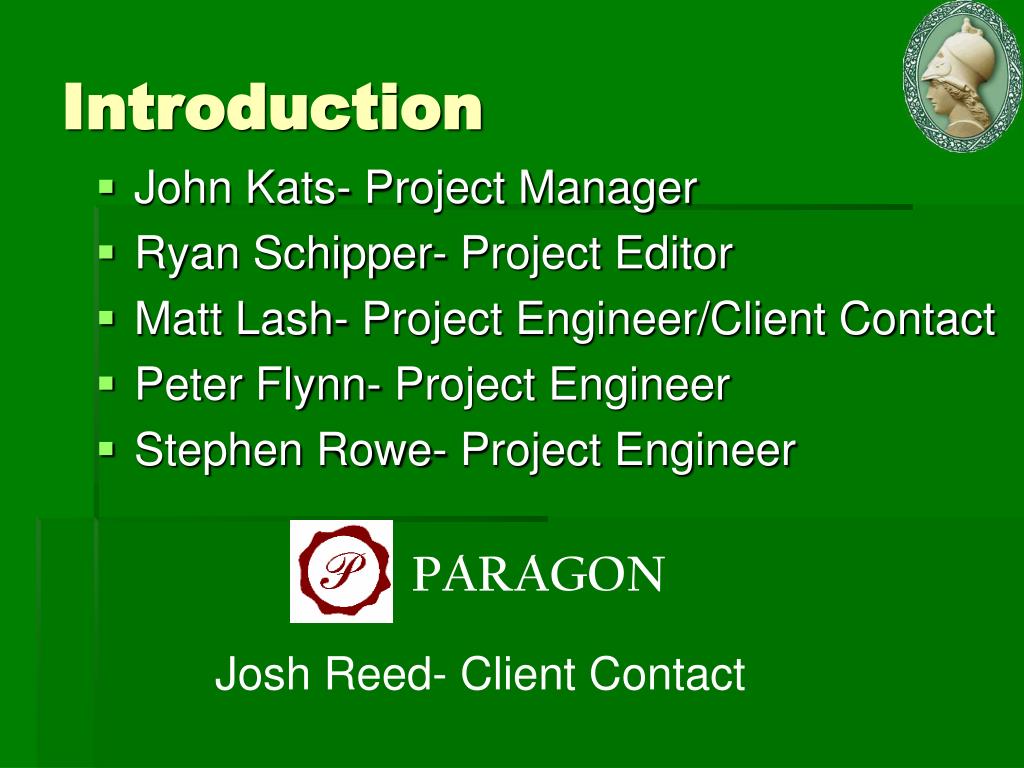

Introduction
  • John Kats- Project Manager
  • Ryan Schipper- Project Editor
  • Matt Lash- Project Engineer/Client Contact
  • Peter Flynn- Project Engineer
  • Stephen Rowe- Project Engineer

PARAGON

Josh Reed- Client Contact

overview
Overview
  • Overview
  • Preliminary Investigation
  • Layout Options
  • Final Work
  • Summary
preliminary feasibility study

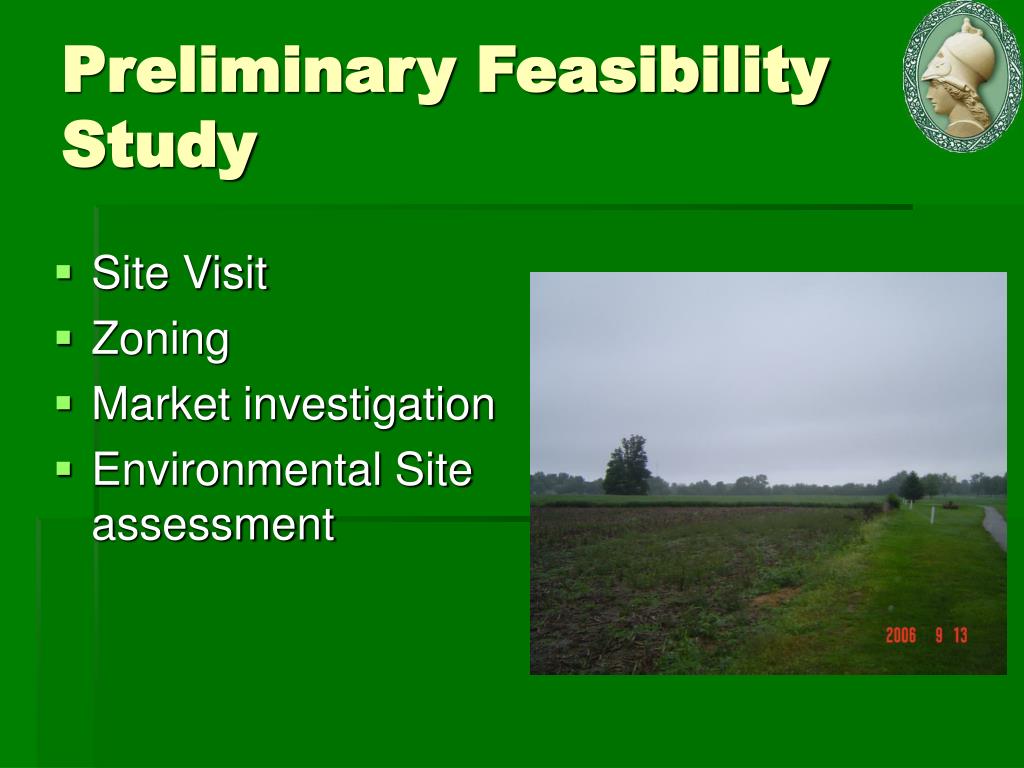

Preliminary Feasibility Study
  • Site Visit
  • Zoning
  • Market investigation
  • Environmental Site assessment
codes and regulations

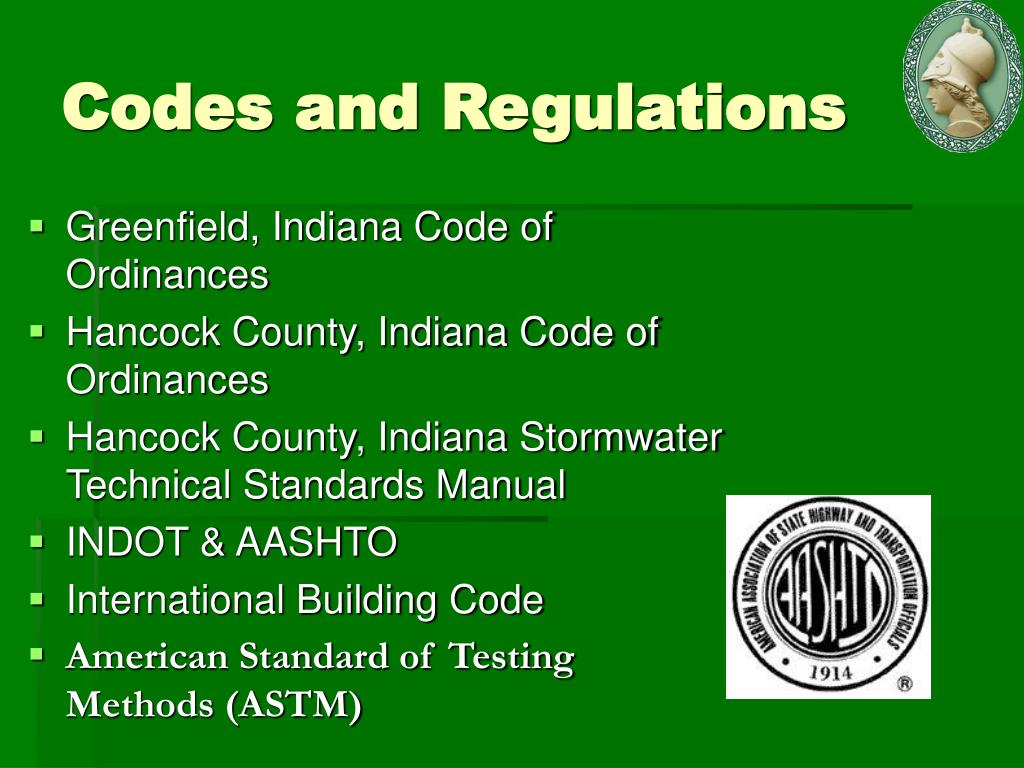

Codes and Regulations
  • Greenfield, Indiana Code of Ordinances
  • Hancock County, Indiana Code of Ordinances
  • Hancock County, Indiana Stormwater Technical Standards Manual
  • INDOT & AASHTO
  • International Building Code
  • American Standard of Testing Methods (ASTM)
geotechnical investigation
Geotechnical Investigation

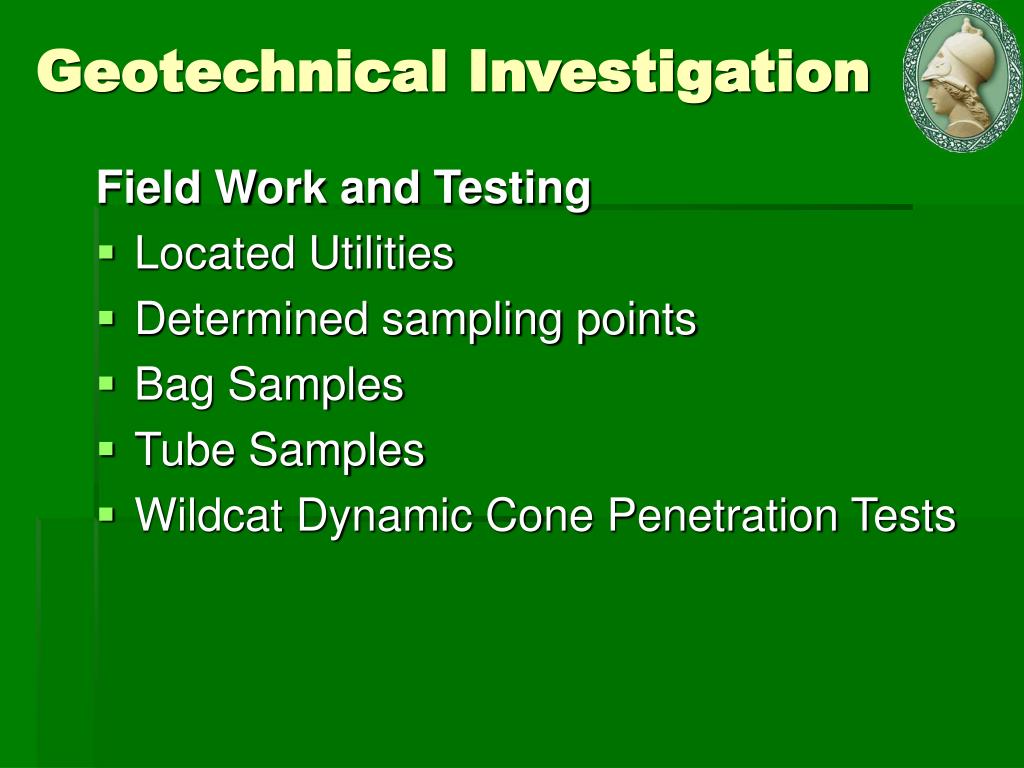

Field Work and Testing

  • Located Utilities
  • Determined sampling points
  • Bag Samples
  • Tube Samples
  • Wildcat Dynamic Cone Penetration Tests
geotechnical investigation1
Geotechnical Investigation

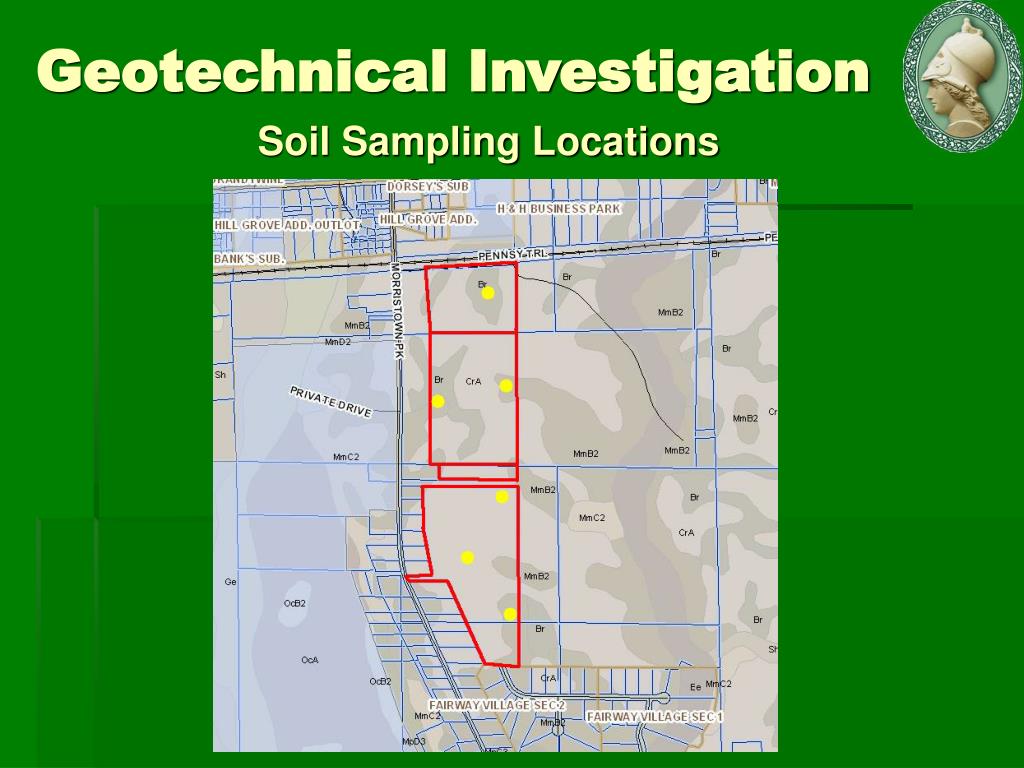

Soil Sampling Locations

leed analysis

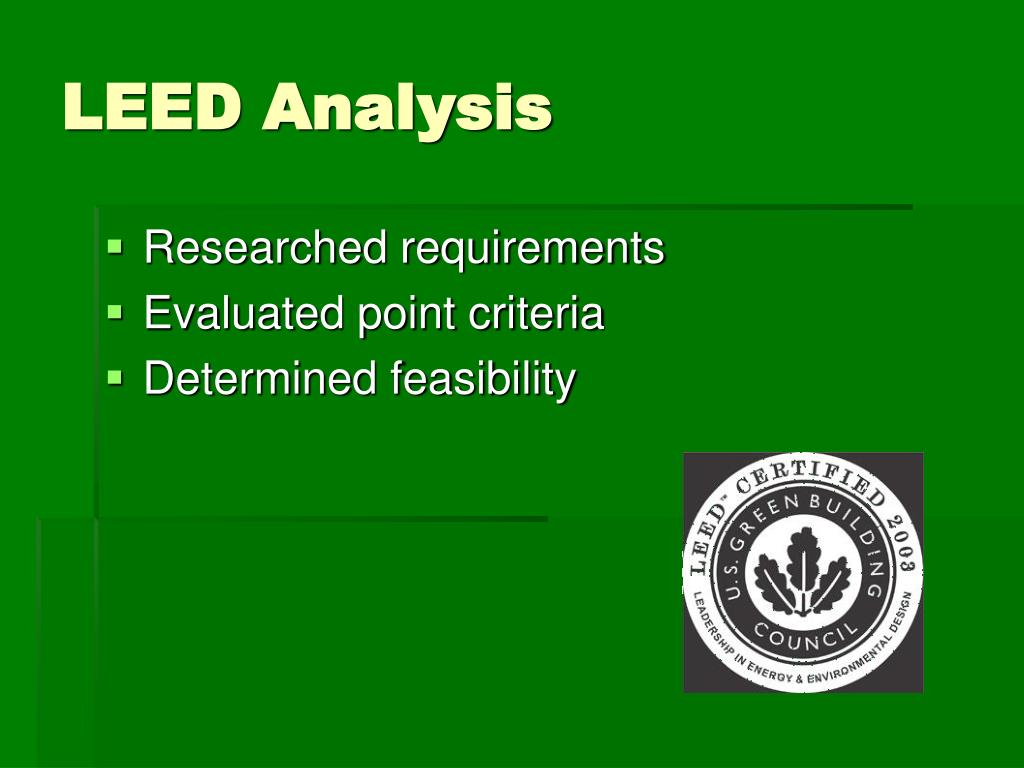

LEED Analysis
  • Researched requirements
  • Evaluated point criteria
  • Determined feasibility
decision matrix
Decision Matrix

A systematic approach for determining lot layout

Criteria used for rating layout design options:

  • Estimated Cost
  • Expected Income
  • Amenities
decision matrix1
Decision Matrix

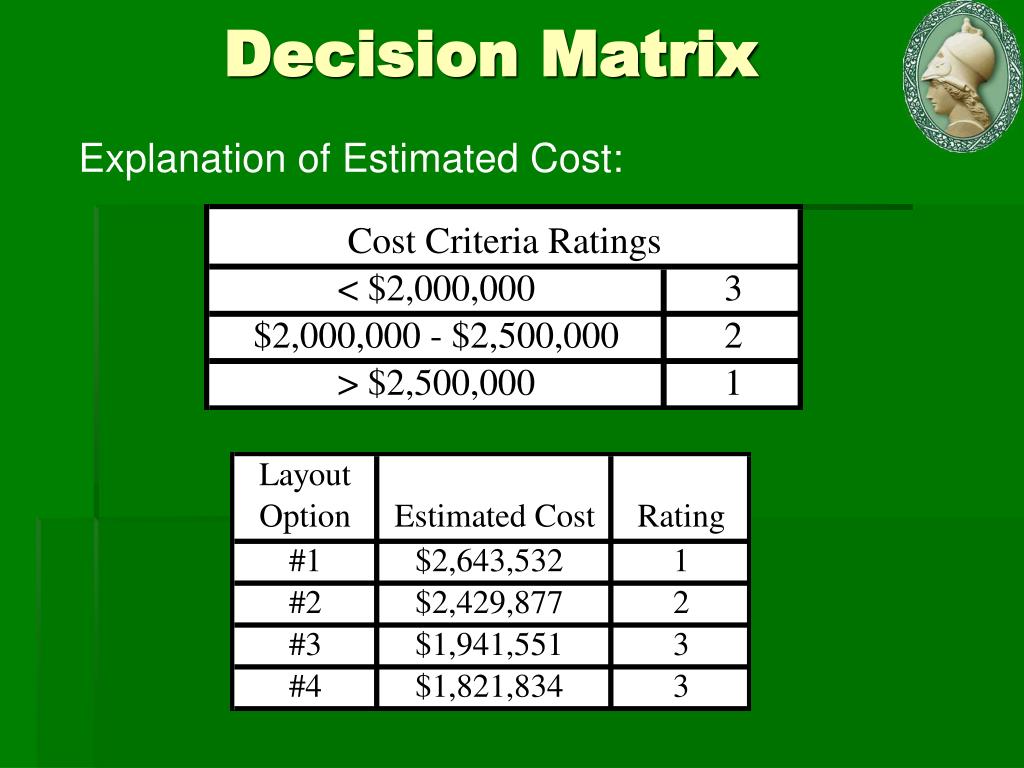

Explanation of Estimated Cost:

decision matrix2
Decision Matrix

Explanation of Estimated Income:

decision matrix3
Decision Matrix

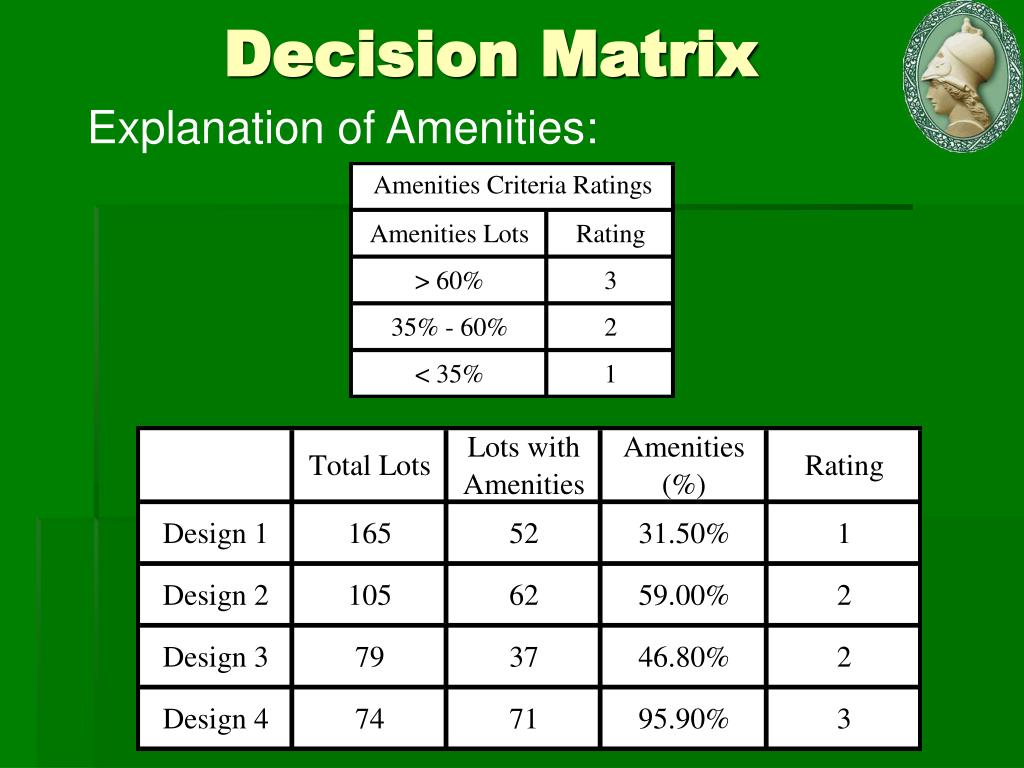

Explanation of Amenities:

decision matrix4
Decision Matrix

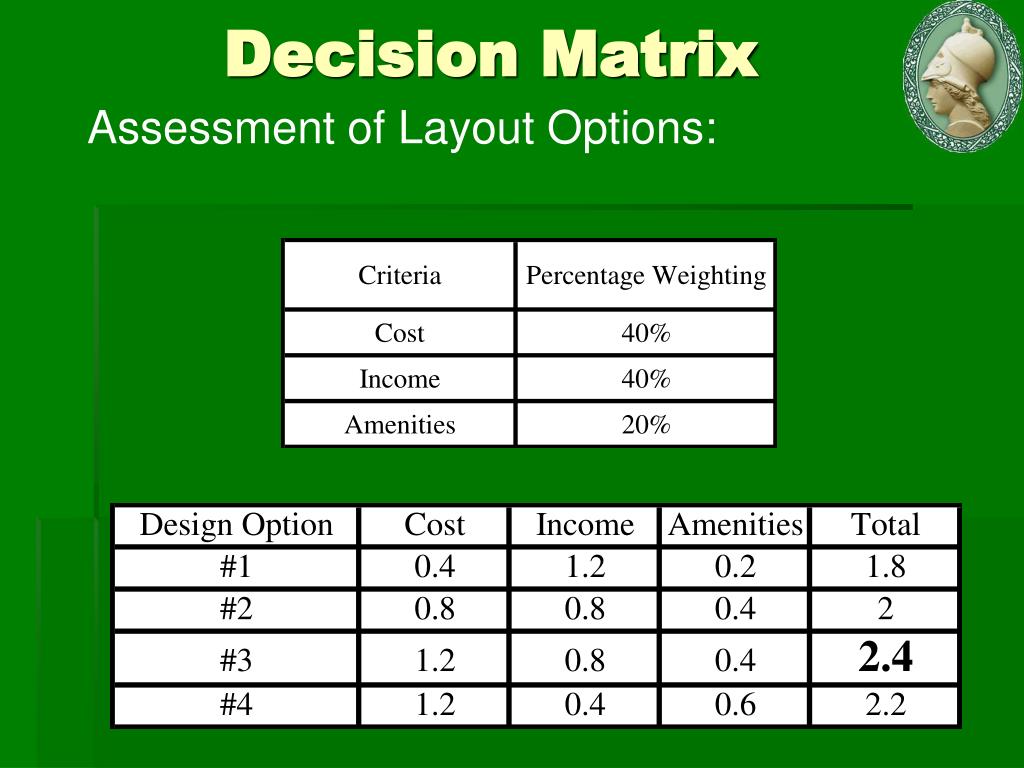

Assessment of Layout Options:

slide14

Site Layout

Option 3

  • 10 Estate Lots
  • 41 Custom Home Lots
  • 31 Zero Maintenance Lots
roadway and pavement
Roadway and Pavement
  • Subdivision Control Ordinances
  • 34 feet wide from gutter to gutter
  • 4 foot sidewalks on either side
rain garden

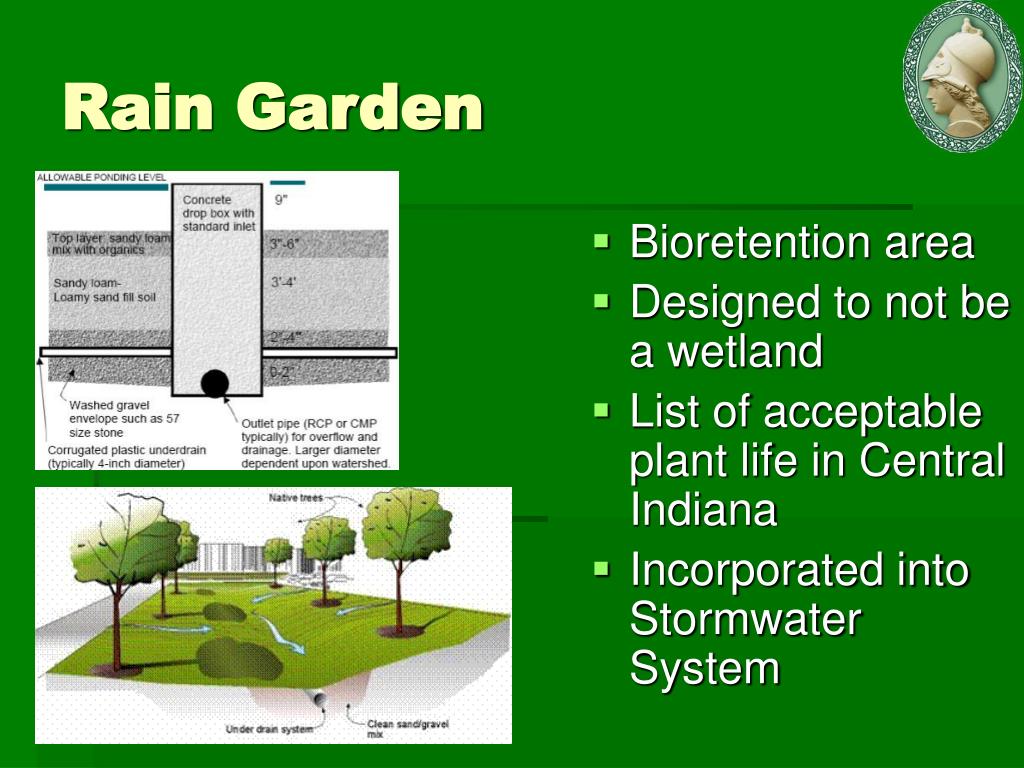

Rain Garden
  • Bioretention area
  • Designed to not be a wetland
  • List of acceptable plant life in Central Indiana
  • Incorporated into Stormwater System
erosion sediment control2

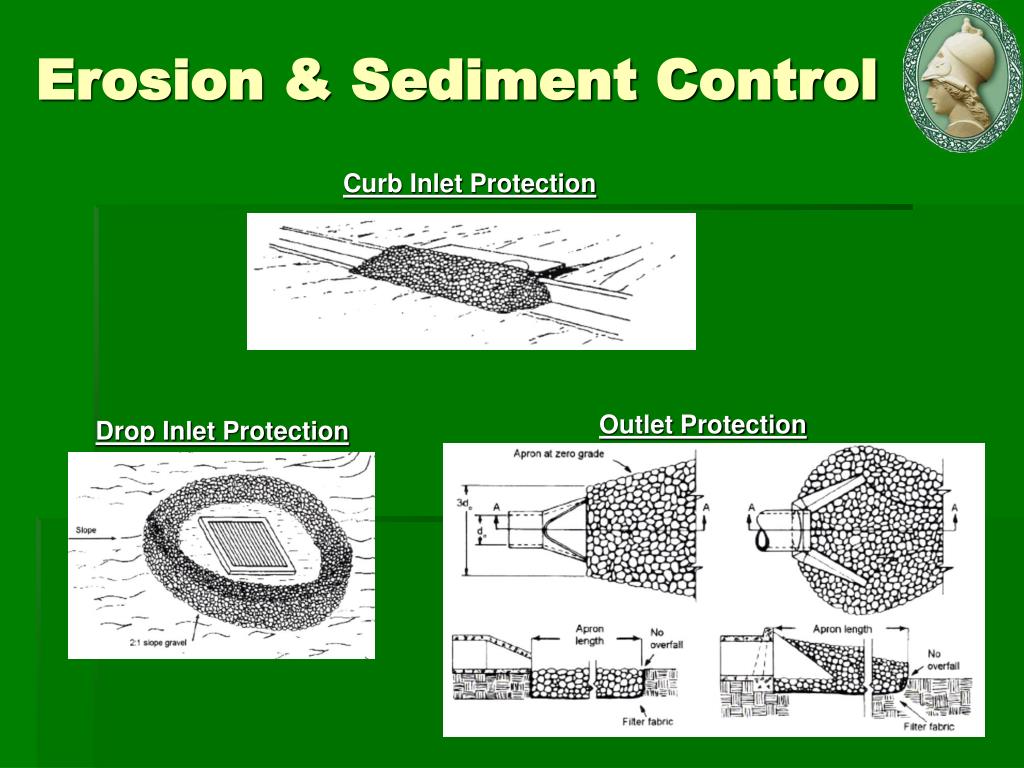

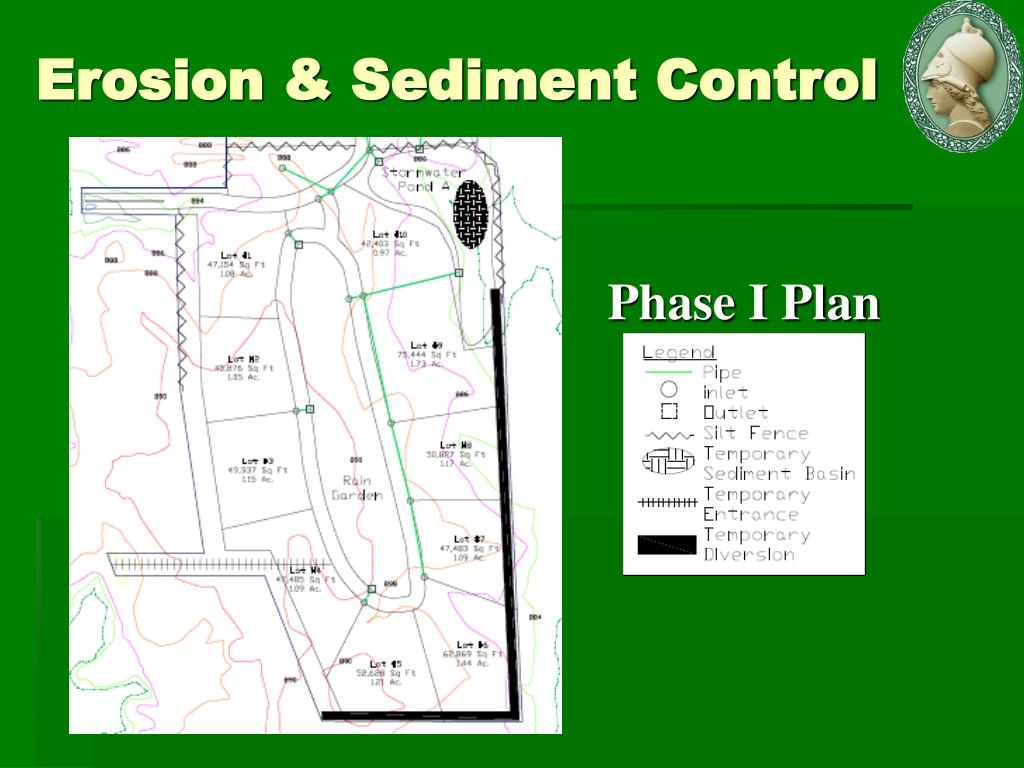

Erosion & Sediment Control

Curb Inlet Protection

Outlet Protection

Drop Inlet Protection

stormwater management
Stormwater Management
  • Design of pipes
  • Retention Ponds
  • Rain Garden
  • LID
wastewater management

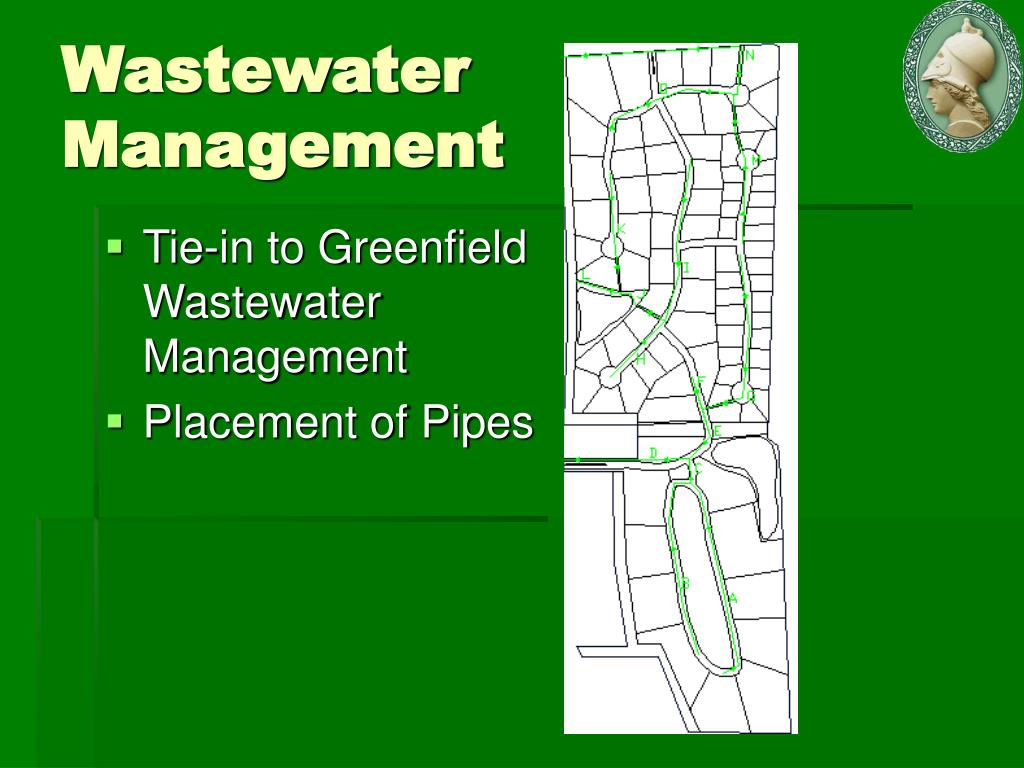

Wastewater Management
  • Tie-in to Greenfield Wastewater Management
  • Placement of Pipes
grading plan

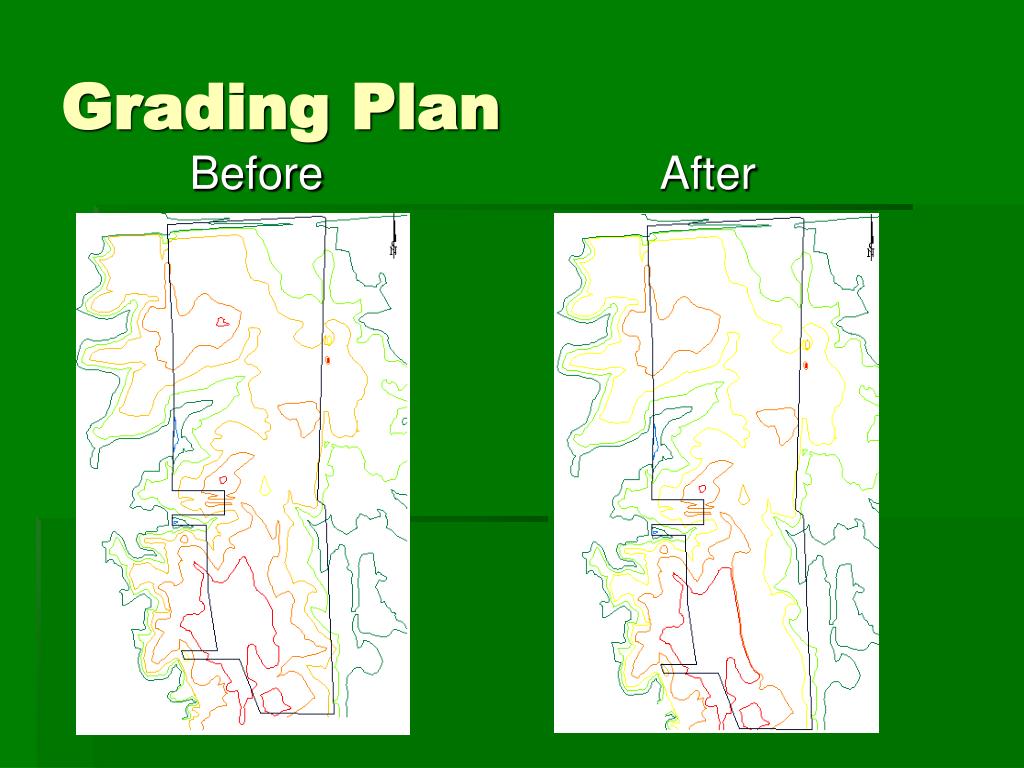

Grading Plan

Before After

detail of phase i
Detail of Phase I
  • Substantial Cut
  • Cut can be used for the burm
construction cost estimate
Construction Cost Estimate

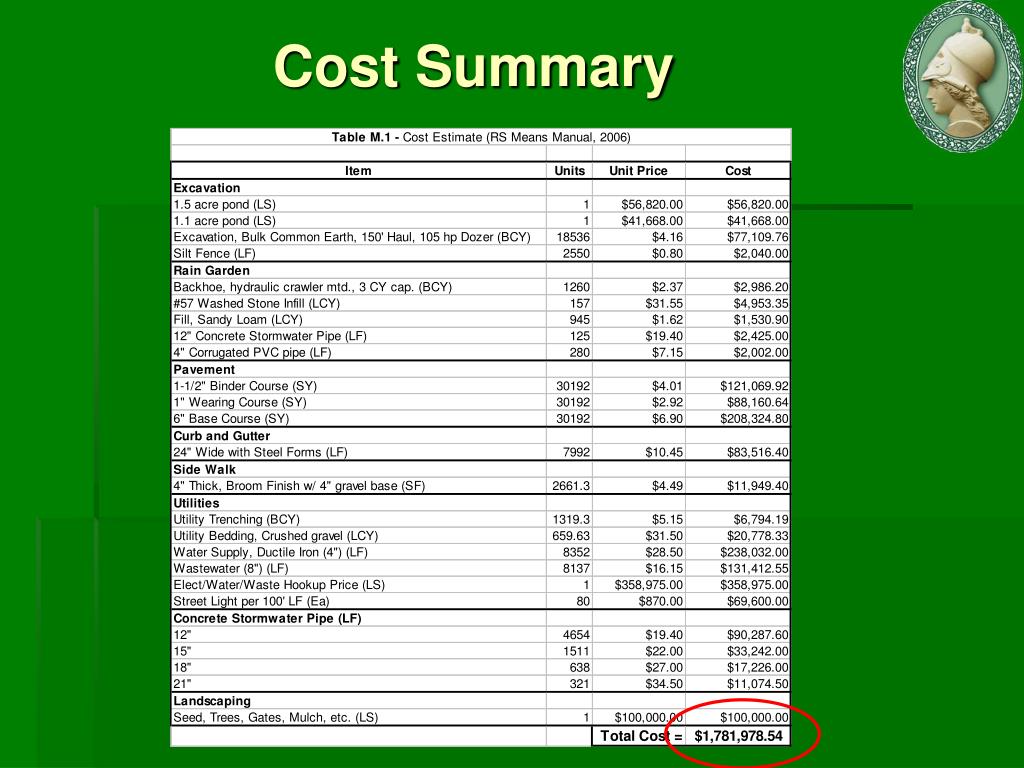

Estimation for roads, sidewalks, curb and gutter, excavation, utility hook-ups, erosion and sediment control and landscaping

Unit pricing was found using the RS Means Manual
