mAs. 4: Contrast and Scatter. The key concepts in radiological imaging necessary to acquire the best possible images are: 1: Minimise patient dose 2: Maximise signal to noise ( quantum mottle) eg. high intensity beam High mA

flavio
Download Presentation

4: Contrast and Scatter

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

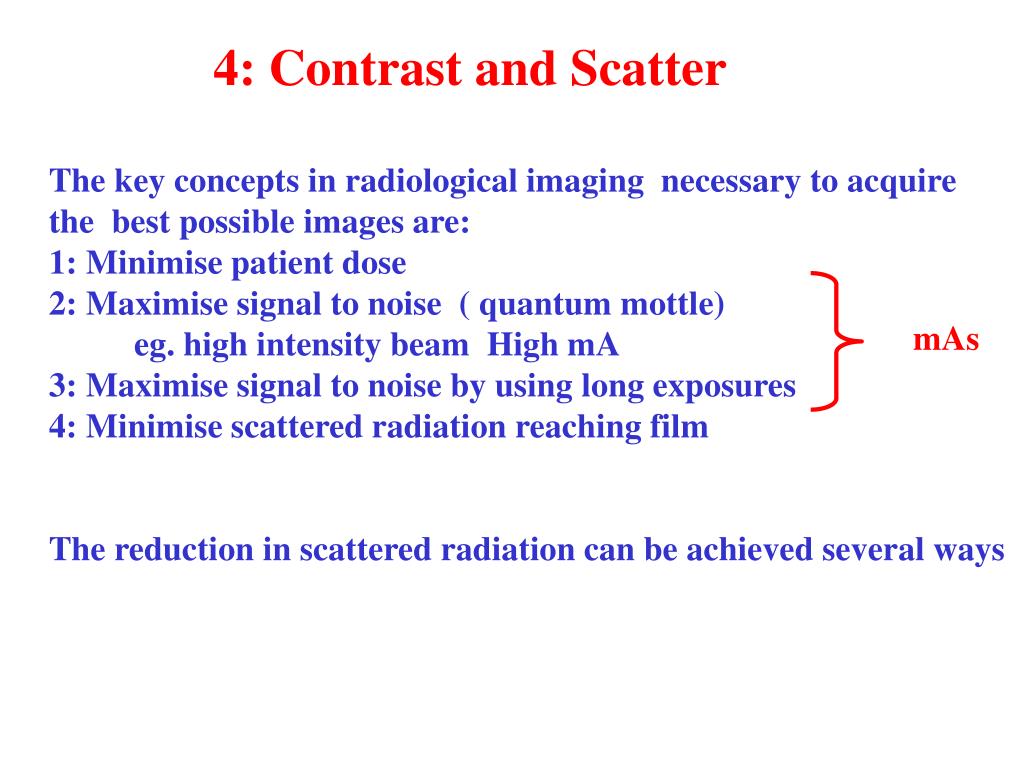

  1. mAs 4: Contrast and Scatter The key concepts in radiological imaging necessary to acquire the best possible images are: 1: Minimise patient dose 2: Maximise signal to noise ( quantum mottle) eg. high intensity beam High mA 3: Maximise signal to noise by using long exposures 4: Minimise scattered radiation reaching film The reduction in scattered radiation can be achieved several ways

  2. 1: Collimation and Beam Restrictors Lead collimator leaves

  3. 1: Metal cones and cylinders. 2: Reduction in kV 3: Compression

  4. 4: Air Gap The further the film is from the tissue in the object the further the scattered radiation spreads out and the lower the intensity ( power/ unit area).

  5. 5: Compression Thinner section for scattering 6: Grids Transmission = D/ (D+d)

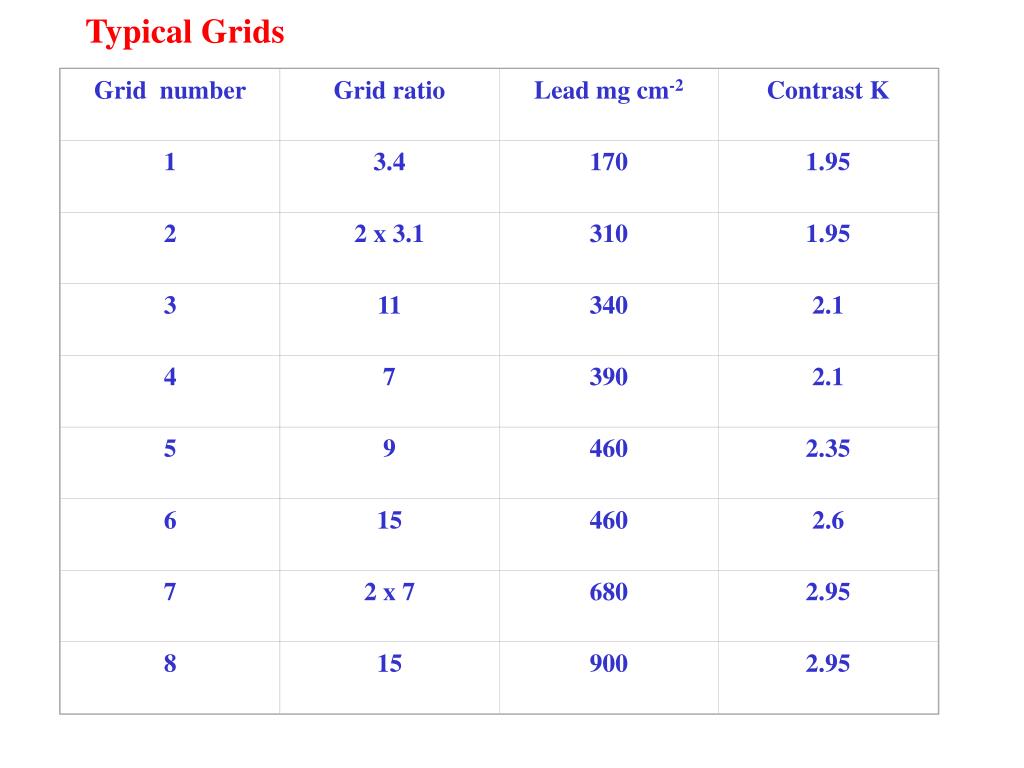

  6. Grid number Grid ratio Lead mg cm-2 Contrast K 1 3.4 170 1.95 2 2 x 3.1 310 1.95 3 11 340 2.1 4 7 390 2.1 5 9 460 2.35 6 15 460 2.6 7 2 x 7 680 2.95 8 15 900 2.95 Typical Grids

  7. Grids may be parallel or focused. 1: The distance between source and grid is the grid radius. 2:The grid ratio r=h/D may be specified as 5:1 or 8:1 etc. 3:The fraction of radiation transmitted is a function of the radiolucent blocking area Transmission == D / (D+d) where D is the spacing between lead sheets and d the thickness of each sheet. The Bucky Factor of a grid is the ratio BF = Incident intensity/ Transmitted intensity Large BF values mean low transmission and the use of higher mA or longer exposures hence a larger dose to the patient. Grid Characteristics

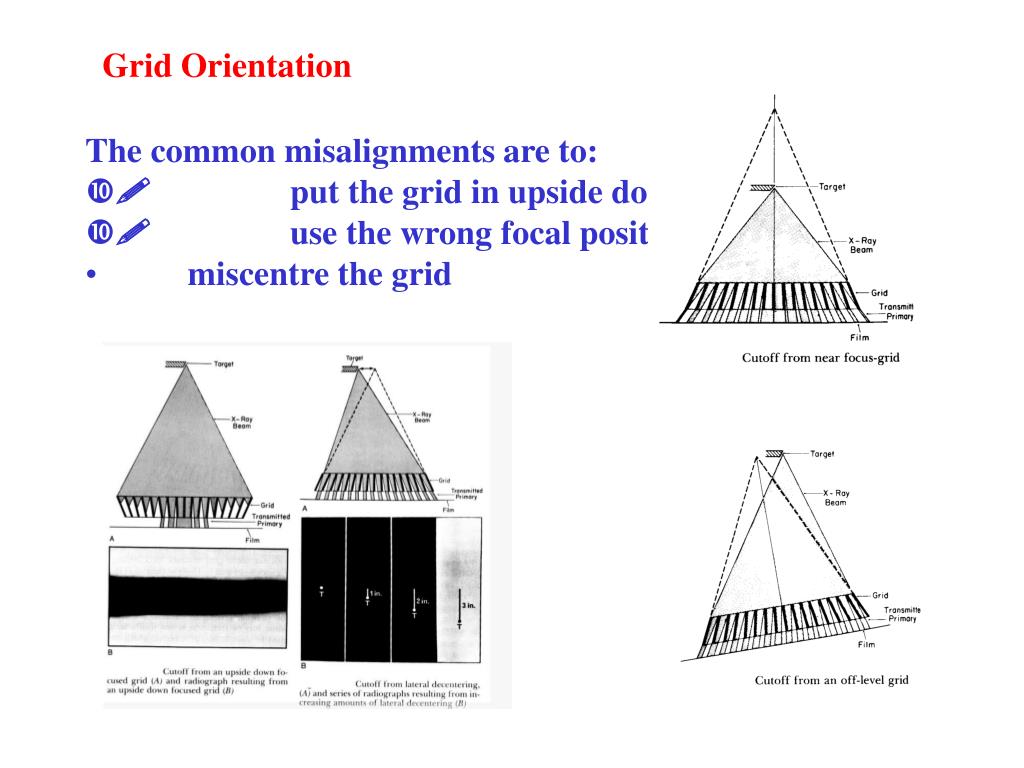

  8. Grid Orientation • The common misalignments are to: • !         put the grid in upside down • !         use the wrong focal position • miscentre the grid
