CPE 631: Vector Processing. Electrical and Computer Engineering University of Alabama in Huntsville Aleksandar Milenković milenka@ece.uah.edu http://www.ece.uah.edu/~milenka. Outline. Properties of Vector Processing Components of a Vector Processor Vector Execution Time

Download Presentation
## CPE 631: Vector Processing

**An Image/Link below is provided (as is) to download presentation**
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

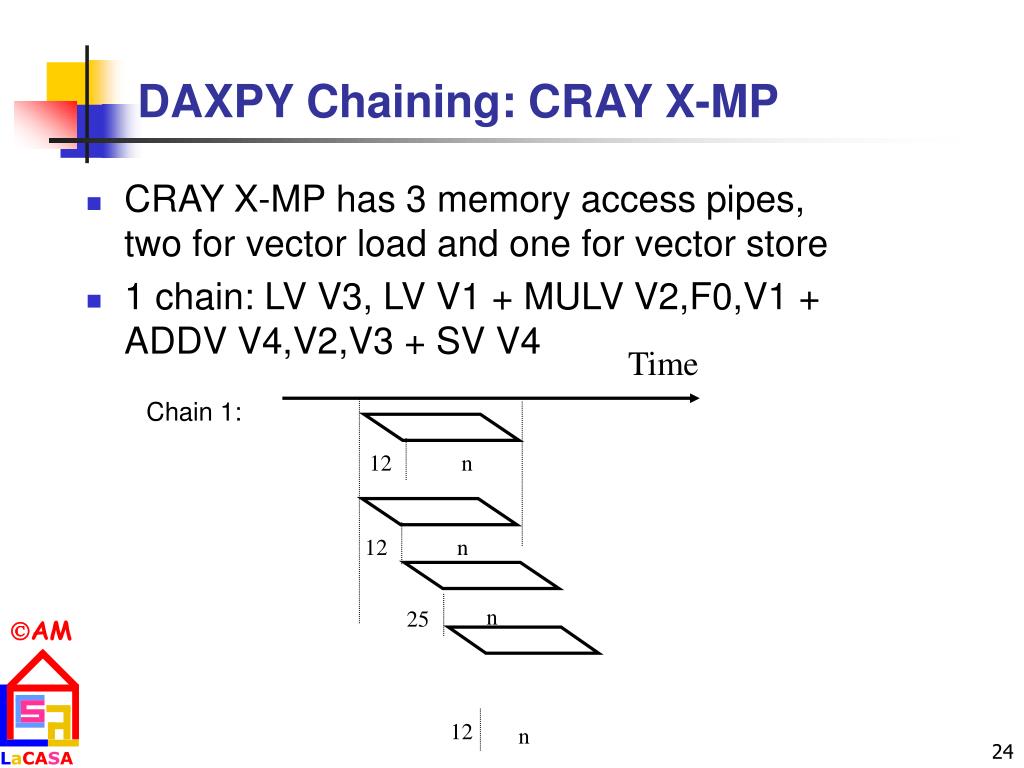

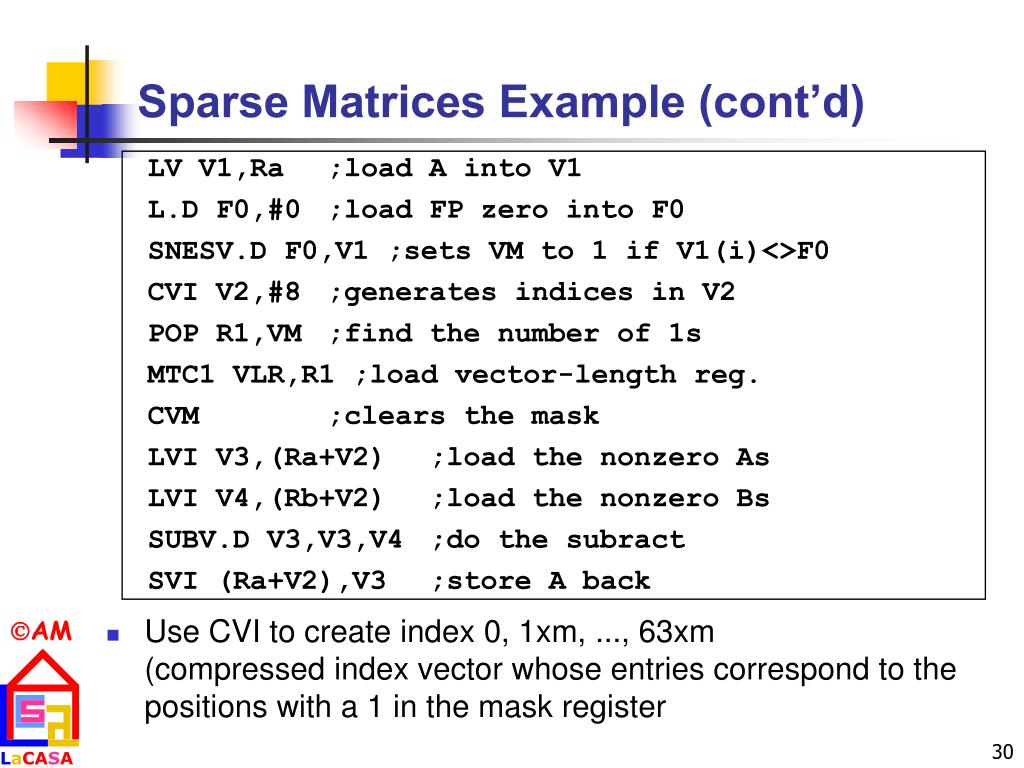

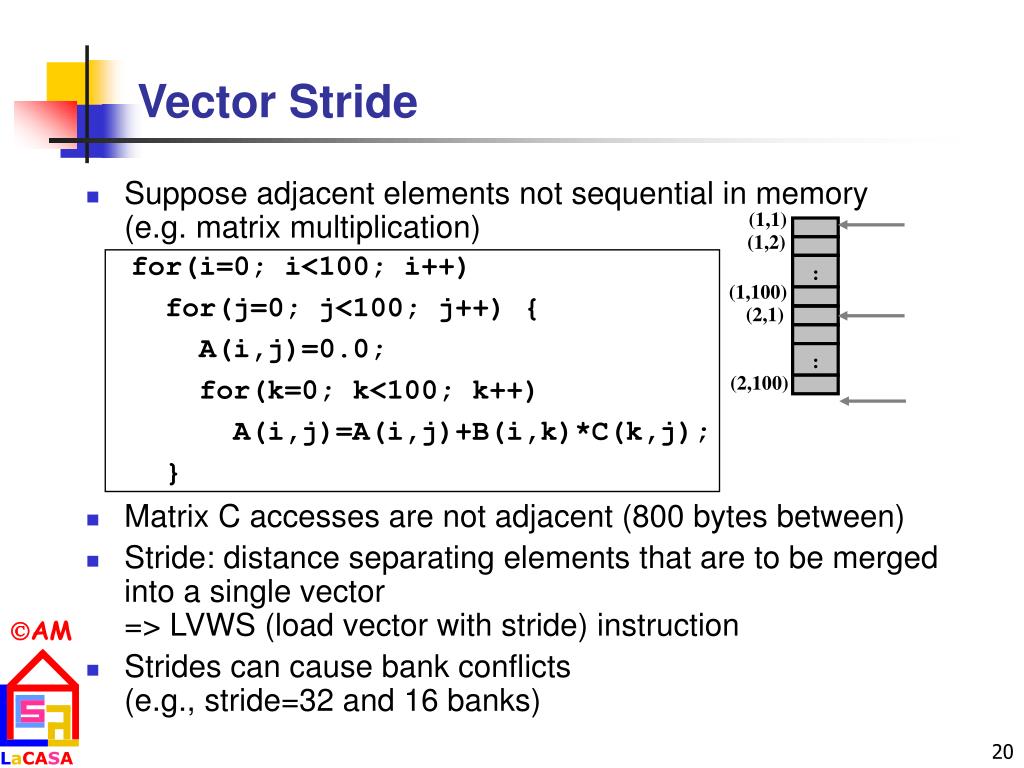

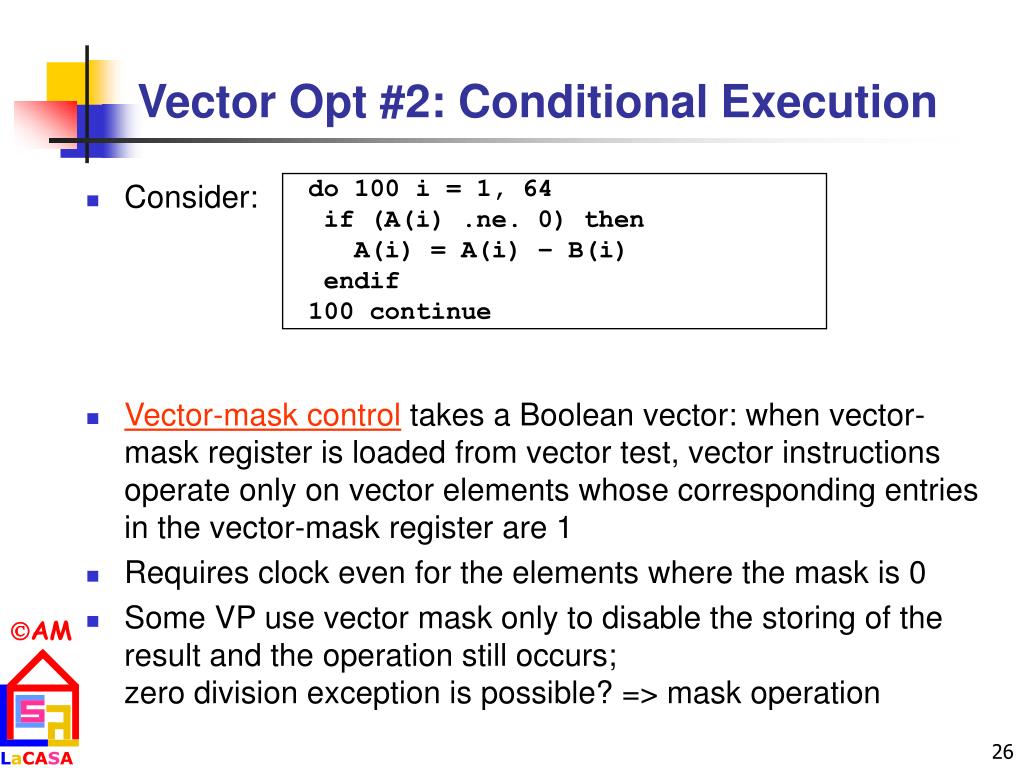

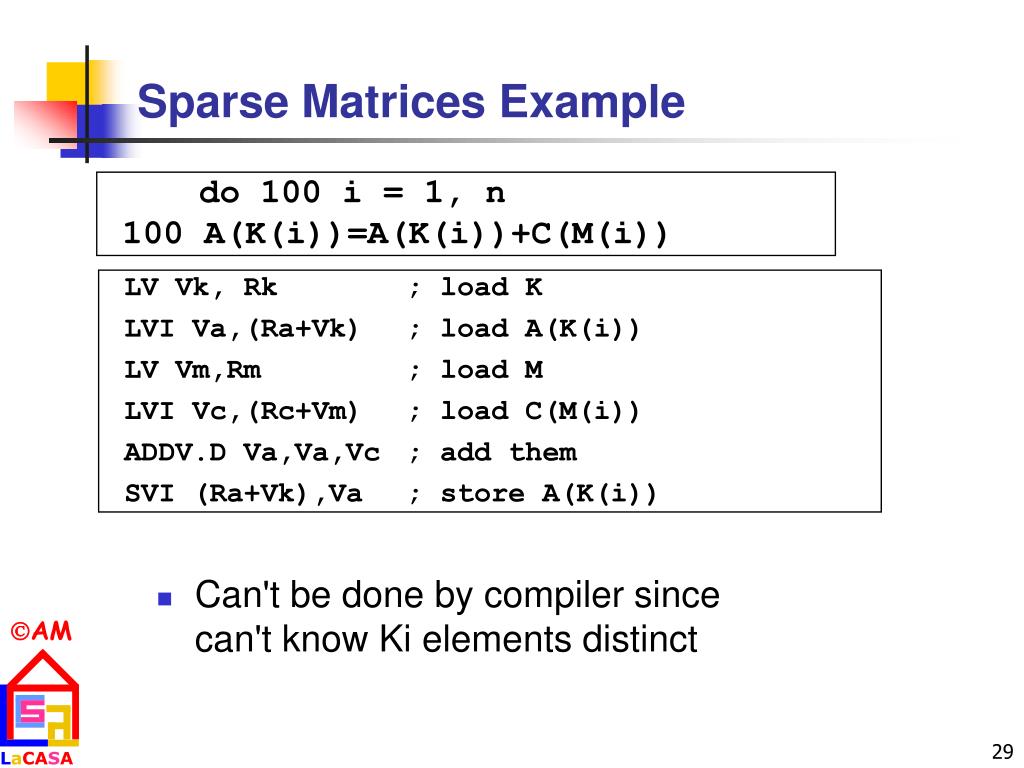

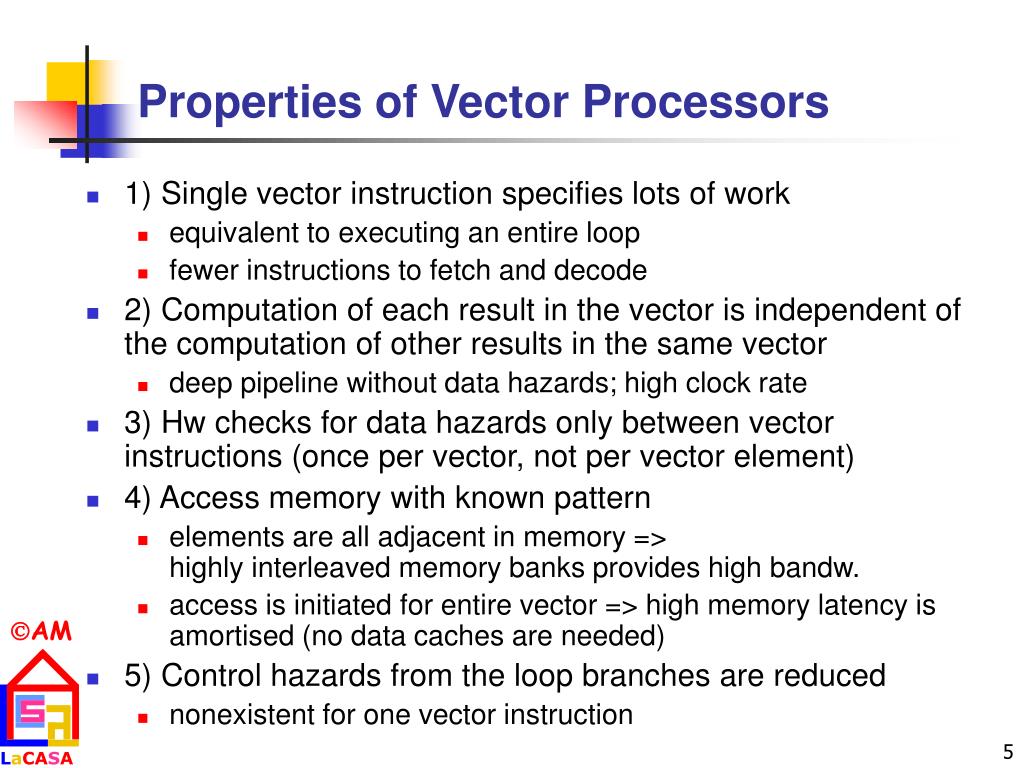

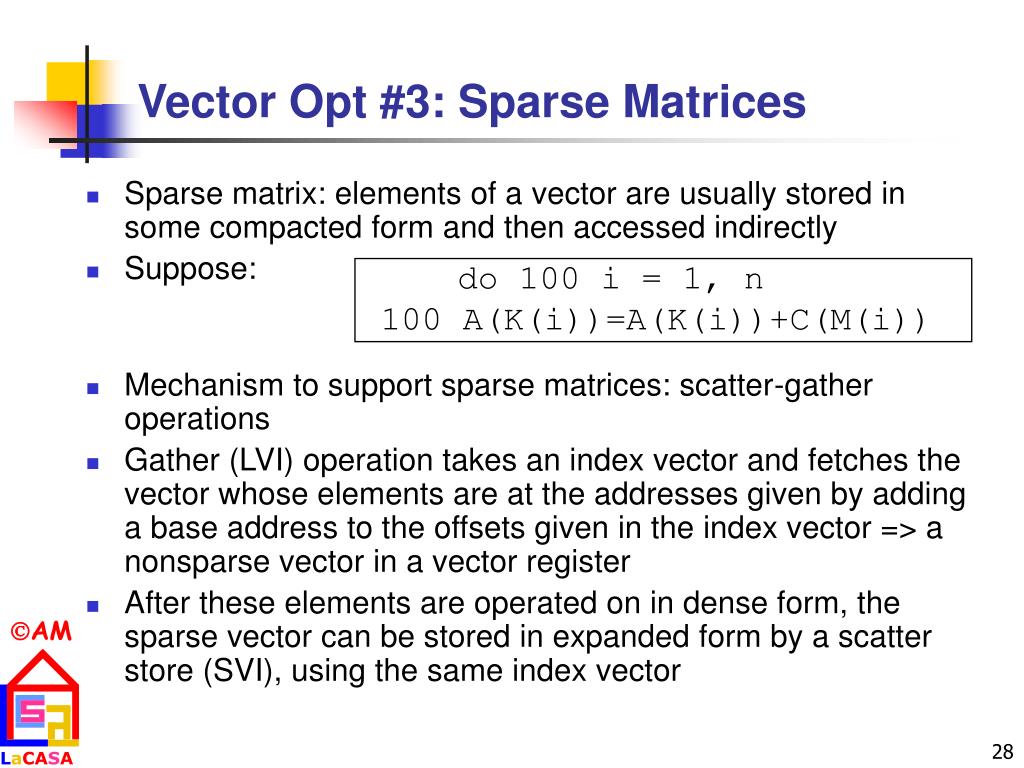

**CPE 631: Vector Processing**Electrical and Computer EngineeringUniversity of Alabama in Huntsville Aleksandar Milenkovićmilenka@ece.uah.edu http://www.ece.uah.edu/~milenka**Outline**• Properties of Vector Processing • Components of a Vector Processor • Vector Execution Time • Real-world Problems: Vector Length and Stride • Vector Optimizations: Chaining, Conditional Execution, Sparse Matrices**Why Vector Processors?**• Instruction level parallelism (Ch 3&4) • Deeper pipeline and wider superscalar machines to extract more parallelism • more register file ports, more registers,more hazard interlock logic • In dynamically scheduled machinesinstruction window, reorder buffer, rename register filesmust grow to have enough capacity to keep relevant information about in-flight instructions • Difficult to build machines supporting large number of in-flight instructions =>limit the issue width and pipeline depths =>limit the amount parallelism you can extract • Commercial versions long before ILP machines**Vector Processing Definitions**+ + + + + • Vector - a set of scalar data items, all of the same type, stored in memory • Vector processor - an ensemble of hardware resources, including vector registers, functional pipelines, processing elements, and register counters for performing vector operations • Vector processing occurs when arithmetic or logical operations are applied to vectors v1 v2 r2 r1 VECTOR (N operations) SCALAR (1 operation) + v3 vector length add.vv v3, v1, v2 r3 add r3, r1, r2**Properties of Vector Processors**• 1) Single vector instruction specifies lots of work • equivalent to executing an entire loop • fewer instructions to fetch and decode • 2) Computation of each result in the vector is independent of the computation of other results in the same vector • deep pipeline without data hazards; high clock rate • 3) Hw checks for data hazards only between vector instructions (once per vector, not per vector element) • 4) Access memory with known pattern • elements are all adjacent in memory =>highly interleaved memory banks provides high bandw. • access is initiated for entire vector => high memory latency is amortised (no data caches are needed) • 5) Control hazards from the loop branches are reduced • nonexistent for one vector instruction**Properties of Vector Processors (cont’d)**• Vector operations: arithmetic (add, sub, mul, div), memory accesses, effective address calculations • Multiple vector instructions can be in progressat the same time => more parallelism • Applications to benefit • Large scientific and engineering applications(car crash simulations, whether forecasting, …) • Multimedia applications**Basic Vector Architectures**• Vector processor: ordinary pipelined scalar unit + vector unit • Types of vector processors • Memory-memory processors: all vector operations are memory-to-memory (CDC) • Vector-register processors: all vector operations except load and store are among the vector registers(CRAY-1, CRAY-2, X-MP, Y-MP, NEX SX/2(3), Fujitsu) • VMIPS – Vector processor as an extension of the 5-stage MIPS processor**Components of a vector-register processor**• Vector Registers: each vector register is a fixed length bank holding a single vector • has at least 2 read and 1 write ports • typically 8-32 vector registers, each holding 64-128 64 bit elements • VMIPS: 8 vector registers, each holding 64 elements (16 Rd ports, 8 Wr ports) • Vector Functional Units (FUs): fully pipelined, start new operation every clock • typically 4 to 8 FUs: FP add, FP mult, FP reciprocal (1/X), integer add, logical, shift; • may have multiple of same unit • VMIPS: 5 FUs (FP add/sub, FP mul, FP div, FP integer, FP logical)**Components of a vector-register processor (cont’d)**• Vector Load-Store Units (LSUs) • fully pipelined unit to load or store a vector; may have multiple LSUs • VMIPS: 1 VLSU, bandwidth is 1 word per cycle after initial delay • Scalar registers • single element for FP scalar or address • VMIPS: 32 GPR, 32 FPRsthey are read out and latched at one input of the FUs • Cross-bar to connect FUs, LSUs, registers • cross-bar to connect Rd/Wr ports and FUs**VMIPS: Basic Structure**FP add/subtract FP multiply FP divide Integer Logical Main Memory • 8 64-element vector registers • 5 FUs; each unit is fully pipelined, can start a new operation on every clock cycle • Load/store unit - fully pipelined • Scalar registers Vector Load/Store Vector registers Scalar registers**VMIPS Vector Instructions**Instr. Operands Operation Comment ADDV.D V1,V2,V3V1=V2+V3 vector + vector ADDSV.D V1,F0,V2V1=F0+V2 scalar + vector MULV.D V1,V2,V3V1=V2xV3 vector x vector MULSV.D V1,F0,V2V1=F0xV2 scalar x vector LV V1,R1V1=M[R1..R1+63] load, stride=1 LVWS V1,R1,R2V1=M[R1..R1+63*R2] load, stride=R2 LVI V1,R1,V2V1=M[R1+V2(i),i=0..63] indir.("gather") CeqV.D VM,V1,V2VMASKi = (V1i=V2i)? comp. setmask MTC1 VLR,R1Vec. Len. Reg. = R1 set vector length MFC1 VM,R1R1 = Vec. Mask set vector mask See table G3 for the VMIPS vector instructions.**VMIPS Vector Instructions (cont’d)**Instr. Operands Operation Comment SUBV.D V1,V2,V3V1=V2-V3 vector - vector SUBSV.D V1,F0,V2V1=F0-V2 scalar – vector SUBVS.D V1,V2,F0V1=V2- F0 vector - scalar DIVV.D V1,V2,V3V1=V2/V3 vector / vector DIVSV.D V1,F0,V2V1=F0/V2 scalar / vector DIVVS.D V1,V2,F0V1=V2/F0 vector / scalar .. POP R1, M Count the 1s in the VM register CVM Set the vector-mask register to all 1s See table G3 for the VMIPS vector instructions.**DAXPY: Double aX + Y**L.D F0,a ;load scalar a LV V1,Rx ;load vector X MULVS V2,V1,F0 ;vector-scalar mult. LV V3,Ry ;load vector Y ADDV.D V4,V2,V3 ;add SV Ry,V4 ;store the result Assuming vectors X, Y are length 64 Scalar vs. Vector L.D F0,a DADDIU R4,Rx,#512 ;last address to load loop: L.D F2, 0(Rx) ;load X(i) MULT.D F2,F0,F2 ;a*X(i) L.D F4, 0(Ry) ;load Y(i) ADD.D F4,F2,F4 ;a*X(i) + Y(i) S.D F4,0(Ry) ;store into Y(i) DADDIU Rx,Rx,#8 ;increment index to X DADDIU Ry,Ry,#8 ;increment index to Y DSUBU R20,R4,Rx ;compute bound BNEZ R20,loop ;check if done Operations: 578 (2+9*64) vs. 321 (1+5*64) (1.8X) Instructions: 578 (2+9*64) vs. 6 instructions (96X) Hazards: 64X fewer pipeline hazards**Vector Execution Time**1: LV V1,Rx ;load vector X 2: MULVS.D V2, V1,F0 ;vector-scalar mult. LV V3,Ry ;load vector Y 3: ADDV.D V4,V2,V3 ;add 4: SV Ry,V4 ;store the result • Time = f(vector length, data dependencies, struct. hazards) • Initiation rate: rate at which a FU consumes vector elements (= number of lanes; usually 1 or 2 on Cray T-90) • Convoy: set of vector instructions that can begin execution in same clock (no struct. or data hazards) • Chime: approx. time to execute a convoy • m convoys take m chimes; if each vector length is n, then they take approx. m x n clock cycles (ignores overhead; good approximation for long vectors) 4 convoys, 1 lane, VL=64 => 4 x 64 256 clocks (or 4 clocks per result)**VMIPS Start-up Time**• Start-up time: pipeline latency time (depth of FU pipeline); another sources of overhead • Assume convoys don't overlap; vector length = n:**VMIPS Execution Time**12 Time 1: LV V1,Rx 2: MULV V2,F0,V1 LV V3,Ry 3: ADDV V4,V2,V3 4: SV Ry,V4 12 n n n 6 n 12**Vector Load/Store Units & Memories**• Start-up overheads usually longer for LSUs • Memory system must sustain (# lanes x word) /clock cycle • Many Vector Procs. use banks (vs. simple interleaving): • support multiple loads/stores per cycle => multiple banks & address banks independently • support non-sequential accesses • Note: No. memory banks > memory latency to avoid stalls • m banks => m words per memory latency l clocks • if m < l, then gap in memory pipeline: • may have 1024 banks in SRAM**Real-World Issues: Vector Length**• What to do when vector length is not exactly 64? • N can be unknown at compile time? • Vector-Length Register (VLR): controls the length of any vector operation, including a vector load or store (cannot be > the length of vector registers) • What if n > Max. Vector Length (MVL)?=> Strip mining • for(i=0; i<n, i++) • {Y(i)=a*X(i)+Y(i)}**Strip Mining**• Strip mining: generation of code such that each vector operation is done for a size to the MVL • 1st loop do short piece (n mod MVL), rest VL = MVL • Overhead of executing strip-mined loop? • i = 0; • VL = n mod MVL; • for (j=0; j<n/MVL; j++){ • for(i<VL; i++) • {Y(i)=a*X(i)+Y(i)} • VL = MVL;}**Vector Stride**: : • Suppose adjacent elements not sequential in memory (e.g. matrix multiplication) • Matrix C accesses are not adjacent (800 bytes between) • Stride: distance separating elements that are to be merged into a single vector => LVWS (load vector with stride) instruction • Strides can cause bank conflicts (e.g., stride=32 and 16 banks) (1,1) (1,2) • for(i=0; i<100; i++) • for(j=0; j<100; j++) { • A(i,j)=0.0; • for(k=0; k<100; k++) • A(i,j)=A(i,j)+B(i,k)*C(k,j); • } (1,100) (2,1) (2,100)**Vector Opt #1: Chaining**• Suppose: MULV.D V1,V2,V3ADDV.D V4,V1,V5 ; separate convoy? • Chaining: vector register (V1) is not as a single entity but as a group of individual registers, then pipeline forwarding can work on individual elements of a vector • Flexible chaining: allow vector to chain to any other active vector operation => more read/write port • As long as enough HW, increases convoy size**DAXPY Chaining: CRAY-1**25 • CRAY-1 has one memory access pipe either for load or store (not for both at the same time) • 3 chains • Chain 1: LV V3 • Chain 2: LV V1 + MULV V2,F0,V1 + ADDV V4,V2,V3 • Chain 3: SV V4 Time Chain 1: Chain 2: Chain 3: 12 n n 12 n**3 Chains DAXPY for CRAY-1**Memory Memory Memory : : : : : : : : : : : F0 R/W port R/W port V4 Access pipe Access pipe V1 Access pipe V3 Multiply pipe R/W port V2 V3 Add pipe V4**DAXPY Chaining: CRAY X-MP**25 • CRAY X-MP has 3 memory access pipes, two for vector load and one for vector store • 1 chain: LV V3, LV V1 + MULV V2,F0,V1 + ADDV V4,V2,V3 + SV V4 Time Chain 1: 12 n 12 n n 12 n**One Chain DAXPY for CRAY X-MP**Memory Memory : : : : : : : : F0 R port R port V1 V3 Access pipe Access pipe Multiply pipe V2 V4 Add pipe W port**Vector Opt #2: Conditional Execution**• Consider: • Vector-mask control takes a Boolean vector: when vector-mask register is loaded from vector test, vector instructions operate only on vector elements whose corresponding entries in the vector-mask register are 1 • Requires clock even for the elements where the mask is 0 • Some VP use vector mask only to disable the storing of the result and the operation still occurs; zero division exception is possible? => mask operation • do 100 i = 1, 64 if (A(i) .ne. 0) then A(i) = A(i) – B(i) endif100 continue**Vector Mask Control**• LV V1, Ra ;load A into V1 • LV V2, Rb ;load B into V2 • L.D F0, #0 ;load FP zero to F0 • SNESV.D F0,V1 ;sets VM register if V1(i)<>0 • SUBV.D V1,V1,V2 ;subtract under VM • CVM ;set VM to all 1s • SV Ra,V1 ;store results in A**Vector Opt #3: Sparse Matrices**• Sparse matrix: elements of a vector are usually stored in some compacted form and then accessed indirectly • Suppose: • Mechanism to support sparse matrices: scatter-gather operations • Gather (LVI) operation takes an index vector and fetches the vector whose elements are at the addresses given by adding a base address to the offsets given in the index vector => a nonsparse vector in a vector register • After these elements are operated on in dense form, the sparse vector can be stored in expanded form by a scatter store (SVI), using the same index vector • do 100 i = 1, n100 A(K(i))=A(K(i))+C(M(i))**Sparse Matrices Example**• Can't be done by compiler since can't know Ki elements distinct • do 100 i = 1, n100 A(K(i))=A(K(i))+C(M(i)) • LV Vk, Rk ; load K • LVI Va,(Ra+Vk) ; load A(K(i)) • LV Vm,Rm ; load M • LVI Vc,(Rc+Vm) ; load C(M(i)) • ADDV.D Va,Va,Vc ; add them • SVI (Ra+Vk),Va ; store A(K(i))**Sparse Matrices Example (cont’d)**• LV V1,Ra ;load A into V1 • L.D F0,#0 ;load FP zero into F0 • SNESV.D F0,V1 ;sets VM to 1 if V1(i)<>F0 • CVI V2,#8 ;generates indices in V2 • POP R1,VM ;find the number of 1s • MTC1 VLR,R1 ;load vector-length reg. • CVM ;clears the mask • LVI V3,(Ra+V2) ;load the nonzero As • LVI V4,(Rb+V2) ;load the nonzero Bs • SUBV.D V3,V3,V4 ;do the subract • SVI (Ra+V2),V3 ;store A back • Use CVI to create index 0, 1xm, ..., 63xm(compressed index vector whose entries correspond to the positions with a 1 in the mask register**Things to Remember**• Properties of vector processing • Each result independent of previous result • Vector instructions access memory with known pattern • Reduces branches and branch problems in pipelines • Single vector instruction implies lots of work ( loop) • Components of a vector processor: vector registers, functional units, load/store, crossbar.... • Strip mining technique for long vectors • Optimisation techniques: chaining, conditional execution, sparse matrices
