  1. RMV-II-1500(A)-15 (kV) MR reactance vacuum OLTC Brand new

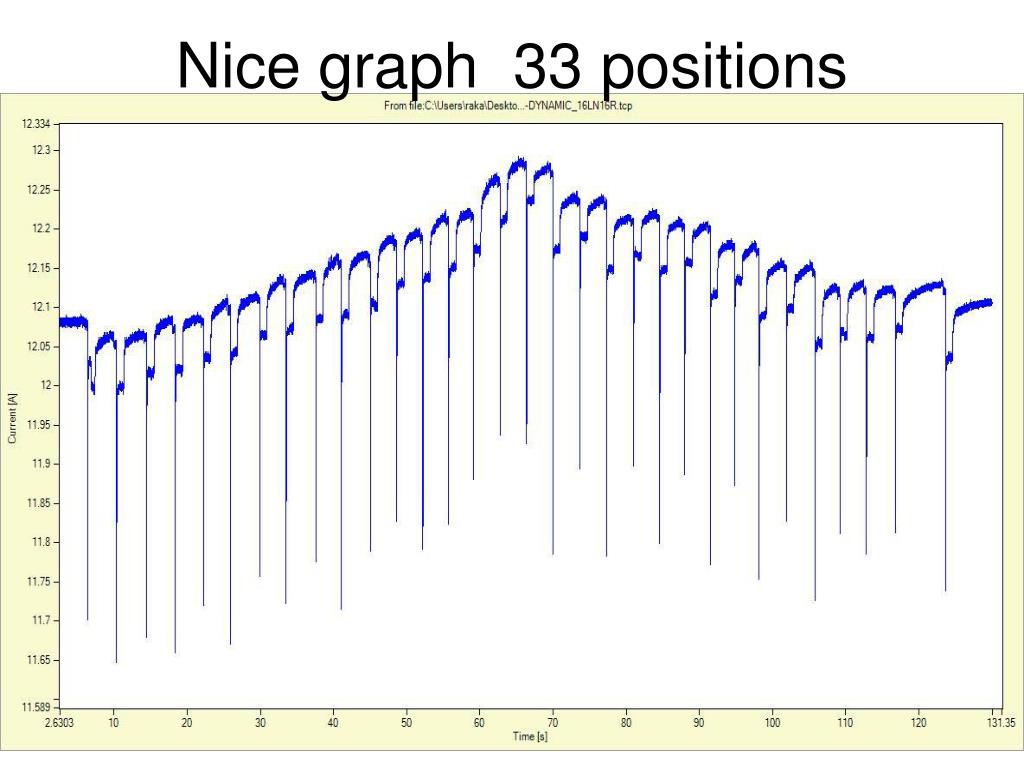

  2. Nice graph 33 positions

  3. zoom

  4. Design Principles of Reactor Vacuum Type LTCsTap selector, By-pass and Vacuum Interrupter (VI) Design tap selector ___reactor___ V I by-pass Switching principle RMV-II

  5. Sequence circle

  6. Time starts at motor operationred cursor 2 seconds 2 sec = 360 deg 1 deg = 5.5 sec

  7. 110=611 mSec 298=1655 mSec

  8. 110 deg = 611 mSecgreen cursor

  9. 298 deg = 1655 mSecgreen cursor

  10. Motion starts Motion starts Transition 15R>14R Transition 16R>15R

  11. The end
