Enhancing Boring Tool Performance With Tool Coatings

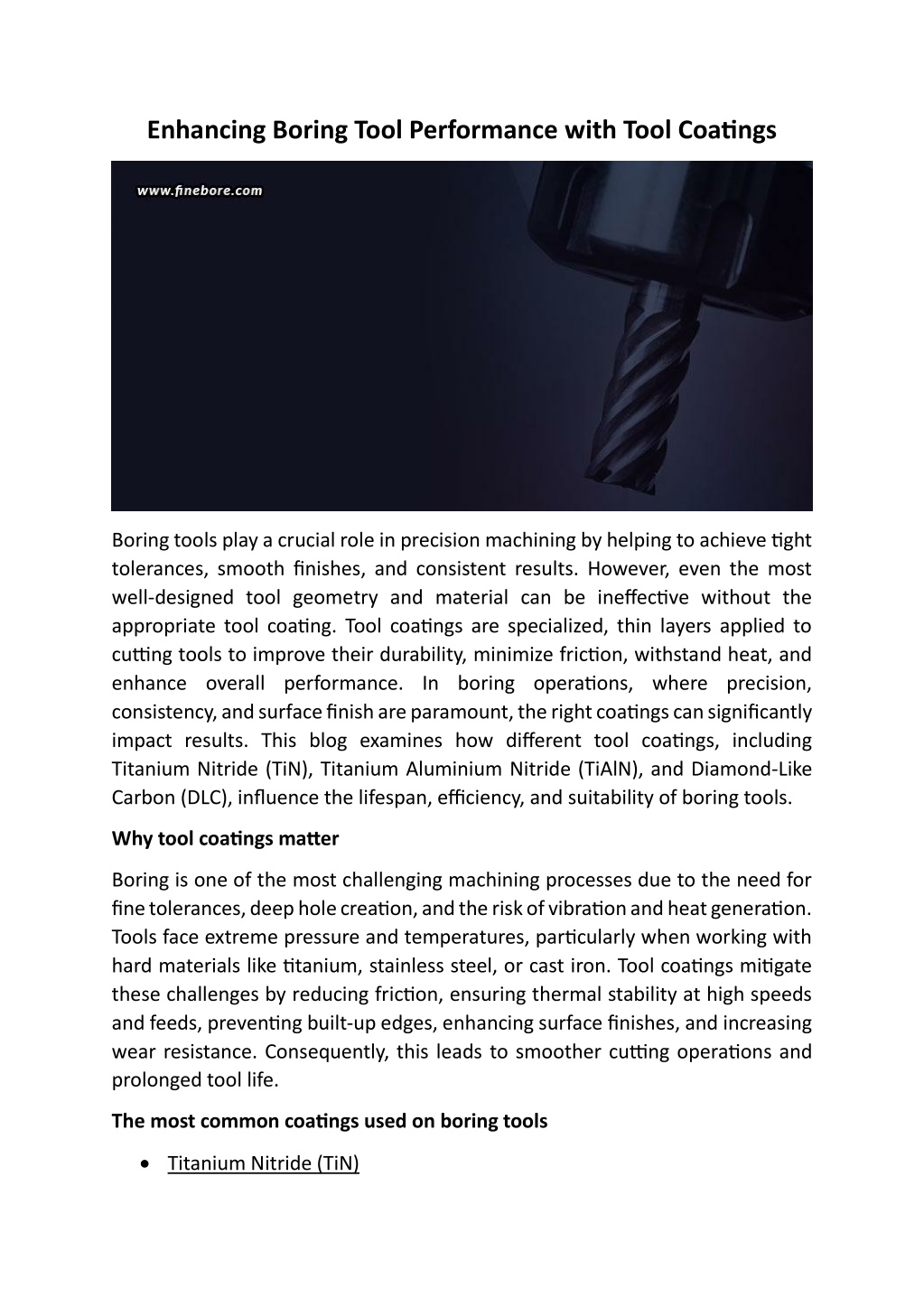

1. Enhancing Boring Tool Performance with Tool Coatings Boring tools play a crucial role in precision machining by helping to achieve tight tolerances, smooth finishes, and consistent results. However, even the most well-designed tool geometry and material can be ineffective without the appropriate tool coating. Tool coatings are specialized, thin layers applied to cutting tools to improve their durability, minimize friction, withstand heat, and enhance overall performance. In boring operations, where precision, consistency, and surface finish are paramount, the right coatings can significantly impact results. This blog examines how different tool coatings, including Titanium Nitride (TiN), Titanium Aluminium Nitride (TiAlN), and Diamond-Like Carbon (DLC), influence the lifespan, efficiency, and suitability of boring tools. Why tool coatings matter Boring is one of the most challenging machining processes due to the need for fine tolerances, deep hole creation, and the risk of vibration and heat generation. Tools face extreme pressure and temperatures, particularly when working with hard materials like titanium, stainless steel, or cast iron. Tool coatings mitigate these challenges by reducing friction, ensuring thermal stability at high speeds and feeds, preventing built-up edges, enhancing surface finishes, and increasing wear resistance. Consequently, this leads to smoother cutting operations and prolonged tool life. The most common coatings used on boring tools •Titanium Nitride (TiN)

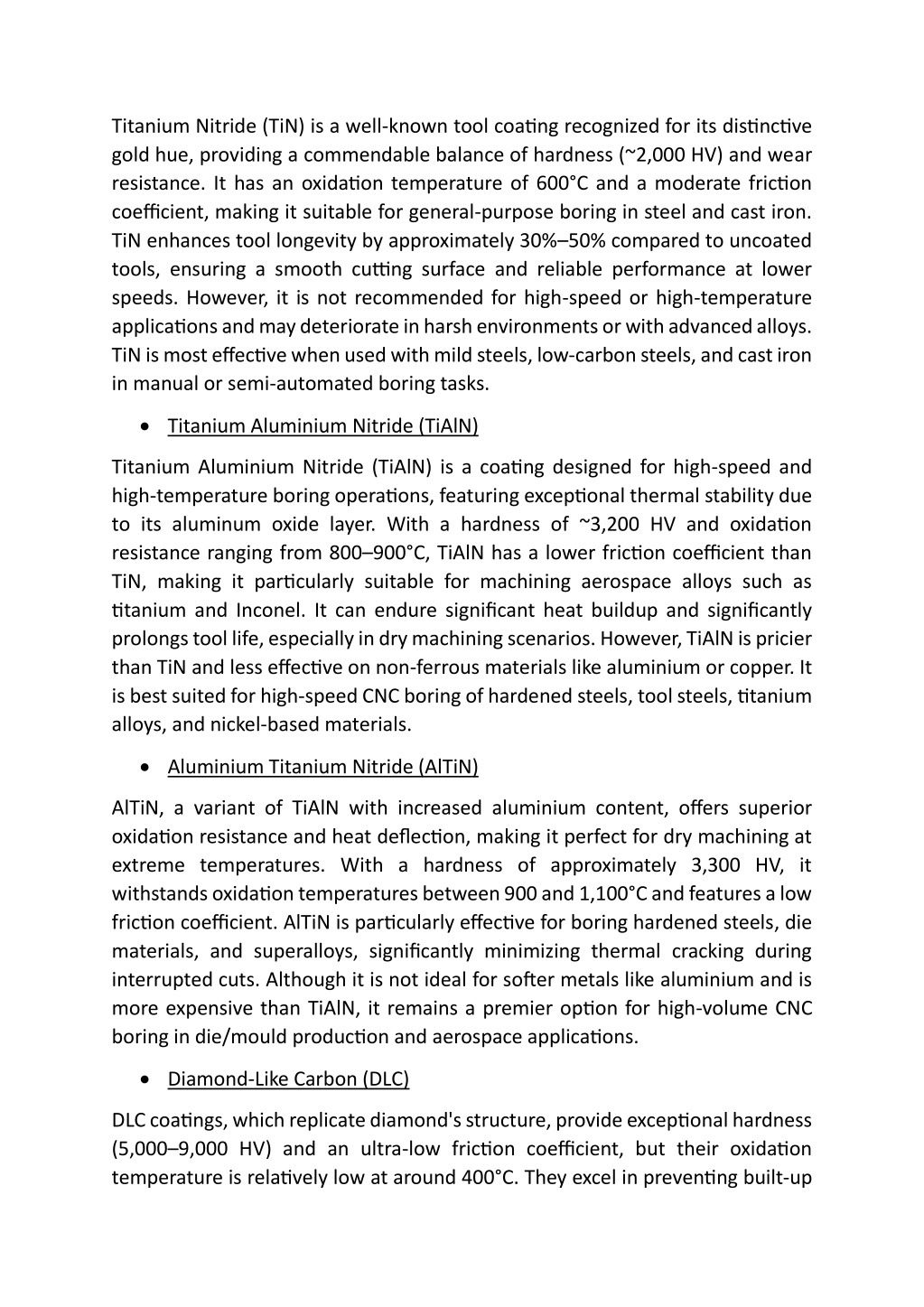

2. Titanium Nitride (TiN) is a well-known tool coating recognized for its distinctive gold hue, providing a commendable balance of hardness (~2,000 HV) and wear resistance. It has an oxidation temperature of 600°C and a moderate friction coefficient, making it suitable for general-purpose boring in steel and cast iron. TiN enhances tool longevity by approximately 30%–50% compared to uncoated tools, ensuring a smooth cutting surface and reliable performance at lower speeds. However, it is not recommended for high-speed or high-temperature applications and may deteriorate in harsh environments or with advanced alloys. TiN is most effective when used with mild steels, low-carbon steels, and cast iron in manual or semi-automated boring tasks. •Titanium Aluminium Nitride (TiAlN) Titanium Aluminium Nitride (TiAlN) is a coating designed for high-speed and high-temperature boring operations, featuring exceptional thermal stability due to its aluminum oxide layer. With a hardness of ~3,200 HV and oxidation resistance ranging from 800–900°C, TiAlN has a lower friction coefficient than TiN, making it particularly suitable for machining aerospace alloys such as titanium and Inconel. It can endure significant heat buildup and significantly prolongs tool life, especially in dry machining scenarios. However, TiAlN is pricier than TiN and less effective on non-ferrous materials like aluminium or copper. It is best suited for high-speed CNC boring of hardened steels, tool steels, titanium alloys, and nickel-based materials. •Aluminium Titanium Nitride (AlTiN) AlTiN, a variant of TiAlN with increased aluminium content, offers superior oxidation resistance and heat deflection, making it perfect for dry machining at extreme temperatures. With a hardness of approximately 3,300 HV, it withstands oxidation temperatures between 900 and 1,100°C and features a low friction coefficient. AlTiN is particularly effective for boring hardened steels, die materials, and superalloys, significantly minimizing thermal cracking during interrupted cuts. Although it is not ideal for softer metals like aluminium and is more expensive than TiAlN, it remains a premier option for high-volume CNC boring in die/mould production and aerospace applications. •Diamond-Like Carbon (DLC) DLC coatings, which replicate diamond's structure, provide exceptional hardness (5,000–9,000 HV) and an ultra-low friction coefficient, but their oxidation temperature is relatively low at around 400°C. They excel in preventing built-up

3. edge in sticky materials such as aluminium, copper, and plastics, while also enhancing surface finishes and prolonging tool life by reducing adhesion and friction. However, DLC coatings are not suitable for high-temperature applications and have limited effectiveness with ferrous materials, making them best for boring aluminium, brass, copper, graphite, and plastics, particularly in electronics and medical device machining. •Chromium Nitride (CrN) CrN is recognized for its outstanding corrosion resistance and is commonly used in environments with continuous coolant exposure or moisture. It has a hardness of approximately 2,000–2,300 HV, an oxidation temperature of around 700°C, and a moderate friction coefficient. This coating performs well in wet or corrosive conditions, is effective on stainless steels and soft materials prone to galling, and helps maintain sharp cutting edges. However, it does not possess the high-temperature durability of TiAlN and offers only moderate wear resistance, making CrN best suited for stainless steels, medical components, and applications involving aggressive coolants. Choosing the right coating for your requirements Choosing the appropriate tool coating for boring involves multiple factors, including the type of material being machined, the use of coolant, cutting speeds and feed rates, surface finish specifications, and budget limitations. •Material being machined: Each coating interacts differently with different materials. •Coolant usage: Some coatings are optimized for use with coolant, while others are intended for dry machining. •Cutting speed and feed rates: Higher cutting speeds necessitate coatings with enhanced thermal resistance. •Surface finish requirements: For achieving smoother finishes, coatings like DLC and CrN are preferable. •Cost constraints: Although premium coatings such as AlTiN or DLC may require a higher initial investment, they often provide superior return on investment in challenging applications. In the world of boring operations, every micron counts. The right coating doesn’t just protect your tool; it enhances every aspect of machining – from tool longevity and heat management to finish quality and operational speed. Whether you're boring aluminium, hardened steel, or a nickel alloy, selecting the

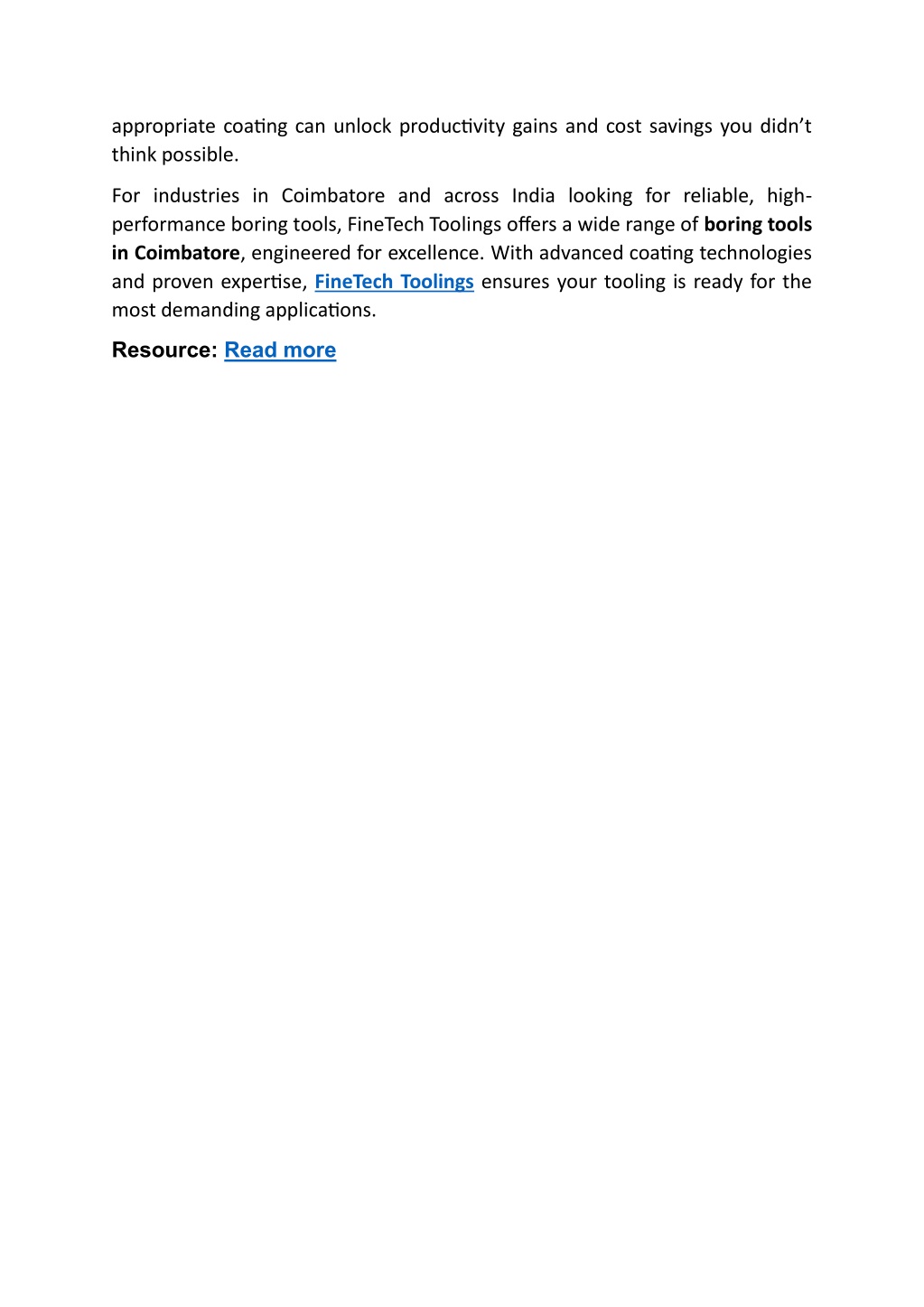

4. appropriate coating can unlock productivity gains and cost savings you didn’t think possible. For industries in Coimbatore and across India looking for reliable, high- performance boring tools, FineTech Toolings offers a wide range of boring tools in Coimbatore, engineered for excellence. With advanced coating technologies and proven expertise, FineTech Toolings ensures your tooling is ready for the most demanding applications. Resource: Read more
