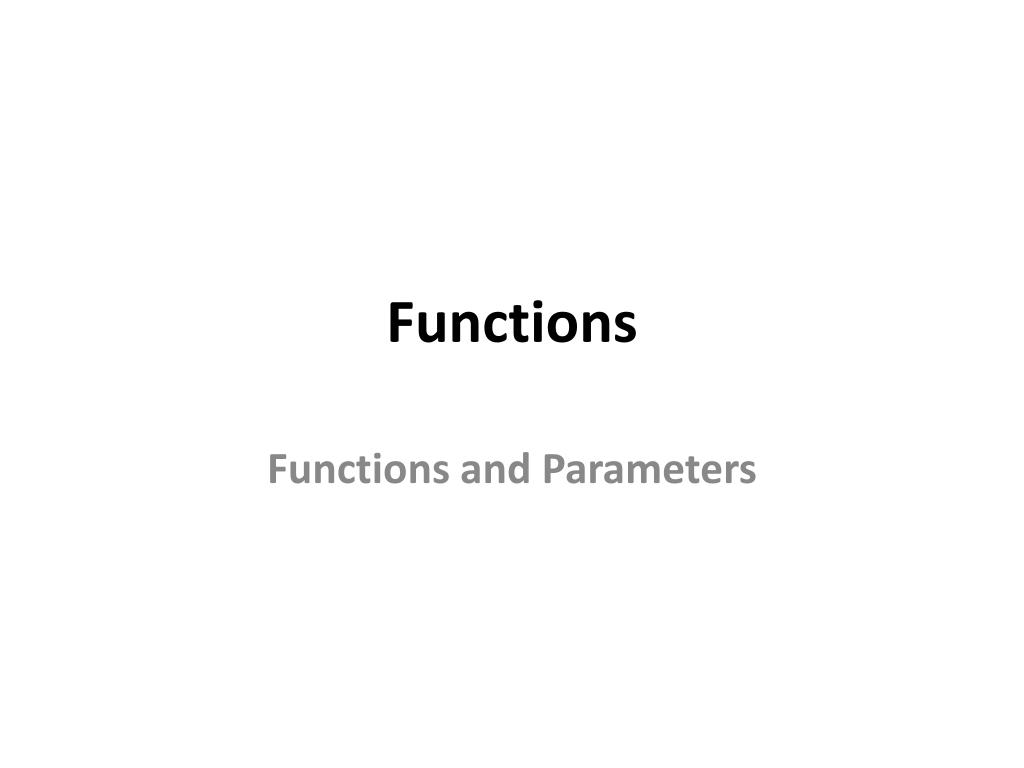

  1. Functions Functions and Parameters

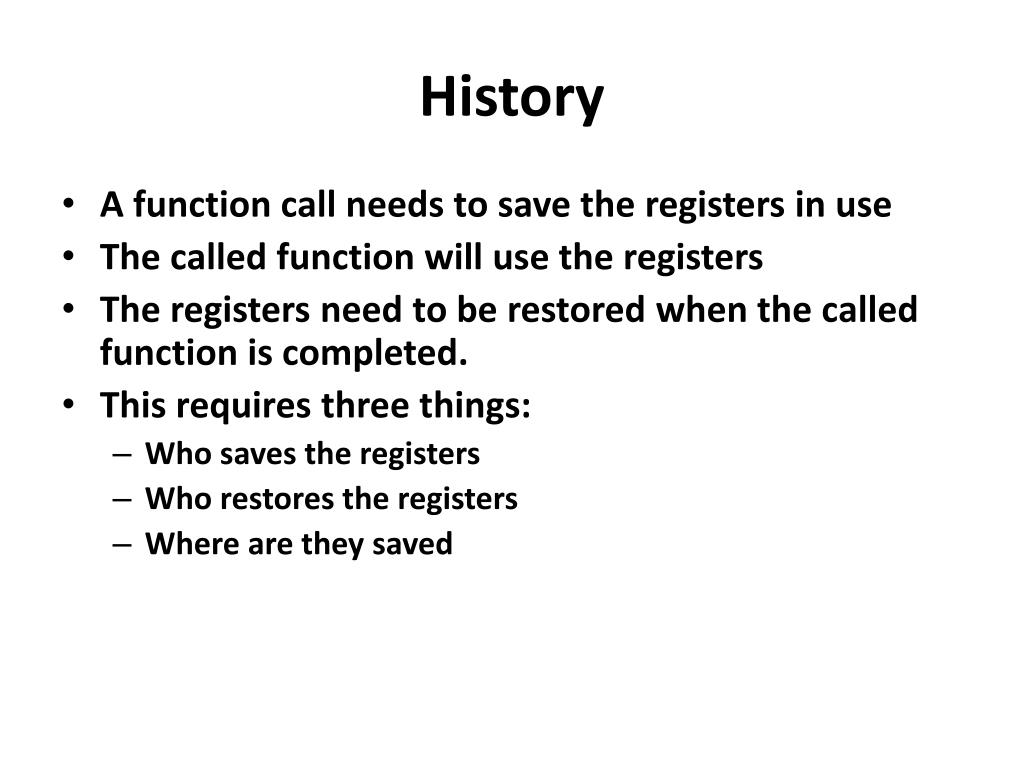

  2. History • A function call needs to save the registers in use • The called function will use the registers • The registers need to be restored when the called function is completed. • This requires three things: • Who saves the registers • Who restores the registers • Where are they saved

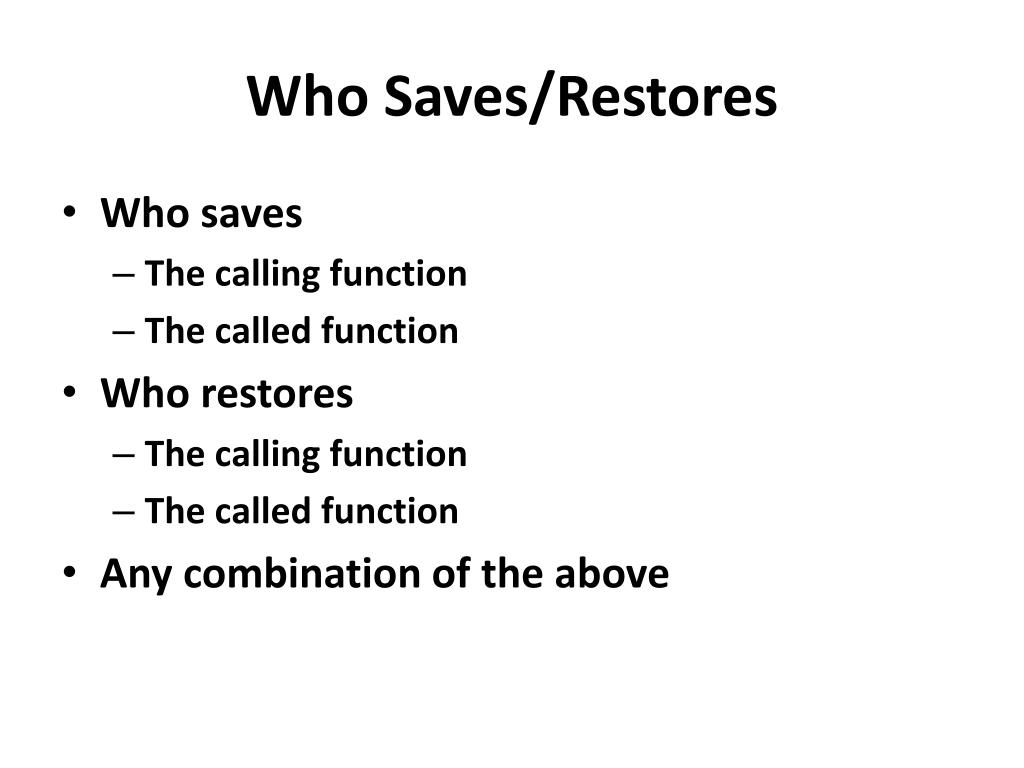

  3. Who Saves/Restores • Who saves • The calling function • The called function • Who restores • The calling function • The called function • Any combination of the above

  4. Where • A location in memory • In registers • Pointed to by a register • In the caller’s frame • In the called frame • On the stack • Register sets • Sparc Architecture uses the frame and register sets

  5. Sparc Register File • In the Sparc architecture there are a minimum of 128 registers and 8 global registers • These are grouped into 8 global registers and 24 mapped programmer registers • The save instruction changes the register mapping to a new set • The restore instruction restores the old set. • The CWP and WIM are two system registers pointing to the current window of registers and the last free register set.

  6. Sparc Register File In Local Out CWP -> Sixteen General Registers WIM ->

  7. Sparc Register File In Local Out In Local Out CWP -> Sixteen General Registers WIM ->

  8. Sparc Register File In Local Out In Local Out In Local Out CWP -> Sixteen General Registers WIM ->

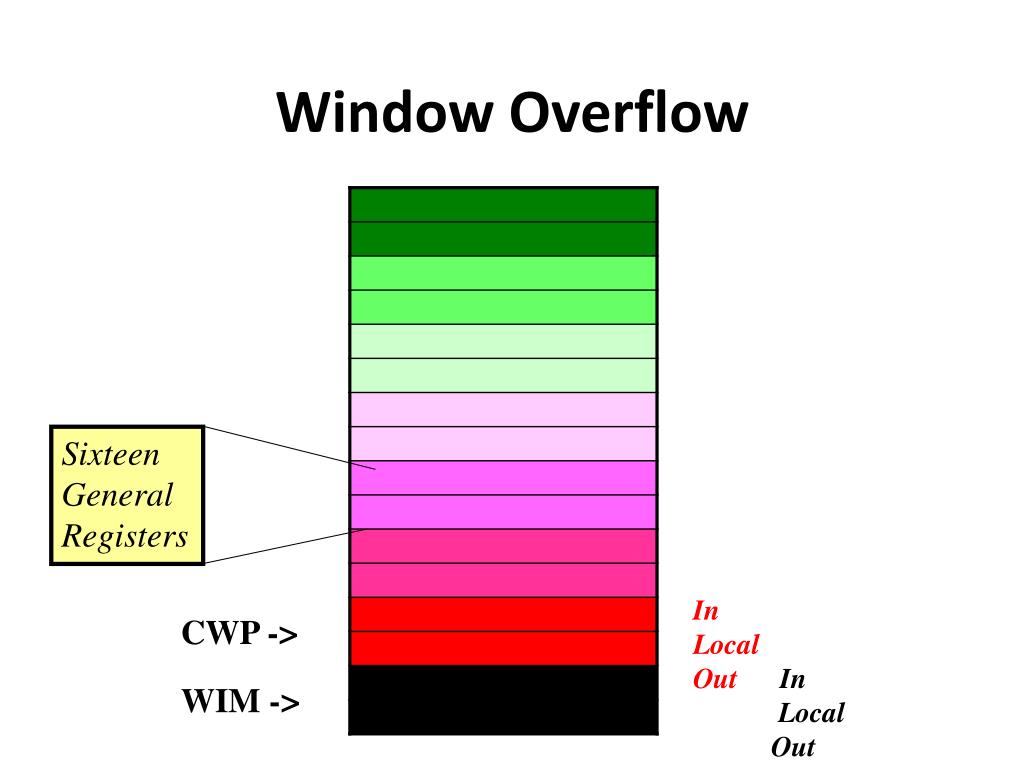

  9. Window Overflow Sixteen General Registers In Local Out In Local Out CWP -> WIM ->

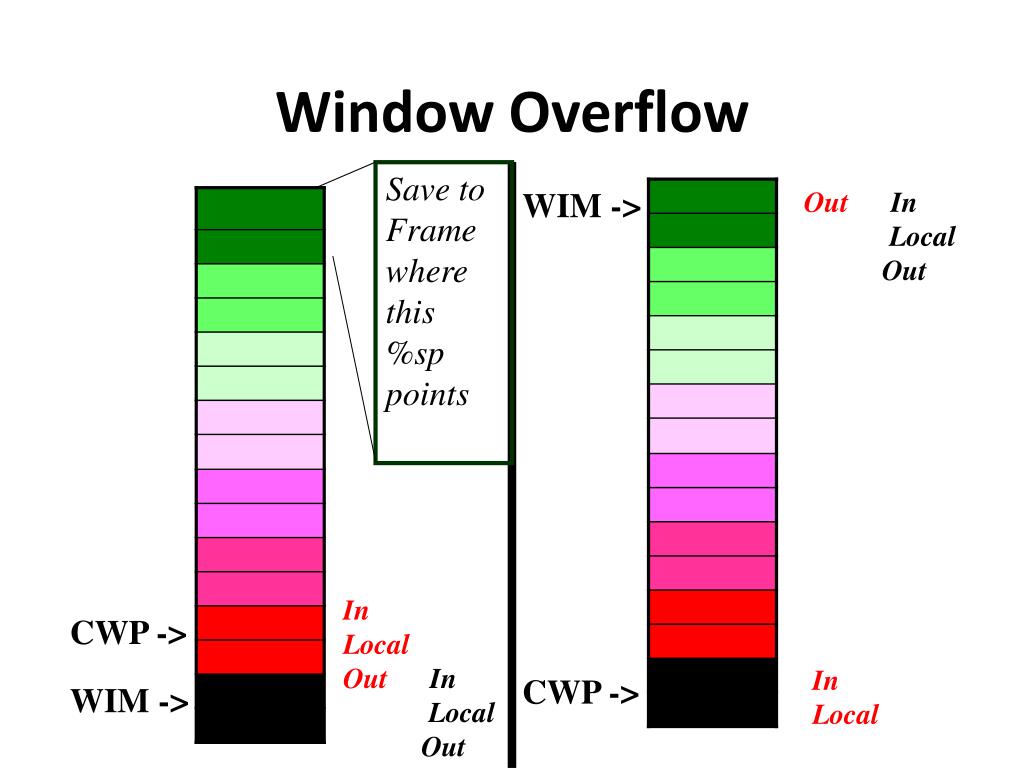

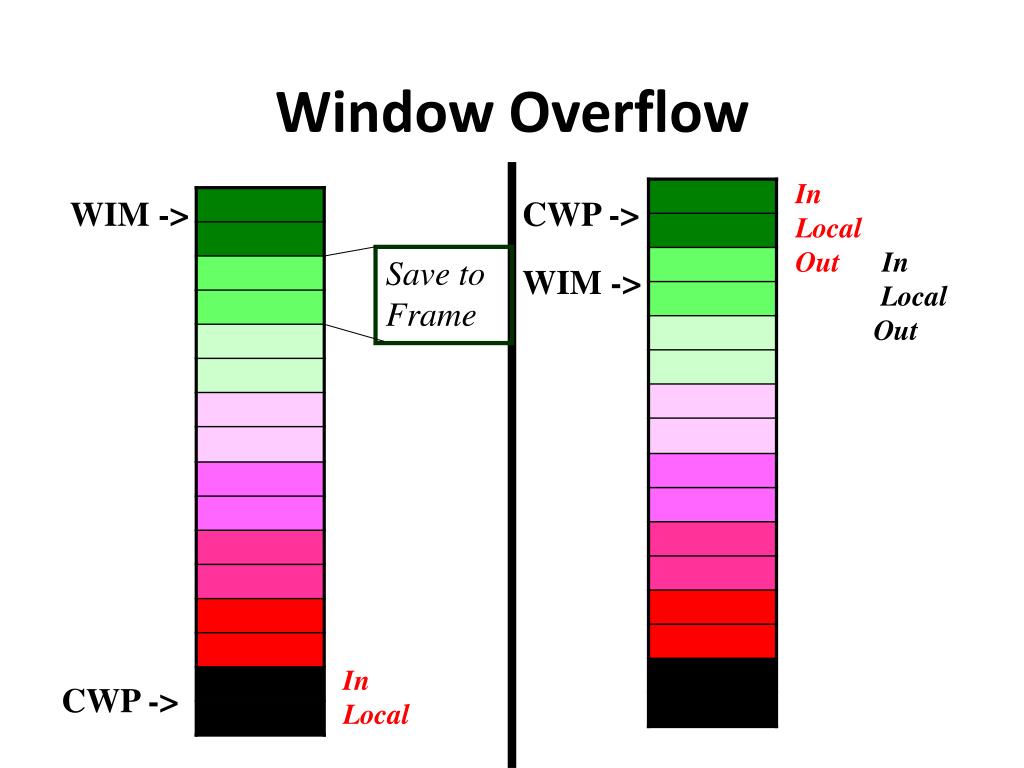

  10. Window Overflow Save to Frame where this %sp points WIM -> Out In Local Out In Local Out In Local Out CWP -> In Local CWP -> WIM ->

  11. Window Overflow In Local Out In Local Out WIM -> CWP -> Save to Frame WIM -> In Local CWP ->

  12. Function Registers • Each function gets its own registers • The global registers (one copy for all) • Its own copy of the other registers • The I registers • The L registers • The O registers

  13. A Function Call • A function call creates a new frame • A called function gets access to the %g registers • A called function’s I registers are the calling function’s O registers • The called function gets its own L registers and O registers. These are called a register set.

  14. Register Set Figure 7.1

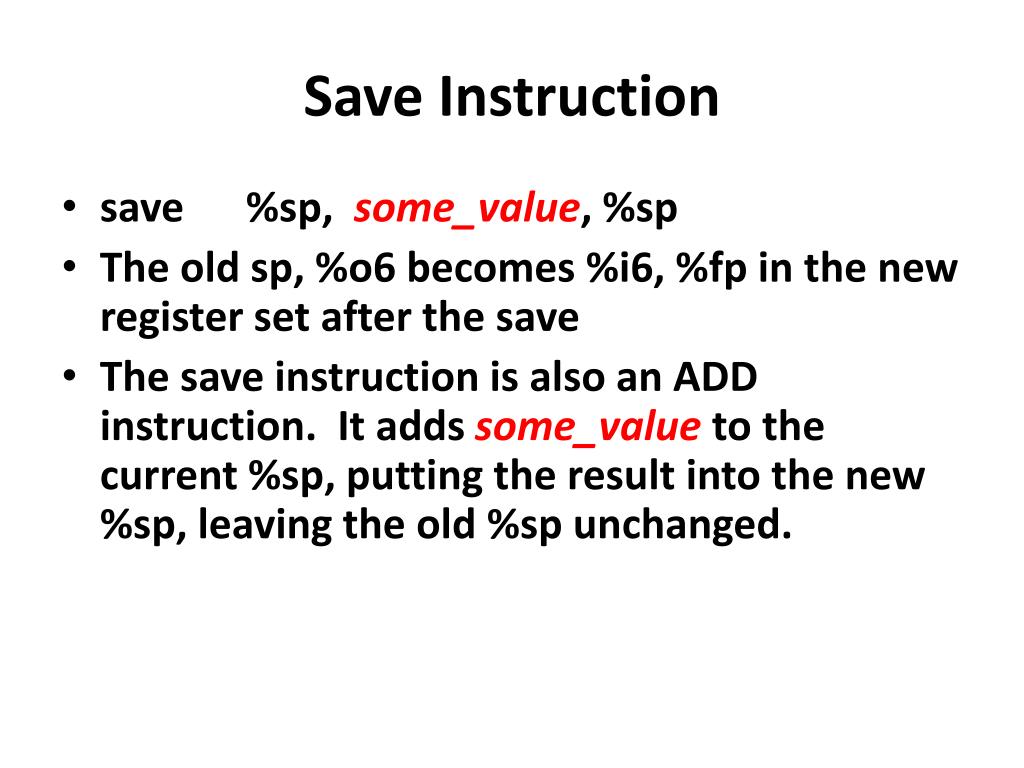

  15. Save Instruction • save %sp, some_value, %sp • The old sp, %o6 becomes %i6, %fp in the new register set after the save • The save instruction is also an ADD instruction. It adds some_value to the current %sp, putting the result into the new %sp, leaving the old %sp unchanged.

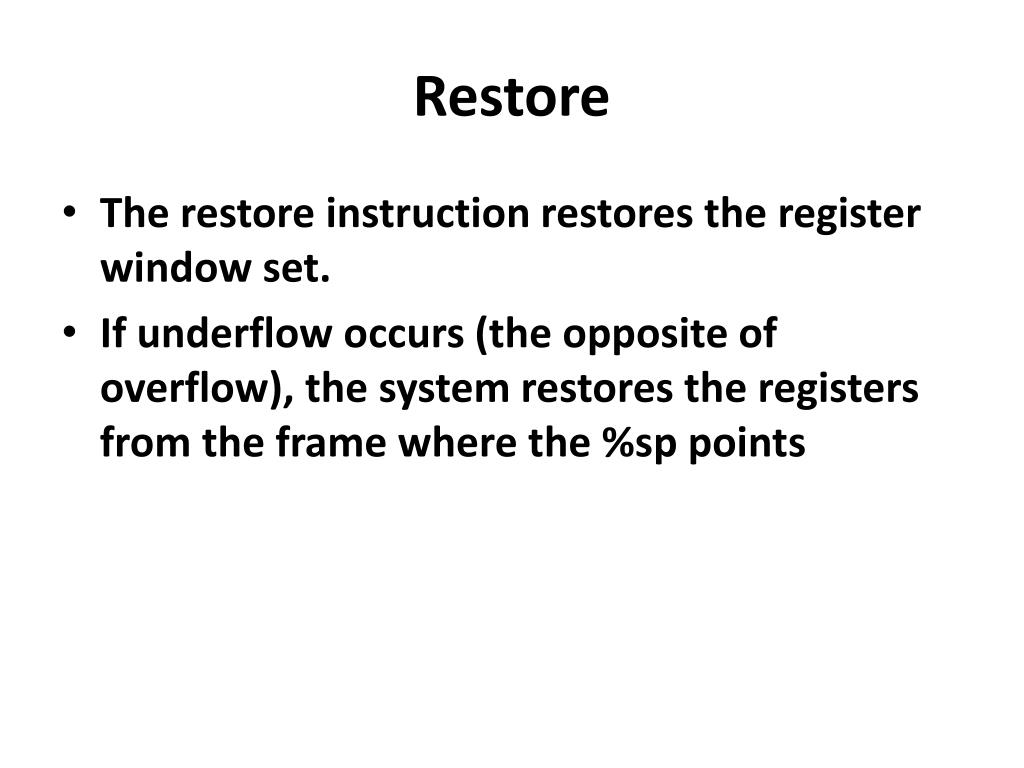

  16. Restore • The restore instruction restores the register window set. • If underflow occurs (the opposite of overflow), the system restores the registers from the frame where the %sp points

  17. Functions vs Subroutines • A subroutine / procedure can be viewed as a function that returns void (C/C++/Java) procedure print_list(Listtype L); (PASCAL) void print_list( Listtype L); • A function can be viewed as a procedure that returns a value (ALGOL) integer procedure factorial(integer N);

  18. function calls • Put parameters they should be • call function_name • If function returns a value, look for return value where it should be

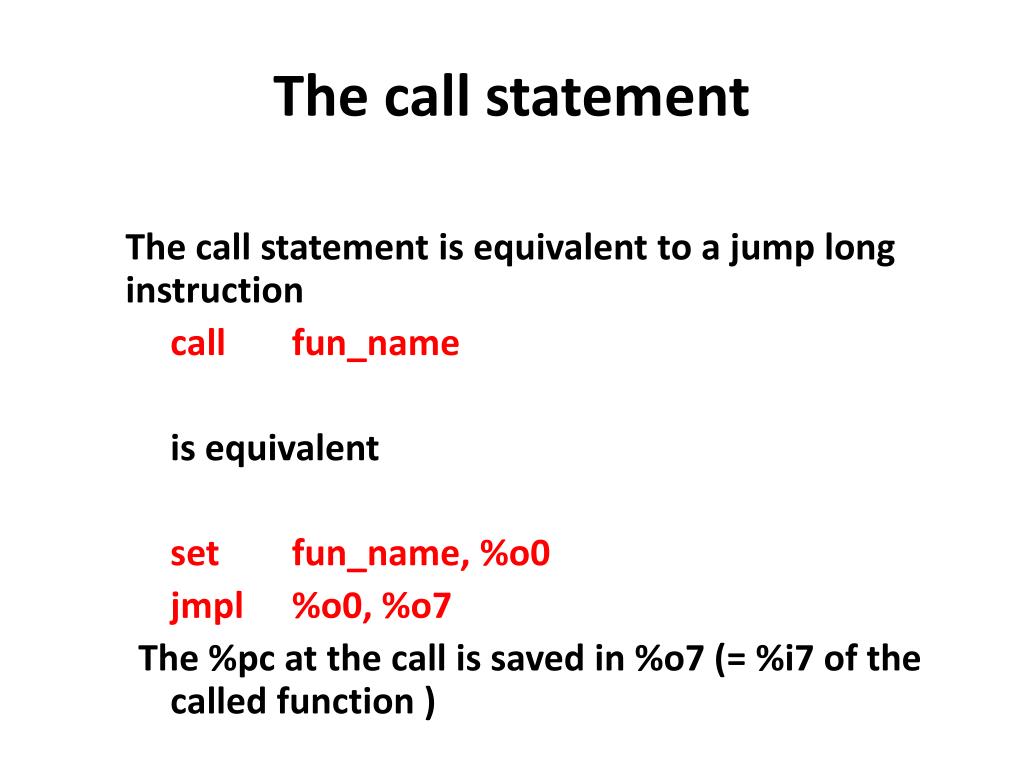

  19. The call statement The call statement is equivalent to a jump long instruction call fun_name is equivalent set fun_name, %o0 jmpl %o0, %o7 The %pc at the call is saved in %o7 (= %i7 of the called function )

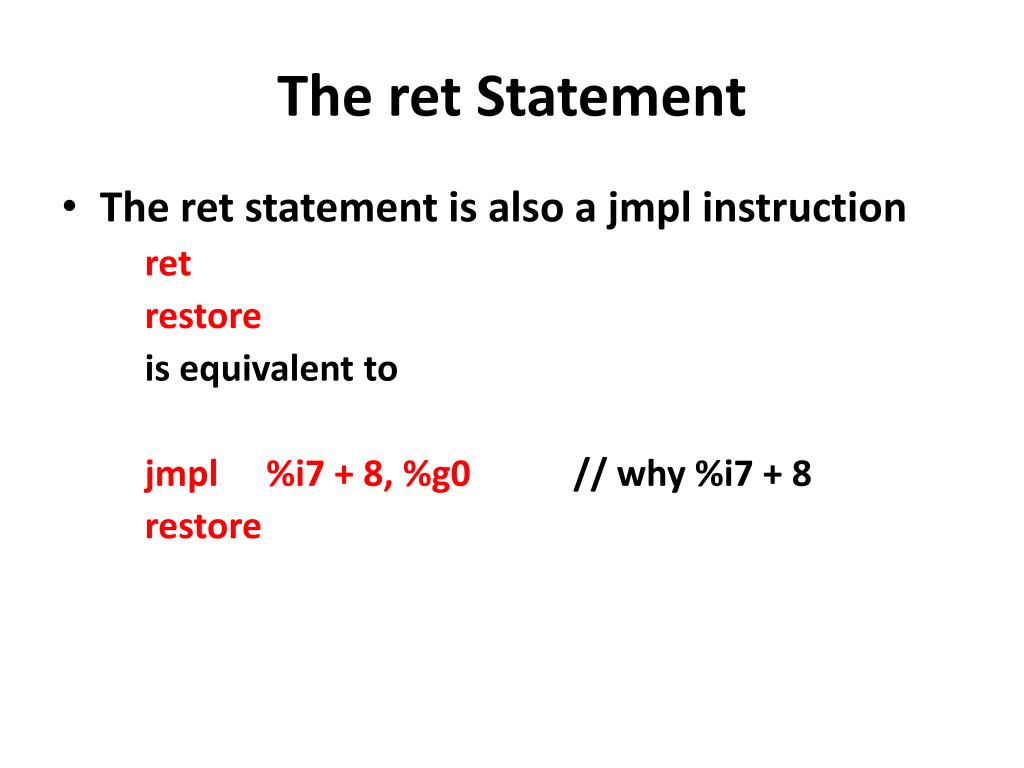

  20. The ret Statement • The ret statement is also a jmpl instruction ret restore is equivalent to jmpl %i7 + 8, %g0 // why %i7 + 8 restore

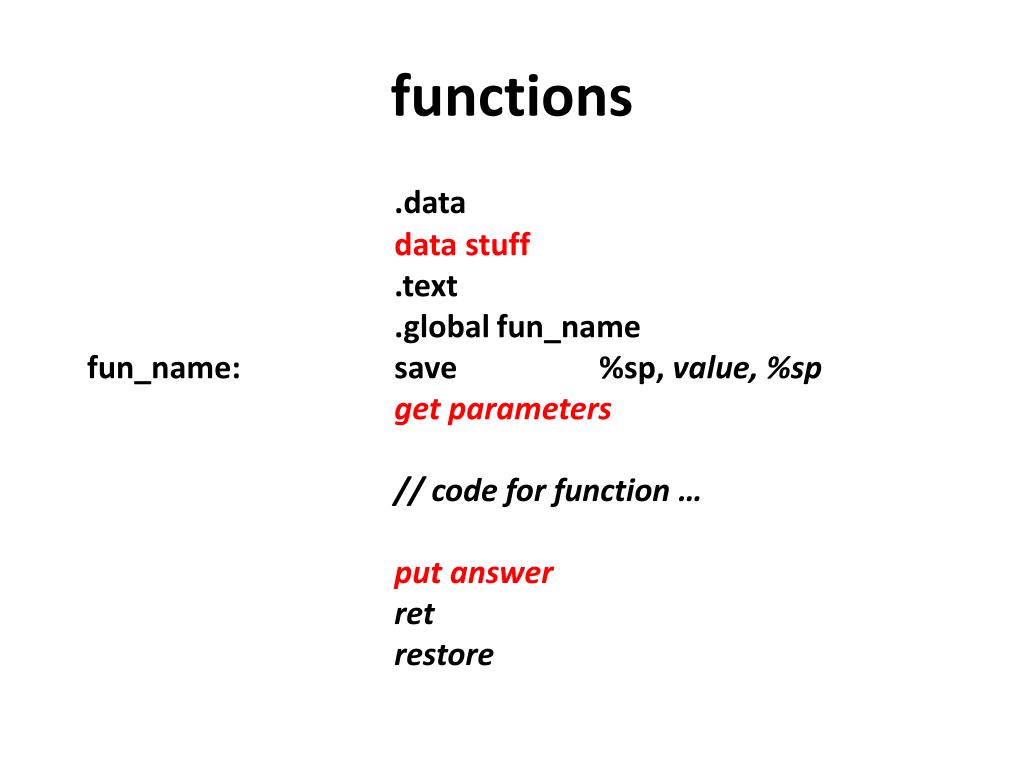

  21. functions .data data stuff .text .global fun_name fun_name: save %sp, value, %sp get parameters // code for function … put answer ret restore

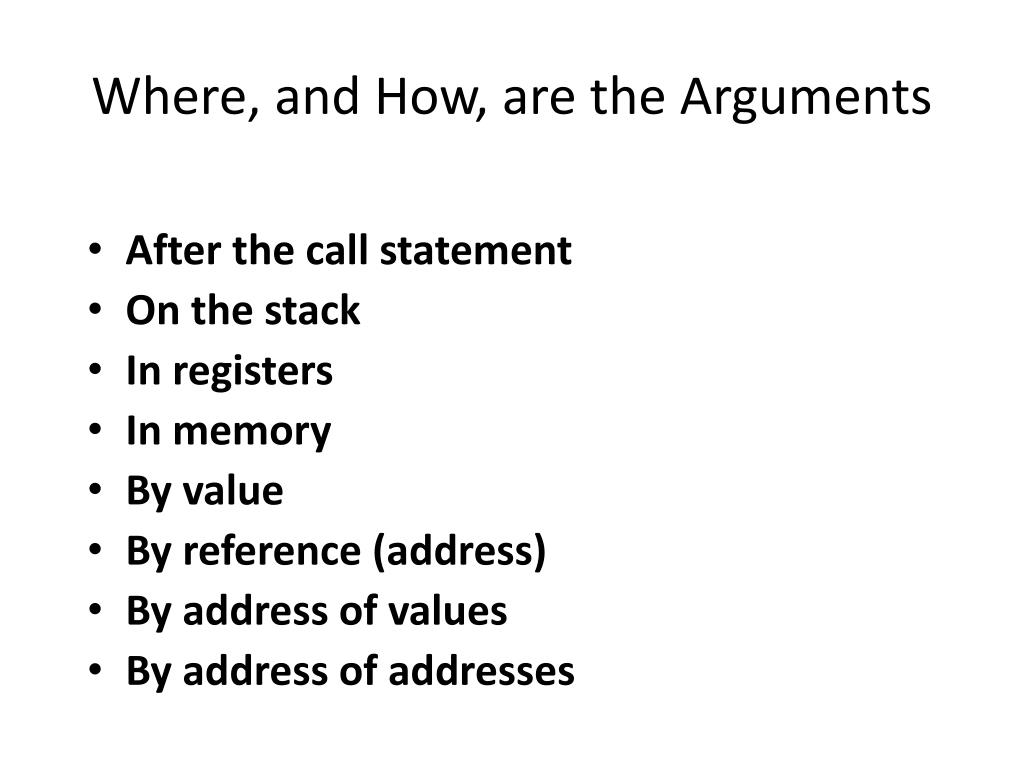

  22. Where, and How, are the Arguments • After the call statement • On the stack • In registers • In memory • By value • By reference (address) • By address of values • By address of addresses

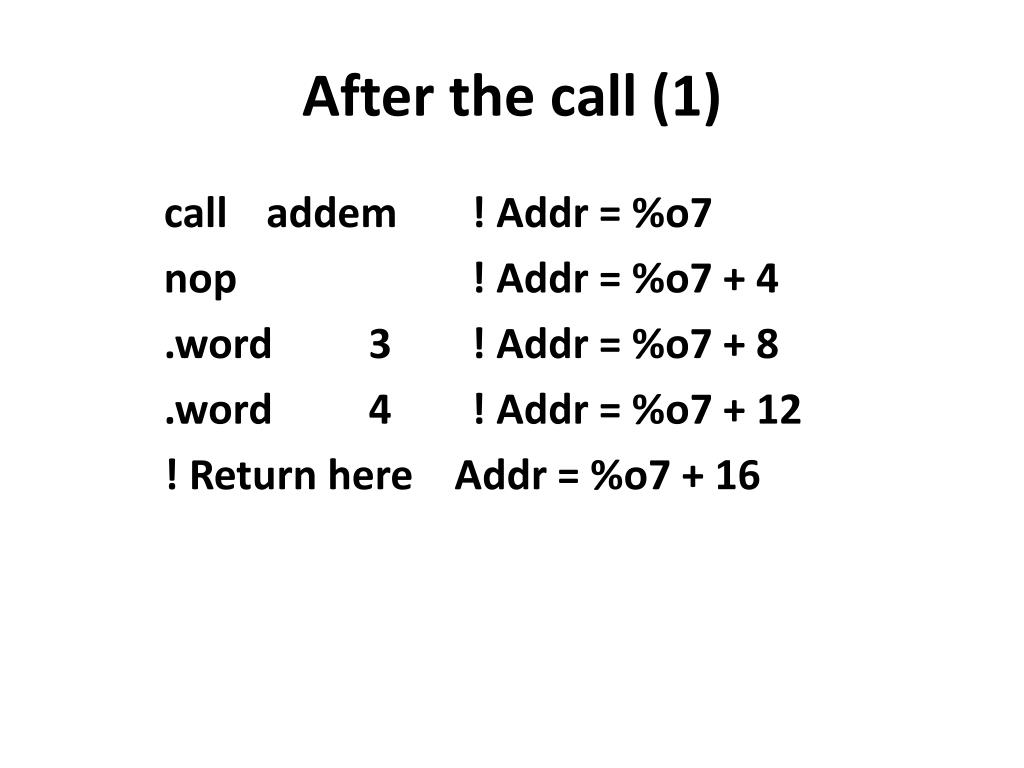

  23. After the call (1) call addem ! Addr = %o7 nop ! Addr = %o7 + 4 .word 3 ! Addr = %o7 + 8 .word 4 ! Addr = %o7 + 12 ! Return here Addr = %o7 + 16

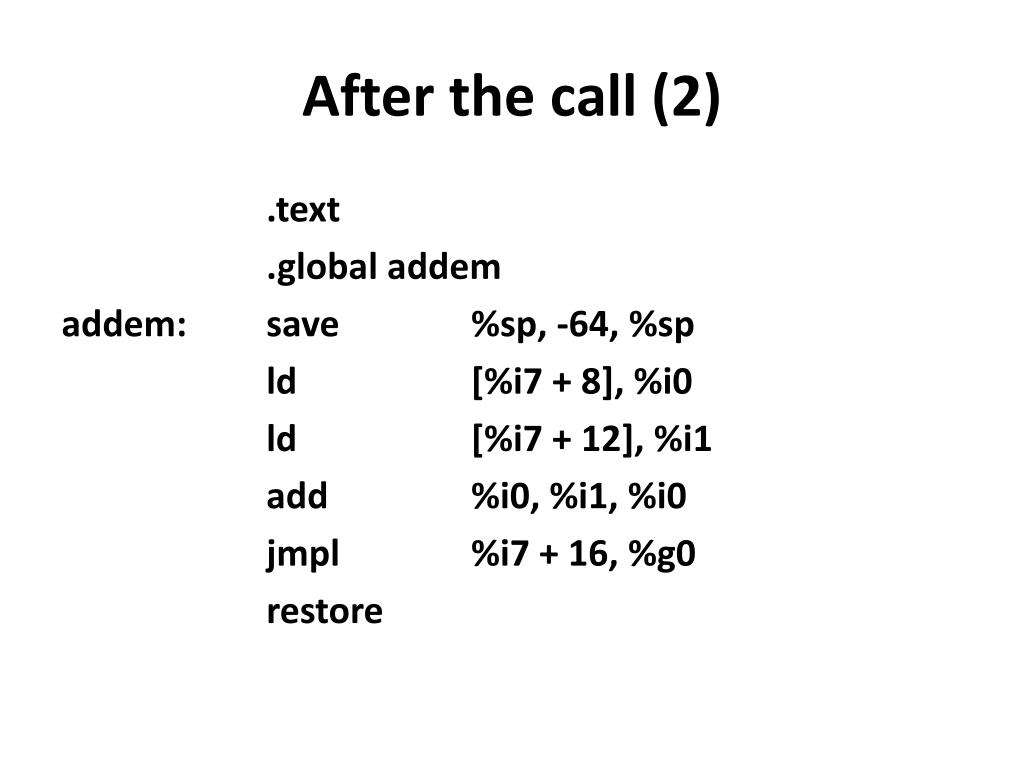

  24. After the call (2) .text .global addem addem: save %sp, -64, %sp ld [%i7 + 8], %i0 ld [%i7 + 12], %i1 add %i0, %i1, %i0 jmpl %i7 + 16, %g0 restore

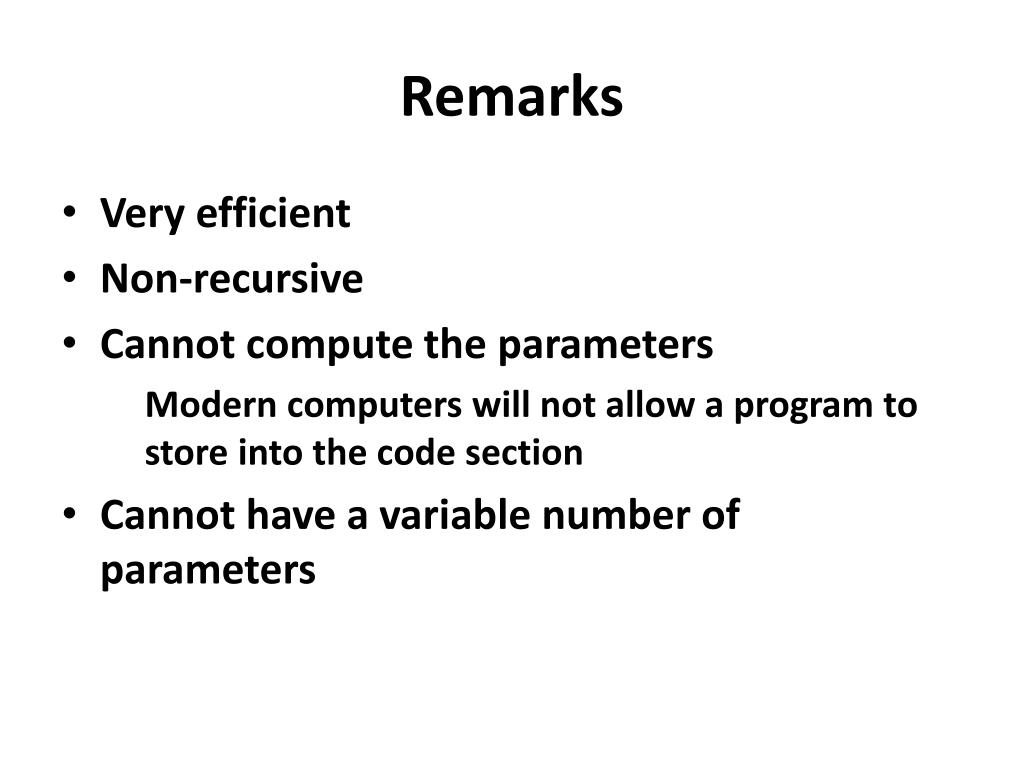

  25. Remarks • Very efficient • Non-recursive • Cannot compute the parameters Modern computers will not allow a program to store into the code section • Cannot have a variable number of parameters

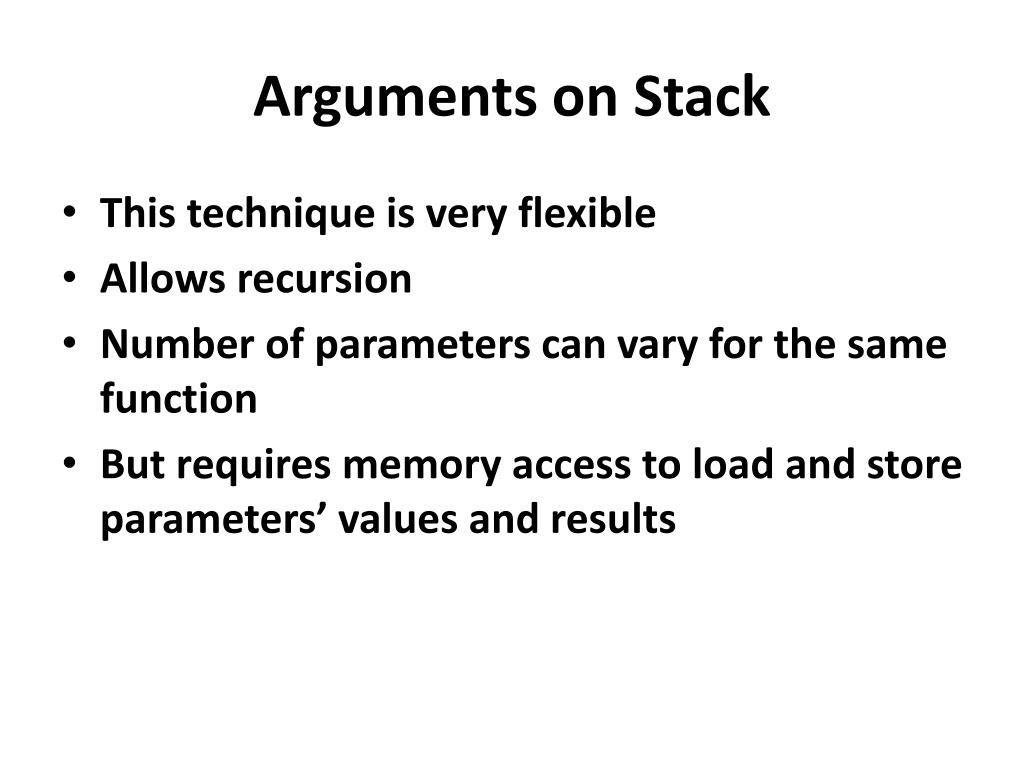

  26. Arguments on Stack • This technique is very flexible • Allows recursion • Number of parameters can vary for the same function • But requires memory access to load and store parameters’ values and results

  27. Sparc Solution • First six arguments are placed into the O registers. • These O registers become the called functions I registers. • No memory references are necessary for these parameters.

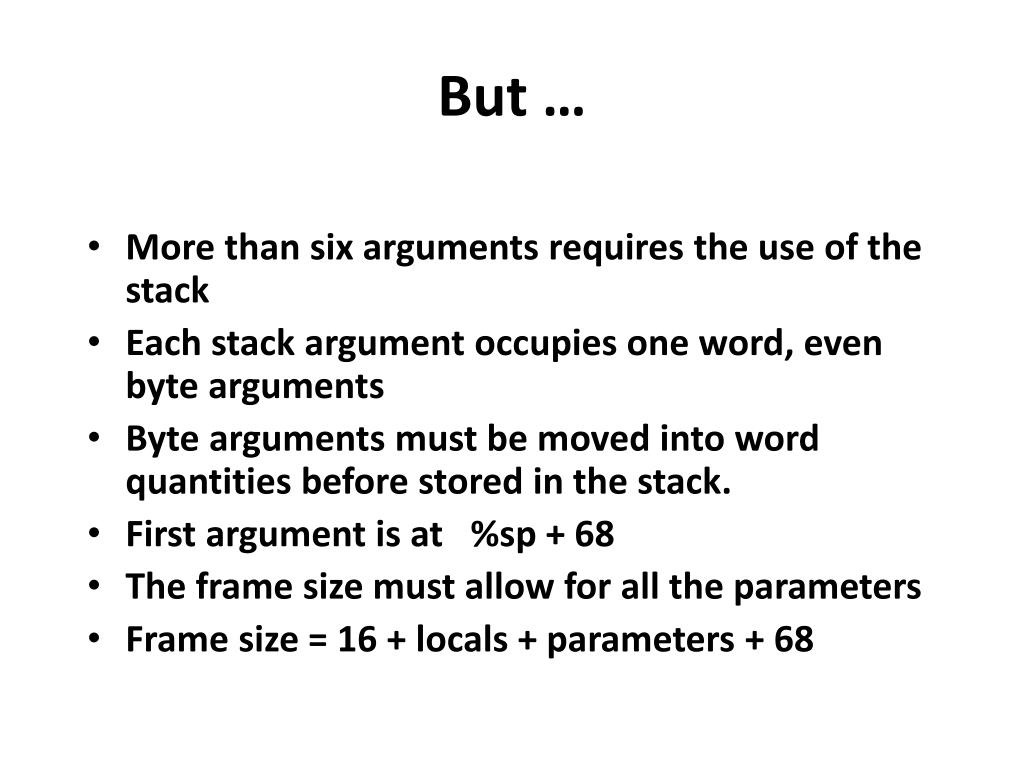

  28. But … • More than six arguments requires the use of the stack • Each stack argument occupies one word, even byte arguments • Byte arguments must be moved into word quantities before stored in the stack. • First argument is at %sp + 68 • The frame size must allow for all the parameters • Frame size = 16 + locals + parameters + 68

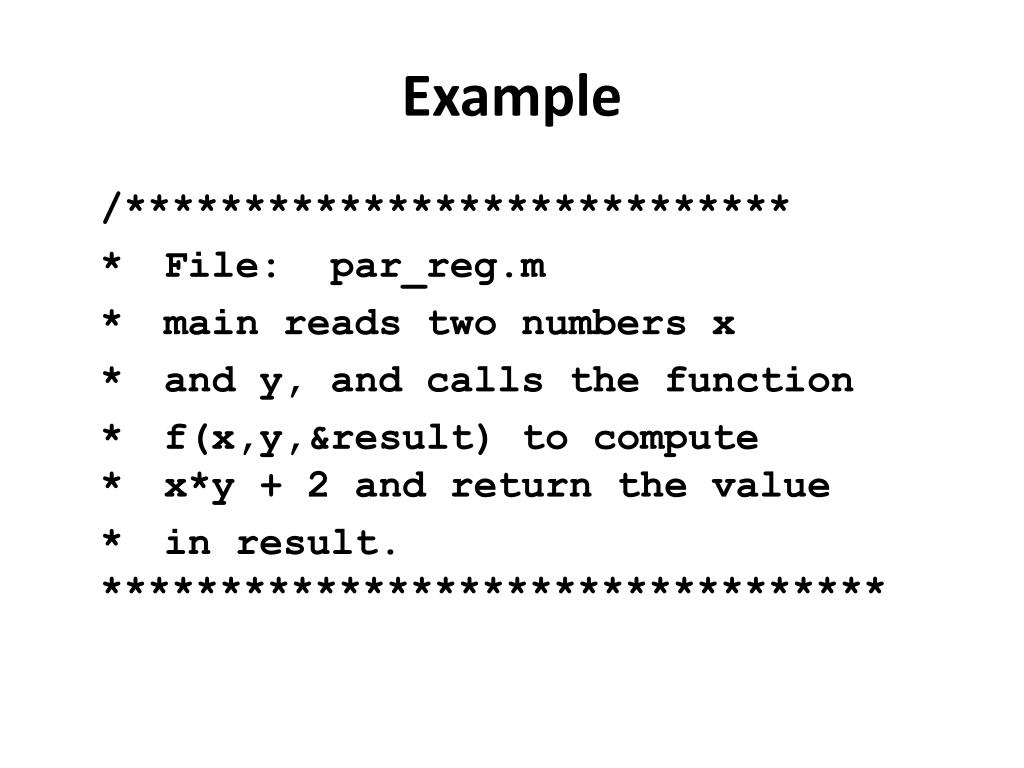

  29. Example /**************************** * File: par_reg.m * main reads two numbers x * and y, and calls the function * f(x,y,&result) to compute* x*y + 2 and return the value * in result.*********************************

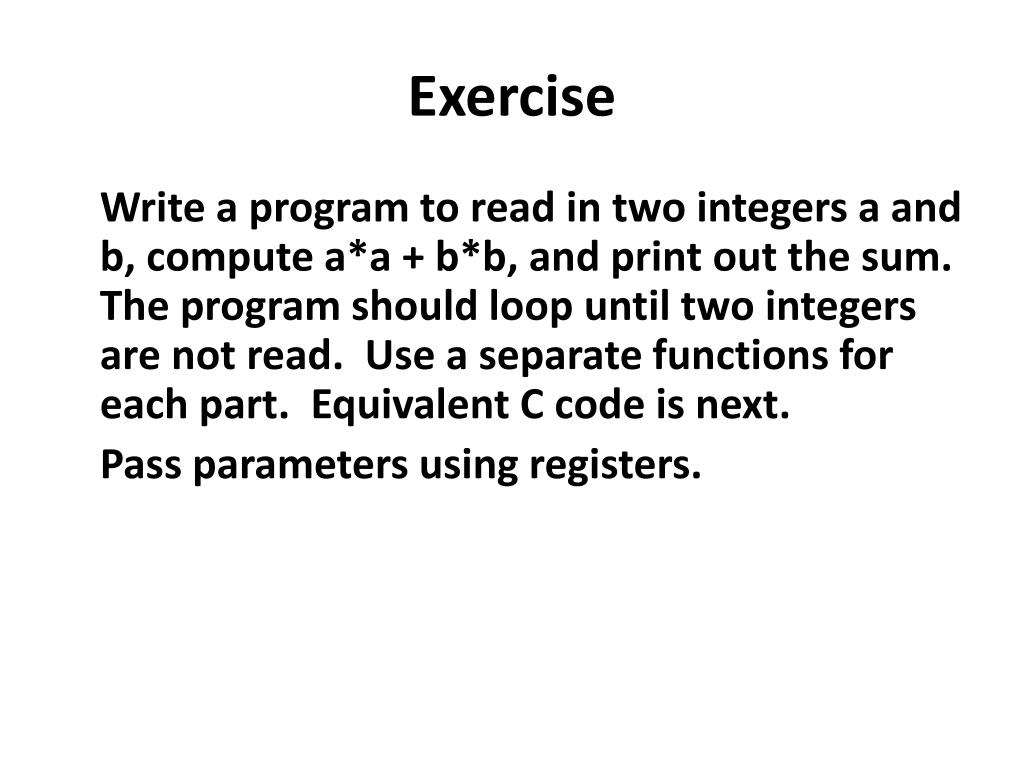

  30. Exercise Write a program to read in two integers a and b, compute a*a + b*b, and print out the sum. The program should loop until two integers are not read. Use a separate functions for each part. Equivalent C code is next. Pass parameters using registers.

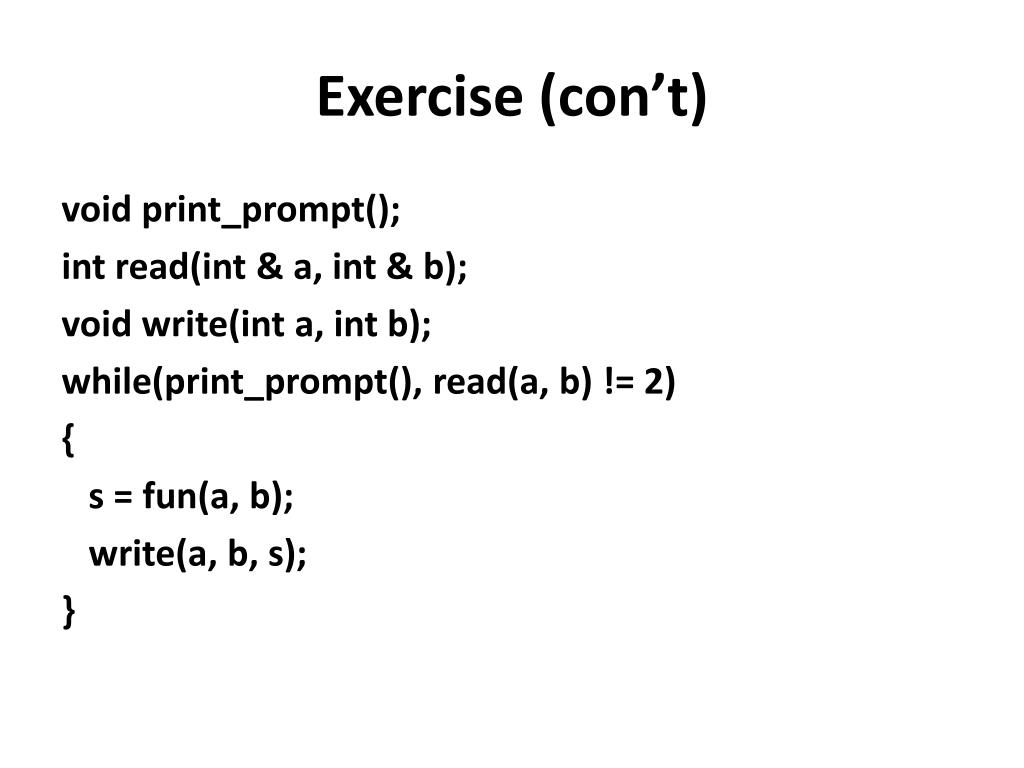

  31. Exercise (con’t) void print_prompt(); int read(int & a, int & b); void write(int a, int b); while(print_prompt(), read(a, b) != 2) { s = fun(a, b); write(a, b, s); }

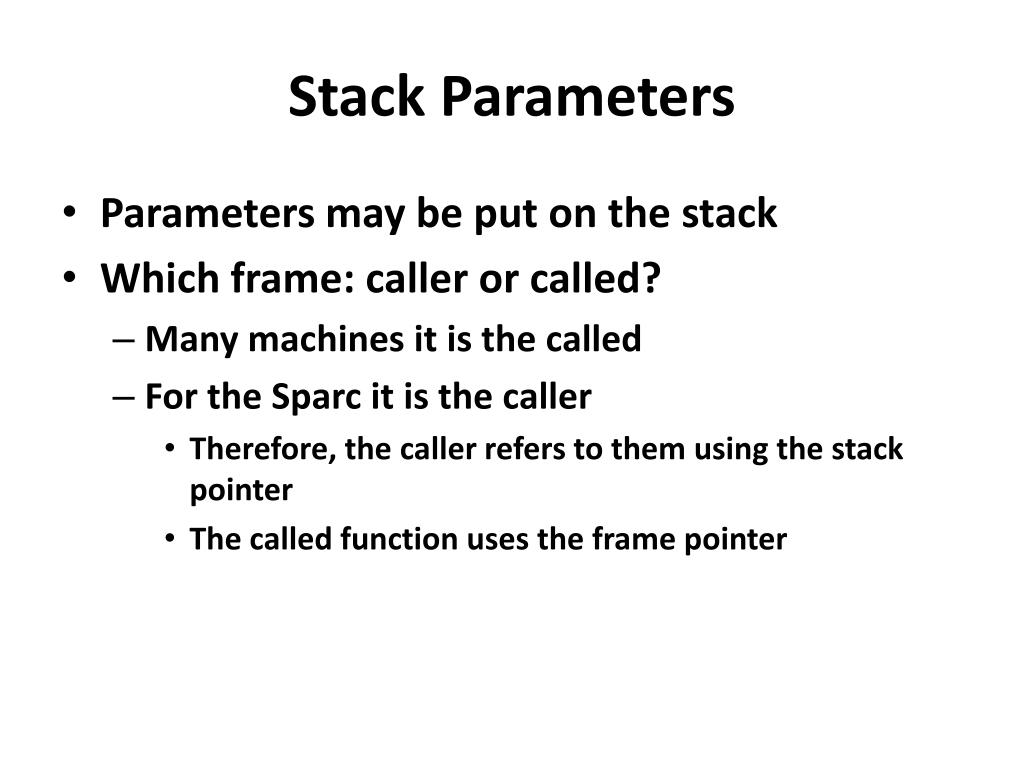

  32. Stack Parameters • Parameters may be put on the stack • Which frame: caller or called? • Many machines it is the called • For the Sparc it is the caller • Therefore, the caller refers to them using the stack pointer • The called function uses the frame pointer

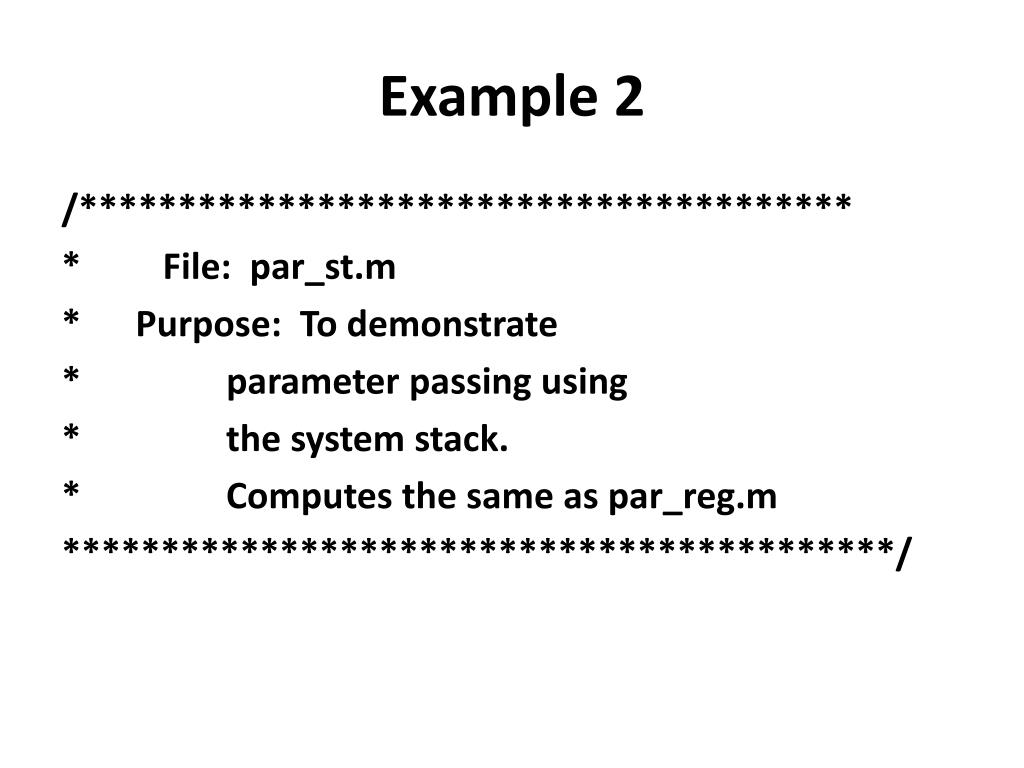

  33. Example 2 /*************************************** * File: par_st.m * Purpose: To demonstrate * parameter passing using * the system stack. * Computes the same as par_reg.m ******************************************/

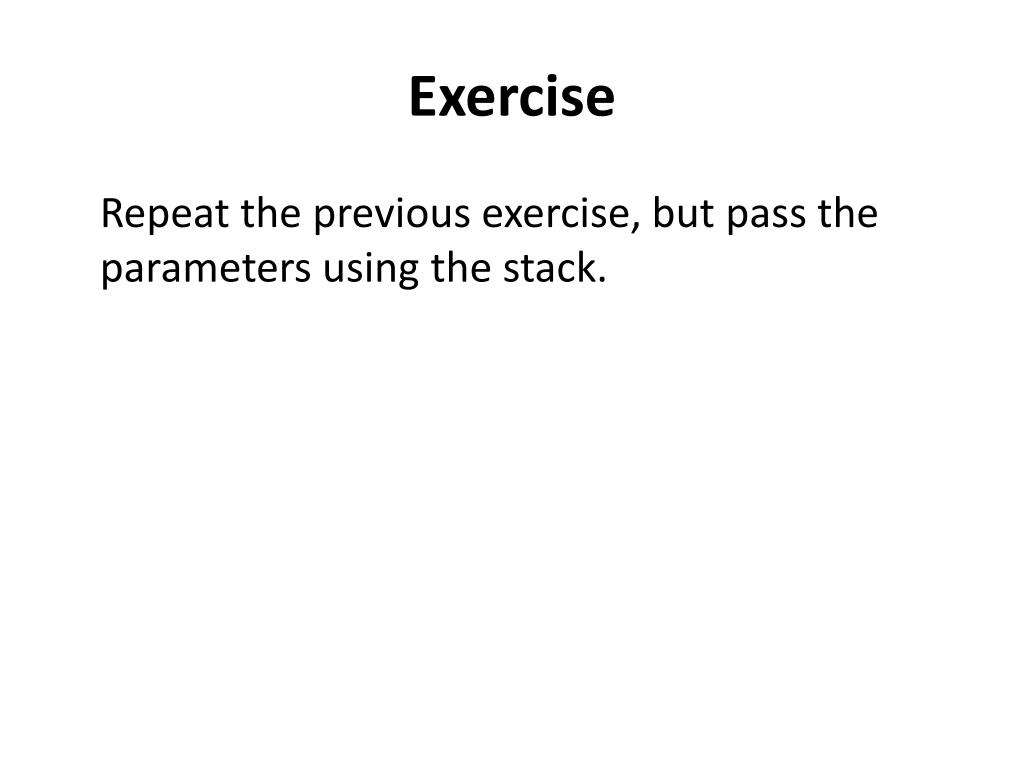

  34. Exercise Repeat the previous exercise, but pass the parameters using the stack.
