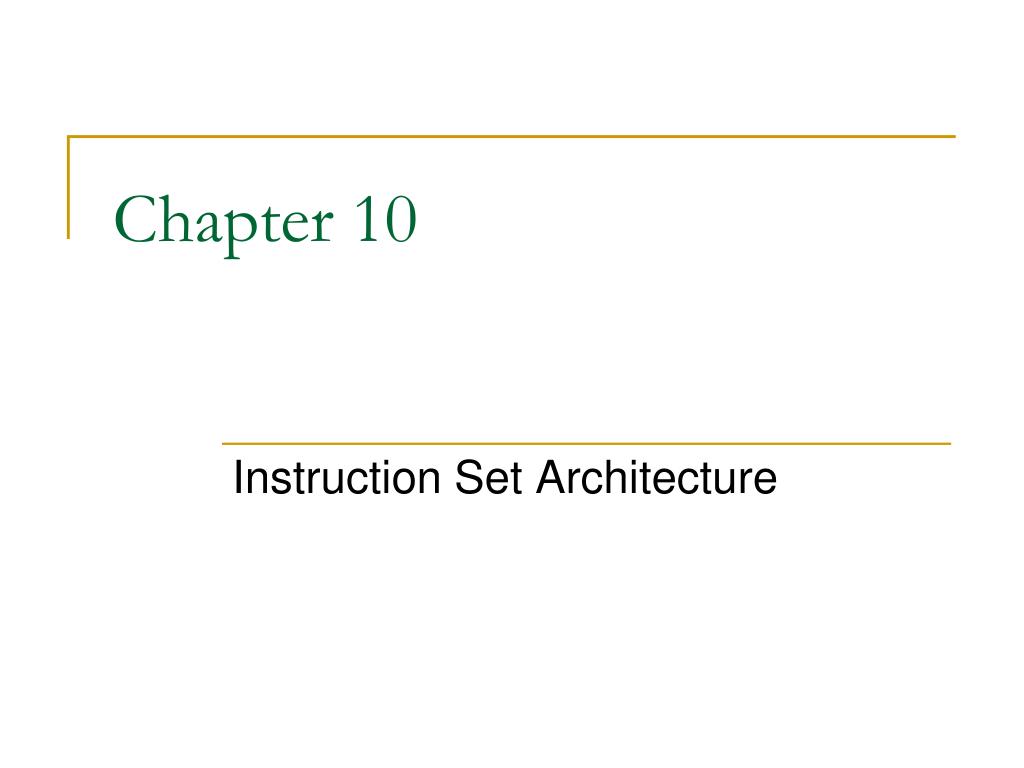

  1. Chapter 10 Instruction Set Architecture

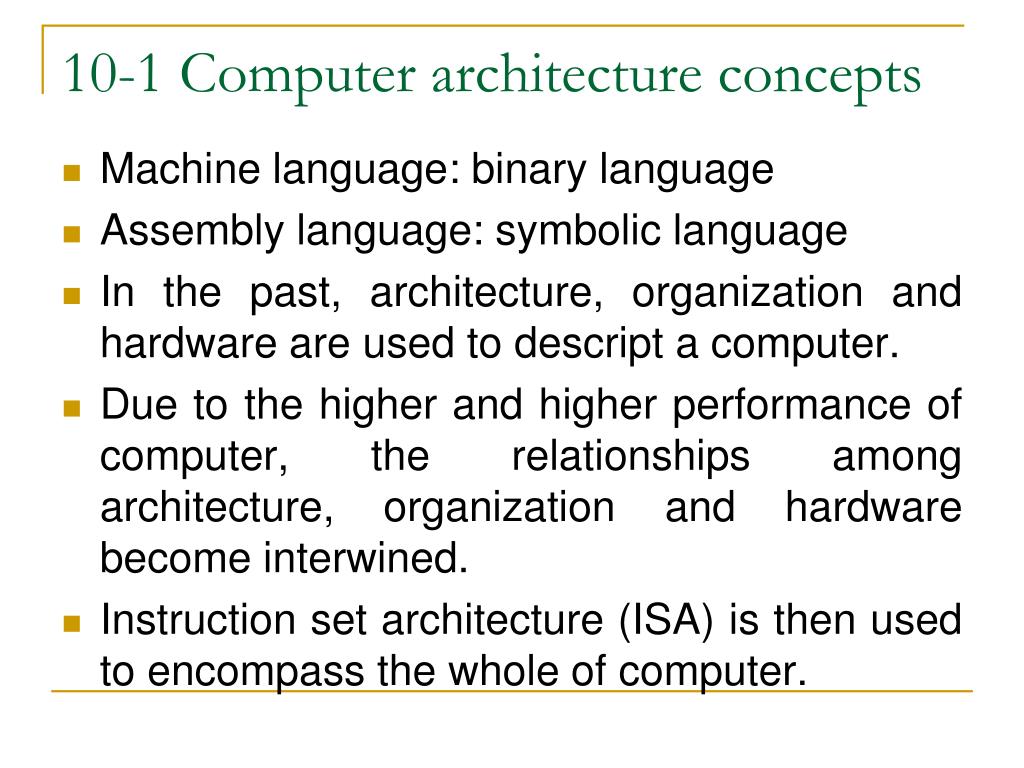

  2. 10-1 Computer architecture concepts • Machine language: binary language • Assembly language: symbolic language • In the past, architecture, organization and hardware are used to descript a computer. • Due to the higher and higher performance of computer, the relationships among architecture, organization and hardware become interwined. • Instruction set architecture (ISA) is then used to encompass the whole of computer.

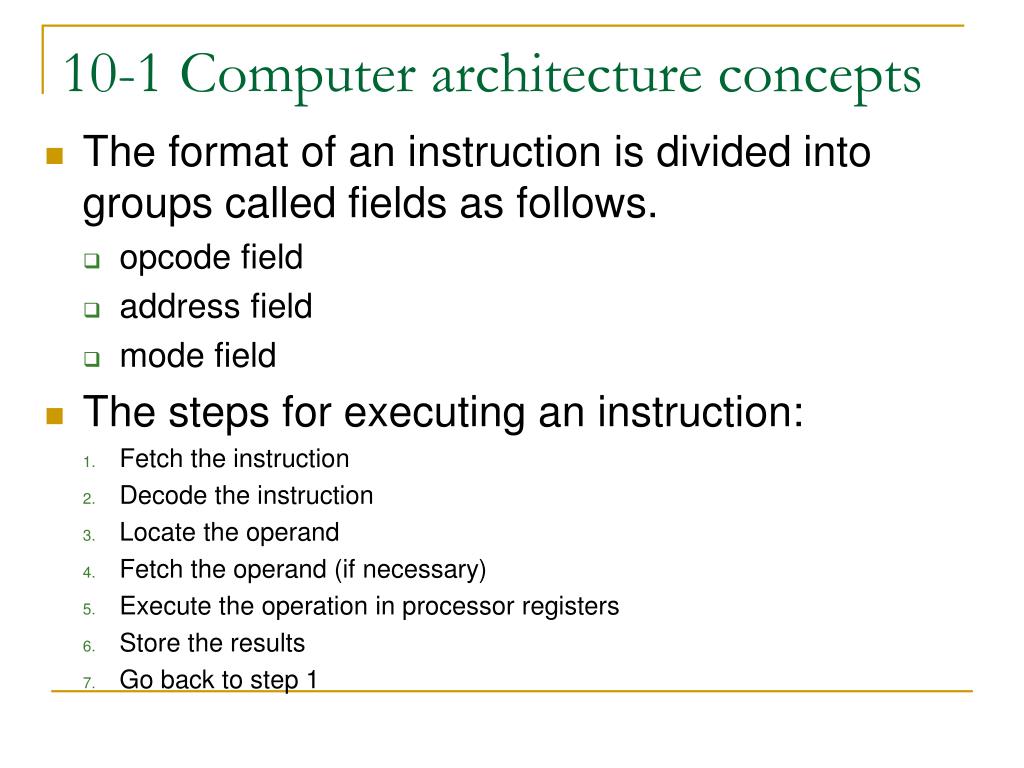

  3. 10-1 Computer architecture concepts • The format of an instruction is divided into groups called fields as follows. • opcode field • address field • mode field • The steps for executing an instruction: • Fetch the instruction • Decode the instruction • Locate the operand • Fetch the operand (if necessary) • Execute the operation in processor registers • Store the results • Go back to step 1

  4. 10-1 Computer architecture concepts • Program counter (PC) keeps track of the instructions in the program stored in memory. • Register set • Register files in chap. 9 + processor status register (PSR)+ stack pointer (SPP

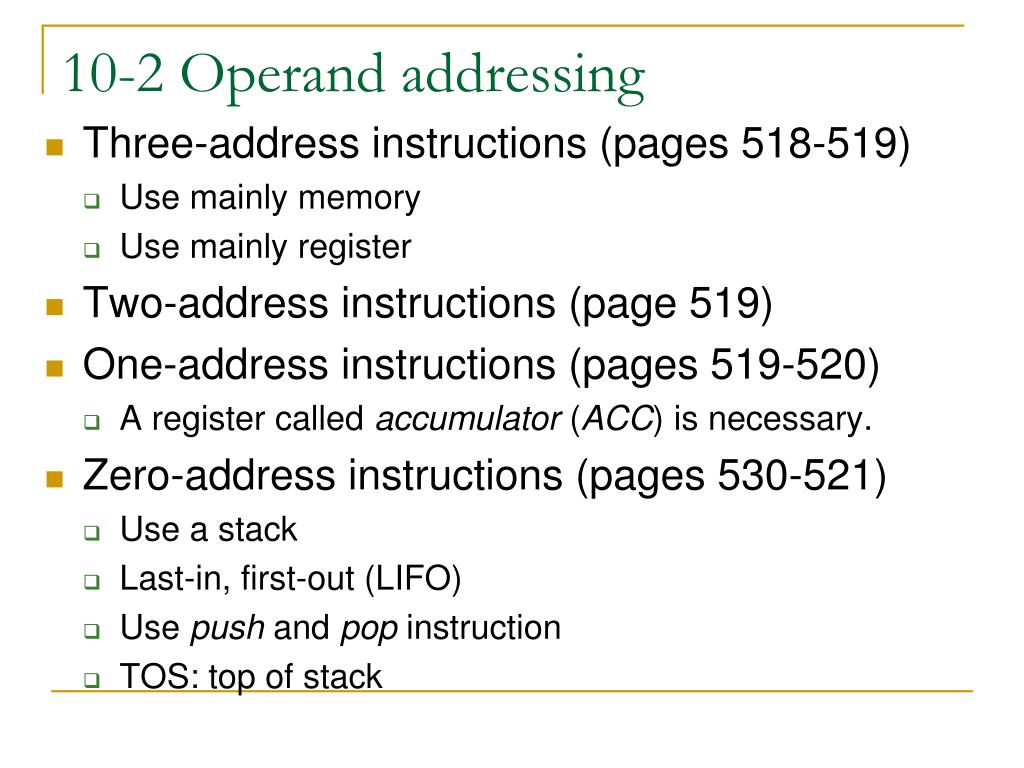

  5. 10-2 Operand addressing • Three-address instructions (pages 518-519) • Use mainly memory • Use mainly register • Two-address instructions (page 519) • One-address instructions (pages 519-520) • A register called accumulator (ACC) is necessary. • Zero-address instructions (pages 530-521) • Use a stack • Last-in, first-out (LIFO) • Use push and pop instruction • TOS: top of stack

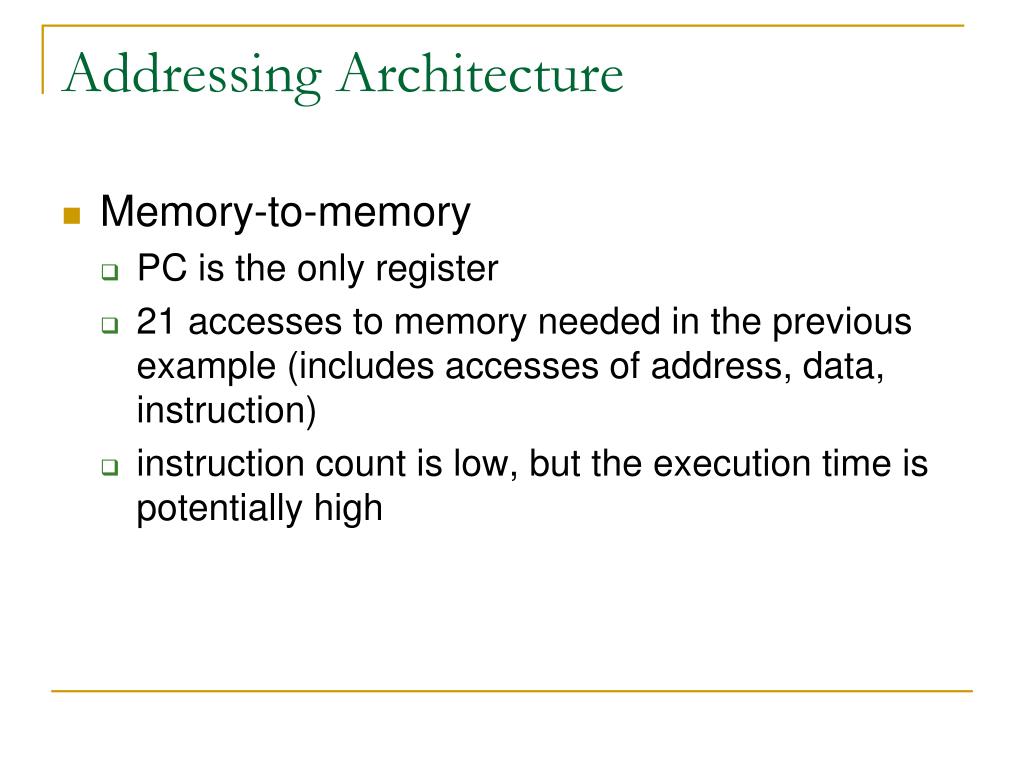

  6. Addressing Architecture • Memory-to-memory • PC is the only register • 21 accesses to memory needed in the previous example (includes accesses of address, data, instruction) • instruction count is low, but the execution time is potentially high

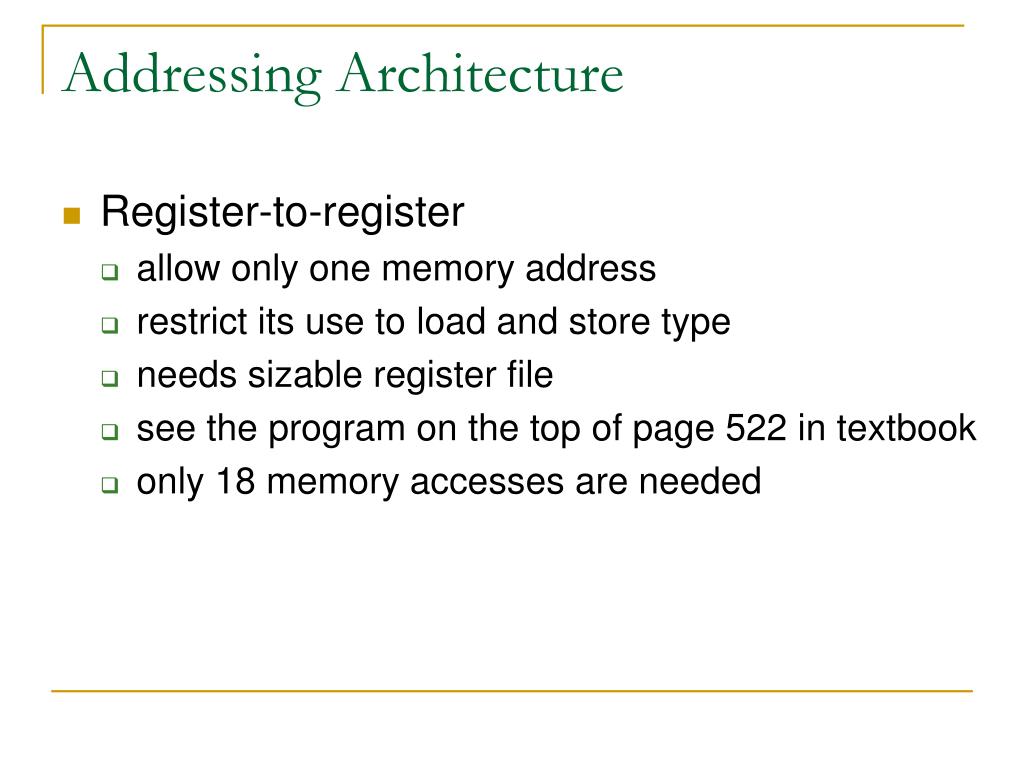

  7. Addressing Architecture • Register-to-register • allow only one memory address • restrict its use to load and store type • needs sizable register file • see the program on the top of page 522 in textbook • only 18 memory accesses are needed

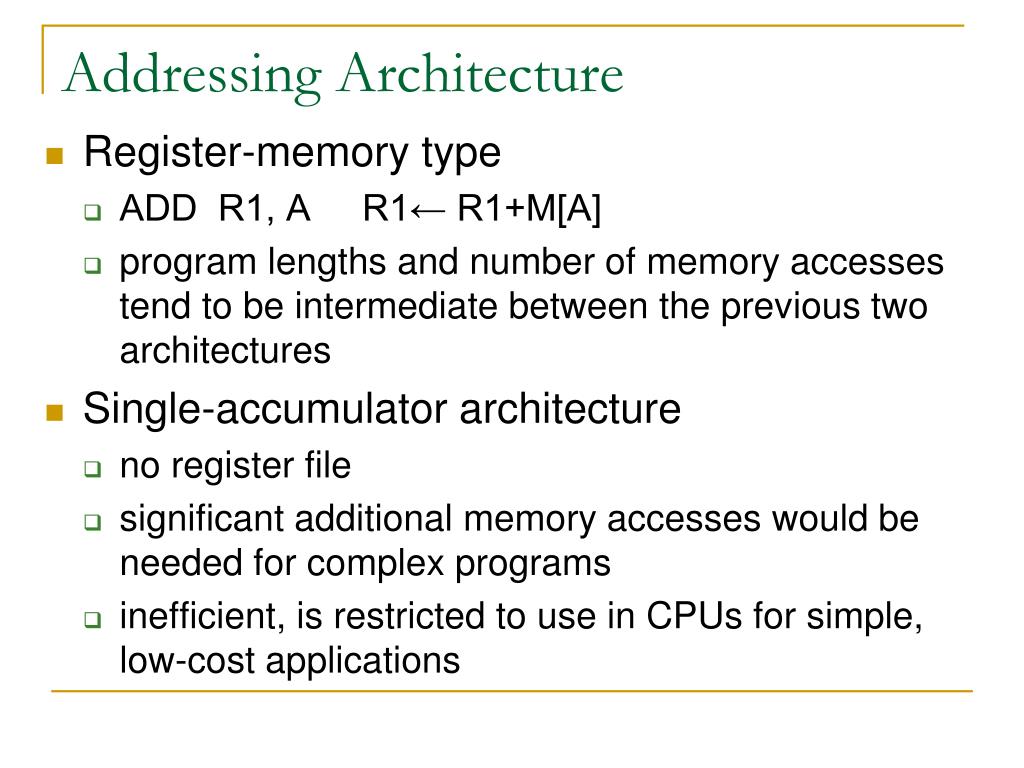

  8. Addressing Architecture • Register-memory type • ADD R1, A R1← R1+M[A] • program lengths and number of memory accesses tend to be intermediate between the previous two architectures • Single-accumulator architecture • no register file • significant additional memory accesses would be needed for complex programs • inefficient, is restricted to use in CPUs for simple, low-cost applications

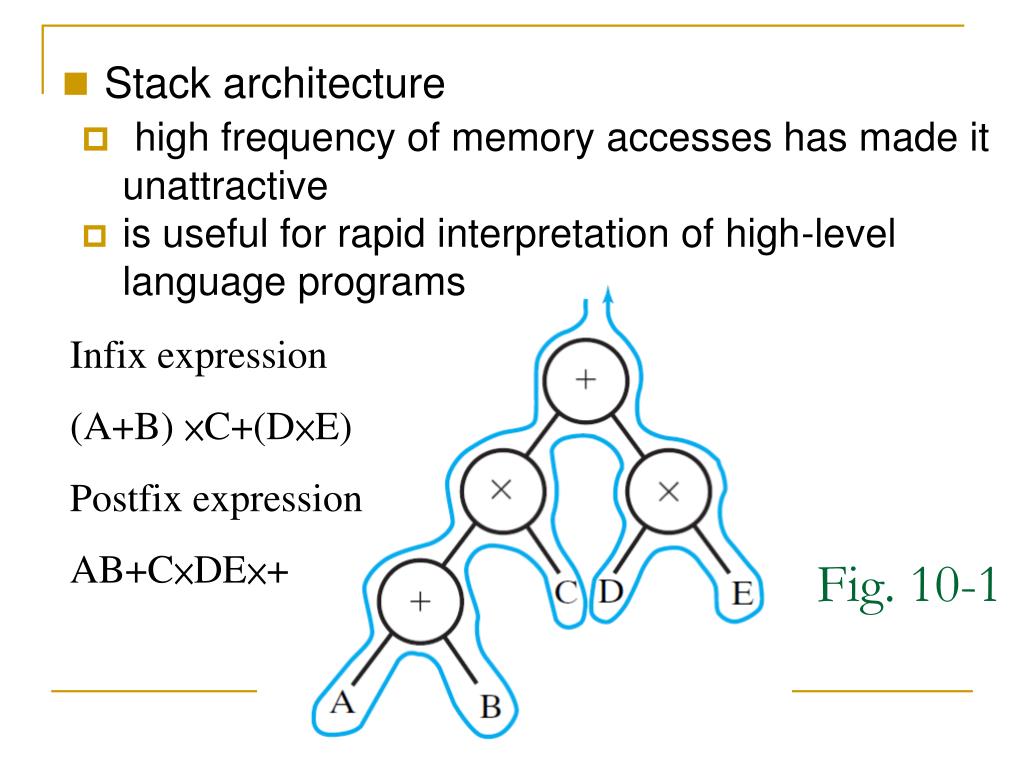

  9. Fig. 10-1 • Stack architecture • high frequency of memory accesses has made it unattractive • is useful for rapid interpretation of high-level language programs Infix expression (A+B) ×C+(D×E) Postfix expression AB+C×DE×+

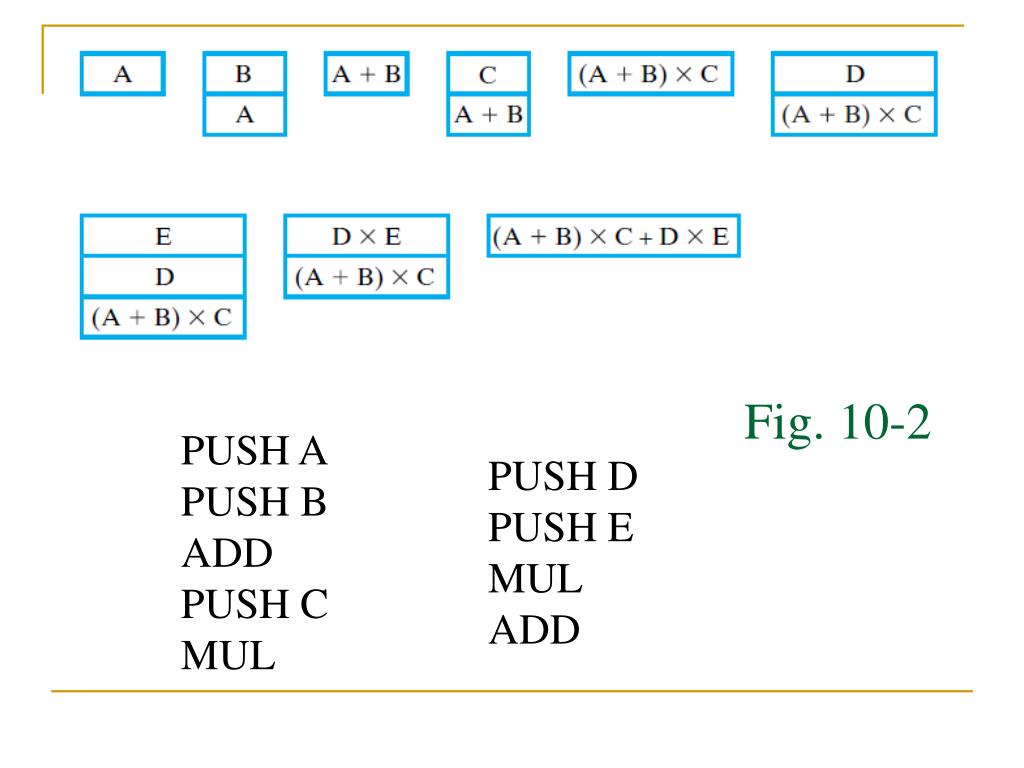

  10. Fig. 10-2 PUSH A PUSH B ADD PUSH C MUL PUSH D PUSH E MUL ADD

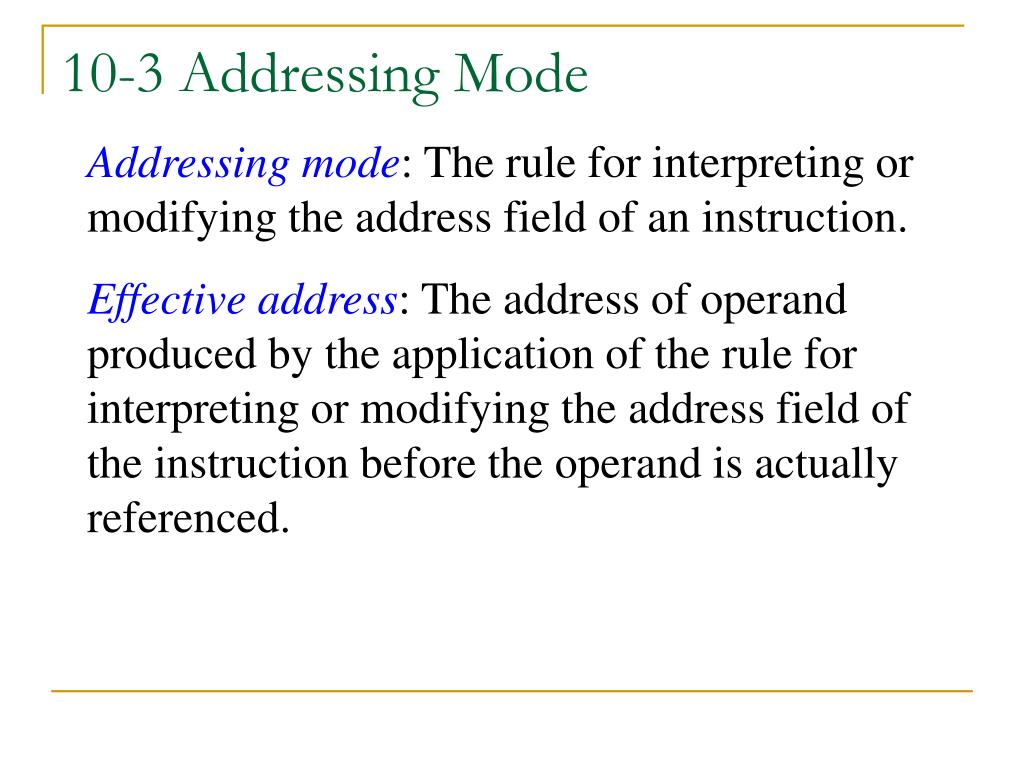

  11. 10-3 Addressing Mode Addressing mode: The rule for interpreting or modifying the address field of an instruction. Effective address: The address of operand produced by the application of the rule for interpreting or modifying the address field of the instruction before the operand is actually referenced.

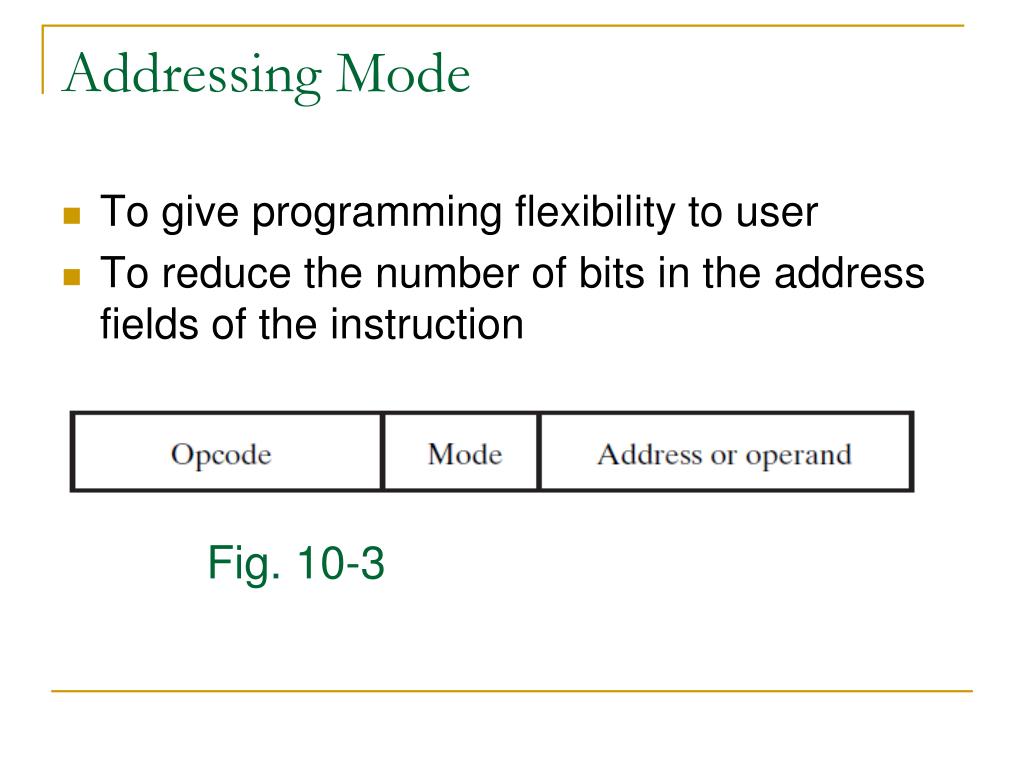

  12. Addressing Mode • To give programming flexibility to user • To reduce the number of bits in the address fields of the instruction Fig. 10-3

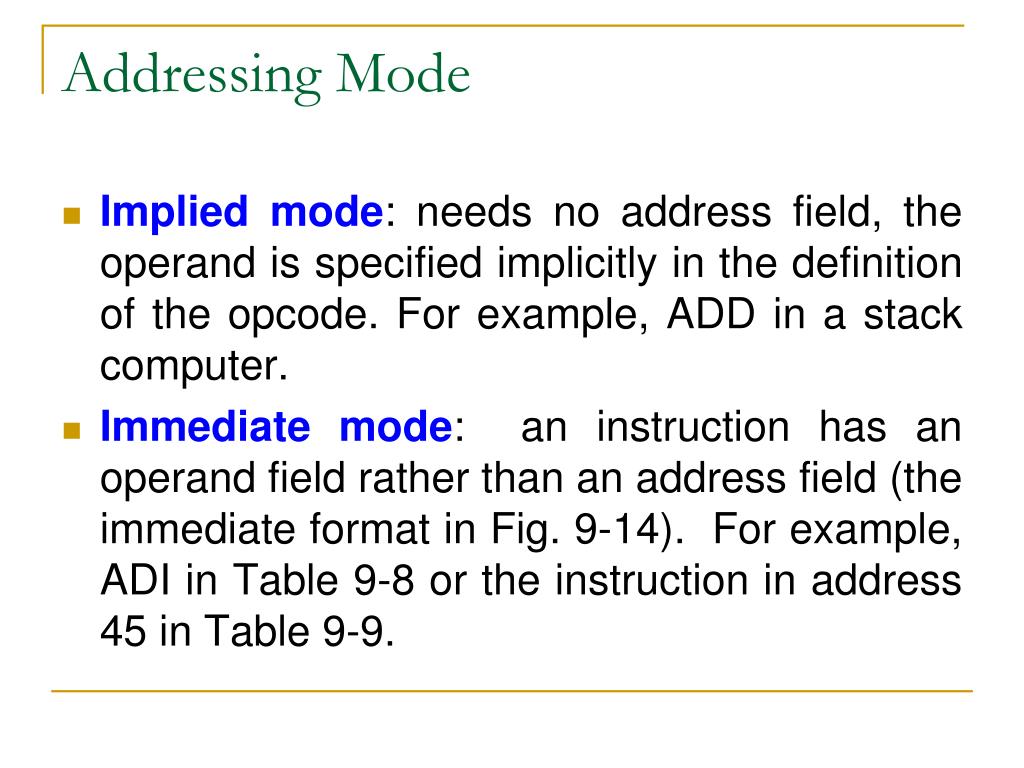

  13. Addressing Mode • Implied mode: needs no address field, the operand is specified implicitly in the definition of the opcode. For example, ADD in a stack computer. • Immediate mode: an instruction has an operand field rather than an address field (the immediate format in Fig. 9-14). For example, ADI in Table 9-8 or the instruction in address 45 in Table 9-9.

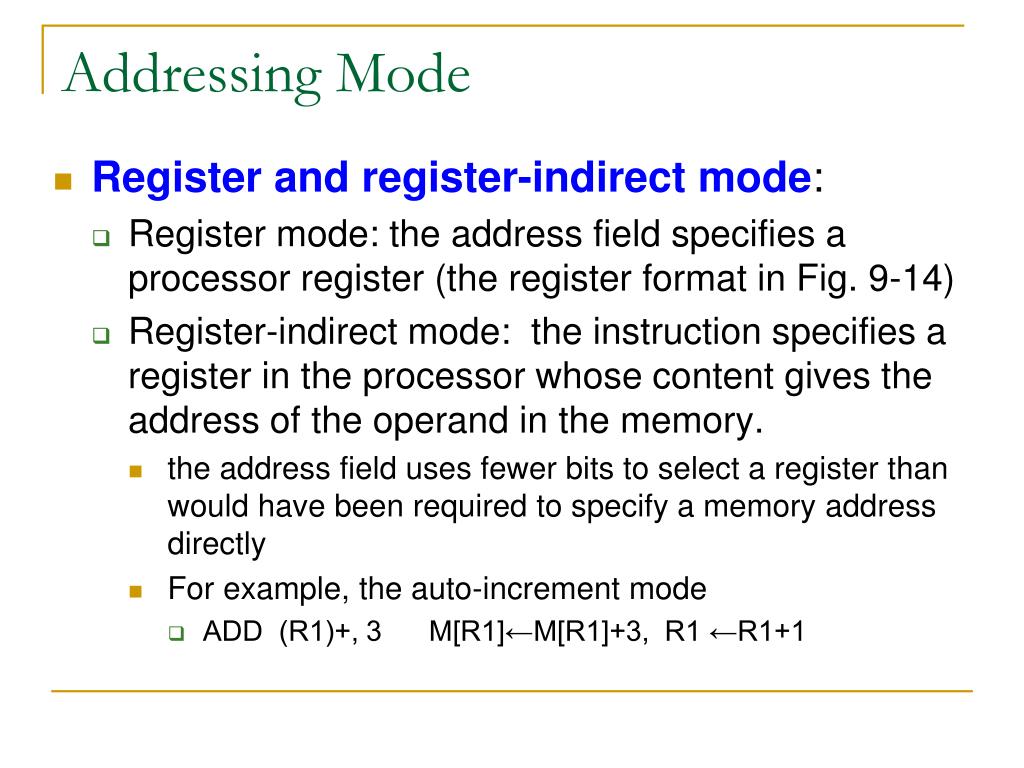

  14. Addressing Mode • Register and register-indirect mode: • Register mode: the address field specifies a processor register (the register format in Fig. 9-14) • Register-indirect mode: the instruction specifies a register in the processor whose content gives the address of the operand in the memory. • the address field uses fewer bits to select a register than would have been required to specify a memory address directly • For example, the auto-increment mode • ADD (R1)+, 3 M[R1]←M[R1]+3, R1 ←R1+1

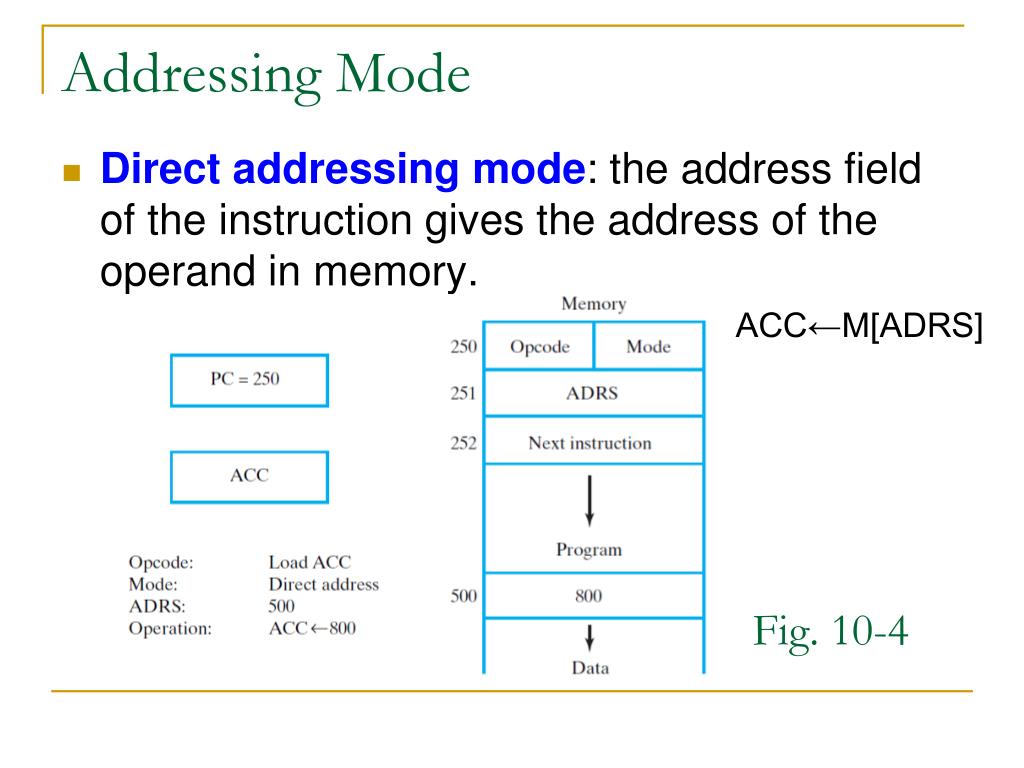

  15. Addressing Mode • Direct addressing mode: the address field of the instruction gives the address of the operand in memory. ACC←M[ADRS] Fig. 10-4

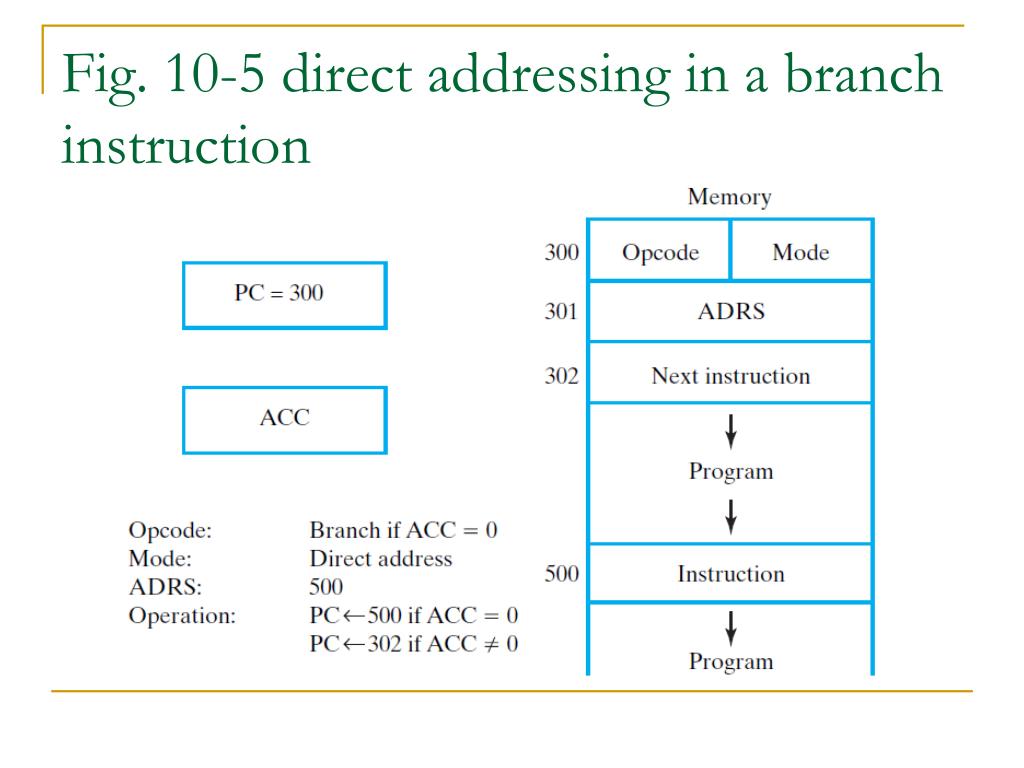

  16. Fig. 10-5 direct addressing in a branch instruction

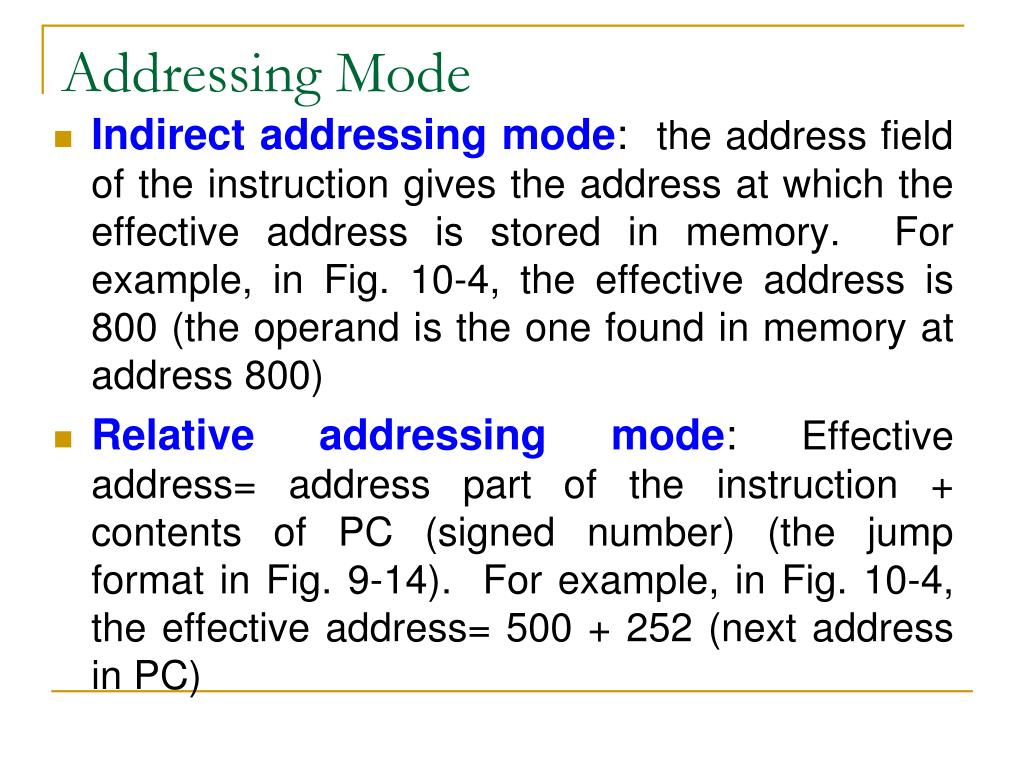

  17. Addressing Mode • Indirect addressing mode: the address field of the instruction gives the address at which the effective address is stored in memory. For example, in Fig. 10-4, the effective address is 800 (the operand is the one found in memory at address 800) • Relative addressing mode: Effective address= address part of the instruction + contents of PC (signed number) (the jump format in Fig. 9-14). For example, in Fig. 10-4, the effective address= 500 + 252 (next address in PC)

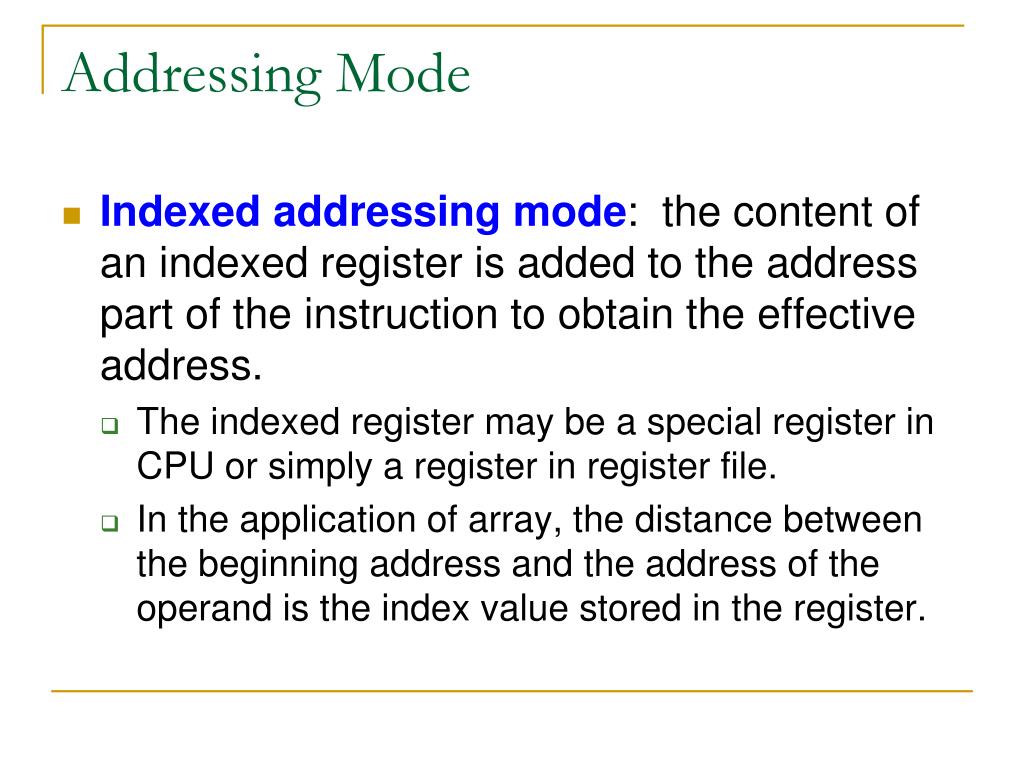

  18. Addressing Mode • Indexed addressing mode: the content of an indexed register is added to the address part of the instruction to obtain the effective address. • The indexed register may be a special register in CPU or simply a register in register file. • In the application of array, the distance between the beginning address and the address of the operand is the index value stored in the register.

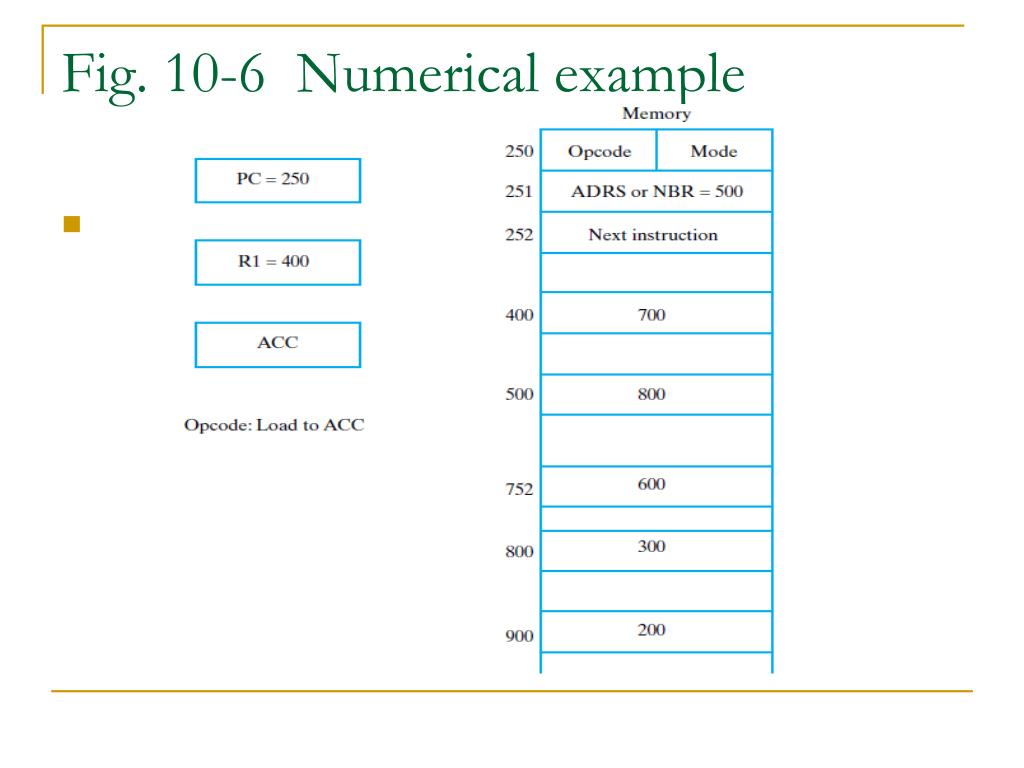

  19. Fig. 10-6 Numerical example

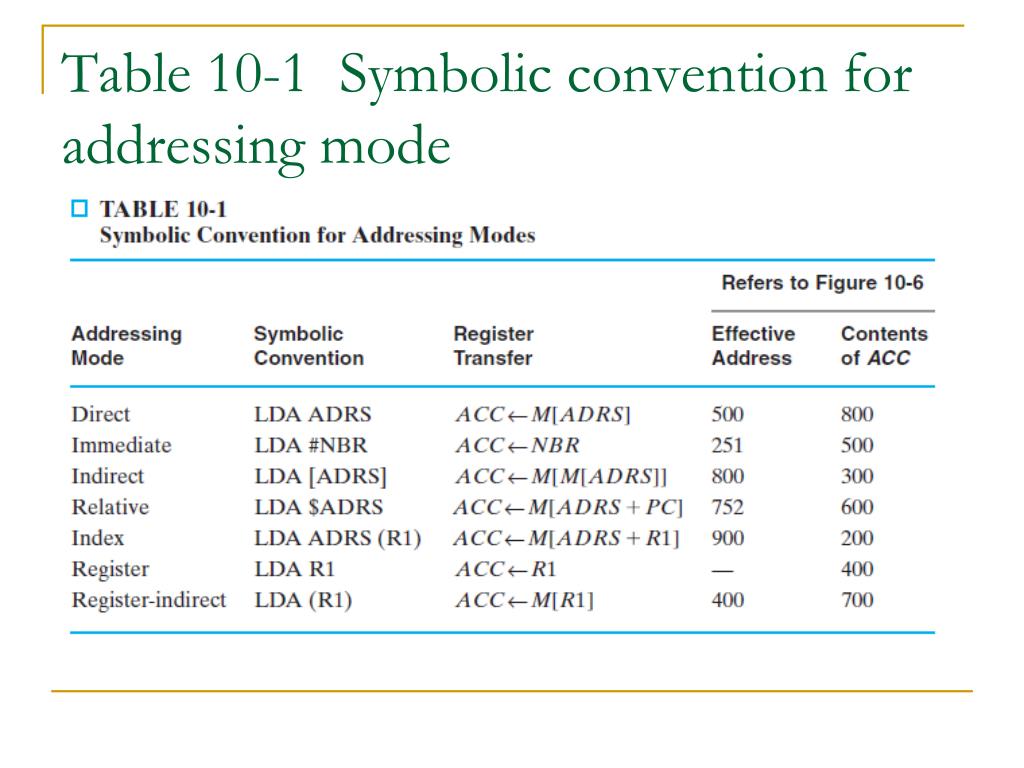

  20. Table 10-1 Symbolic convention for addressing mode

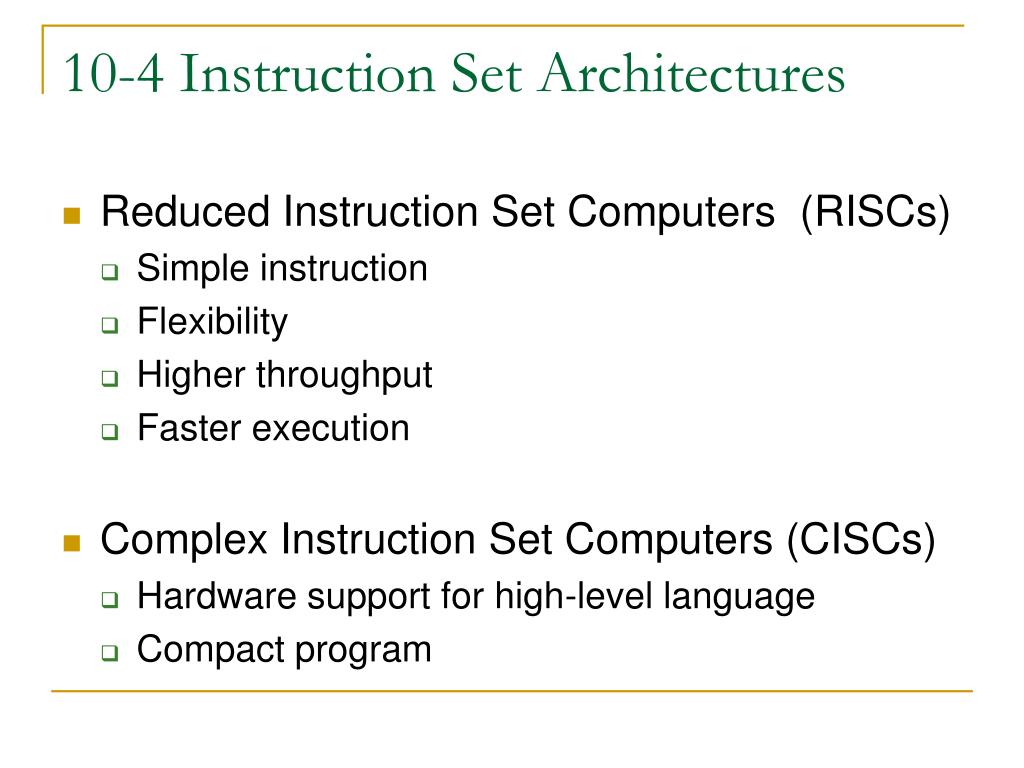

  21. 10-4 Instruction Set Architectures • Reduced Instruction Set Computers (RISCs) • Simple instruction • Flexibility • Higher throughput • Faster execution • Complex Instruction Set Computers (CISCs) • Hardware support for high-level language • Compact program

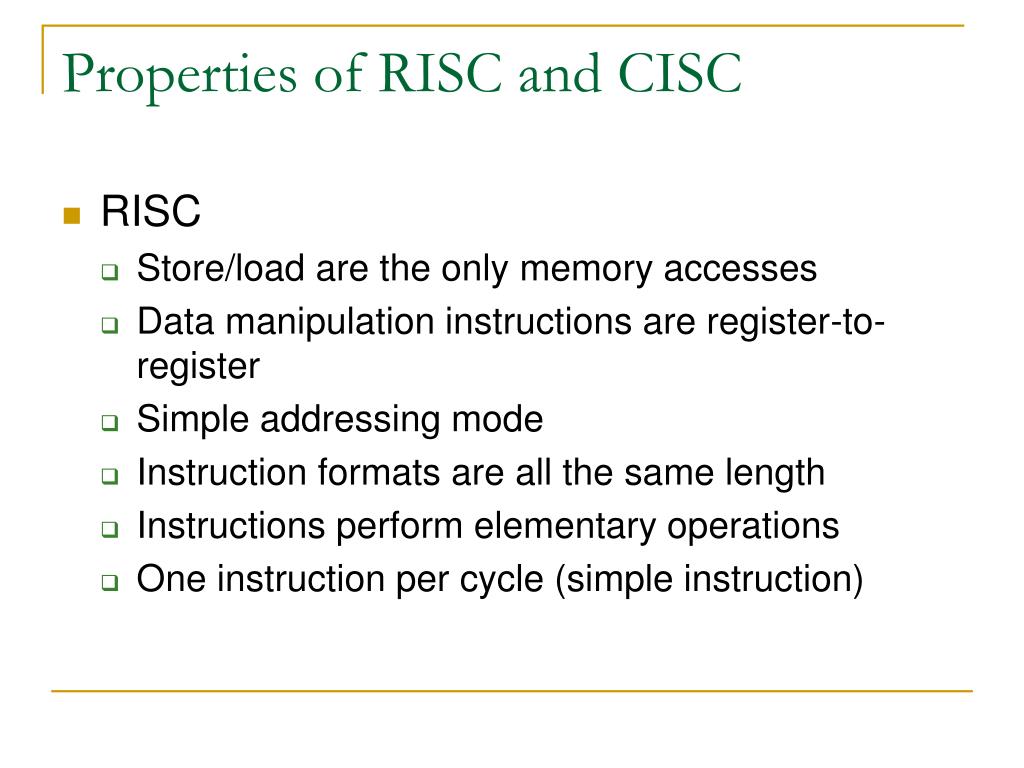

  22. Properties of RISC and CISC • RISC • Store/load are the only memory accesses • Data manipulation instructions are register-to-register • Simple addressing mode • Instruction formats are all the same length • Instructions perform elementary operations • One instruction per cycle (simple instruction)

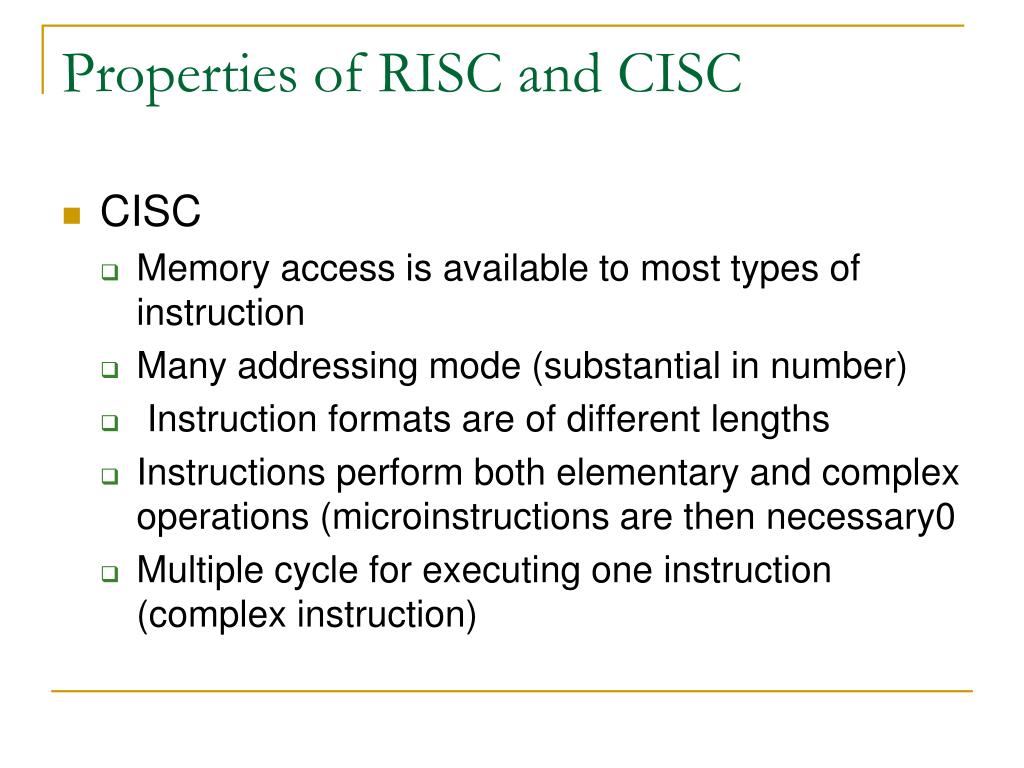

  23. Properties of RISC and CISC • CISC • Memory access is available to most types of instruction • Many addressing mode (substantial in number) • Instruction formats are of different lengths • Instructions perform both elementary and complex operations (microinstructions are then necessary0 • Multiple cycle for executing one instruction (complex instruction)

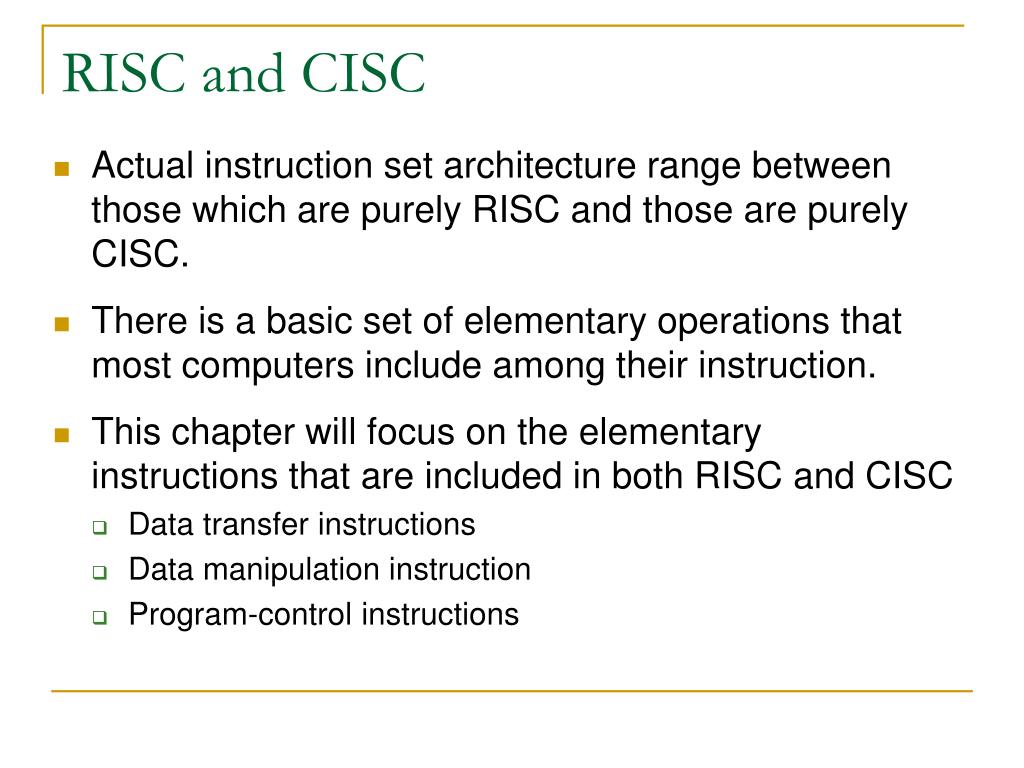

  24. RISC and CISC • Actual instruction set architecture range between those which are purely RISC and those are purely CISC. • There is a basic set of elementary operations that most computers include among their instruction. • This chapter will focus on the elementary instructions that are included in both RISC and CISC • Data transfer instructions • Data manipulation instruction • Program-control instructions

  25. 10-5 Data-transfer instructions

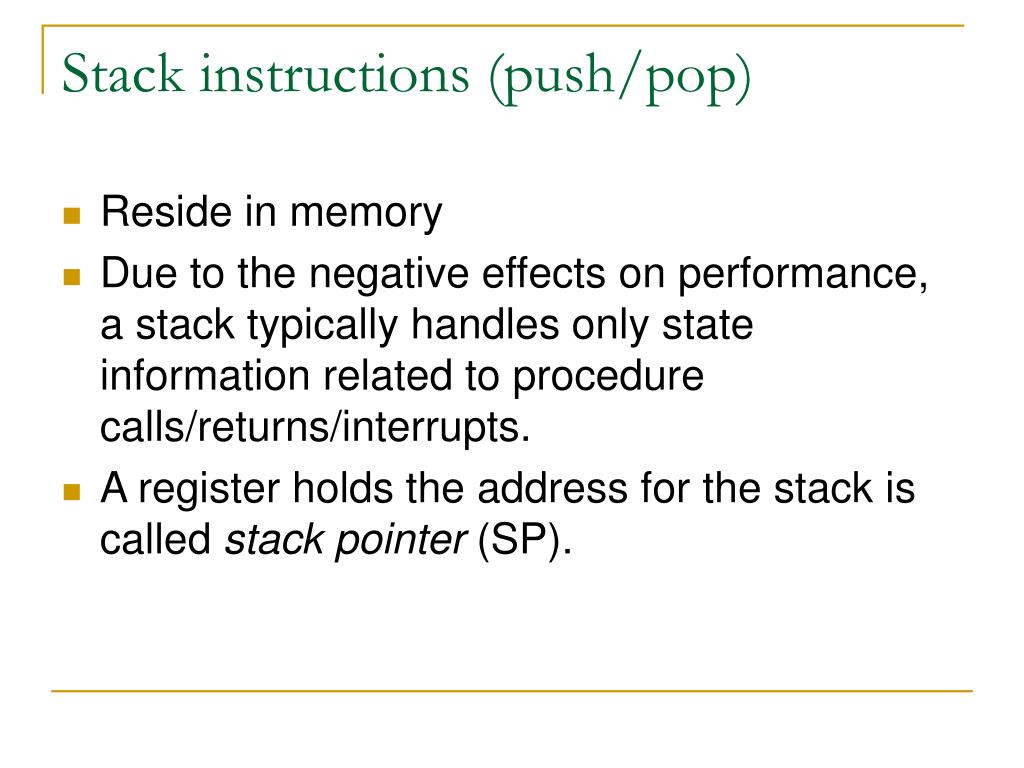

  26. Stack instructions (push/pop) • Reside in memory • Due to the negative effects on performance, a stack typically handles only state information related to procedure calls/returns/interrupts. • A register holds the address for the stack is called stack pointer (SP).

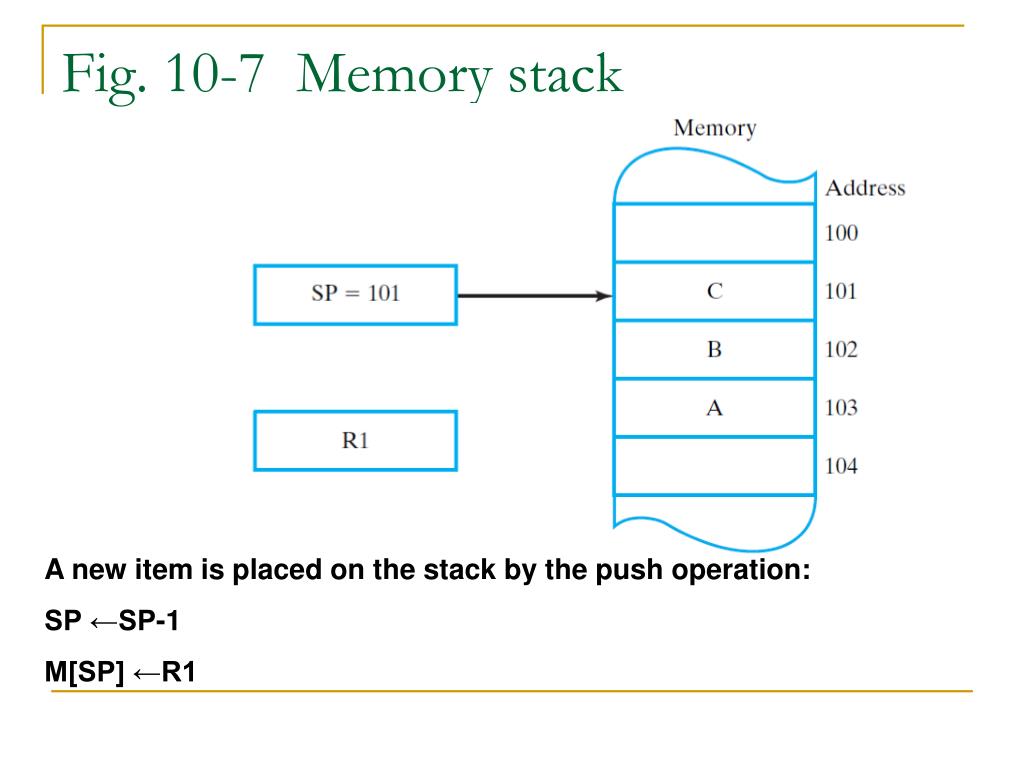

  27. Fig. 10-7 Memory stack A new item is placed on the stack by the push operation: SP ←SP-1 M[SP] ←R1

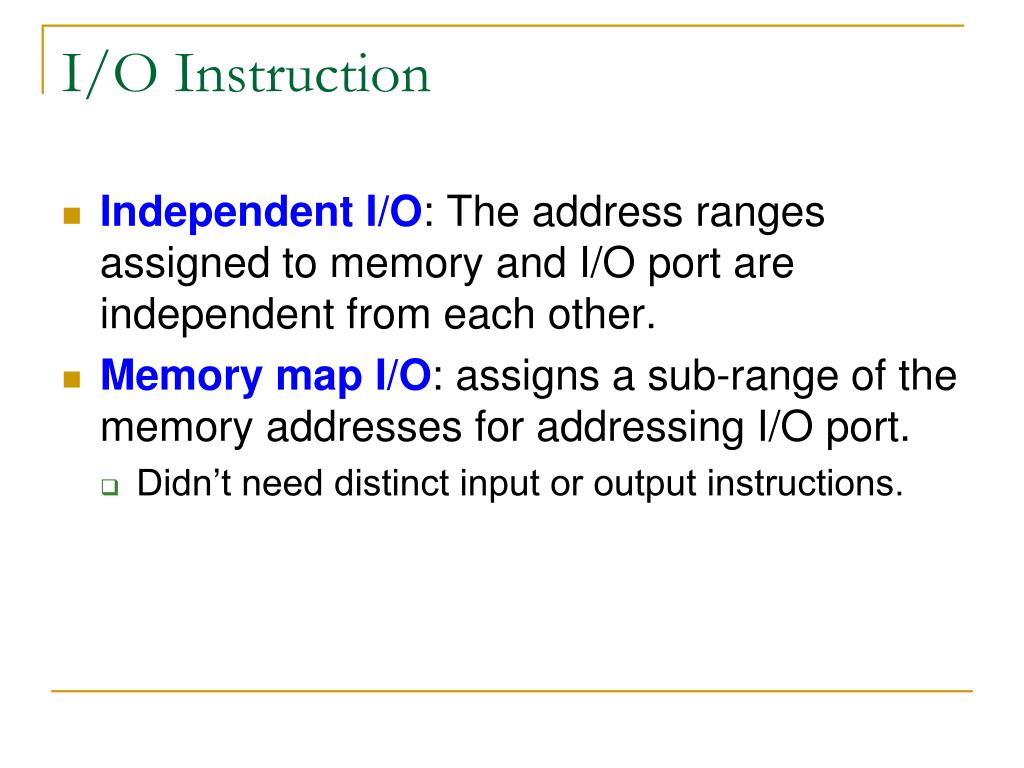

  28. I/O Instruction • Independent I/O: The address ranges assigned to memory and I/O port are independent from each other. • Memory map I/O: assigns a sub-range of the memory addresses for addressing I/O port. • Didn’t need distinct input or output instructions.

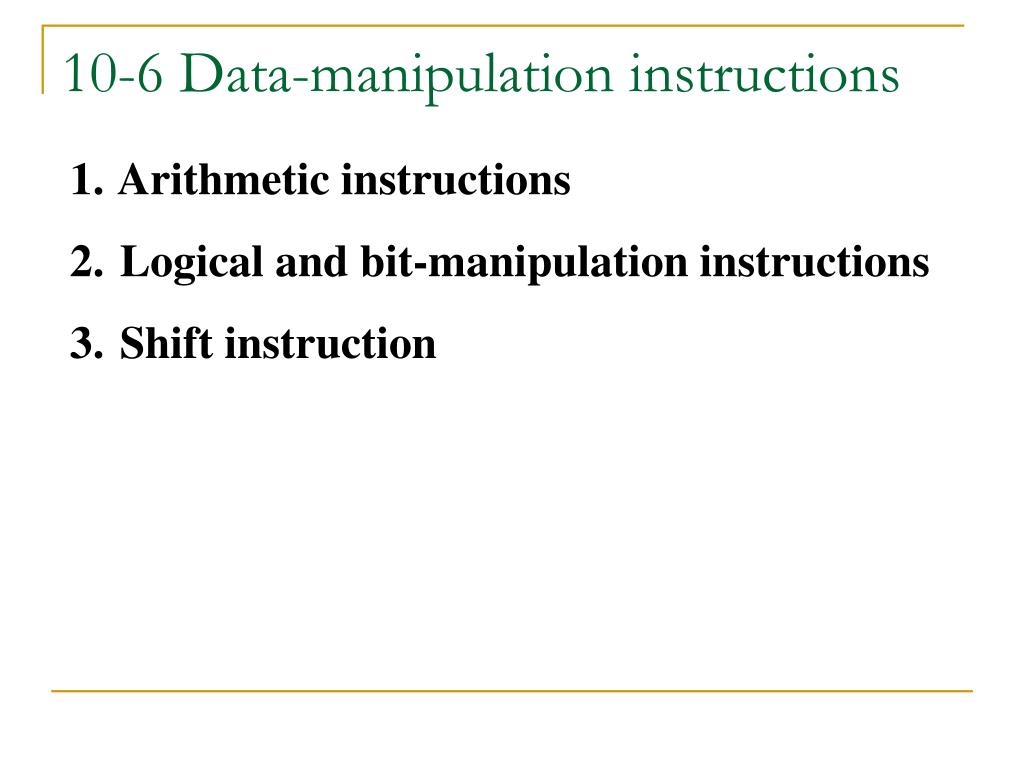

  29. 10-6 Data-manipulation instructions • Arithmetic instructions • Logical and bit-manipulation instructions • Shift instruction

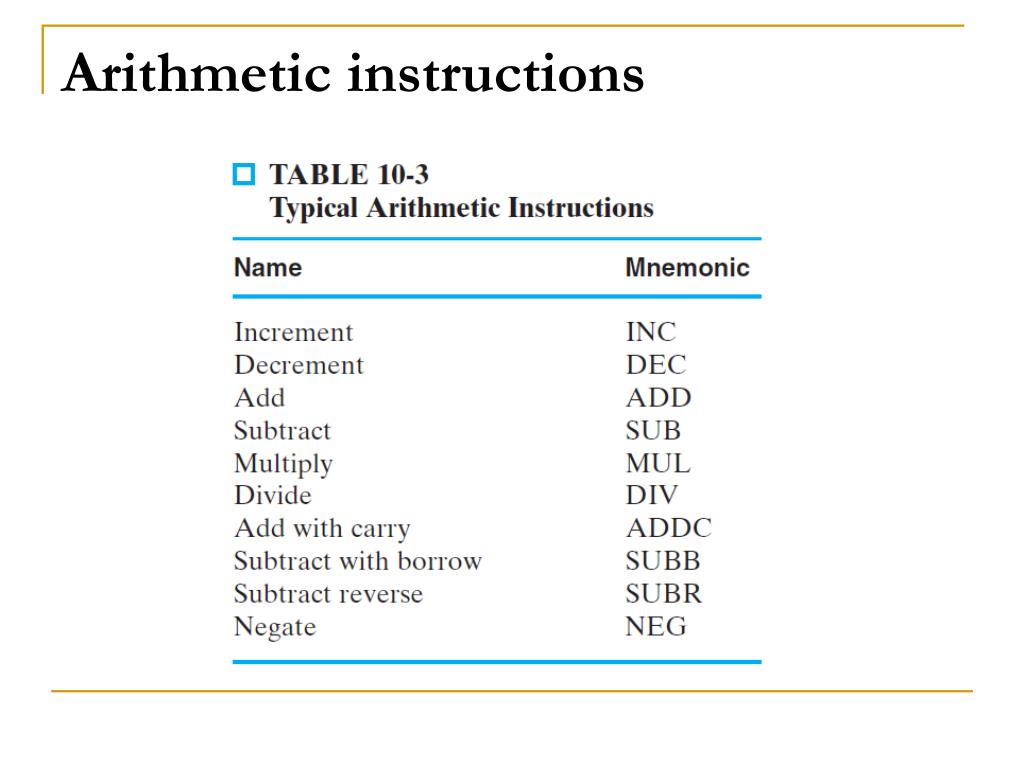

  30. Arithmetic instructions

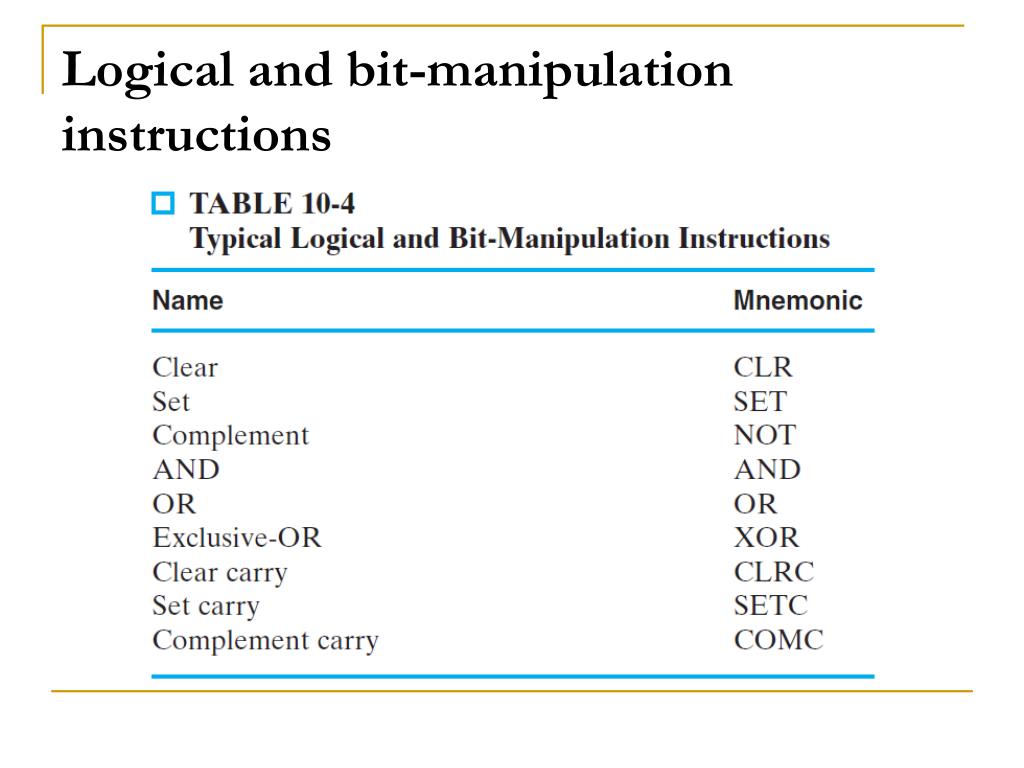

  31. Logical and bit-manipulation instructions

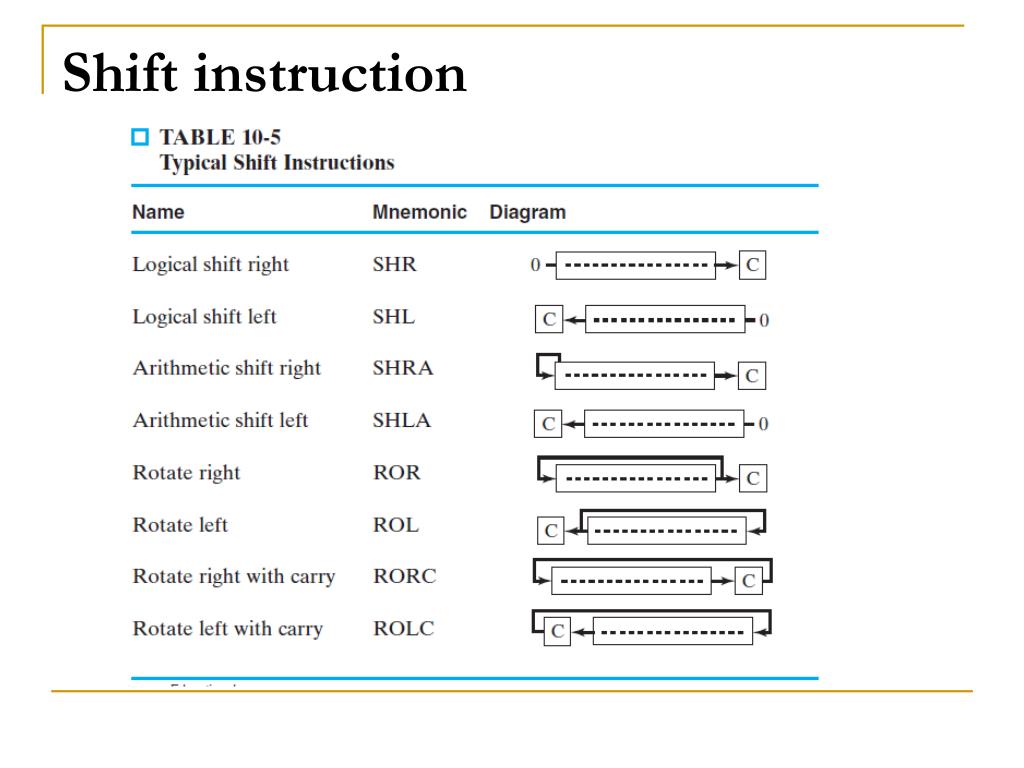

  32. Shift instruction
