Spin Relaxation and Anticrossing in Quantum Dots: Rashba versus Dresselhaus Spin-Orbit Coupling

Spin Relaxation and Anticrossing in Quantum Dots: Rashba versus Dresselhaus Spin-Orbit Coupling. Denis V. Bulaev and Daniel Loss Department of Physics University of Basel, Switzerland. Hamiltonian of electrons in a quantum dot. Three lowest electron energy levels.

Download Presentation

Spin Relaxation and Anticrossing in Quantum Dots: Rashba versus Dresselhaus Spin-Orbit Coupling

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Spin Relaxation and Anticrossing in Quantum Dots: Rashba versus Dresselhaus Spin-Orbit Coupling Denis V. Bulaev and Daniel Loss Department of Physics University of Basel, Switzerland

  2. Hamiltonian of electrons in a quantum dot

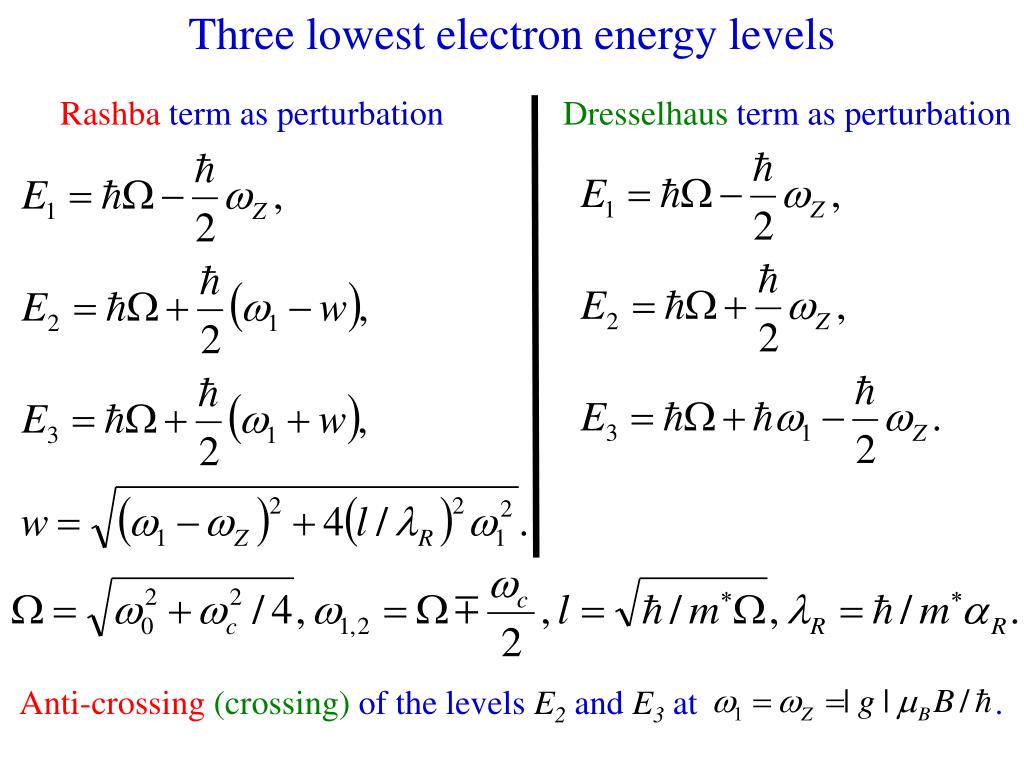

  3. Three lowest electron energy levels Rashba term as perturbation Dresselhaus term as perturbation Anti-crossing (crossing)of the levelsE2andE3at .

  4. Anti-crossing of levels due to Rashba coupling [1] E3 – E1 0.25 |↑ |↓ 0.20 Energy [meV] 0.15 G31 G32 0.10 E2 – E1 |↑ 0.05 G21 |↓ |↑ E1 – E1 8 0 2 4 6 10 B [T] [1] C. F. Destefani, S. E. Ulloa, and G. E. Marques. Phys. Rev. B 69, 125302 (2004).

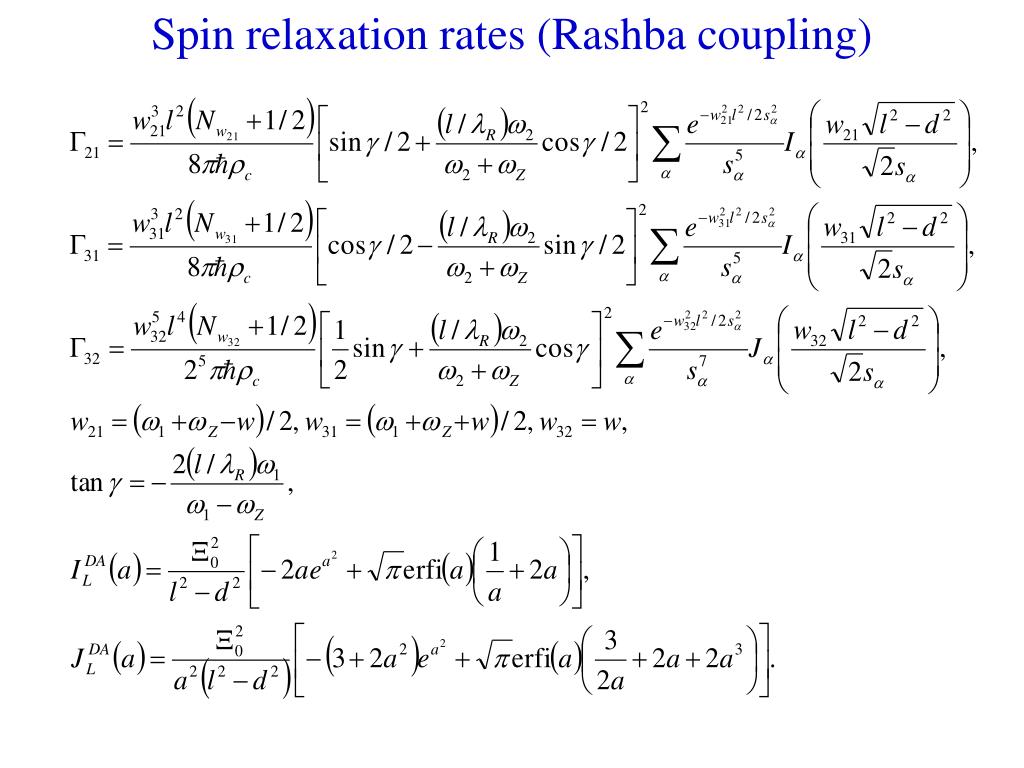

  5. Spin relaxation rates (Rashba coupling)

  6. Spin relaxation rates (Dresselhaus coupling)

  7. Spin relaxation rates (a) (b) 109 109 108 108 0.135 0.135 E3 – E1 E2 – E1 107 107 D Energy (meV) Energy (meV) 106 106 E3 – E1 E2 – E1 0.13 1/T1 (1/s) 1/T1 (1/s) 0.13 105 105 5.1 5.2 5.3 5.1 5.2 5.3 B(T) B(T) 104 104 1.1 T 103 103 102 102 10 10 0 3 6 9 12 15 0 3 6 9 12 15 B(T) B(T) Dresselhauscoupling Rashba coupling (for the Dresselhaus SO coupling), (for the Rashba SO coupling).
