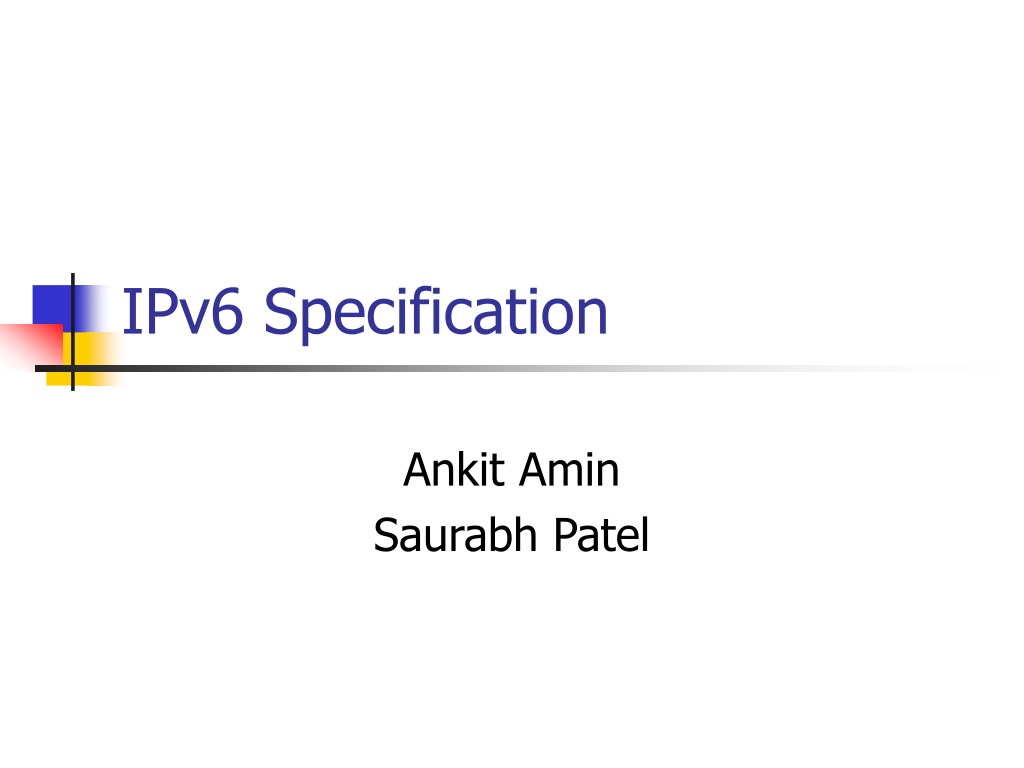

  1. IPv6 Specification Ankit Amin Saurabh Patel

  2. IPv4 Header Format

  3. Header Fields • Version • Internet header length • In 32 bit words • Including options • Type of service • Total length • Of datagram, in octets • Identification • Sequence number • Used with addresses and user protocol to identify datagram uniquely

  4. Header Fields • Flags • More bit, Don’t fragment • Fragmentation offset • Time to live • Protocol • Next higher layer to receive data field at destination • Header checksum • Source address, Destination address • Options and Padding • To fill to multiple of 32 bits long

  5. IPv6 vs. IPv4 • Expanded Addressing Capabilities • 32 bits to 128 bits • Header Format Simplification • Drop in IPv4 header fields to be cost effective. • Improved Support for Extensions and Options • Efficient forwarding, less stringent limits on length of options and greater flexibility for introducing new options in the future. • Flow Labeling Capability • Special handling of packets. • Authentication and Privacy Capabilities • Header Size is 60 for IPv6 and 40 for IPv4 with TCP len.

  6. IPv6 Header

  7. Traffic Class • 8-bit field • Used by the source and intermediate nodes to identify between classes and priorities of packets. • Still under development. • How can we differentiate between services that IP packets needs?

  8. Flow Labels • 20 bit field • It is used to label sequences of packets for special handling by IPv6 routers • Non-default QoS • Real-time service • Still in experimental stage: subject to change depending on Internet flow control.

  9. Extension Header Options • IPv6 • Hop-by-Hop options • Destination options • Routing • Fragment • Authentication* • Encapsulating Security Payload* • Upper-layer *Note: These options are not discussed in this RFC 2460: IPv6 Specification.

  10. Hop-by-Hop Options • It is used to carry optional information that is examined by every node along the packet’s delivery path. • Is identified by the Next Header value of 0. • Each packet is tagged with hop limit. Why?

  11. Hop-by-Hop option fields • Next header • Header extension length • Options • Jumbo payload • Over 216 = 65,535 octets

  12. Destination Options • It is used to carry optional information that needs to be examined by destination node. • Same format as Hop-by-Hop options header • Occurs once before Routing and once before upper layer header.

  13. Routing Header • It is used to list intermediate nodes to be visited on the way to a packet’s destination. • Next Header value is 43. • It is very similar to IPv4’s Loose Source and record Route option. • Fields • Next Header • Header extension length • Routing type • Segments left • Number of nodes still to be visited • Type-specific data

  14. Type 0 Routing header • Next Header • Header Extension Length • Routing Type =0 • Segments Left • Reserved = 0 for transmission • Address[1..n]

  15. Fragmentation Header • Fragmentation only allowed at source • No fragmentation at intermediate routers • Node must perform path discovery to find smallest MTU of intermediate networks • Source fragments to match MTU • Otherwise limit to 1280 octets • According to authors reassembly is abandon after 60 secs.

  16. Fragmentation Header Fields • Next Header • Reserved • Fragmentation offset • Reserved • More flag • Identification

  17. Upper-Layer • Upper-layer checksum • Any transport/upper layer protocol must be modified to be used in 128 bit addresses. • Unlike IPv4, UDP checksum is not optional under IPv6

  18. Questions??
