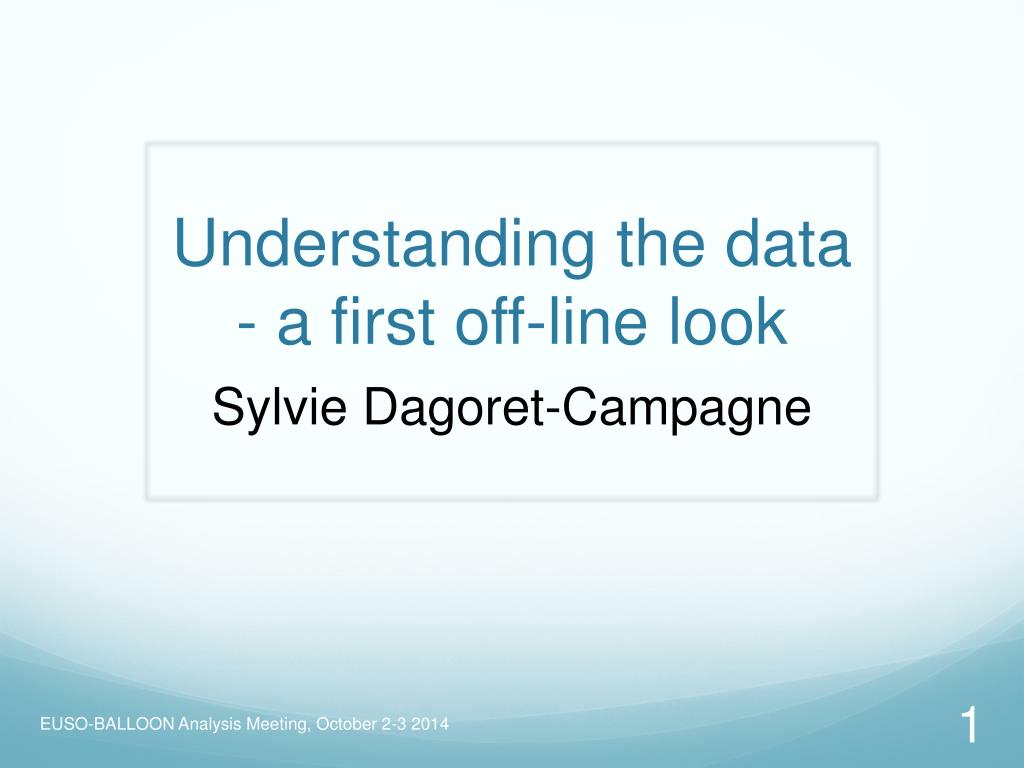

  1. Understanding the data - a first off-line look Sylvie Dagoret-Campagne EUSO-BALLOON Analysis Meeting, October 2-3 2014

  2. Global look • All packets over all runs, • Try to understand the meaning data in the ROOT file, • Try to understand the distribution of these data (expected or strange) • Try to identify bugs or good data EUSO-BALLOON Analysis Meeting, October 2-3 2014

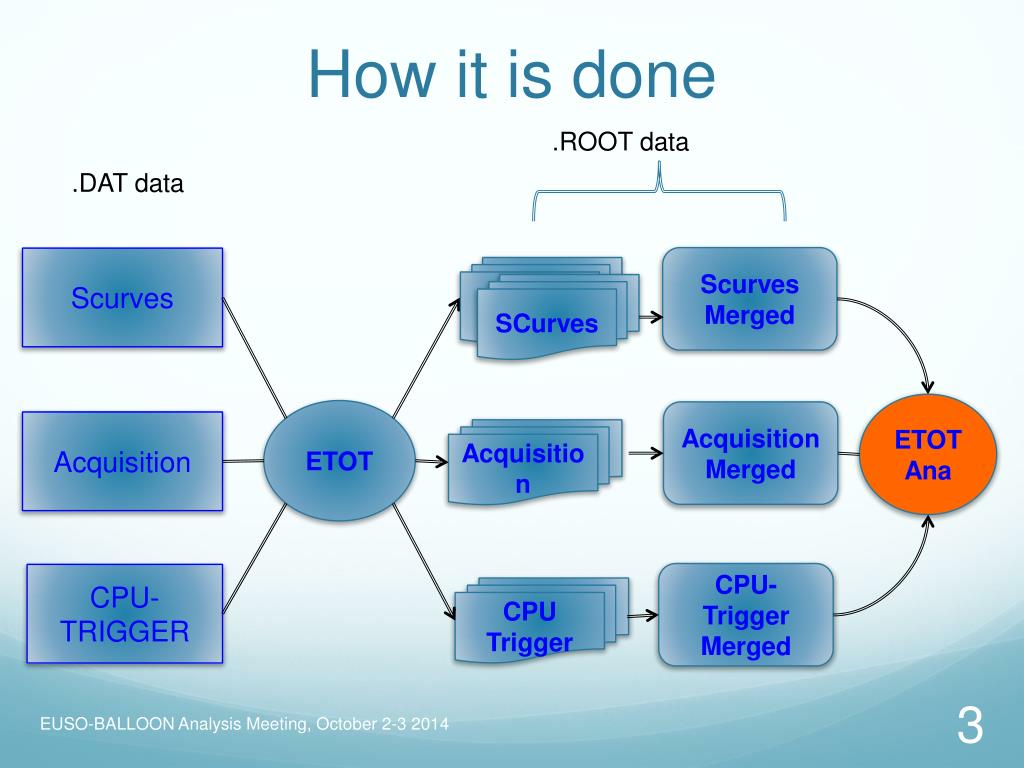

  3. How itisdone .ROOT data .DAT data ScurvesMerged Scurves SCurves SCurves ETOT Ana ETOT Acquisition Merged Acquisition Acquisition CPU-Trigger Merged CPU-TRIGGER CPU Trigger EUSO-BALLOON Analysis Meeting, October 2-3 2014

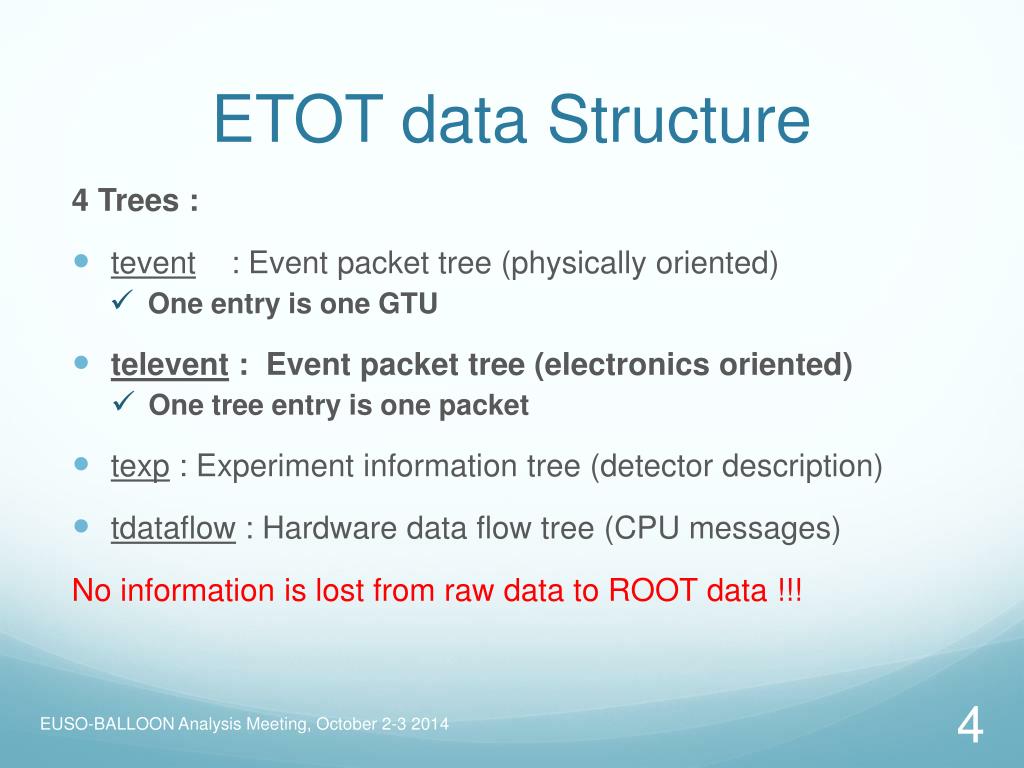

  4. ETOT data Structure 4 Trees : • tevent: Event packettree (physicallyoriented) • One entry is one GTU • televent : Event packettree (electronicsoriented) • One tree entry is one packet • texp : Experimentinformation tree(detector description) • tdataflow : Hardware data flow tree(CPU messages) No information islostfromraw data to ROOT data !!! EUSO-BALLOON Analysis Meeting, October 2-3 2014

  5. ETOT data : televenttree data structure *Tree:televent: Event packettree (electronicsoriented) * *Entries : 2000 : Total = 816822060 bytes File Size = 142746500 * * : : Tree compression factor = 5.72 * ****************************************************************************** *Br 0 :cpu_packet_header : header/I * *Entries : 2000 : Total Size= 8577 bytes File Size = 156 * *Baskets : 1 : Basket Size= 32000 bytes Compression= 51.85 *............................................................................* *Br 1 :cpu_packet_evt_number : evt_number/I * *Entries : 2000 : Total Size= 8597 bytes File Size = 3013 * *Baskets : 1 : Basket Size= 32000 bytes Compression= 2.69 *............................................................................* *Br 2 :cpu_packet_time : time/I * *Entries : 2000 : Total Size= 8567 bytes File Size = 460 * *Baskets : 1 : Basket Size= 32000 bytes Compression= 17.58 *............................................................................* *Br 3 :cpu_packet_pkt_type : pkt_type/s * *Entries : 2000 : Total Size= 4583 bytes File Size = 142 * *Baskets : 1 : Basket Size= 32000 bytes Compression= 28.80 *............................................................................* *Br 4 :cpu_packet_datalength : datalength/i * *Entries : 2000 : Total Size= 8597 bytes File Size = 169 * *Baskets : 1 : Basket Size= 32000 bytes Compression= 47.88 *............................................................................* *Br 5 :cpu_packet_crc : crc/i * *Entries : 2000 : Total Size= 8562 bytes File Size = 8085 * *Baskets : 1 : Basket Size= 32000 bytes Compression= 1.00 *............................................................................* *Br 6 :clkb_event_pkt_number : pkt_number/i * *Entries : 2000 : Total Size= 8597 bytes File Size = 167 * *Baskets : 1 : Basket Size= 32000 bytes Compression= 48.46 *............................................................................* *Br 7 :clkb_event_event_number : event_number/i * *Entries : 2000 : Total Size= 8607 bytes File Size = 2924 * *Baskets : 1 : Basket Size= 32000 bytes Compression= 2.77 *............................................................................* *Br 8 :clkb_event_trigger_time : clkb_trigger_time/i * *Entries : 2000 : Total Size= 8622 bytes File Size = 7352 * *Baskets : 1 : Basket Size= 32000 bytes Compression= 1.10 *............................................................................* *Br 9 :clkb_event_gps_data : gps_data[]/b * *Entries : 2000 : Total Size= 2585 bytes File Size = 128 * *Baskets : 1 : Basket Size= 32000 bytes Compression= 16.33 *............................................................................* Br 10 :clkb_event_live_time : live_time/i * *Entries : 2000 : Total Size= 8592 bytes File Size = 2581 * *Baskets : 1 : Basket Size= 32000 bytes Compression= 3.13 *............................................................................* *Br 11 :clkb_event_dead_time : dead_time[3]/b * *Entries : 2000 : Total Size= 6592 bytes File Size = 2059 * *Baskets : 1 : Basket Size= 32000 bytes Compression= 2.96 *Br 12 :clkb_event_status_register : status_register/s * *Entries : 2000 : Total Size= 4618 bytes File Size = 150 * *Baskets : 1 : Basket Size= 32000 bytes Compression= 27.31 *............................................................................* *Br 13 :clkb_event_crc : clkb_crc/i * *Entries : 2000 : Total Size= 8577 bytes File Size = 8085 * *Baskets : 1 : Basket Size= 32000 bytes Compression= 1.00 Br14 :ccb_event_msg_type : msg_type/b * *Entries : 2000 : Total Size= 2579 bytes File Size = 127 * *Baskets : 1 : Basket Size= 32000 bytes Compression= 16.45 * *.......................................................................* *Br 15 :ccb_event_device_id : device_id/b * *Entries : 2000 : Total Size= 2584 bytes File Size = 128 * *Baskets : 1 : Basket Size= 32000 bytes Compression= 16.33 * *............................................................................* *Br 16 :ccb_event_trigger_time : ccb_trigger_time/i * *Entries : 2000 : Total Size= 8617 bytes File Size = 7337 * *Baskets : 1 : Basket Size= 32000 bytes Compression= 1.10 * *............................................................................* *Br 17 :ccb_event_L2_trigger_counter : L2_trigger_counter/i Entries : 2000 : Total Size= 8635 bytes File Size = 2934 * *............................................................................* EUSO-BALLOON Analysis Meeting, October 2-3 2014

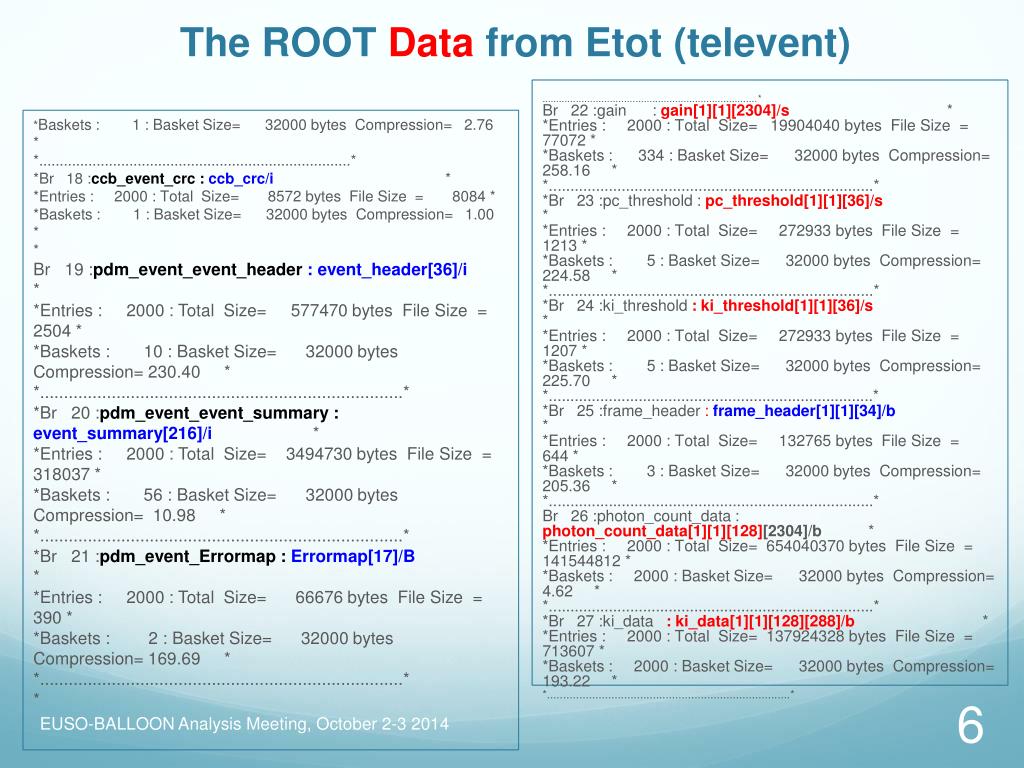

  6. The ROOT DatafromEtot (televent) ............................................................................* Br22 :gain : gain[1][1][2304]/s * *Entries : 2000 : Total Size= 19904040 bytes File Size = 77072 * *Baskets : 334 : Basket Size= 32000 bytes Compression= 258.16 * *............................................................................* *Br 23 :pc_threshold : pc_threshold[1][1][36]/s* *Entries : 2000 : Total Size= 272933 bytes File Size = 1213 * *Baskets : 5 : Basket Size= 32000 bytes Compression= 224.58 * *............................................................................* *Br 24 :ki_threshold: ki_threshold[1][1][36]/s * *Entries : 2000 : Total Size= 272933 bytes File Size = 1207 * *Baskets : 5 : Basket Size= 32000 bytes Compression= 225.70 * *............................................................................* *Br 25 :frame_header: frame_header[1][1][34]/b * *Entries : 2000 : Total Size= 132765 bytes File Size = 644 * *Baskets : 3 : Basket Size= 32000 bytes Compression= 205.36 * *............................................................................* Br26 :photon_count_data : photon_count_data[1][1][128][2304]/b * *Entries : 2000 : Total Size= 654040370 bytes File Size = 141544812 * *Baskets : 2000 : Basket Size= 32000 bytes Compression= 4.62 * *............................................................................* *Br 27 :ki_data: ki_data[1][1][128][288]/b * *Entries : 2000 : Total Size= 137924328 bytes File Size = 713607 * *Baskets : 2000 : Basket Size= 32000 bytes Compression= 193.22 * *............................................................................* *Baskets : 1 : Basket Size= 32000 bytes Compression= 2.76 * *............................................................................* *Br 18 :ccb_event_crc :ccb_crc/i * *Entries : 2000 : Total Size= 8572 bytes File Size = 8084 * *Baskets : 1 : Basket Size= 32000 bytes Compression= 1.00 * * Br19 :pdm_event_event_header: event_header[36]/i * *Entries : 2000 : Total Size= 577470 bytes File Size = 2504 * *Baskets : 10 : Basket Size= 32000 bytes Compression= 230.40 * *............................................................................* *Br 20 :pdm_event_event_summary : event_summary[216]/i * *Entries : 2000 : Total Size= 3494730 bytes File Size = 318037 * *Baskets : 56 : Basket Size= 32000 bytes Compression= 10.98 * *............................................................................* *Br 21 :pdm_event_Errormap : Errormap[17]/B * *Entries : 2000 : Total Size= 66676 bytes File Size = 390 * *Baskets : 2 : Basket Size= 32000 bytes Compression= 169.69 * *............................................................................* * EUSO-BALLOON Analysis Meeting, October 2-3 2014

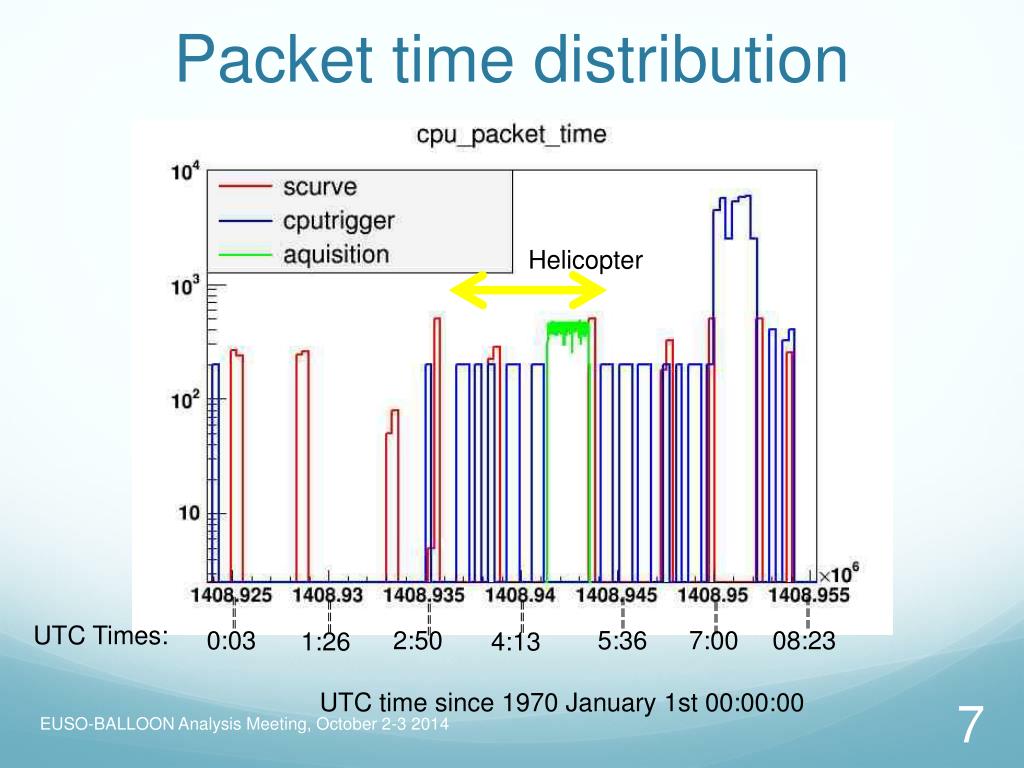

  7. Packet time distribution Helicopter UTC Times: 0:03 2:50 5:36 7:00 08:23 1:26 4:13 UTC time since 1970 January 1st 00:00:00 EUSO-BALLOON Analysis Meeting, October 2-3 2014

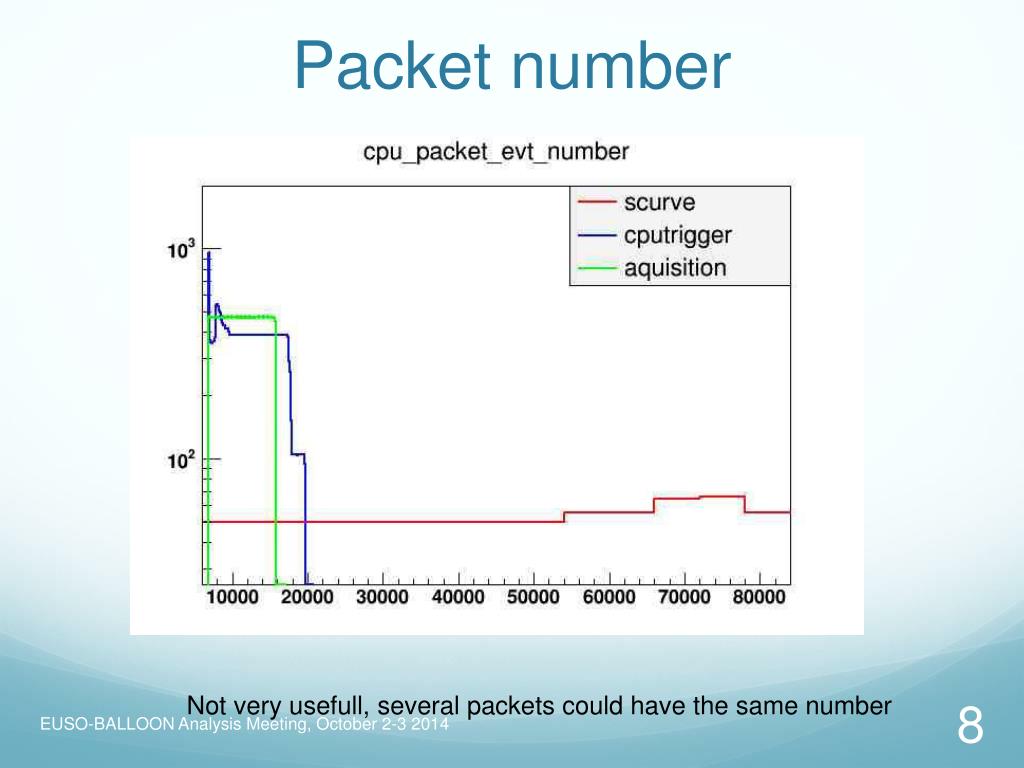

  8. Packetnumber Not veryusefull, severalpacketscould have the samenumber EUSO-BALLOON Analysis Meeting, October 2-3 2014

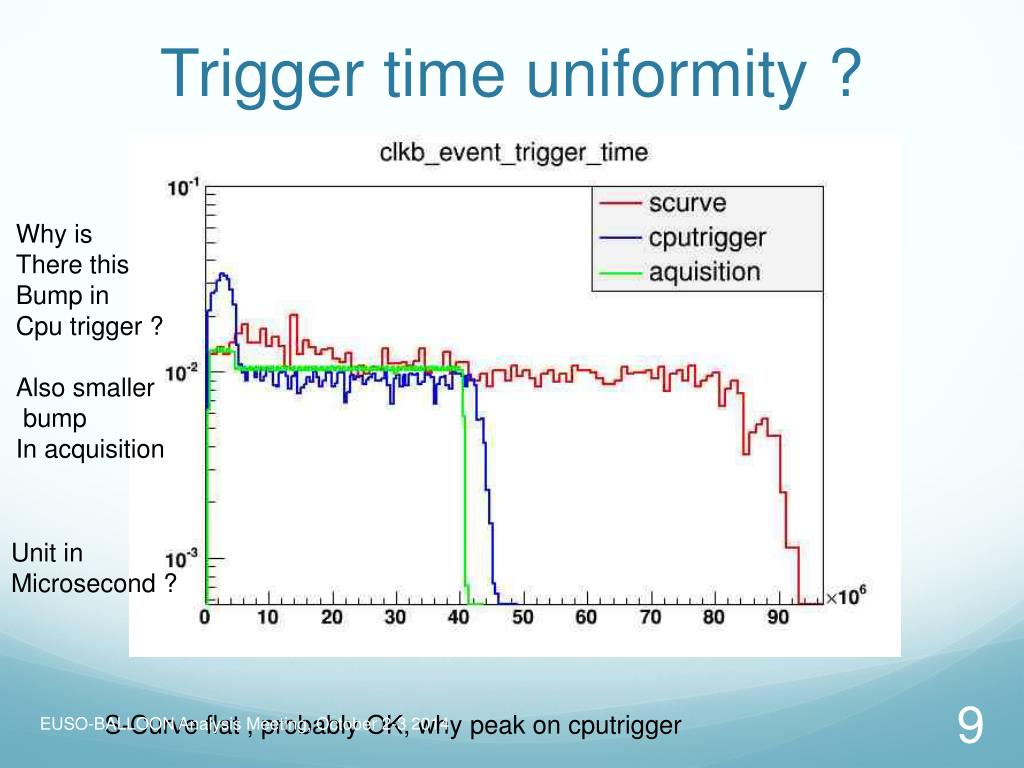

  9. Trigger time uniformity ? Whyis There this Bump in Cpu trigger ? Alsosmaller bump In acquisition Unit in Microsecond ? EUSO-BALLOON Analysis Meeting, October 2-3 2014 S-Curve flat , probably OK, whypeak on cputrigger

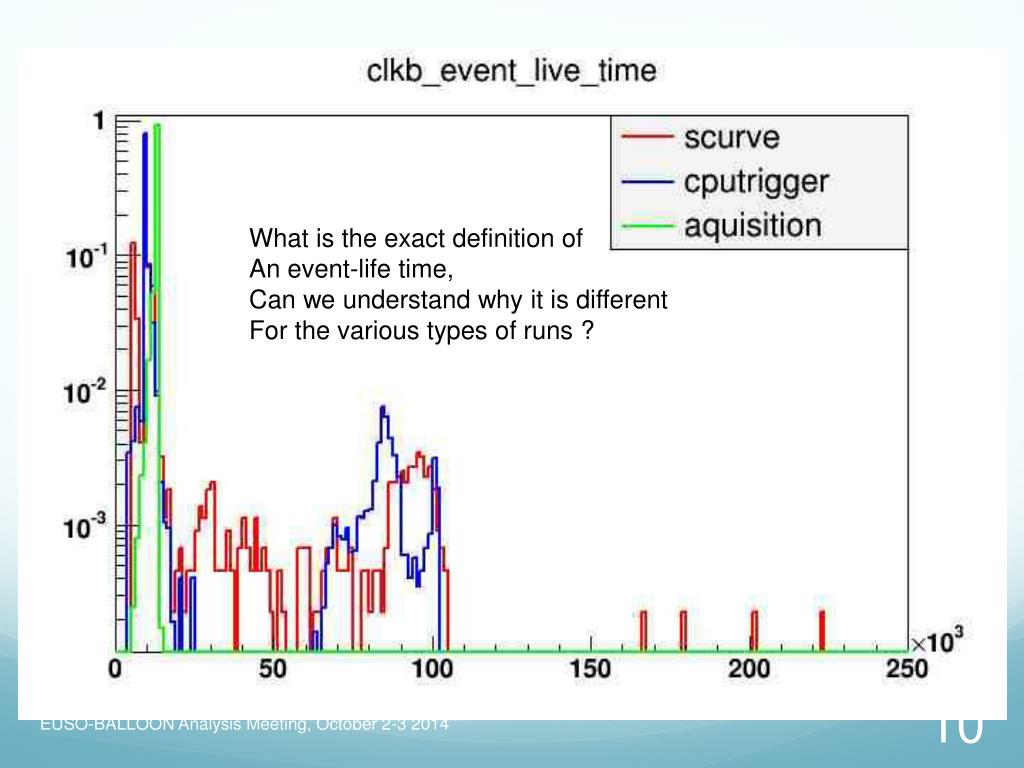

  10. What is the exact definition of An event-life time, Can we understand why it is different For the various types of runs ? EUSO-BALLOON Analysis Meeting, October 2-3 2014

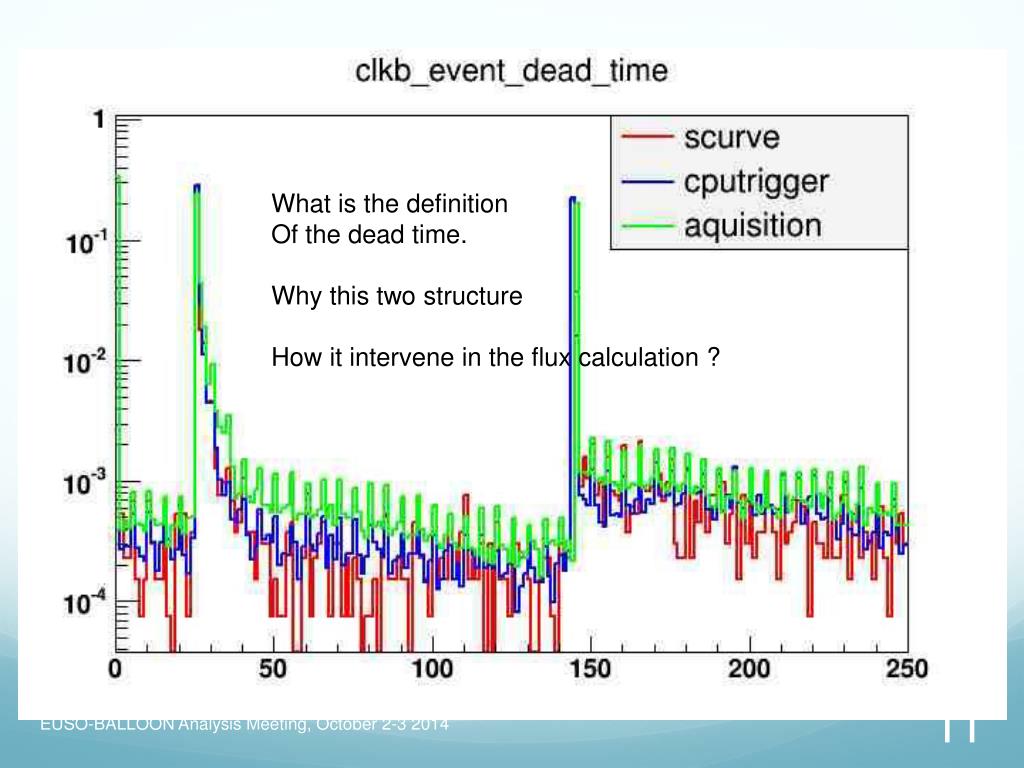

  11. Whatis the definition Of the dead time. Whythistwo structure How itintervene in the flux calculation ? EUSO-BALLOON Analysis Meeting, October 2-3 2014

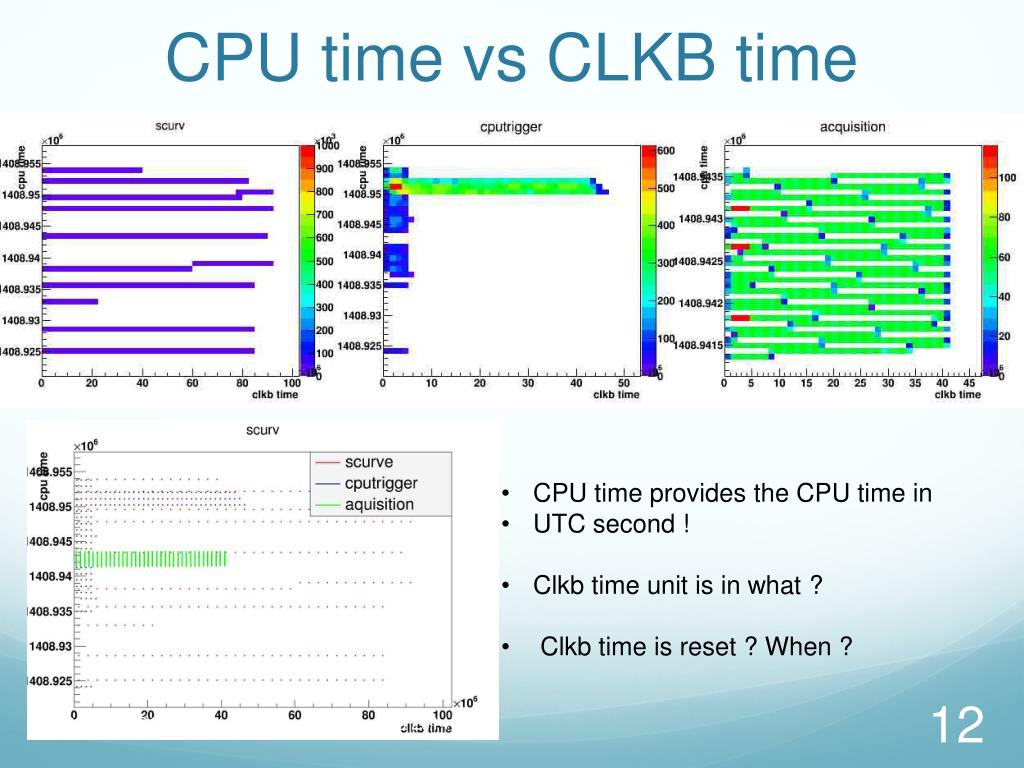

  12. CPU time vs CLKB time • CPU time provides the CPU time in • UTC second ! • Clkb time unit is in what ? • Clkb time is reset ? When ? EUSO-BALLOON Analysis Meeting, October 2-3 2014

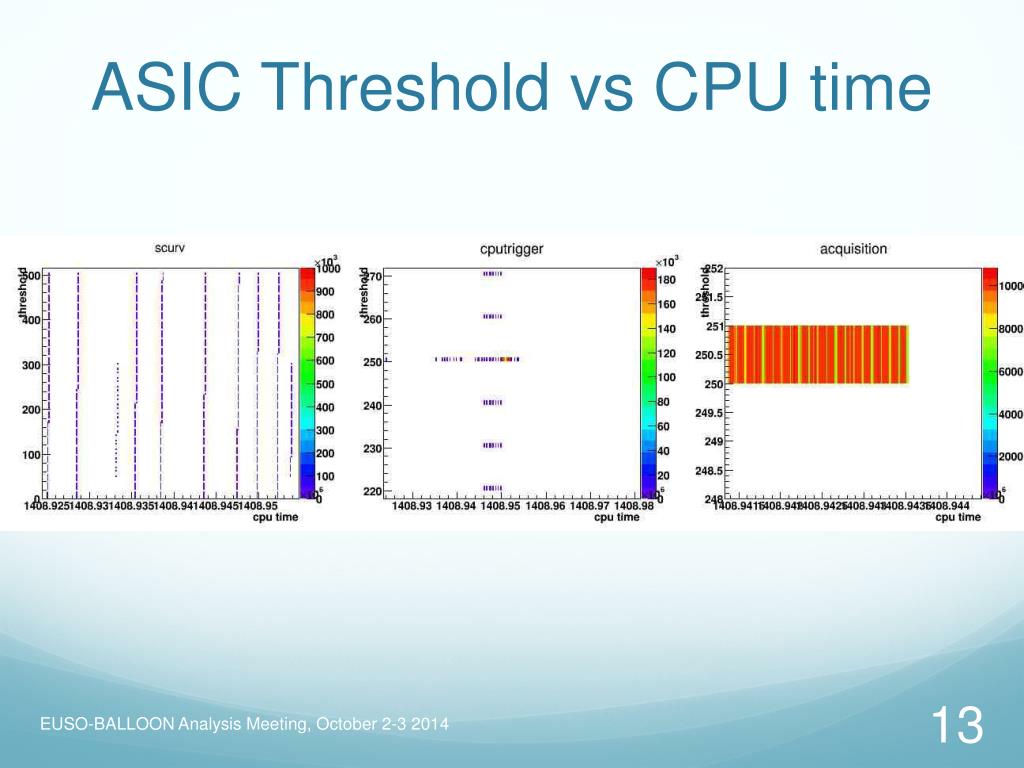

  13. ASIC Threshold vs CPU time EUSO-BALLOON Analysis Meeting, October 2-3 2014

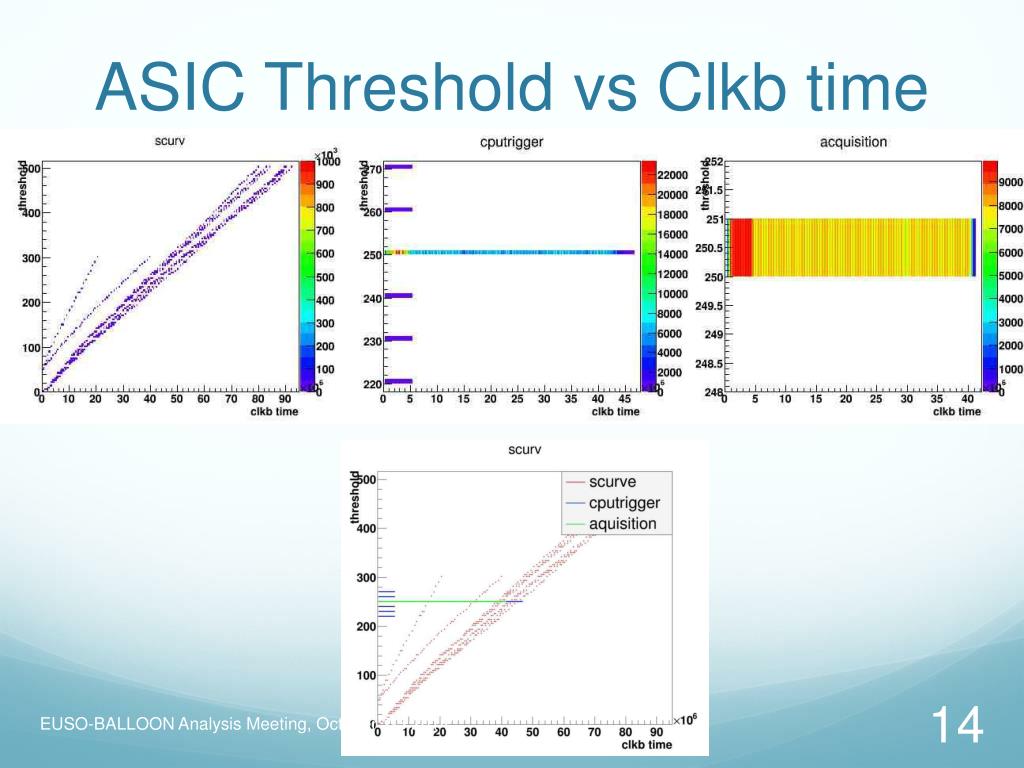

  14. ASIC Threshold vsClkb time EUSO-BALLOON Analysis Meeting, October 2-3 2014

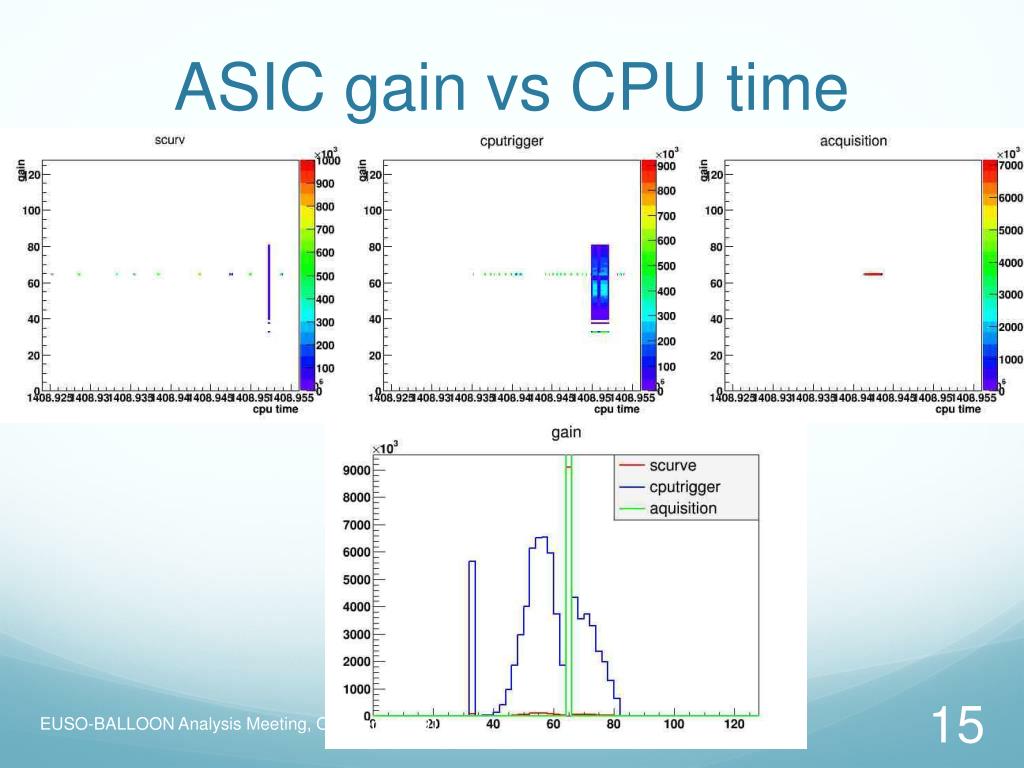

  15. ASIC gain vs CPU time EUSO-BALLOON Analysis Meeting, October 2-3 2014

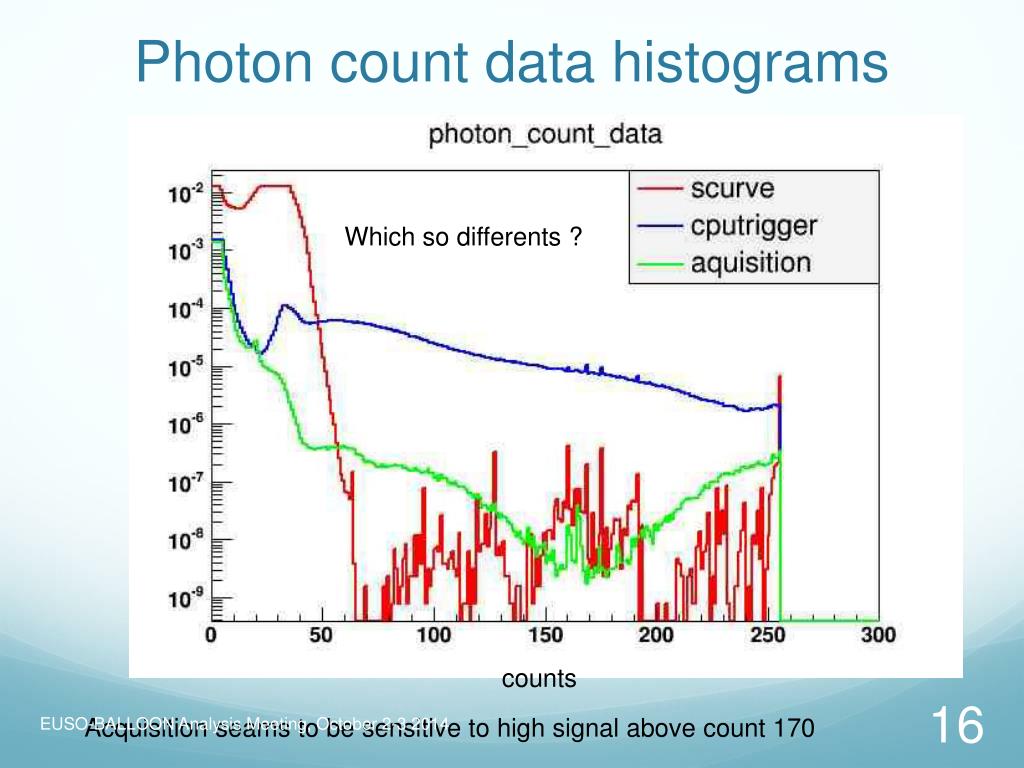

  16. Photon count data histograms Whichsodifferents ? counts EUSO-BALLOON Analysis Meeting, October 2-3 2014 Acquisition seams to be sensitive to high signal above count 170

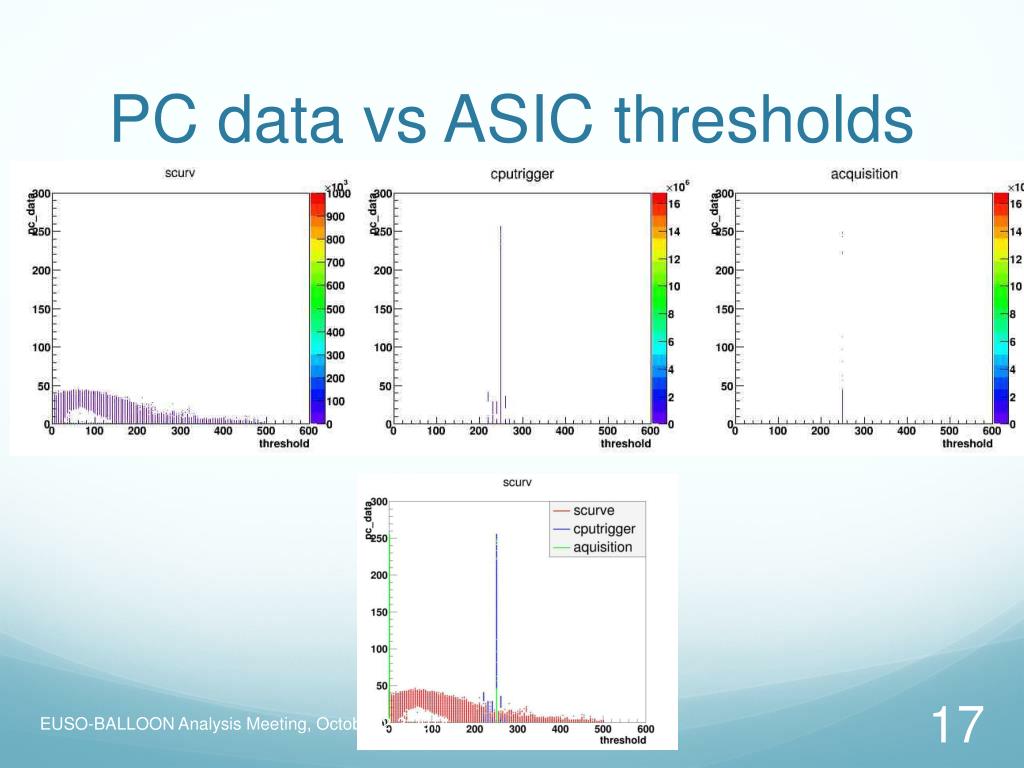

  17. PC data vs ASIC thresholds EUSO-BALLOON Analysis Meeting, October 2-3 2014

  18. KI Data I thoughtitwas Switched off EUSO-BALLOON Analysis Meeting, October 2-3 2014 KI seehighsignals on acquisition mode

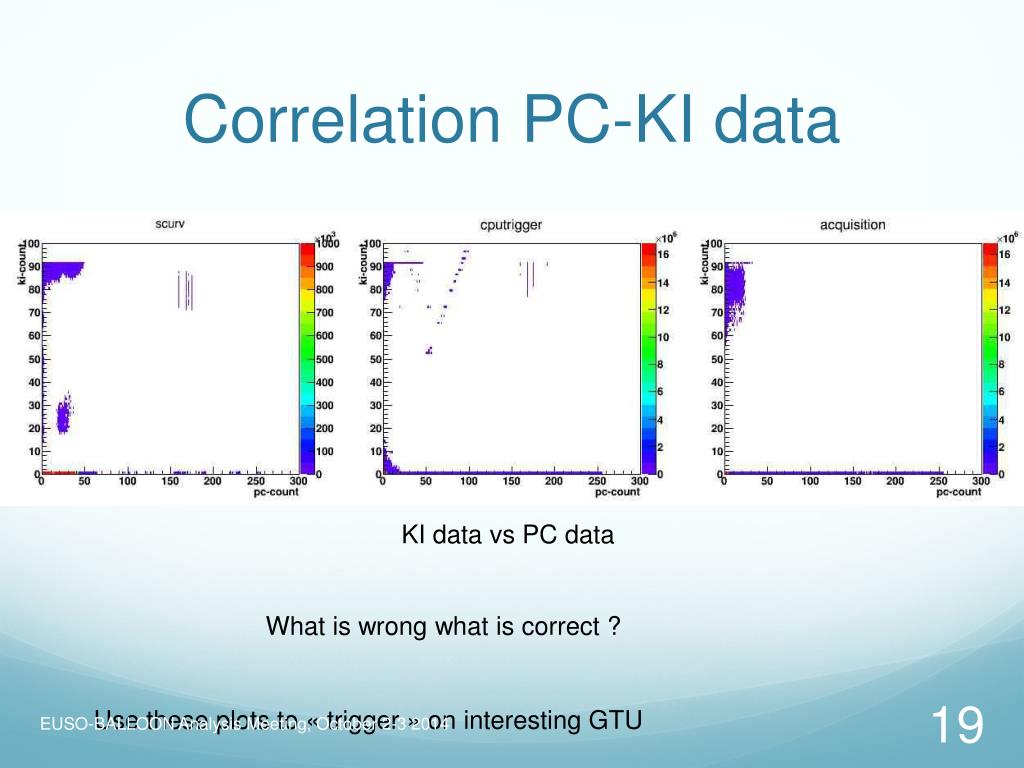

  19. Correlation PC-KI data KI data vs PC data Whatiswrongwhatis correct ? Use these plots to « trigger » on interesting GTU EUSO-BALLOON Analysis Meeting, October 2-3 2014

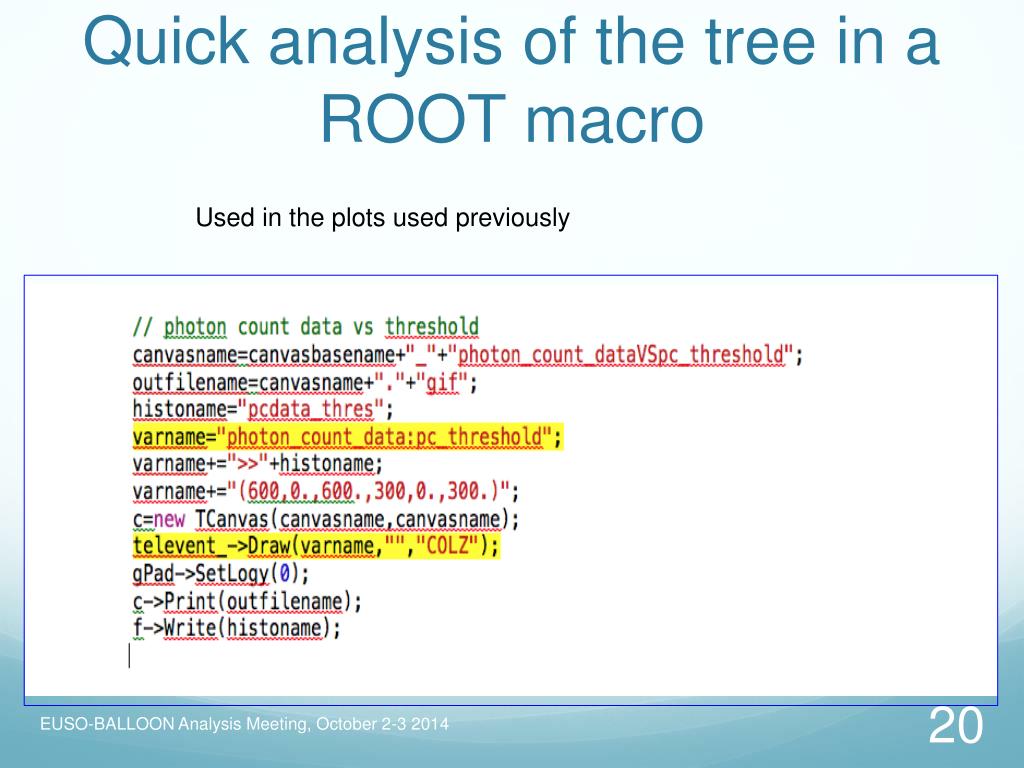

  20. Quick analysis of the tree in a ROOT macro Used in the plots usedpreviously EUSO-BALLOON Analysis Meeting, October 2-3 2014

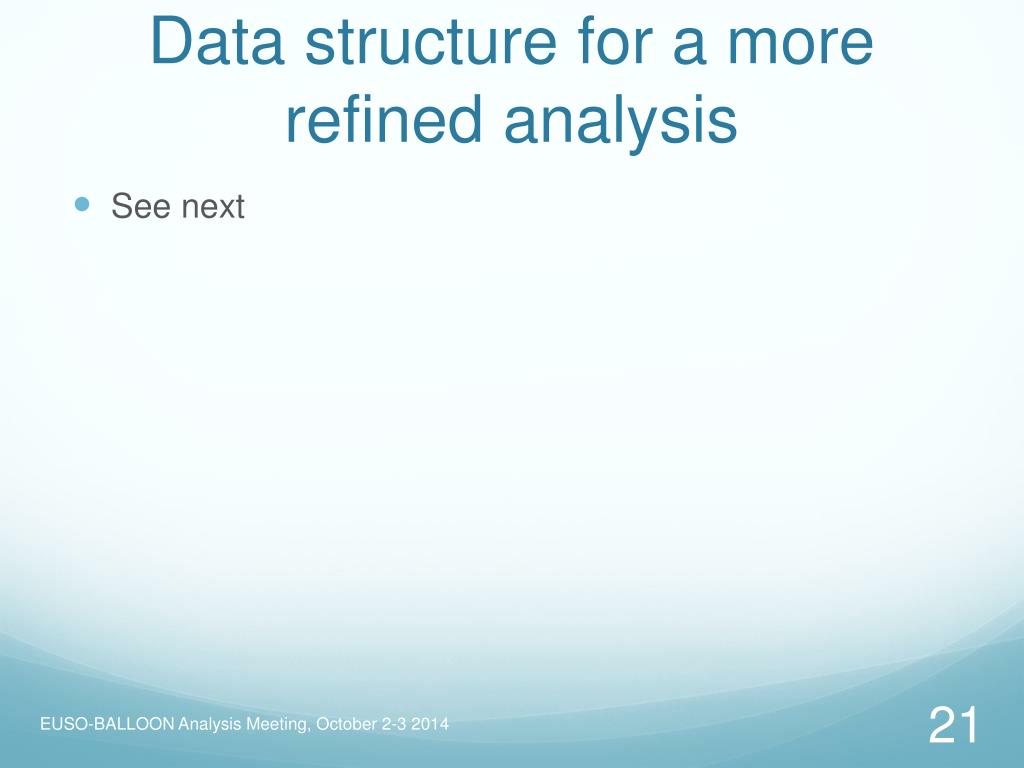

  21. Data structure for a more refined analysis • Seenext EUSO-BALLOON Analysis Meeting, October 2-3 2014

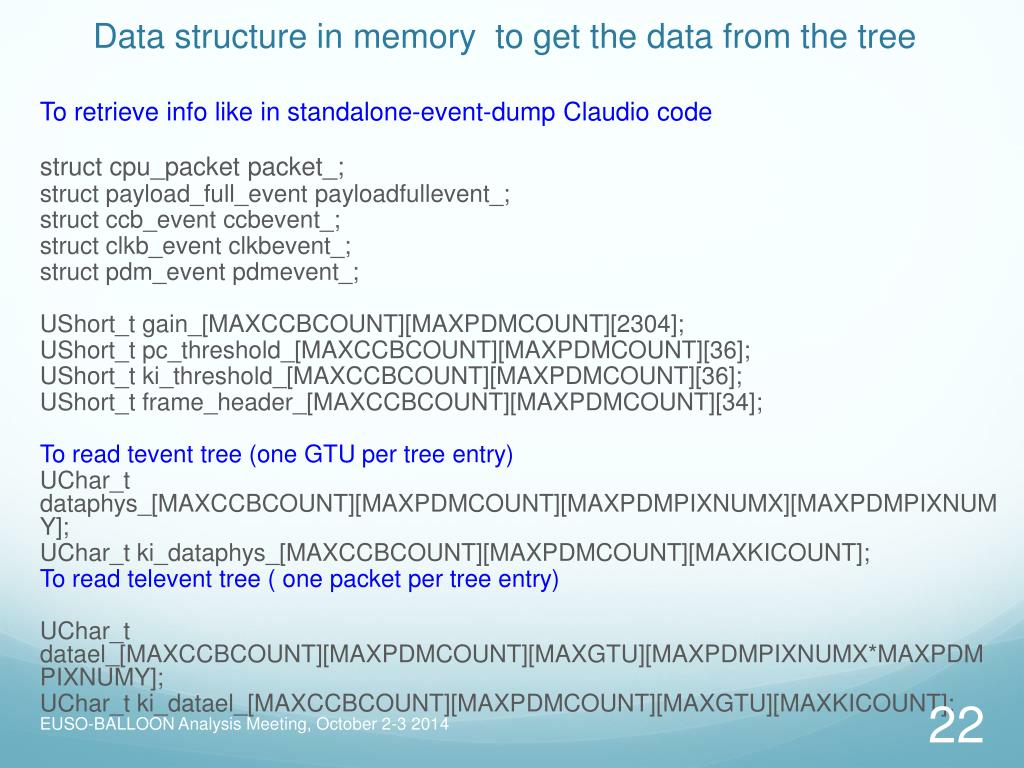

  22. Data structure in memory to get the data from the tree To retrieve info like in standalone-event-dump Claudio code structcpu_packetpacket_; structpayload_full_eventpayloadfullevent_; structccb_eventccbevent_; structclkb_eventclkbevent_; structpdm_eventpdmevent_; UShort_t gain_[MAXCCBCOUNT][MAXPDMCOUNT][2304]; UShort_tpc_threshold_[MAXCCBCOUNT][MAXPDMCOUNT][36]; UShort_tki_threshold_[MAXCCBCOUNT][MAXPDMCOUNT][36]; UShort_tframe_header_[MAXCCBCOUNT][MAXPDMCOUNT][34]; To readteventtree (one GTU per tree entry) UChar_tdataphys_[MAXCCBCOUNT][MAXPDMCOUNT][MAXPDMPIXNUMX][MAXPDMPIXNUMY]; UChar_tki_dataphys_[MAXCCBCOUNT][MAXPDMCOUNT][MAXKICOUNT]; To readteleventtree ( one packet per tree entry) UChar_tdatael_[MAXCCBCOUNT][MAXPDMCOUNT][MAXGTU][MAXPDMPIXNUMX*MAXPDMPIXNUMY]; UChar_tki_datael_[MAXCCBCOUNT][MAXPDMCOUNT][MAXGTU][MAXKICOUNT]; EUSO-BALLOON Analysis Meeting, October 2-3 2014

  23. Decodingrun/event variables EUSO-BALLOON Analysis Meeting, October 2-3 2014

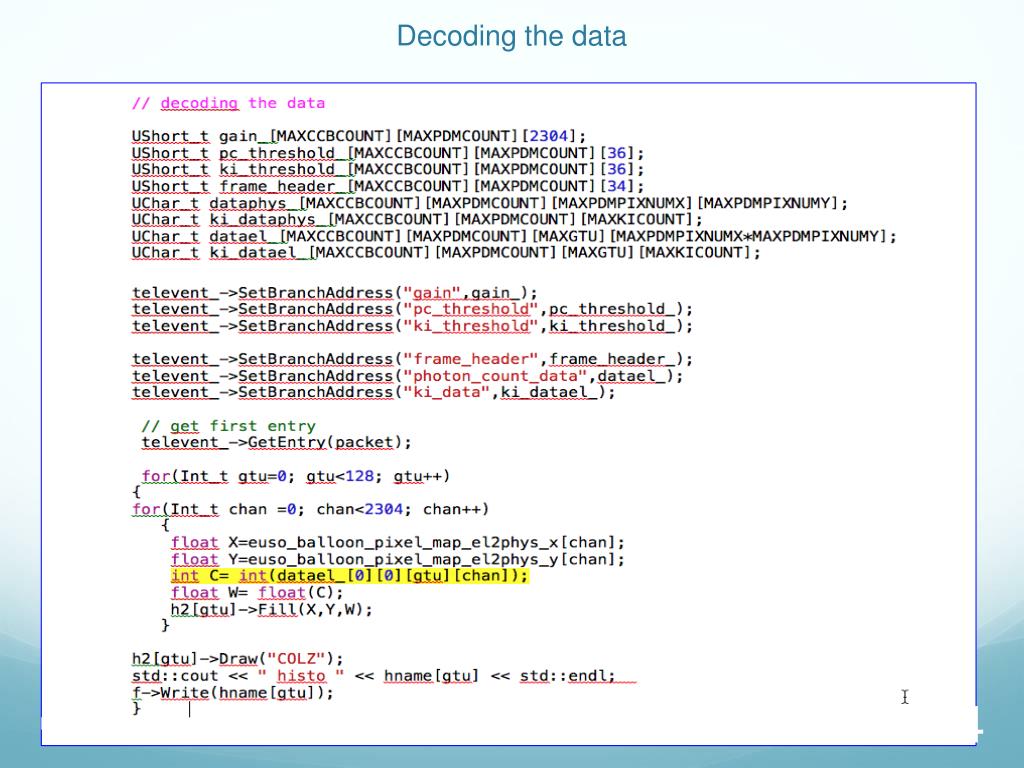

  24. Decoding the data EUSO-BALLOON Analysis Meeting, October 2-3 2014

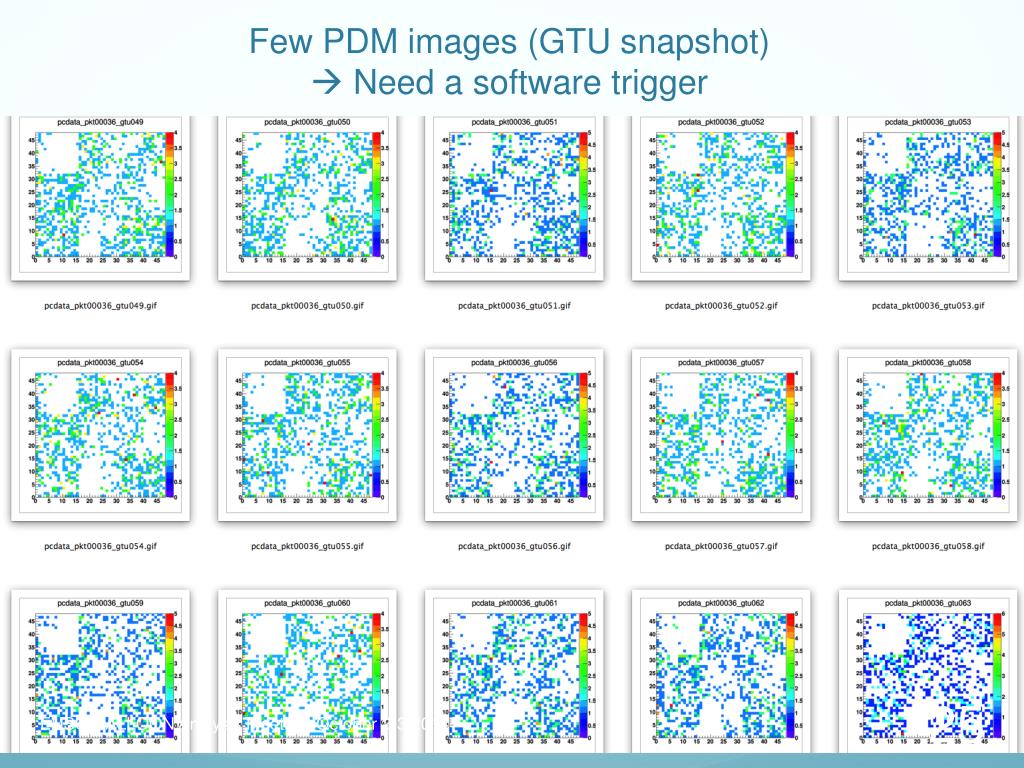

  25. Few PDM images(GTU snapshot)  Need a software trigger EUSO-BALLOON Analysis Meeting, October 2-3 2014
