Multivariate Statistical Analysis Shyh-Kang Jeng Department of Electrical Engineering/ Graduate Institute of Communication/ Graduate Institute of Networking and Multimedia
controllable factors input Process output uncontrollable factors What Is Multivariate Analysis? • Statistical methodology to analyze data with measurements on many variables
Why to Learn Multivariate Analysis? • Explanation of a social or physical phenomenon must be tested by gathering and analyzing data • Complexities of most phenomena require an investigator to collect observations on many different variables
Application Examples • Is one product better than the other? • Which factor is the most important to determine the performance of a system? • How to classify the results into clusters? • What are the relationships between variables?
Course Outline • Introduction • Matrix Algebra and Random Vectors • Sample Geometry and Random Samples • Multivariate Normal Distribution • Inference about a Mean Vector • Comparison of Several Multivariate Means • Multivariate Linear Regression Models
Course Outline • Principal Components • Factor Analysis and Inference for Structured Covariance Matrices • Canonical Correlation Analysis • Discrimination and Classification • Clustering, Distance Methods, and Ordination • Multidimensional Scaling* • Structural Equation Modeling*
Text Book and Website • R. A. Johnson and D. W. Wichern, Applied Multivariate Statistical Analysis, 5th ed., Prentice Hall, 2002. (雙葉) • http://cc.ee.ntu.edu.tw/~skjeng/ MultivariateAnalysis2006.htm

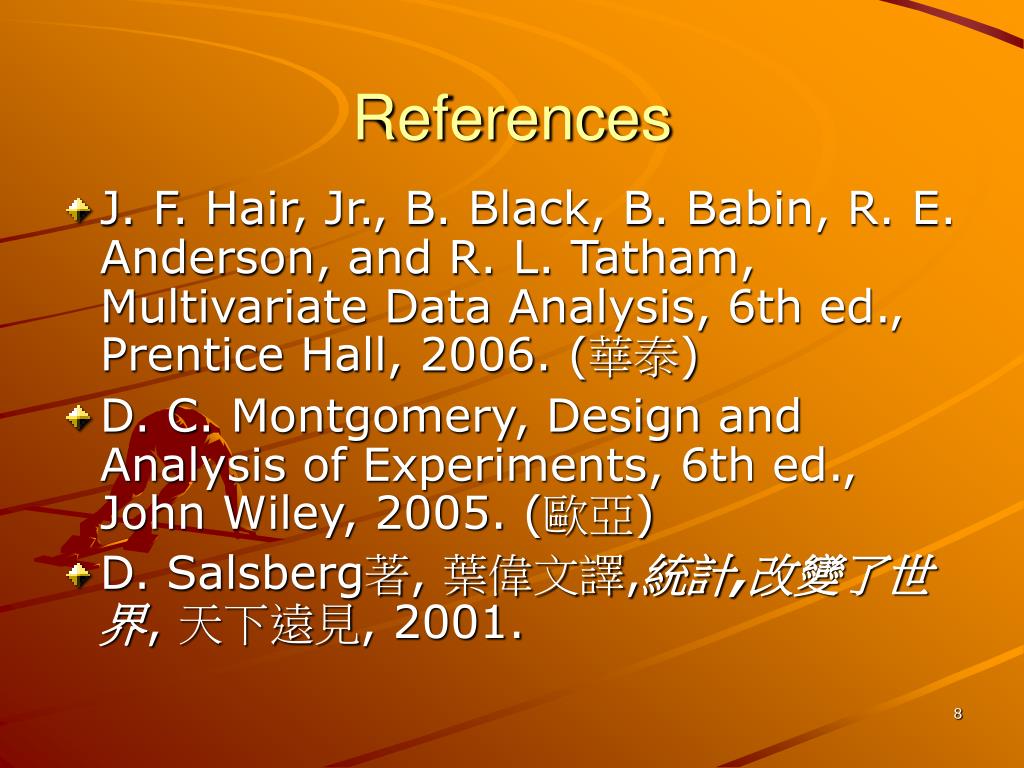

References • J. F. Hair, Jr., B. Black, B. Babin, R. E. Anderson, and R. L. Tatham, Multivariate Data Analysis, 6th ed., Prentice Hall, 2006. (華泰) • D. C. Montgomery, Design and Analysis of Experiments, 6th ed., John Wiley, 2005. (歐亞) • D. Salsberg著, 葉偉文譯,統計,改變了世界, 天下遠見, 2001.
Some Important Laws • First things first • 80 – 20 Law • Fast prototyping and evolution
Major Uses of Multivariate Analysis • Data reduction or structural simplification • Sorting and grouping • Investigation of the dependence among variables • Prediction • Hypothesis construction and testing
Descriptive Statistics • Summary numbers to assess the information contained in data • Basic descriptive statistics • Sample mean • Sample variance • Sample standard deviation • Sample covariance • Sample correlation coefficient
Standardized Values (or Standardized Scores) • Centered at zero • Unit standard deviation • Sample correlation coefficient can be regarded as a sample covariance of two standardized variables
Properties of Sample Correlation Coefficient • Value is between -1 and 1 • Magnitude measure the strength of the linear association • Sign indicates the direction of the association • Value remains unchanged if all xji’s and xjk’s are changed to yji = axji + b and yjk = cxjk + d, respectively, provided that the constants a and c have the same sign
Using SAS • Create New Project • Name Project • Insert Data • New: Name Data1 • Change column name • Right button, select Properties… • Enter data in the data grid • Select Data1 under Project • Analysis Descriptive • Summary statistics • Correlations
Summary Statistics • Save • Personal Enterprise Guide Sample Data Data1.sas7bdat • Columns Variables to assign Analysis variables • Statistics Mean
Correlations • Delete Summary statistics node • Save • Personal Enterprise Guide Sample Data Data1.sas7bdat • Columns Variables to assign Correlation variables • Correlations Pearson Covariances Show Pearson correlations in results Divisor for variances (Number of rows)

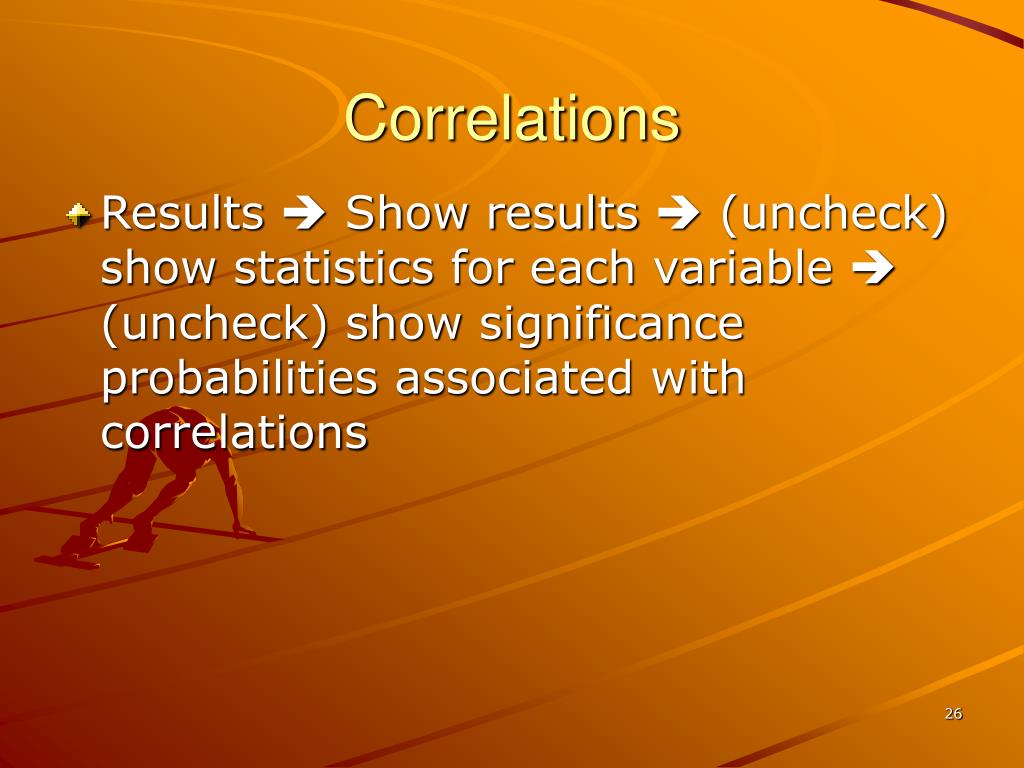

Correlations • Results Show results (uncheck) show statistics for each variable (uncheck) show significance probabilities associated with correlations
Outliers • Observations with a unique combination of characteristics identifiable as distinctly different from the other observations • Impact • Limiting the generalizability of any type of analysis • Must be viewed in light of how representative it is of the population to be retained or deleted
Sources of Outliers • Procedure error • Extraordinary event • e,g., hurricane for daily rainfall analysis • Extraordinary observations • Researcher has no explanation • Unique in their combinations of values across the variables • Falls within ordinary range of values of variables • Retain it unless proved invalid
Rules of Thumb for Univariate Outlier Detection • Small samples (80 or fewer observations) • Cases with standard scores of 2.5 or greater • Larger sample size • Threshold increases up to 4 • Standard score not used • Cases falling outside the range of 2.5 versus 4 standard deviations, depending on the sample size
