Presentation Transcript

Slide2 l.jpg

Hydra-Pneumatic Hammer

Presentation Sections

1 Basic working principles of the Hydra-Pneumatic Hammer

2 Technical Characteristics of the Hydra-Pneumatic Hammer

3 Hammer construction

  • Process of the Conversion from an AirHammer into a Hydra-Pneumatic Hammer

    5 Safety Protection Measures


Slide3 l.jpg

Hydra-Pneumatic Hammer

1 Basic working principle of Hydra-Pneumatic hammer

The basic working principle of Hydra-Pneumatic hammer is energy conversion from pressurized liquid into compressed gas and from potential energy of compressed gas and kinetic energy of falling parts into blow energy.

Pressurized oil from the pump and accumulator pushes the piston upward and compresses the nitrogen, when the quick release valve fully opens, high pressure gas pushes the piston down-ward rapidly and accelerates the falling part during working stroke , a hammer blow with stipulated ,kinetic energy is formed.


Slide4 l.jpg

Hydra-Pneumatic

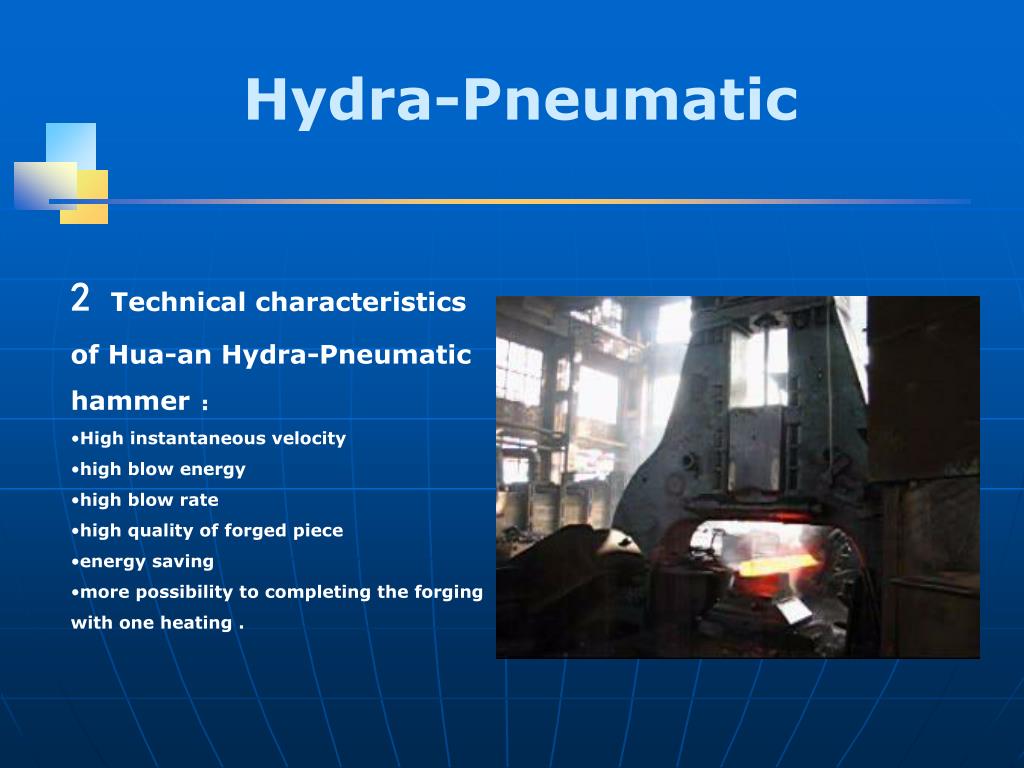

  • 2 Technical characteristics of Hua-an Hydra-Pneumatic hammer :

  • High instantaneous velocity

  • high blow energy

  • high blow rate

  • high quality of forged piece

  • energy saving

  • more possibility to completing the forging with one heating .


Slide5 l.jpg

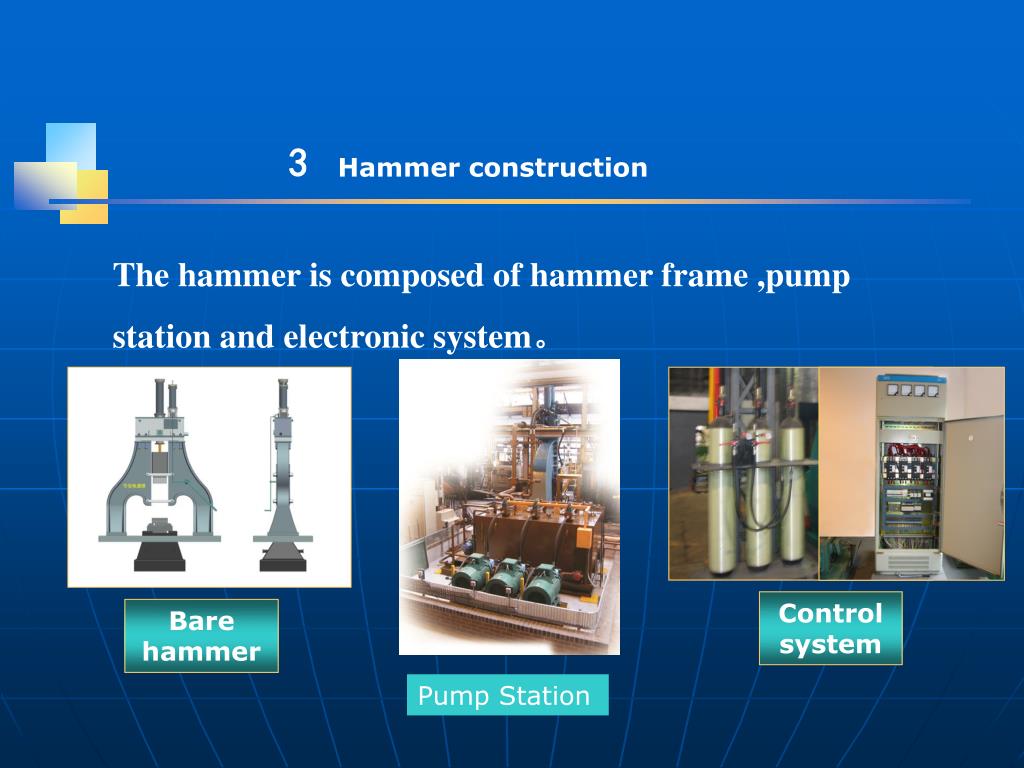

Bare hammer

Control system

The hammer is composed of hammer frame ,pump station and electronic system。

3 Hammer construction

Pump Station


Slide6 l.jpg

Hydra-Pneumatic

1. Hydra-Pneumatic hammer constitution

Power head, hammer tup, piston rod, hammer body, tup guides, top pallet, bottom pallet. Power head including the main body, accumulator, buffer cylinder, gas cylinder, piston rod cylinder and bottom gland seal.


Slide7 l.jpg

Third, unique feature

1.Eletro hydraulichammer constitution

Hydra-Pneumatic

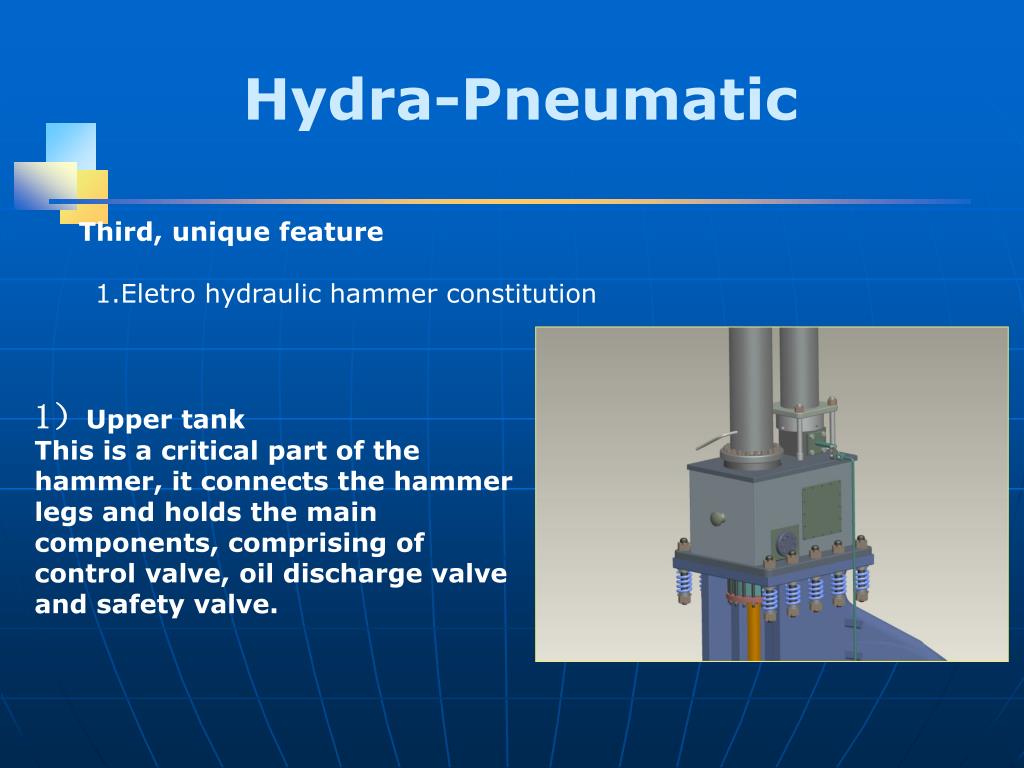

1)Upper tank

This is a critical part of the hammer, it connects the hammer legs and holds the main components, comprising of control valve, oil discharge valve and safety valve.


Slide8 l.jpg

Third, unique feature

1. Hydra-Pneumatic hammer constitution

Hydra-Pneumatic

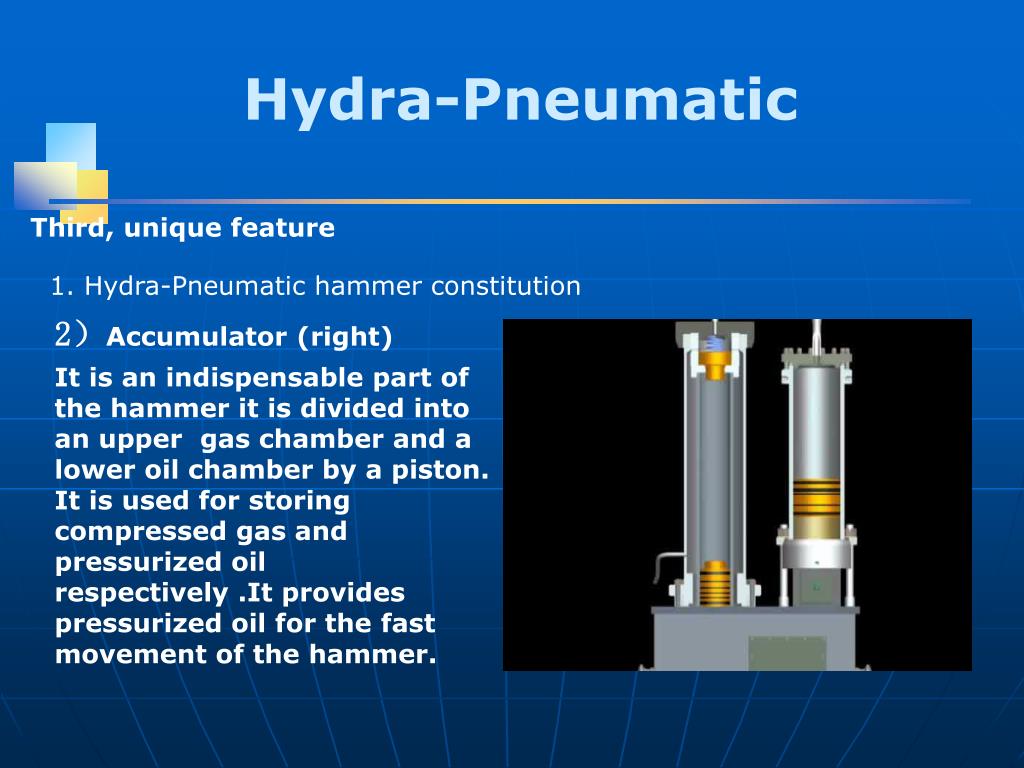

2)Accumulator (right)

It is an indispensable part of the hammer it is divided into an upper gas chamber and a lower oil chamber by a piston. It is used for storing compressed gas and pressurized oil respectively .It provides pressurized oil for the fast movement of the hammer.


Slide9 l.jpg

Third, unique feature

1. Hydra-Pneumatic hammer constitution

Hydra-Pneumatic

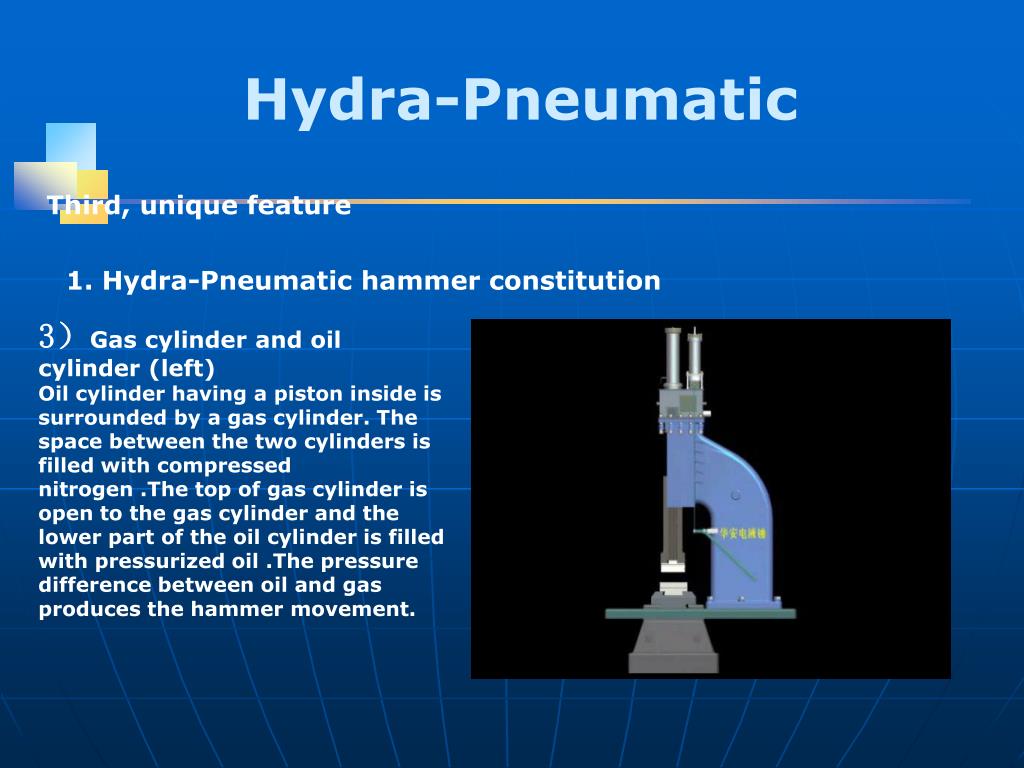

3)Gas cylinder and oil cylinder (left)

Oil cylinder having a piston inside is surrounded by a gas cylinder. The space between the two cylinders is filled with compressed nitrogen .The top of gas cylinder is open to the gas cylinder and the lower part of the oil cylinder is filled with pressurized oil .The pressure difference between oil and gas produces the hammer movement.


Slide10 l.jpg

Third, unique feature

1. Hydra-Pneumatic hammer constitution

Hydra-Pneumatic

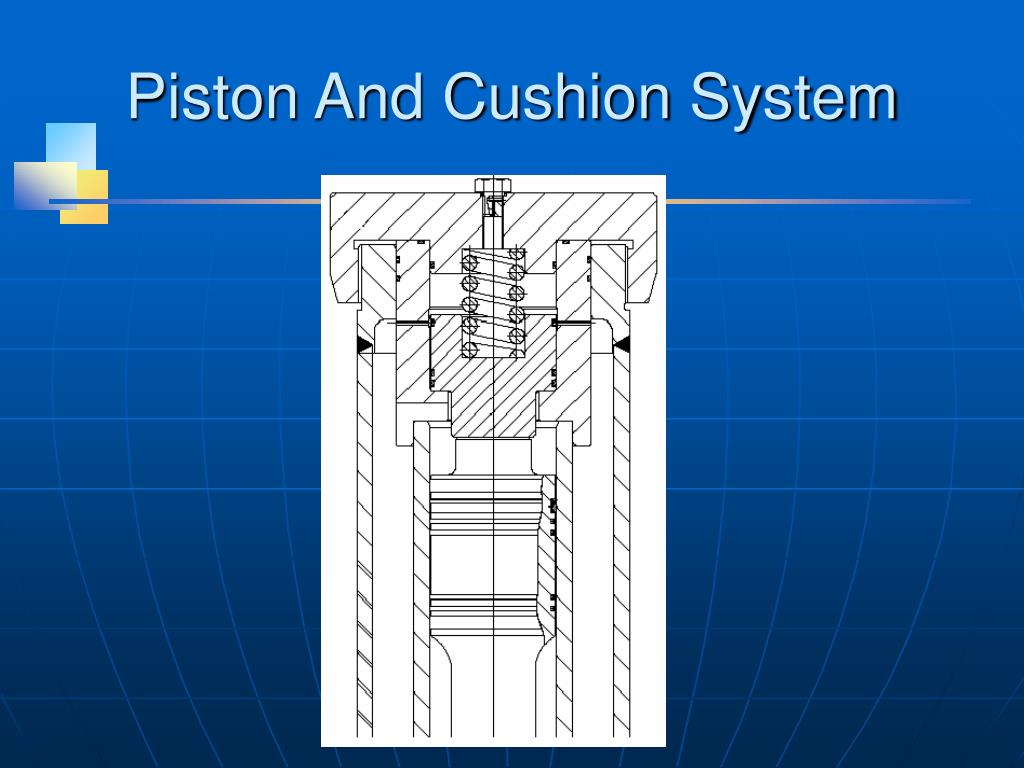

4)Buffer cylinder

It is a very important part for safety protection and is composed of; a cylinder ,

piston, cover and spring .There is low pressure nitrogen in the upper cavity . When the piston rod returns to the top of the gas cylinder too fast, its excess kinetic energy is absorbed so avoiding the cylinder cover breaking away and further damage


Slide11 l.jpg

Third, unique feature

1. Hydra-Pneumatic hammer constitution

Hydra-Pneumatic

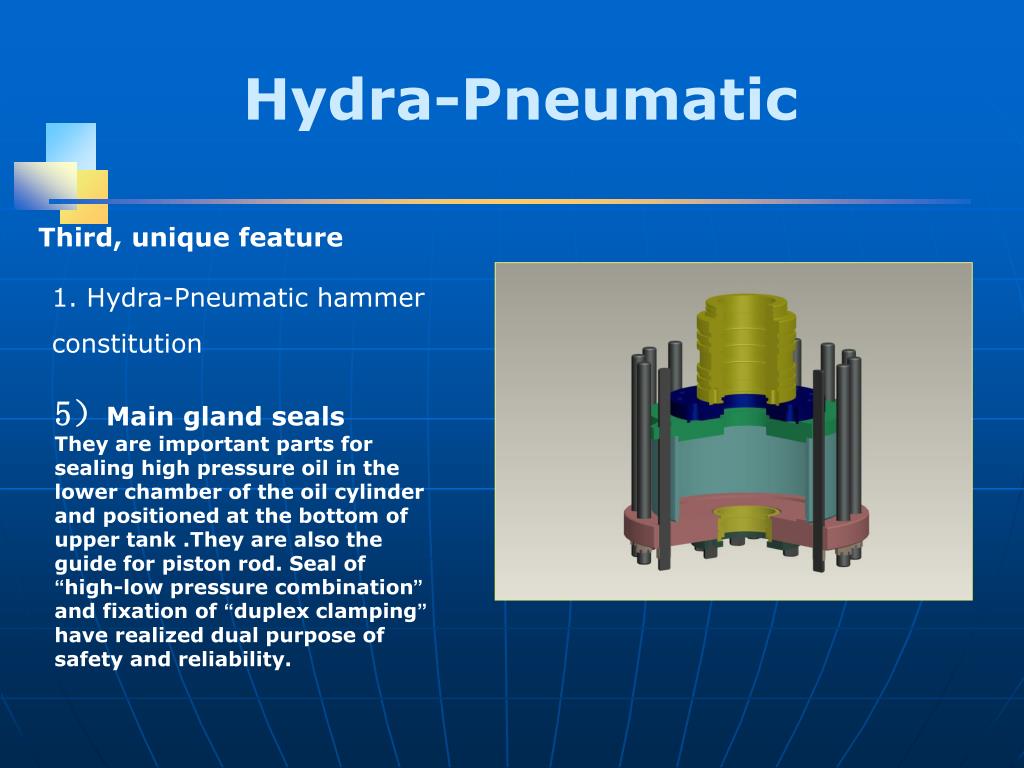

5)Main gland seals

They are important parts for sealing high pressure oil in the lower chamber of the oil cylinder and positioned at the bottom of upper tank .They are also the guide for piston rod. Seal of “high-low pressure combination” and fixation of “duplex clamping” have realized dual purpose of safety and reliability.


Slide12 l.jpg

Hydra-Pneumatic

Third, unique feature

1. Hydra-Pneumatic hammer constitution

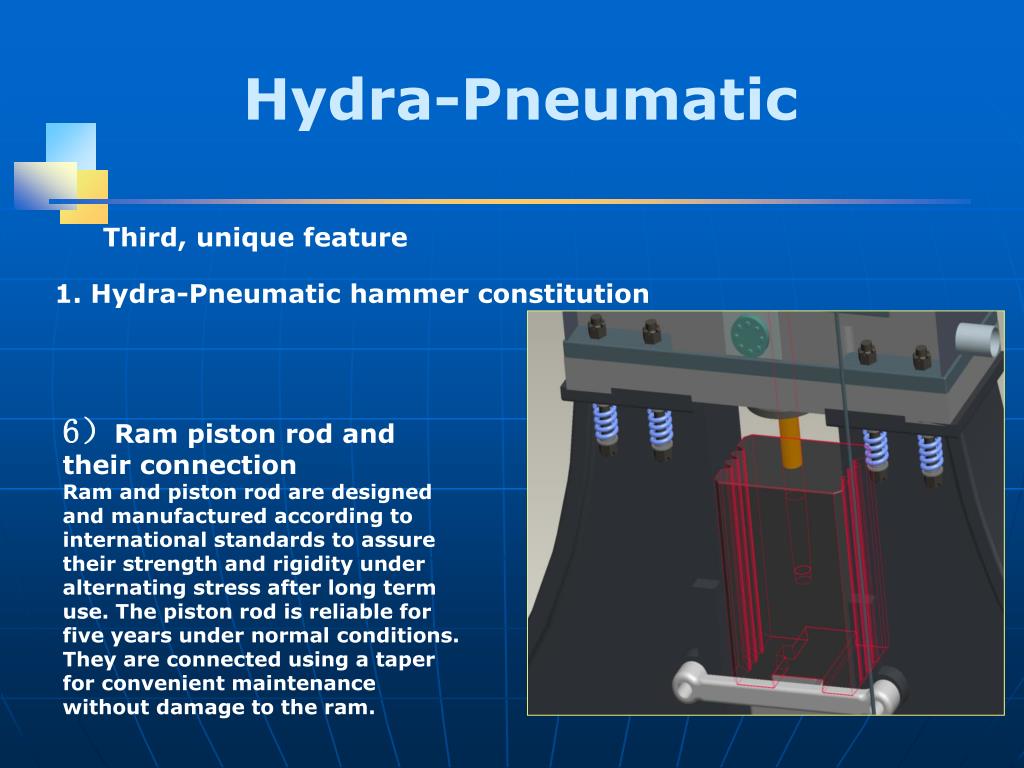

6)Ram piston rod and their connection

Ram and piston rod are designed and manufactured according to international standards to assure their strength and rigidity under alternating stress after long term use. The piston rod is reliable for five years under normal conditions. They are connected using a taper for convenient maintenance without damage to the ram.


Slide13 l.jpg

Hydra-Pneumatic

Third, unique feature

3. Electrical system characteristic

Design purpose of the electronic system is “reasonable structure and advance performances for stable ,reliable running ,sensitive control ,low failure,long life”,

All components are available locally.

The electrical system meets all current EU directives.


Slide14 l.jpg

Hydra-Pneumatic

Fourth, The conversion process from air to Hydra-Pneumatic

The process is that using hydraulic power head substitutes the original air cylinder with the power head, guides, pump station, electronic control system and nitrogen gas system.


Slide15 l.jpg

Hydra-Pneumatic

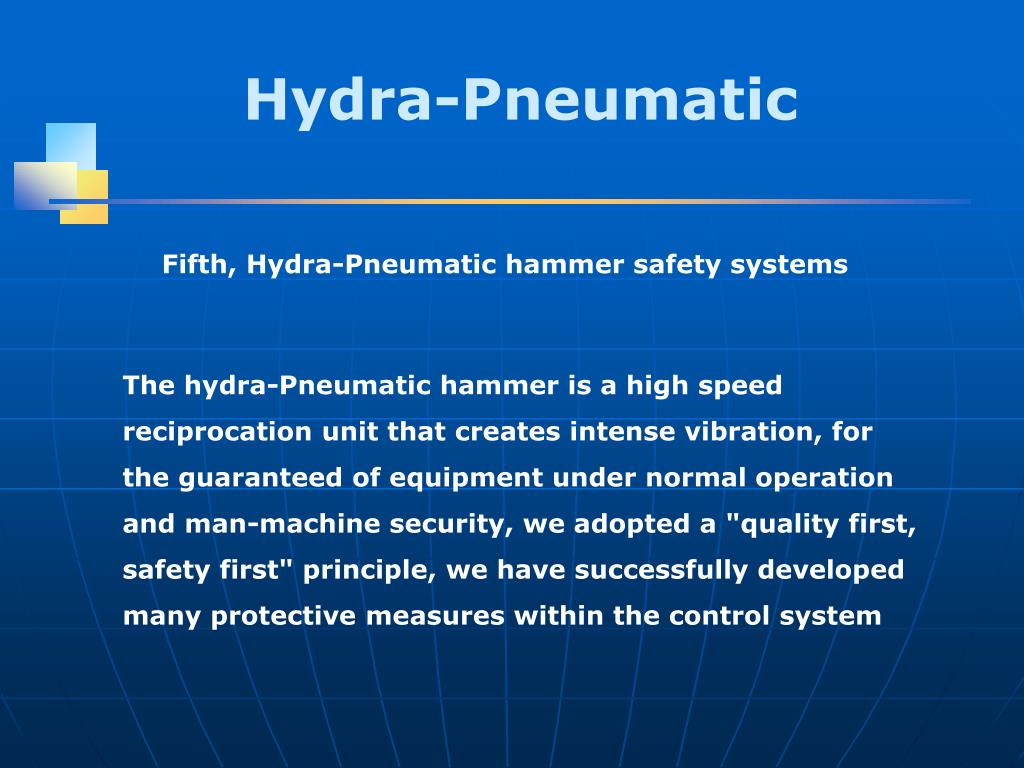

Fifth, Hydra-Pneumatic hammer safety systems

The hydra-Pneumatic hammer is a high speed reciprocation unit that creates intense vibration, for the guaranteed of equipment under normal operation and man-machine security, we adopted a "quality first, safety first" principle, we have successfully developed many protective measures within the control system


Slide16 l.jpg

Hydra-Pneumatic hammer safety technology introduction

Hydra-hydraulic hammer safety measures

  • 1. Oil temperature over temperature with automatic cooling

  • Oil level monitoring automatic system shut down;

  • Filter blockage system;

  • All pumps are automatically monitored;

  • Pressure test automatic monitoring system;

  • Main gland seal leakage monitoring system;

  • Pipeline bursts protection system;

  • Hammer piston rod monitoring protection system.


Slide17 l.jpg

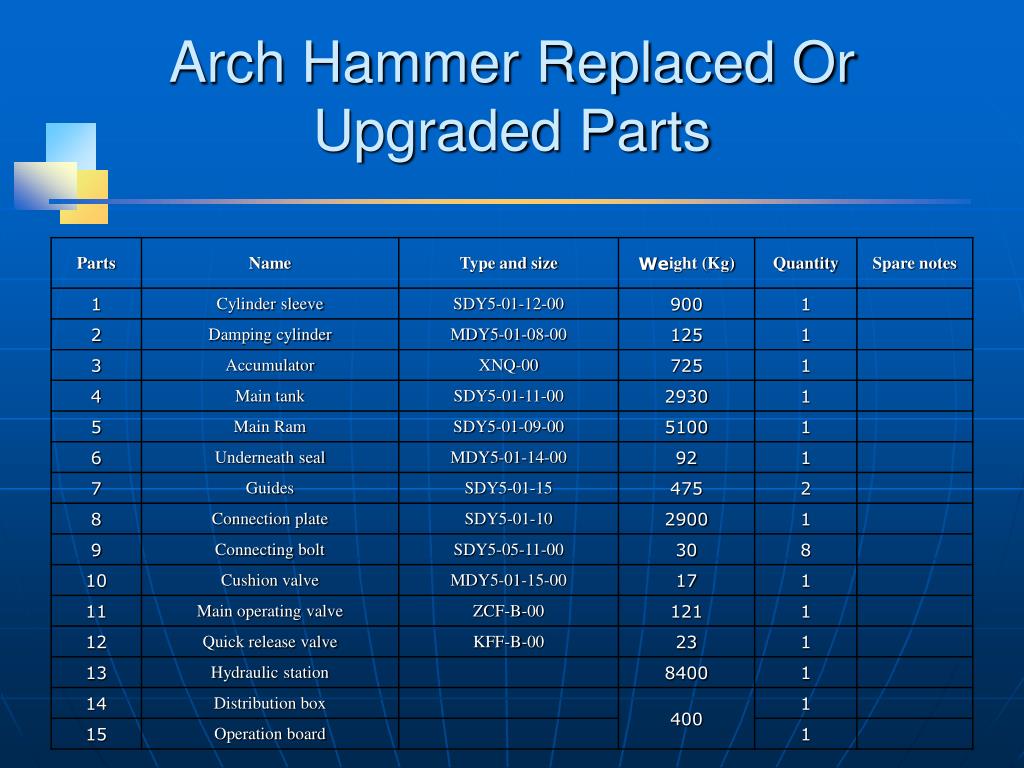

5 Ton Arch Hammer Conversion

Damping Cylinder

Hydraulic Cylinder

Electric Control

Main Tank

Bottom Gland seal

Connecting Bolts

Tup Slides

High Pressure Gas Pipe

Accumulator

Main Operating Valve

Quick Release Valve

Oil Supply Pipe

Oil Return Pipe

Piston Rod

Tup

Operating Lever


Rigby hammer l.jpg
Rigby Hammer

Damping Cylinder

Composed Cylinder

Electrical control

Main Tank

Ram seal

Ram Guides

High Pressure Gas Pipe

Accumulator

Main Control Valve

Oil Supply Pipe

Oil Return Pipe

Quick Release Valve

Piston Rod

Hammer Head

Operating lever

Cylinder

Air Ports

Piston

Piston Rod

Hammer head

Upper Anvil




Slide21 l.jpg

Hydra-pneumatic hammer

Third, unique feature

2. Hydraulic pressure station characteristics

Hydraulic station is a pressurized oil supply system for the storing and releasing high pressure oil. It includes oil tank , motor , Hydraulic pump , Hydraulic valve, refrigerator, Hydraulic oil , system of gas storage. The design purpose is “reasonable structure and advance performances for stable and reliable running



Hydraulic pump station l.jpg
Hydraulic pump station

Oil Tank

High pressure feed pipe

Electric heater

High Pressure Oil Pipe

Oil Return Port

Unloading valve

Pressure Gauge

Pressure Switch

Oil Suction Filter

Hand operated Valve

Hydraulic pump

Motor And Coupling

Oil Level And Thermometer

Motor Bracket

Motor

Hydraulic Pump

Plate type Strainer
