  1. Miscellaneous Felix Sefkow DESY HCAL main meeting February 3, 2005

  2. Commissioning scenario Availability of components • January: DAQ • March: Piggy back plus test board • And first cassette assembled • May: prototype electronics for 2 entire cassettes • August: all cassettes and boards Possible test configuration • VME, PC, and software • Add front end card • And cassette with LEDs • Start electron test beam • Possibly extend to few layer a la minical • Cosmic test with full stack Goals: establish Readout chain Calibration Monitoring and stability HCAL main meeting

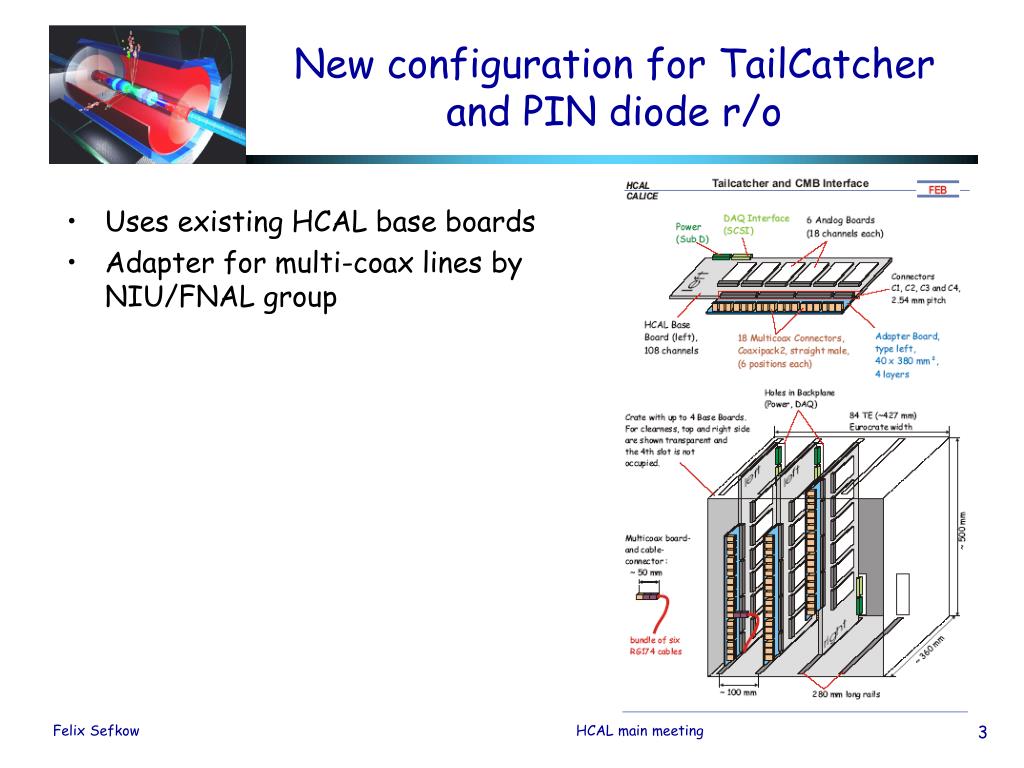

  3. New configuration for TailCatcher and PIN diode r/o • Uses existing HCAL base boards • Adapter for multi-coax lines by NIU/FNAL group HCAL main meeting

  4. Technical Board Membership: • J. Yu Chair • J.-C. Vanel ECAL • J.Repond DHCAL • FS AHCAL • NN TailC/MT • C de La Taille Front end • P. Dauncey DAQ • D.Ward software • Had our first (bi-weekly) meeting yesterday • Next (16.2.) on software issues HCAL main meeting

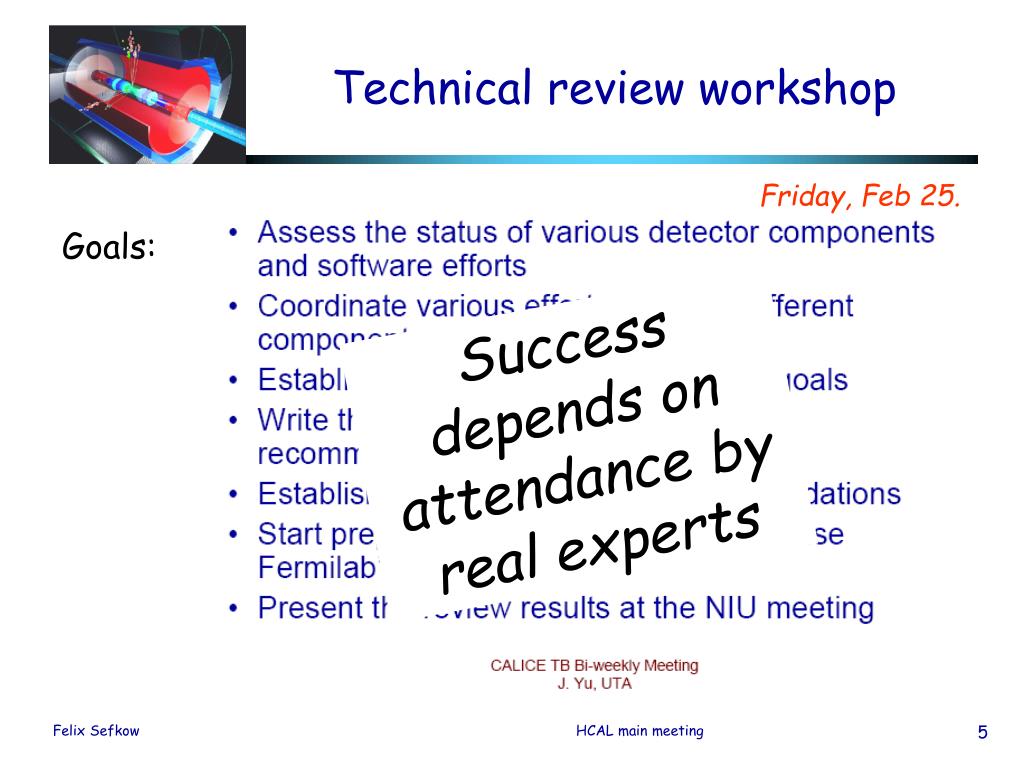

  5. Technical review workshop Friday, Feb 25. Goals: Success depends on attendance by real experts HCAL main meeting

  6. CALICE at NIU • Please let me know if you wish to give a presentation HCAL: Tuesday, March 15 HCAL main meeting

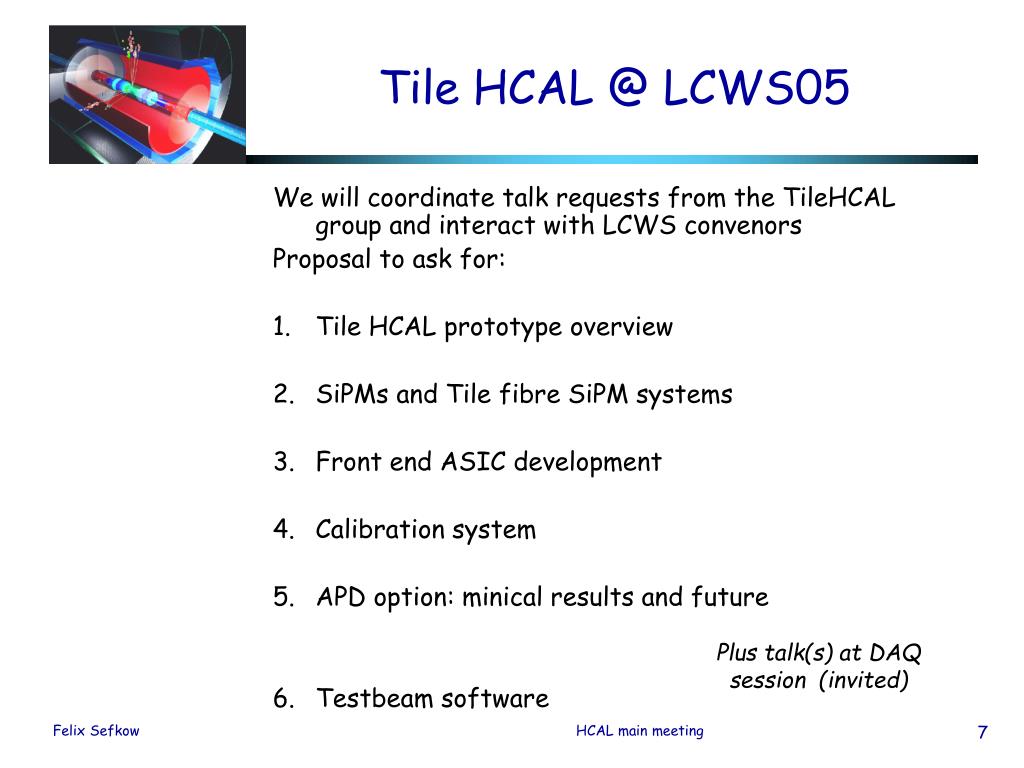

  7. Tile HCAL @ LCWS05 We will coordinate talk requests from the TileHCAL group and interact with LCWS convenors Proposal to ask for: • Tile HCAL prototype overview • SiPMs and Tile fibre SiPM systems • Front end ASIC development • Calibration system • APD option: minical results and future • Testbeam software Plus talk(s) at DAQ session (invited) HCAL main meeting

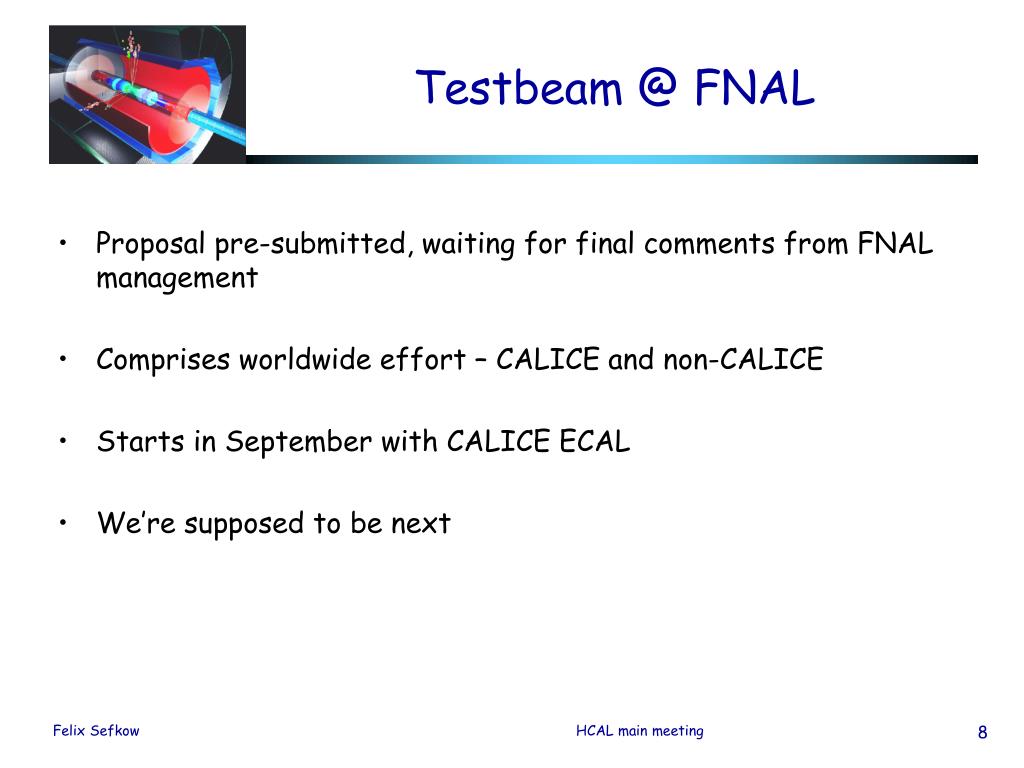

  8. Testbeam @ FNAL • Proposal pre-submitted, waiting for final comments from FNAL management • Comprises worldwide effort – CALICE and non-CALICE • Starts in September with CALICE ECAL • We’re supposed to be next HCAL main meeting

  9. Testbeam area us HCAL main meeting
