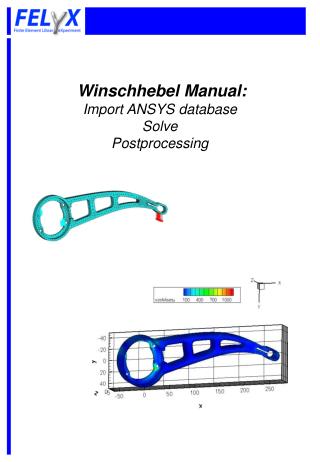

Winschhebel Manual: Import ANSYS database Solve Postprocessing PowerPoint Presentation
Download Presentation
Winschhebel Manual: Import ANSYS database Solve Postprocessing

Loading in 2 Seconds...

play fullscreen
1 / 7

Winschhebel Manual: Import ANSYS database Solve Postprocessing - PowerPoint PPT Presentation


  • 184 Views
  • Uploaded on

Winschhebel Manual: Import ANSYS database Solve Postprocessing. Export database from ANSYS. Preprocessing ANSYS offers a tool to export the FE Model FELyX needs all FE information

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Winschhebel Manual: Import ANSYS database Solve Postprocessing' - fay


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
export database from ansys
Export database from ANSYS
  • Preprocessing
    • ANSYS offers a tool to export the FE Model
    • FELyX needs all FE information
    • Path: Preprocessor – Archive Model – Write and then select in “Data to archive” “DB all finite element information”
    • Or with this command: CDWRITE,DB,filename,ansys,,,

Motorbike Manual Manual

new executable in felyx
New Executable in FELyX
  • Download FELyX from the CVS Repository
    • Type this command in Linux shell

cvs –z3 –d:pserver:anonymous@cvs.sourceforge.net:/cvsroot/felyx co –P felyx

  • Our developer tool is KDevelop
    • Shell command: kdevelop felyx.kdevelop
    • Have a look into the Automake Manager

Motorbike Manual Manual

slide4
Add in FELyX project a new executable
    • Open Automake Manager and choose Add Target in the tutorial folder (right mouse button)
    • In this case the new Target is a program

(first illustration)

    • In this target you can Creat New File and link this file with this target
    • The new file is C++ source code
    • Make Target Active

(second illustration)

Motorbike Manual Manual

slide5
StructObject, Solve, Postprocessing and Save Results
    • Include FEM Object in your new executable
    • The same example is already attached in /felyx/tutorial MyFELyXApp.cpp
    • For a better understanding you can use the doxygen documentation
      • Choose in kdevelop: Build – Build API Documentation
    • This generates a html – documentation in the felyx/doc/html folder
    • This documentation describes the classes, functions and dependencies of the different objects

// MyFELyXApp.cpp

//

#ifdef HAVE_CONFIG_H

#include <config.h>

#endif

#include <iostream>

// FELyX Main header

#include "StructObject.h"

#include "export_tecplot.hpp"

using namespace std;

using namespace felyx;

int main() {

std::cout << "START MyFELyXApp\n";

StructObject FEM( "winschhebel.ansys", “path", 1 );

FEM.SparseSolver();

FEM.EvalStresses();

export_nodes(“/path/winschhebel.dat", FEM.GetNodes() );

FEM.PrintGlobalStatus();

std::cout << "END MyFELyXApp\n";

return 0;

}

// comments

Include header files

Include used FELyX header files

Define namespaces

Import FE database winschhebel.ansys from location e.g. /home/felyx/totorial

Solve FE Model by using a sparse solver

Postprocessing

Export solution in tecplot-format

Writes main results

End

Motorbike Manual Manual

run the new executable
Run the new Executable
  • Build the active target
    • Build and execute the active target
    • The main results are printed
  • Errors
    • Sometimes you have to add some libraries to the active target or put them into the right order. Most suitable is to compare with the other executables and make it in the same manner
    • Choose Options in the active target and add, edit or move the libraries

Motorbike Manual Manual

postprocessing
Postprocessing
  • Stresses and Deformations
    • In this case we write the deformations and stresses into a dat-file

export_nodes(“/path/winschhebel.dat", FEM.GetNodes() );

    • You can use tecplot to illustrate this deformations and stresses
    • Plots for the deformation in y-Direction calculated by ANSYS and FELyX
