A city within the city

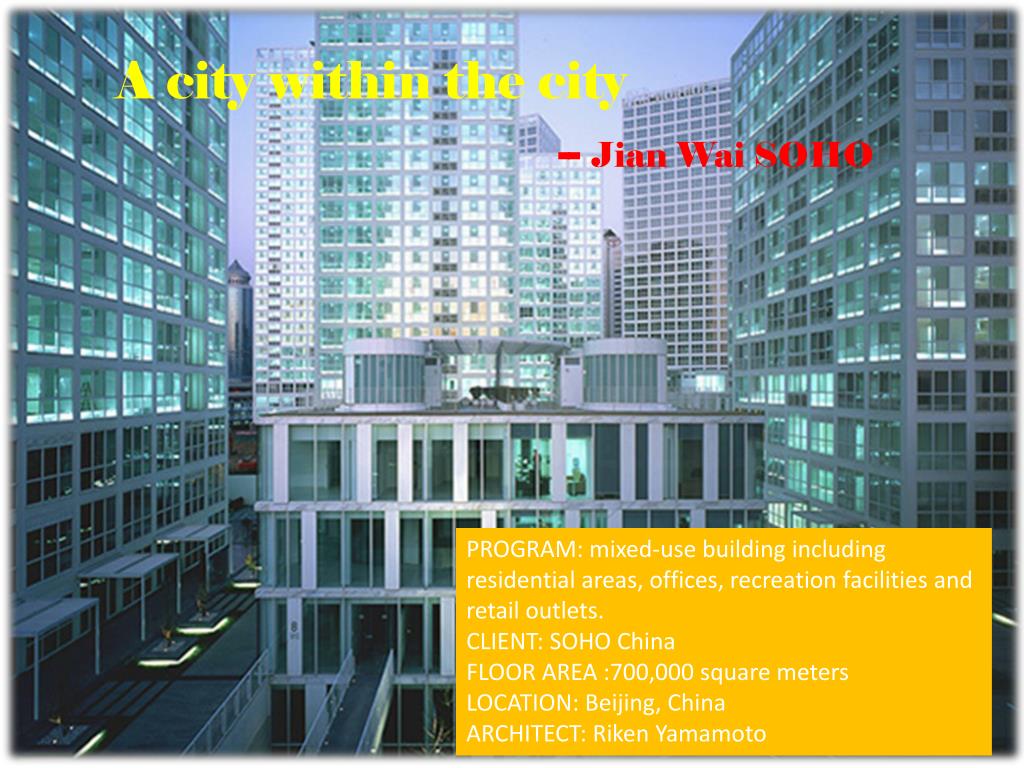

A city within the city. -- Jian Wai SOHO. PROGRAM: mixed-use building including residential areas, offices, recreation facilities and retail outlets. CLIENT: SOHO China FLOOR AREA :700,000 square meters LOCATION: Beijing, China ARCHITECT: Riken Yamamoto.

fay
Download Presentation

A city within the city

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. A city within the city -- JianWai SOHO PROGRAM: mixed-use building including residential areas, offices, recreation facilities and retail outlets. CLIENT: SOHO China FLOOR AREA :700,000 square meters LOCATION: Beijing, China ARCHITECT: Riken Yamamoto

  2. Jianwai SOHO is located at 39 East Third Ring Road, Chaoyang District, Beijing

  3. Chang'an Avenue East Third Ring Road Tonghui River North Road It is bound by Chang'an Avenue to the north, the East Third Ring Road to the east, and the Tonghui River North Road to the south. It is adjacent to the China World Trade Center and (Guomao) subway stop.

  4. Jianwai SOHO includes 20 high rise towers and four villas.

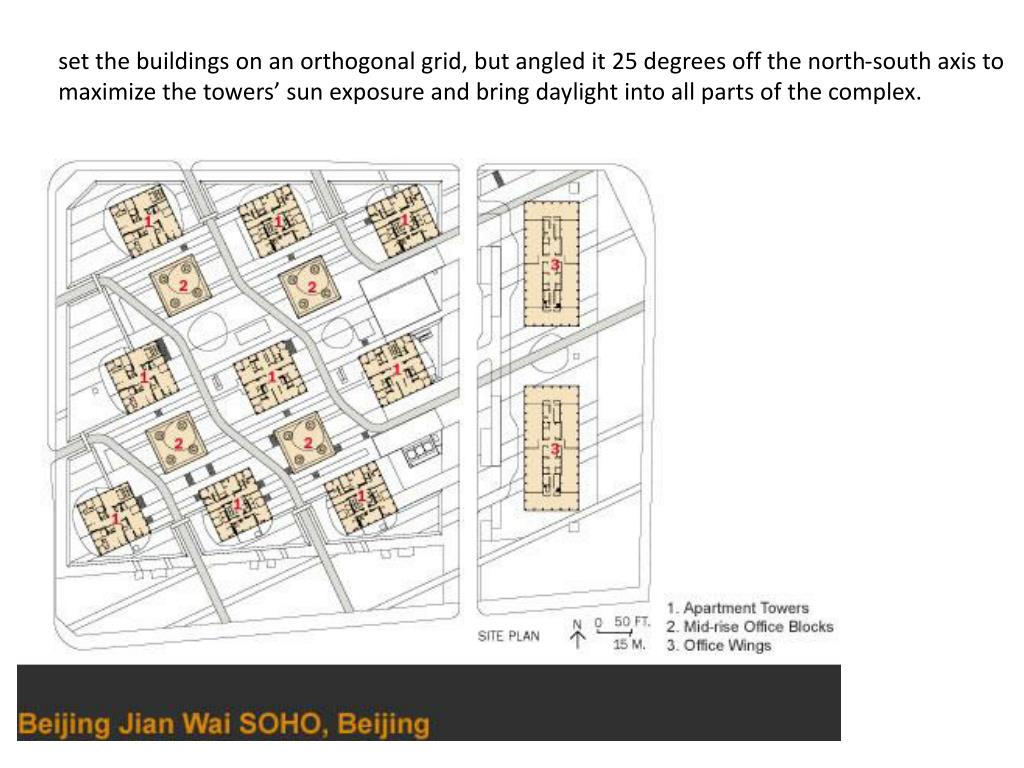

  5. set the buildings on an orthogonal grid, but angled it 25 degrees off the north-south axis to maximize the towers’ sun exposure and bring daylight into all parts of the complex.

  6. I want a piece of architecture to be a cell of a city. No matter what kind of architecture it is, it must have something to do with the city. A piece of architecture can be a house, a department store, a theatre, or an art museum, but no matter what it is, it can be a cell of the city. This cell has the ability to grow into a city.

  7. One of the major attractions of JianWai is its range of apartment types, many of which offer flexible spaces that can accommodate small home offices

  8. Horizontal Skyscraper VANKE HQ PROGRAM: mixed-use building including hotel, offices, serviced apartments, and public parkCLIENT: Shenzhen Vanke Real Estate Co. FLOOR AREA : 120000sqm LOCATION: Shenzhen, China ARCHITECT: Steven Holl

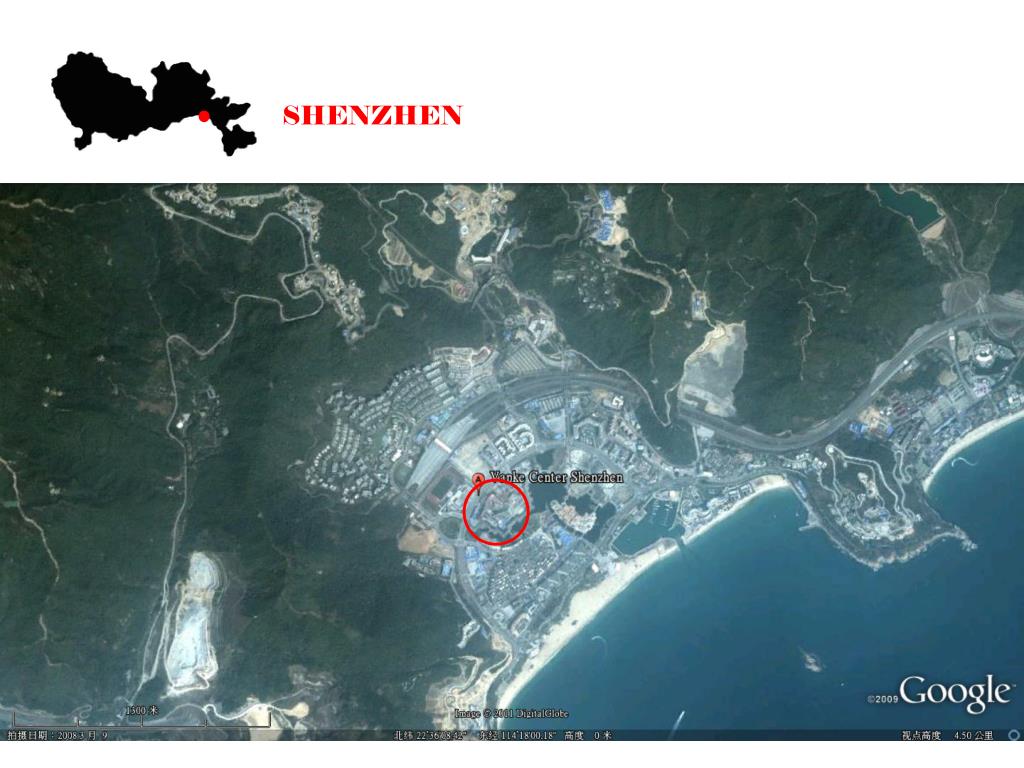

  9. SHENZHEN

  10. Empire State Building Horizontal Skyscraper

  11. GROUND LEVEL LANDSCAPE

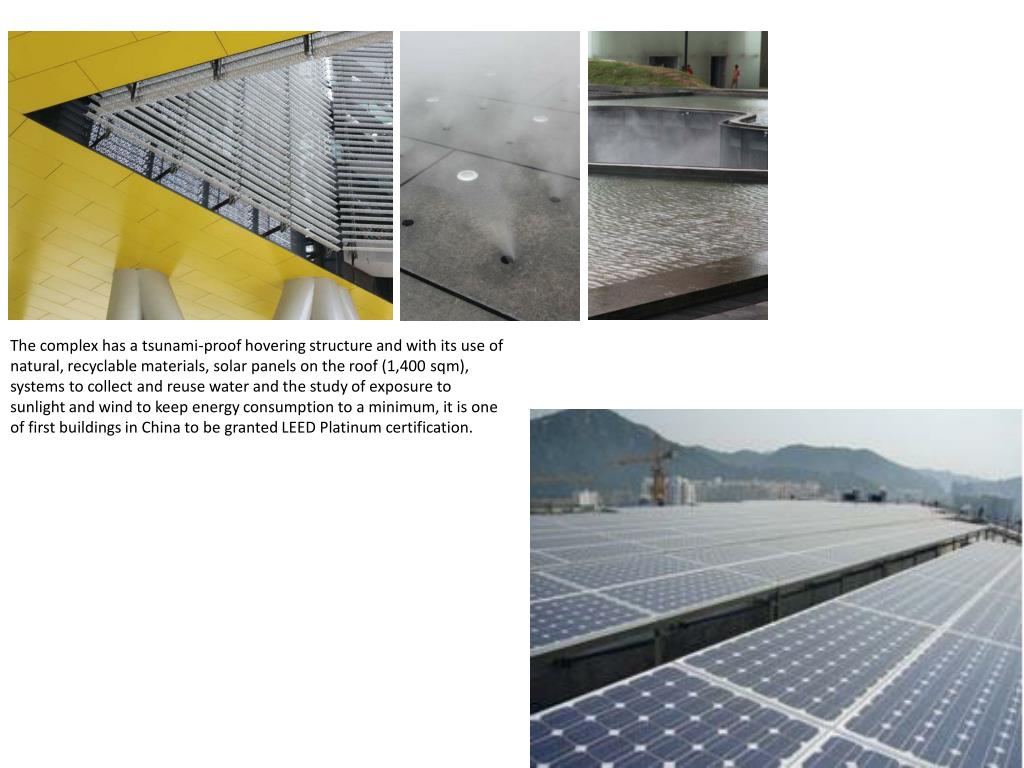

  12. The complex has a tsunami-proof hovering structure and with its use of natural, recyclable materials, solar panels on the roof (1,400 sqm), systems to collect and reuse water and the study of exposure to sunlight and wind to keep energy consumption to a minimum, it is one of first buildings in China to be granted LEED Platinum certification.

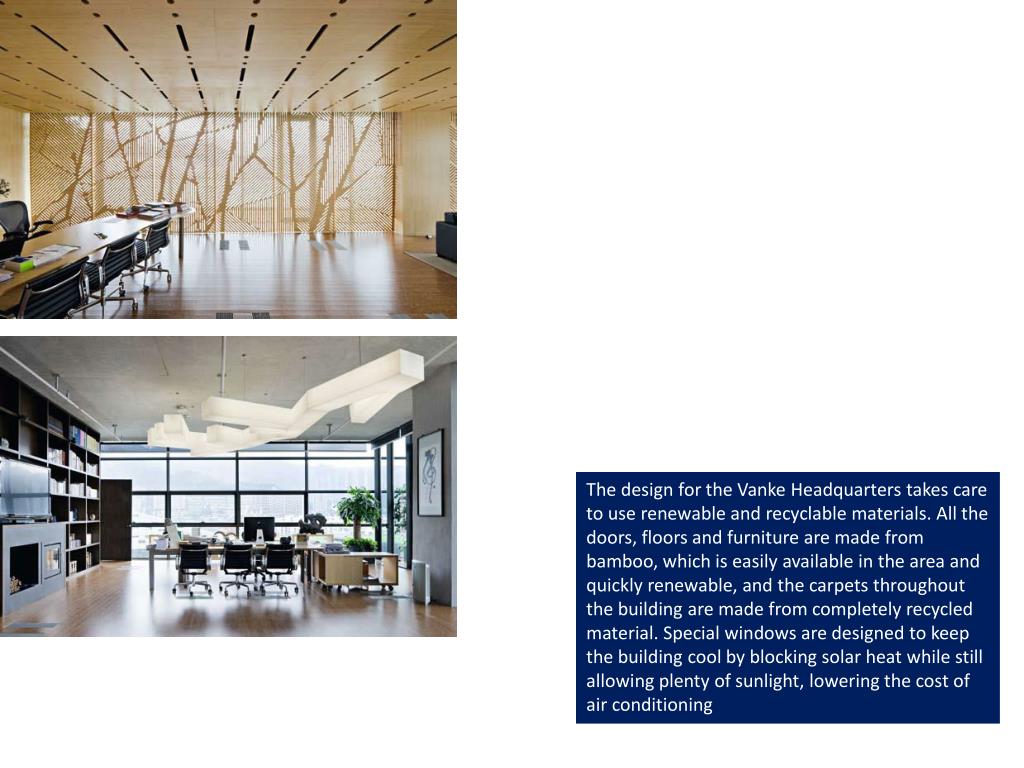

  13. The design for the Vanke Headquarters takes care to use renewable and recyclable materials. All the doors, floors and furniture are made from bamboo, which is easily available in the area and quickly renewable, and the carpets throughout the building are made from completely recycled material. Special windows are designed to keep the building cool by blocking solar heat while still allowing plenty of sunlight, lowering the cost of air conditioning
