  1. FTTO-SolutionsMicro Switch Generation 6 MICROSENS GmbH & Co. KG

  2. Fiber To The Office - concept

  3. FTTO vs structured cabling

  4. Why Fiber To The Office? Advantages of FTTO (1) • Planning reliability - long life cycle • Long distances with unlimited bandwidth • Significant less space requirements – low cable volume • No active sub distribution points – one central distribution point • No additional costs for access control, fire alarm,extinguishing system, air conditioning, power supply (CAPEX) • Reduced operational costs (OPEX)

  5. Why Fiber To The Office? Advantages of FTTO (2) • Cost effective integration of data and voice (VoIP) • High performance • Better scalability and migration • Simple redundancy options • No EMC and grounding problems • Optimized management

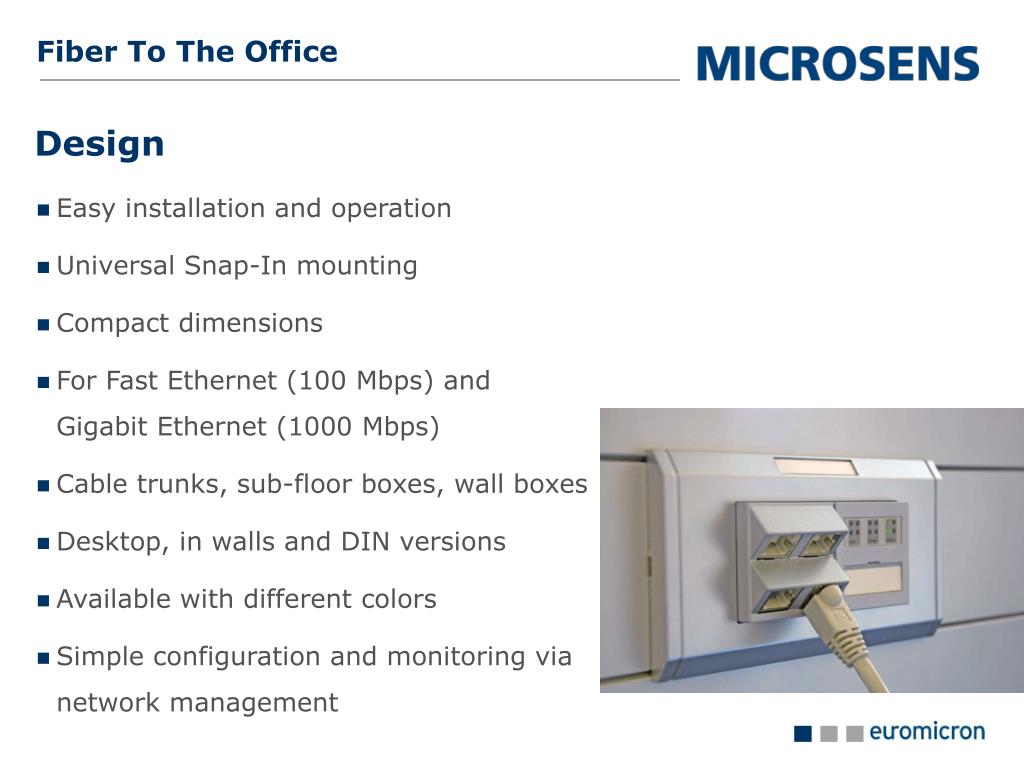

  6. Fiber To The Office Design • Easy installation and operation • Universal Snap-In mounting • Compact dimensions • For Fast Ethernet (100 Mbps) andGigabit Ethernet (1000 Mbps) • Cable trunks, sub-floor boxes, wall boxes • Desktop, in walls and DIN versions • Available with different colors • Simple configuration andmonitoring vianetwork management

  7. FTTO swtiches Gigabit Ethernet installation switch • Optimized compact and fan less design • Full Gigabit Ethernet Performance on all ports • 1x 1000Base-X fiber uplink • 4x 10/100/1000Base-T Twisted Pair RJ-45 ports • 1x 10/100/1000Base-T Twisted Pair RJ-45 downlink (optional) • Power-over-Ethernet functionality on all RJ-45 ports • Integrated network management

  8. Fiber To The Office Features: • VLAN IEEE 802.1q&p • Voice VLAN ID (VoIP) • IGMP Snooping (VoD) • IEEE 802.1X with RADIUS auth. • MAC locking, port and MAC monitoring • CDP, LLDP, Port Access Control • STP/RSTP • One Firmware with SYSLOG, SNMP, Telnet and web based management • Optional PoE 802.3af

  9. Whynew System? • New long-living hardware-platform • efficient and powerful due to newest technology • open by using standard CPU • Open software architecture • flexible and future proof by using Linux OS • dynamic and expandable by central data-model

  10. Micro Switch G6 • Generation 6 - Features 6 GENERATION Labelling Field Integrated Reset Button Reset/Factory Defaut Local Ports EnergyEfficient Ethernet PoE+ (max. 30 W) LED Display Switch/Port/PoE Status Uplink Port SFP/ Fixed/RJ-45 (PD) Expansion Port Terminal Power 54VDC/ 230VAC

  11. Micro Switch G6 • Generation 6- Features (cont.) 6 GENERATION Downlink Ports EnergyEfficient Ethernet PoE+ (max. 30 W) Memory Card Configuration Storage Chamfer Edge Simplified Installation

  12. Micro Switch G6 • Installation Options 6 GENERATION Horizontal Mounting - Cable Ducts VerticalMounting - Cable Ducts - Pillars - Floor Boxes

  13. Micro Switch G6 • Firmware Micro Switch G6 • open architecture

  14. Micro Switch G6- Firmware • High Performance-CPU • 800 MHz ARM • Linux OS • Standard Kernel • Switch Features • IPv4/IPv6 Dual Stack • NMP Professional/Server • Webmanager (HTTP/HTTPS) • Telnet/SSH/CLI • SNMP v1/v2c/v3 • Rapid Spanning Tree • LLDP/CDP/LLDP-MED • NTP • 802.1X Port-based Access Control(MAC and IP)

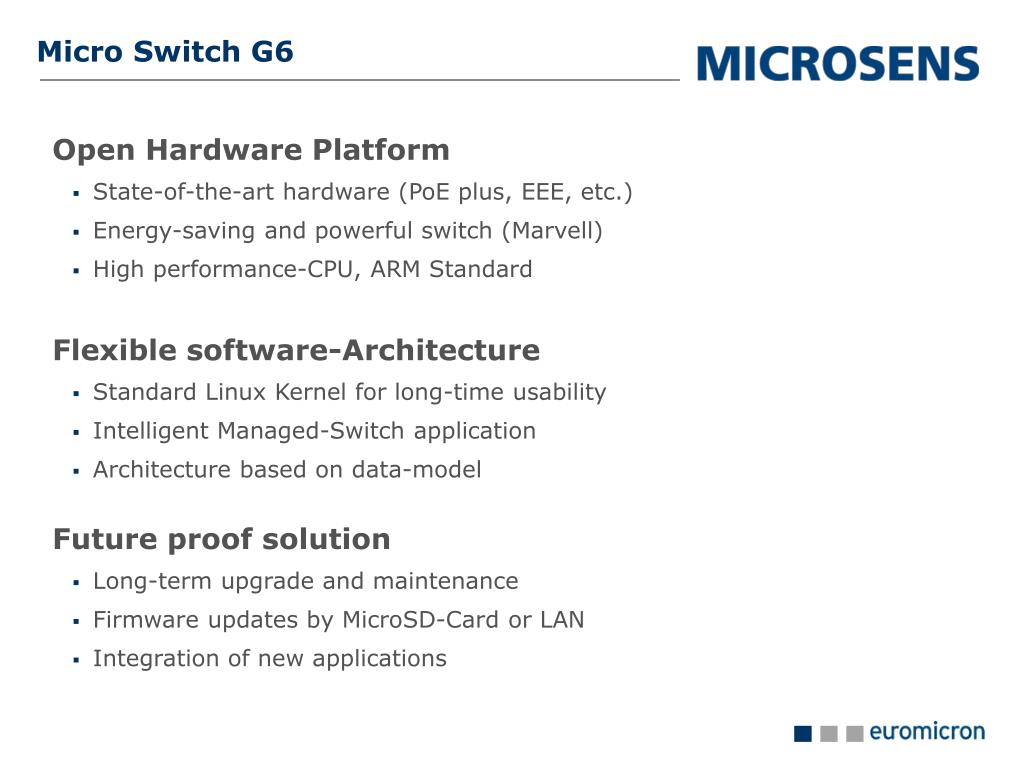

  15. Micro Switch G6 • Open Hardware Platform • State-of-the-art hardware (PoE plus, EEE, etc.) • Energy-saving and powerful switch (Marvell) • High performance-CPU, ARM Standard • Flexible software-Architecture • Standard Linux Kernel for long-time usability • Intelligent Managed-Switch application • Architecture based on data-model • Future proof solution • Long-term upgrade and maintenance • Firmware updates by MicroSD-Card or LAN • Integration of new applications

  16. Fiber To The Office Installation in cable trunks: • Direct support of many manufacturers e.g.Legrand, OBO Bettermann, van Geel • Adapters for many other trunk systems available,e.g. Thealit, Thorsmann, Ackermann, MK etc. • Standardized E2 box almost everywhere • Custom adapters for other trunk systems are available in MICROSENS offer

  17. Fiber To The Office Power over Ethernet IEEE 802.3af • Switch is powered directly by 48VDC • All 4 ports with 15,4W • Unique PoE management

  18. Fiber To The Office Compact power supply 48VDC

  19. Fiber To The Office Central power supply

  20. Fiber To The Office 230VAC directly to the swtich • Dismantle with special tool, adjustment and contacting, covering, connecting... everything in less than one minute...

  21. Management Network Management Platform (NMP) • Platform independent NMS • Automaticconfiguration, managementandsupervision of devices • Standard-, Professional- and Server-Version Network Element Manager • Configuration, managament • Graphical representation of devices Network Topology Manager • Visualization of networkstructure • Graphicalerror and alarm reporting(integrated Trap-Receiver)

  22. Thankyou! MICROSENS GmbH & Co. KG
