OpenConflict: Preventing Real Time Map Hacks in Online Games

1. OpenConflict: Preventing Real Time Map Hacks in Online Games Elie Bursztein, Mike Hamburg, Jocelyn Lagarenne, Dan Boneh (Stanford University) IEEE Symposium on Security and Privacy 2011

2. OUTLINE • Introduction and Related Work • A Generic Tool for Map Hacking • Game Hacking with Kartograph • Preventing Passive Map Hack • Case Study Starcraft II • Defending against Map Hacking • OpenConflict • Discussion and Conclusion

3. OUTLINE • Introduction and Related Work • A Generic Tool for Map Hacking • Game Hacking with Kartograph • Preventing Passive Map Hack • Case Study Starcraft II • Defending against Map Hacking • OpenConflict • Discussion and Conclusion

4. Real-Time Strategy(RTS) • Online gaming includes 64% of gamers • RTS - 35.5% • First person shooter – 10.1% • RTS games • Player compete on a two-dimensional map divided in to cells • Starcraft II: normally 24000 – 36000 cells

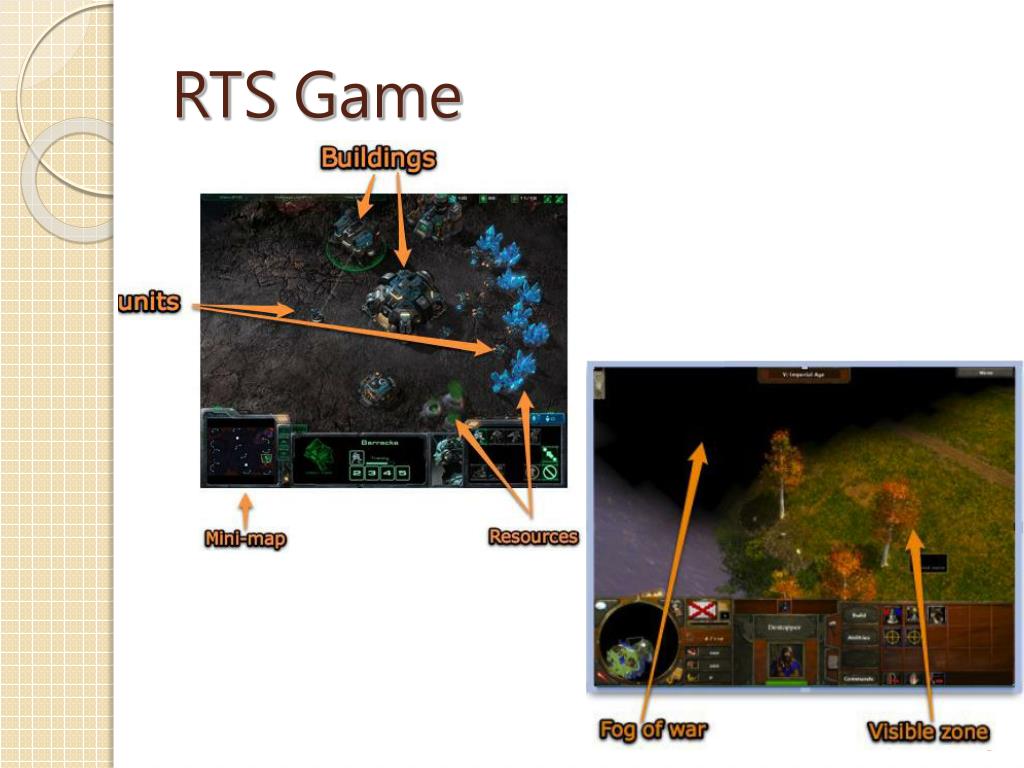

5. RTS Game

6. Cheating in RTS games • Abusing the resource system • Find the location of resource value in memory • Hacking the unit list • Tampering with the map visibility • Map hacking • Hardest to perform • Fully passive Note: pushapproach v.s. pullapproach

7. Map Hacking

8. Related Work • Battle of Botcraft fighting bots in online games with human observational proofs. • ACMCCS (Nov, 2009) • Hacking world of warcraft: An exercise in advanced rootkit design. • Black Hat (2006) • Visual reverse engineering of binary and data files. • Visualization for Computer Security (2008)

9. Contribution • Presenting a generic attack tool • Kartograph • A generic defense against passive attacks in RTS games • OpenConflict • Analyzed 1000 Starcraft II games

10. OUTLINE • Introduction and Related Work • A Generic Tool for Map Hacking • Game Hacking with Kartograph • Preventing Passive Map Hack • Case Study Starcraft II • Defending against Map Hacking • OpenConflict • Discussion and Conclusion

11. Adversarial Game Instrumentation(AGI) • Past approaches: debugger/decompiler • Memory attacks on virtually every game

12. Map Data • Easiest

13. Map Hacking • Based on memory changes • The memory that contains unit positions only changes when units move • Reducing Memory Space • Finding the visibility map • Understanding the visibility map

14. Reducing Memory Space • Step1 • Launch the game • Read all memory pages of the process’s main module which are marked as • ReadWrite, Commit and Private • Step2 • Move the camera, trigger actions • Without discovering any new parts of the map! • Eliminate all the memory blocks that changed

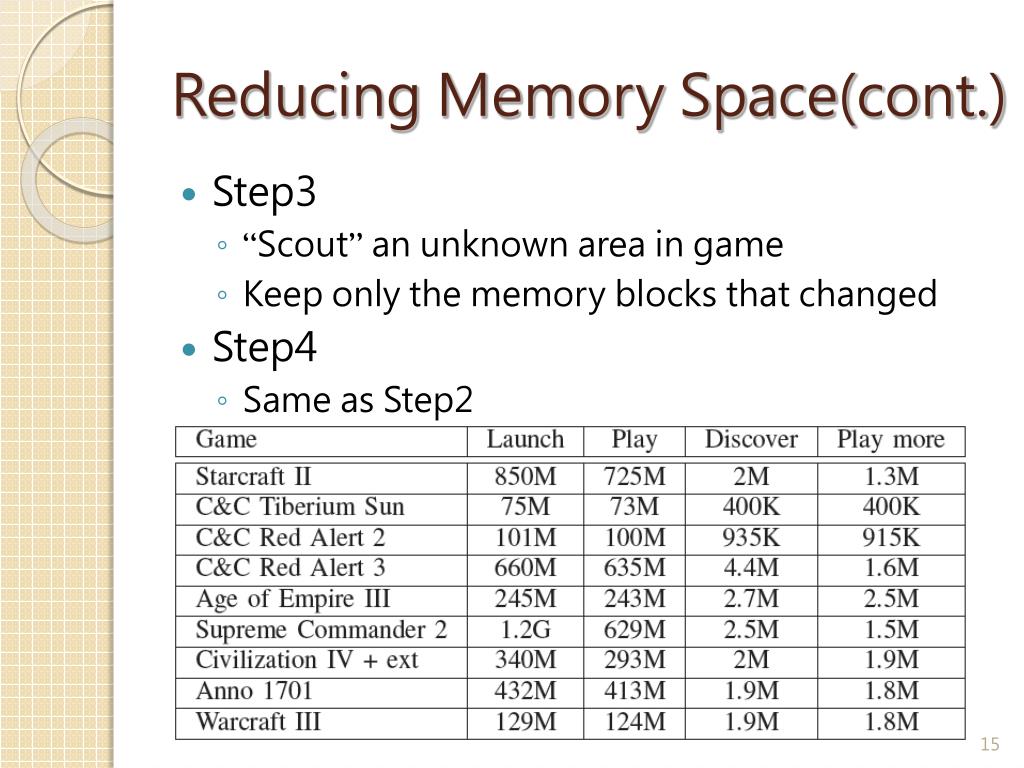

15. Reducing Memory Space(cont.) • Step3 • “Scout” an unknown area in game • Keep only the memory blocks that changed • Step4 • Same as Step2

16. Finding the Visibility Map • Use visualization techniques • Create a “nonlinear” scouting pattern • Heat map representation • Difficulty: • Data types, Align

17. Visualization

18. Visualization(cont.)

19. Understanding the Visibility Map • How the structure works? • Diff-map analysis • Snapshot & do something

20. Diff-Map with Heat Map

21. Unit Hacking and Network Analysis • Unit: Smaller and more complex structure • Produce units and observe memory • Network Analysis D: Diff map F: Fixed value C: Counter value D: Random value C R D F

22. OUTLINE • Introduction and Related Work • A Generic Tool for Map Hacking • Game Hacking with Kartograph • Preventing Passive Map Hack • Case Study Starcraft II • Defending against Map Hacking • OpenConflict • Discussion and Conclusion

23. Game Hacking with Kartograph • Take lots of memory: • Twice game’s memory size • Work on 64-bit windows only • Test 15 games • Data structures changed radically

24. Map information • Bitmap • Composite

25. Using the Game as a Map Hack

26. OUTLINE • Introduction and Related Work • A Generic Tool for Map Hacking • Game Hacking with Kartograph • Preventing Passive Map Hack • Case Study Starcraft II • Defending against Map Hacking • OpenConflict • Discussion and Conclusion

27. Preventing Passive Map Hacks • Threat model: passive eavesdropping adversaries • Assume: P2p architecture • Pullapproach • Cryptographic protocols? • Challenge: imperceptible latency!

28. Cast Study Starcraft II • Wrote a crude “game engine” • Analyzed 1000 Starcraft II replays(Top players) • High number of actions per minute(APM) • Map size: 24320 ~ 36864 cells • Playable size: 15180 ~ 24640 cells • Game duration

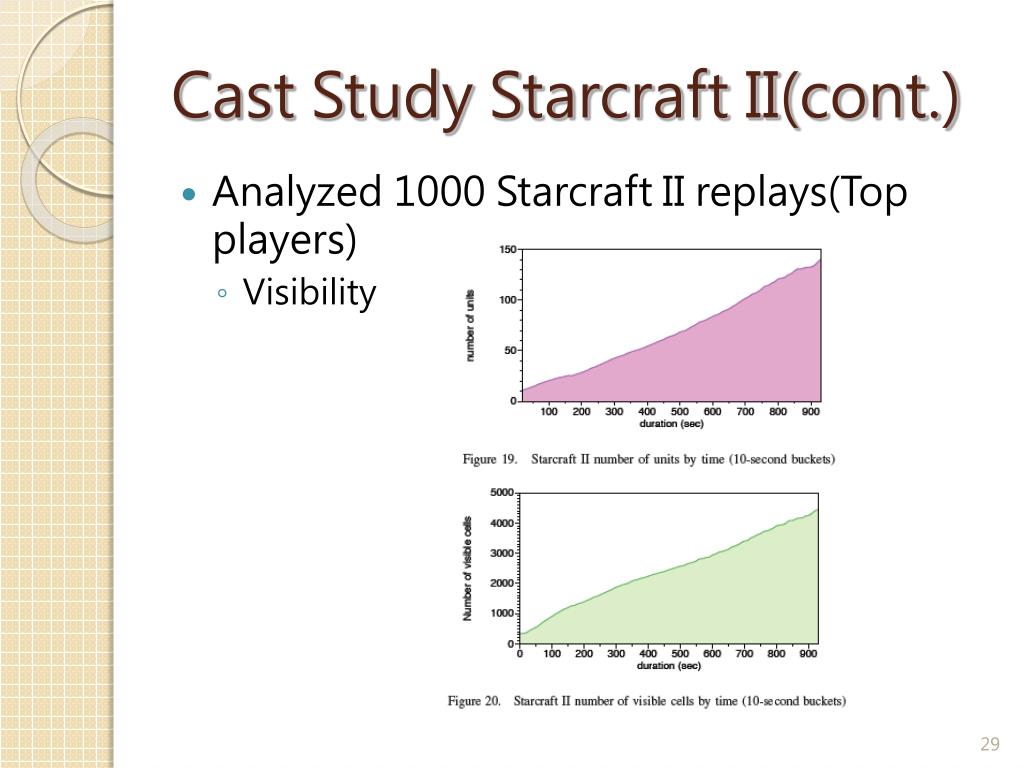

29. Cast Study Starcraft II(cont.) • Analyzed 1000 Starcraft II replays(Top players) • Visibility

30. OUTLINE • Introduction and Related Work • A Generic Tool for Map Hacking • Game Hacking with Kartograph • Preventing Passive Map Hack • Case Study Starcraft II • Defending against Map Hacking • OpenConflict • Discussion and Conclusion

31. Our Approach • Prevent the passive map hack • Pull approach • Each player’s machine only stores information that the player is authorized to see • Use an oblivious intersection protocol

32. Intersection Protocol • Def: • M be the set of all cells on the map • Each cell may contain units(including builds and other objects) • Each unit has a visibility radius • Union of all of Alice’s visibility regions gives the set of cells that Alice can see • denote the set of map cells containing Bob’s unit • for some data domain D

33. Intersection Protocol(cont.) cell cell UA B2 A1 B1 VA UB1, also VA∩UB

34. Intersection Protocol(cont.) 1. Bob should learn nothing about VA 2. Alice should learn nothing about Ub other than VA∩UB 3. Alice learns the value of fB on VA∩UB but nothing about UB\VA

35. Oblivious Function G: A group of prime order q Bob chooses a secret key k in [1,q-1] • , Alice chooses a random integer r in [1,q-1] Start: • Alice send H1(v)r • Bob responds with H1(v)rk • Alice computes H1(v)k = H1(v)rkr-1 Computational Diffie-Hellman assumption tells that it is secure!

36. Compute VA∩UB

37. Compute VA∩UB (cont.) (Bob) For each u in UB : a key ku = H2(H1(u)k) Encrypt fB(u) using the key ku (authenticated encryption, AE) (Alice) Alice obtain H1(v)k for all v in Va Computes kv = H2(H1(v)k) for all v in Va Test if one of the ciphertexts received from Bob decrypts correctly with kv

38. Hypergrids cell cell UA B2 A1 B1 VA UB1, also VA∩UB 38

39. Hypergrids(cont.)

40. Chaff and Multiplayer • Basic protocol • leaks to Bob the number cells in Alice’s visibility set VA • Leaks to Alice the sum of the lengths of fB(u) for u in Ub • The queries H1(v)r are independent of the player being queried: broadcast • Compute H1(v)k is the only per-opponent work

41. OUTLINE • Introduction and Related Work • A Generic Tool for Map Hacking • Game Hacking with Kartograph • Preventing Passive Map Hack • Case Study Starcraft II • Defending against Map Hacking • OpenConflict • Discussion and Conclusion

42. Basic protocol • Core i5 660 dual-core hyperthreaded processor running at 3.33 GHz • Standard NIST elliptic curves • 200 visibility hypertiles and 150 units per player A single exponentiation = a millisecond => 750 milliseconds per play Unacceptable!

43. Elliptic Curve • Montgomery curve • Because p is a Mersenne prime • Very efficient implementation, 11-12us for exponentiations on this curve

44. Security • Need to remain secure for an hour • Best known algorithms take O( ) time to solve discrete logarithms • p = 261-1 • 12 sec • p = 289-1 (speed up OpenConflict by 33%) • 72 machine-days • p = 2127-1 (OpenConflict) • 3,200 machine-years

45. Measurements • v: visible grid hypertiles (about 30us) • u: units (about 15us)

46. OUTLINE • Introduction and Related Work • A Generic Tool for Map Hacking • Game Hacking with Kartograph • Preventing Passive Map Hack • Case Study Starcraft II • Defending against Map Hacking • OpenConflict • Discussion and Conclusion

47. Preventing Active Attacks • Detecting active attacks after the game • Every client logs network traffic/actions and then sends to other players periodically • Upload to a central server to verify • Random number generator? • Commit a seed for a pseudorandom generator at the beginning of the game • A central server to verify

48. Conclusion • Map hacking and a defense system for RTS games • Kartograph and OpenConflict • Security in online games is a fruitful area of research!
