3/8” Galvanized chain. CT Sensor (SBE 37-SI). Nortek AWAC #N-5344. ADP, OBS. Dor-Mor Anchor 70 lb. RUTG 732-93. RUTG 732-93. Passaic River (PR1). Hackensack River (HR1). CT Sensor (SBE 37-SM). CT Sensor (SBE 37-SM). PR1 40 43.592 N 74 07.182 W. HR1 40 43.282 N 74 06.115 W.

eydie
Download Presentation

ADP, OBS

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. 3/8” Galvanized chain CT Sensor (SBE 37-SI) Nortek AWAC #N-5344 ADP, OBS Dor-Mor Anchor70 lb RUTG 732-93 RUTG 732-93 Passaic River (PR1) Hackensack River (HR1) CT Sensor (SBE 37-SM) CT Sensor (SBE 37-SM) PR1 40 43.592 N 74 07.182 W HR1 40 43.282 N 74 06.115 W Design for 7mgrnd. chain 50 ftsurf. chain 35 ft Design for 9mgrnd. chain 60 ftsurf. chain 45 ft 3/8” Chain 3/8” Chain CT Sensor w/OBS (SBE 16 plus) w/ Paro PS Dor-Mor Anchor70 lb

  2. 875-A Acoustic Release w/ Popup Buoy 875-A Acoustic Release w/ Popup Buoy CT Sensor (SBE 16 Plus) w/ Paro PS CT Sensor (SBE 16 Plus) RDI ADCP 1200 kHz RDI ADCP 600 kHz CT sensor (SBE 37-SM) on Coast Guard buoy Diver could ratchet strap instrument to buoy CT sensor (SBE 37-SM) on Coast Guard buoy Diver could ratchet strap instrument to buoy CT sensor (SBE 37-SM) on Coast Guard buoy Diver could ratchet strap instrument to buoy KVK1 40 38.630 N 74 07.680 W NB1 40 39.326N 74 08.828 W AK1 40 38.804 N 74 10.583 W Kill Van Kull (KVK1) Newark Bay (NB1) Arthur Kill (AK1) 875-A Acoustic Release w/ Popup Buoy CT Sensor (SBE 16 Plus) RDI ADCP 1200 kHz

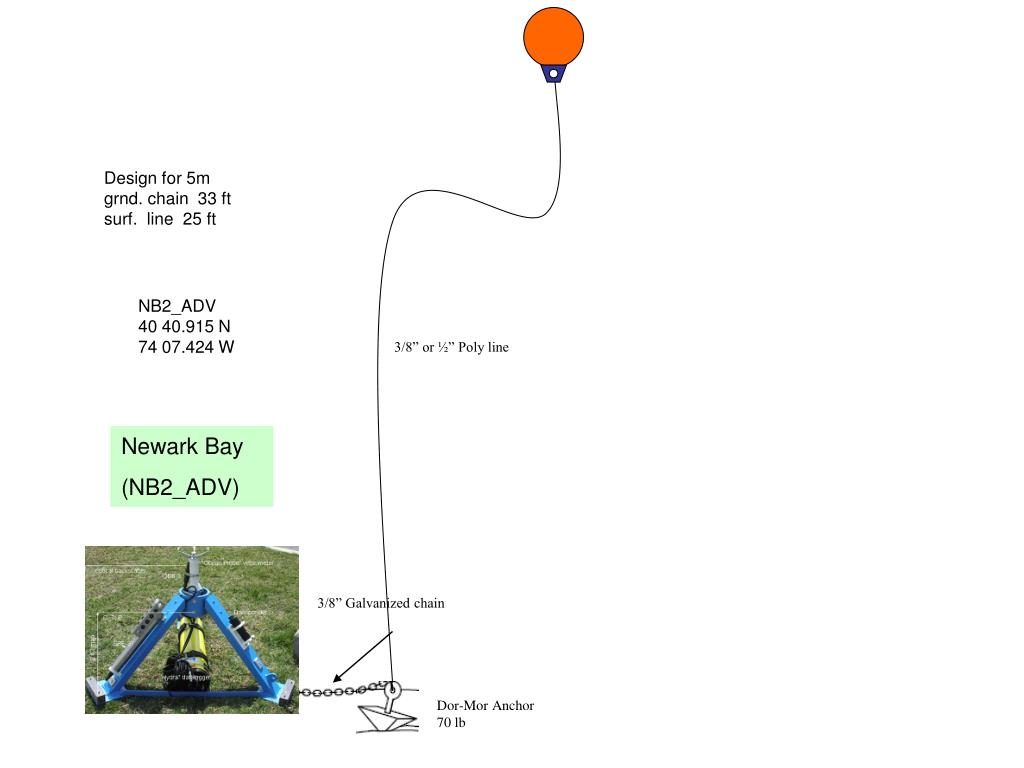

  3. Design for 5mgrnd. chain 33 ftsurf. line 25 ft NB2_ADV 40 40.915 N 74 07.424 W 3/8” or ½” Poly line Newark Bay (NB2_ADV) 3/8” Galvanized chain Dor-Mor Anchor70 lb

  4. Nobeltec plot showing navigational buoys Denotes mooring location Denotes mooring location w/ CT sensor on CG buoy CG buoy #’s: KVK - "10" Q R 1s AK - "20" NB - "21"
