Network Model

Network Model. Notations: N nodes M links C i = capacity of link i ( bits/sec ) Poisson external message arrivals to each node = msg rate of arrivals at node j with destination k ( traffic requirements)

eyad
Download Presentation

Network Model

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Network Model • Notations: • N nodes • M links • Ci = capacity of link i ( bits/sec ) • Poisson external message arrivals to each node • = msg rate of arrivals at node j with destination k ( traffic requirements) • independent exponentially distributed message length, mean (bits/msg) • negligible message processing time at nodes • total external traffic incoming to node j (msg/sec) • total traffic in the network (msg/sec) • = average delay per message in link i • = average message delay in the network  A. Orda, R. Rom, A. Segall,

  2. Delay calculations • Assumption: non-splitting fixed routing • Notations: • route from node j to node k • link-route indicator: • Total traffic on link i namely traffic from j to k is included if the path includes link i • Zjk= Average Delay on path from j to k namely delay on link i is included only if it is part of the path from j to k  A. Orda, R. Rom, A. Segall,

  3. example • Path from A to L • by links • by nodes • Examples: Therefore: Average Network Delay in a general network  A. Orda, R. Rom, A. Segall,

  4. Calculation of average delay Tifor a single (separate) link • Messages arrive to the link have exponential length with parameter , namely therefore service time is random. If the bit rate (capacity) of the link is Ci bits/sec, then transmission time is: therefore transmission time is exponentially distributed with parameter and Calculation of network average delay T • Question: is the quantity Ti calculated above the same as Tiused earlier? • Answer: No, since normally the service times at consecutive nodes are not independent and not independent of the arrival process. This is because message length remains the same. • Kleinrock’s assumption: service times at different nodes are independent, good approximation because there are many sources and many destinations. • This allows us to calculate average network delay T where is the flow in bits/sec on link i.  A. Orda, R. Rom, A. Segall,

  5. Design Problems • Capacity assignment: Given set of nodes and links, flows fi or , budget D. Find link capacities to minimize network average delay T. • Routing ( flow assignment ): Given network and link capacities. Find flows to minimize average delay T. • Capacity and Flow assignment: Given budget D. Find capacities Ci and flows to minimize average delay T.  A. Orda, R. Rom, A. Segall,

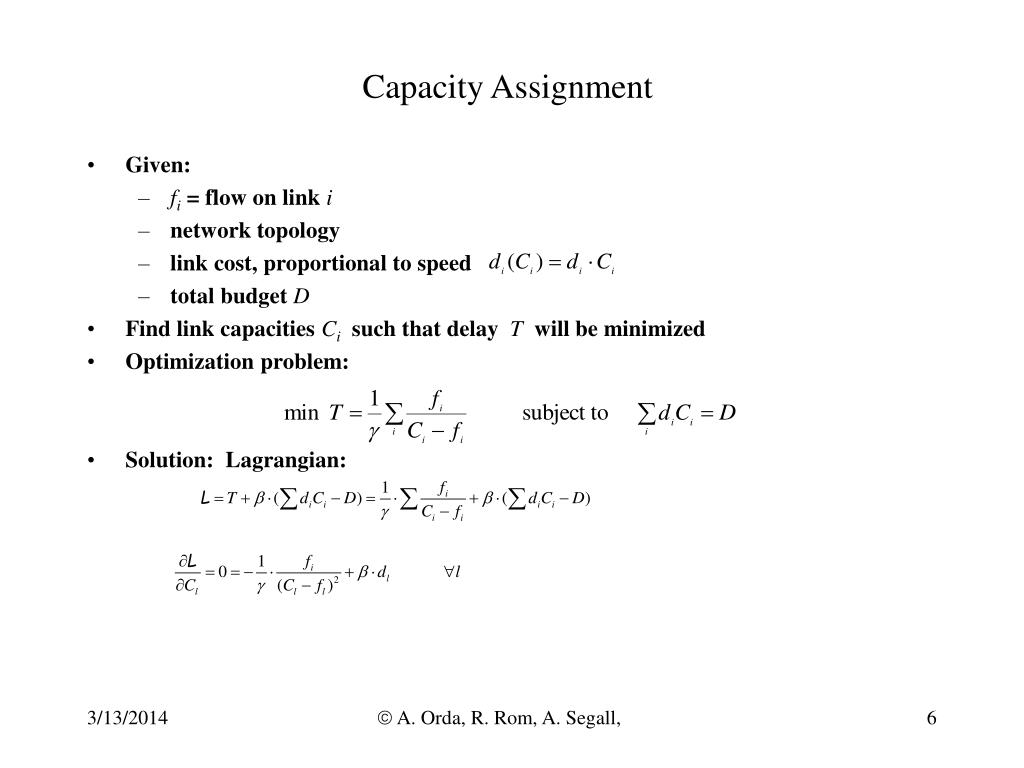

  6. Capacity Assignment • Given: • fi = flow on link i • network topology • link cost, proportional to speed • total budget D • Find link capacities Ci such that delay T will be minimized • Optimization problem: • Solution: Lagrangian:  A. Orda, R. Rom, A. Segall,

  7. Capacity Assignment Denote the extra-budget: • Conclusions: • Capacity of link l should be at least (stability) • The extra-budget De is divided by normalizing it to di and using square root assignment • thus T is inversely proportional to De ( larger budget, better performance).  A. Orda, R. Rom, A. Segall,
