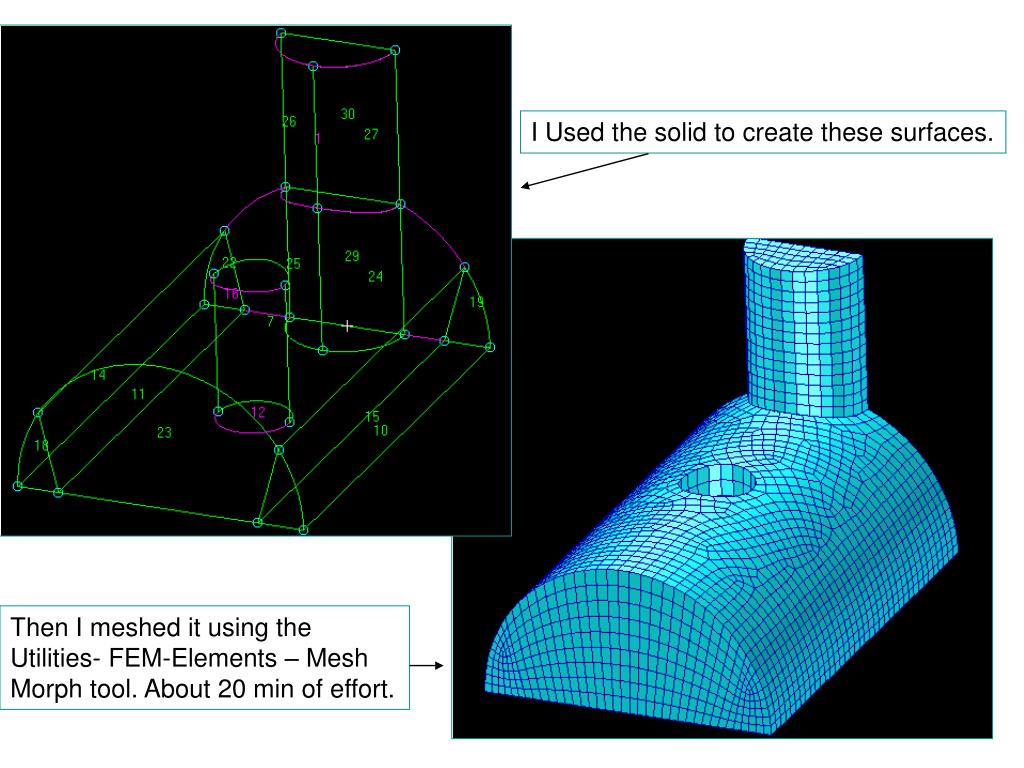

  1. I Used the solid to create these surfaces. Then I meshed it using the Utilities- FEM-Elements – Mesh Morph tool. About 20 min of effort.

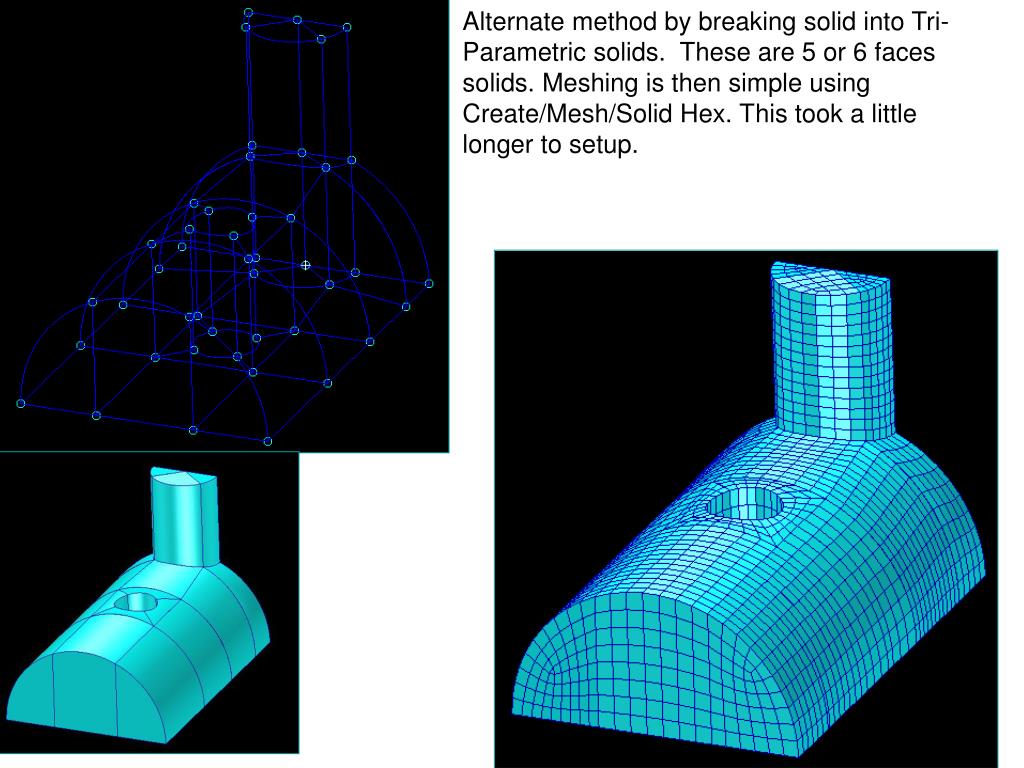

  2. Alternate method by breaking solid into Tri-Parametric solids. These are 5 or 6 faces solids. Meshing is then simple using Create/Mesh/Solid Hex. This took a little longer to setup.
