3.3KW HK-M series OBC

TC/Elcon charger -- High Frequency Battery (PFC) Charger with Power Factor Control.Buy top quality and efficient TC charger (PFC charger) for various kinds of lithium battery. These multi-featured tc chargers with switch charging modes and protection functions are used for electric vehicles and power systems. https://www.evlithiumcharger.com/

evlithiumcharger
Download Presentation

3.3KW HK-M series OBC

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

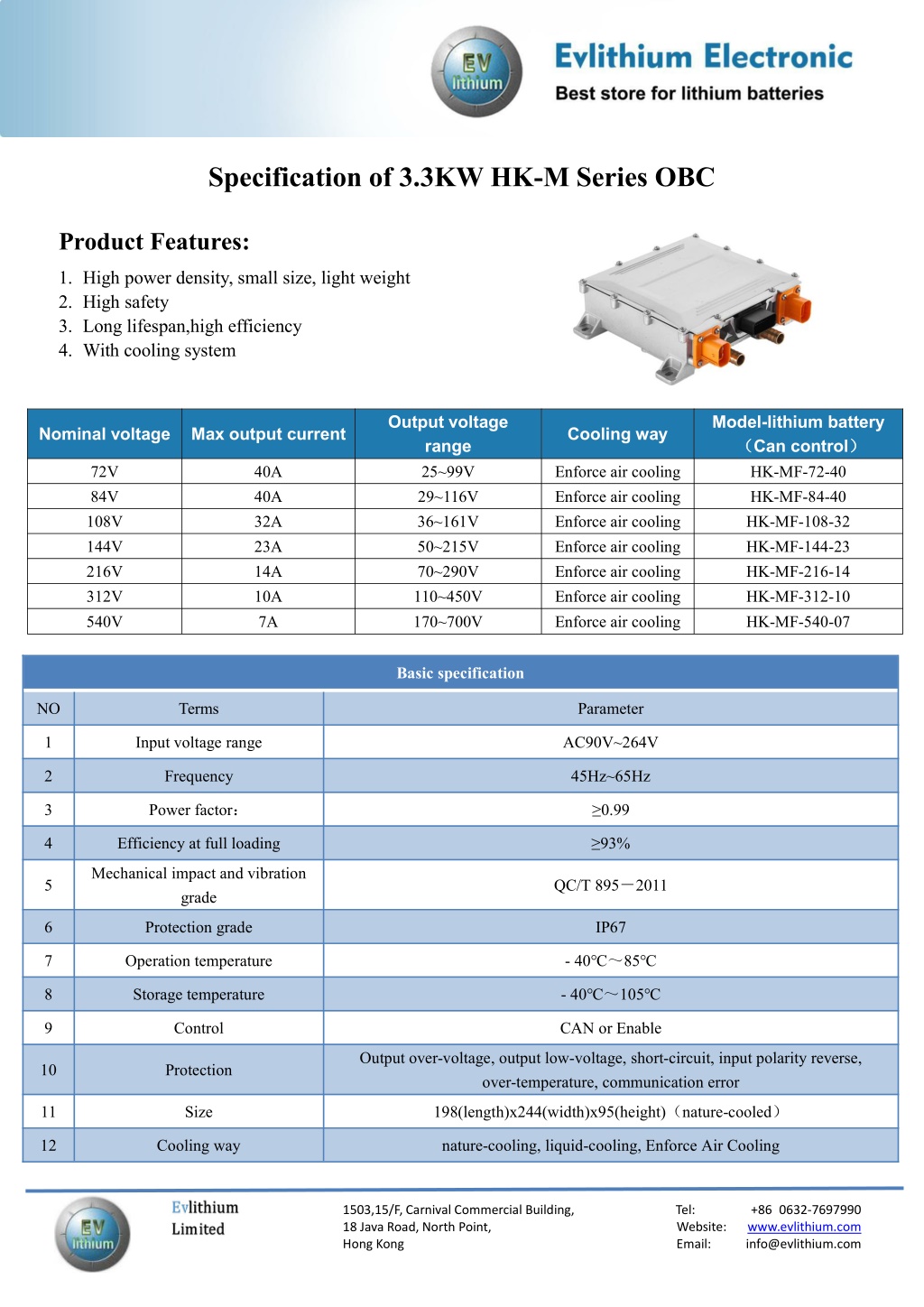

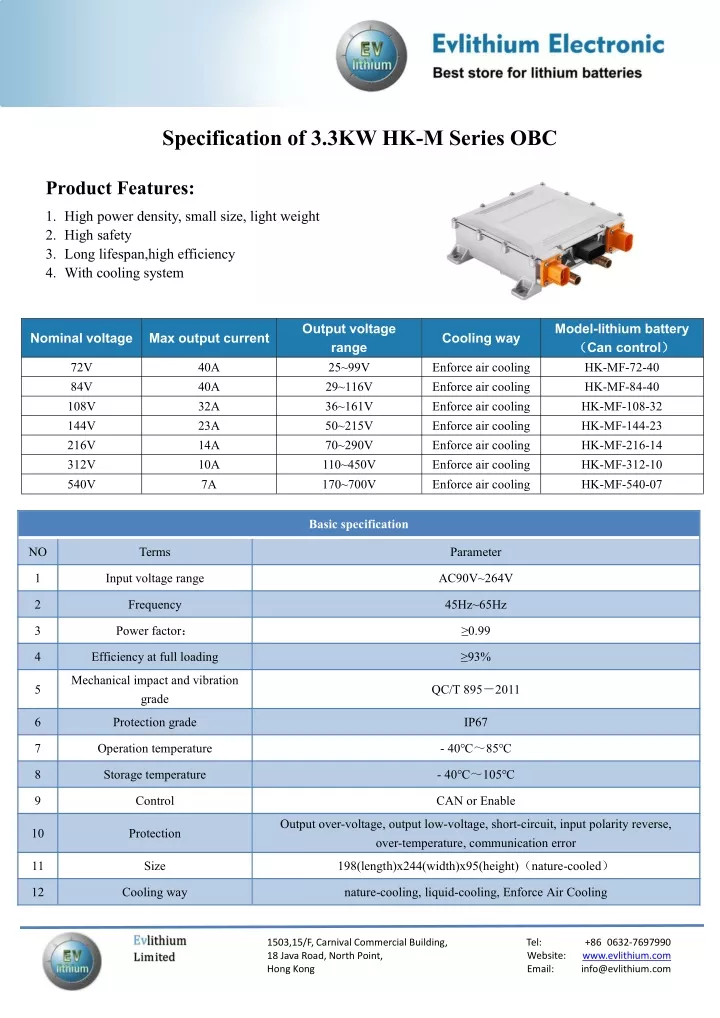

  1. Specification of 3.3KW HK-M Series OBC Product Features: 1. High power density, small size, light weight 2. High safety 3. Long lifespan,high efficiency 4. With cooling system Output voltage range 25~99V 29~116V 36~161V 50~215V 70~290V 110~450V 170~700V Model-lithium battery （ （Can control） HK-MF-72-40 HK-MF-84-40 HK-MF-108-32 HK-MF-144-23 HK-MF-216-14 HK-MF-312-10 HK-MF-540-07 Nominal voltage Max output current Cooling way ） 72V 84V 108V 144V 216V 312V 540V 40A 40A 32A 23A 14A 10A 7A Enforce air cooling Enforce air cooling Enforce air cooling Enforce air cooling Enforce air cooling Enforce air cooling Enforce air cooling Basic specification NO Terms Parameter 1 Input voltage range AC90V~264V 2 Frequency 45Hz~65Hz 3 Power factor： ≥0.99 4 Efficiency at full loading ≥93% Mechanical impact and vibration grade 5 QC/T 895－2011 6 Protection grade IP67 7 Operation temperature - 40℃～85℃ 8 Storage temperature - 40℃～105℃ 9 Control CAN or Enable Output over-voltage, output low-voltage, short-circuit, input polarity reverse, over-temperature, communication error 10 Protection 11 Size 198(length)x244(width)x95(height)（nature-cooled） 12 Cooling way nature-cooling, liquid-cooling, Enforce Air Cooling 1503,15/F, Carnival Commercial Building, 18 Java Road, North Point, Hong Kong Tel: Website: Email: +86 0632-7697990 www.evlithium.com info@evlithium.com
