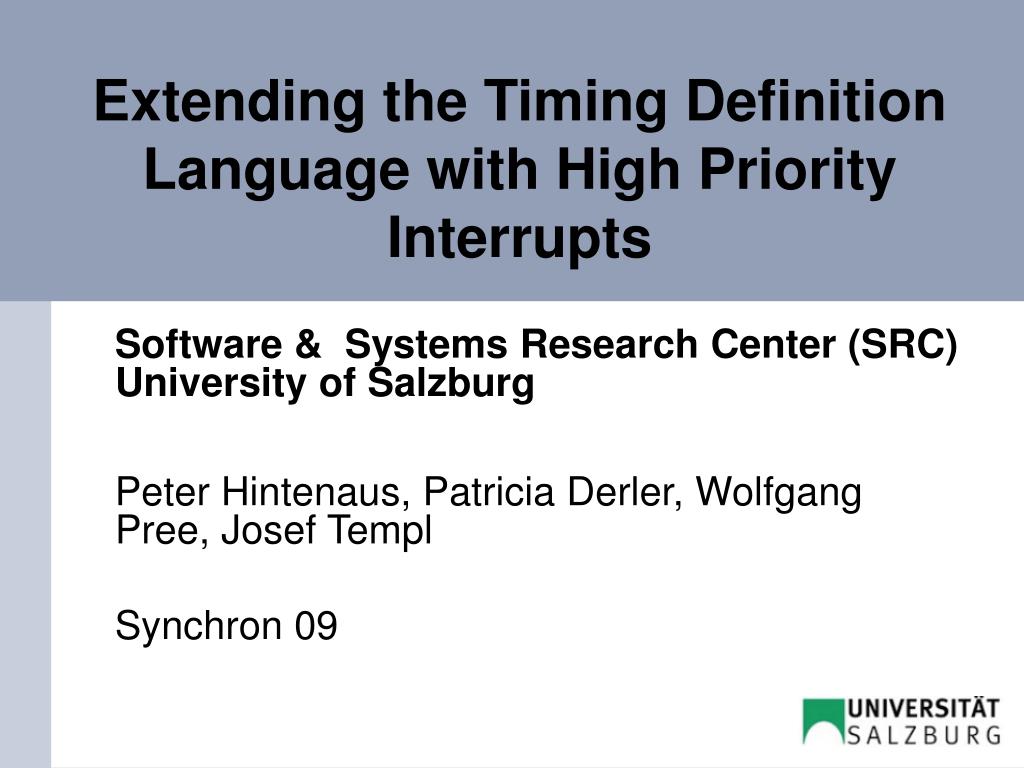

  1. Extending the Timing Definition Language with High Priority Interrupts Software & Systems Research Center (SRC) University of Salzburg Peter Hintenaus, Patricia Derler, Wolfgang Pree, Josef Templ Synchron 09

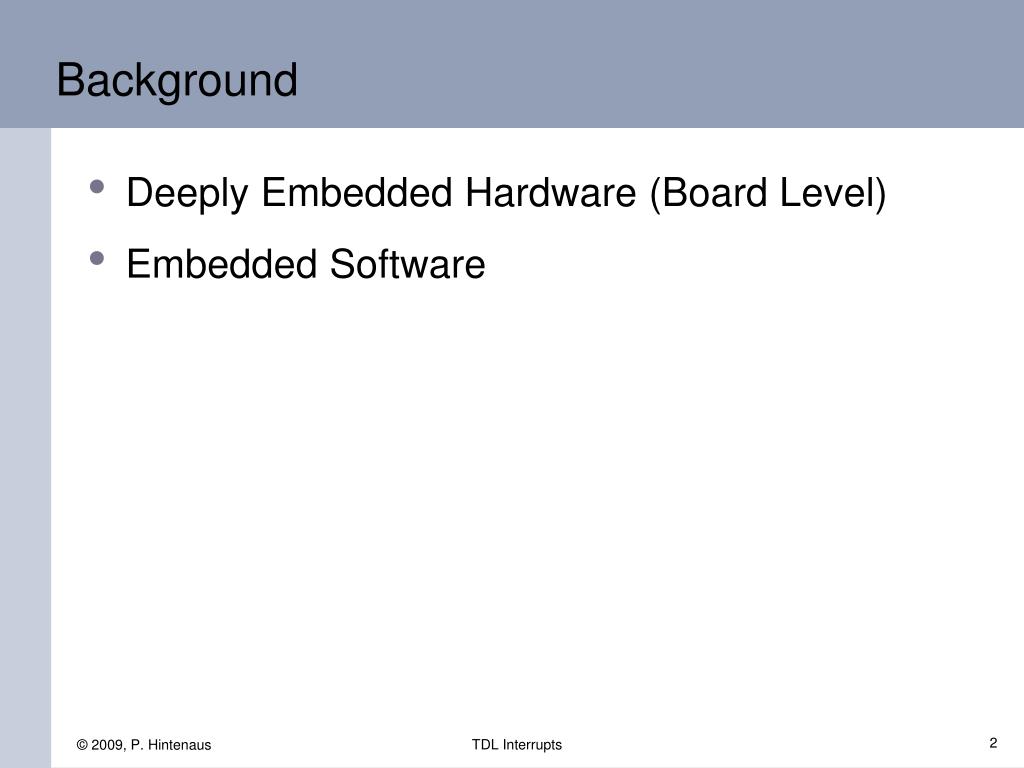

  2. Background • Deeply Embedded Hardware (Board Level) • Embedded Software

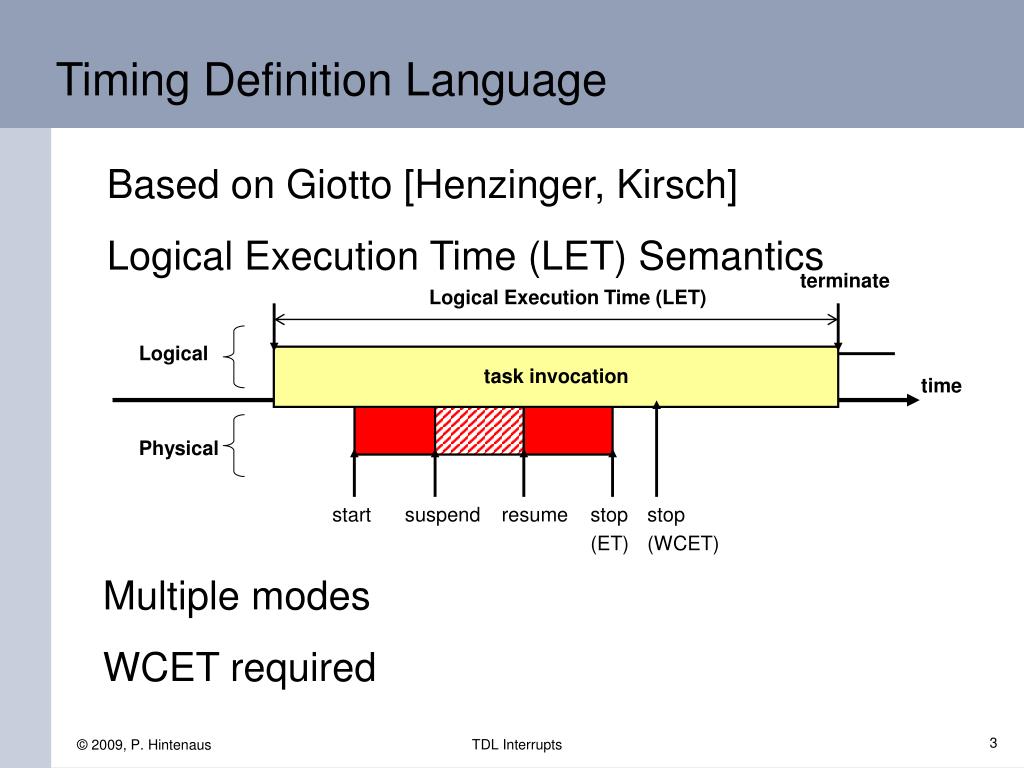

  3. Timing Definition Language Based on Giotto [Henzinger, Kirsch] Logical Execution Time (LET) Semantics Multiple modes WCET required terminate Logical Execution Time (LET) Logical task invocation time Physical start suspend resume stop (ET) stop (WCET)

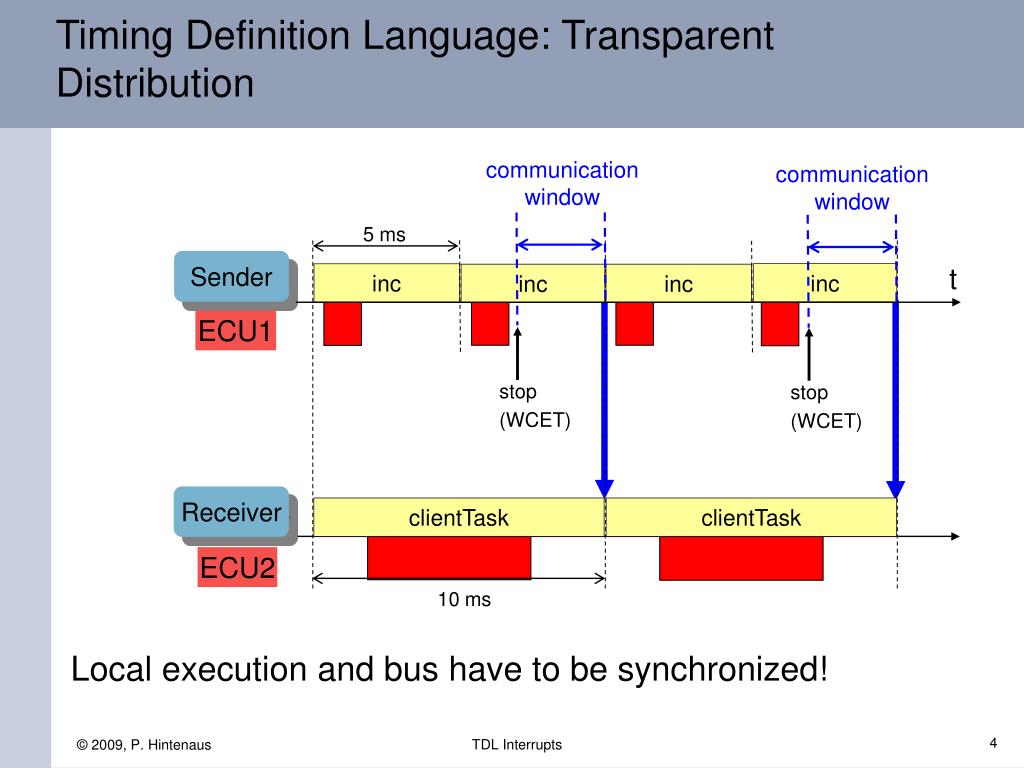

  4. Timing Definition Language: Transparent Distribution communicationwindow communicationwindow Local execution and bus have to be synchronized! 5 ms Sender t inc inc inc inc ECU1 stop (WCET) stop (WCET) Receiver clientTask clientTask ECU2 10 ms

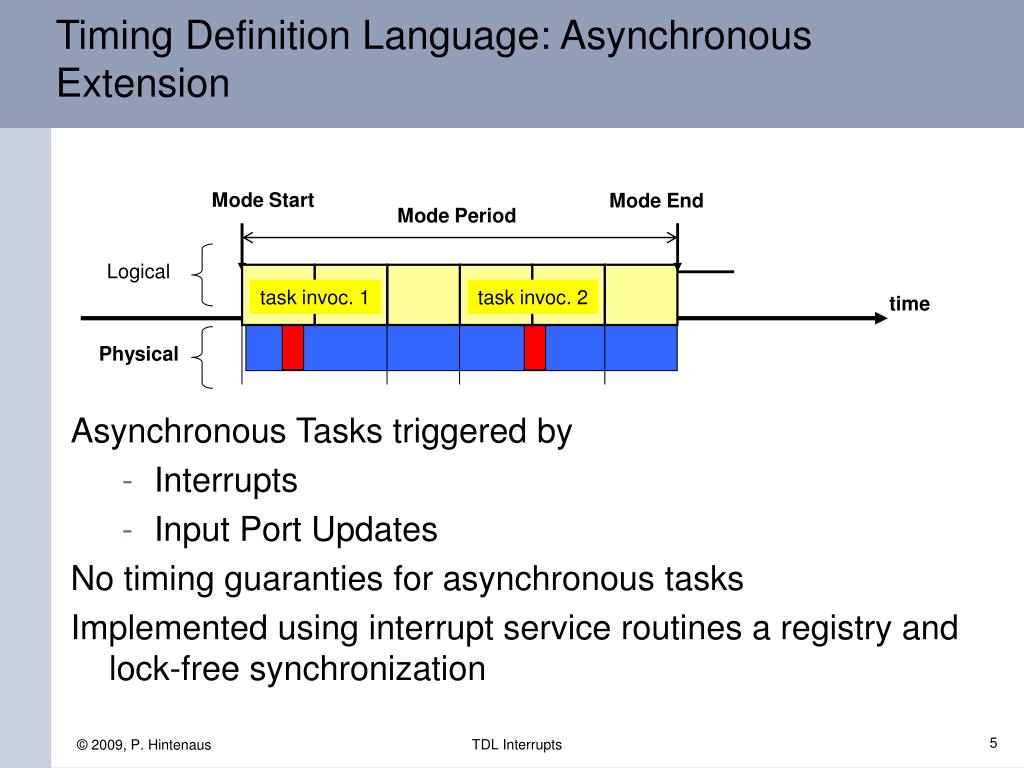

  5. Timing Definition Language: Asynchronous Extension Asynchronous Tasks triggered by • Interrupts • Input Port Updates No timing guaranties for asynchronous tasks Implemented using interrupt service routines a registry and lock-free synchronization Mode Start Mode End Mode Period Logical task invoc. 1 task invoc. 2 time Physical

  6. Flexray @ 1kHz Control @ 15kHz M Several Timing Domains Need to be able to specify timing domain! +

  7. Asynchronous Events I Sampling • Fixed Interval • Well behaved • Guaranties • Costly when fast reactions required Polling • Check whenever convenient • Well behaved • Cheap • No guaranties

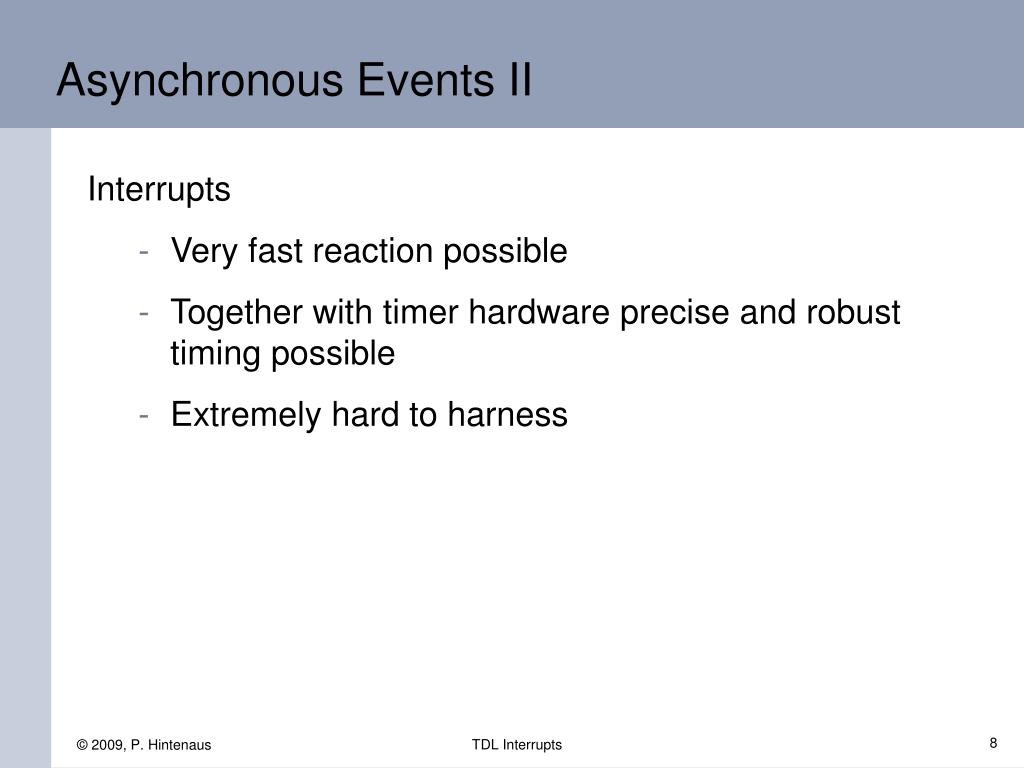

  8. Asynchronous Events II Interrupts • Very fast reaction possible • Together with timer hardware precise and robust timing possible • Extremely hard to harness

  9. Interrupts I Precisely timed execution scheduled at the beginning of the LET of a synchronous task Mode Start Mode End Mode Period task invoc. 1 task invoc. 2 time Interrupt Interrupt • Deadline • Maximum delay?

  10. Interrupts II Event originating in another timing domain • Deadline • Minimum interarrival time

  11. Impact on Synchronous Tasks Specify • LET • Rate • Start within mode period • Jitter

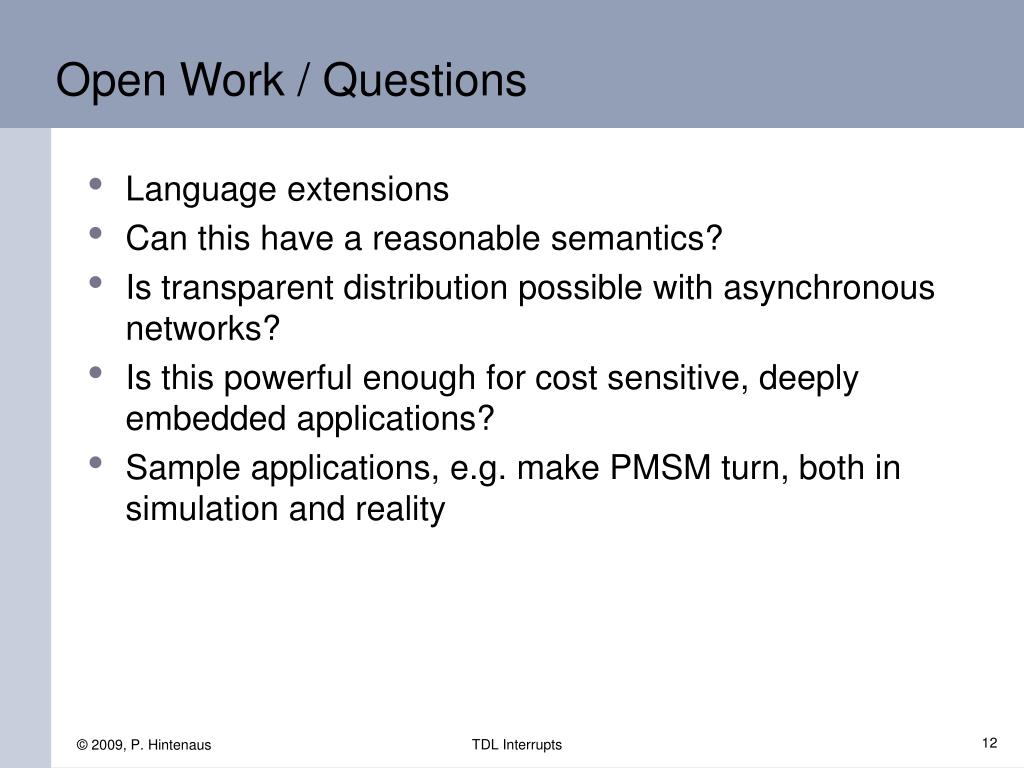

  12. Open Work / Questions • Language extensions • Can this have a reasonable semantics? • Is transparent distribution possible with asynchronous networks? • Is this powerful enough for cost sensitive, deeply embedded applications? • Sample applications, e.g. make PMSM turn, both in simulation and reality
