Wireless DNC

Wireless DNC. Wireless communication between a PC & CNC is preferred now a days. The prime reason is safety of RS-232 port of CNC. Since there is no data cable there is no possibility of any spurious voltage, ground loop taking place.

evelia
Download Presentation

Wireless DNC

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Wireless DNC • Wireless communication between a PC & CNC is preferred now a days. • The prime reason is safety of RS-232 port of CNC. Since there is no data cable there is no possibility of any spurious voltage, ground loop taking place. • Other reason is low cost. With only one pair of wireless device, many CNCs can get the PC connectivity, one at a time.

  2. Wireless DNC • Functions : a) Part Program transfer to PC b) PLC data transfer c) NC data transfer d) CNC to CNC data transfer

  3. Wireless DNC • There are many reasons to go for wireless communication. Next few slides will describe some of the features & the advantage of that feature.

  4. Wireless DNC • Practically zero maint. cost • No Software settings • Plug N Play modules. Advantage: Better Productivity on CNC Shop

  5. Wireless BT-100 • BT-100 is SENA make SD100 hardware with DIGITECH Software • Battery is optional Advantage: Imported hardware, Indian Software

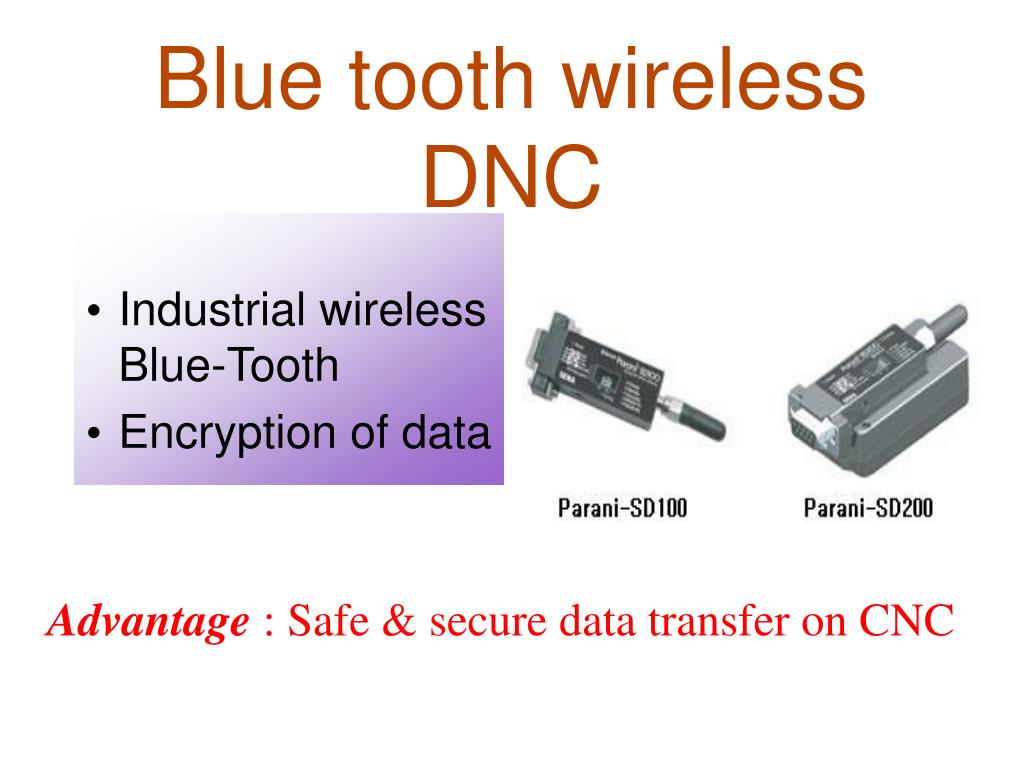

  6. Blue tooth wireless DNC • Industrial wireless Blue-Tooth • Encryption of data Advantage: Safe & secure data transfer on CNC

  7. CNC to CNC wireless data • CNC to CNC direct wireless. • No PC & DNC Software needed if same CNC control Advantage: Safe N secure data transfer on CNC

  8. Low Power wireless DNC • Low power • Works on Li-Ion battery (Optional) Advantage: CNC is 100 % safe. No Isolators.

  9. Universal Wireless DNC • Works on all DNC Software • No need to discard old DNC Advantage: Quick, & Low cost Upgrade only.

  10. Wireless DNC • Compact hardware • Low cost Advantage: Quick decision, & easy installation

  11. High speed wireless DNC • High Speed data • Hardware Handshake Advantage: Ideal for high speed VMCs like HAAS

  12. ISM band wireless DNC • Wireless Range 100 mtrs, 150 mtrs & 500 mtrs • ISM Band. No license needed. Advantage: Sufficient range for CNC Shop ISM band is reserved for Industrial-Scientific-Medical & is 2.4 GHz.

  13. Low cost wireless DNC • Cost effective & yet very reliable DNC solution Advantage: Save money. Better Profits from CNC

  14. Multiple wireless units • Option available • Expansion of network Advantage : Present investment is not waste.

  15. Some of our wireless Users

  16. Wireless DNC • Your right choice Cell phone : 94235 86171 Advantage : Long term association with DIGITECH ENGINEERS, Pune.
